Nautilus BE STRONG. NS 600X User manual

Be Strong.™
Model: NS 600X
P/N: 001-7002 Rev A (09/29/2006)
NS 600X
Assembly Manual

2
TABLE OF CONTENTS
Before You Assemble.................... 3
Product Specifications .................. 4
Product Features ........................... 4
Parts List / Box Contents ............. 5
Exploded View............................... 6
Hardware and Tool List ................ 7
Assembly Guide ............................ 8
Warranty Information ................... 20
Contacting Nautilus ...................... 21

3
Nautilus NS600X
BEFORE YOU ASSEMBLE
• At least 2 persons reccomended for assembly and installation.
Familiarize yourself with the illustrations to understand what the assembled NS600X will look like.
Select where you are going to locate your NS600X carefully. Assemble your NS600X in the location
and position where you intend to use it. You will need at least 36 inches (.91 meters) on each side of
the NS600X and 36 inches (.91 meters) behind your NS600X during assembly. The rear of the NS600X
can be closer to the wall during use but it is difficult to move after assembly and some room is needed
during assembly.
BASIC ASSEMBLY PRINCIPLES
Here are a few basic tips that will aid in the assembly of the Nautilus® NS600X. By using these
principles, you can simplify each process and save yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces you need for each step and
thoroughly read the assembly instructions for that step prior to starting assembly for the step.
2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure
that it is fastened securely.
3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt
through the holes.
4. As a general rule, and for all bolts and nuts on your NS600X Home Gym, turn bolts or nuts
toward the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty
tighty, lefty loosey.”
BEFORE YOU ASSEMBLE

4
PRODUCT SPECIFICATIONS
NOTE: All instructions in the manual are given with the orientation
of sitting on the machine ready to exercise.
User Weight Capacity: 300lbs / 136.1Kg
Dimensions: 47”w x 72”l x 83”h / 119 cm x 183 cm x 211cm
Shipping Weight: 474.4 lbs / 215.2 kg
Net Weight: 408.3 lbs / 185.2 kg
PRODUCT FEATURES
Primary Weight Stack
Lat Pulldown Bar
Adjustable Seat Back
Leg Extension
Multi Handle Grip
Press Arm Adjustment
Seat Height Adjustment
Workout Placard

5
Nautilus NS600X
PARTS LIST / BOX CONTENTS
1 Main Base .......................................................... 1
2 Rear Frame ........................................................ 1
3 Top Frame.......................................................... 1
4 Front Upright ..................................................... 1
5 Leg Extension Frame ........................................ 1
6 Pulley Mount .................................................... 1
7 Calf Raise / Low Pulley Frame.......................... 1
8 Top Stack Support Frame................................. 1
9 Cable Housing ................................................... 1
10 2 inch Backing Plate .......................................... 3
11 3 inch Backing Plate .......................................... 1
12 Press Arm Support Assembly.......................... 1
13 Press Arm .......................................................... 1
14 Right Press Arm Handle ................................... 1
15 Left Press Arm Handle ...................................... 1
16 Pec Fly Mount.................................................... 1
17 Pec Fly Cam ....................................................... 2
18 Right Pec Fly Arm.............................................. 1
19 Left Pec Fly Arm ............................................... 1
20 Pec Fly Handle ................................................... 2
21 Pec Fly Pulley Bracket....................................... 1
22 Seat Adjuster .................................................... 1
23 Seat Cross Tube ................................................ 1
24 Back Pad Tube ................................................... 1
25 Back Pad Adjuster ............................................ 1
26 Back Pad Adjustment Plate ............................. 1
27 Seat Pad ............................................................ 1
28 Back Pad............................................................. 1
29 Pulley Bracket .................................................... 1
30 Pec Double Floating Pulley Bracket ................. 1
31 Double Floating Pulley Bracket ........................ 2
32 Guide Rod Holder.............................................. 1
33 Low Pulley Cover ............................................. 2
34 T Handle Pop Pin............................................... 1
35 Locking Roller Pad ............................................ 2
36 Foam Roller Pad 8”L......................................... 2
37 Locking Roller End Cap..................................... 2
38 Roller End Cap................................................... 2
39 Plastic Washer ................................................... 2
40 Locking Roller Bar............................................. 1
41 Roller Bar .......................................................... 1
42 Plastic Cap ......................................................... 4
43 3 1/2” Pulley....................................................... 2
44 4 1/2” Pulley ...................................................... 9
45 Press Arm Support Shaft.................................. 1
46 Press Arm Pivot Shaft....................................... 1
47 Snap Cap Large................................................. 2
48 Top Weight Assembly ...................................... 1
49 Weight Plate ...................................................... 19
50 Weight Stack Bottom Plate............................... 1
51 Weight Stack Cushion....................................... 2
52 Guide Rod .......................................................... 2
CABLE
53 Cable #1 - Pulldown Cable (226”) ................... 1
54 Cable #2 - Mid Pulley Cable (96.75”) .............. 1
55 Cable #3 - Low Row Cable (137.75”) .............. 1
56 Cable #4 - Pec Fly Cable (122.5”) .................... 1
HARDWARE
57 Hex Bolt - 1/2” x 3 1/4”L ................................... 1
58 Hex Bolt - 3/8” x 4 1/2”L ................................... 1
59 Hex Bolt - 3/8” x 4 1/4”L ................................... 4
60 Hex Bolt - 3/8” x 4”L ......................................... 1
61 Hex Bolt - 3/8” x 3 1/4”L ................................... 8
62 Hex Bolt - 3/8” x 3”L ......................................... 16
63 Hex Bolt - 3/8” x 2 3/4”L ................................... 4
64 Hex Bolt 3/8” x 2 1/4”L...................................... 3
65 Hex Bolt 3/8” x 2”L............................................ 5
66 Hex Bolt - 3/8” x 1 3/4”L ................................... 3
67 Hex Bolt - 3/8” x 1 1/2”L Threadlock................ 2
68 Cap Head Screw 1/4 x 1”L Threadlock ............ 2
69 Cap Head Screw 1/4” x 1/2”L Threadlock ....... 2
70 Button Head Screw 1 3/4”L .............................. 2
71 Button Head Screw 3/4”L ............................... 4
72 1 3/8” x 1/2” Flat Washer.................................. 4
73 1” x 1/2” Flat Washer........................................ 4
74 3/8” Flat Washer................................................ 79
75 Shim Washer ..................................................... 4
76 1/2” Lock Nut ..................................................... 7
77 3/8” Lock Nut ..................................................... 42
78 Pulley Spacer 1”L.............................................. 1
79 Step Spacer 5/8”H............................................. 4
80 Step Spacer 1”H................................................ 2
81 Step Spacer 21/32”H......................................... 2
82 Set Screw 5/16” x 1/4”L.................................... 6
99 3/8” Curved Washer.......................................... 4
ACCESSORIES AND TOOLS
83 Rower Bar .......................................................... 1
84 AB Strap............................................................. 1
85 Felt Back Ankle Strap ........................................ 1
86 Dual Ring Handle Strap .................................... 1
87 Chain .................................................................. 1
88 Lat Bar................................................................ 1
89 Cable Clip........................................................... 4
90 Weight Selector Pin .......................................... 1
91 M4 Allen Wrench............................................... 1
92 M5 Allen Wrench............................................... 1
93 M6 Allen Wrench............................................... 1
94 M8 Allen Wrench............................................... 1
95 Touch Up Paint White....................................... 1
96 Touch Up Paint Gray......................................... 1
97 NS 600 Documentation..................................... 1
98 Decal Kit ............................................................. 1
# DESCRIPTION QTY # DESCRIPTION QTY

6

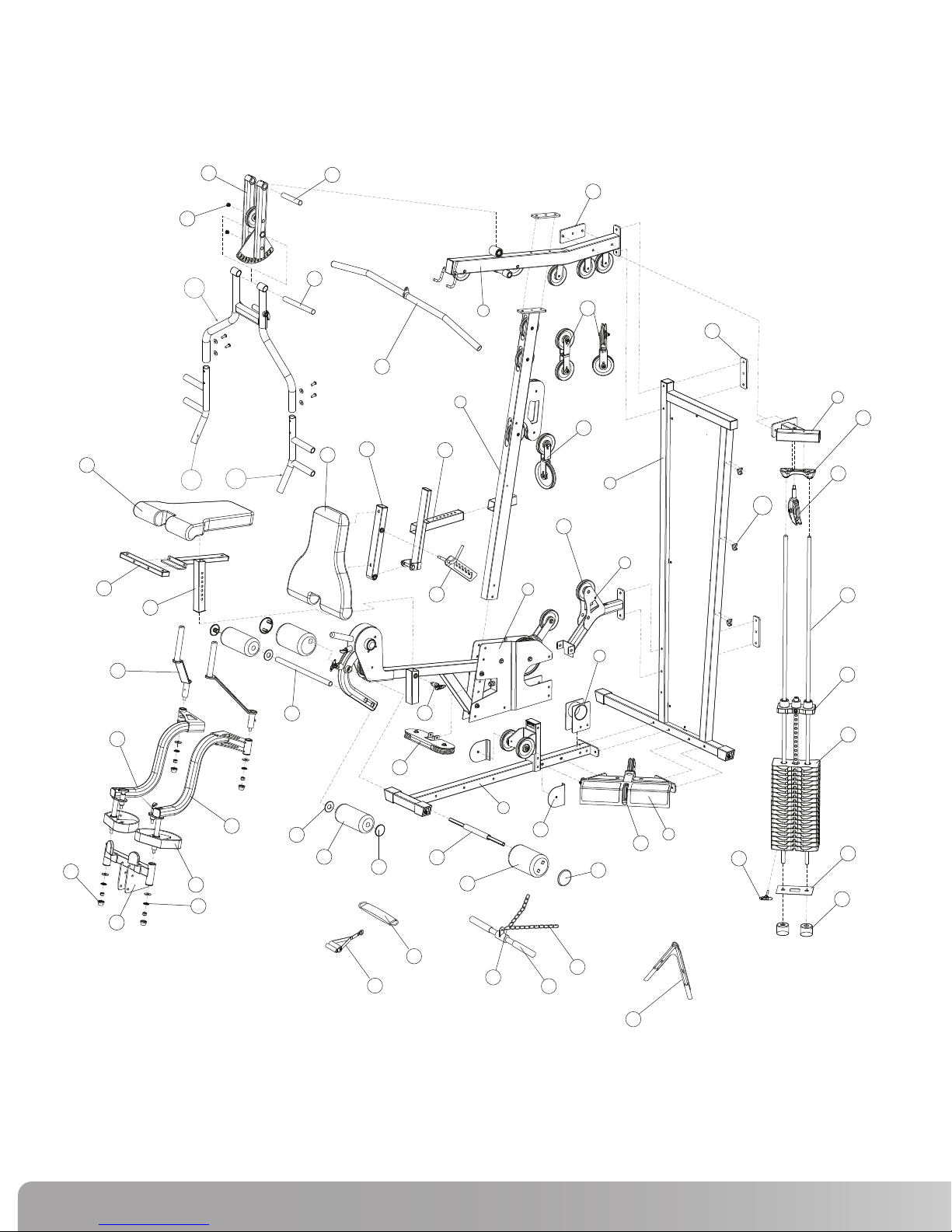

EXPLODED VIEW
A. Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins.
B. Unpackage parts and place them near the final asssembled location to avoid moving the gym when fully assembled.
51
50
49
48
47
46
45
75
42
41
40
39
38 37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
44b
83
87
84
86
85
90
43
44
88
89
52

7
Nautilus NS600X
HARDWARE AND TOOLS
1” 2” 3” 4” 5”
Hex Bolt
Button Head
Cap Head
Shim Washer
Lock Nut
Flat Washer
Step Spacer
Cable Clip
Required Tools:
9/16” or 14mm Wrench or Socket (Two Required)
3/4” Wrench or Socket
Adjustable Wrench
4, 5, 6 and 8mm Allen Wrenches (Included w/ Gym)
Flat Head
Self Drilling

8
Before assembling this gym, please be aware that this piece of equipment can be assembled in two different configurations.
The Weight Stack can be assembled on either side of the gym depending on what best fits your living space. This is accomplished simply by
assembling the Rear Frame (2), Top Stack Support Frame (8), and Calf Raise / Low Pulley Frame (7) on the opposite side of the machine.
This gym is supplied with an instructional work out diagram which is to be adhered to the Rear Frame (2) back panel. See note in diagram above
for recommended location.
The following assembly instructions show the gym assembled with the weight stack on the left side. To assemble the gym with the weight stack on
the right side, simply assemble the Rear Frame (2), Top Stack Support Frame (8), and Calf Raise / Low Pulley Frame (7) on the opposite side of
the machine as shown in the instructions.
Be sure to place the NS 600X gym as close to its final location before adding weight plates. The gym is designed so that the rear of the frame can
sit directly against a wall. Please allow a minimum of 24” on each side of the gym from the nearest wall or obstruction. The weight stack side of
the gym will need a minimum of 48” from any obstruction. If an attachment such as a leg press is used now or in the future, please allow for 48” on
the side opposite the weight stack.
Recommended location for instructional
work out diagram.
2
7
8
7
2
8

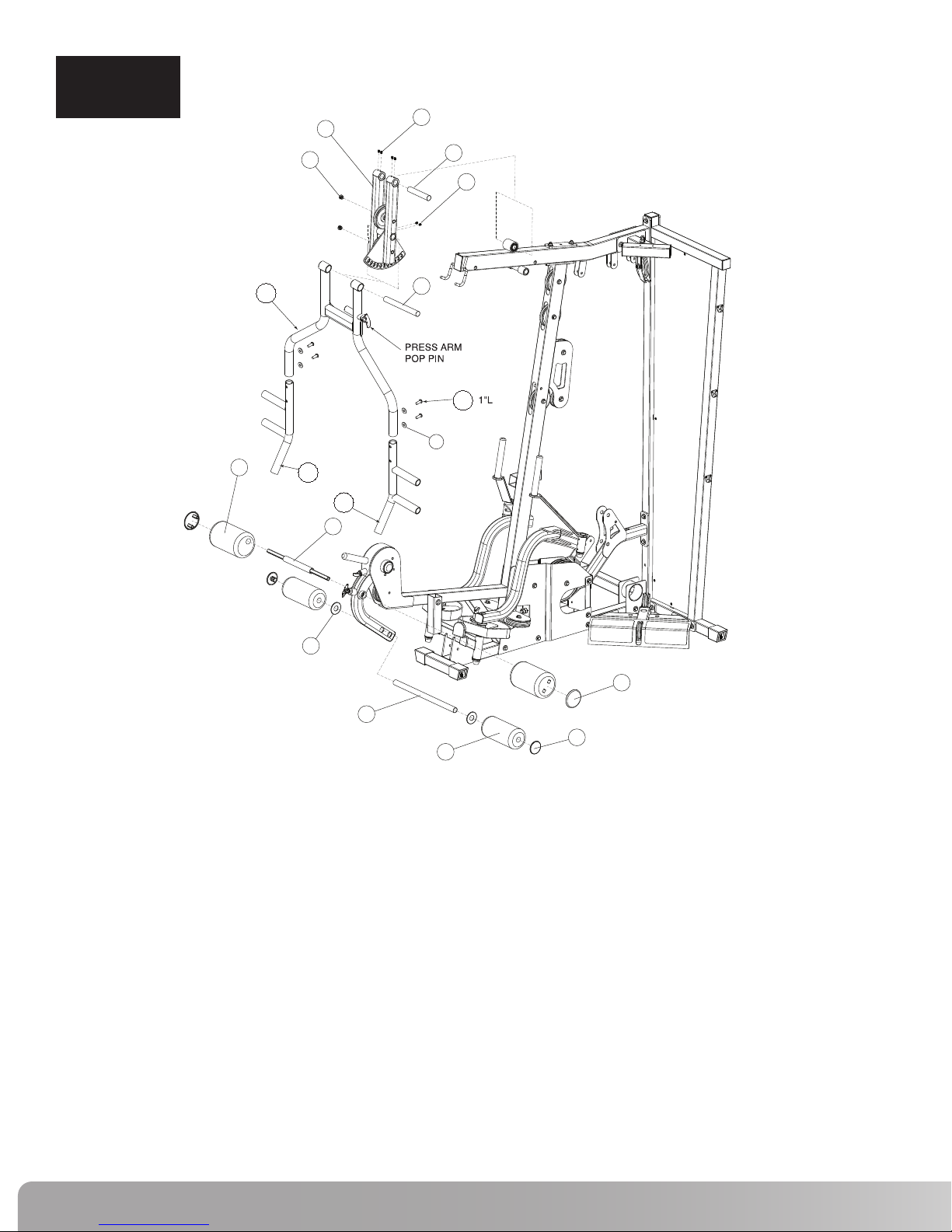

NS600X Press Arm
ASSEMBLY

9
Nautilus NS600X
10
6
5
4
3
2
1
77
74
62 3"L
62 3"L
62 3"L
59 4 1/4"L
58 4 1/2"L
61 3 1/4"L
59 4 1/4"L
61 3 1/4"L
10
10
74
77
1
2
3
4
5
6
10
58
59
61
62
74
77
Procedure:
ASSEMBLY
STEP 1
Before assembling this gym, please be aware that this piece of equipment can be assembled in two different configurations.
The Weight Stack can be assembled on either side of the gym depending on what best fits your living space. This is accomplished simply by
assembling the Rear Frame (2), Top Stack Support Frame (8), and Calf Raise / Low Pulley Frame (7) on the opposite side of the machine.
This gym is supplied with an instructional work out diagram which is to be adhered to the Rear Frame (2) back panel. See note in diagram above
for recommended location.
The following assembly instructions show the gym assembled with the weight stack on the left side. To assemble the gym with the weight stack on
the right side, simply assemble the Rear Frame (2), Top Stack Support Frame (8), and Calf Raise / Low Pulley Frame (7) on the opposite side of
the machine as shown in the instructions.
Be sure to place the NS 600X gym as close to its final location before adding weight plates. The gym is designed so that the rear of the frame can
sit directly against a wall. Please allow a minimum of 24” on each side of the gym from the nearest wall or obstruction. The weight stack side of
the gym will need a minimum of 48” from any obstruction. If an attachment such as a leg press is used now or in the future, please allow for 48” on
the side opposite the weight stack.
Recommended location for instructional
work out diagram.
2
7
8
7
2
8
NS600X Press Arm
# Component Qty
Step 1 Components:
Main Base
Rear Frame
Top Frame
Front Upright
Leg Extension Assembly
Pulley Mount
2 Inch Backing Plate
Hex Bolt 3/8” x 4 1/2”L
Hex Bolt 3/8” x 4 1/4”L
Hex Bolt 3/8” x 3 1/4”L
Hex Bolt 3/8” x 3”L
3/8” Flat Washer
3/8” Lock Nut
1
1
1
1
1
1
3
1
4
4
6
30
15
A. Attach Main Base (1) to Rear Frame (2) using hardware shown.
Do not tighten hardware.
B. Attach Leg Extension Assembly (5) to Main Base (1) using hardware shown.
Do not tighten hardware.
C. Attach Front Upright (4) to Leg Extension Assembly (5) using hardware shown.
Do not tighten hardware.
D. Attach Top Frame (3) to Front Upright (4) and Rear Frame (2) using hardware
shown and 2 Inch Backing Plate (10). Do not tighten hardware.
E. Attach Pulley Mount (6) to Leg Extension Assembly (5) and Rear Frame (2)
using hardware shown and 2 Inch Backing Plate (10). Tighten all hardware
used in this step securely.

10
# Component Qty

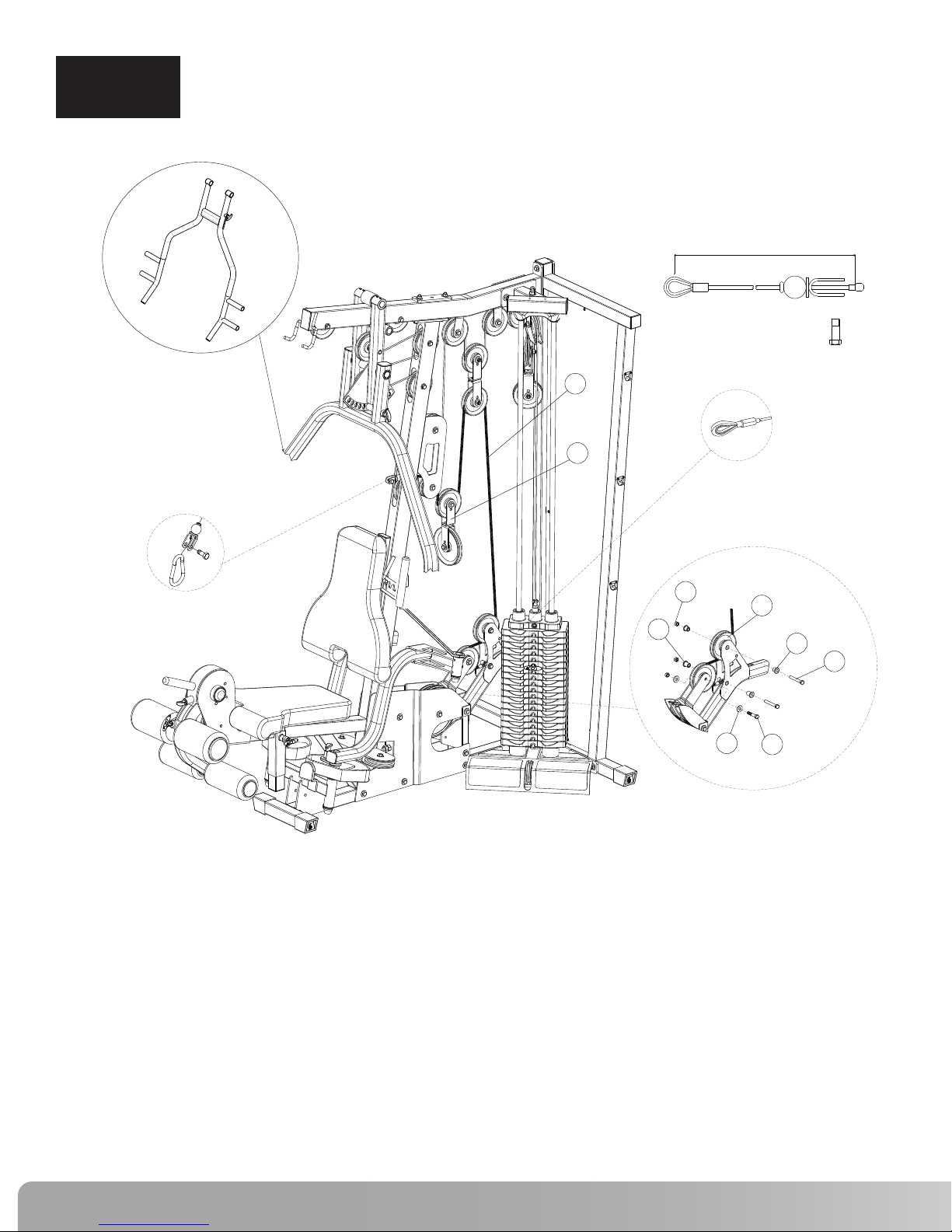

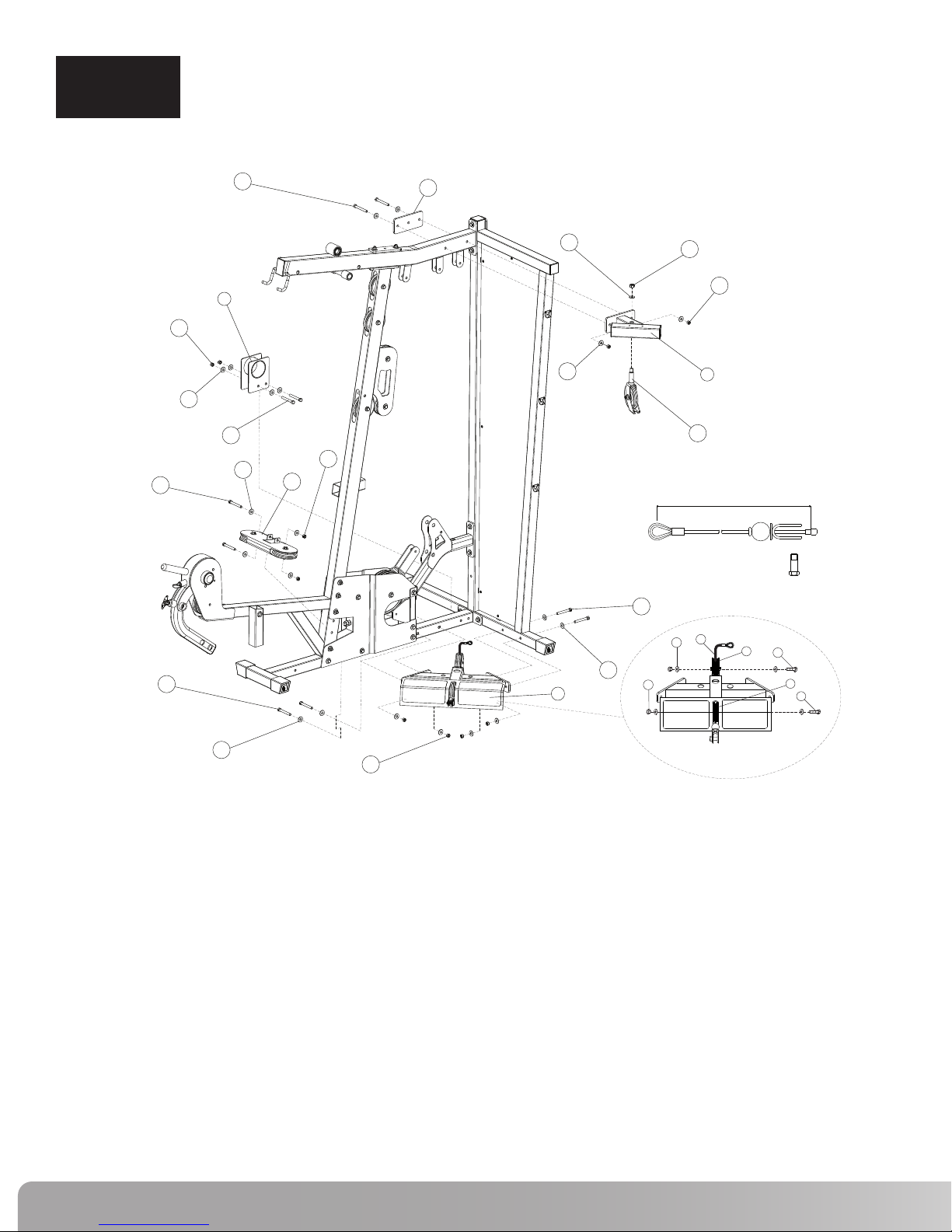

Step 2 Components: Procedure:
A. Attach Top Stack Support Frame (8) to Top Frame using a 3 Inch Backing Plate
(11) and the hardware shown. Tighten hardware firmly.
B. Attach Pulley Bracket (29) to Top Stack Support Frame (8) using hardware
shown. Do not tighten hardware.
C. Attach Cable Housing (9) to Main Base using hardware shown. Tighten hardware
firmly. NOTE: If an exercise attachment such as the NS75X is used, do not install
Cable Housing (9).
D. Attach Pec Fly Pulley Bracket (21) to Leg Extension Assembly using hardware
shown. Tighten hardware firmly.
E. Install Low Row Cable (55) through Calf Raise / Low Pulley Frame (7). See
Detail A. Feed the looped end of the cable through the foot plate side of the Calf
Raise / Low Pulley Frame (7). Attach two 3 1/2” Pulleys (43) using hardware
shown, making sure that the cable runs in the groove on the low side of the pulley.
Final installation of the cable will be completed on Step 9. NOTE: Make sure
that the cable is NOT wrapped around the cable stop.
F. Attach Calf Raise / Low Pulley (7) to the Main Base and Rear Frame using
hardware shown. Tighten hardware firmly.
ASSEMBLY
STEP 2
7
8
9
11
21
29
43
55
61
62
65
73
74
76
77
Calf Raise / Low Pulley Frame
Top Stack Support Frame
Cable Housing
3 Inch Backing Plate
Pec Fly Pulley Bracket
Pulley Bracket
3 1/2” Pulley
Low Row Cable
Hex Bolt 3/8” x 3 1/4”L
Hex Bolt 3/8” x 3”L
Hex Bolt 3/8” x 2”L
1/2” Flat Washer Narrow
3/8” Flat Washer
1/2” Lock Nut
3/8” Lock Nut
1
1
1
1
1
1
2
1
2
8
2
1
24
1
12
21
7
9
29
8
11
62 3"L
62
3"L
74
77
73 76
74
77
61
3 1/4"L
62
3"L
77
74
74
62
3"L
77
74
77
55
43
43
65
65
2”L
2”L
A
74
137.75" (3500mm)
