Nautilus ONE CP02 User manual
Page 1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................2
LABELS ................................................................... 4
SWIRL TEMPLATE ................................................................... 6
SEAT FRAME DETAILS ........................................................................................................................7
ABDUCTION/ADDUCTION ................................................................... 8
ABDOMINAL CRUNCH ................................................................. 10
CHEST PRESS ................................................................. 12
LOWER BACK ................................................................. 14
LEG PRESS ................................................................. 16
LAT PULLDOWN ................................................................. 18
ASSEMBLY ......................................................................................................................20
TOOLS ................................................................. 20
PROCEDURE (ALL SEAT FRAMES)............................................................. 20
MAINTENANCE ......................................................................................................................21
TOOLS ................................................................. 21
MAINTENANCE SCHEDULE ................................................................. 22
SUPPORT & SERVICE ......................................................................................................................24
Page 2
WARNING: to reduce the risk of serious injury to
persons using this equipment, read and follow all of
these warnings:
24 in (0.6 m)
Fig. 1 Required Clearance Example (Pull Down Shown)
1. Assemble and operate the unit on a solid level
surface. Position the machine with a minimum of
24 inches (0.6 meters) of clearance on one side to
allow for ease of mounting and dismounting. Leave
a minimum of 19.7 inches (0.5 meters) between
two adjacent units. These dimensions are the
recommended minimum distances.
The actual area for access and passage shall be
the responsibility of the facility and should take
into account this training envelope, Americans with
Disabilities Act Accessibility Guidelines (ADAAG)
requirements and any required local codes or
regulations (www.access-board.gov/ada).
2. This equipment is designed for use in a
commercial gymnasium or health club. To ensure
the proper use of the equipment in a safe manner,
all users of the equipment should read this manual
before using the machine. This machine should
be made a part of your club training program in
order that the equipment is used by your members
in a safe manner as intended. In addition to
instructing the club members in the proper use of
the equipment, the club member should obtain a
complete physical examination form their health
care provider before beginning any exercise
program.
3. The safety and integrity of this machine can only
be maintained when the equipment is regularly
examined for damage and wear and repaired.
It is the sole responsibility of the owner of this
equipment to ensure that regular maintenance
is performed. Worn or damaged parts must be
replaced immediately or the equipment removed
from service until the repair is made.
4. Do not exceed the maximum allowable weight limit
of:
• 350 lbs. (160 kg.)
5. Use only replacement components supplied by
Nautilus®. Substitutes are forbidden and will void
all warranties.
6. This machine is not intended to be used by
persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge,
unless given instruction and under the personal
supervision concerning use of the machine by a
person responsible for their safety.
7. Keep children away.
Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL
installation instructions. The Owner’s Manual describes equipment assembly and instructs
members on how to use correctly and safely.
Read all warnings posted on the machine.
Health related injuries may result from incorrect or excessive use of exercise equipment.
Core Health & Fitness strongly recommends you to encourage your members to discuss their
health program or fitness regimen with a health care professional, especially if you or they
have not exercised for several years, are over 35, or have known health conditions.
WARNING!
IMPORTANT SAFETY
INSTRUCTIONS
Page 3
8. Never use dumbbells or other means to
incrementally increase the weight resistance.
Use only those means provided by Nautilus.
9. Ensure all adjustment and locking features are
properly secured before using the equipment.
10. When adjusting any seat, knee stabilization pad,
range of motion limiter, foothold pad or any other
type of adjuster, make certain that the adjusting
pin is fully engaged in the hole to avoid injury. If
any of the adjustment devices are left projecting,
they could interfere with the user’s movement.
11. Wear proper exercise clothing and athletic shoes
during a workout. Avoid wearing loose clothing.
Tie back long hair and keep towels away from
the moving parts. Face forward at all times and
never attempt to turn around while the machine
is moving.
12. Do not over exert yourself during exercise. Stop
exercising if you feel pain or tightness in your
chest, become short of breath or feel faint. If you
feel pain or experience any abnormal symptoms,
stop exercising and consult your health care
provider.
13. It is the purchaser’s sole responsibility to
properly instruct its end users and supervising
personnel as to the proper operating procedures
of all Nautilus equipment.
SAVE THESE INSTRUCTIONS
Page 4
LABELS
12-1173
SEAT ADJUSTMENT DECAL 1-11
12-5655
DECAL RANGE SELECTOR S6AA
731-7311
STICKER, NLS, DECO,
45MMX191MM
CAUTION
12-1026
DECAL CAUTION (YELLOW)
050-2225
STICKER, WARNING, BOLT DOWN
12-5666
DECAL SEAT POSITION S6LP
12-5667
DECAL SEAT BACK ANGLE S6LP
12-5668
THIGH PAD ADJUSTMENT
Notice: images are not to scale
Page 7
Part No. Name
95-0978-XX KIT, MAST HARDWARE, “ONE” CP02
95-0979-XX KIT, MAST FIT20, S6LB02, HARWARE
95-0980-XX KIT, MAST FIT20, S6LATP02, HARWARE
95-0981-XX KIT, MAST FIT20, S6LP02, HARWARE
95-0982-XX KIT, MAST FIT20, S6AA02, HARWARE
95-0983-XX KIT, MAST FIT20, S6AB02, HARWARE
Part No. Name
12-5659 MOLDED WT KNOB LOGO, FIT20 (S6)
12-5660 DECAL TOWER LOGO FIT20
Fig. 3 All Fit20 Seat Frames
Details for the seat frames are on the following pages. Images include the Fit20 hardware listed below. Weights
& dimensions do not include the below hardware. Colors are representative only.
SEAT FRAME DETAILS
Page 8
S6AA02 ONE™ Hip Abduction/Adduction
Seat Frame
Weight Width Length Height Max User Weight
262 lbs
118 kg
35.5 in
90 cm
71 in
180 cm
48 in
123 cm
350 lbs
160 kg
Seat Frame and (255+5 Tower): 857 lbs (389 kg)
Seat Frame and (255+1 Tower): 873 lbs (396 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
050-2225
731-7311
12-5681
Machine Serial
12-5655
Fig. 4 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
ABDUCTION/ADDUCTION
Page 10
S6AB02 ONE™ Abdominal Crunch
Seat Frame
Weight Width Length Height Max User Weight
292 lbs
132 kg
41 in
105 cm
39 in
98 cm
60 in
152 cm
350 lbs
160 kg
Seat Frame and (255+5 Tower): 857 lbs (389 kg)
Seat Frame and (255+1 Tower): 873 lbs (396 kg)
Seat Frame and (385+5 Tower): 1079 lbs (489 kg)
Seat Frame and (425+5 Tower): 1119 lbs (507 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
Machine Serial
12-1173
731-7311
12-5682
Fig. 5 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
ABDOMINAL CRUNCH
Page 12
S6CP02 ONE™ Chest Press
Seat Frame
Weight Width Length Height Max User Weight
271 lbs
123 kg
50.5 in
128 cm
57 in
145 cm
75 in
190 cm
350 lbs
160 kg
Seat Frame and (255+5 Tower): 864 lbs (392 kg)
Seat Frame and (255+1 Tower): 880 lbs (399 kg)
Seat Frame and (385+5 Tower): 1086 lbs (493 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
Engine Serial
731-7311
050-2225
12-1173
12-5683
Machine Serial
Fig. 6 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
CHEST PRESS
Page 14
S6LB02 ONE™ Lower Back
Seat Frame
Weight Width Length Height Max User Weight
255 lbs
115 kg
38 in
96 cm
50 in
126 cm
49.5 in
126 cm
350 lbs
160 kg
Seat Frame and (255+5 Tower): 842 lbs (382 kg)
Seat Frame and (255+1 Tower): 858 lbs (389 kg)
Seat Frame and (385+5 Tower): 1064 lbs (483 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
731-7311
050-2225
12-1173
12-1026
Machine Serial
12-5685
12-1173
Fig. 7 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
LOWER BACK
Page 16
S6LP02 ONE™ Leg Press
Seat Frame
Weight Width Length Height Max User Weight
540 lbs
245 kg
38 in
96 cm
50 in
126 cm
49.5 in
126 cm
350 lbs
160 kg
Seat Frame and (425+5 Tower): 1402 lbs (636 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
Engine Serial
12-5686
Machine Serial
731-7311
12-1026
12-5667
12-5666
Fig. 8 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
LEG PRESS
Page 18
S6LT02 ONE™ Lat Pulldown
Seat Frame
Weight Width Length Height Max User Weight
540 lbs
245 kg
51 in
129.5 cm
77 in
195.5 cm
88 in
223.5 cm
350 lbs
160 kg
Seat Frame and (425+5 Tower): 1402 lbs (636 kg)
This page shows the locations of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the
integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown below. Image for the Placard/Lenticular is on the next page,
for all others refer to LABELS on page 16. See Support and Service to order replacements.
Machine Serial
050-2225
731-7311
12-5684
12-1173
Engine Serial
12-5668
Fig. 9 Important Label Locations (Pictured with Weight Engine & Fit20 Kits)
LAT PULLDOWN
This manual suits for next models
5
Table of contents
Other Nautilus Home Gym manuals
Nautilus

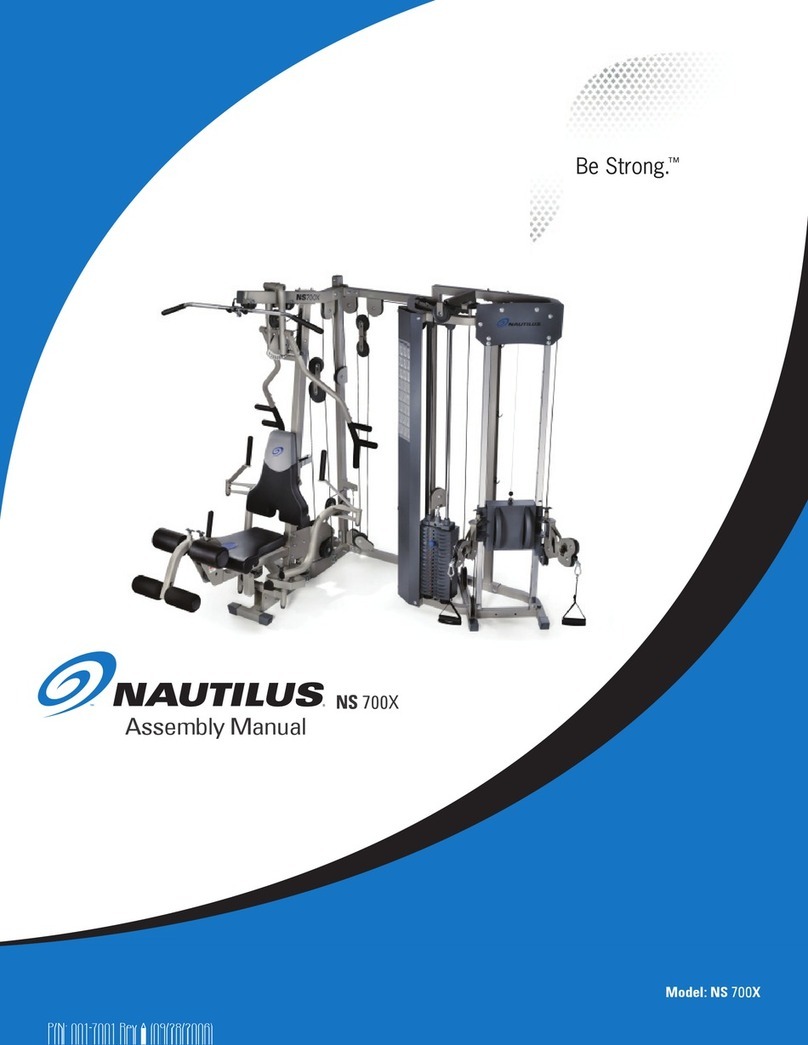

Nautilus Be strong NS 700X User manual
Nautilus
Nautilus S912 User manual
Nautilus

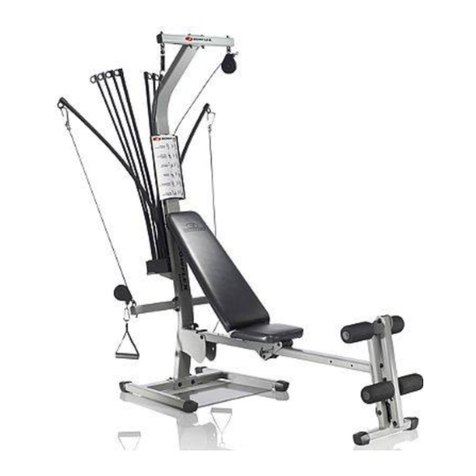

Nautilus Bowflex Classic User manual
Nautilus
Nautilus NS-600 User manual
Nautilus
Nautilus Be strong NS 200X User manual
Nautilus
Nautilus 2ST ABDOMINAL User manual
Nautilus

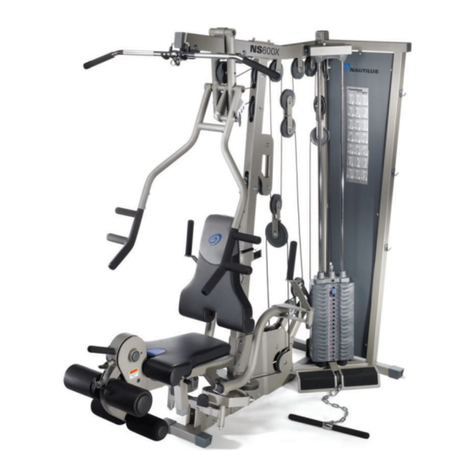

Nautilus BE STRONG. NS 600X User manual
