Navitar 1-51316 Guide

REV CHANGERECORD AND DATECH
ROCHESTER,NEWYORK
REV
SIZE
B
P/NSUFFIXDEFINITION
-1CONVERSIONCOATING
-2PAINTING
-3MARKING
-RREWORK
UNLESS OTHERWISE
SPECIFIED
DIMENSIONSAREININCHES
AND INCLUDECHEMICALLY
APPLIEDORPLATEDFINISHES
DEC..XXX `.005
DEC..XX `.010
FRACT.`1/64
ANGLES `30'
CONCENTRICITY.003 TIR
BREAK ALL SHARPEDGES
.005 MIN..010 MAX
MAX.SURF.ROUGHNESS 32
TOLERANCES:
MATERIAL:
FINISH:
CHAMFERALL THREADS
30~TOROOTDIAM.
USEDON:
SCALE:
DR.:
CH.:
APP.:
DATEDR.:
DONOTSCALEDRAWING
0.0mm 25.0
0.0inch1.0
SHEETOF
THECONTENTSOFTHIS
DOCUMENTAREPROPRIETARY
TONAVITAR,ITSUSE IS
AUTHORIZEDONLYFOR
RESPONDINGTOREQUEST
FORQUOTATIONOR
PERFORMANCEOFWORKFOR
NAVITAR
1-51316 A
11
R.PODLENA
P.BONAFEDE
9/18/2003
MOTORIZED(5PH)12Xw/12mm FF &
2POSLS(HE)
1:1

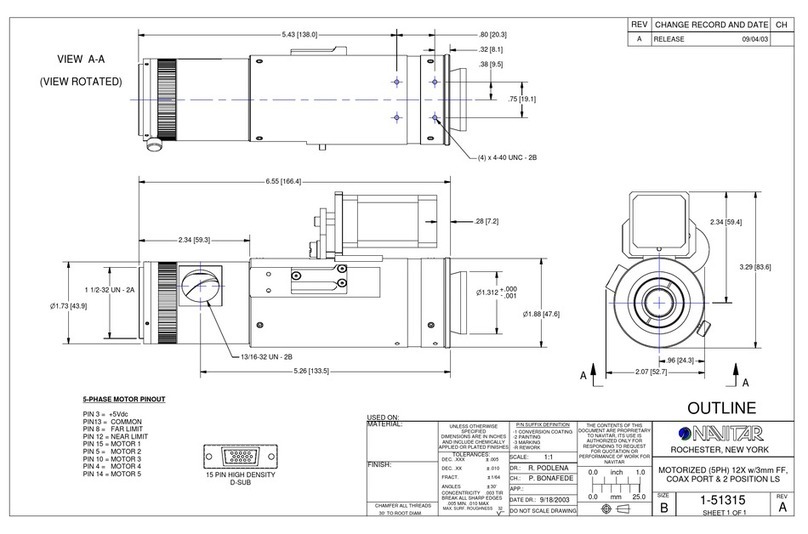

OUTLINE
3.29 [83.6]
2.34 [59.4]
5.82 [147.9]
.28 [7.2]
1.312n-.001
.000
+
n1.875
n1.91 [48.4]
1.05 [26.8]
.95 [24.2]
n1.50 [38.1]
n1.73 [43.9]
2.09 [53.1]
2.48 [62.9]
