NavLinkz RL4-PCM60 User manual

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Video inserter
RL4-PCM60
Compatible with
Porsche vehicles
with PCM 4.1, PCM 5.0 and PCM 6.0 infotainment
and 12.3inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Activatable PDC (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings - 8 Dip switches (black)
1.4.1. Activating the front camera (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Activation of the guidelines(dip 6)
1.4.5. Monitor selection (Dip 7)
1.4.6. Activation of the factory PDC display (Dip 8)
1.5. Settings - 4 Dip switches (CAN function –red)
1.6. Settings - 2 Dip switches (Selection head-unit –black)
2. Installation
2.1. Place of connection
2.2. Connection schema
2.3. Connection - factory head unit
2.3.1. Connection - picture signal cable
2.3.1.1. Vehicles with PCM 4.1
2.3.1.2. Vehicles with PCM 5.0

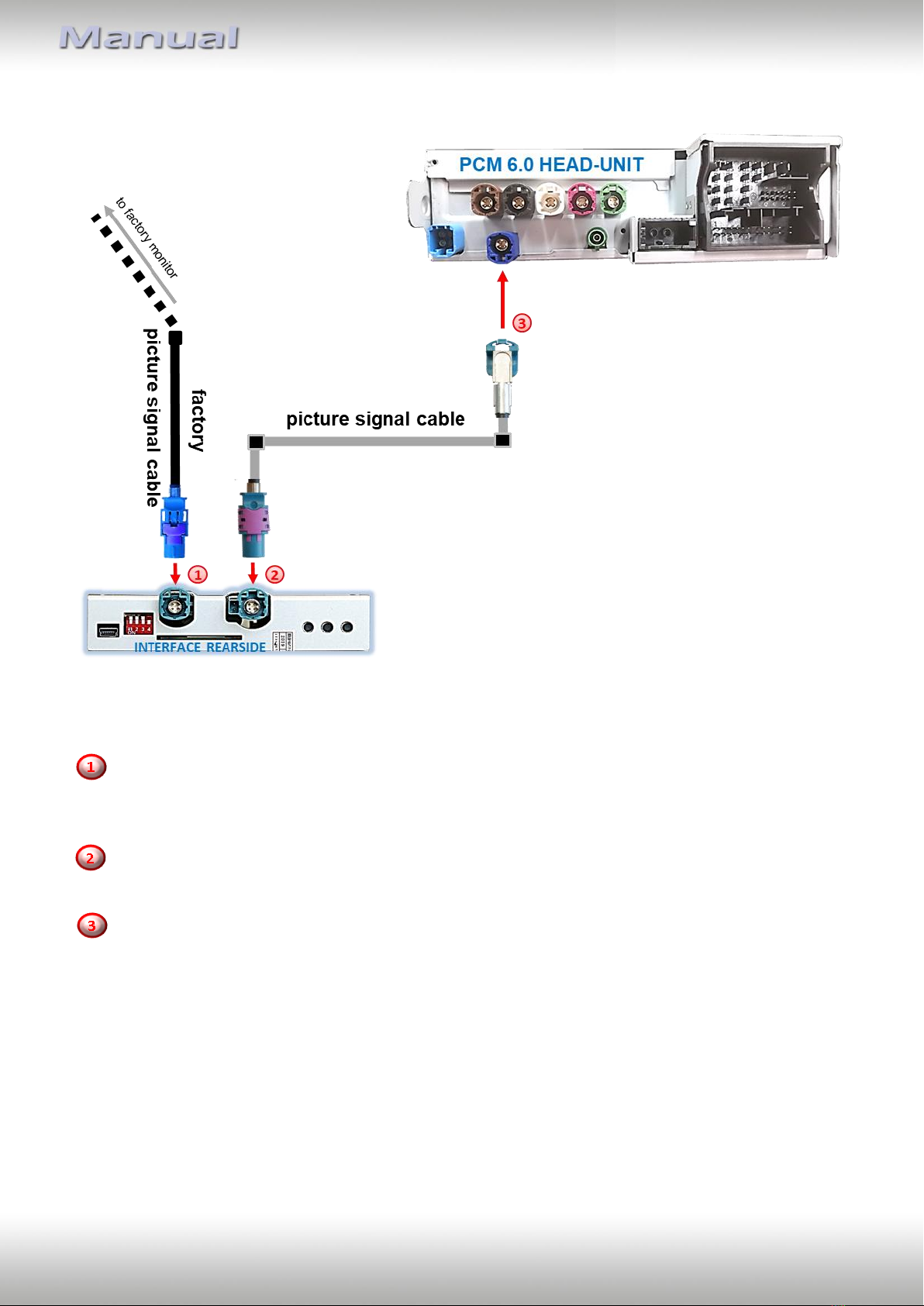

2.3.1.3. Vehicles with PCM 6.0

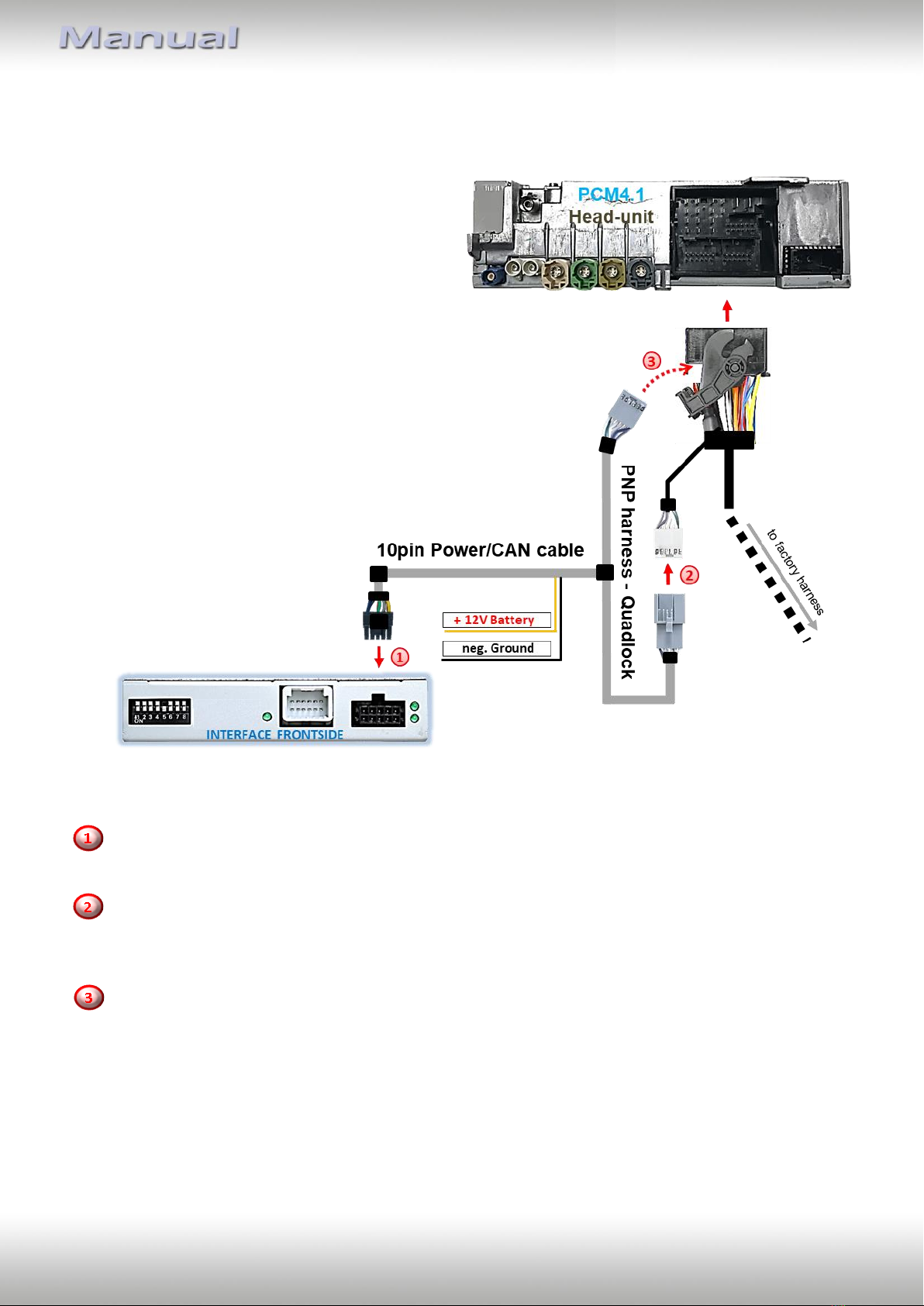

2.3.2. Connection - Quadlock –CAN
2.3.2.1. Vehicles with PCM 4.1
2.3.2.2. Vehicles with PCM 5.0
2.3.2.3. Vehicles with PCM 6.0
2.3.3. Connection - Power
2.3.4. Analogue power supply
2.4. Power supply output for front cam
2.5. Connection - video-sources
2.5.1. Audio insertion
2.5.2. After-market front camera
2.5.3. After-market rear-view camera
2.5.3.1. Case 1: Interface receives the reverse gear signal
2.5.3.2. Case 2Interface does not receive the reverse gear signal
2.6. Connection - video-interface and external keypad
2.7. Picture settings
3. Interface operation
4. Specifications
5. FAQ –Trouble Shooting-Interface functions
6. Technical support

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Porsche
Panamera (971) since model year 2017
PCM 4.1 (Harman)
with 12.3inch monitor
911 (992) since model year 2019
Cayenne E3 (PO536) since model year 2018
Cayenne Coupé since model year 2019
Macan since model year 2019
Taycan since model year 2019
PCM 5.0 (Alpine)
with 12.3inch monitor
911 (992) since model year 2022
PCM 6.0
with 12.3inch monitor
Limitations:
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory
audio-AUX-input or a FM-modulator can be used. If 2 audio
sources shall be connected to the infotainment, an additional
electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory
rear-view camera is only possible while the reverse gear is
engaged. To delay the switch-back an additional electronic part
is required.
After market front camera The front camera will automatically be switched for 10 seconds
after disengaging the reverse gear. A manually front camera
switching is possible by external keypad.
Guidelines and PDC Displayed guidelines and optical PDC are not available in all
vehicles.
Video input signal Only NTSC video sources compatible
1.2. Checking the compatibility of vehicle and accessories

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page5
1.3. Boxes and connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page6
1.4. Settings - 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
In case of a non-optimal displayed picture with the mentioned dip settings of dip 7, we
recommend to try the other dip switch setting.
After each Dip-switch-change a power-reset of the Video interface has to be performed!
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
** A correct display of the PDC is only possible if it is by factory displayed on the RIGHT
side of the monitor.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply output
(red wire)
+12V (max. 3A) when reverse
gear is engaged incl. delay for
10 seconds and +12V by manual
switching to front camera by
keypad
+12V ACC out
2
CVBS Video 1-input
enabled
disabled
3
CVBS Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
guidelines
enabled
disabled
7
Monitor
adjustment
try both dip switch settings
(ON/OFF)
try both dip switch settings
(ON/OFF)
8
Factory PDC
Camera and PDC**
only camera

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page7
1.4.1. Activating the front camera (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear, depending on the menu
adjustments. In addition, a manual switch-over to the front camera input is possible via
keypad (short press) from any image mode.
Note: Description of the power supply output: see chapter “Power supply output for front cam”.
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.4. Activating the guide lines (dip6)
If set to ON, the guide-lines will be shown on the display.
If set to OFF, the guide lines won’t be visible on the display.
1.4.5. Monitor selection (Dip 7)
Dip 7 customizes the monitor-specific video settings which sometimes even vary within head
units of the same version, caused by different monitor specifications. If one dip position
doesn’t give a satisfying picture, try the other setting while a working video source is
connected to the chosen input of the interface. If there is no change of picture visible after
having changed the setting, retry and disconnect the 6pin plug at the interface box between
every change of the dip setting.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page8
1.4.6. Activation of the factory PDC display (Dip 8)
Dip 8 is used to switch between image formats of front and rear camera and to display the
factory PDC (if available) as „picture in picture“ in combination with the camera image.
Note: A correct display of the PDC is only possible if the PDC is by factory displayed on the
right side of the monitor.
Note: If there is no communication between interface and the vehicle`s CAN-bus (several
vehicles aren’t compatible), the optical PDC and the reverse gear guide-lines can`t be shown
during the vehicle’s operation, even if they once appear after having switched the system to
powerless!
Dip switch 4 is out of function and has to be set to OFF.
1.5. Settings of the 4 Dip switches (CAN functions –red)
Dip position down is ON and position up is OFF.
1.6. Settings of the 2 Dip switches (selection head-unit - black)
The 2 dip switches on the upper side of the interface box are used to select the head
unit.
Dip position up is ON and position down is OFF.
Fahrzeug/Navigation
Dip 1
Dip 2
PCM 4.1 (Harman)
ON
ON
PCM 5.0 (Alpine)
OFF
OFF
PCM 6.0 (Aptive/Delphi)
OFF
ON
After each Dip-switch-change a power-reset of the video interface has to be performed!
Dip
Funktion
ON (unten)
OFF (oben)
1
Maual selection of the
Head Unit System
(only possible
if dip2= OFF)
Harman
Alpine, Aptiv/Delphi
2
Automatic recognition of
the head unit system
enabled
disadled
(with manual selection of the
Head Unit via di1)
3
No function
Auf OFF stellen
4
No function
Auf OFF stellen

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page9
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of connection
The interface is supposed to be installed at a suitable location behind the vehicle`s head-
unit.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page10
2.2. Connection schema

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page11
2.3. Connection - factory head-unit
Remove the head unit
2.3.1. Connection –picture signal cable
2.3.1.1. Vehicles with PCM 4.1
Disconnect the grey female HSD connector (colours may vary) at the rear-side of the head unit and
connect it to the waterblue coloured male HSD connector „TO LCD“ of the video interface.
Connect the female non-angled waterblue coloured HSD connector of the enclosed picture
signal cable to the waterblue coloured HSD+2 connector „HU IN“ of the video interface.
Connect the opposite female angled purple HSD connector of the enclosed picture signal
cable to the previously become free HSD connector of the head unit
Note: Depending on the installation conditions, the enclosed picture signal cable may also
be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must
only be made at the head unit!

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page12
2.3.1.2. Vehicles with PCM 5.0
Disconnect the grey female HSD connector (colours may vary) at the rear-side of the head unit and
connect it to the waterblue coloured male HSD connector „TO LCD“ of the video interface.
Connect the female non-angled waterblue coloured HSD connector of the enclosed picture
signal cable to the waterblue coloured HSD+2 connector „HU IN“ of the video interface.
Connect the opposite female angled purple HSD connector of the enclosed picture signal
cable to the previously become free HSD connector of the head unit.
Note: Depending on the installation conditions, the enclosed picture signal cable may also
be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must
only be made at the head unit!

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page13
2.3.1.3. Vehicles with PCM 6.0
Disconnect the female purple coloured female HSD connector (colours may vary) at the rear-side of
the head unit and connect it to the waterblue coloured male HSD connector „TO LCD“ of the video
interface.
Connect the female non-angled waterblue coloured HSD connector of the enclosed picture
signal cable to the waterblue coloured HSD+2 connector „HU IN“ of the video interface.
Connect the opposite female angled waterblue HSD connector of the enclosed picture signal
cable to the previously become free male purple coloured HSD connector of the head unit.
Note: Depending on the installation conditions, the enclosed picture signal cable may also
be installed upside down, concerning it’s HSD connectors . However, its’connection must
only be made at the head unit!

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page14
2.3.2. Connection –Quadlock –CAN
2.3.2.1. Connection - Quadlock –CAN-PCM 4.1
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit and connect the previously clipped out female 12pin connector to the grey
coloured male 12pin connector of the PNP harness.
Clip in the grey coloured female 12pin connector of the PNP harness in the previously
become free position of the female Quadlock connector.
After that, finish the Quadlock reconnection at the rear-side of the head-unit.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page15
2.3.2.2. Connection - Quadlock –CAN-PCM 5.0
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit and connect the previously clipped out female 12pin connector to the grey
coloured male 12pin connector of the PNP harness.
Clip in the grey coloured female 12pin connector of the PNP harness in the previously
become free position of the female Quadlock connector.
After that, finish the Quadlock reconnection at the rear-side of the head-unit.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page16
2.3.2.3. Connection - Quadlock –CAN-PCM 6.0
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit and connect the previously clipped out female 12pin connector to the grey
coloured male 12pin connector of the PNP harness.
Clip in the grey coloured female 12pin connector of the PNP harness in the previously
become free position of the female Quadlock connector.
After that, finish the Quadlock reconnection at the rear-side of the head-unit.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page17
2.3.3. Connection - Power
Connect the single yellow wire of the 10pin power/CAN cable to +12V permanent and
stabile power supply.
Connect the single black wire of the 10pin power/CAN cable to the vehicle’s negative
ground.

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page18
2.3.4. Analogue power supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is
turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to
be connected additionately to ACC or S-contact terminal 86s +12V (e.g. glove
compartment illumination).

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page19
2.4. Power supply output for front cam
The red power supply output Front cam out +12V (max 3A) can be used to power a front
cam with dip switch 1 (of the black 8 dips) to ON.
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)
Dip 1 OFF
+12V ACC

Version 16.03.2023 HW: CAM(V100)/UP(V30) right RL4-PCM60
Page20
2.5. Connection - video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.
