NCI 7820 B User manual

Model 7820 B
UPS Revenue Recovery Scale
User’s Manual

27820 B UPS Revenue Recovery Scale User’s Manual
Weigh Bar®is a registered trademark of Weigh-Tronix Inc.
07/30/03 7820B_U.P65 PN 55889-0018A e1 Printed in USA
For Technical Support call 1-800-458-7062

3
7820 B UPS Revenue Recovery Scale User’s Manual
Table of Contents
NCI Model 7820 B Specifications ....................................................... 4
Unpacking Your Scale ........................................................................ 5
Weights And Measures Sealing.......................................................... 5
Battery Operation ................................................................................ 5
Charging The Battery .................................................................... 5
Battery Replacement ..................................................................... 5
Operation ............................................................................................ 6
Keys .............................................................................................. 6
Sleep / Auto Shutdown Modes ...................................................... 6
Backlight Operation ....................................................................... 7
Weight Hold Operation .................................................................. 7
Changing the Backlight Settings.................................................... 8
Changing the Weight Hold Settings .............................................. 9
Weight Hold – Weights And Measures Sealing .................................. 9
Cleaning And Care ........................................................................... 10
Warranty & Service ........................................................................... 10
Service Replacement Parts .............................................................. 10
Construction: Die Cast aluminum load bridge and base, stainless steel weight platter,
aluminum display handle
Capacity: 0 – 200lb x 0.05lb or 0 – 100kg x 0.02kg
Accuracy: +/- 1 division (0.05lb / 0.02kg)
Display: 6-digit backlight LCD, in extruded aluminum housing w/ 7-foot off the shelf
CAT-5 cable
Display Size: 6” L x 3” D x 1½” H
Platter Size: 14” L x 12½” D
Power Supply: Input 120 VAC 60 Hz, Output 14VDC 750mA
Battery: 12 VDC / 1.3AH Sealed Lead Acid Battery
NCI Model 7820 B Specifications

47820 B UPS Revenue Recovery Scale User’s Manual
Unpacking Your Scale
Weights And Measures Sealing
Carefully unpack and inspect the shipping container for evidence of shipping
damage. If such evidence is discovered, stop unpacking and immediately
notify the carrier to arrange to have the shipment inspected by an authorized
representative.
1. Open the box and carefully remove the scale from the shipping carton.
2. Remove the AC adapter from the packaging material.
3. Before using your scale for the first time, use the AC adapter to plug the
scale into a power outlet for 8+ hours. This will allow the scale to fully
charge the battery prior to use.
4. Remove protective plastic covering from weight platter.
If your local Weights and Measures requires your scale to be sealed and will
not allow the weight hold feature to be active, see the section Weight Hold –
Weights And Measures Sealing for details on how to configure the scale to
deactivate the weight hold feature. Calibration may be required prior to
Weights and Measures inspection. Please contact the service department at
1-800-458-7062 for the nearest dealer in your area.
Before using your scale for the
first time, use the AC adapter
to plug the scale into a power
outlet for 8+ hours. This will
allow the scale to fully charge
the battery prior to use.

5
7820 B UPS Revenue Recovery Scale User’s Manual
Operation
ZERO key
If the scale does not display
0.00 weight, press the ZERO
key before placing the parcel
on the scale.
Keys
Figure 2
Front panel keys
Battery Operation
Charging The Battery
Figure 1
Battery compartment
Each unit includes a sealed lead acid battery. A fully charged battery will
provide power to the unit for 12 to 40 hours (depending upon display back-
light usage). When the scale detects the battery has approximately 1 hour of
use remaining before full shutdown, the display will flash “LobAt” every 15
seconds.
To charge the battery, plug the AC adapter into the rear of the scale. The
AC PWR annunciator will indicate the unit is plugged into a live AC outlet
and charging the battery. After 5 minutes of no activity, the scale will go into
sleep mode, and display CHArG. To remove this message and use the
scale, press the ZERO key.
Remove the cover on the underside of the scale by loosening the 2 screws.
See Figure 1. Unplug the battery cables and replace with a new battery,
black cable to (-) terminal, red cable to (+) terminal. Refit the cover and
tighten the screws.
The NCI Model 7820 B has two keys to operate the scale plus a RESTART
pushbutton. See Figure 3.
The ZERO key performs
three functions:
1. Pressing the ZERO key
will reset the scale to
zero weight.
2. When in the Configura-
tion Mode menu, this key
scrolls the display to the
next selection.
3. If the scale is drawing
power from the battery only and the AC adapter is not connected, press
and hold this key for 3 seconds to turn the scale OFF. To turn the scale
ON, press the RESTART pushbutton located at the rear of the scale (or
use the AC adapter to connect the scale to an AC outlet).
Battery Replacement

67820 B UPS Revenue Recovery Scale User’s Manual
HOLD key
Sleep / Auto Shutdown
Modes
To conserve the battery life, the scale has two features, Sleep and Auto
Shutdown.
During Battery Operation:
1. The scale will enter into Sleep mode after 5 minutes of non-use. The
scale display will prompt SLEEP. Press the ZERO key to wake up the
scale and return to normal weighing mode.
2. The scale will enter into Auto Shutdown mode one (1) hour after enter-
ing into Sleep mode. Press the RESTART pushbutton located at the
rear of the scale, as shown in Figure 3, to turn the scale on and return to
normal weighing mode.

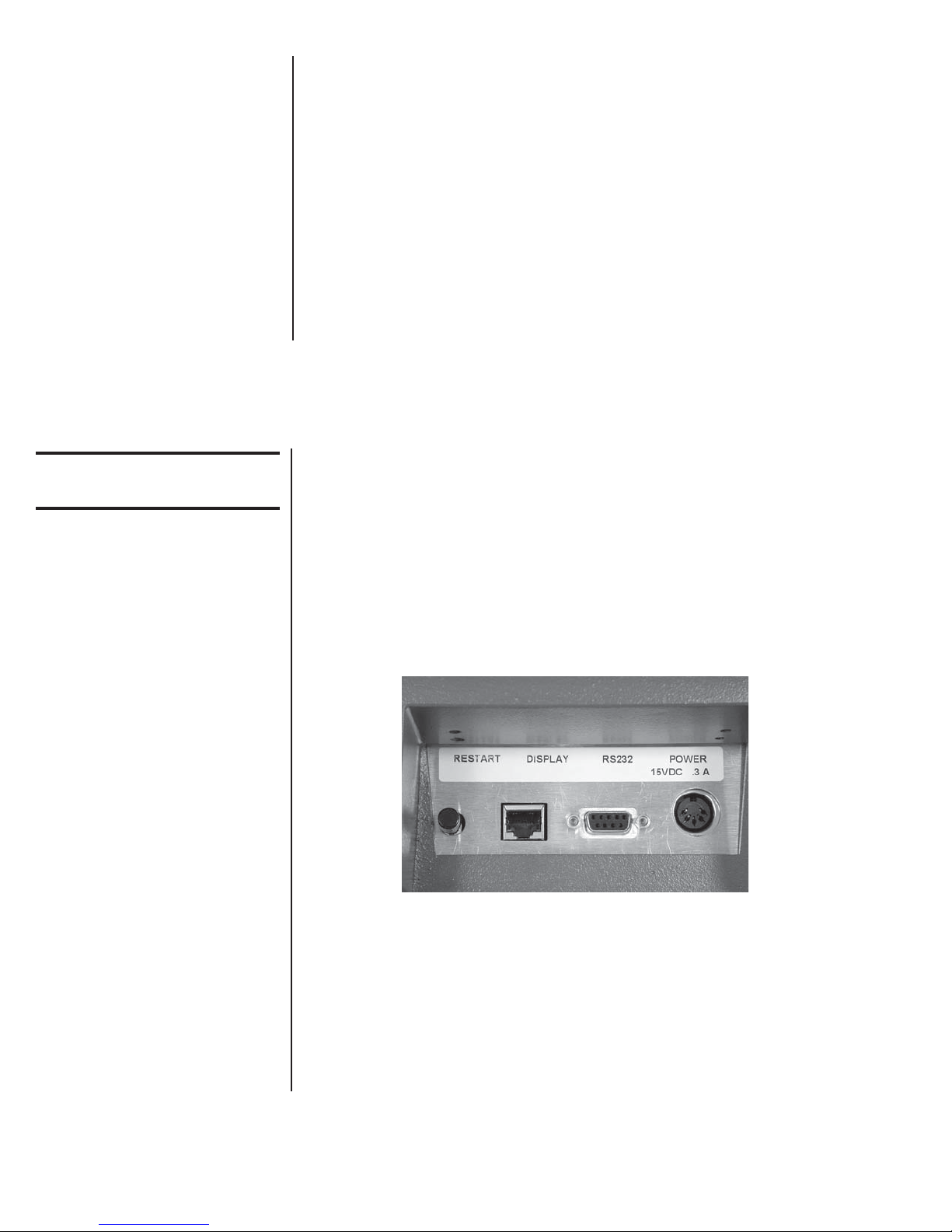

Figure 3
Restart button
During AC POWER Operation:
The scale will enter into sleep mode after 5 minutes of non-use. The scale
display will prompt CHArG. Press the ZERO key to wake up the scale and
return to normal weighing mode. The scale will return to zero weight within 5
seconds.
The HOLD key performs three functions:
1. This key will enable or disable the Weight Hold feature, which is used to
hold and display the stable weight of any large parcel that, when placed
on the scale, will block your view of the display.
2. When in the Configuration Mode menu, this key acts to ENTER or
ACCEPT the displayed selection. Refer to Weight Hold Operation.
3. Press and hold the HOLD key for 5 seconds to enter into the Configura-
tion menu.
The RESTART button is needed only during battery powered operation. If
the scale is not used for more than an hour the unit will power down to save
battery power. Press the RESTART button to restart the scale.
RESTART button

7
7820 B UPS Revenue Recovery Scale User’s Manual
Backlight Operation
AUTO (AUto)
OFF (oFF)
Weight Hold Operation
The display backlight operation is controlled by software in the Configuration
Mode. The settings are AUTO (AUto) or OFF (oFF). The default display
backlight setting is AUTO.
The backlight will turn off after 5 seconds of non-use at zero weight or 15
seconds of non-use with a weight value displayed. If you place a weight on
the scale or press the ZERO key the display backlight will activate.
Selecting oFF, will turn OFF the display backlight and maximize the battery
life.
The Weight Hold feature has two settings, SnGL or AUto.
The default setting is SnGL.
The SnGl Weight Hold feature allows you to hold the parcel weight on the
display for one parcel only.
1. Press the HOLD key. The “WT HOLD” enunciator will activate on the
right side of the display.
2. Place a parcel on the scale, then remove the parcel. The scale will hold
and display the weight value then alternate with the center-of-zero
annunciator.
The SnGl Weight Hold will deactivate when one of the following occurs:
1. When you press the HOLD key.
2. When you place the next parcel on the parcel scale and weigh it.
3. SnGL Weight Hold automatically deactivates after 15 seconds.
SnGl or Single-use
Weight Hold
During Weight Hold operations,
please allow the parcel weight
to stabilize on the scale for at
least 1 second.
In Weigh Hold mode, once a
parcel is removed the display
will alternate between the
weight hold value and zero
weight every three seconds.

87820 B UPS Revenue Recovery Scale User’s Manual
Changing the
Backlight Settings
The AUto Weight Hold feature allows you to continue to hold the parcel
weight on the display, one at a time, for an unlimited number of parcels in
succession.
1. Press the HOLD key.
The “WT HOLD” enunciator will activate on the right side of the
display.
2. Place a parcel on the scale, then remove the parcel.
The scale will hold and display the weight value, then alternate
with the center-of-zero annunciator.
Once the parcel is removed, the display will alternate between the weight
hold value and zero weight every three seconds.
3. Place another parcel on the scale, then remove the parcel.
The scale will hold and display the new weight value.
4. Continue using Weight Hold for as many parcels as desired.
The AUto Weight Hold will deactivate when one of the following occurs:
• When you press the HOLD key.
• The scale’s Auto Shutdown mode activates after one hour of non-use.
Follow these steps to enter the Configuration mode and change the back-
light settings.
1. Remove all weight from the scale and with the zero annunciator, >0<,
displayed, press and hold the HOLD key for 5 seconds. . .
bACLt is displayed.
2. Press the HOLD key once. . .
AUto is displayed.
3. Press the ZERO key to scroll to the next selection. . .
oFF is displayed.
4. With the desired setting displayed, press the HOLD key once to accept
the setting
bACLt is displayed.
5. Press the ZERO key twice
donE is displayed.
6. Press the HOLD key to exit and return to normal weighing mode.
AUto or Multi-use
Weight Hold

9
7820 B UPS Revenue Recovery Scale User’s Manual
Changing the
Weight Hold Settings
Weight Hold – Weights And Measures Sealing
Follow these steps to enter the Configuration mode and change the weight
hold settings.
1. Remove all weight from the scale and with the zero annunciator, >0<,
displayed, press and hold the HOLD key for 5 seconds. . .
bACLt is displayed.
2. Press the ZERO key once. . .
HoLd is displayed.
3. Press the HOLD key once. . .
AUto or SnGL is displayed.
4. Press the ZERO key to scroll to the other selection. . .
SnGL or AUto is displayed, depending on which mode is currently
selected.
5. With the desired setting displayed, press the HOLD key once to accept
the setting. . .
HoLd is displayed.
6. Press the ZERO key once. . .
donE is displayed.
7. Press the HOLD key to exit and return to normal weighing mode.

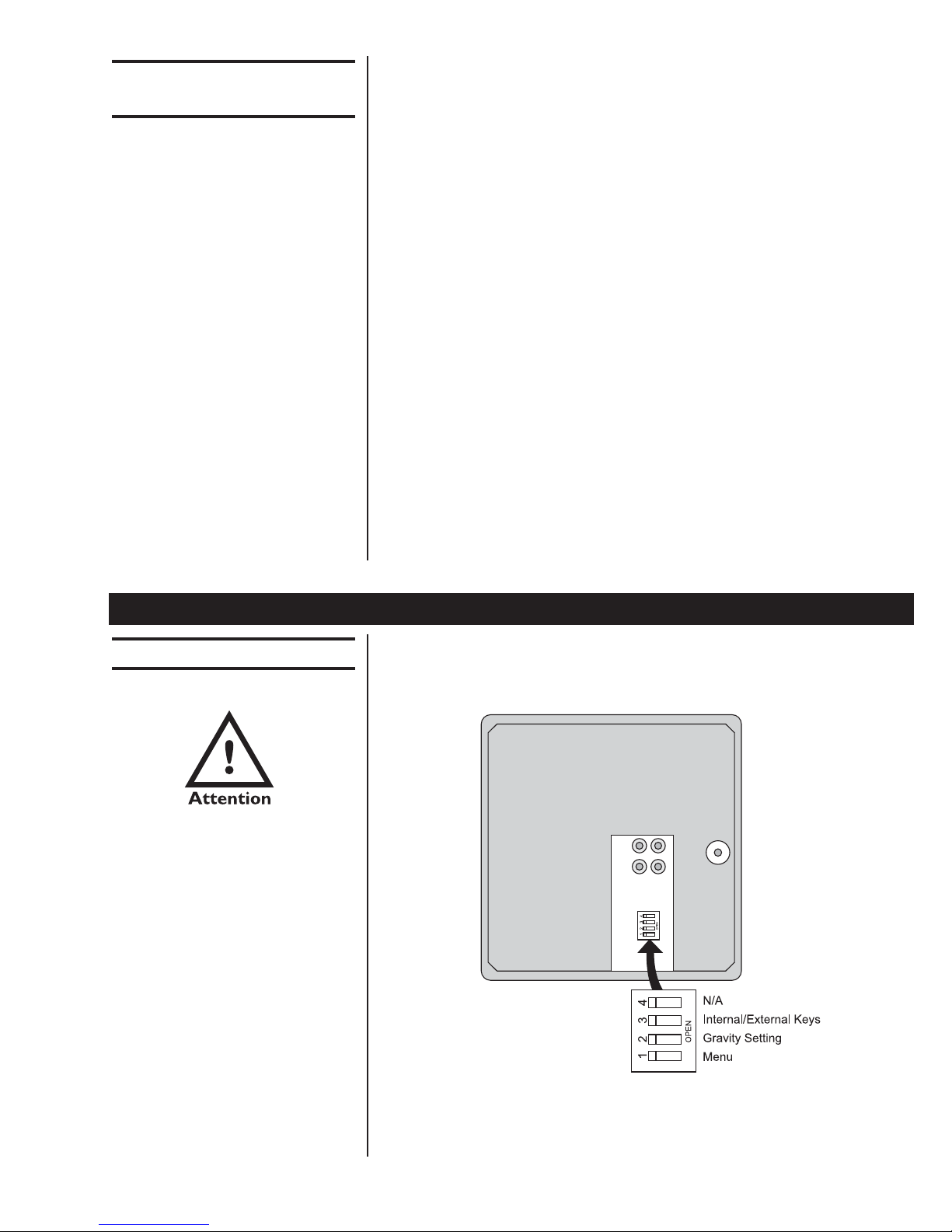

Menu Mode The 7820B powers up ready for weighing operations. Access the Menu
mode by setting Switch 1, shown in Figure 4, to the OPEN or Menu mode
position.
Figure 4
Switch location
To access Switch setting,
remove the weight platter.

10 7820 B UPS Revenue Recovery Scale User’s Manual
Enabling/Disabling Weight
Hold Setting

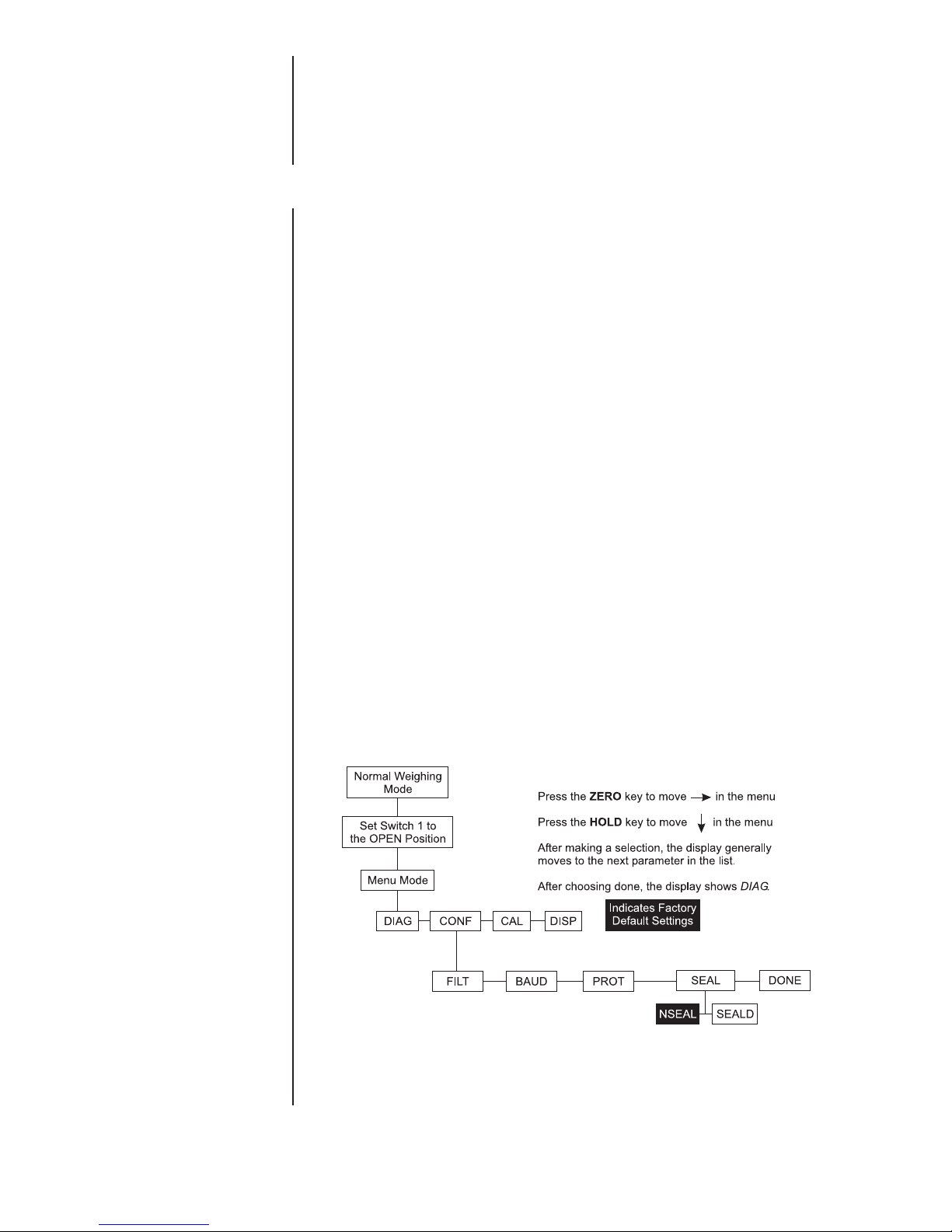

There are four modes available to you. They are as follows:
DIAG (Diagnostic Mode) – To test areas of the scale’s function
CONF (Configuration Mode) – To configure the scale for your application
CAL (Calibration Mode) – To calibrate the scale
DISP (Backlight Display Mode) – To change backlight setting
Follow these steps to enable/disable the Weight Hold function in the CONF
menu. Refer to the menu structure in Figure 5.
1. From normal weighing mode, move Switch 1 to the MENU Mode or
OPEN position. (See Figure 4).
DIAG is displayed.
2. Press the ZERO key. . .
CONF is displayed. This stands for configuration.
3. Press the HOLD key. . .
FILTER is displayed.
4. Press the ZERO key twice. . .
SEAL is displayed. This stands for the Weights and Measures
sealing method.
5. Press the HOLD key. . .
NSEAL is displayed. This stands for non-sealed.
6. Press the ZERO key. . .
SEALD is displayed. This stands for sealed.
7. Press the HOLD key to accept. . .
Close Switch 1 to return to normal weighing mode.
Figure 5
Mode menu structure

11
7820 B UPS Revenue Recovery Scale User’s Manual
1. Handle the scale with care. Dropping the scale may cause damage to
the loadcell, which will not allow the scale to weigh properly. This type of
damage is considered abuse and violates the product warranty.
2. To avoid damage to the loadcell, place (do not drop) parcels onto the
scale and do not weigh objects that exceed 200 pounds.
3. Clean the scale with a slightly damp cloth. DO NOT immerse the scale
in water or use chemical/abrasive-cleaning agents.
4. If the scale is not being used for more than three weeks, disconnect the
battery or turn off the scale by pressing and holding the ZERO key for 5
seconds.
For United Parcel Service, this product has a 2-year warranty from the date
of factory shipment against defects in material and workmanship. This
warranty does not apply if the product was subject to misuse, neglect,
damage or abuse. Please contact the Avery Weigh-Tronix service depart-
ment at 1-800-458-7062.
Please contact the Avery Weigh-Tronix service department for replacement
parts at 1-800-458-7062.
Cleaning And Care
Warranty & Service
Service Replacement Parts
Description Part Number
Battery, Rechargeable Sealed Lead-Acid 15553-0074
AC Power Supply 1148-16069
Display & Keyboard Assembly 55857-0016
Display Cable, 7-feet 60014-0016
Foot w/ locking nut 60015-0015
Magnetic Strip, 6-inches 1101-16909
Handle, Kit 55880-0017
Battery Cover, Kit 55891-0014
Stainless Steel Weight Platter, Kit 55905-0018
Ball-Top Weight Platter Kit, Kit 55906-0017

Avery Weigh-Tronix Canada, ULC
217 Brunswick Boulevard
Pointe Claire, QC H9R 4R7 Canada
Telephone: [phone]
Toll free: 800-561-9461
Facsimile: 514-695-6820
www.weigh-tronix.ca
Avery Weigh-Tronix
1000 Armstrong Dr.
Fairmont, MN 56031 USA
Telephone: [phone]
Facsimile: 507-238-4195
e-mail: [email protected]
www.wtxweb.com
