NDS 3Lion 3L-100 User manual

All the energy you need
www.ndsenergy.it ~ e-mail: [e-mail]
EN.2

SUMMARY
1. SYSTEM COMPONENTS 3Lion + 3Link.
2. SAFETY
3. INTRODUCTION
4. INSTALLATION
4.1 3Link INSTALLATION
4.2 MOUNTING SCHEME
4.3 DISPLAY INSTALLATION
5. OPERATION
5.1 CHARGE
5.2 DISCHARGE
6. OPERATION CHECK
7. VERIFIABLE PROBLEMS
8. TECHNICAL CHARACTERISTICS
. GUARANTEE

1. SYSTEM COMPONENTS 3Lion + 3Link.
Battery LiFePo4 ' 3Lion '
Display ' 3Link '
Display mounting bracket
Advanced BMS ' 3Link '
Assembly screws (n°. 8)
Use and maintenance manuals
Display connection cable
2. SAFETY
This manual serves as a guide for the installation, use and maintenance of
the 3Lion + 3Link system. It is compulsory to carefully read all its parts
for both the installer and the end user.
Keep the device out of the reach of children.
Read this manual carefully and keep it handy, preferably near the 3Lion , for any
future consultation.
The 3Lion must always be installed with the 3Link .
The 3Lion can be installed with a maximum inclination of 0° compared to its
natural positioning (i.e. with the poles facing up).
Do not bump, puncture, disassemble, deform the 3Lion and the 3link . Do not open
the 3Lion .
In the event of electrolyte leakage, do not touch the battery. In case of contact,
immediately flush skin with warm water and seek medical advice immediately.
Be careful when installing, so that the two poles of the 3Lion do not come in contact
with each other. Use isolated equipment and do not place and/or leave metal objects
close to the product.
Always dispose of the battery according to local laws. Do not dispose of other
industrial waste.
Protect the poles of the 3Lion from any contact with electrically conductive objects.
The device must be protected from direct sunlight or direct heat sources to avoid
overheating.
Do not install the appliance in a sealed environment, otherwise it may overheat.
Make sure that there is air circulation in the room where it is installed.
To avoid the risk of electric shock and/or fire, make sure the power supply is in good
condition.
Do not use the appliance with damaged cables and/or of inadequate cross-section.
Do not use the device in an environment with high humidity or direct contact with
splashes of water and/or liquids or in the rain.
Install the device using cables of the appropriate cross-section as recommended in the
section "INSTALLATION INSTRUCTIONS"

Charge completely right after installing the system or after doing any maintenance on
it. When it is fully charged, the display will show 100% on the battery state of charge
(SOC) display. .
The rated voltage of the 3Lion battery is 12V. Do not use the system with devices that
are not compatible with this voltage. The company is not responsible for any damage
caused by incorrect use of the entire system.
The supplied items are designed exclusively for this system and are not compatible with
other devices. The product pictures in this manual are for reference only and for a purely
explanatory purposes; the product you bought might be different. NDS Energy reserves the
right to make changes to the product at any time without prior notice and without any
obligation to apply these changes to the devices previously distributed.
NDS Energy is not responsible for any malfunctions due to improper use of the product,
any installation mistakes or mistakes present in this manual.
3. INTRODUCTION
3Lion is the innovative NDS battery, built with the reliable Lithium Ferro Phosphate
Technology (LiFePO4) , which combined with the integrated BMS and 3Link system
(BMS Manager), delivers the best per ormance in the services ield due to the
advanced energy system.
Lithium technology provides signi icant advantages over traditional lead batteries
(AGM, GEL, Free Acid). For example, it can withstand high charging currents, with
a very high e iciency (or very low current dissipated during that phase), which
implies a much better charging speed. It does not su er rom the typical sul ation
o lead batteries, it has a very low sel -discharge rate (less than 3%/month), which,
combined with a 60% weight reduction and a large number o cycles (over 2500), it
guarantees more autonomy and remarkable savings in various areas.
The 3Lion dialogues only with the 3Link , which becomes the heart o the energy
system. All the positive aspects o the vehicle's system: Engine Battery, 3Lion
battery and all electrical equipment, so as not to strain the electrical system, are
connected to the 3Link which acts as a BMS manager. This allows or a better
charge management while driving by the alternator, achieving maximum current up
to 75A (depending on the alternator), reducing charging times, and thus achieving
greater autonomy during stops. Once the engine is turned o , the 3Lion service
battery is able, via the BMS manager ( 3Link ), to deliver current or all on board
electrical equipment: lights, heating, co ee machines, etc ... The LiFePO4
technology used or the 3Lion , unlike the traditional Li-Ion or LiPO, is extremely
sa e and reliable over time due to its special eatures. The BMS Manager ( 3Link )
dialogues with the touch screen display that shows all available in ormation about
the state o the battery, the charging system and on-board power consumption
systems.

4. INSTALLATION
To properly install the device, follow the instructions below.
4.1 INSTALLATION OF 3 Link
The 3Lion-3Link system o ers maximum per ormance i supported by a suitable
capacity alternator. It is recommended that the alternator be greater than or equal to
120A with an no-load voltage between 13.8V and 14.7V . No-load measurement means
the voltage measured at the terminals o the engine battery, when the engine is on, the
engine battery is charged or partially charged when all the electrical equipment on
the vehicle is o (lights, conditioner, etc.) and when the services battery is
disconnected rom the system.
Prepare an area for housing the 3Link box , as close as possible to the 3Lion , and to the
engine battery, but never in the engine compartment or in compartments that are not
protected from atmospheric agents . Remove the two screws in the front (highlighted in red
in the following figure), lift the cover and pull it out to allow convenient access to the
connection points.
Attach the base of the 3Link to a wall or floor of the housing selected for installation; use
the 4 self-tapping screws in the appropriate holes on the bottom of the base (highlighted in
yellow in the following figure).
4.2 MOUNTING SCHEME:
Be ore installing, make sure the vehicle engine and the battery charger are o . Do not
make junctions on the cables, make direct connections.

Front View: Rear view:
NUMBER FUNCTION
1M8 screw connector for engine battery positive terminal
2M8 screw connector for system common positive
3M8 Screw Connector for 3Lion battery positive terminal
42-way connector for ground connexion
52 way connector for AUX connexion
6Connection with display
The original, electrical system of the motorhome can be represented in a basic manner by a
relay that connects the engine battery (and thus the alternator) to the service battery when
the vehicle has the engine switched on (i.e. the alternator is in operation and signal D+ is
active). Below is a representation:
The installation of the 3Lion + 3Link is very simple, just intercept in the original system
of the vehicle, the cable that goes from the service battery to the control unit or to the
battery combining relay which in the figure " Original system of the camper " is identified
by number 05. Disconnect cable 05 from the service battery positive terminal, and connect
it to pin 2 of the 3Link .
Make other connections, as shown below.

For connecting the cables to pins 1, 2 and 3 of the 3Link, it is strongly recommended that
you use the terminals for M8 screws (DO NOT use the "fork" type) to ensure a perfect and
secure connection between the cable and the contact of the 3link, as in the following
figure.
1233 4

For connexions 01, 02 and 08, it is recommended the use 35mm 2 cross-section cables, if
the length of the connexion is less than or equal to 1 meter. If the length of the connexion
exceeds 1 meter, it is recommended the use of cables with a cross-section of 50mm2. It is
also advisable to install a 200A fuse on cables 01 and 08.
Tighten the terminals firmly to screws 1, 2, and 3 of the 3Link , with the supplied nuts
and washers.
Connections 03, 04, 05 and 06 are usually already present within the vehicle. If not present,
it is recommended to use cables with a section greater than or equal to 10mm 2 .
Connection 07 can be done with cable the cross-section of which is between 1mm 2 and
2.5mm 2 .
As soon as the ground cable is connected to the 3Link, the system becomes operational.
Charge completely just after installing the system or after doing any maintenance on
it. When it is fully charged, the display will show 100% on the battery state of
charge (SOC) display.
Close the 3Link cover by threading the two tabs on the back into the appropriate base
seats; tighten the 2 screws supplied into the holes at the front corners of the cover.
4.3 DISPLAY INSTALLATION
Front View: Rear view:
1
2
34

NUMBER FUNCTION
1Touch screen display
2Hole for passage of communication cable
34 Holes for fixing the cover to the wall
4System to fix the display frame to the cover
1. Remove the display frame.
2. Position the back cover on the wall chosen for installation. Take the point references
where the holes for the fixing screws (diameter 3 mm) and the communication cable
passage hole (minimum diameter 7.2 mm) are to be made.
3. Drill the holes and screw the back cover to the wall using the supplied screws. Be
careful that once tightened, the screws do not protrude beyond the countersinks.
4. Pass the communication cable through the specially-drilled hole and insert it gently
into the connector on the display circuit board.
DO NOT FORCE THE CONNECTOR.
The connector has an
obligatory direction that must be
ollowed.
A) Slide the display rame upwards
with respect to the back cover
B) Li t the lower part
o the display
rame
C) Slide the display rame
downwards with respect to the
cover and release it.

5. Attach the display to the back cover:
The 3Link touch screen allows you to interact with the device by easily selecting various
functions.
To properly use the touch screen, follow the instructions below:
Do not exert too much pressure on the surface of the display with your fingers and
do not use sharp objects. Doing so may damage the device or cause it to
malfunction.
Do not put the display in contact with other electrical devices.
Electrostatic discharges can cause malfunction.
Do not put the surface of the display in contact with water. The touch screen may
not work properly in the presence of moisture or if exposed to water and other
liquids.
For best performance, touch the touch screen with your fingertip.
You can use plastic stylus pens or a more accurate touch on the display, but it
is important that they do not have a sharp tip which can damage the sur ace.
5. OPERATION
The 3Lion + 3Link system allows for the automatic management and display of the
battery status. By means of the display, you can interact with the system and show all the
information such as voltage, current (charging with positive "+" sign, and discharging with
negative sign "-"), and state of charge. The state of charge (SOC) is indicated with coloured
lines ranging from red, indicating that the battery is low, to green, indicating that the
battery is charged.
The advanced 3Link BMS, when it becomes aware that the alternator is operating, it
activates the battery charge intelligently, obtaining maximum current up to 75A (depending
on the alternator characteristics), resulting in a reduction of charging times, and therefore,
greater autonomy during stops. All without overloading the cell system, which is actually

excluded when it is charging, from the passing of current to the 3Lion.
The amount of current that can be charged to the battery is closely related to the type of
alternator installed on the vehicle. The higher its power, the greater the amount of current
that the 3Link can draw from it. Alternator powers below 120A are not recommended, as
the battery's fast charge capacity will not be fully exploited.

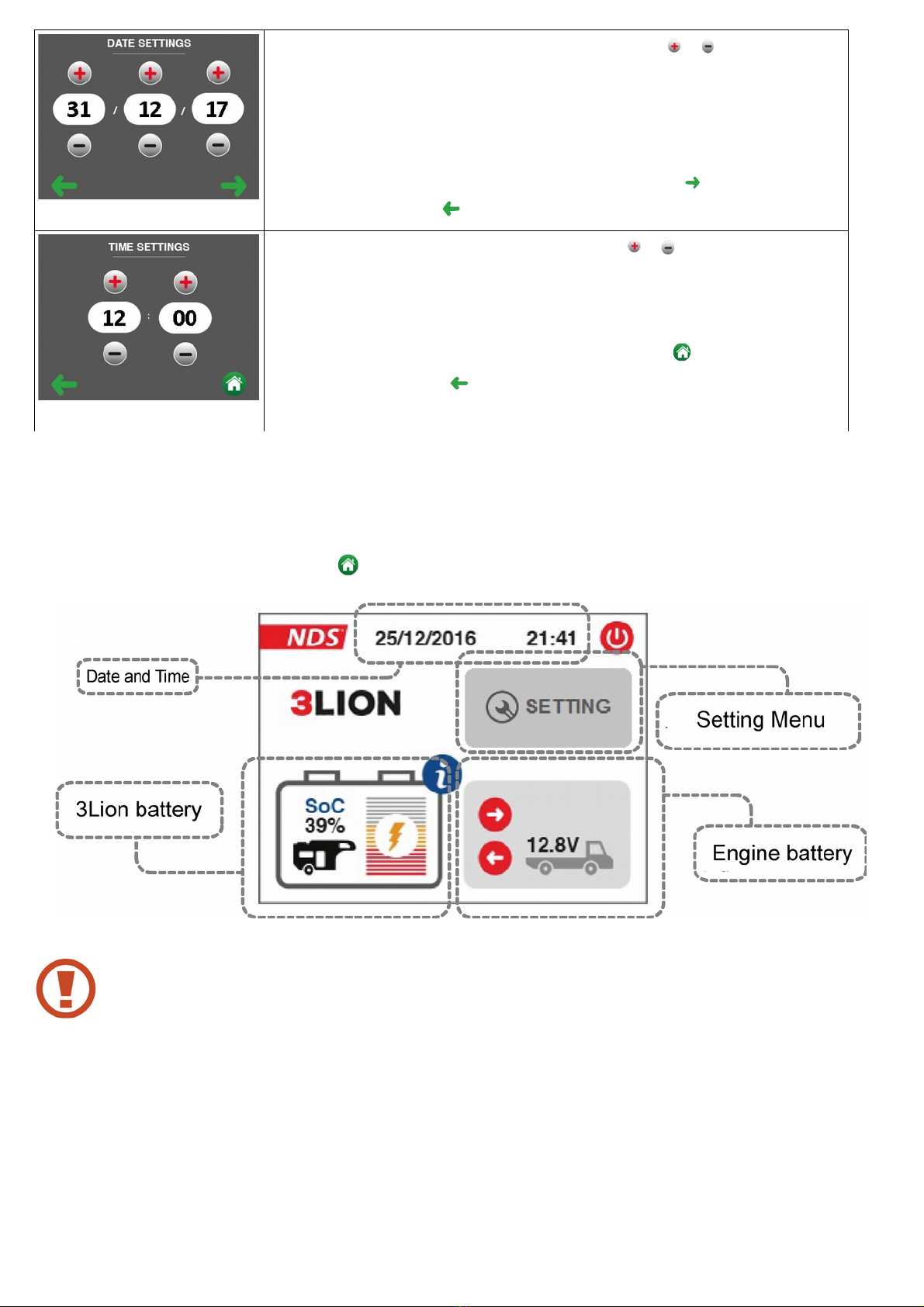

Immediately a ter per orming all connexions, the system starts up and several
screens or setting the system parameters appear on the display as shown below.
SCREEN MEANING AND FUNCTIONS
Setting the language. Click on the desired flag and then on the
arrow to confirm your choice.
Setting the language. Click on the desired flag and then on the
arrow to confirm your choice.
Setting the capacity. The number below the letter Ah indicates the
capacity setting of the battery or the battery pack. Click on the
keys or until you reach the desired value. In the case of a
battery pack (i.e. multiple 3Lion batteries in parallel), enter the
total capacity of the pack (that is, the sum of the Ah of each
battery).
The bottom of the screen allows you to select the presence of
Power Service PLUS/GOLD. In case of presence, click on the
check (which immediately after the click becomes green). In
case of absence, click on
To confirm the choices click on the arrow ; to go back, click
on the arrow

Setting the date . Click on the keys until the desired
value is reached, taking into account that the first number to
the left indicates the day, the central number indicates the
month, and the number on the right indicates the last two
digits of the year.
To confirm your choices, click on the arrow ; to go back,
click on the arrow
Selecting the time. Click on the keys until the desired
value is reached, taking into account that the number on the
left indicates the hours, and the number to the right indicates
the minutes.
To confirm your choices, click on the icon . To go back,
click on the arrow
The system settings screens are displayed at start-up and each time you press
and hold or at least 3 seconds the "Setting" key.
Once the key has been pressed, the main screen appears as shown below.
The state of charge (or SOC) indication as soon as the system is installed is purely
indicative, it becomes operational as soon as a full charge of 3Lion is performed.
When it is fully charged, the display will show 100% on the battery state of charge
(SOC) display.
In the lower left part of the screen, information about the 3Lion battery is shown.
Specifically, the battery state of charge is reported in 2 modes: textual, by means of the
percent value of the SOC, and graphically by the colouring of the notches inside the battery
symbol. The notches are coloured red, orange and green indicating respectively a fully
discharged, a partially charged or a fully charged battery. When the 3Lion is at the
charging phase, a thunderbolt is displayed overlapping the coloured notches.

Pressing inside the battery symbol, the 3Lion battery indications change shape as shown in
the following example.
In fact, the voltage and current values for the 3Lion are displayed. The current can take
negative values, that is, battery discharging, and positive values, that is, battery charging. In
the latter case, the thunderbolt symbol is displayed, overlapping the notches of the battery.
You can keep this view active by clicking on the "Setting" button and then checking the
following phrase: " Always show V and I ".
The engine battery indicator box always shows the voltage value of the battery, and if the
system is being charged by the alternator, the icon of the arrow turns red.
Below is a summary of the icons shown on the display:

ICON MEANING AND FUNCTIONS
Shuts off the screen. If the screen is off, just click on any part of it to turn it
back on.
It allows you to decrease the value of the parameter in use.
It allows you to increase the value of the parameter in use.
When displayed, it indicates that the 3Lion battery is charging. If the icon
does not become red then charging comes from a source other than the
alternator (such as solar panels, network chargers, etc.).
Indicates that the alternator is not charging the 3Lion battery .
Indicates that the alternator is charging the 3Lion battery .
Enables you to advance the system parameter setting sequence and/or to
confirm your choices.
Allows you to return to the previous step of the system parameter setting
sequence.
Allows you to change system settings. If you press it briefly, you can set the
display mode. If you press it for a long time, you can set the date, time, the
Ah of the 3Lion, language.
In order to preserve battery from discharging, after 2 minutes of inactivity the display will
decrease its brightness. After 15 minutes, it will shut off. Just touch it to turn it on and
resume normal use.
The system is protected against excessive discharge or overload, however, it is
recommended that the battery voltage does not fall below 10.5V and does not exceed 15V.
If the 3Lion voltage is less than 11.5V, charge the battery immediately.
Before storing the 3Lion, it is recommended that you turn off the display. It is also
recommended to leave the battery fully charged. If the 3Lion is not used for a long time,
even if the self-discharge is very low (less than 3%/month), it is advisable to check at least
once every two months that the remaining amount of charge is greater than 0% and that
the voltage is greater than 12.8V. Otherwise, fully charge the battery.

5.1 CHARGE
It is recommended to use LiFePo4 lithium battery chargers. However, you can use a mains
battery charger for AGM/GEL batteries, checking that the maximum voltage supplied by it
does not exceed 14.5V. The charger must NOT perform any desulfation action. The use of
battery chargers for flooded lead acid batteries , although they can completely charge 3lion
batteries, they can reduce their life. If you have a configurable charger, set the CC/CV
(constant current/constant voltage) option, by setting the current value equal to or less than
0.5C, or 50A for the 3L-100, 3L-100B, 3L-100-P models, and 75A for the 3L-150-P model,
and the end--of-charge voltage value to 14.4V.
When the battery is fully charged (the display shows 100%), it is recommended that you
disconnect or turn off the charger. In the case of alternator charge, this is automatically
managed by the 3Link. In fact, 3lion batteries do not need maintenance like lead-acid
batteries.
.52 DISCHARGE
Only or models: 3L-100, 3L-100B
Do not connect equipment with power consumption greater than 100A . However,
this limit may be exceeded, provided that the ollowing limits are met:
Discharge at constant current o 100A: 55minutes maximum *;
Discharge at constant current o 120A: 30 minutes maximum*;
Discharge at constant current o 130A: 15 minutes maximum*;
Discharge at constant current o 150A: 10 minutes maximum*;
Discharge at constant current o 175A: 1 minute maximum*;
Discharge at constant current o 200A: 10 seconds maximum*;
Only or models: 3L-100-P, 3L-150-P
Do not connect equipment with power consumption greater than 150A . However,
this limit may be exceeded, provided that the ollowing limits are met:
Discharge at constant current o 120A: 50 minutes maximum*;
Discharge at constant current o 140A: 20 minutes maximum*;
Discharge at constant current o 160A: 15 minutes maximum*;
Discharge at constant current o 180A: 2 minutes maximum*;
Discharge at constant current o 200A: 20 seconds maximum*;
* Measurements performed at an ambient temperature of 20 °C, and starting temperature of
the lithium battery of 20 °C.

6. OPERATION CHECK
Once the system is installed, you can test its functionality by performing the following
tests:
1) With the engine switched off, and with all the equipment powered off, check that the
voltage shown on the display relative to the 3Lion battery, is equal to the voltage
measured with the tester positioned on the 3lion poles (tolerance of ± 0.15V).
2) With the engine switched off, and with all the equipment powered off, check that the
voltage shown on the display relative to the engine is equal to the voltage measured
with the tester positioned on the engine battery poles (tolerance ± 0.15V).
3) With the engine switched off, turn on some pieces of equipment on the vehicle, and
check that a negative current is displayed on the display. With the ammeter clamp,
placing it on the wire out of pole 3 of the 3Link, it is also possible to verify that the
current shown on the display is the same as the current displayed on the instrument
(tolerance ± 10%).
4) With all equipment powered off, turn on the engine and verify that the engine battery
voltage rises to between 13.8V and 14.8V. If voltage remains below 13.8V, the engine
battery is likely to be discharged and/or the alternator has an abnormality or, if a
positive current is shown on the display, it indicates that the 3Lion battery is charging
and, in this case, skip to step 5.
5) If the 3Lion battery is not fully charged, and if the check in step 4 has been
successful, check the display for a positive current, and check that the arrow pointing
to the engine battery turns red. With the ammeter clamp, placing it on the wire out of
pole 3 of the 3Link, it is also possible to verify that the current shown on the display
is the same as the current displayed on the instrument (tolerance ± 10%).
7. VERIFIABLE PROBLEMS
If the 3Lion battery has a voltage between 0V and 10V (resulting voltage, also detected on
pins 2 and 3 of 3Link ) , it may be possible that the BMS protection inside the battery has
been operated. This protection occurs for three main causes:
1) Battery voltage has fallen below 10V (e.g. due to excessive discharge).
In this case, provide the 3Lion with a charging source (for example, via external charger,
alternator, etc.).
2) The battery voltage has exceeded 15V (e.g. due to an anomaly of the charger, or
because of some piece of electronic equipment in the system that enters a voltage
greater than 15V).
As soon as the 3Lion detects a voltage below 15V, it resumes working normally.
3) The battery is overheated.
You have to wait for the internal temperature of 3Lion to drop below the safety threshold.
It is difficult to estimate the reactivation time, as it depends on external conditions and the
degree of overheating.

4) The indication of the amount of available charge (SOC) does not seem to be accurate
or has suddenly indicated a value of less than 5%.
Run a full charge of 3Lion , where full charge means 100% shown on the battery state of
charge (SOC) display.

8. TECHNICAL CHARACTERISTICS
Technical characteristics o the 3Lion
Model 3L-100 3L-100B 3L-100-P 3L-150-P
Rated tension 12.8Vdc 12.8Vdc 12.8Vdc 12.8Vdc
Nominal capacity 25
°C
100Ah 100Ah 100Ah 150Ah
Nominal energy 25 °C 1280Wh 1280Wh 1280Wh 1 20Wh
Cell number 4 4 4 4
Chemistry LiFePo4 LiFePo4 LiFePo4 LiFePo4
Recommended
maximum discharge
current
100A 100A 150A 150A
End-of-discharge
voltage
11V 11V 11V 11V
Maximum
recommended charge
current
50A 50A 75A 75A
End-of-charge voltage 14.4V 14.4V 14.4V 14.4V
Number of cycles
estimated 80% DOD
2500* 2500* 2500* 2500*
Operating temperature –20 °C/+60 °C –20 °C/+60 °C –20 °C/+60 °C –20 °C/+60 °C
Storage temperature –20 °C/+60 °C –20 °C/+60 °C –20 °C/+60 °C –20 °C/+60 °C
Self-discharge <3%/month <3%/month <3%/month <3%/month
Humidity Max 5% Max 5% Max 5% Max 5%
Connection of poles M8 M8 M8 M8
Battery-only weight 13.8Kg 13.3Kg 13.8Kg 20.7Kg
Battery-only
dimensions
327x172h227m
m
337x175h1 0m
m
327x172h227
mm
485x172h241
mm
Weight with packaging 14.3Kg 13.8Kg 14.3Kg 20.2Kg
Dimensions with
packaging
375x210h260m
m
375x210h260m
m
375x210h260
mm
525x210h280
mm
* The number of cycles is purely indicative as it depends on several factors such as
environmental conditions, discharge depth, charge/discharge current, and so on.

Technical characteristics o the 3Link
Working voltage 12V ( V-18V)
Average consumption 3mA @ 12V @ active device, 1mA @ 12V @ device in
standby mode
Maximum current
supported
200A
Working temperatures –20 °C/+65°C
Maximum current,
AUX output
30mA
Current range -200A/+ 200A ± 10%
Battery tolerance
voltage Engine battery
3Lion
± 5%
Dimensions 125x123x46mm
Weight 480g
3link box + display
dimensions
175x135h67mm
Box weight including
display and accessories
785g
Technical characteristics o the display
Technology TFT 2.83" 262k Colours with touch screen
Average consumption 76mA @ 12V maximum brightness. 7mA @ 12V stand-
by
Type of connexion 7m cable with low profile connector
Operating temperature -10°C/+70°C
Dimensions 100x80x11mm
Weight 55g
Rohs

9. WARRANTY
The manufacturer assures proper operation of the 3Link and the 3Lion battery and
undertakes to make free replacement of parts that deteriorate due to construction defects
within 36 months of the purchase date, as evidenced by the validation information sheet (to
be completed in each of its parts and returned to the manufacturer within 30 days of the
date of purchase). Disadvantages resulting from incorrect installation and use, tampering,
negligence, or failure to comply with the installation, use and storage requirements are
excluded from the warranty. Furthermore, the manufacturer disclaims any liability for any
direct or indirect damages.
The warranty becomes effective as of the date of sale or registration of the vehicle in the
case of a first installation.
With the act of purchase or registration of the vehicle, together with the warranty card, the
customer receives this certificate to be filled out in every part by the seller. The warranty
certificate must be kept and filed for each dispute. Failure to submit the certificate and
absence of or tampering on the 3Lion and/or the 3Link non detachable coupon with the
serial number shall invalidate the warranty.
In the event of a 3Lion and/or 3Link failure, the customer may contact an Authorized
Centre or contact NDS Energy S.r.l. directly. In case of replacement, the warranty period
remains as the initial date indicated on the warranty certificate.
If the customer decides to make further verifications by third-party technicians, the
customer shall bear the related costs without making any claims to NDS Energy S.r.l.
The returned product, although under warranty, must be shipped carriage paid and shall be
returned carriage forward. The warranty certificate is valid only if accompanied by a
payment receipt or delivery document.
For any dispute, the Court of Pescara shall have jurisdiction.
