NEC VT695 User manual

Easy to use and at the right price, the VT Series projectors provide all the
essential features that you need to connect with your audience.
ESSENTIAL FEATURES FOR EASE OF USE.
°Plug and play intuitive setup and operation.
°Quick start up lets you begin presenting in seconds.
°Bright images easily viewed in any application.
°Versatile color-coded connections to computer, video sources and external monitor.
°Lightweight design for easy transport.
°Automatic keystone correction SquareShot™ technology instantly projects a square
image even when the projector is set up at a steep offset angle to the screen.
°Autosense™ intuitively syncs the projector with most computer signals and features one-
touch image optimization.
°Onetouchsourcechangesandcompletemenucontrol using the intuitive projector keypad.
VERSATILE FEATURES AND POWERFUL PERFORMANCE.
°With XGA native resolution, high brightness up to 2500 lumens and patented NEC
technologies like Advanced AccuBlend™ and VORTEX™ Technology, the VT Series
displays impressive image quality.
°Vertical position of the image can be adjusted when the Cinema aspect (wide screen)
ratio is in use.
°Built-inwallcolor correctionpresets provide for adaptive color tone correction to display
properly on non-white surfaces.
°Focus in on details with up to 400% image magnification.
°Easy remote allows you to adjust lamp mode, aspect ratio, volume and image all with the
touch of a button.
°Optional IR receiver can be connected to computer for remote mouse control.
°Variable audio-out enables remote control to be used to adjust volume of self-powered
external speakers that are connected to the projector.
°Powerful 5-watt speaker provides volume needed for large rooms.
°Dual computer inputs, including one DVI-I, ensures quick switching between presentations.
SAVE MONEY, RESOURCES AND YOUR PROJECTOR.
°The VT Series projectors are extremely affordable.
°Extendedlamplife with Eco-mode™ technology that increases lamp life up to 3,000 hours.
°Nearly silent operation with noise level as low as 29dB
°Automatic timer can be set to shut off the projector at selected time intervals.
°Power management enables projector to automatically turn off when an incoming signal is
not detected from any of the inputs.
°Password protection restricts unauthorized use of projector
°Cabinet control lock setting enables user to deactivate buttons on cabinet to prevent
unwanted changes to projector settings.
LONG LAMP LIFE
EASY TO USE
AUTOSENSE TECHNOLOGY
MONITOR OUTPUT
COLOR MANAGEMENT
AUTOMATIC KEYSTONE
CORRECTION
5-WATT SPEAKER
DVI-I INPUT
VARIABLE AUDIO OUT
Everything should be this easy
VT595 and VT695 digital projectors.

NEC 090605
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks arethe property of their respective owners.
All specifications subject to change without notice.
NEC Corporation of America
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
OPTICAL
Display Technology 0.6” LCD
Resolution Native: XGA 1024 x 768
Maximum: UXGA 1600 x 1200
Light Output (lumens) VT595 2000 normal / 1600 eco
VT695 2500 normal / 1900 eco
Contrast Ratio 600:1
Lamp Type VT595 190W DC/150W eco
VT695 200W DC/150W eco
Lamp Life (up to) 2000 hours normal / 3000 hours eco
Screen Size (diagonal) 21 – 300 in, .53-7.6 m
Throw Ratio 1.5 – 1.8
Projection Distance 2.3 to 36.4 ft, .7 to 11.1 m
Projection Angle 8.3 – 8.6º tele / 9.9 – 10.3º wide
Lens Zoom 1.0 to 1.2
Focus Manual
F-#, f-# F=1.7 to 2.07 mm, f=18.9 to 22.7mm
Keystone Correction Automatic or manual +/- 30º
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate Horizontal 15 to 100 kHz
Vertical 50 to 120 Hz
Supported Video NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
Standards
SD/HD Video Signal 1080i, 720p, 576p, 576i, 480p, 480i,Y/Cb/Cr component (with optional adapter – ADP-CV1E)
Compatibility
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility Yes
Input/Output Terminals RGB 1 (analog) 15 pin
RGB2 DVI-I (digital and analog)
Video 1 RCA
Video 2 S-Video
Audio 1 L/R RCA (shared by video sources)
Audio 2 1/8 inch stereo (shared by computer inputs)
Audio Out Variable audio out
Monitor Out Yes
Audio 5-Watt speaker
External Control RS232, IR
Sync Compatibility Separate Sync / Composite Sync / Sync on G
ELECTRICAL
Power Req. 100 - 240VAC, 50 / 60Hz
Input Current 3.1 / 1.3A
Power Consumption 270W / 220W (VT595), 280W / 215W (VT695)
MECHANICAL
Installation Orientation Floor / Front, Floor / Rear, Ceiling / Front, Ceiling / Rear
Dimensions (WxDxH) 12.2 x 10.2 x 4.4 in, 309 x 258 x 112 mm
Net Weight 6.4 lbs, 2.9 kg
Fan Noise 35 dB normal / 29 dB eco
Regulations USA UL 1950 FCC Class B, Canada CSA950 (C-UL)
ENVIRONMENTAL
Operational Temp 41° to 95°F / 5° to 40°C
Humidity 20-80% non-condensing
Storage 14° to 122°F / -10° to 50°C
ACCESSORIES/WARRANTY PROGRAMS
Accessories
IR-RCVR IR receiver enables PJ remote to control PC and MAC functions
WPA001 802.11b/g wireless adapter
SPKR30 Amplified 30 watt speaker
SC200 Security cable attaches to projector lock slot
ADP-CV1E Component video to VGA adapter
Cases
LEATHERCASE Leather case with compartments for laptop and projector
LEATHERROLLER Leather rolling case for laptop and PJ, fits in most airplane storage bins
VT70ATAAirtight molded plastic shipping case for projector
Installation
VL80CM Ceiling mount with adapter plate designed for VT90 Series projectors
NP01UCM Universal ceiling mount for projectors weighing less than 40 pounds
ADJ006009 6to 9 inch adjustable extension column for use with projector mount
ADJ0012018 12 to 18 inch adjustable extension column for use with projector mount
ADJ0203 2to 3 foot adjustable extension column for use with projector mount
ADJ0305 3 to 5 foot adjustable extension column for use with projector mount
SCP100 Adjustable suspended ceiling plate for use with ceiling mount
Replacement Parts
VT80LP Replacement lamp for VT49
VT85LP Replacement lamp for VT490, VT590, VT595, VT695
RMT-PJ21 Replacement remote control
PWRCRD-VT70 Replacement power cord
RGBCBL-PJPX Replacement RGB signal cable
Warranty Programs
VLNPL-01 Extends termof parts and labor warranty to include 3 years labor
VLIC03 Extends termof InstaCareservice program to 3 years
VLMTC-02 3 year international service program
NECECO Projector recycling program, disposal certificate
VTP04 Extends term of VT90 Series parts warranty to 4 years
VTPL04 Extends termof VT90 Series parts and labor warranty to 4 years
UNIQUE FEATURES
Advanced AccuBlend Ensures detailed images when non-native resolution
sources are connected to the projector.
Autosense Automatically syncs with any computer signal and
features one touch image optimization.
VORTEX™ Technology Plus Breakthrough image processing technology improves
white level, color accuracy, dynamic range and varying
levels of black in an image.
Eco-Mode™ Technology Extends lamp life, lowers audible noise and reduces total
cost of ownership.
Built-in Wall Color Correction Presets provide for adaptive color tone correction to
display properly on non-white surfaces.
Image Magnification 64-step image magnification with location control.
Sleep Timer Count down timer can be set to automatically turn off
the projector.
5-Watt Speaker Provides volume needed for larger rooms
WARRANTY
Registered owers receive a 3-year limited warranty including InstaCare. Includes three
year limited warranty on parts and one year limited warranty on labor. The lamp is
covered for one year or 500 hours - whatever comes first. InstaCare provides the
original owner one year of either limited 3 business day repair/returnor next business
day exchange.
IN THE BOX
Carrying case, carrying handle for projector, remote control, battteries, power cord,
RGB signal cable, lens cap, user’s manual on CD-ROM, quick start guide, product
registration card, DVI-I – VGA adapter
Everything should be this easy
VT595 and VT695 digital projectors.

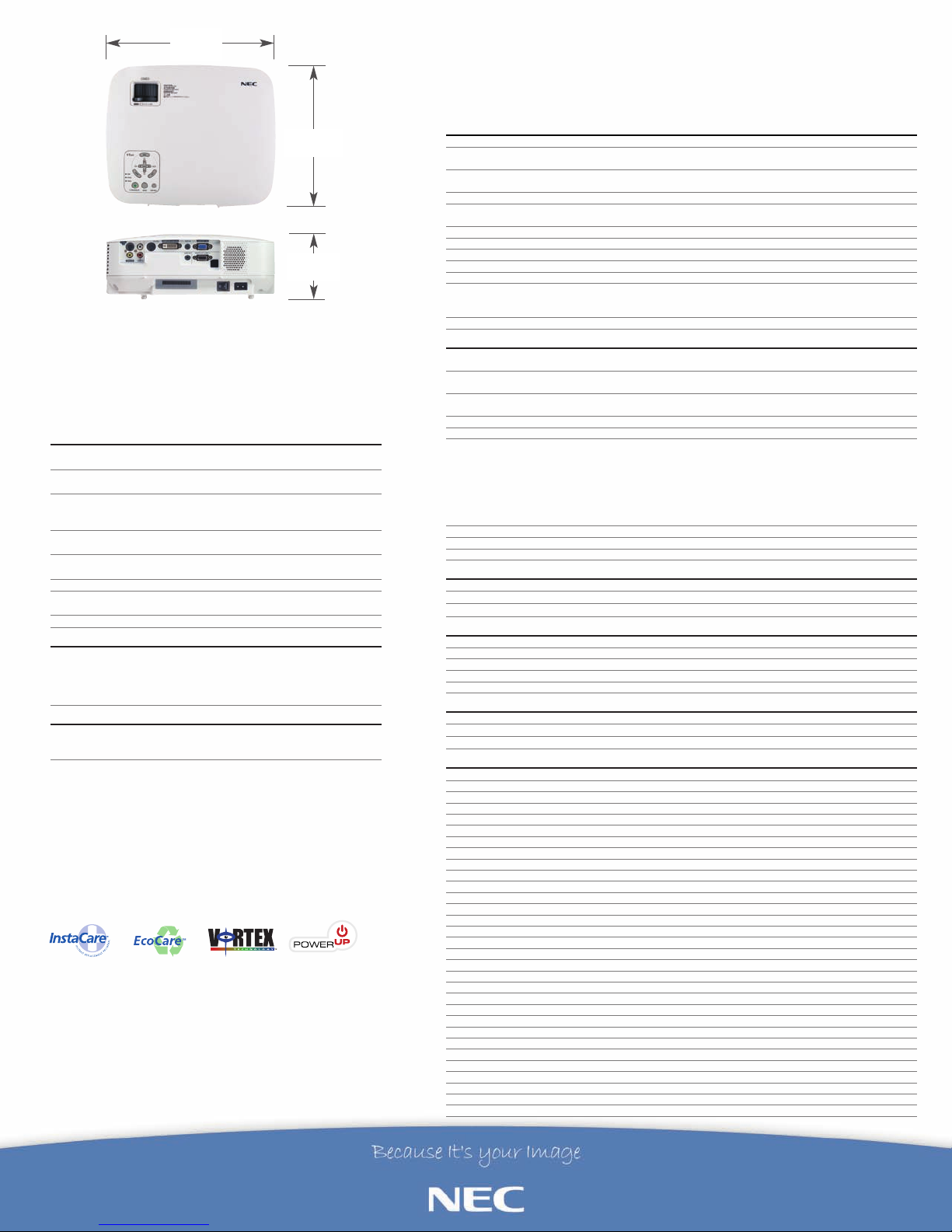

10.2”
(258 mm)
12.2”
(309 mm)
4.4”
(112 mm)
projector trade-in program
