Neptronic TRO5404 User manual

Room controller Thermostat
Specification & Installation instructions
TRO5404-121108-ESA.docx 1
Technical Data
TRO5404
Outputs
2 Analog Cooling outputs (0-10VDC)
2 Analog Heating outputs (0-10VDC)
0 or 22 VDC, TPM, (Time proportional modulation) 250 mA max.
Power supply 22 to 26 VAC 50/60Hz
Power consumption 2 VA
Set point range 10ºC to +35ºC [50ºF to 95ºF]
Control accuracy Temperature: +/-0.2ºC [0.4ºF]
Proportional band 0.5 ºC to 4ºC [1 ºC to 8ºF] adjustable
Electrical connection 0.8 mm2 [18 AWG] minimum
Operating temperature 0ºC to +50ºC [32ºF to +122ºF]
Storage temperature -30ºC to +50ºC [-22ºF to +122ºF]
Relative Humidity 5 to 95 % non condensing
Degree of protection of housing IP 30 to EN 60529
Weight 85 g. [0.2 lb]
Presentation
Symbols on display
Cooling ON
A: Automatic Menu set-up Lock ON
Heating ON
A: Automatic Programming mode
Energy saving mode ON Minimum/Maximum
set points
or ºC: Celsius scale
ºF: Fahrenheit scale
Dimensions
Dimension Inches Metric (mm)
A
3.00 78
B3.00 78
C1.00 24
D2.36 60
A
B
C
D
Feature:
Selectable analog output
Selectable Fahrenheit or Celsius scale
Manual Night Set Back override
Multi level lockable access menu
Lockable Set point
Selectable internal or external temperature sensor
Selectable external temperature sensor type
(3.3 KΩor 10 KΩ| Type 3 or Type G)
Selectable proportional control band
TRO5404

TRO5404 Specification & Installation instructions
2
Mounting Instructions
CAUTION: Risk of malfunction. Remove power prior to separate thermostat cover from its base.
A. Remove the screw (captive) holding the base and the front cover of the thermostat.
B. Lift the front cover of the thermostat to separate it from the base.
C. Pull wire through the base hole.
D. Secure the base to the wall using wall anchors and screws (supplied). Make the appropriate connections.
E. Mount the control module on the base and secure using the screw.
Terminal description
Terminals TRO5404
1 Common
2 24 VAC
3Exterior temperature sensor
4 Night set back input*
5 Heating ramp
6 Heating ramp high demand
7 Cooling ramp
8 Cooling ramp high demand
9 TPM (time proportional modulation)
*For a replacement in an existing night set back (NSB) loop with thermostat PTA, the NSB input, terminal #4, of the TRO should be
isolated for a good performance.
Settings on PC Board
Mode Selection
Jumper (JP1) on RUN:
Thermostat is in operation mode.
Thermostat must be set in this mode to operate
properly.
If not locked, set point and control mode (Heating &
Cooling ON, Cooling only ON or Heating only ON)
may be modified by end user.
Jumper (JP1) on PGM:
Thermostat is set in Programming mode.
Refer to following section about all settings
description

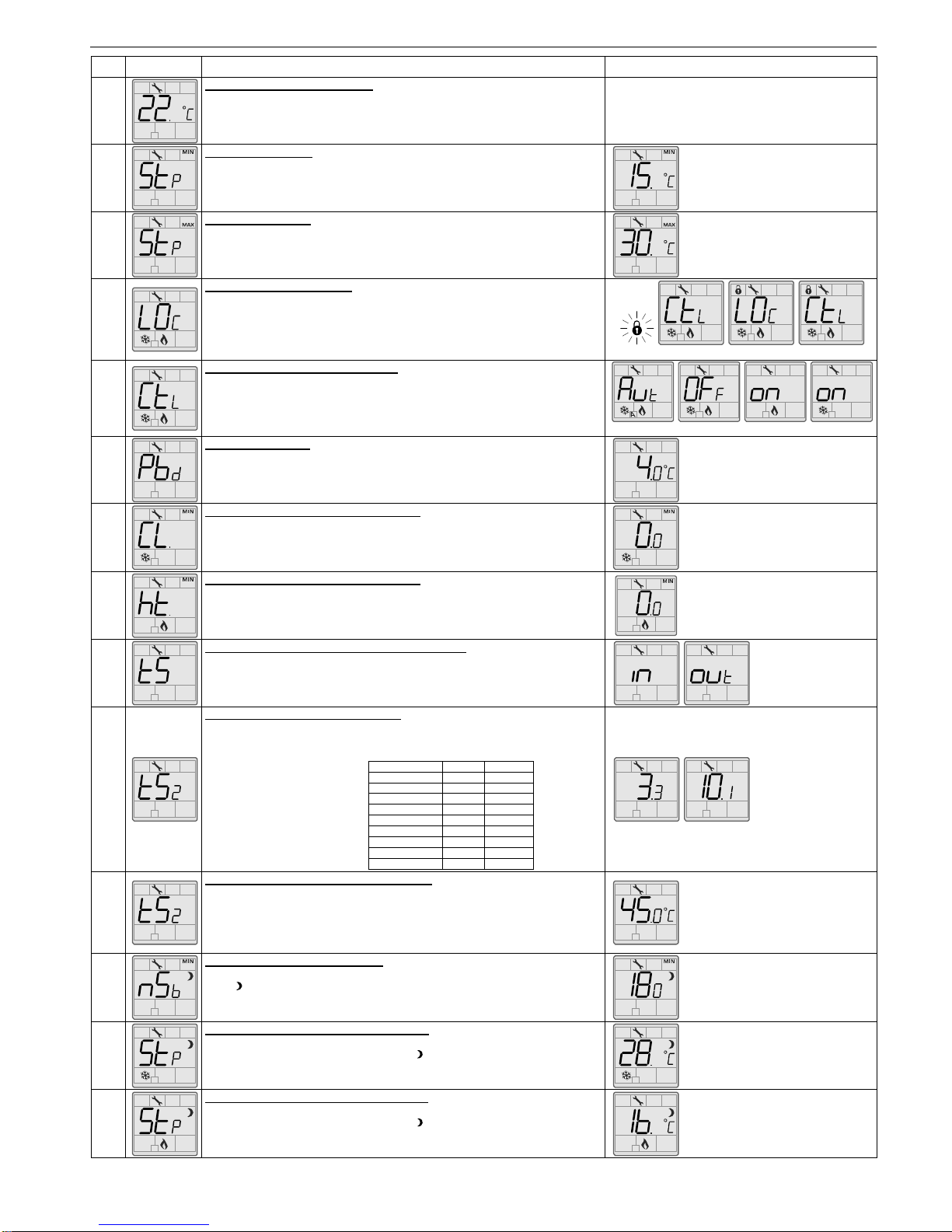

Programming mode
When in this mode this symbol is displayed. Please press on button to advance to the next program function and press on or
to change value. You can leave the programming mode at any time, changed values will be recorded.
Step Display Description Values
1
Internal temperature sensor Calibration:
Display switches between “tS1” and temperature read by internal
temperature sensor.
You can adjust the calibration of the sensor by comparison with a known
thermometer. For example if thermostat has been installed in an area where
temperature is slightly different than the room typical temperature
(thermostat place right under the air diffuser).
Range : 10 to 35ºC [50 to 95ºF]
Increment:1ºC [1ºF]
NOTE: This thermostat has been
calibrated at factory
2A
Locking the set point :
Display switches between “LOC” and “Stp”.
You can lock or unlock the set point adjustment by end user. If locked the
lock symbol will appear.
If you do not want to lock set point adjustment by end user, go directly to
step #3.
Default value: Unlocked
A
E
D
C
B
1 2 3 4 5 6 7 8 9
JP1
Mode selector COM
PGM
TB1
connecting
strip
TPM
CL.RAMP.HD
CL.RAMP
HT.RAMP.HD
HT.RAMP
NSB.
INP
EXT.TS
24VAC
Temperature
sensor
RUN
PGM
RUN
PGM
RUN

TRO5404 Specification & Installation instructions
3
Step Display Description Values
2B
Locking the set point (cont’d):
Select the desired locked set point temperature; this one should be within
the temperature range.
Once locked set point temperature is selected, please go directly to step #5
Set point range : 10 to 35ºC [50 to 95ºF]
Increment: 1ºC [1ºF]
Default value: 22ºC [72ºF]
3
Minimum set point:
Display switches between “Stp” and the minimum set point temperature.
MIN symbol is also displayed.
Please select the desired minimum set point temperature.
Range for Minimum
10 to 34ºC [50 to 94ºF]
Incrément1ºC [1ºF]
Default value: 15ºC [59ºF]
4
Maximum set point
Display switches between “Stp” and the maximum set point temperature.
MAX symbol is also displayed.
Please select the desired maximum set point temperature.
Range for Maximum
11 to 35ºC [51 to 95ºF]
Increment1ºC [1ºF]
Default value: 30ºC [86ºF]
5A
Locking the control mode:
Display switches between “LOC” and “CtL”.
You can lock or unlock selection of control mode by end user. If locked the
lock symbol will appear.
If you do not want to lock selection of control mode by end user, go directly
to step #6.
D
efault value: Unlocked
5B
Locking the control mode (cont’d):
Display switches between “CtL” and “Aut”.
Select which control mode you want to authorize: Automatic cooling and
heating, OFF cooling and heating, heating only or cooling only.
D
efault value: Automatic cooling and heating
6
Proportional band:
Display switches between “Pbd” and the value of the proportional band.
Please select the desired value of proportional band.
Proportional band range :
0.5 to 4.0ºC [1.0 to 8.0ºF]
Increment: 0.5ºC [1.0ºF]
Default value: 2.0ºC [4.0ºF]
7
Minimum position of 1st cooling ramp:
Display switches between “CL.” and the value of the minimum position of
the 1st cooling ramp. MIN and cooling symbols are also displayed.
Please select the desired value of the minimum position of the 1st cooling
ramp.
Range: 0.0 to 5.0 Volt.
Increment: 0.2 Volt.
Default value: 0.0 Volt
8
Minimum position of 1st heating ramp:
Display switches between “ht.” and the value of the minimum position of the
1st heating ramp. MIN and heating symbols are also displayed.
Please select the desired value of the minimum position of the 1st heating
ramp.
Range: 0.0 to 5.0 Volt.
Increment: 0.2 Volt.
Default value: 0.0 Volt
9A
Internal/external temperature sensor selection:
Display switches between “tS” and “in” or “out”.
Please select internal or external sensor.
If you select internal temperature sensor, go directly to step #10.
Default value: Internal
temperature sensor
9B
External temperature sensor value:
If you select external temperature sensor, display will switch between “tS2”
and the type of the external temperature sensor. Select the external sensor
type.
Temperature
Vs
Type of sensor
/ value (KΩ)
Temp. 3.3 10.1
5 ºC [41ºF] 8.380 23.460
10ºC [50ºF] 6.570 18.790
15ºC [59ºF] 5.186 15.130
20ºC [68ºF] 4.123 12.260
25ºC [77ºF] 3.300 10.000
30ºC [86ºF] 2.658 8.194
35ºC [95ºF] 2.155 6.752
40ºC [104ºF] 1.757 5.592
45ºC [113ºF] 1.441 4.655
Default value: 3.3
(sensor 3.3 KΩ)
(With DS100 or
WS100, set “tS2” to
3.3)
9C
External temperature sensor Calibration:
Display switches between “tS2” and the temperature read by the external
temperature sensor (if connected).
You can adjust the calibration of the external sensor by comparison with a
known thermometer.
Range: 5 to 45ºC [41 to 99.9ºF]
Increment:1ºC [1ºF]
5.0ºC [41.0ºF], resistance will be
infinite.
4
5.0ºC [99.9ºF], résistance will be
s
hort circuited.
10
Night set back derogation time :
Display switches between “nSb” and the derogation time in minute. MIN and
NSB symbol is also displayed.
Please select the desired derogation time, if no derogation time is desired
select “OFF”.
Range: OFF or 30 to 180min.
Increment: 15min.
Default value: 120 min.
11
Cooling Set point during Night set back:
Display switches between “Stp” and the value of the cooling set point
temperature during night set back. NSB and cooling symbols are also
displayed.
Please select the cooling set point temperature during night set back.
Range: 22 to 35ºC [72 to 95ºF]
Increment: 1ºC [1ºF]
Default value: 28º
C
[83ºF]
12
Heating Set point during Night set back:
Display switches between “Stp” and the value of the heating set point
temperature during night set back. NSB and heating symbols are also
displayed.
Please select the heating set point temperature during night set back.
Range: 10 to 22ºC [50 to 72ºF]
Increment: 1ºC [1ºF]
Default value: 16º
C
[61ºF]

TRO5404 Specification & Installation instructions
4
Operation mode
Step Description Display
1
At powering up, thermostat will light display and activate all LCD segments during 2 seconds.
Illuminating the LCD.
To illuminate the LCD, you just have to push onto any of the 3 buttons. LCD will light for 8 seconds.
Temperature display
In operation mode, thermostat will automatically display temperature read.
To change the scale between ºC and ºF, press on both and for 3 seconds.
2
Set point display and adjustment
To display the set point, press twice on the or button. Set point is displayed for 5 seconds.
To adjust set point, press on or while the temperature set point is displayed.
Note: If set point adjustment has been locked, symbol will be displayed.
3
Night set back (NSB) :
When thermostat is in night set back mode, NSB symbol is displayed, so set point for cooling and/or heating
are increased as per the setting made in programming mode.
If not locked, night set back can be derogated for a predetermined period by pressing onto any of the 3 buttons.
During period of NSB derogation the symbol will flash. If NSB does not flash, the derogation period is finished
or the Night set back derogation has been locked in programming mode.
4
Control mode selection :
To verify which control mode is set, press once onto the button. Control mode will be displayed during 5
seconds.
To change of control mode, press on or while control mode is displayed. You can choose one of the
following:
Automatic Cooling or Heating
Cooling and Heating OFF
Cooling only
Heating only
Note: If control mode selection has been locked, symbol will be displayed.
Typical Applications
Wiring Schematic
Central Cooling and Heating terminal (0-10 VDC modulating electric heater and pulsed baseboard)
Central Cooling and Heating and heating terminal with Night set back (pulsed electric heater)
Recycling at end of life
At end of life, please return the thermostat to your Neptronic® local distributor for recycling. If you need to find the nearest Neptronic®
authorized distributor, please consult www.neptronic.com.
Pulse
0 to 10
vdc
0 to 10
vdc
Actuator
Xfo
Duct heater
Baseboard with
TRIAC relay
Line voltage
Terminals TRO5404
1
2
6
7
9
Common
24 VAC
0-10 VDC Heating
0-10 VDC Cooling
TPM
TRO5404
Actuator
Xfo
Supply
Duct
heater
Baseboard with
TRIAC relay
Line voltage
Pulse
Change over
(COT100)
Xfo
Duct heater
Line voltage
Terminals TRO5404
1
2
4
5
6
Common
24 VAC
NSB
0-10 VDC Heating
0-10 VDC Heat. H.D.
0-10 VDC Cooling
0-10 VDC Cool. H.D.
TPM
7
8
9
0 to 10
vdc
0 to 10
vdc
0 to 10
vdc
0 to 10
vdc
Voltage relay
(VRC)
Voltage relay
(VRC)
Time clock
Y
G
W
TRO5404
Actuator
Xfo
Supply
Duct
heater
Line voltage
SupplyReturn
Fresh air
A/C UNIT
Change over
(COT100)
Voltage relay
(VRC)
Voltage relay
(VRC)
Time
clock
