NETGEAR RND44751G - ReadyNAS NV+ NAS Server User manual

350 East Plumeria Drive
San Jose, CA 95134
USA
September 2011
202-10895-03
ReadyNAS Duo v2 and
NV+ v2 Hardware Manual

2
ReadyNAS Duo v2 and NV+ v2
© 2011 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,
visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): See support information card.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change
without notice. © 2011 NETGEAR, Inc. All rights reserved.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.

3
Table of Contents
Chapter 1 Getting Started
Additional Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Setup Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Diskless Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 2 ReadyNAS Duo v2
Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Drive Bays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Chapter 3 ReadyNAS NV+ v2
Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Drive Bays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Chapter 4 Disks
Previously Formatted Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Adding a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Failed Disk Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Replacing a Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Appendix A Defaults and Technical Specifications
Factory Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Duo v2 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
NV+ v2 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Safety Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Electrical Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . . .37

4
ReadyNAS Duo v2 and NV+ v2
Appendix B Compliance Notification
Index

5
1
1. Getting Started
Congratulations on your purchase of a NETGEAR ReadyNAS®storage system. This ReadyNAS
Duo v2 and NV+ v2 Hardware Manual describes the physical features of the Duo v2 and NV+ v2
storage systems.
This chapter contains the following sections:
• Additional Documentation
• Setup Location
• System Requirements
• Diskless Units

Getting Started
6
ReadyNAS Duo v2 and NV+ v2
Additional Documentation
For detailed information about configuring, managing, and using your ReadyNAS Duo v2 or NV+
v2 storage system, see the ReadyNAS RAIDiator 5.3 for Home Software Manual, which is
available at http://www.readynas.com/documentation.
NETGEAR maintains a community website that supports ReadyNAS products. Visit
http://readynas.com for reviews, tutorials, a comparison chart, software updates, documentation,
an active user forum, and much more.

Getting Started
7
ReadyNAS Duo v2 and NV+ v2
Setup Location
Your ReadyNAS Duo v2 or NV+ v2 is suitable for use in a home or small office environment
where it can be freestanding. The small, compact size makes it suitable for sitting on a desk
or on a closet shelf.
Choose a location for your unit that meets these criteria:
• Cables can be connected easily.
• Water or moisture cannot enter the case.
• Airflow around the unit and through the vents in the side of the case is not restricted.
• The air is as free of dust as possible.
• Temperature operating limits are not likely to be exceeded.
• If you are using an uninterruptable power supply (UPS) for protection, the power
cable can be securely and safely connected to the UPS.
System Requirements
Your ReadyNAS Duo v2 or NV+ v2 requires the following:
• Ethernet connection
• Microsoft Windows 7, Vista, XP, 2000, Mac OS, UNIX, or Linux operating system
• Microsoft Internet Explorer 7.0+, Apple Safari, 2.0+, Mozilla Firefox 2.0+, Opera 9.5+,
or Google Chrome 10+ browser
• Hard disk drive or drives from the NETGEAR Hardware Compatibility List; see
http://www.readynas.com/hard_disk_hcl.

Getting Started
8
ReadyNAS Duo v2 and NV+ v2
Diskless Units
If you purchased a ReadyNAS storage system without a pre-installed hard disk drive or
drives, you must follow this procedure before you use your unit. The following procedure is
illustrated with a Duo v2, but the same steps apply for an NV+ v2.
To prepare a diskless unit for first use:
1. Obtain at least one hard disk drive that appears on the NETGEAR Hardware
Compatibility List.
See http://www.readynas.com/hard_disk_hcl.
If you are using a previously formatted disk, see the precautions listed in Previously
Formatted Disks on page 27.
2. With the unit turned off, insert a disk into a drive bay, as follows:
a. Press the disk tray release latch.
The tray handle pops out.

Getting Started
9
ReadyNAS Duo v2 and NV+ v2
b. Pull out the disk tray, place the new disk on the tray, and assemble the disk and tray
with the screws that came with your unit.
Make sure that the hard disk connectors face the interior of the disk bay.
c. Slide the disk tray back into the unit and press the handle to secure the disk.
3. Turn the unit on.
4. If you are using previously formatted disks, perform a factory reboot.
For more information, see Boot Menu on page 16 and Previously Formatted Disks on
page 27.
Note: Note: This process erases all data and formats the disk as
X-RAID2TM. If you are using a previously formatted disk that contains
data you want to preserve, you must move the data to an external
drive before using the previously formatted disk in your ReadyNAS
unit.
The factory reboot process can take up to 30 minutes while your unit tests and formats
the disk, installs the operating system, and creates a volume. This process can take up to
30 minutes; you can follow the progress in RAIDar. For more information about RAIDar,
see the ReadyNAS RAIDiator 5.3 for Home Software Manual, which is available at
http://www.readynas.com/documentation.
If you are installing multiple disks at the same time, they must synchronize. This might
take several hours, depending on the disk size. You can continue to use your ReadyNAS,
although access is slower until the volume synchronization finishes.

10
2
2. ReadyNAS Duo v2
This chapter provides an overview of the physical features of the ReadyNAS Duo v2 and
includes the following sections:
• Front and Side Panels
• Drive Bays
• Rear Panel
• Status Information
• System Shutdown
• Boot Menu

ReadyNAS Duo v2
11
ReadyNAS Duo v2 and NV+ v2
Front and Side Panels
The following figure shows the front and side panels of ReadyNAS Duo v2.
3
8
456 7
1
2
Figure 1. ReadyNAS Duo v2 front and side panels
1. Power button and LED
2. Disk activity LED
3. Exhaust vent
4. USB 2.0 port
5. Backup button
6. USB and backup status LED
7. Disk 1 and disk 2 LEDs
8. Drive bay door

ReadyNAS Duo v2
12
ReadyNAS Duo v2 and NV+ v2

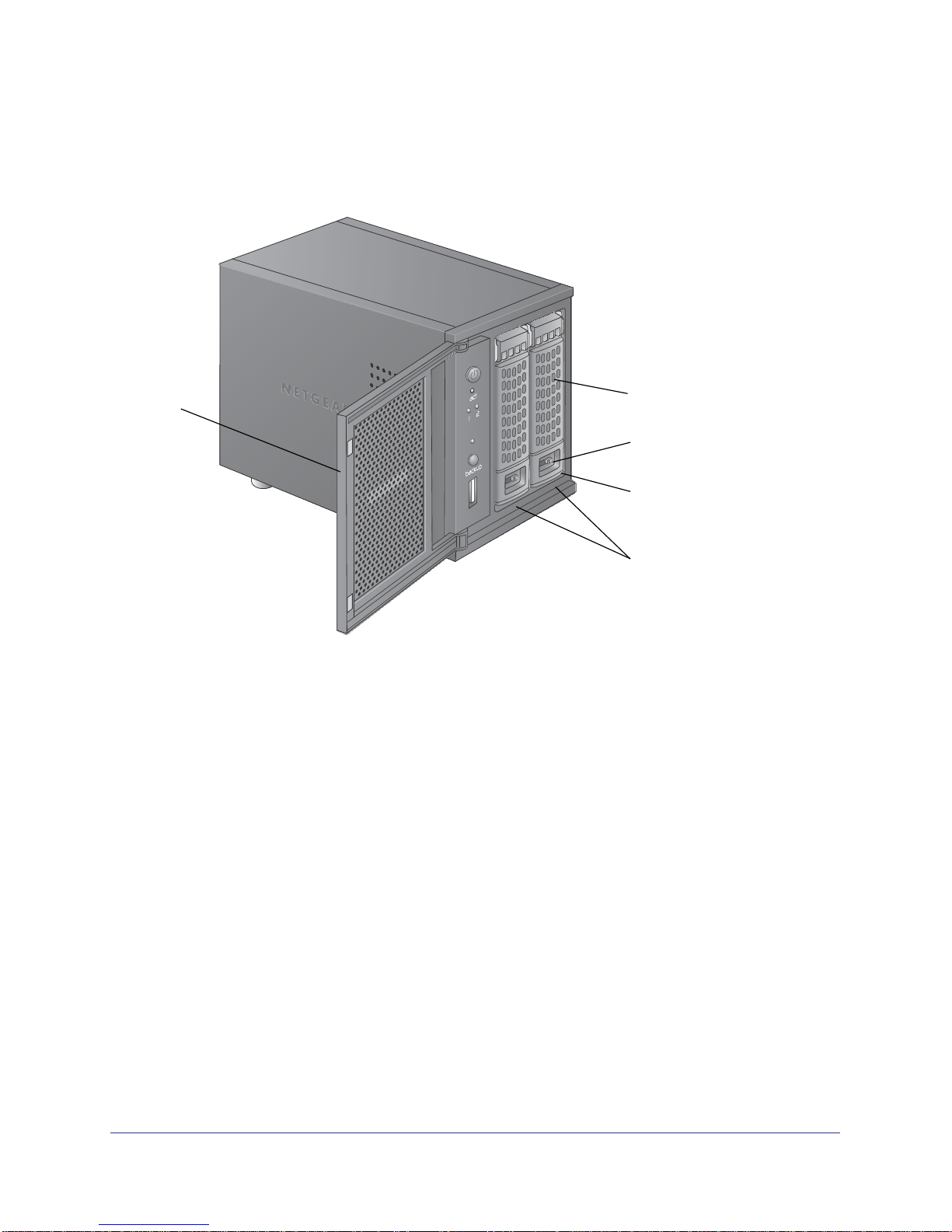

Drive Bays
The following figure shows the drive bays of ReadyNAS Duo v2.
12
3
4
5
Figure 2. ReadyNAS Duo v2 drive bay
1. Drive bay door
2. Disk tray handle
3. Recessed drive tray locking mechanism
4. Drive tray release latch
5. Drive bays

ReadyNAS Duo v2
13
ReadyNAS Duo v2 and NV+ v2

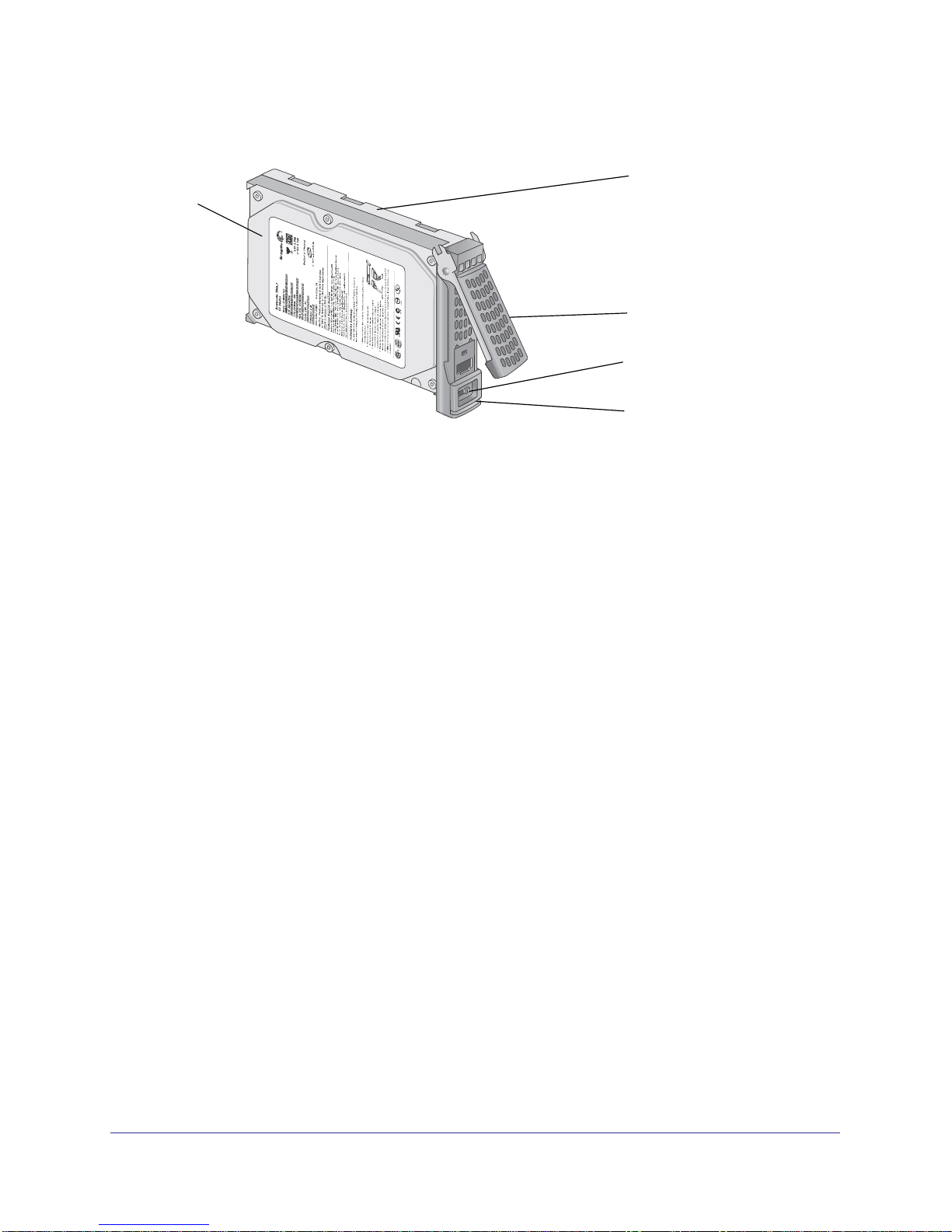

The following figure shows a ReadyNAS Duo v2 disk tray.
12
3
4
5
Figure 3. ReadyNAS Duo v2 disk tray
1. Hard drive
2. Disk tray
3. Disk tray handle
4. Recessed disk tray locking mechanism
5. Disk tray release latch

ReadyNAS Duo v2
14
ReadyNAS Duo v2 and NV+ v2
Rear Panel
The following figure shows the rear panel of ReadyNAS Duo v2.
1
2
3 4 56
Figure 4. ReadyNAS Duo v2 rear panel
1. Exhaust fan
2. Kensington lock
3. Reset button
4. USB 3.0 ports
5. 1-gigabit Ethernet port with LED status indicators
6. Power adapter socket

ReadyNAS Duo v2
15
ReadyNAS Duo v2 and NV+ v2
Status Information
You can obtain information about the status of your unit by reviewing the indicators listed in
the following table.
Indicator Description
Power button and LED Press this button to turn on the ReadyNAS. The LED has these states:
• Blinking. Booting or shutting down
• On. Powered on
• Off. Powered off
Disk LEDs (1, 2) Each disk bay has an LED associated with it on the front panel of the unit. The
disk LEDs have these states:
• On. Power is on and the disk is operating normally.
• Blinking. The disk was removed, failed, or is resynchronizing.
• Off. The disk bay is empty.
Disk activity LED The disk activity LED has these states:
• Blinking. A disk is active.
• Off. No disks are active.
Rear panel Ethernet port
LEDs Two LED status indicators are built into this port, one green and one amber. They indicate port speed and activity as follows:
• Green on, amber off. 1000 Mbps connection speed, no activity
• Green blinking, amber off. 1000 Mbps connection speed, activity
• Green off, amber on. 10 Mbps or 100 Mbps connection speed, no activity
• Green off, amber blinking. 10 Mbps or 100 Mbps connection speed, no
activity
• Green off, amber off. No connection
System Shutdown
You can shut down your unit in these ways:
• Using the Power button:
• Preferred shutdown. Press the Power button twice to initiate a graceful shutdown.
• Forced shutdown. If the unit is not responding, unplug it.
• Using the ReadyNAS Dashboard. For information about using the ReadyNAS
Dashboard to shut down your Duo v2, see the ReadyNAS RAIDiator 5.3 for Home
Software Manual, which is available at http://www.readynas.com/documentation.

ReadyNAS Duo v2
16
ReadyNAS Duo v2 and NV+ v2
Boot Menu
Use the boot menu to restart or troubleshoot your ReadyNAS unit. Your unit has the following
boot modes:
• Normal. Initiates a normal boot process, just like booting using the Power button.
• Factory default. Initiates a short disk test that takes approximately 5 minutes, then
begins a 10-minute time-out period waiting for RAIDar. During the 10-minute time-out
period, the system can be powered off safely without causing any data loss. After 10
minutes, or if you select the factory default option with RAIDar during the time-out period,
the factory default process begins.
WARNING!
The factory default reboot process resets the unit to factory
settings, erases all data, resets all defaults, and reformats the disk
to X-RAID2.
• OS reinstall. Reinstalls the firmware from the internal flash to the disks. Use the OS
reinstall boot mode when the system crashes and corrupts some configuration files. OS
reinstall boot mode also resets some settings on your unit, such as Internet protocol
settings and the administrator password, to defaults.
• Tech support. Boots into a low-level diagnostic mode. Use the tech support boot mode
only when instructed to do so by a NETGEAR Technical Support representative.
• Skip volume check. After a system crash, the system tries to scan and fix the volume
using a file system check. If several problems are found on a disk, this process can stall,
causing the system not to boot. Use this option to skip the scan and let the system boot.
WARNING!
Use the skip volume check boot mode only when instructed to do
so by a NETGEAR Technical Support representative, otherwise
data loss might occur.
• Memory test. Performs a memory test. The pass or fail result is reported using the unit’s
LEDs. Contact a NETGEAR technical support representative to interpret memory test
results.
• Disk test. Performs an offline full disk test. This can take 4 hours or more, depending on
the size of your disks. Any problems are reported in the RAIDar discovery tool.

ReadyNAS Duo v2
17
ReadyNAS Duo v2 and NV+ v2
To access the boot menu:
1. Power off your unit.
2. Using a straightened paper clip, press and hold the Reset button.
3. Press the Power button to power on the unit.
4. Continue to press the Reset button until the Power button LED, USB and backup status
LED, disk 1 LED, and disk 2 LED illuminate.
5. Press the Backup button to scroll through boot mode options.
The unit shows the boot mode options using the LEDs, as described in the following
table:
Boot Mode Status Indicator
Description Power
LED Disk 1 LED Disk 2 LED USB &
Backup
LED
Normal Power LED illuminates.
Factory default Disk 1 LED illuminates.
OS reinstall Disk 2 LED illuminates.
Tech support USB and backup status LED illuminates.
Skip volume check Power LED and disk 1 LED illuminate.
Memory test Power LED and disk 2 LED illuminate.
Disk test Power LED and USB and backup status
LED illuminate.
Legend:
• On: 
• Off: 
6. Press and release Reset button to confirm your boot menu selection.
The system boots in the selected boot mode.








18
3
3. ReadyNAS NV+ v2
This chapter provides an overview of the physical features of the ReadyNAS NV+ v2 and
includes the following sections:
• Front and Side Panels
• Drive Bays
• Rear Panel
• Status Information
• System Shutdown
• Boot Menu

ReadyNAS NV+ v2
19
ReadyNAS Duo v2 and NV+ v2
Front and Side Panels
The following figure shows the front and side panels of ReadyNAS NV+ v2.
1
7
23 4 5 6
8
Figure 5. ReadyNAS NV+ v2 front and side panels
1. Exhaust vents
2. USB 2.0 port
3. Backup button and backup LED
4. Disk LEDs
5. Disk activity LED
6. Power button and LED
7. Drive bay door
8. Status display screen

ReadyNAS NV+ v2
20
ReadyNAS Duo v2 and NV+ v2
Drive Bays

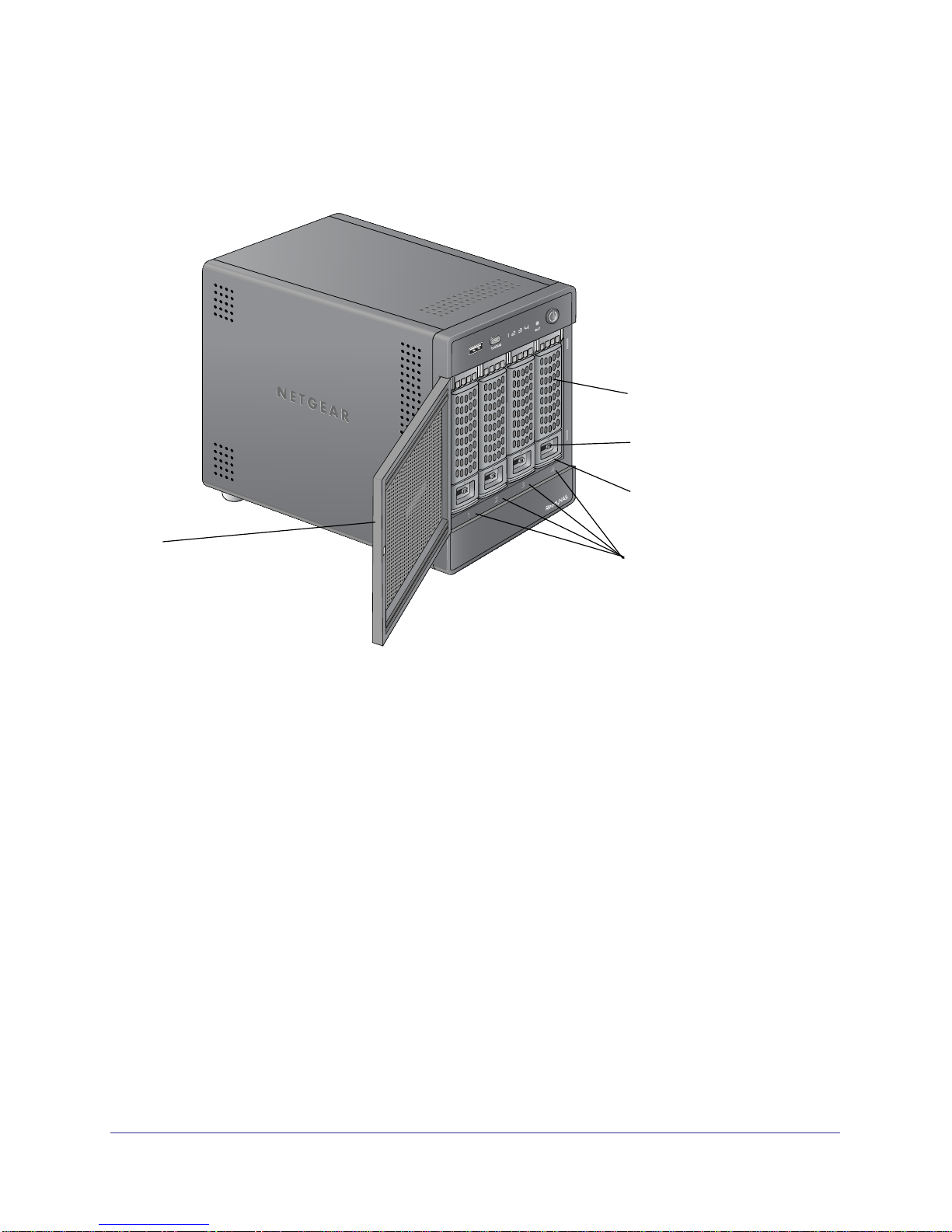

The following figure shows the drive bays of ReadyNAS NV+ v2.
1
2
3
4
5
Figure 6. ReadyNAS NV+ v2 drive bay
1. Drive bay door
2. Disk tray handle
3. Recessed drive tray locking mechanism
4. Drive tray release latch
5. Drive bays
