1. Getting Started
Congratulations on your purchase of a NETGEAR ReadyNAS®storage system. This manual
describes the physical features of the ReadyNAS OS 6 rack-mount storage systems.
This chapter contains the following sections:
•Additional Documentation
•Setup Location
•Supported Operating Systems
•Supported Browsers
•Diskless Storage System

Getting Started
6
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Additional Documentation
For detailed information about configuring, managing, and using your ReadyNAS storage
system, see the ReadyNAS OS 6 Software Manual, which is available at
http://support.netgear.com/product/ReadyNAS-OS6.
For additional product support information, visit
http://support.netgear.com/product/ReadyNAS-OS6.
Setup Location
Your ReadyNAS storage system is intended for installation in a restricted access location
(dedicated equipment rooms, service closets, and the like) only.
Keep the following considerations in mind as you install your system:
•Ambient operating temperature. If the system is installed in a closed or multiunit rack
assembly, the ambient operating temperature of the rack environment might be greater
than the ambient temperature of the room. Therefore, consider installing the equipment in
an environment compatible with the maximum rated ambient temperature. See Appendix
A, Defaults and Technical Specifications.
•Reduced airflow. Mount the equipment into a rack so that the amount of airflow required
for safe operation is not compromised.
•Mechanical loading. Mount the equipment into a rack so that a hazardous condition
does not arise due to uneven mechanical loading.
•Circuit overloading. Consider the equipment’s connection to the power supply circuitry
and the effect that any possible overloading of circuits might have on overcurrent
protection and power supply wiring. Consider equipment nameplate ratings when
addressing this concern.
•Reliable grounding. This product requires reliable grounding to be maintained at all
times. To ensure this, ground the rack itself. Pay particular attention to power supply
connections other than the direct connections to the branch circuit (for example, the use
of power strips).
•Clearance. Leave enough clearance in front of the rack (about 25 inches) to enable you
to open the front door completely and in the back of the rack (about 30 inches) to allow for
sufficient airflow and ease in servicing.

Getting Started
7
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Supported Operating Systems
The ReadyNAS storage system is supported on the following systems:
•Microsoft Windows 8
•Microsoft Windows 7
•Microsoft Windows Vista
•Apple Mac OS X 10.5 Leopard or later
•Linux, UNIX, Solaris
•Apple iOS
•Google Android
Supported Browsers
The ReadyNAS local admin page supports the following browsers:
•Microsoft Internet Explorer 9.0+
•Apple Safari, 5.0+
•Google Chrome 20+
•Mozilla Firefox 14+
If you have difficulty accessing the local admin page or if you notice unexpected behavior, try
using another browser. For more information about the ReadyNAS local admin page, see the
ReadyNAS OS 6 Software Manual.
Diskless Storage System
If you purchased a ReadyNAS storage system without a preinstalled disk drive or drives, you
must add at least one disk to your system before you use the system. You can add a 3.5-inch
hard disk drive, a 2.5-inch hard disk drive, or a 2.5-inch solid-state drive to an empty disk bay.
For information about how to install a disk, see Add a Disk on page 29.
Use only supported SATA hard disk drives (HDDs) or solid-state drives (SSDs) in your
ReadyNAS storage system. If you use disks that are not supported, NETGEAR technical
support will not provide assistance. For a list of supported disks, see the NETGEAR
Hardware Compatibility List at http://www.netgear.com/readynas-hcl.
If you are adding a previously formatted disk to your storage system, see the instructions in
Previously Formatted Disks on page 27.

8
2
2. ReadyNAS 2120 and 2120 v2
This chapter describes the physical features of the ReadyNAS 2120 and the 2120 v2. It includes
the following sections:
•Front Panel
•Rear Panel
•Status Information
•Power On and Shut Down
•Boot Menu

ReadyNAS 2120 and 2120 v2
9
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Front Panel

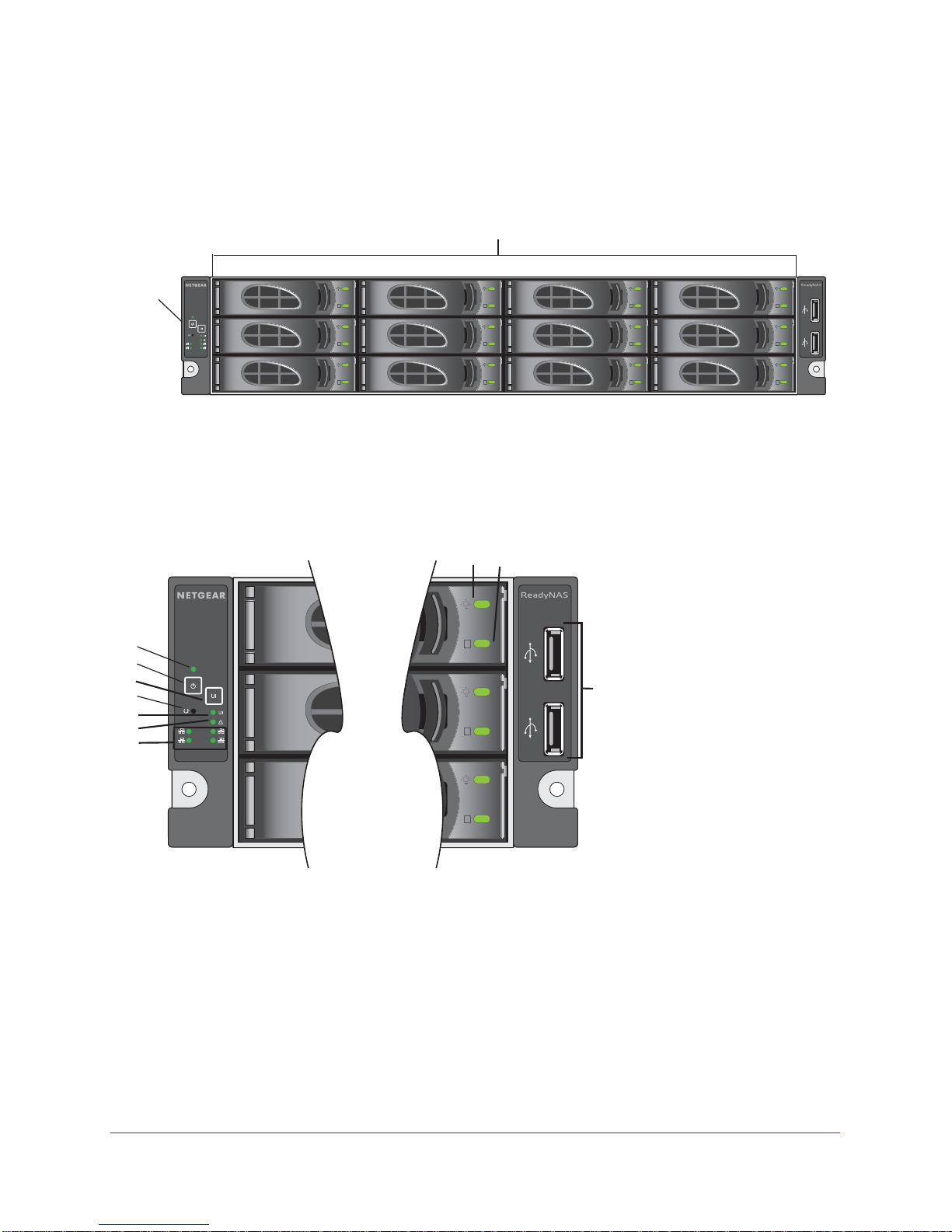

The following figure shows the front panel of the ReadyNAS 2120 and 2120 v2.
1
2
33
5
4
6
Figure 1. Front panel
1. Drive bays
2. Control panel
3. Mounting bracket
4. Fault LED
5. Disk Activity LED
6. Disk tray (For more information, see Disk Tray on page 26.)
The following figure shows the control panel in more detail.
12 4356
Figure 2. Control panel
1. USB 2.0 port
2. Reset button
3. Error LED
4. LAN 1 and LAN 2 LEDs
5. Power LED
6. Power button

ReadyNAS 2120 and 2120 v2
10
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Rear Panel

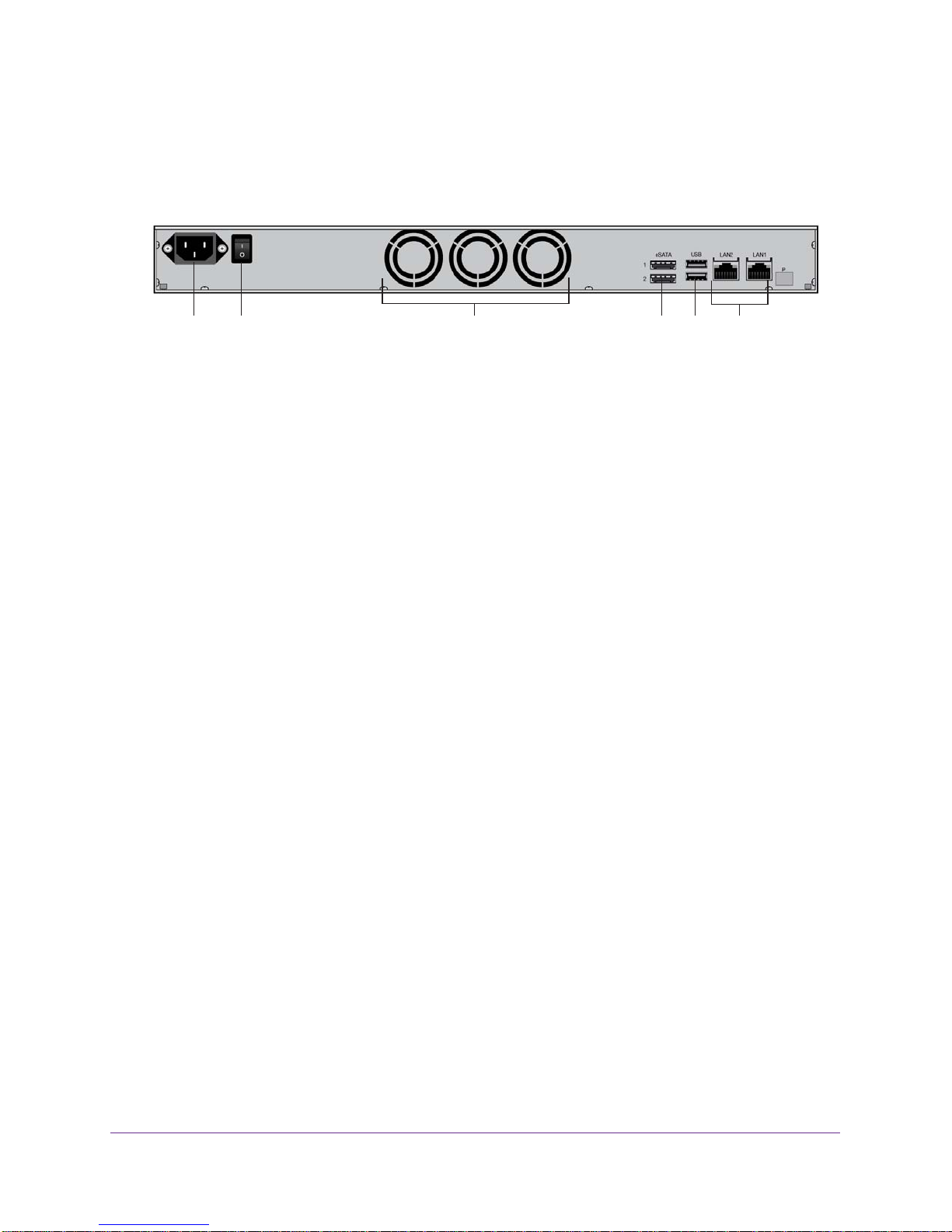

The following figure shows the rear panel of the ReadyNAS 2120 and the 2120 v2.
12 3456
Figure 3. Rear panel
1. Power cable socket
2. Power switch
3. Disk exhaust fans
4. E-SATA ports
5. USB 3.0 ports
6. LAN ports with LED status indicators

ReadyNAS 2120 and 2120 v2
11
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Status Information
You can obtain information about the status of your ReadyNAS 2120 or 2120 v2 by reviewing
the LEDs listed in the following table.
Table 1. Status information
Indicator Description
Disk Activity LED (disk tray,
top) The Disk Activity LEDs have these states:
•Solid blue. A disk is present.
•Blinking.The disk is active.
•Off. No disk is present.
Fault LED (disk tray,
bottom) The Fault LEDs have these states:
•Solid red. The disk was removed, failed, or is resynchronizing.
•Off. No disk is active.
Error LED (front panel) The Error LED has these states:
•Solid red. The system needs attention. Use the local admin page to
determine the problem. For more information, see the ReadyNAS OS 6
Software Manual, which is available at
http://support.netgear.com/product/ReadyNAS-OS6.
•Off. The system is healthy.
LAN 1 and LAN 2 LEDs
(front panel) The LAN LEDs have these states:
•Solid blue. An Ethernet cable is connected.
•Blinking. The Ethernet link is active.
•Off. There is no Ethernet connection.
LAN port LEDs (rear panel) Two LED status indicators are built into each LAN port. One LED is green and one
is amber. They indicate port speed and activity as follows:
•Green on, amber off. 1000 Mbps connection speed, no activity.
•Green blinking, amber off. 1000 Mbps connection speed, activity.
•Green off, amber on. 10 Mbps or 100 Mbps connection speed, no activity.
•Green off, amber blinking. 10 Mbps or 100 Mbps connection speed, activity.
•Green off, amber off. No connection.
Power LED (front panel) The Power LED has these states:
•Solid green. The system is powered on.
•Blinking. The system is powering on or powering off.
•Off. Power is not supplied to the system.

ReadyNAS 2120 and 2120 v2
12
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Power On and Shut Down
This section describes how to power on and shut down your system. If you must shut down
the system, use one of the preferred shutdown methods whenever possible.
Power On
To power on the system:
1. Connect the system to a power supply.
2. Flip the Power switch to the On position.
The Power switch is located on the back panel of the system.
Note: Dependingonthesystem’slastpowerstate, the system might power on
automatically. For more information, see Power State on page 13.
3. If necessary, press the Power button on the front panel of the system.
The system powers on.
Preferred Shutdown
You can gracefully shut down your system by using the Power button or the ReadyNAS local
admin page.
For information about how to gracefully shut down your system using the ReadyNAS local
admin page, see the ReadyNAS OS 6 Software Manual, which is available at
http://support.netgear.com/product/ReadyNAS-OS6.
To gracefully shut down your system using the Power button:
1. Press the Power button on the front panel of the system.
The Power LED blinks, prompting you to confirm the shutdown.
2. Press the Power button again.
The system shuts down gracefully.
Forced Shutdown
Perform a forced shutdown only if the storage system is not responding.
To perform a forced shutdown:
Flip the Power switch to the Off position.
The Power switch is located on the back panel of the system.
The system shuts down.

ReadyNAS 2120 and 2120 v2
13
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Power State
If the power supply is interrupted due to a power failure, the system returns to its last state
once the power supply is restored:
•If the system was powered on at the time of the power failure, the system powers on
when the power supply is restored.
•If the system was powered off at the time of the power failure, the system remains off
when the power supply is restored.
Boot Menu
Use the boot menu to restart or troubleshoot your ReadyNAS storage system. Your storage
system has the following boot modes:
•Normal. Initiates a normal boot process, just like booting using the Power button.
•Factory default. Initiates a short disk test that takes approximately 5 minutes. After the
disk test, a 10-minute time-out period begins. During the 10-minute time-out period, you
can choose to power off the storage system without causing any data loss, and the
factory default process is canceled. If you choose not to power off the storage system,
after the 10-minute time-out period, the factory default process begins.
WARNING:
The factory default reboot process resets the storage system to
factory settings, erases all data, resets all defaults, and reformats
the disk to X-RAID2.
Note: To start the factory default process immediately, press the Reset
button during the 10-minute time-out period.
•OS reinstall. Reinstalls the firmware from the internal flash to the disks. Use the OS
reinstall boot mode when the system crashes and corrupts some configuration files. OS
reinstall boot mode also resets some settings on your storage system, such as Internet
protocol settings and the administrator password, to defaults.
•Tech support. Boots into a low-level diagnostic mode. Use the tech support boot mode
only when a NETGEAR technical support representative instructs you to do so.
•Volume read only. Mounts a volume as read-only. Use this option when you are
attempting to rescue data off a disk during a disaster recovery.
•Memory test.Performs a memory test. The pass or fail result is reported using the
storage system’s LEDs. Contact a NETGEAR technical support representative to
interpret memory test results.

ReadyNAS 2120 and 2120 v2
14
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
•Test disk. Performs an offline full disk test. This process can take four hours or more,
depending on the size of your disks.Any problems are reported in the system logs, which
you can view using the local admin page. For more information about viewing the system
logs, see the ReadyNAS OS 6 Software Manual.
To access the boot menu:
1. Power off your system.
2. Using a straightened paper clip, press and hold the Reset button.
3. Press the Power button on the front panel of the system.
The system powers on.
4. Continue to press the Reset button for about five seconds until the Power button is solid
green and the Error LED, LAN 1 LED, and LAN 2 LED are blinking.
5. Press and release the Reset button to scroll through the boot mode menu.
Each press and release scrolls forward to the next item in the boot mode menu.
The storage system shows the boot mode options using the LEDs, as described in the
following table:
Boot Mode Status Indicator
Description Error
LED LAN 1
LED LAN 2 LED Power
LED
Boot menu Error LED and both LAN LEDs blink. Power
LED lights.
Normal LAN 2 and Power LEDs light.
Factory default LAN 1 and Power LEDs light.
OS reinstall Both LAN LEDs and the Power LED light.
Tech support Error and Power LEDs light.
Volume read only Error, LAN 2, and Power LEDs light.
Memory test Error, LAN 1, and Power LEDs light.
Test disk All four LEDs light.
Legend:
•Solid: 
•Blinking: 
•Off: 
6. Press and hold the Reset button for five seconds to confirm your boot menu selection.
The system boots in the selected boot mode.









15
3
3. ReadyNAS 3220 and 4220
This chapter describes the physical features of the ReadyNAS 3220 and ReadyNAS 4220. It
includes the following sections:
•Front Panel
•3220 Rear Panel
•4220 Rear Panel
•Status Information
•Boot Menu
•Rack-Mount Setup

ReadyNAS 3220 and 4220
16
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Front Panel
The following figure shows the front panel of the 3220 and 4220.
RN3220
1
2
Figure 4. Front panel
1. Drive bays with disk status LEDs
2. Control panel
The following figure shows the control panel in more detail.
RN3220
5
6
7
1
2
3
4
89
10
Figure 5. Control panel
1. Power LED
2. Power button
3. Unit Identifier button
4. Reset button
5. Unit Identifier LED
6. Health LED
7. Ethernet LEDs
8. Disk Drive Power LED
9. Disk Drive Activity LED
10. USB 2.0 ports

ReadyNAS 3220 and 4220
17
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Each drive bay features a latch that releases the pop-out tray handle, as shown in the
following figure.
2
1
Figure 6. Disk tray handle and release latch
1. Disk tray handle
2. Disk tray release latch
WARNING:
No matter how many hard drives are installed in your system,
ensure that all drive trays remain in the drive bays to maintain
proper airflow.

ReadyNAS 3220 and 4220
18
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
3220 Rear Panel
This following figure shows the rear panel of the 3220.
USB
eS ATA1
eS ATA2
LAN4
LAN2
LAN3LAN1
UID CONSOLE
PSU 1 PSU 2
346
5
1
27
Figure 7. 3220 rear panel
1. Power supplies
2. Power supply status LEDs
3. Unit Identifier LED
4. SATA ports
5. 1-gigabit Ethernet ports with LED status indicators
6. VGA monitor port
7. USB 3.0 ports

ReadyNAS 3220 and 4220
19
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
4220 Rear Panel
This following figure shows the rear panel of the 4220.
USB
LAN4
LAN2
LAN3LAN1 CONSOLE
eS ATA1
eS ATA2
UID
PSU 1 PSU 2
34
6
5
1
278
Figure 8. 4220 rear panel
1. Power supplies
2. Power supply status LEDs
3. Unit Identifier LED
4. SATA ports
5. 1-gigabit Ethernet ports with status LED status indicators
6. VGA port
7. USB 2.0 ports
8. 10-gigabit Ethernet ports with status LED status indicators

ReadyNAS 3220 and 4220
20
NETGEAR ReadyNAS OS 6 Rack-Mount Storage Systems
Status Information
You can obtain information about the status of your system by reviewing the indicators listed
in the following table.
Table 2. Status indicators
Indicator Description
Power LED (control panel) The Power LED has these states:
•Green.The system is powered on.
•Amber. The system is in standby mode.
•Off. The system is powered off.
UI LED (control panel) The UI LED has these states:
•Blue. The system is identified: the UI button was pressed and the UID
LED on the rear panel is lit.
•Off. The system is not identified.
Health LED (control panel) The Health LED has these states:
•Red. The system needs attention. Use the local admin page to determine
the problem. For more information, see the ReadyNAS OS 6 Software
Manual, which is available at
http://support.netgear.com/product/ReadyNAS-OS6.
•Off. The system is healthy.
LAN LEDs (control panel) The LAN LEDs have these states:
•Green. An Ethernet cable is connected.
•Blinking. The Ethernet link is active.
•Off. There is no Ethernet activity.
Disk LEDs (disk trays) The top LED indicates disk status, as follows:
•On. A disk is present.
•Off. No disk is present.
The bottom LED indicates disk activity as follows:
•Blinking. The disk is active.
•Off. No disk activity.
•Blinking on/off/on/off pattern. The disk has failed or is faulty.
UI LED (rear panel) The UI LED has these states:
•On. The system is identified: the UI button was pressed.
•Off. The system is not identified.
Ethernet port LEDs (rear panel) Two LED status indicators are built into each LAN port. One LED is green and
one is amber. They indicate port speed and activity as follows:
•Green on, amber off. 1000 Mbps connection speed, no activity.
•Green blinking, amber off. 1000 Mbps connection speed, activity.
•Green off, amber on. 10 Mbps or 100 Mbps connection speed, no
activity.
•Green off, amber blinking. 10 Mbps or 100 Mbps connection
speed, activity.
•Green off, amber off. No connection.
