netvox RB11E User manual

Model：RB11E
Wireless Occupancy & Temperature & Light Sensor
Wireless
Occupancy & Temperature & Light Sensor
User Manual

1
Table of Content
1. Introduction.............................................................................................................................................................................................................................................................. 2
2. Appearance............................................................................................................................................................................................................................................................... 2
3. Main Features...........................................................................................................................................................................................................................................................3
4. Set up Instruction..................................................................................................................................................................................................................................................... 3
5. Data Report.............................................................................................................................................................................................................................................................. 4
6. IR Delay Configuration............................................................................................................................................................................................................................................6
7. Installation................................................................................................................................................................................................................................................................7
7.1 Tips for installing the double-sided stickers.................................................................................................................................................................................................. 7
7.2 Tips for installing the steel nails.................................................................................................................................................................................................................... 7
7.3 Installation requirements................................................................................................................................................................................................................................8

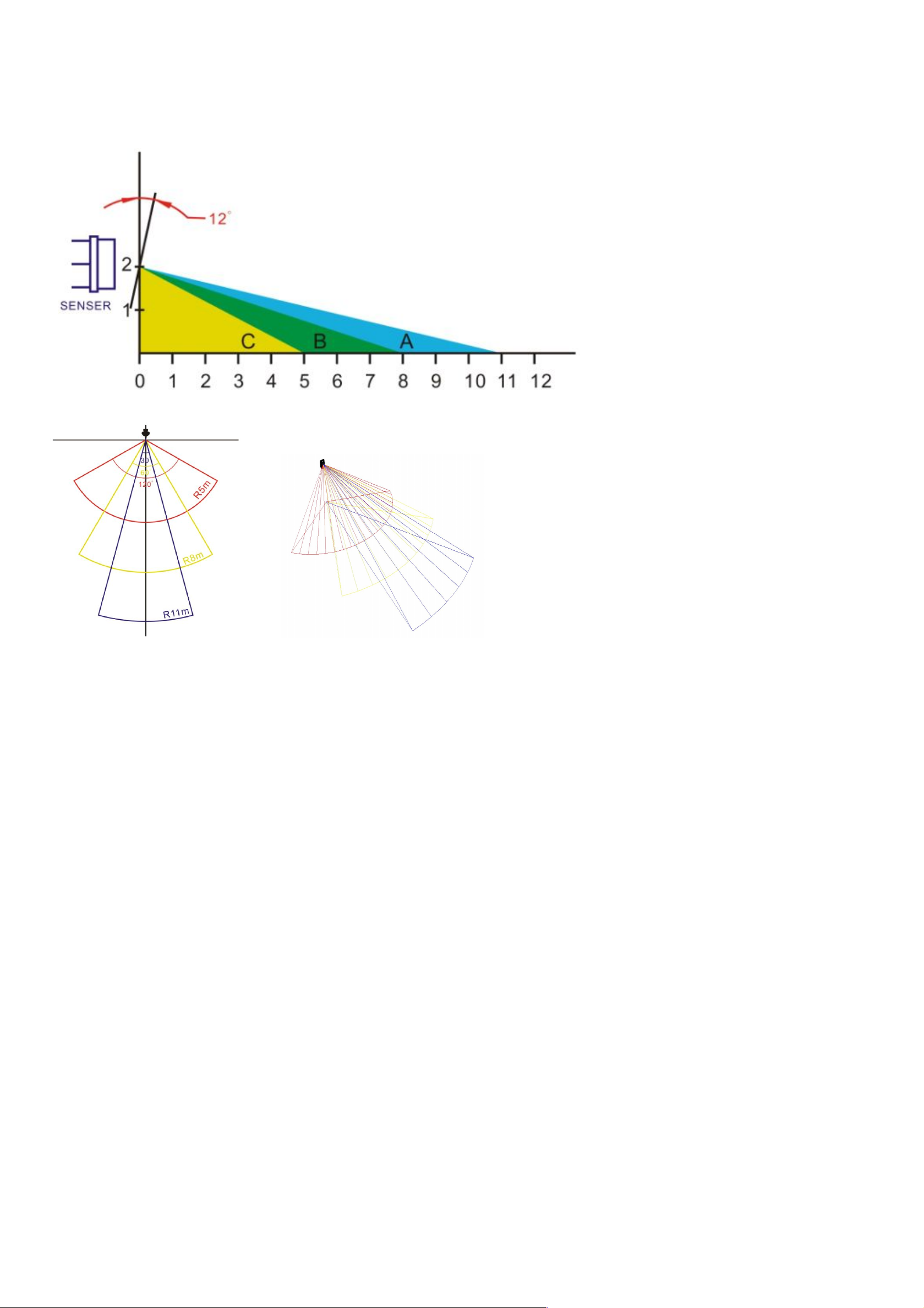

7.4 Detection coverage.........................................................................................................................................................................................................................................9
8. Important Maintenance Instruction..........................................................................................................................................................................................................................9
9. FCC Statement....................................................................................................................................................................................................................................................... 10

2
1. Introduction
RB11E is a long distance wireless infrared device based on the LoRaWAN protocol (Class A). RB11E combines infrared detection, temperature, and
illumination sensors. During infrared real-time detection, if a people or other organism which is active in the monitoring area, RB11E will detect the
infrared signal and report status information to the gateway. Users can execute different instructions or scenes according to the different status
configuration. RB11E also supports temperature, lighting report.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods,
LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely used in long-distance, low-data wireless
communications. For example, automatic meter reading, building automation equipment, wireless security systems, industrial monitoring. Main
features include small size, low power consumption, transmission distance, anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and gateways from different
manufacturers.
This device has been certified by the LoRa Alliance and is licensed to use the following logo on the product:
2. Appearance
\
Indicator（Red / Green）
Function Key 1
Function Key 2
Infrared Sensor
Infrared Sensitivity Adjustment Knob
Case Open Button

3
3. Main Features
Compatible with LoRaWAN
Detects motion, air temperature, illuminance
2 ER14505 lithium batteries (3.6V / section) parallel power supply
Simple operation and setting
Protection level IP30
Compatible with LoRaWANTM Class A
Frequency hopping spread spectrum
Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Low power consumption and long battery life
Note*:
Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery life of various models in different configurations.
4. Set up Instruction
On/Off
Power on
Insert batteries.
Operation method: Press the open shell button and then open the upper and lower lids along the gap between the upper and lower
covers. After opening the case, insert two models of ER14505 3.6V AA into the battery compartment, and then close the upper and
lower covers.
Turn on Press any function key till the green and red indicator flash once and then release.
Turn off
(Restore to factory setting) Press and hold two function keys for 5 seconds till the green indicator flashes for 20 times and enters off mode.
Power off Remove Batteries.
Note:
1. Remove and insert the battery; the device will be at off state by default. Press the function key till the green and red indicator flash
once and then release to turn on.
2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor inductance and other energy storage
components.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Had joined the network
Turn on the device to search the previous network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Fail to join the network
(when the device is on)
First two mins:wake up every 15 seconds to send request.
After two mins: enter sleeping mode and wake up every 15 minutes to send request.
Note: Suggest to remove batteries if the device is not used to save power.
Suggest to check device verification on gateway.
Function Key
Press and hold for 5
seconds
Restore to factory setting / Turn off
The green indicator flashes for 20 times: success
The green indicator remains off: fail
Press once The device is in the network: the green indicator flashes once and sends a report
The device is not in the network: green indicator remains off

4
Sleeping Mode
The device is on and in the
network
Sleeping period: Min Interval.
When the reportchange exceeds setting value or the state changes: send a data report according to Min Interval.
The device is on but not in
the network
First two mins: wake up every 15 seconds to send request.
After two mins: enter sleeping mode and wake up every 15 minutes to send request.
Note: Suggest to remove batteries if the device is not used.
Suggest to check device verification on gateway.
Low Voltage Warning
Low Voltage 3.2 V
5. Data Report
When the device is powered up, it will immediately send a version package and a data report package of temperature, illumination, infrared status and
voltage.
Data will be reported once every hour by default setting.
Maximum time: Max Interval
Minimum time: Min Interval (default current ambient temperature, illuminance value, voltage value are checked per Min Interval)
Default reportchange: Battery - 0x01 (0.1V)
Temperature----0x0064 (1°C)
Illumination----0x0064 (100Lux)
Infrared trigger:
After the RB11E device detects the infrared, the red LED blinks once, and immediately reports the status values of all the current sensors.
Infrared status bits: Someone: "1"; No one: "0"
Note:
The data transmission cycle of the device is subject to the programming configuration before shipment.
The interval between two reports must be the minimum time
RB11E default Max Interval = 1hour, Min Interval = 1hour
(if there is special custom configuration, the setting will be changed according to customer requirements)
The data reported by the device is resolved by the Netvox LoraWAN Application Command document.
Or refer to http://www.netvox.com.cn:8888/page/index
Min Interval
(Unit:second)
Max Interval
(Unit:second) Reportable Change Current Change≥ Reportable Change
Current Change ＜
Reportable Change
Any number between
1~65535
Any number between
1~65535 Can not be 0 Report per Min Interval
Report
per Max Interval

5
Report configuration example:
(1) Report configuration parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v, TemperatureChange = 1°C, illuminance = 100lux
Downlink: 0103003C003C0100640064
Devices return:
8103000000000000000000 (the configuration is successful)
8103010000000000000000 (the configuration is failed)
(2) Read device configuration parameters
Downlink: 0203000000000000000000
Devices return:
8203003C003C0100640064 (current device configuration parameters)
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V
MaxTime MaxTime
Sleeping(MinTime) Sleeping(MinTime)
Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BtteryVoltageChange value.
Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.
MaxTime
Sleeping(MinTime) sleeping sleeping sleeping
0H 15th M 30th M 45th M1H 2H
Description Device CmdID DeviceTyp
eNetvoxPayLoadData
ConfigReportReq
RB11E
0x01
0x03
MinTime(2b
ytes Unit:s)
MaxTime(2byt
es Unit:s)
BatteryChange(1
byte Unit:0.1v)
TemperatureC
hange(2byte
Unit:0.01℃)
illuminance
（2byte Unit:
1Lux）
ConfigReportRsp 0x81 Status(0x00_
success) Reserved (8Bytes,Fixed 0x00)
ReadConfigReport
Req
0x02 Reserved (9Bytes,Fixed 0x00)
ReadConfigReport
Rsp
0x82 MinTime(2b
ytes Unit:s)
MaxTime(2byt
es Unit:s)
BatteryChange(1
byte Unit:0.1v)
TemperatureC
hange(2byte
Unit:0.01℃)
illuminance
Change（2byte
Unit: 1Lux）
Wakes up and
collects data
2.8V
Does not report
Wakes up and
collects data
2.8V
Does not report
Wakes up and
collects data
2.8V
Does not report
Wakes up and
collects data
REPORTS
2.8V
Wakes up and collects
data
REPORT 2.8V
Wake up and collects data
REPORTS 2.5V
Wakes up and collects data
REPORTS 2.7V
Wakes up and collects data
REPORTS 2.8V

6
Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.
MaxTime
sleeping sleeping ...
0H 15th M30th M45th M 1H 1H 10th M1H 25th M 1H 40th M 1H 55th M2H 10th M
Notes :
1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data.
2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value, the device reports according to MinTime
interval. If the data
variation is not greater than the last data reported, the device reports according to MaxTime interval.
3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up frequently and the battery will be drained soon.
4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle of MinTime/MaxTime calculation is
started.
6. IR Delay Configuration
If someone or animal is moving in the monitoring area, RB11E will detect the infrared signal and the red indicator will flash once. In the mean
time, it reports occupied status (at the same time, other sensor status value are also reported).
To save the power, when RB11E detects the infrared signal, it will enter IRDetectionTime period. If there is no infrared signal detected in
IRDetectionTime period. It will report un-occupy.
IRDisableTime is the sampling period during IRDetectionTime (IRDisableTime are 30 seconds by default setting that PIR is off for first 70% of
the period; on for rest 30% of the period).
For example, after triggered, the PIR will turn off the infrared probe for 21 (30 * 70%) seconds to save the power, living objects within this period
will not be detected. PIR will re-open detection function after 21 seconds, if it detects living objects in this period, the IR delay time will be
extended for another 30 seconds till no infrared signal is detected and IRDetectionTime period is due and RB11E will then report un-occupy.
Note：IRDisableTime >=5 s, IRDetectionTime>= IRDisableTime
Default disabletime：30s detectiontime：5min
The infrared sensitivity adjustment knob can be manually adjusted to change the sensitivity of the infrared detection. When the clockwise rotation,
the higher the infrared sensitivity, the easier it is to trigger.
Disabletime and Detectiontime
IRDisableTime is the sampling period, and IRDetectionTime is the detecting period.
To save power, the sensor will be in the sleep mode for the first 70% of the IRDisableTime and awaken for the last 30% of the IRDisableTime.
If living creature is detected during the last 30% of IRDisableTime, the IR delay time will be extended for another IRDetectionTime till no infrared
signal is detected.
If no living creature is detected during IRDetectionTime, RB11E will report “unoccupied” along with other sensor status, such as
temperature,illumination, etc.
Wakes up and
collects data
REPORTS 2.8V
Wakes up and collects data
2.7V |2.7-2.8|=0.1
REPORTS 2.7V
Wakes up and
collects data
2.7V Does not
report
Wakes up and
collects data 2.7V
Does not report
Wakes up and
collects data
2.7V Does not
report
Wakes up and collects data
2.7V Does not report
Wakes up and
collects data
2.7V Does not
report
Wakes up and
collects data
REPORTS 2.7V
Wakes up and
collects data
2.8V Does not
report
Users push the button,
REPORTS 2.7V.
Recalculate MaxTime.

7
Example1:
The IRDetectionTime is 60 seconds and the IRDisableTime is 30 seconds, no living creature is detected during the two 9-second detection period (the
yellow parts shown below).
RB11E will report “unoccupied” after 60 secs(IRDetectTime).
Example2:
The IRDetectionTime is 60 seconds and IRDisableTime is 30 seconds, living creature is detected at the 25th second of the first 30 seconds.
RB11E will restart the IR detecting procedure(IRDetectionTime).
No living creature is detected during the next IRDetectionTime and RB11E therefore report “unoccupied.”
7. Installation
7.1 Tips for installing the double-sided stickers
1. Clean the surface of the objects you plan to use the sticker with.
2. Tear off one side of the sticker, place it to the bottom of the product as shown on the picture, and
press it.
3. Tear off the other side of the sticker and put the sticker to a clean surface of the wall (the direction
of arrow shows up ) and press the sticker firmly for around 20 seconds.
Note：
1. The white release paper side (with gray letters 3M9080A) is for the wall.
The brown release paper side (with green letters 3M300LSE) is for the plastic base of the product.
2. Make sure there is no dust on the surface of the wall: wipe the dust and dirt off the wall.
3. Make sure the wall is not wet: it is recommended to use a dryer to dry the wall before putting the
sticker.
7.2 Tips for installing the steel nails
1. Make sure there is no dust on the surface of the wall.
2. Dispart the bottom of the product, as shown on picture 1.
3. Put the steel nails through the holes of the bottom part, place the bottom with the nails on where you want to install the device on the wall, and drive
the nails into the wall. Leave 2mm of the nails from the surface of the bottom part, as shown on picture 2.
4. Fasten the rest of the device to the bottom, as shown on picture 3.
Picture 1 Picture 2 Picture 3

8
Note:
The steel nails are only for brick walls, cement walls, woods, etc. They are not for concrete,
as concrete is too hard for the nails.
7.3 Installation requirements
1. Indoor use only, please check the installation places.
The sensitivity of the PIR sensor has a lot to do withe the motion direction of the human body. The PIR sensor is more sensitive to vertical motions,
while it is less sensitive to horizontal motions. Thus, it is important to choose the proper location for installation and higher sensitivity.

9
7.4 Detection coverage
Horizontal projected area Space projected area
IR coverage range:
The coverage area A- Distance: 11 meters; sensing angle: 30°.
The coverage area B- Distance: 8 meters; sensing angle: 60°.
The coverage area C- Distance: 5 meters; sensing angle: 120°.
8. Important Maintenance Instruction
Your device is a product of superior design and craftsmanship and should be used with care. The
following suggestions will help you use the warranty service effectively.
•Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals
that can corrode electronic circuits. In case the device is wet, please dry it completely.
•Do not use or store in dusty or dirty areas. This can damage its detachable parts and electronic
components.
•Do not store in excessive heat. High temperatures can shorten the life of electronic devices,
destroy batteries, and deform or melt some plastic parts.
•Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature,moisture will form inside, which will destroy the
board.
•Do not throw, knock or shake the device. Rough handling of equipment can destroy internal
circuit boards and delicate structures.
•Do not wash with strong chemicals, detergents or strong detergents.
•Do not apply with paint. Smudges can block debris in detachable parts and affect normal
operation.
•Do not throw the battery into a fire to prevent the battery from exploding. Damaged batteries
may also explode.
All of the above suggestions apply equally to your device, battery and accessories.
If any device is not working properly.
Please take it to the nearest authorized service facility for repair.

10
9. FCC Statement
The OEM integrator has to be aware of not to providing information to end users regarding how to install or remove this RF module in the user manual
of the end product.The user manual which is provided by OEM integrators for end users must
Include the following information in a prominent location.
“To comply with FCC RF exposure compliance requirement, the antenna user for this transmitter must be installed to provide a separation distance
of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter .”
Label for the end product must include “Contains FCC ID :NRH-ZB-Z100B”or “A RF transmitter inside,FCC ID :NRH-ZB-Z100B”.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is to the following two conditions:(1)this device may not cause harmful interference
and (2)this device must accept any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
1This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radiator and your body.
