netvox R718UBB Series User manual

Wireless Multifunctional CO2 Sensor
R718UBB Series
Wireless Multifunctional
CO2 Sensor
R718UBB Series
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be
maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

1
Table of Content
1. Introduction..........................................................................................................................2
2. Appearance...........................................................................................................................3
3. Main Feature ........................................................................................................................3
4. Set up Instruction .................................................................................................................4
5. Data Report ..........................................................................................................................5
5.1 Example of ReportDataCmd..........................................................................................6
5.2 Example of ConfigureCmd............................................................................................ 7
5.3 Example of calibration configuration.............................................................................9
6. Information about Battery Passivation...............................................................................10
6.1 To determine whether a battery requires activation......................................................10
6.2 How to activate the battery ..........................................................................................10
7. Precautions for Outdoor Installation .................................................................................. 11
8. Important Maintenance Instruction ....................................................................................12

2
1. Introduction
R718UBB all-in-one series is a ClassAtype testing device based on LoRaWAN open protocol of Netvox, which can support multiple
combinations of temperature and humidity, CO2, vibration, atmospheric pressure and illumination sensors, and is compatible with
LoRaWAN protocol.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other
communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely
used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation device,
wireless security systems, industrial monitoring. Main features include small size, low power consumption, transmission distance,
anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and
gateways from different manufacturers.
The specific model of R718UBB all-in-one is shown in the following table:
UBB represents the basic function of battery power CO2
“1” represents temperature and humidity,
“2” represents vibration
“3” represents air pressure
“5” represents light
Device Model Product functions
R718UBB CO2
R718UBB1 CO2, temperature and humidity
R718UBB12 CO2, temperature and humidity, vibration
R718UBB123 CO2, temperature and humidity, vibration, air pressure
R718UBB23 CO2, vibration, air pressure
R718UBB25 CO2, vibration, light
R718UBB125 CO2, temperature and humidity, vibration, light
R718UBB235 CO2, vibration, air pressure, light
R718UBB1235 CO2, temperature and humidity, vibration, air pressure, light

3
2. Appearance
3. Main Feature
Apply SX1276 wireless communication module
2 sections ER14505 3.6V Lithium AA size batteries
Detectable CO2 concentration
The base is attached with a magnet, which can be adsorbed on iron objects
Host Body Protection Level: IP65
Compatible with LoRaWANTM Class A
Frequency Hopping Spread Spectrum (FHSS) technology
Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via
SMS text and email (optional)
Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne
Low power consumption and long battery life
Note:
Battery life is determined by the sensor reporting frequency and other variables, please refer to
http://www.netvox.com.tw/electric/electric_calc.html. On this website, users can find battery life time for varied models at
different configurations.
Indicator
Function Key
Temperature and humidity
Light Sensor

4
4. Set up Instruction
On/Off
Power on Insert batteries. (users may need a screwdriver to open)
Turn on Press and hold the function key for 3 seconds till the green indicator flashes once.
Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes 20 times.
Power off Remove Batteries.
Note:
1. Remove and insert the battery; the device is at off state by default. Turn on the device to use
again.
2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor
inductance and other energy storage components.
3. In the first 5 seconds after power on, the device will be in engineering test mode.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Had joined the network
(not at factory setting)
Turn on the device to search the previous network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Fail to Join The Network Suggest to check the device verification information on the gateway or consult your platform
server provider.
Function Key
Press and hold for 5 seconds
Restore to factory setting / Turn off
The green indicator rapidly flashes for 20 times: success
The green indicator remains off: fail
Press once The device is in the network: green indicator flashes once and sends a report
The device is not in the network: green indicator remains off
Sleeping Mode
The device is on and in the network
Sleeping period: Max Interval.
When the reportchange exceeds setting value or the state changes: send a data report according
to Max Interval.
Low Voltage Warning
Low Voltage
3.
2V(after reporting low voltage, the device
may still work, but the CO2 data will be inaccurate.
Please replace the battery in time)

5
5. Data Report
When the device is powered on, it will immediately send a version package report and then report the device data.
Default setting:
Min interval = 10s (subject to factory setting)
Max interval = 15min (subject to factory setting)
R718UBB,R718UBB1,R718UBB12 reportcount=1
R718UBB123,R718UBB23,R718UBB25,R718UBB125,R718UBB235,R718UBB1235 reportcount=2
Data detection:
When the device is in a network state, the light flashes once after pressing the key, and then reads the data. When the time to
return the corresponding data or configure is up, it will also detect and return the corresponding data information.
(Note: The interval between multiple data packets is mintime)
Note:
1. Before any configuration, the device sends data according to the default configuration.
2. Do not send any configuration before turn on the device.
3. CO2 data will be unstable due to transportation relations, long storage time and other factors.
If the CO2 value which customers test is inconsistent ,or there is large discrepancy of the primary standard,
it can be recalibrated. For specific calibration methods,please refer to command 0x03 CalibrateType.
Refer to Netvox LoRaWan Application Command documents and for data analysis reported by the device
http://www.netvox.com.cn:8888/page/index Instruction parsing
The report configuration and sending time are as follows:
Min Interval (Unit: s) Max Interval (Unit: s)
Not 0 Mintime * reportcount ~ 65535

6
5.1 Example of ReportDataCmd
FPort：0x06
Bytes 1 1 1 Var(Fix=8 Bytes)
Version DeviceType ReportType NetvoxPayLoadData
Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version
DeviceType– 1 byte – Device Type of Device
The devicetype is listed in Netvox LoRaWAN Application Devicetype doc
ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype
NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)
R718UBB 0xBB
0x01 Battery
(1Byte, unit:0.1V)
Temperature
(Signed2Bytes,unit:0.01°C)
Humidity
(2Bytes,unit:0.01%)
CO2
(2Byte ,1ppm)
ShockEvent (1Byte)
0x00_NoShock
0x01_ Shock
0x02 Battery
(1Byte, unit:0.1V)
AirPressure
(4Bytes,unit:0.01hPa)
Illuminance
(3Bytes,unit:1Lux)
R718UBB1235 report example:
# Report data 1: 01BB0124097A151F020C01
1st byte (01): Version
2nd byte (BB): DeviceType 0xBB －R718UBB Series
3rd byte (01): ReportType
4th byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v
5th 6th byte (097A): Temperature－24.6°C ,097A(HEX)=2426(DEC),2426*0.01°C =24.26°C
7th 8th byte (151F): Humidity－54.07% , 151F(HEX)=5407(DEC),5407*0.01%=54.07%
9th 10th byte (020C): CO2－524ppm , 020C(HEX)=524(DEC),524*1ppm=524ppm
11th byte (01): ShockEvent－1 , Shock
# Report data 2: 01BB02240001870F000032
1st byte (01): Version
2nd byte (BB): DeviceType 0xBB －R718UBB Series
3rd byte (02): ReportType
4th byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v
5th ~ 8th byte (0001870F): AirPressure－1001.11hPa, 0001870F(HEX)=100111(DEC),100111*0.01hPa=1001.11hPa
9th ~11th byte (000032): Illuminance－50 Lux ,000032(HEX)=50(DEC),50*1Lux=50Lux
Note:
Unsupported sensor detection item data is 0xFF/0xFFFF/0xFFFFFF/0xFFFFFFFF

7
5.2 Example of ConfigureCmd
FPort：0x07
Bytes 1 1 Var (Fix =9 Bytes)
CmdID DeviceType NetvoxPayLoadData
CmdID– 1 byte
DeviceType– 1 byte – Device Type of Device
NetvoxPayLoadData– var bytes (Max=9bytes)
ConfigReportReq
R718UBB
0x01
0xBB
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
Reserved
(2Bytes,Fixed 0x00)
ConfigReportRsp 0x81 Status
(0x00_suBBess)
Reserved
(8Bytes,Fixed 0x00)
ReadConfigReportReq 0x02 Reserved
(9Bytes,Fixed 0x00)
ReadConfigReportRsp 0x82 MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
Reserved
(2Bytes,Fixed0x00)
CalibrateCO2Req 0x03
CalibrateType
(1Byte,
0x01_TargetCalibrate,
0x02_ZeroCalibrate,
0x03_BackgroudCalibrate,
0x04_ABCCalibrate)
CalibratePoint
(2Bytes,
Unit:1ppm)
Only valid in
targetCalibrate
Type
Reserved
(6Bytes,Fixed 0x00)
CalibrateCO2Rsp 0x83 Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
SetShockSensorSensitivityReq 0x04 ShockSensorSensitivity
(1Byte)
Reserved
(8Bytes,Fixed 0x00)
SetShockSensorSensitivityRsp 0x84 Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
GetShockSensorSensitivityReq 0x05 Reserved
(9Bytes,Fixed 0x00)
GetShockSensorSensitivityRsp 0x85 ShockSensorSensitivity
(1Byte )
Reserved
(8Bytes,Fixed 0x00)

8
(1)Configure the device parameter MinTime = 300s, MaxTime = 900s
Downlink: 01BB012C03840000000000
Device return:
81BB000000000000000000 (configuration successful)
81BB010000000000000000 (configuration failed)
(2) Read the device parameter
Downlink: 02BB000000000000000000
Device Return:
82BB012C03840000000000 (device current parameter)
(3) Set CO2 calibration
Downlink:
03BB0103E8000000000000 // Select Target-calibrations
(calibrate when the known CO2 concentration is 1000ppm (concentration optional))
03BB020000000000000000 // Select Zero-calibrations
(Calibration in an environment with a CO2 concentration of 0 ppm)
03BB030000000000000000 // Select Background calibrations
(calibration shall be carried out in a stable environment in fresh air, i.e. 400 ppm concentration)
03BB040000000000000000 // Select ABC calibrations
(self calibration is default when power on, and 8 days is a cycle of self calibration. The sensor must be exposed to
fresh air at least once (well ventilated) for calibration)
Device return:
83BB000000000000000000 (configuration successful)
// Successfully configured, (Target/Zero/Background/ABC-alignments)
83BB010000000000000000 (configuration failed)
//After calibration, the returned CO2 value is not within the error range
(4) SetShockSensorSensitivityReq:
The effective range of the configuration is 0x01~0x14, and the vibration function is turned off when it is set to 0xFF
Downlink: 04BB0A0000000000000000 //Set ShockSensorSensitivity = 10 (Dec)
Device return:
84BB000000000000000000 (device current parameter)
(5) GetShockSensorSensitivityReq:
Downlink: 05BB000000000000000000
Device return:
85BB0A0000000000000000 (device current parameter)

9
5.3 Example of calibration configuration
FPort：0x0E
Description CmdID Sensor
Type PayLoad(Fix =9 Bytes)
SetGlobal
CalibrateReq 0x01
See
below
Channel (1Byte)
0_Channel1
1_Channel2,etc
Multiplier
(2bytes,Unsigned)
Divisor
(2bytes,Unsigned)
DeltValue
(2bytes,Signed)
Reserved
(2Bytes,Fixed 0x00)
SetGlobal
CalibrateRsp 0x81
Channel (1Byte)
0_Channel1
1_Channel2,etc
Status
(1Byte,0x00_success)
Reserved
(7Bytes,Fixed 0x00)
GetGlobal
CalibrateReq 0x02
Channel (1Byte)
0_Channel1
1_Channel2,etc
Reserved
(8Bytes,Fixed 0x00)
GetGlobal
CalibrateRsp 0x82 Channel (1Byte)
0_Channel1
1_Channel2,etc
Multiplier
(2bytes,Unsigned)
Divisor
(2bytes,Unsigned)
DeltValue
(2bytes,Signed)
Reserved
(2Bytes,Fixed 0x00)
ClearGlobal
CalibrateReq 0x03 Reserved (10Bytes,Fixed 0x00)
ClearGlobal
CalibrateRsp 0x83 Status (1Byte,0x00_success)
Reserved
(9Bytes,Fixed 0x00)
SensorType - byte
The calibration sensor type corresponding to each sensortype:
0x01_Temperature Sensor, 0x02_Humidity Sensor, 0x03_Light Sensor, 0x06_CO2 Sensor, 0x35_Air PressSensor
The calibration channel corresponding to each sensortype:
CO2=0x00, temperature=0x01, humanity=0x02, light=0x03, air press=0x04
(1)Assume that the reported original value of CO2 is 500ppm, the calibration increases by 100ppm, and the reported value is
600ppm
SetGlobalCalibrateReq: Calibration increased by 100ppm，Multiplier =0x0001，Divisor = 0x0001，DeltValue = 0x0064
Downlink: 0106000001000100640000
Device return:8106000000000000000000 (configuration successful)
8106000100000000000000 (configuration failed)
(2)GetGlobalCalibrateReq：
Downlink:0206000000000000000000
Device return:8206000001000100640000

10
(3)Assume that the reported original CO2 value is 500ppm, the calibration is reduced by 100ppm, and the reported value is 400ppm
SetGlobalCalibrateReq: Calibration reduction by 100ppm，Multiplier =0x0001，Divisor = 0x0001，DeltValue = 0xFF9C
Downlink: 01060000010001FF9C0000
Device return:8106000000000000000000
(4) GetGlobalCalibrateReq:
Downlink:0206000000000000000000
Device return:82060000010001FF9C0000
(5)ClearGlobalCalibrateReq (Clear calibration value: reported value returns to 500ppm)
Downlink: 0300000000000000000000
Device return:8300000000000000000000
6. Information about Battery Passivation
Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many
advantages including low self-discharge rate and high energy density.
However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode
and thionyl chloride if they are in storage for a long time or if the storage temperature is too high. This lithium chloride layer prevents
rapid self-discharge caused by continuous reaction between lithium and thionyl chloride, but battery passivation may also lead to
voltage delay when the batteries are put into operation, and our devices may not work correctly in this situation.
As a result, please make sure to source batteries from reliable vendors, and it is suggested that if the storage period is more than
one month from the date of battery production, all the batteries should be activated.
If encountering the situation of battery passivation, users can activate the battery to eliminate the battery hysteresis.
ER14505 Battery Passivation:
6.1 To determine whether a battery requires activation
Connect a new ER14505 battery to a resistor in parallel, and check the voltage of the circuit.
If the voltage is below 3.3V, it means the battery requires activation.
6.2 How to activate the battery
a. Connect a battery to a resistor in parallel
b. Keep the connection for 5~8 minutes
c. The voltage of the circuit should be ≧3.3, indicating successful activation.

11
Brand Load Resistance Activation Time Activation Current
NHTONE 165 Ω 5 minutes 20mA
RAMWAY 67 Ω 8 minutes 50mA
EVE 67 Ω 8 minutes 50mA
SAFT 67 Ω 8 minutes 50mA
Note:
If you buy batteries from other than the above four manufacturers, then the battery activation time, activation current, and required
load resistance shall be mainly subject to the announcement of each manufacturer.
7. Precautions for Outdoor Installation
According to Enclosure Protection Class
This standard is equivalent to IEC 60529:2001 Degrees of Protection Provided by Enclosures
The test method of IP65 waterproof grade is:
spray the device in all directions under 12.5L/min water flow for 3min, and the internal electronic function is normal.
The test method of IP67 waterproof grade is:
the device is immersed in 1m deep water for 30min, and the internal electronic function is normal.
IP65, dust-proof and to prevent damage caused by water from nozzles in all directions from invading electrical appliances. It can be
used in general indoor environment and sheltered outdoor environment.
It is not suitable for use in environments with high water pressure,high temperatureand high humidity, such as long time direct sunlight
outdoors and possible direct exposure to rainstorm. If it is really necessary to install in harsh environments, it is recommended to add
sunscreen and rainproof shields when installing.

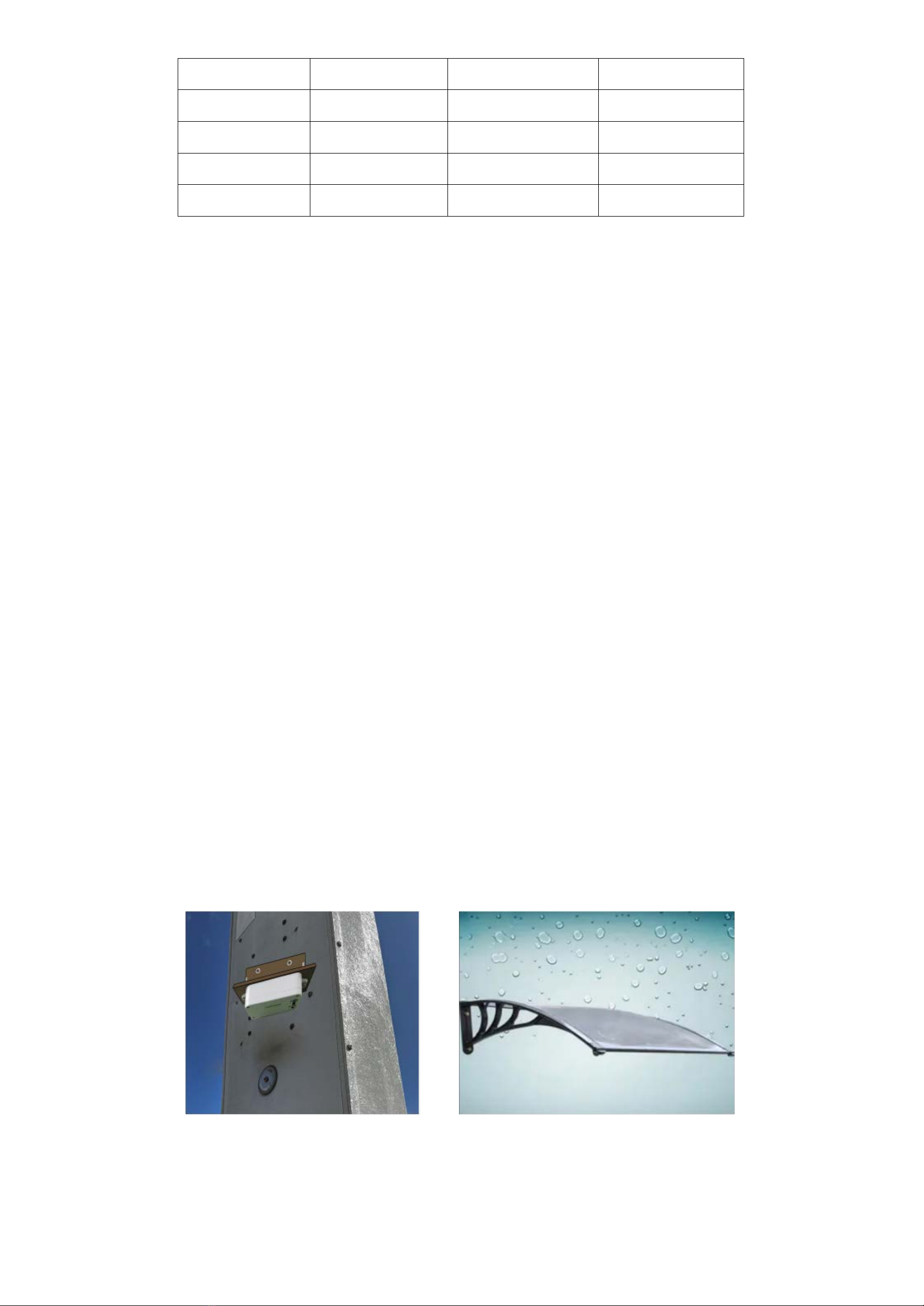

Case I (face down with LED and buttons) Case II (installed under the rain shield)

12
8. Important Maintenance Instruction
Kindly pay attention to the following in order to achieve the best maintenance of the product:
• Keep the device dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the
device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This way can damage its detachable parts and electronic components.
• Do not store in excessive heat place. High temperatures can shorten the life of electronic devices, destroy batteries, and deform or
melt some plastic parts.
• Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature, moisture will form inside which
will destroy the board.
• Do not throw, knock or shake the device. Treating device roughly can destroy internal circuit boards and delicate structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not paint the device. Smudges can make debris block detachable parts up and affect normal operation.
• Do not throw the battery into the fire to prevent the battery from exploding. Damaged batteries may also explode.
All the above suggestions apply equally to your device, batteries and accessories.
If any device is not operating properly, please take it to the nearest authorized service facility for repairing.
