netvox Z808B User manual

Model：Z808B
Wireless Dimmable Power Plug with Power
Monitoring LCD & USB Port
Wireless Dimmable Power Plug with Power Monitoring
LCD & USB Port
User Manual
Firmware: V5.1
Hardware: V2.4

Table of Content
1. INTRODUCTION......................................................................................................................... 4
2. PRODUCT CHARACTERISTICS..............................................................................................4
3. OPERATION INSTRUCTIONS..................................................................................................4
3.1 POWER ON.................................................................................................................................. 4
3.2 JOIN THE NETWORK.................................................................................................................... 5
3.3 END DEVICE BIND..................................................................................................................... 5
3.4 UNDER CONTROL....................................................................................................................... 6
3.5 ALLOW NETWORK-JOIN FUNCTION............................................................................................. 6
3.7 RESTORE FACTORY SETTINGS..................................................................................................... 7
3.8 ERASE POWER INFORMATION..................................................................................................... 7
3.10 PRODUCT ATTRIBUTES AND CUSTOM INSTRUCTIONS............................................................... 9
4. LOAD CHARACTERISTICS....................................................................................................10
5. RELATED PRODUCTS............................................................................................................. 10
6. INSTALLATION METHODS AND PRECAUTIONS FOR USE.........................................11
7. MAINTENANCE.........................................................................................................................11

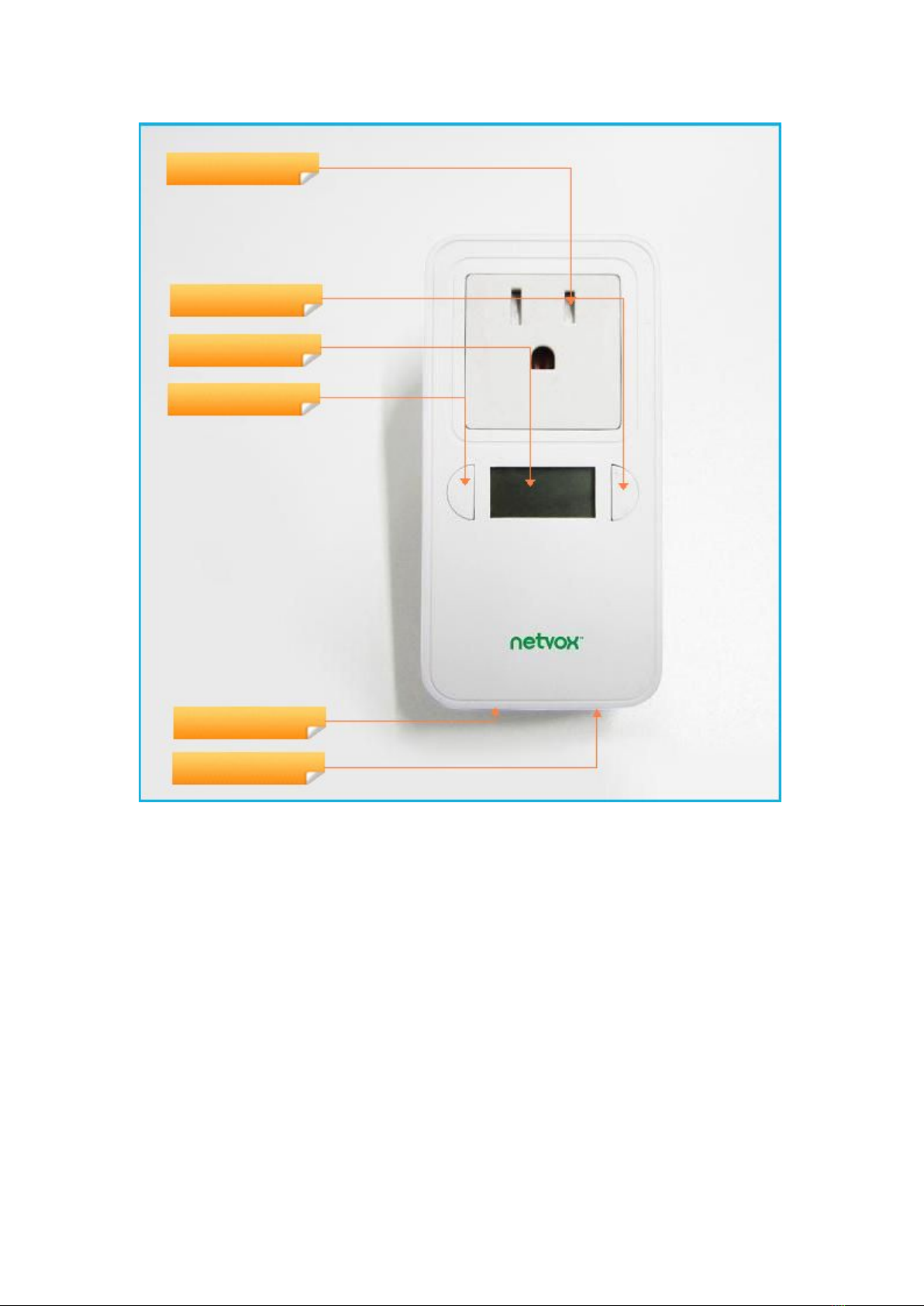

Z808B Appearance
Load Socket
Binding Key
LCD Display
Function Key
USB Port 1
USB Port 2

1. Introduction
Z808B (ZigBee Dimmer Control with Power Consumption Display) is used as a
routing device in the network, allowing other devices to be their sub-devices. The
Z808B device can detect the current, voltage, power and energy of the load. At the
same time, the Z808B can be bound to the control device with the switch
function/level control function, and the Z808B switch/level can be controlled by the
bonded device .
ZigBee wireless technology:
ZigBee is an emerging short-range, low-complexity, low-power, low-data-rate,
low-cost wireless network technology. It is a technical proposal between wireless tag
technology and Bluetooth. Mainly used for short-range wireless connections. It
communicates with thousands of tiny sensors in accordance with the 802.15.4
standard. These sensors require very little energy to relay data from one sensor to
another in a relay, and their communication efficiency is very high. In some locations,
the use of ZigBee wireless technology may be limited. Please consult your local
authorities or service provider.
2. Product Characteristics
Fully compatible with IEEE 802.15.4
Use the 2.4GHz ISM band for a total of 16 channels
100-240 VAC 50/60Hz power supply
Communication distance are up to 210 meters
(depending on specific environmental conditions)
Simple operation and setting
3. Operation instructions
3.1 Power on
Connect the Z808B device to the AC 100-240V power supply, power on the device,
and the LCD backlight is always on.

3.2 Join the network
In order to Z808B capable of ZigBee communication to other devices in the network,
it is necessary to Z808B added ZigBee network, the screen operates as follows:
a) Open the allowable screening function of the coordinator or routing device on the
same channel as the Z808B in the network.
b) Z808B is used as a router in the network. It actively searches for the network
immediately after power-on. does not blink before the network is added ,
and the value area displays the power information.
c) The network-joining is successful, and is always on, indicating that the
network-joining is successful; the LCD information area displays the power
information. As shown below
displaying electricity consumption 10.5 kWh.
3.3 End Device Bind
Z808B can bind device such as the client end having ON / OFF cluster with control or
level control cluster such as Netvox Z503/Z501, binding operation is as follows :
a) Press the binding key for 3 seconds till blinks once. At this time, the LCD
value area displays the bind information, and the device issues a binding request.
As shown in the figure ,and operate the bound device
within 16 seconds so that it also issues a binding request. Once the binding
operation is successful, it will show word good and
flash for 3 seconds and return to the main page. Once the binding operation is failure, it
will show word fail and flash for 3 seconds and return to the

main page.
b) Unbind operation: If operating the bound device to be bound again, it will be
unbound.
Note: The device supports only 16 groups, 16 scenes.
3.4 Under control
1. Binding Control: the bound device will send switching / level commands to
control the load connected to Z808B on the switch / level functions.
2. Direct control
Short press the
bind button
External
dimming light
brightness
Short press the
bind button
External dimming
light brightness
1 time 12.5 9 times 87.5
2 times 25 10 times 75
3 times 37.5 11 times 62.5
4 times 50 12 times 50
5 times 62.5 13 times 37.5
6 times 75 14 times 25
7 times 87.5 15 times 12.5
8 times 100 16 times 0
Regardless of the status of the external light, short press the device after power-on and
the dimming level changes according to the above table.
3.5 Allow network-join function
As a router in the network, the Z808B has the function of allowing other devices to
join the network as its sub devices. At the same time, press the binding button and the
function button for 1 second. After 1 second , the icon will flash. After the button

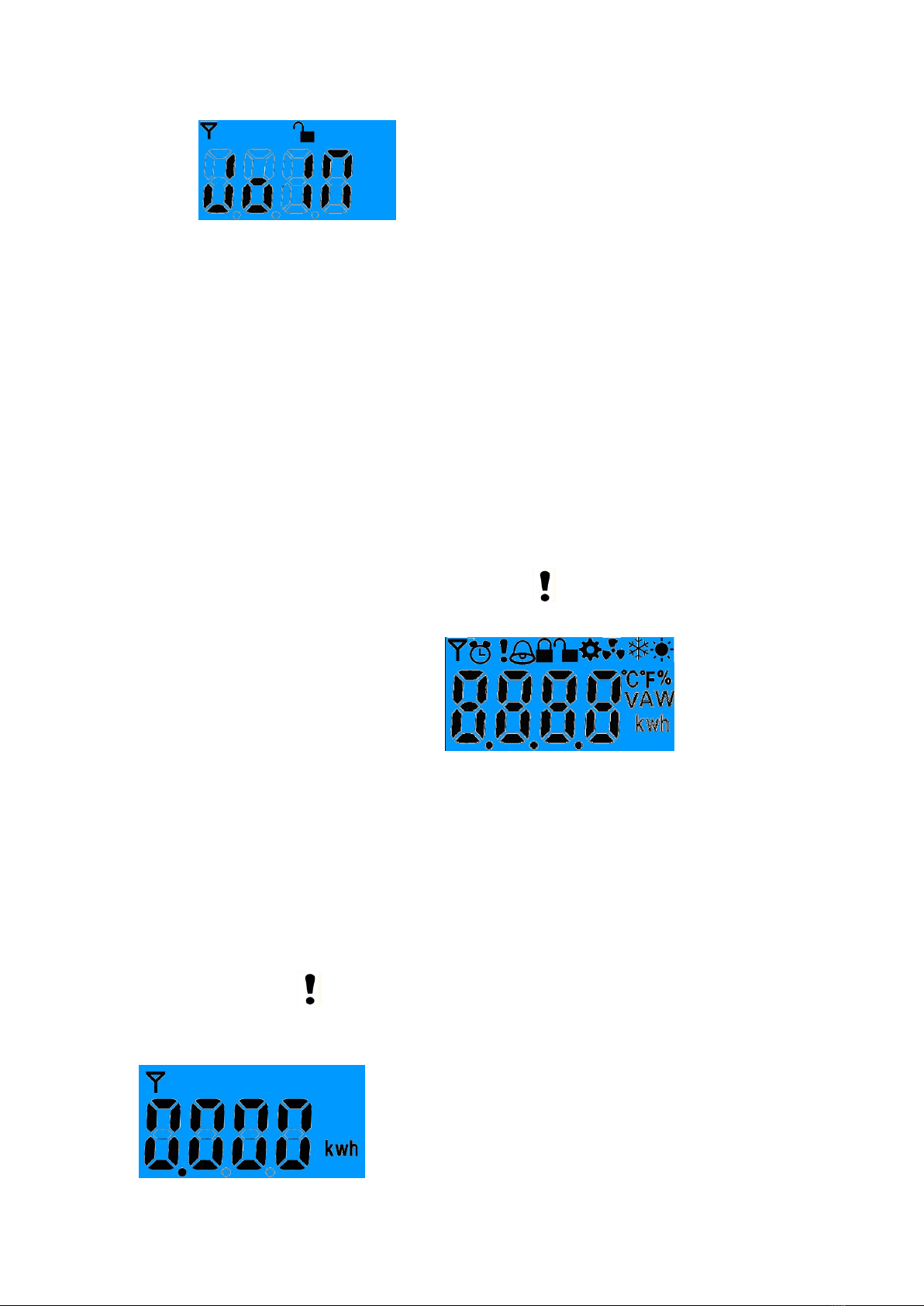

is released, the LCD value field will display JOIN for 1 second and then return to the
power display screen, and the unlock icon will start flashing for 60 times as

shown ;the network-join is allowed to last for one minute
and automatically shut down after one minute. If pressing the binding key and the
function button for 1 second again during the process of allowing the network-join
process, and the device will turn off the function.
3.6 Power, power, voltage, current switching display
In the power display interface, press the function button to switch to voltage (in volts),
current (in amps), power (in watts), and power (in kWh).
3.7 Restore factory settings
After the Z808B joins the network , it will save its assigned network address. If users
want to join a new network, users need to restore the device to the factory settings
first. Press and hold the bind button for 15 seconds ( icon flashes for 3 times). After
releasing the button, press the function button for 2 seconds to restore the factory
settings. The LCD value area display which means
that the factory reset is successful. The device automatically restarts, and the network
can be re-joined.
3.8 Erase power information
The power information detected by Z808B will be stored in the eeprom memory.
When the factory value is restored, the power information will not be erased. Users
can erase the power information by the following method. Press and hold the binding
key for 20 seconds ( icon flashes for 4 times). Release and press the function key
within 2 seconds. Z808B will erase power information and the power information is
displayed as 0, the LCD numerical display power information area , as shown in FIG.
.

3.9 ZigBee Description
1.End Point(s) : 0x01
2.Device ID : Dimmer Light (0x0101 )
3.Cluster ID which the endpoint supports
Cluster ID for Z808B
Server side Client side
EP 0X01 (Device ID: Dimmer Light (0x 0101 )
Basic ( 0x0000 ) None
Identify (0x0003)
Groups (0x0004)
Scenes (0x0005)
On/Off (0x0006)
Level Control (0x0008)
Commissioning ( 0x0015 )
Simple Metering ( 0x0702 )
Electrical Measurement ( 0x0B04 )
Diagnostics (0x0B05)
4. Related attribute definitions for each Cluster :
( 1 ) Attributes of the Basic Device Information attribute set
Identifier Name Type Range Access Default
Mandator
y /
Optional
0x0000 ZCLVersion 8-bit
Unsigned
integer
0x00
–0xff
Read
only
0x0 3 M
0x0001 Application
Versio n
8-bit
Unsigned
integer
0x00
–0xff
Read
only
0x33 O
0x0002 Stack
Version
8-bit
Unsigned
integer
0x00
–0xff
Read
only
0x53 O

0x0003 HWVersion 8-bit
Unsigned
integer
0x00
–0xff
Read
only
0x18 O
0x0004 Manufacture
r Name
Character
string
0 – 32
Bytes
Read
only
Netvox O
0x0005 ModelIdentif
ier
Character
string
0 –
32bytes
Read
only
Z808BE
3R
O
0x0006 DateCode Character
string
0 – 16
bytes
Read
only
2015012
1
O
0x0007 PowerSourc
e
8-bit
Enumerati
on
0x00
–0xff
Read
only
0x0 1 M
0x0010 Location
Description
Character
string
0 –
16bytes
Read/wr
ite
-- O
0x0011 Physical
Environment
8-bit
Enumerati
on
0x00
–0xff
Read/wr
ite
-- O
0x0012 Device
Enabled
Boolean 0x00–0x
0 1
Read/wr
ite
0x01 O
3.10 Product attributes and custom instructions
1. The cluster that Z808B uses is refer to SE in Simple Metering used in the Cluster
ID ( 0x0702 ) and Electrical the Measurement the ClusterID (0x0B04) , and the
Cluster ID ( 0x0702 ) in NETVOX custom current, voltage, power, energy attribute .
Cluster ID (0x0B04):
(1) The current attribute uses the Attribute ID : 0x0508 , voltage attribute 0x0505 .
(2) The power attribute uses the Attribute ID : 0x050B , and the power factor attribute
0x0510.
Cluster ID ( 0x0702 ) :
(1) The current attribute uses the Attribute ID : 0xE000 , voltage attribute 0xE001 .
(2) The power attribute uses the Attribute ID : 0xE002, and the power attribute
0xE003.
(3) The attribute CurrentSummationDeliver that implements the AttributeID of
0x0000 corresponds to the power attribute 0xE003 .
In addition, the attribute InstananouesDemand with the AttributeID of 0x0400 is
implemented corresponding to the power attribute 0xE0002 .
(4)
1 ) The power ATTRID = 0xE003 ( or 0x0000), the unit is Wh ; the power

ATTRID = 0xE002 ( or 0x0400), the unit is W ;
2 ) Current ATTRID=0xE000, the unit is mA;
voltage ATTRID = 0xE001, the unit is V
2 . Custom command
The instruction format for erasing the current battery information is:
CMD=0CE0 LEN ADDRMODE DSTADDR DSTENDPOINT CLUSTER_ID
ACTION
4. Load Characteristics
Rated Load ( AC )
** Remark**
Max. Load with
LEDs *
*Remark**
Max. Surge
Endurable
Surge
Detection
Overload
Protection with
Auto Power
Cutoff
400W/3A/250V 100W/4LEDs 150A Yes Yes
Note: Hardware board V3.0 supports impact, V2.4 does not support impact.
5. Related Products
Z810A : Switch control unit with consumption display
Z800B : Power Socket with Power Consumption Monitoring

6. Installation Methods and Precautions for
Use
This product does not have a waterproof function. After the screening is completed,
please place it indoors.
Note:
1. The device has over-current and over-voltage protection function. If the current
exceeds 3A , the device will turn off the load lamp within 2 seconds.
Backlight flashes 10 times (10, 250, 250). If ACAlarmsMask is of Bit1 (Current
OverLoad ) bit 1 are simultaneously issued Alarm broadcast alarm, AlarmCluster =
0x0B04, AlarmCode = 0xF0.
2. The device stores the power information every 30 seconds, so the data within 30
seconds will disappear due to the device power failure. ( Note: The time period for
storing data varies depending on the memory capacity used: 24C01 30 seconds,
24C02 15 seconds ...... ) .
3. Please know in detail whether the device to be connected is suitable for use before
use. This device uses the thyristor voltage leading edge phase modulation method to
dim; only allows the matching dimmable lamps to be connected, and can not be used
as a common electronic switch.
If the connection uses a non-dimmable device or an unmatched dimming device, it
will damage the connected device or even the device, or cause other unpredictable
consequences. Examples of non-connectable devices are as follows: general electronic
energy-saving lamps, gas discharge lamps, home appliances, computer equipment,
and switch-mode power supplies.
For the common lamps in the market, the load characteristics of the machine are as
follows: 1. The pure resistive tungsten lamp load can withstand the load of up to
3A/600W; 2. The adjustable dimming electronic fluorescent lamp or the self-electrical
rectification Dimming LED bulbs, because of the large inrush current, for safe use, it
is recommended to limit the load below 100W, and it is not recommended to use
multiple bulbs in parallel; 3. This product is not suitable for connection to coil
transformers.
That is to say, the low-voltage lamp powered by the coil transformer cannot be
dimmed with this product, and it can be considered to be replaced with a suitable
electronic transformer.
4. The two USB ports included with the device output 5V/1000mA, which can be
used to charge matching electronic devices.

7. Maintenance
Your device is a product of superior design and craftsmanship and should be used
with care. The following suggestions will help you use the warranty service
effectively.
• Keep the equipment dry. Rain, moisture, and various liquids or moisture may
contain minerals that can corrode electronic circuits. in case
The device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This can damage its detachable parts and
electronic components.
• Do not store in excessive heat. High temperatures can shorten the life of electronic
devices, destroy batteries, and deform or melt some plastic parts.
• Do not store in a cold place. Otherwise, when the temperature rises to normal
temperature, moisture will form inside, which will destroy the board.
• Do not throw, knock or shake the device. Rough handling of equipment can destroy
internal circuit boards and delicate structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not apply with paint. Smudges can block debris in detachable parts and affect
normal operation.
All of the above suggestions apply equally to your device, battery and accessories. If
any device is not working properly,
Please take it to the nearest authorized service facility for repair.
