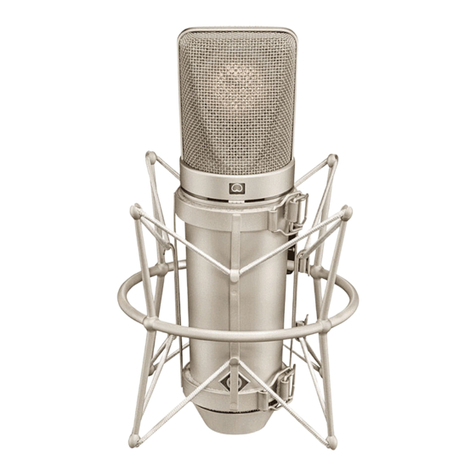

Neumann.Berlin U 67 User manual

Quick Guide
Kurzanleitung
Guide rapide
Guida rapida
Guía de inicio rápido
Pikaohje
Γρήγορος οδηγός
Kısa Kılavuz
Краткая инструкция
Guia rápido
Beknopte handleiding
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
快速指南
クイックガ イド
퀵 가이드
NU 67 V
U 67
   · .  ·   · 
  () /    - ·  -
@. · ..
   ·/ · /
www.neumann.com | U 67 | NU 67 V
Instruction manual | Bedienungsanleitung | Notice d'emploi |
Istruzioni per l'uso | Instrucciones de manejo | Manual de
instruções | Gebruiksaanwijzing | Instrukcja obsługi |
Bruksanvisning | Betjeningsvejledning | Käyttöohje | Οδηγίες
λειτουργίας | Kullanım kılavuzu | Инструкция по эксплуатации |
使用说明书 | 取扱説明書 | 사용 설명서 |
*
*
On
Fuse-holder
U 67
UC 5
Z 48
EU
US
UC 5
* not included
* optional
UK NU 67 V

Specifications U 67 Specifications U 67
Specifications NU 67 V
-10 dB -10 dB
-10 dB
Pressure gradient transducer
omnidirectional/cardioid/figure-8
20 Hz - 20 kHz
15/24/16 mV/Pa ± 1 dB
200 Ω
1000 Ω
62/66/63 dB
73/77/74 dB
32/28/31 dB
21/17/20 dB-A
114 dB (cardioid)
124 dB
250 mV
NU 67 V
Pentode EF 86, selected
+210 V± 2%
≤1 mA
-6.3 V± 2%
≤ 270 mA
approx. 1 minute
Acoustic operating principle
Directional pattern
Frequency response
Sensitivity
Rated impedance
Rated load impedance
Signal-to-noise ratio, CCIR
Signal-to-noise ratio, A-weighted
Equivalent noise level, CCIR
Equivalent noise level, A-weighted
Maximum SPL for THD 0.5%
Maximum SPL for THD 0.5 % with pre-attenuation
Maximum output voltage
Power supply
Vacuum tube type
Plate voltage
Plate current
Heater voltage
Heater current
Tube warm up time
Required connectors
Microphone
Power supply unit - output
Weight
Diameter
Length
special 7 pin connector
XLR 3 F
560 g
56 mm
200 mm
Supply voltage
Power consumption
Fuse
Lamp
Emitted DC voltage
Plate voltage
Heater voltage
Weight
Dimensions (LxWxH)
100 - 120 V or 220 - 240 V
max. 12 W
Ø 5 mm x 20 mm 500 mA/Slow-Blow
E10 24V/2W
+210 V
-6,3 V
220 mm x 100 mm x 120 mm
2 kg
