Neuton Li Battery Pack & Charger Quick start guide

Li Battery Pack & Charger
Safety & Operating Instructions
NEUTON Power Equipment
75 Meigs Road
Vergennes, VT 05491
Toll-Free phone: 1-866-NEUTON1 (638-8661)
Fax: [phone]
Website: www.neutonpower.com
E-MAIL: [e-mail]
Read and understand this manual and all instructions before using this Charger and the Battery Pack.

2www.neutonpower.com
Battery Pack WARNING Label
286541
Table of Contents
Chapter 1: Important Safety Considerations.................................................................................................................................................................................2
Chapter 2: Setting Up Your NEUTON Li Battery Charger..........................................................................................................................................................3
Chapter 3: Troubleshooting Your NEUTON Li Battery Charger..............................................................................................................................................4
Chapter 4: Parts List and Warranty....................................................................................................................................................................................................5
Conventions used in this Manual
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your Charger and Battery Pack. Failure to follow this instruction could result in damage to
your Charger, Battery Pack, or property.
TIP: This is a helpful hint to guide you in getting the most out of your NEUTON Li Battery Pack and Charger.
NOTE: This information may be helpful to you in using your Li Battery Pack and Charger.
Neuton Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the
purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual
may be optional. Some illustrations may not be applicable to your equipment.
NEUTON Li Battery Pack and Charger Product Specifications
BatteryPack
Voltage 18V DC, 2.6 AH
Battery Pack Charger
18V Lithium Charger, plugs into standard electrical outlet
Use only the Neuton Lithium Charger with Neuton Lithium Battery Packs. Do not try to use the Neuton Lithium Charger with Battery Packs
from other manufacturers or other Neuton products.
Charge Time 30-60 minutes to recharge
Replacement Easy to snap-in and out of NEUTON Cordless Tools
Chapter 1: Important Safety Considerations
We want you to enjoy years of safe and productive use from your NEUTON Li Battery Pack and Charger. We do not want you injured, so
please take a few moments to read the following instructions for safely operating using your Li Battery Pack and Charger.
Take a moment to study the following labels and make a note of their location before you charge the Battery Pack. Replace damaged or
missing safety and information labels immediately.
Battery Charger WARNING Labels
286561
286551

NEUTON Li Battery and Charger - Safety&OperatingInstructions 3
Handling the Battery Pack Safely
• Always charge the Battery Pack indoors, never charge it the rain or in wet conditions.
• Use only the Neuton Lithium Charger with Neuton Lithium Battery Packs. Do not use the Neuton Lithium Charger with Battery Packs
from other manufacturers or other Neuton products. Use of a different Charger may cause a fire or explosion.
• Never attempt to alter or open the Battery Pack or Charger. There are no customer serviceable parts inside. Use normal household
voltage (110 volts) when charging the Battery Pack. Plug the Charger Power Supply directly into the electrical outlet.
• Exercise care in handling the Battery Pack in order not to short-circuit it with conducting materials such as rings, bracelets, and keys.
When short-circuited, the Battery Pack or conductor may overheat and cause burns.
• Electrolyte leakage from the Battery Pack can be harmful causing serious chemical burns if on the skin or in the eyes. Remove
contaminated clothing and wash skin with soap and water. If electrolyte gets in your eyes, flush with cold water for at least 15
minutes and seek medical attention. Inhalation of vapors from a ruptured Battery Pack can cause respiratory irritation, provide
fresh air, and seek medical attention.
• Never dispose of the Battery Pack in a fire, as the Battery Pack may explode. Never open or mutilate the Battery Pack; released materials
are flammable. If fire or explosion occurs, do not breathe the fumes. A burning Battery Pack will create toxic fumes. Fire fighters should
use self-contained breathing apparatus. The fire in the Battery Pack will need to burn out, but the fire can be kept from spreading. If
possible, separate the Battery Pack from other flammable materials and use sand, copper powder or powdered graphite fire
extinguishers, dry ground dolomite or soda ash to smother the fire.
• Do not ship damaged Battery Packs and be sure to use the original packaging materials when shipping Batteries and tools back to
Neuton Power Equipment if you decide you do not want them. Special labeling on the packaging is required because the Batteries
are considered hazardous materials. Check with airlines before trying to check Lithium batteries with your baggage. New
regulations are being considered that may restrict packaging and shipping of these Batteries as well as tools with Batteries installed.
• Please dispose of your used Battery Packs responsibly by recycling them, never throw away used Battery Packs in your household
trash. Call your local Solid Waste Management District or your local waste handler to locate the collection site nearest you. Some
collection sites recycle Battery Packs year-round; others collect them periodically.
You can also visit the Web site of Earth 911 for more information [www.earth911.org]. Once there, click the Municipal HHW link under
Hazardous Household Waste, and enter your zip code. The site lists recycling centers located near you. You can also visit our website
www.neutonpower.com and click on “Customer Service” to find distribution centers across the country that will accept your Battery Pack
for 100% recycling of the plastic and lithium. To learn more about hazardous waste recycling, visit the Web site for the Environmental
Protection Agency [www.epa.gov].
No list of Warnings and Cautions can be all-inclusive. If situations occur not covered by this manual, the operator must apply common sense
and charge the NEUTON Li Battery Pack in a safe manner. Visit our website at www.neutonpower.com or call Toll Free:
1-866-NEUTON1 (638-8661) for assistance.
Chapter 2: Setting Up Your NEUTON Li Battery Charger
Carton Contents:
- Li Battery Charger
- Safety and Operating Instructions
Unpacking:
1. Carefully remove the Li Battery Charger and the Safety and Operating Instructions from the Shipping Carton. Make sure that all items
listed in the Carton Contents are included.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, call
Toll Free: 1-866-NEUTON1 (638-8661) for assistance.
NOTE: Do not discard the Shipping Carton and packaging material until you are fully satisfied with your new NEUTON Li Battery and Charger.
Using Your NEUTON Li Battery and Charger:
Step 1: Read the Safety & Operating Instructions before proceeding.
For your safety, and for best results, it is important to read the information in “Chapter 1: Important Safety Considerations” before you use the
Li Battery and Charger.

4 www.neutonpower.com
Step 2: Charge the Battery Pack before your first use.
Your NEUTON Battery-Powered Tool may use the sealed, Lithium-Ion Battery Pack. The Battery Pack is 18 volts and rated at 2.6 amp-hours.
The Battery Pack should not leak, regardless of the position in which it is stored. Read “Handling the Battery Safely” in Chapter 1 for
additional information. The Battery Pack is completely maintenance free. You never need to add water. With all rechargeable Batteries, after
years of use, they will eventually need replacement.
NOTE: You MUST charge the Battery Pack for at least 30-60 minutes before you use the Li Battery Pack for the first time. If you do not charge
it before using it, the Battery Pack’s charging capacity may decrease.
• Make sure the Charger Power Supply is plugged into a normal household voltage, 120volts, 60Hz, AC only.
• You should operate the Battery Charger in a dry place with temperatures between 32ºF (0ºC) and +80ºF (+26.7ºC). Operating
above +80 ºF can cause Battery Pack leakage, rust, or degradation of the Battery Pack performance.
• Disconnect Charger Power Supply from the household voltage power when not in use to prevent damage to the Charger during a
power surge.
• Periodically inspect the Cord on the Charger unit for damage. If damage occurs, do not use the Charger until you have replaced or
repaired the Cord. Do not abuse the Cord. Never carry the Charger by the Cord. Always pull the plug – and not the Cord – when
disconnecting the Power Supply from the electrical outlet (wall outlet) and from the Charger. When using an extension Cord with your
Charger, use a heavy-duty extension Cord of a type 'suitable for outdoor use' (although you should never charge the Battery Pack in the
open outdoors).
• The Battery Pack requires 2-3 charging and discharging cycles before reaching full charge ability.
• A Battery Pack may last much longer if you charge it as soon as it starts to lose power and not let it completely discharge. Recharge the
Battery Pack as soon as the power of your NEUTON Battery-Powered Tool is no longer effective. This would be a good time to have a
spare Battery Pack ready to go. Recharge the Battery Pack for 30-60 minutes until fully charged and remove it from the Charger.
• A good time to consider purchasing a replacement Battery Pack is when it looses its power quickly.
1. Plug the Charger into a standard household electrical outlet. The Green LED will glow (Figure1).
2. Place Battery Pack in the Charger (Figure1). The Battery Pack and Charger have keyways so they will fit together only one way.
When properly connected, the RED LED will glow (Figure 1). If the RED LED flashes, this indicates a defective or wrong type
Battery.
3. The Charger Indicator Light will glow RED continuously while charging. When fully charged the RED LED will change to GREEN,
the Charger will shut OFF automatically after two (2) hours and the LED will remain GREEN.
Chapter 3: Troubleshooting Your NEUTON Li Battery Charger
Troubleshooting Tips
Most difficulties are easy to fix. Consult the Troubleshooting Table for common problems and their solutions. If you continue to experience
problems or need repairs beyond these minor adjustments, visit our website at www.neutonpower.com or call Neuton Power Equipment Toll
Free at: 1-866-NEUTON1 (638-8661) for assistance.
Troubleshooting Table
PROBLEM CORRECTIVE ACTION
The Battery
Pack will not
charge.
⇒ Check to see if the Battery Pack is all the way into the Charger. Insert the Battery Pack until the RED LED Light
illuminates. If the Battery Pack does not seat all the way down, you may have the wrong Charger.
⇒ The Charger Power Supply is not in a working outlet. Check the outlet with a lamp or other appliance.
⇒ Check to see if the outlet that you are using for the Charger Power Supply is controlled from a wall switch.
⇒ The surrounding air temperature is too hot or too cold. Move Charger and Battery Pack to a location where the
surrounding air temperature is between 32ºF (0ºC) and +80ºF (+26.7ºC).
The Battery
Pack loses its
charge quickly.
⇒ The Battery Pack was probably not at full charge prior to using your tool. Charge the Battery Pack, if necessary.
NOTE: You will need to charge a new Battery Pack 2-3 times to achieve maximum blowing time.
⇒ The Battery Pack may be getting old. After some time, you will need to replace the Battery Pack.

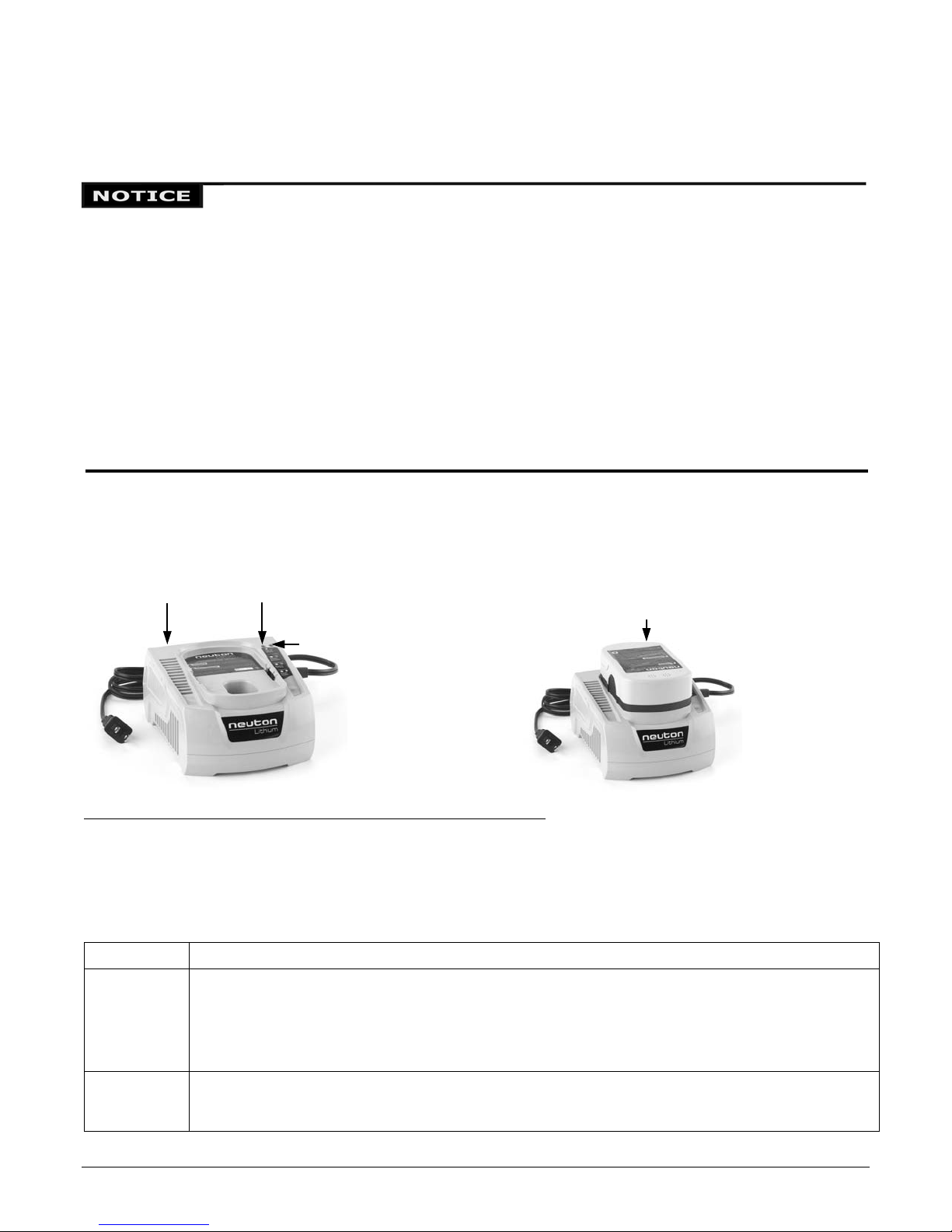

Figure 1
Battery Pack
Charge
r
Green LED
Red LED

NEUTON Li Battery and Charger - Safety&OperatingInstructions 5
Chapter 4: Parts List and Warranty
Parts List for your NEUTON Li Battery and Charger (these items may be shipped separately)
NOTE: Part numbers listed are available through Neuton Power Equipment
Ref# Part# Description
1 286391 Battery Pack
2 286411 Battery Pack Charger
2-Year Limited Warranty
Terms and Conditions
The NEUTON®Li Battery Charger has a warranty for two (2) years against defects in materials or workmanship when put to personal
residential household use.
For the purposes of the warranty, “personal residential household use” refers to non-commercial residential use and further excludes
misuse, accidents, or damage due to inadequate maintenance.
Neuton Power Equipment certifies that the NEUTON®Li Battery Charger is fit for ordinary purposes for which a product of this type is
used. Neuton Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2)
years in personal residential household use.
The 2-Year Limited Warranty on the NEUTON®Li Battery Charger starts on the date the Charger shipped from our factory. The 2-Year
Limited Warranty is applicable only to the original owner.
The owner is responsible for the performance of all the required maintenance as defined by the manufacturer's owner manual.
The owner is responsible for the replacement of normally wearing parts such as the Battery Pack.
During the warranty period, the owner is responsible for all shipping and transportation charges, if required.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO
YOU. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
Neuton Power Equipment shall not be liable under any circumstances for any incidental or consequential damages or expenses of
any kind, including, but not limited to, cost of equipment rentals, or cost of hiring services to perform tasks normally performed by the
NEUTON®Battery-Powered Tool should the Charger fail.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
1
2
101201

Neuton POWER EQUIPMENT
75 MEIGS ROAD, VERGENNES, VERMONT 05491
www.neutonpower.com ©2011 Neuton Power Equipment 289841A
Daily Checklist, Cleaning and Storing for your NEUTON Li Battery Pack and Charger
To help maintain your NEUTON Battery-Powered Too l for optimum performance, we recommend that you make sure the Battery Pack has a
full charge each time you use your tool.
Cleaning the Li Battery Pack and Charger
Use only mild soap and a damp cloth to clean the Li Battery Pack and Charger. Never let any liquid get inside the Charger, on the Battery
Pack terminals, and NEVER immerse the Battery Pack or Charger into a liquid.
Storing
[ ] Always store the Li Battery Pack with a full charge.
[ ] Do not store the Li Battery Pack or Charger near chemicals, such as fertilizers, organic or other solvents. Do not expose brake fluids,
gasoline, petroleum-based products, penetrating oils, etc., to the plastic parts of the Li Battery Pack or Charger. These products are often
highly corrosive and may cause permanent damage, weaken, or destroy the plastic of your Li Battery Pack or Charger.
[ ] For superior Battery Pack performance, always store the Battery Pack and Charger in a DRY environment with temperatures
between 32ºF (0ºC) and +80ºF (+26.7ºC). Storing above +80 ºF can cause Battery Pack leakage, rust, or degradation of the Battery
Pack performance. Make sure the storage temperatures will never be outside these limits. The lower the storage temperature is
within the specified range, the better. The Battery Pack will discharge more slowly at low temperatures. Charge the Battery Pack
for 30-60 minutes, until fully charged, prior to storage and then every one (1) to two (2) months; and then again prior to the first
seasons use. To prevent permanent damage to the Battery Pack, never store it in a discharged condition. Be sure to remove the
Battery Pack from the Charger after charging. In addition, you can safely keep the Battery Pack in your tool when storing for the
long term.
Do not store the Battery Pack near children or pets, with metal objects that could short circuit the terminals, or close to a source of
heat, sparks, open flame or on the floor as it may be damp or subject to accidental flooding. In addition, never expose the Battery
Pack to abnormal shaking or shocks. Regularly observe the external appearance of the Battery Pack. Never use a Battery Pack that
shows cracks, changes shape, or obviously damaged.
