New Age Performance Plus 2.0 Series User manual

Performance Plus 2.0 Series
R4
STOP
ATTENTION: Is your cabinet damaged?
Need help or spare parts? For fastest service,
contact NewAge Products at 1-877-306-8930;
or [e-mail].
Do not return to the retailer.
Warning: Excessive weight
hazard!
Use two or more people to move, assemble, or
install cabinets and locker to avoid back injury.
Do not leave children unattended near cabinets.
High risk of tipping if cabinets are installed
incorrectly: securely attach cabinets to the
wall to avoid serious injury. For assistance, call
1.877.306.8930; for U.K 0800.031.4069: e-mail at
[e-mail].

2
INDEX
Product Overview:
Unpacking -3
Tools Needed - 3
Included Quantities -4
Individual Parts -4
Weight Capacity -5
Worktop Options - 5
Installation Options - 6
Installation Overview:
Sets with Casters - 7
Wall Mount Installation - 8
Slatwall Installation - 9
Floor Mount - 10
Corner Set Installation -11
Hanging Cabinets:
On Studded Wall -12 -15
Hanging Corner Cabinet -15
Installing Spacer Kit -16
On Slatwall -17
Securing Cabinets:
To Wall -18
To Other Cabinets -19
Fastening Cabinets with Casters -20
Installing Worktop:
Normal installation on cabinets -21
Using Support Brackets -22
Installing Side Support Tray -23
Installing Worktop Support Leg -24/25
Corner Worktop -26
General Assembly:
Feet & Levelling cabinets -27
Casters -28
Drawers -29
Handles -30
Stacking -31
Closet Rod -32
Shelves -33
Base Cabinet Pullout Shelf -34
Utility hole -35
Magnetic Racing Stripe -36
Hinge Adjustment - 37
Warranty -38

3
Tools Needed
1 x 12”MagneticLevel
1 x #2 Phillips Bit
1 x Tape Measure
1 x 7/16”socket
1 x Cordless
Power Drill
1 x Stud Finder
1 x Pencil
1 x Adjustable wrench
1 x 7/16”Socket driver wrench
1 x #2 Phillips head
screwdriver 1 x Hammer Drill 1 x Masonry Bit
[optional for masonry]
1 x
6 mm or 3/16”
drill bit
Unpacking
•Begin by placing the package on a covered flat surface.
•Remove all cardboard, foam packaging material and clear plastic bags.
•Dispose / recycle all packaging materials.
•Verify all the contents in the box and gather the required tools. See“Tools Needed”, and
“Included Quantities” list.

4

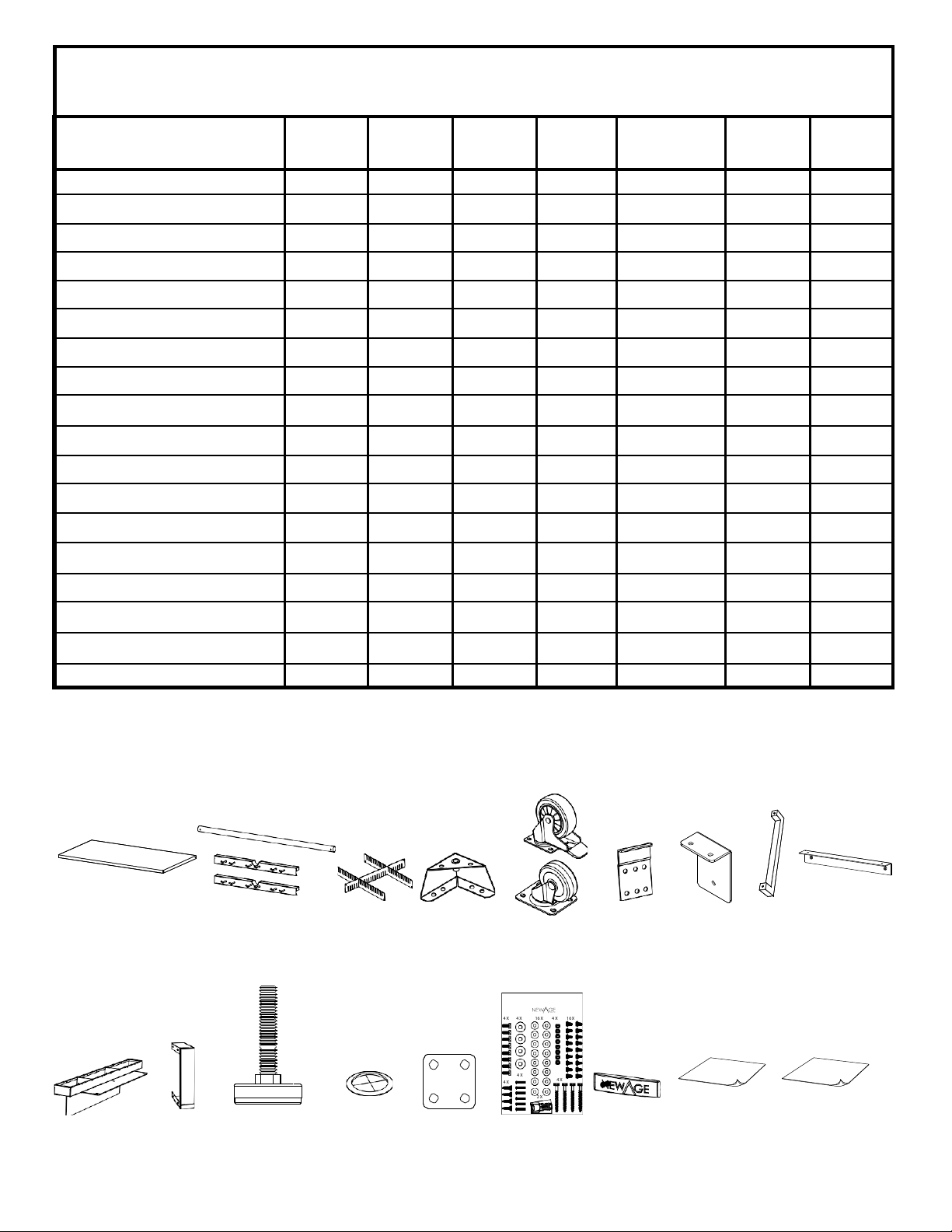

Individual Parts
Wall
Spacer Bracket Hardware NewAge Pack Logo EVA Foam RubberTray Drawer Liner
Liners
Adjustable Steel
Shelves
Coset Rod
and ClothesHooks
Drawer Cabinet
Dividers Leg
Support
Bracket
Casters Easy
Wall
Corner Handle
Wall
Hanging Support
Bracket Bracket
Leveling Utility Hole Joining
Foot Grommet
(M10 x 65mm)
4 X4 X
2 X
4 X
4 X 4 X 16X 4 X 16X
Tray
Included Quantities
Base
Cabinet
Tool
Drawer
Locker Wall Corner
Wall
Mobile
Locker
SpacerKit
Hardware Pack 1111110
CabinetLeg 4440000
LevelingFoot 4440000
Casters 2200020
Casters with Brakes 2200020
Adjustable Steel Shelf 0041030
Drawer Dividers 0300004
Easy Wall HangingBracket 2222220
Handles 2520020
Closet Rod and ClothesHooks(set) 0010010
Locker SupportBracket 0010000
JoiningBracket 1100200
Rubber TrayLiner 1100000
EVA Foam Drawers Liners 1500000
Utility HoleGrommet 1010010
NewAgeLogo 1111110
2.5in Spacer Wall Cabinet 0 0 0 0 0 0 2
2.5in WorktopTray 00 0 0 0 0 2

5
Worktop Options
24”Corner Worktop
56”Worktop. Fits over 2 Cabinets
84”Worktop. Fits over 3 Cabinets
500 lbs.
100lbs.
100lbs.
500lbs. 500lbs./Cabinet
Locker 300lbs. / Shelf
Max 1000lbs. / Locker
Tool Cabinet
Max 1000 lbs.
Wall Cabinets
Max 200 lbs.
100 lbs.
600 lbs.
300 lbs.
Weight Capacity
Base Cabinet
Max 1000lbs.
FloatingWorktop
Max 500lbs.
Worktop on BaseCabinets
Max 500lbs./Cabinet
250 lbs per foot.
1000 lbs. per set of 4
150 lbs. per Caster
500 lbs. per set of 4
100lbs.
100lbs.
100lbs.
100lbs.
200lbs.
150 lbs.
300lbs./Shelf

6
Installation options for Cabinets
Option 1. -see page7.
Sets with casters andadjustable leveling legs.
Note: Casters cannot be installed on Locker
cabinets.
Important information: Please read
before beginning installation.
•Layouts shown are only examples.All
cabinets are modular and can be configured
in a variety of different layouts.
•Plan layout and measure space before
installing.
•Locate wall studs prior to installation.
•Consider the location of electrical outlets
when planning layout.
•Measure height of cabinets for clearence.
•Base cabinets can be mounted flush front or
flush back with Locker cabinets.
Option 2. -see page8.
Wall mount cabinets off the floor.
Option 4. -see page10
Floor mount with adjustable levelling legs.
Option 3. -see page9.
Wall mount on slatwall using slatwall
brackets (sold seperately).
Option 5. -see page11
Corner cabinet installation. Note: Corner
cabinets can be installed using allinstallation
options.

7
Caster Set Installation Overview
Plan layout before installing
cabinets.
•It is recommended to begin
installation with Locker cabinet.
•Install cabinets one at atime.
•Locker and wall cabinets must be
fully secured to wall using (4) wall
screws per cabinet.
InstallWorktopWall Support Brackets,
Leg Supports andattach worktop.
Position cabinets in place below
worktop.
45
1Attach feet to locker cabinets. Attach
casters to base cabinets. See full
installation on pages 27 & 28.
Begin by securing Locker cabinet to
wall in determined postion. See Page
18 for full instructions.
2Secure remaining wall, locker and
spacer kit starting with spacer kit. See
pages 12 -16,19 and 23.
3
Option 1

8

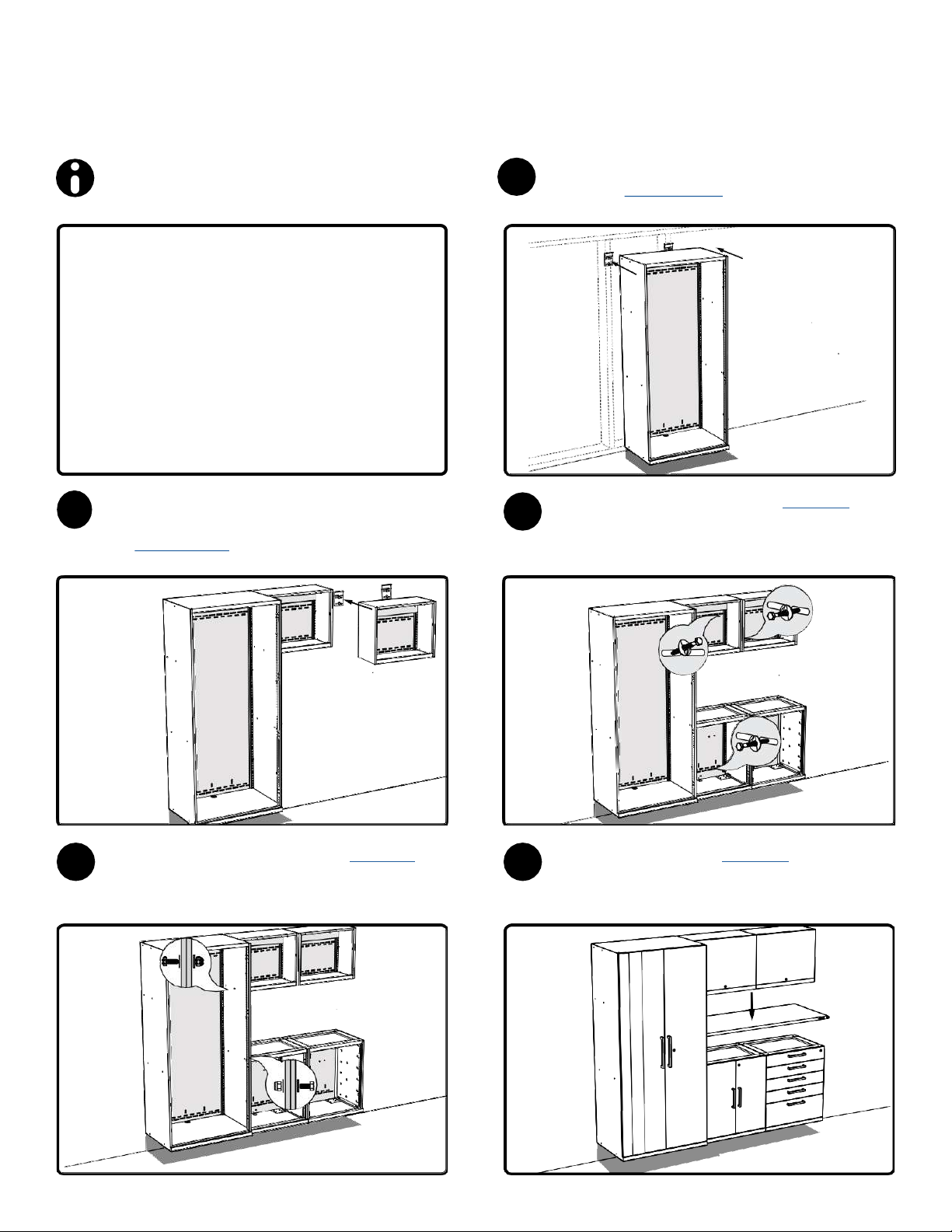

Wall Mount Installation Overview
Plan layout before installing
cabinets.
•Determine height cabinets will be
installed off the ground.
•It is recommended to begin
installation with Locker cabinet.
•Install cabinets one at atime.
•Cabinets must be fully secured
to wall using (4) wall screws per
cabinet.
Begin by attaching Locker cabinet to
wall. See page 12-16 for full instructions
on hanging cabinets.
Position and secure remainingbase
cabinets, and wall cabinets to wall.
See page 12-16.
Secure cabinets to wall. See page 15.
Secure cabinets together. See page19.Attach worktop. See page 21 for full
instructions.
1
23
4 5
Option 2

9

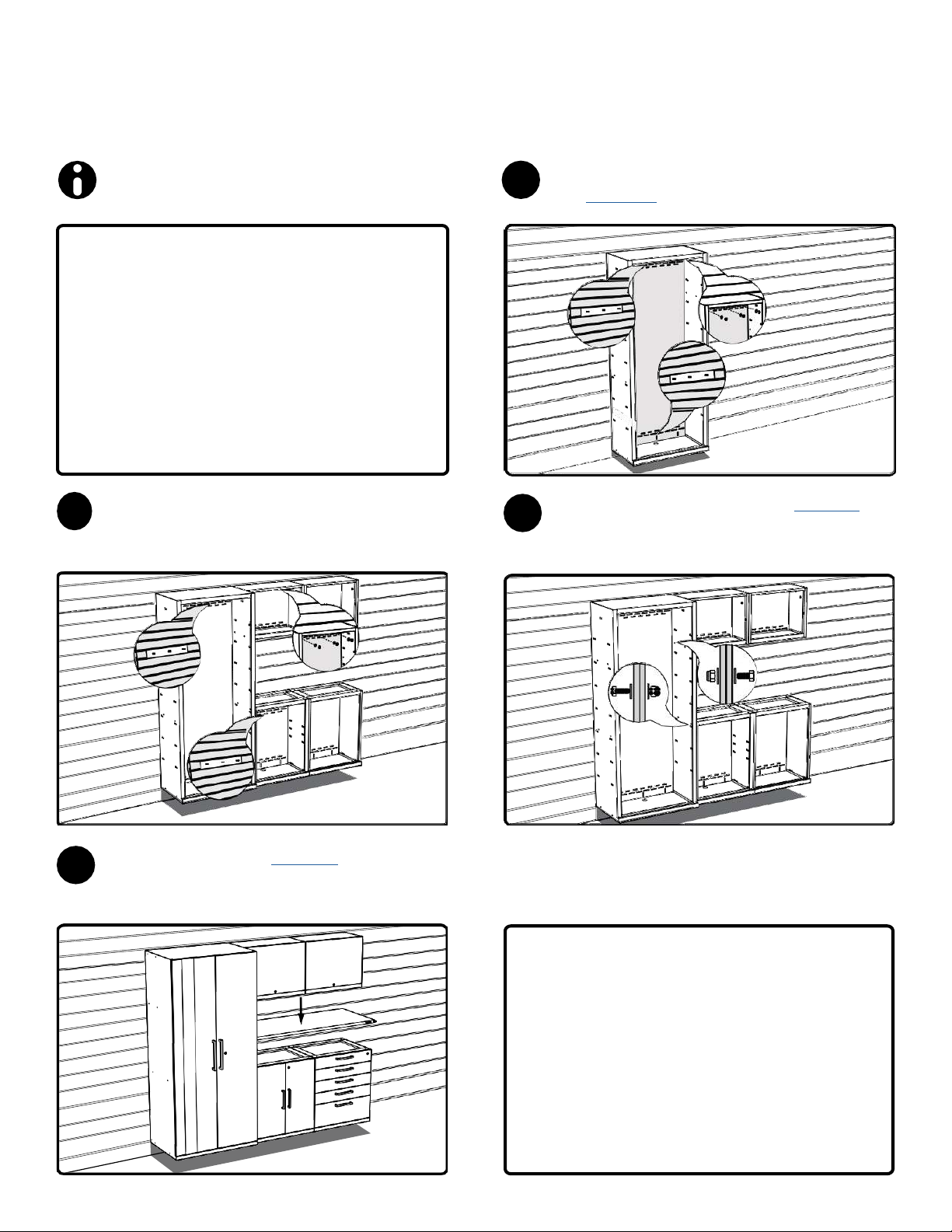

Slatwall Installation Overview
•Determine height cabinets will be
installed off the ground.
•Slatwall bracket sold seperately
•Slatwall brackets for use with
standard 3”slatwall.
•Check slatwall manufacturer for
rated load capacity.
•Do not overload.
Begin by attaching Locker cabinet
Plan layout before installing cabinets. to Slatwall using Slatwall bracket.
See page 17 for slatwall hanging
instructions.
Position and secure remainingbase
cabinets, and wallcabinets. Attach cabinets together. See page19.
Slatwall brackets sold seperately.See
below for quantitiesneeded.
Attach worktop. See page 21 for full
instructions.
1
23
4
Option 3
•Locker, Tool and Base Cabinets -per
cabinet (2) x 24” Slatwall Brackets.Part
#50979
•Wall Cabinets -per cabinet (1) x 24”
Slatwall Brackets. Part #50979
•Corner Wall Cabinets -per cabinet (2)
x12” Slatwall Cabinets. Part #50980

10
Floor Installation Overview
1
Begin by securing Locker cabinet to
wall in determined position. See Page
18 for full instructions.
2
Attach feet to cabinets. See full feet
installation on page 27.
Plan layout before installing cabinets.
•It is recommended to begin
installation with Locker cabinet.
•Cabinets must be fully secured
to wall using (4) wall screws per
cabinet.
•Casters can not be installed on
36” lockercabinets.
5
4
Position and secure remaining cabinets
to wall .Install cabinets one at atime. See
page 18 for fullinstructions.
Attach cabinets together. See page 19for
detailed fastening instructions.
Attach worktop. See page 21 for full
instructions.
3
Option 4

11

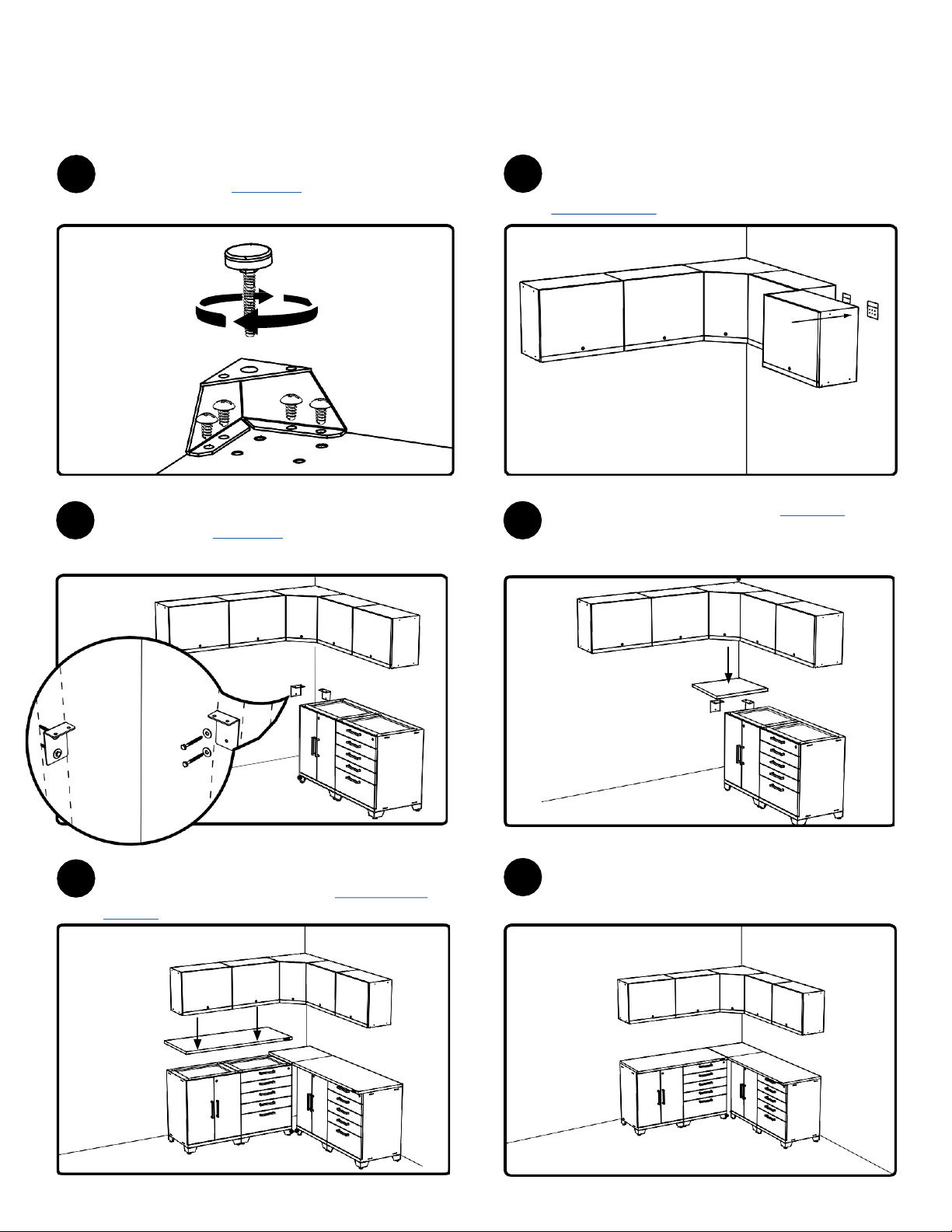

Corner Set Installation Overview
1Hang wall cabinets starting with corner
wall cabinet. See full instructions on
pages 12-16.
2
Attach feet to cabinets. See full feet
installation on page 25.
Install corner worktop support and base
cabinets. See page26.
Position, secure and attach allremaining
cabinets and worktops. See page 18,19
and21.
Install corner worktop. See page26.
34
56
Option 5

12

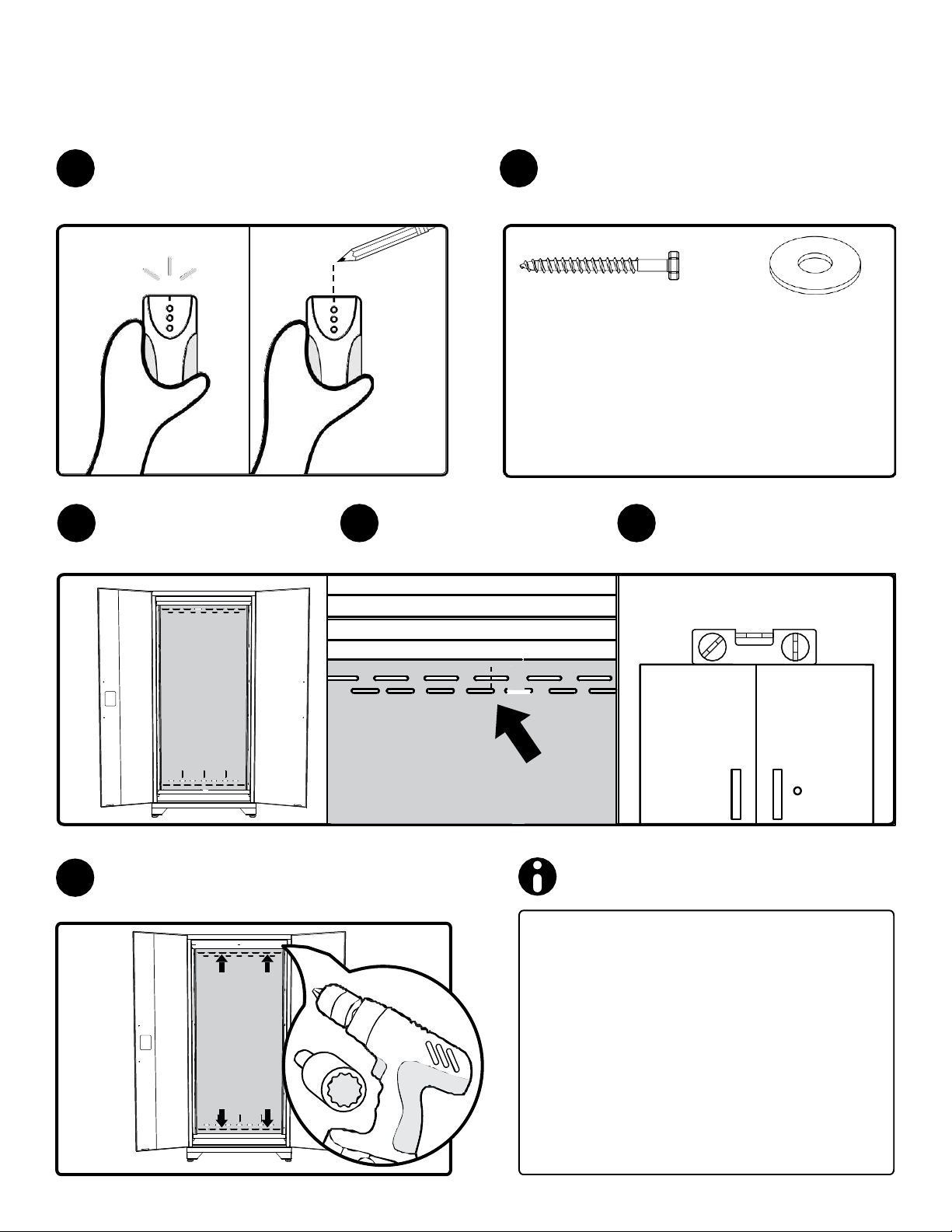

Hanging Cabinets on Studded Wall
Step A. Determine the height off the ground you would like the base and locker
cabinets to be and make a horizontal mark at this position.
Step B. Next mark the width of each cabinet in the intended position and ensure
the wall studs fall at least 1.25”in from the edge of the cabinets.This will
ensure there is no interference with the edges of the cabinet and the
wall bracket when hanging the cabinet on the wall.
Step C. For corner installation begin by hanging corner cabinet first and continue
out from corner.
Note: Ensure there are two studs for the locker to be mounted on as it is easiest to start
the installation with the locker first. Due to the spacing of the wall studs it is possible that
some base or wall cabinets will only have one stud they will attach to; This is acceptable as
long as the cabinet is bolted to another securely mounted cabinet.
Parts Needed.
Lag Screw
(1/4”x 2.5”) Wall Bracket
Floor
Wall
studs
mustfall
1.25”or
more
from
sidesof
cabinet
Wall
studs
mustfall
1.25”or
more
from
sidesof
cabinet
A
B
AHeight from Floor
BWidth ofCabinets
WallStud
Cabinet Width
CabinetLayout
2 Planning the general position of cabinets.
1Use stud finder to locate the studs
and mark the wall with a pencil.

13

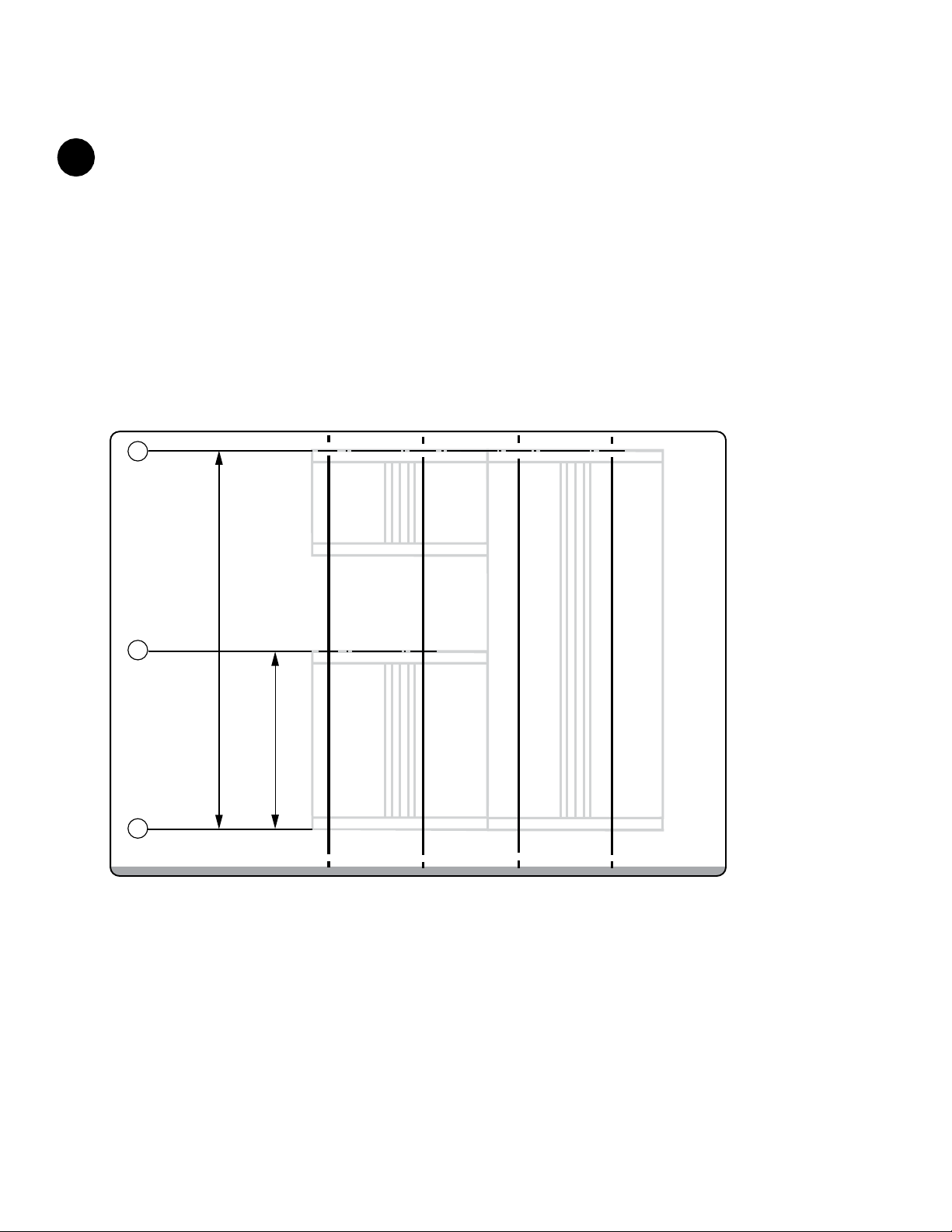

Planning the general position of cabinets. (cont.)
Step C. Measuring up from the line marked in Step A, make a horizontal mark
at the following heights where they intersect the wall stud marks to
determine where the top of the cabinet will be (and where the
hanging bracket will be installed).
Step D. Ensure the cabinets will be at a suitable working height and that your
wall cabinets are not out of reach.
Note: The working surface of the base cabinets will be 1.25” higher than
the cabinet with the top installed.
3
Floor
Locker & Wall 80”
Base Cabinets 32.25”
A
Height from Floor
1.Locker: Measure 80” vertically from base line and mark at stud locations.
2.Base: Measure 32.25” vertically from base line and mark at stud locations.
3.Wall cabinets: Measure 80” vertically from base line and mark at stud
locations (if installing flush with top of locker).
C
C
Hanging Cabinets on Studded Wall (cont.)

14
Hanging Cabinets on Studded Wall (cont.)
4Hanging cabinets on wall.
Align the top of the wall hanging brackets with the lines marked for
the position of the top of the cabinets(Step C) and attach
the brackets securely into the studs using the supplied
lag bolts.
Floor
Locker & Wall 80”
Base Cabinets 32.25”
A
Height from Floor
Note: It is possible to offset the bracket to one side or the other if the bracket
is positioned close to the edge of the intended cabinet position by using the
secondary hole positions on the bracket.
C
C
56
Hanging Corner Cabinets on Studded Wall
Hang andsecure remaining wall cabinets
following“Hanging Cabinets on Studded
Wall” and“Fastening CabinetsTogether”
see pages 12-15 and page 19.
Begin with the corner wall cabinet and use
(2) XWall Support Brackets to hang cabinet
following Steps 1-6 from pages 12-15.

15
WALL
WALL
Lift cabinet into place over the brackets and
flush with the wall, and lower into place.
Hanging Cabinets on Studded Wall (cont.)
•Do not load cabinets when
hanging from Easy Wall Hanging
Cabinets.
•All cabinets must be secured to
the wall using lag screws.
Warning
7
8Fasten cabinets to wall. See page 18.
Masonry.
•Follow steps 1 to 4.
•Drill 4 pilot holes through the
perforated strip with hammer drill &
masonry bit.
•Use 4 x (2 ¼”x¼”)Tapcon Concrete
Anchor (Not included)into wall.
•OR 4 x (#10 x 2”)Screw with3/16”
masonry plug into wall.(Not
included)

16
8 X Washer
(1/4”)
8 X HexBolt
(1/4”x 5/8”)
2X
Wall Spacer
Installing Wall Spacer Kit
Attach spacer cabinet to side of locker
using 1/4” hex bolts andwashers
2
4
3of upper frame. Slide door down int
Insert tab of spacer cabinet into slot
o
place and secure using screws.
Install screw to secure front face.
1
Install 2nd wall spacer by repeating
Steps 2 -4.
5 6
Parts Needed.
2 X Screws
Attach remaining wall cabinets. See
pages 12-15.

17
Attach bracket to slatwall at desired
height.
Align bolt with slots on back of cabinet
and hang cabinet .
Note:For Locker cabinet attach second
bracket 66” below first bracket.For Base
cabinet attach second bracket 18”below
first bracket.
23
Hanging Cabinets on Slatwall
1Insert bolts through slatwall bracket.
Parts Needed.
Hex Bolt
(¼”x ⁵/₈”)
Slatwall Bracket
Wall Washer Lock Nut
(¼”) (¼”)
Slatwall brackets sold seperately.See
below for quantitiesneeded.
•Locker, Tool and Base Cabinets -per
cabinet (2) x 24” Slatwall Brackets.Part
#50979
•Wall Cabinets -per cabinet (1) x 24”
Slatwall Brackets. Part #50979
•Corner Wall Cabinets -per cabinet (2)
x12” Slatwall Cabinets. Part #50980
Note: Slatwall Brackets for use with standard 3” slatwall Sold Separately. Check with your
slatwall supplier to determine the rated capacity of your slatwall. DO NOT OVERLOAD.
NewAge Slatwall Brackets are only compatible with standard 3” on center Slatwall.

18
Fastening Cabinets on StuddedWall
Level cabinet
Gather parts.
1 2
Align cabinet
to stud marks.
Use stud finder to locate the studs
and mark the wall with a pencil.
4
3
Wall Screw
(1/4”x 2.5”)
Wall Washer
(1/4”)
5
Place cabinet tight
against the wall.
X4
6Masonry.
•Follow steps 1 to 6.
•Drill 4pilot holes through the
perforated strip with hammer
drill & masonry bit.
•Use 4 x (2 ¼” x ¼” )Tapcon
Concrete Anchor into wall.
•OR 4 x (#10 x 2” )Screw with
3/16” masonry plug intowall.
•Follow Step 6.
Drill 4 wall screws and washers
through perforated holes into studs.
Locker, tool and base cabinet: 4Lag Screws and
4Wall washers
CornerWall Cabinet: 6Lag Screws and 6Wall
washers

19
Fastening Cabinets Together Note:
All drawers must be removed
prior to fastening cabinets
together. See Page 29 for
drawer removal instructions.
Align bolts, tighten lightly.
Level cabinets and tighten all bolts.
X4
1
2
4
Parts Needed.
4 X Lock nut
(¼”)
8 X Washer
(¼”)
4 X HexBolt
(¼”x ⁵/₈”)

20

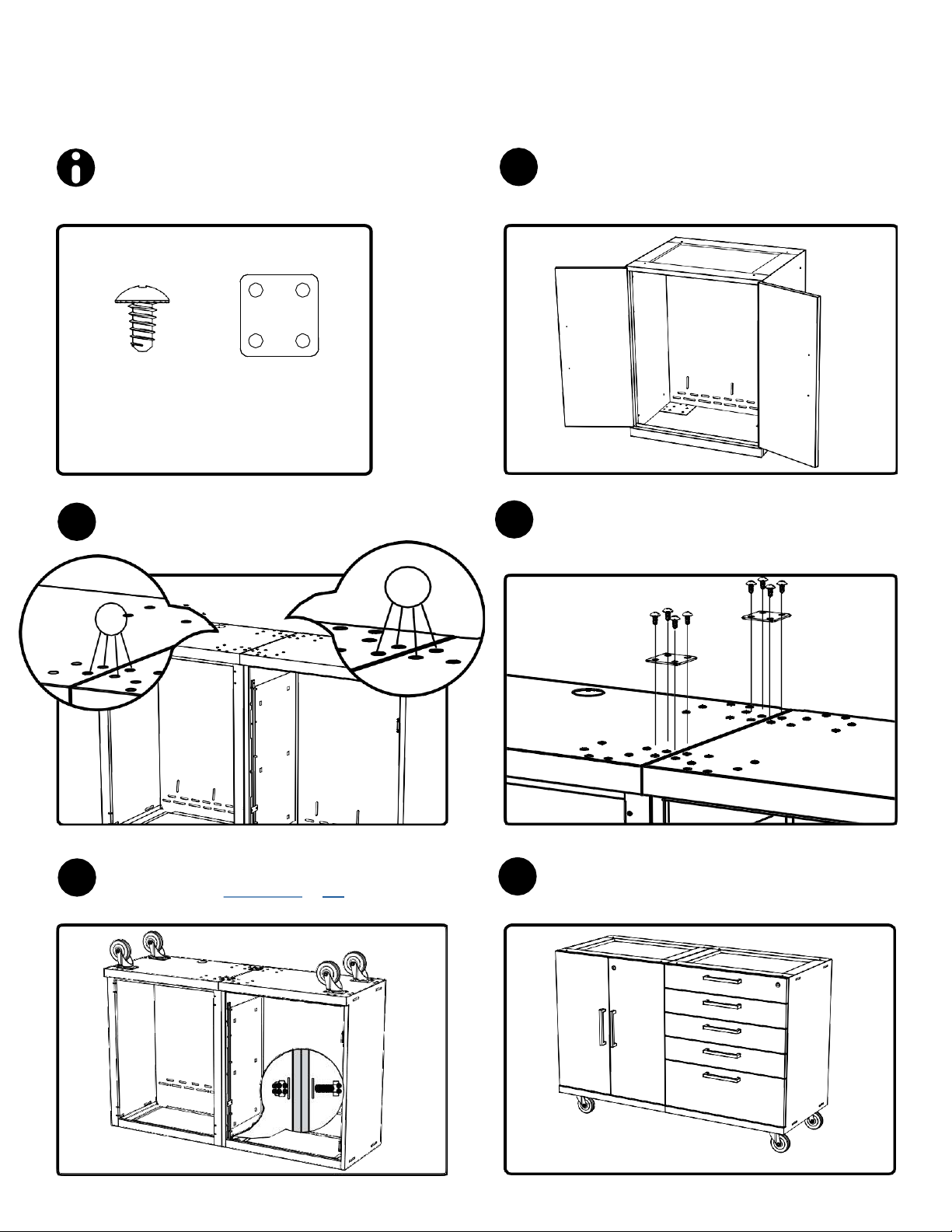

Fastening Cabinets with Casters
1
Flip cabinets and push sides
together, locate holes on edges.
2
Parts Needed.
1
Open cabinets, remove any shelves,
drawers or loose items.
Attach casters and fasten cabinets
together. See pages 19 &28.5
4
Align holes with joining plate andattach
using foot attachmentscrews.
3
2 x Cabinet
JoiningPlate
8 x Foot
Attachment
Screw
1
