New lift SA3-S Guide

SA3-S
Protectionagainstunintendedcarmovement
INSTALLATION & COMMISSIONING MANUAL
a_SA3-S_2011-12_en 57-99076
SA3-S
A3
0408
X1  Forfurtherdetailspleaseseeinstruction X2

left
digit Operating state
1Outside
2Dooropen
3Doorzone
4Approach
5Relevelling
6Exit
Display Description
01 Approachspeed
02 Relevellingspeed
03 Approachovershoot
04 UCMoutsideofdoorzone(A3)
05 UCMrelevelling(A3)
06 Acceleration
07 Cannottestsolenoid
10-11 Override
12 Solenoidfeedback
14 Doorzone
15-16 Lostoftraction
17-18 Positionencoder
20-23 EMCinterference
25-26 Doorrelaymonitor
27-28 Safetycircuitrelaymonitor
FF Internal
Aufkleber S/N
SW - / HW - Version
Herstelldatum

right
digit door input SCCT- input SCCT- Relay Solenoid
0open off open off
1closed off open off
2open on open off
3closed on open off
4open off closed off
5closed off closed off
6open on closed off
7closed on closed off
8open off open on
9closed off open on
Aopen on open on
bclosed on open on
Copen off closed on
dclosed off closed on
Eopen on closed on
Fclosed on closed on
MagnetRESET
Normal operation (display lights continuously) Error (display flashes)



SA3-SInstallation&CommissioningManual
Manufacturer NEWLIFTSteuerungsbauGmbH
LochhamerSchlag8
82166Gräfelfing
Phone+49 89 – 898 66 – 0
Fax +49 89 – 898 66 – 300
Mail [email protected]
www.newlift.de
Serviceline Phone+49 89 – 898 66 – 110
E-mail[email protected]
Dateofissue 05.11.2012
Author BP
Release BP11/2012
Hardwareversion V1.31/V1.32
Doc.No. mia_SA3S_en
Copyright ©NEWLIFTSteuerungsbauGmbH,2012.
Thismanualisprotectedbycopyright.Allrights,includingthoseofcopying,of
reproduction,oftranslationandofmodification,inwholeorinpart,arereservedby
thepublisher.
Nopartofthisdescriptionmaybereproducedinanyformorcopiedwithan
electronicreplicationsystemwithoutwrittenpermission.
Althoughgreatcarehasbeentakenintheproductionoftextsandfigures,we
cannotbeheldlegallyliableforpossiblemistakesandtheirconsequences.


SA3-SInstallation&CommissioningManual I


Contents
1 Aboutthismanual 1
1.1 General 1
1.2 Abbreviationsandsymbolsused 1
2 Generalsafetyregulations 2
2.1 Qualificationsoftheinstallingengineer 2
2.2 Residualdangers 2
2.3 Safetyregulations 3
3 Technicaldata 5
4 Planningthesystem 6
5 Interfaces 8
5.1 Connectiontothecontrolsystem 9
5.2 Connectiontothesafetycircuit 10
5.3 Display 11
5.4 RemoteDisplayModule 13
5.4.1 UserInterfaces 13
6 Installation 14
7 Commissioning 15
7.1 RemoteDisplayModule 15
8 Behaviourincaseoferrors 16
9 Functiontestduringcommissioning 17
10 Inspectionduringcommissioning 21
11 Annualinspection 24
12 Wastedisposal 25
13 Appendix 26
13.1 Releaseoftrappedpersons 26
13.2 Calculatingthestoppingdistance 26
13.2.1 Downwardstoppingdistance 26
13.2.2 Upwardstoppingdistance 27
14 Notice 29


II SA3-SInstallation&CommissioningManual

Aboutthismanual
SA3-SInstallation&CommissioningManual 1
1 Aboutthismanual
The SA3-S safety device was developed to satisfy the "protection against unintended car movement" stipulated
in the standard (EN 81-1:1998+A3:2009, 9.11).
Read these instructions carefully before installing and commissioning the safety device. In addition, chapter „2
General safety regulations“.
Objectives of this manual:
› Provision of the technical data
› Installation and commissioning instructions
› Maintenance instructions
› Test instructions
› Operation of the device.
1.1 General
This manual is intended to simplify installation and commissioning of the safety device. In addition, this manual
also serves as a reference for the operator.
It describes the commissioning, installation and maintenance procedures for a lift in connection with the SA3-S
safety device for the "protection against unintended car movement".
It contains important information for safe and proper installation and commissioning of the safety device.
Following these instructions will help to:
› prevent danger,
› avoid repair costs and downtime,
› increase the reliability and lifespan of the control system and of the lift system.
Local, national and on-site regulations regarding health and safety and protection of the environment must be
taken into account in addition to this installation and commissioning manual.
This manual only describes the assemblies of the lift system delivered by NEW LIFT. For information about
components of the lift system that were not manufactured and supplied by NEW LIFT, please refer to the res-
pective user information supplied by the manufacturer or supplier.
1.2 Abbreviationsandsymbolsused
The following signs and symbols are used for operational instructions:
Abbreviation Description
SCCT Safetycircuit
PE ProtectiveEarth;earthwire
GND Ground;referencepotentialforsignalandoperatingvoltages
AC Alternatingcurrent
DC Directcurrent
GB Overspeedgovernor
Safety-relevant information
This symbol is located in front of safety-relevant information.
Information notice
This symbol is located in front of relevant information.

Generalsafetyregulations
2 SA3-SInstallation&CommissioningManual
2 Generalsafetyregulations
All important safety regulations are summarised in this chapter. These safety instructions must always be adhe-
red to during all work on the installation.
All persons performing installation and commissioning work on the SA3-S safety device must read this chapter
and follow its regulations.
Laws, regulations, guidelines and standards that apply in the country of operation must be followed in addition
to the safety regulations mentioned in this manual.
2.1 Qualificationsoftheinstallingengineer
The installing engineer must:
› be over 18 years of age (exception: apprentices who are over 16 years of age and are permanently supervised
by an engineer qualied for training apprentices).
› have rst aid training,
› have theoretical and practical knowledge of regulations and measures for the prevention of re and explosions
in his work area,
› be able to identify, avoid and rectify all dangers that might occur during his work in the shaft and in the operating
rooms,
› be able to identify and rectify all irregularities and faults that might occur during installation and operation of a lift
system,
› have theoretical and practical knowledge of operating principles and requirements of electric controls and drive
systems.
All installation and commissioning work on electric and electronic components of the safety device must be
performed by or supervised by a qualied electrician.
A qualied electrician has appropriate training and knowledge of regulations that allow him to judge the quality
of the work performed and identify possible dangers (BGV A3).
2.2 Residualdangers
Dangerforpersons
The following shall always apply during all work on the installation:
Danger to life! Do not touch live parts while working on electrical equipment.
› Before starting work, make sure the system is off circuit.
› Only carry out any installation work on electrical components when these are switched off and in an unpowered
state.
› Only use insulated tools when working on electrical system components.
› Pay attention to the accident prevention regulations.
Electrical hazard, leaking gas or water due to pierced supply lines. Risk of serious injury or death.
› Make sure no supply lines are in the installation location before starting any installation work.
›Danger of falling! Installing engineers and unauthorised persons can fall down the shaft. Risk of serious injury or
death.
› Block the shaft access points.
› Use suitable protection (e.g. safety harnesses, scaffoldings) when working on or in the shaft.
Danger of crushing due to intentional or accidental car movement. Risk of serious injury or death.
› Block the shaft access points.
› Before starting any work, make sure that there are no persons in the shaft or in the vicinity of moving parts of
the drive.
› Prevent unauthorised operation of the control system.

Generalsafetyregulations
SA3-SInstallation&CommissioningManual 3
Riskofmaterialdamage
The following shall always apply during all work on the installation:
Electrostatic charging
› Keep the electronic assembly in its original packaging until installation.
› Before opening the original packaging, a static discharge must be performed. To do this, touch a grounded
piece of metal.
› During work on electronic assemblies, periodically perform this discharge procedure.
Electronic assemblies are destroyed by defective, interchanged or incorrectly mounted connectors, short-circui-
ting or excess voltage.
› Check plugs for mechanical damage.
› Never change pre-assembled connectors or cables.
› Only connect loose or torn off wires according to circuit diagram details if this is possible on site (suitable mate-
rial and tools must be available).
› Pay attention to coding pins and latch lugs.
2.3 Safetyregulations
General
› The instructions of the lift manufacturer and the instructions in this manual must be followed during installation
and commissioning of the safety device.
› The shaft must be secured against unauthorised trespassing during installation, commissioning, inspection and
maintenance.
› Assemblies, devices and cables must be installed and fastened securely and permanently.
› Loads must be moved with suitable aids (lift trucks, hoisting gear etc.).
› Sharp and pointed tools or other potentially dangerous objects may only be carried along in clothing if suitable
protective measures have been taken to rule out any danger.
› Alcohol and drugs must not be consumed before and during installation and commissioning.
Documentation
› A copy of the installation and commissioning manual must be available to the installing engineer at the time of
installing and commissioning.
› A copy of the installation and commissioning manual and the wiring diagrams must be kept in the control cabi-
net at all times after installation.
› The wiring diagrams supplied with the SA3-S safety device are binding. Changes must only be made after con-
sulting NEW LIFT and must be documented in writing on the system.
› The factory-side inspection records of the SA3-S safety device remain with the manufacturer.
Electricity
› Regulations for installing and operating electrical equipment (VDE 0100) and regulations of local utilities must
be followed.
› The specied distances between different electrical assemblies must be controlled and maintained.
› All installation work must be carried out with the system shut down and off circuit.
› All cables and wires must be installed with sufcient strain relief.
› The neutral and ground wires must be routed separately.

Generalsafetyregulations
4 SA3-SInstallation&CommissioningManual
Workingintheshaft
› Any work in the shaft requires perfect and permanent communication between the supervisor on the lift control-
ler and the workers in the shaft.
› Components in the shaft must be arranged or secured in such a way that persons accessing the shaft for ins-
pection, maintenance or repair purposes are not in danger.
› The maximum load of the lift system must not be exceeded.
› The specied overruns of the emergency end switches in relation to the speed must be observed.
› The emergency installations must not be activated during normal operation.
› All emergency installations and braking systems must be checked for trouble-free operation and all shaft entran-
ces closed off before beginning work.
› Installation and operation are prohibited if other persons could be in danger.
› Workers must be secured against falling.
› In case of any work interruptions, the car must be moved to the lowest stop position, the control system swit-
ched off and the power supply (e.g. UPS) permanently disconnected.
Personalsafetyequipmentoftheinstallingengineer
› Eye protection
› Safety boots
› Protective helmet
› Safety harness
› Clothing suitable to the ambient conditions of the installation location
› Jewellery, watches and similar items may not be worn; a hair net must be used if applicable.
Handlingelectronicassemblies
› Leave electronic assemblies in their original packaging until installation.
› Touch a grounded piece of metal prior to opening the original packaging to prevent damage from static charges.
Wastedisposal
› All packaging material must be disposed of in an environmentally acceptable manner; paper, plastic, metal,
electronic assemblies etc. must be recycled.

Technicaldata
SA3-SInstallation&CommissioningManual 5
3 Technicaldata
Parameters Min. Type Max.
Operating voltage1 24V DC
Power consumption with energised solenoid 1A
Power consumption with deenergised solenoid 0.3A
Temperature: operation 0°C 65°C
Temperature: storage & transport -20°C 70°C
Relative humidity: operation (non-condensing) 15% 85%
Relative humidity: storage & transport (non-condensing) 5% 95%
Cable length to overspeed governor2 100m
Cable length to control system2100m
Error-signal output current 0.7A
Protection type IP64
Possible safety circuit voltages3 230V/50Hz, 110V/50Hz,
24VDC - 150VDC
Safeguarding of the safety circuit (external) 4A
Position resolution (pulse interval) with HJ200 0.94mm
Position resolution (pulse interval) with HJ250 0.94mm
Position resolution (pulse interval) with HJ300 0.92mm
Reaction time "A3" until solenoid has deenergised 82 ms
Service life 20 years
Table 1: Technical data
1 The operating voltage must also remain active during a power failure of the main supply (see chapter "Planning the
system").
2 The maximum possible cable length to the overspeed governor and to the control system is heavily dependent on the
distance of the cable to other sources of interference.
3 Possible safety circuit voltages:
The required voltage must be specied when ordering

Planningthesystem
6 SA3-SInstallation&CommissioningManual
4 Planningthesystem
In order to use the SA3-S safety system together with a lift system, the following requirements must be satised:
1. The lift control system must make available a signal that always becomes inactive when the car
is not to be moved ("inmotion" signal). This signal must be inactive on each stop. Level: 0V (car is
moving) / 24V or high impedance (car is not moving). The signal is needed in order to test the solenoids
at the overspeed governor and to allow that the magnetic coil drops with closed doors (quiescent state
of the lift).
2. The product must be supplied with power via a 24Vemergencypowerdevice.
Reason: If power fails during travel, the solenoids must remain energised until the car stops, as the
safety gear will otherwise be actuated. This delay is taken into account in the device, but can only take
effect if the power supply is ensured for several seconds following power failure. Required is 24V/1A
for about 10 sec. In addition, an UPS is needed in order to energise the solenoid during an emergency
rescue so that the car can be moved. The emergency power supply must be designed accordingly.
3. An override input ensures that the car can also be moved in the event of a power failure so that per-
sons can be freed.
In the override state, the solenoid energises and the safety circuit relay opens. Level: 0V (override) /
high impedance (normal operation). For override, a separate switch must be wired in the control cabi-
net. It is to be labelled with "Ovrd. SA3-S".
4. The safetygear that is to be used in combination with the SA3-S must satisfy the requirements of EN
81-1:1998 + A3:2009 or EN81-2:1998 + A3:2009
5. The carapron must satisfy the requirements of EN 81-1:1998 + A3:2009 point 8.4.
An apron acc. to EN 81-21 is permissible only if the car apron satises the requirements specied in
EN 81-1, section 8.4 over the entire shaft upon leaving the lowest oor. If this cannot be ensured, the
calculation of the permissible upward stopping distance (see chapter "Upward stopping distance") can
only take into account the vertical part of the car below the car threshold for the apron length.
6. A formula must be used to theoretically verify that the car achieves the stoppingdistance specied in
the standard. The "upward" and "downward" cases are to be calculated separately. The following data
are necessary for this purpose:
› Maximum length of the door zones in the up and down directions (normally 200mm in both
directions)
› Maximum reaction path of safety gear and overspeed governor (the path of the car from the
time the safety cable is blocked until the safety gear reaches its guaranteed braking decelera-
tion) in both directions
› Minimum braking deceleration of the safety gear in both directions
› Internal passage height to the car interior (for calculating the maximum downward stopping
distance)
› Length of the apron below the car (for calculating the maximum upward stopping distance)
› Mass of empty car, cable and counterweight (for calculating the maximum possible upward
acceleration)
The product may only be used if the required stopping distances can be achieved. For some parame-
ters, standard values may be used.
7. The safetycircuit of the lift system must be modied according to the specications. In the standard
device, the safety circuit voltage is 230V / 50Hz. Other voltages are possible on request.
8. The PowerGood input signals a powerfailure at the control system. Level: 24V: current present / 0V or
high impedance: power failure. Ideally, this input is supplied by the power supply of the control system.
9. If the system is equipped with the "approach with open doors" function, the two doorzonesignals
must be wired. These signals must also be monitored by an external safety circuit bypass control. Level:
24V (door zone) / 0V or high impedance (outside of the door zone).
10. To reset the product in the A3 case or after an error, a button ("reset") can be wired in the control
cabinet. Level: 24V (reset) / 0V or high impedance (normal operation). The button is to be labelled with
"Reset SA3-S". Alternatively, the SA3-S safety device can be reset with the aid of a magnet below the
display.
11. The "error" output of the product can be wired with an error lamp (24V, max. 0.7mA) or with the control
system. This output is for information only and is not a safety function. The error lamp is not necessary if
the device display can be viewed.If the error output is read by the controller, the controller must not stop
the system in case of an error.

Planningthesystem
SA3-SInstallation&CommissioningManual 7
12. Reset button and error display can be replaced by a "displaymodule" in the control cabinet.
13. Position: SA3-S generates a two-channel incremental output which can be used as a position input for
the control system. The resolution of the output is better than 1mm. Level: differential driver stage (2x
two-wire)
14. For the purpose of the arresttest, a button (N.C.) can be connected in the power supply of the device
(connection B-3). Upon actuation of the button, the solenoid on the overspeed governor deenergises
and the safety gear is triggered.
15. The SA3-S safety system can be installed in hydraulic lifts. If a double-acting safety gear is used here,
the same premises apply as to rope lifts. If only one safety gear should be used in the downwards direc-
tion, the following requirements must be met:
› Safety gear in the downwards direction must conform to the requirements of EN81-2:1998 +
A3:2009.
› According to EN 81 the speed restrictor must also have force guided safety switches which
opens the safety circuit in upward direction during magnet releasing.
› Voltage of safety circuit must act directly on the braking element (e. g. motor contactor), i. e. by
opening the safety circuit the car must come to a standstill through gravitational force.
16. In case of hydraulic lifts the safety gear should not get jammed, during the car with the releasing sole-
noid coil is sinking slowly. For that prupose, the controller might activate the signal „in motion“for a short
time.
17. The SA3-S safety device has electronic inputs. In order to avoid disturbances of the system, carry out
suitable interference suppression measures. These include:
› Suppression circuits of all inductors (contactor, relay, brake systems…)
› Suitable line lter for disruption of safety circuit from motor control
› Suitable shielding of the cables to the motor and to the the inverter etc.
› As possible a separate laying of the disturbing cable lines

Interfaces
8 SA3-SInstallation&CommissioningManual
5 Interfaces
5.1 Circuitvariants
There are 3 valid circuit variants for the SA3-S safety system. The following information applies to all variants:
› In case there is no door bypass in the system, the two door zone inputs are not required, they are left open. The
rest of the circuit will remain consistently. It is advisable to use in this case variant 2
› Both GND potentials (from the power supply 24V and 24V emergency power supply) can be connected together
externally.
› If the system has the auxiliary control, the safety circuit relay can be placed in the safety circuit, where it is
bypassed by the auxiliary control. Safety circuit relay can be located at any position in the safety circuit, e.g.
also in front of the door contacts.
Attention! During simultaneous use of override and auxiliary control make sure that all shaft and car doors are
closed.

Interfaces
SA3-SInstallation&CommissioningManual 9
5.1.1 Ageneralvariant
The general variant can be used for all types of installations.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
Türumgehung/door overbridge
(Sicherheitsschaltung/
safety circuit)
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Geschwindig-
keitsbegrenzer/
overspeed
governor
Türzone/
door zone
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
Netzteil/
power supply
GND24V
Notstrom-
versorgung/
backup supply
GND24V
A-6
B-1,B-2
B-5,B-6
A-4
A-5 B-3 B-7
Externes Display/
external display
B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Türzone A/door zone A
Türzone B/door zone B
Variante 1:
Auftrennung des Sicherheitskreises
disruption of safety circuit

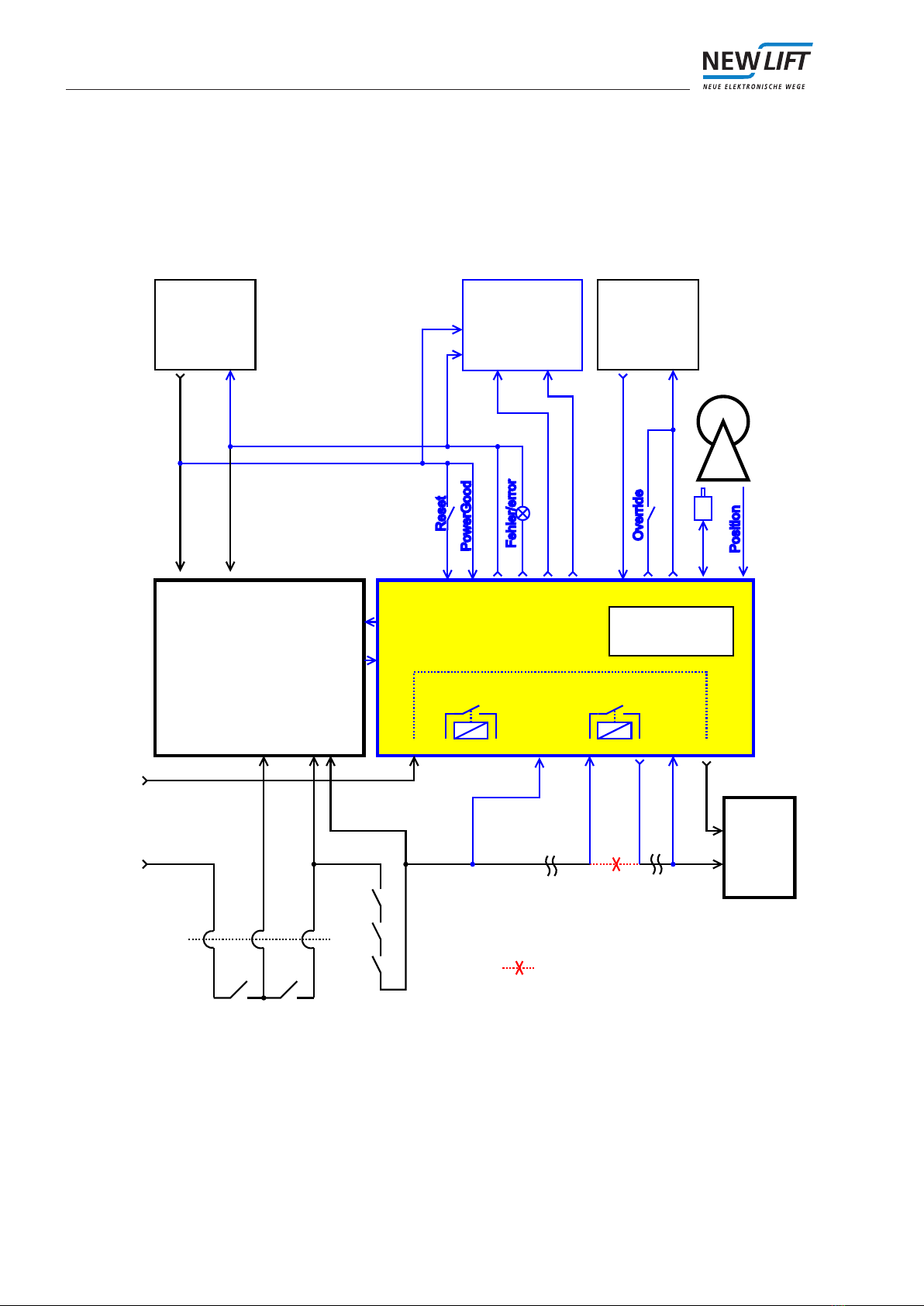

Figure 1: Overview of the complete system (variant 1)

Interfaces
10 SA3-SInstallation&CommissioningManual
5.1.2 Thesystemwithoutdoorbypass
If the system does not have a door bypass, the door input (C6) is connected behind the last door in the safety
circuit.The door relay has no function in this case.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
keine Türumgehung/
no door overbridge
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Geschwindig-
keitsbegrenzer/
overspeed
governor
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
Netzteil/
power supply
GND24V
Notstrom-
versorgung/
backup supply
GND24V
A-6
B-1,B-2
B-5,B-6
A-4
A-5 B-3 B-7
Externes Display/
external display
B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Variante 2:
24V GND
Auftrennung des Sicherheitskreises
disruption of safety circuit

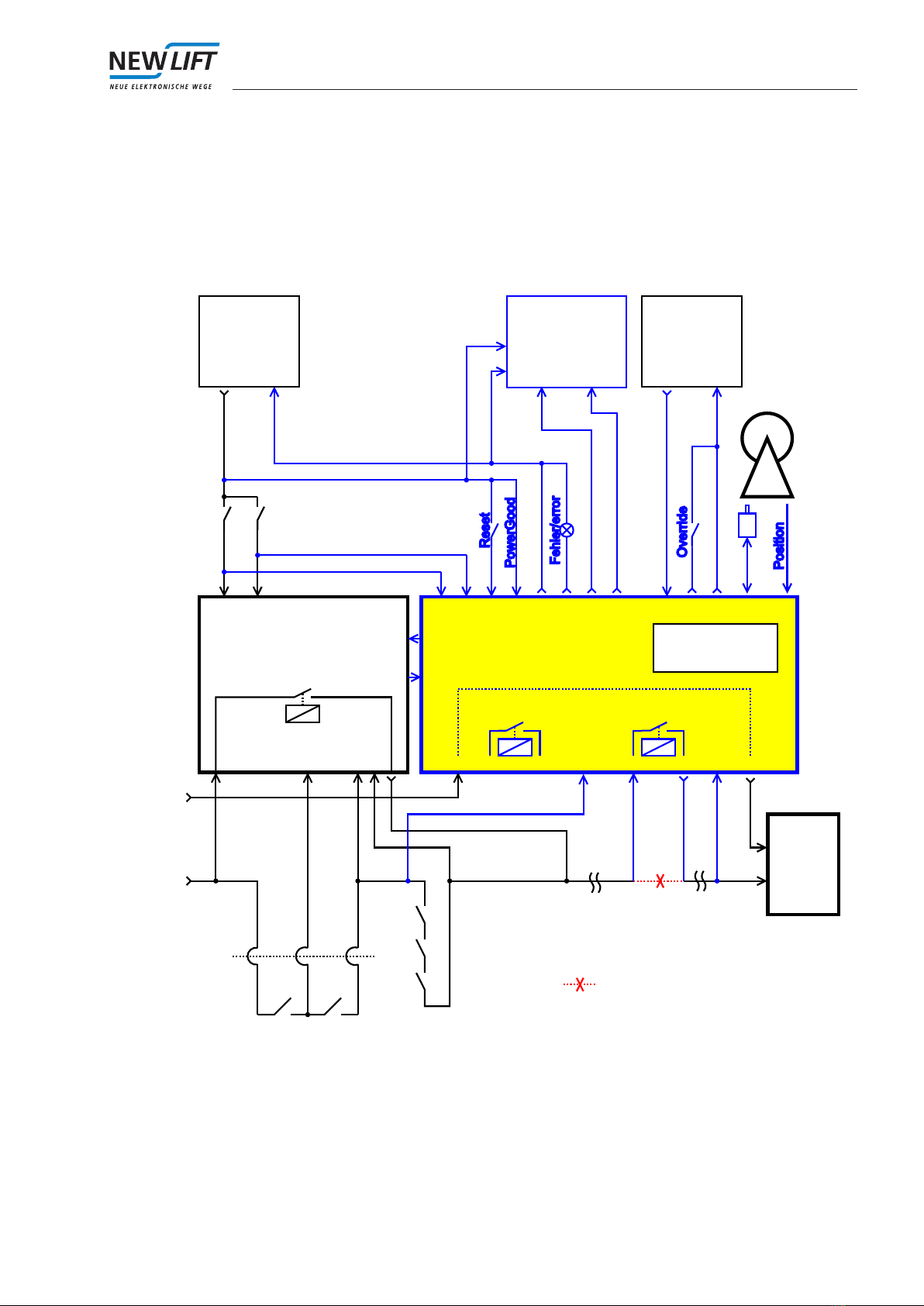

Figure 2: Overview of the complete system (variant 2)

Interfaces
SA3-SInstallation&CommissioningManual 11
5.1.3 Thesystemwithautomaticdoors
If the system has automatic doors, i.e. during normal operation shaft and car doors always open simultaneously,
the door input (C6) is connected between car and shaft doors in the safety circuit. The door relay has no func-
tion in this case.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
Türumgehung/door overbridge
(Sicherheitsschaltung/
safety circuit)
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Geschwindig-
keitsbegrenzer/
overspeed
governor
Türzone/
door zone
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
Netzteil/
power supply
GND24V
Notstrom-
versorgung/
backup supply
GND24V
A-6
B-1,B-2
B-5,B-6
A-4
A-5 B-3 B-7
Externes Display/
external display
B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Türzone A/door zone A
Türzone B/door zone B
Variante 3:
Automatische Türen/automatic doors
Auftrennung des Sicherheitskreises
disruption of safety circuit

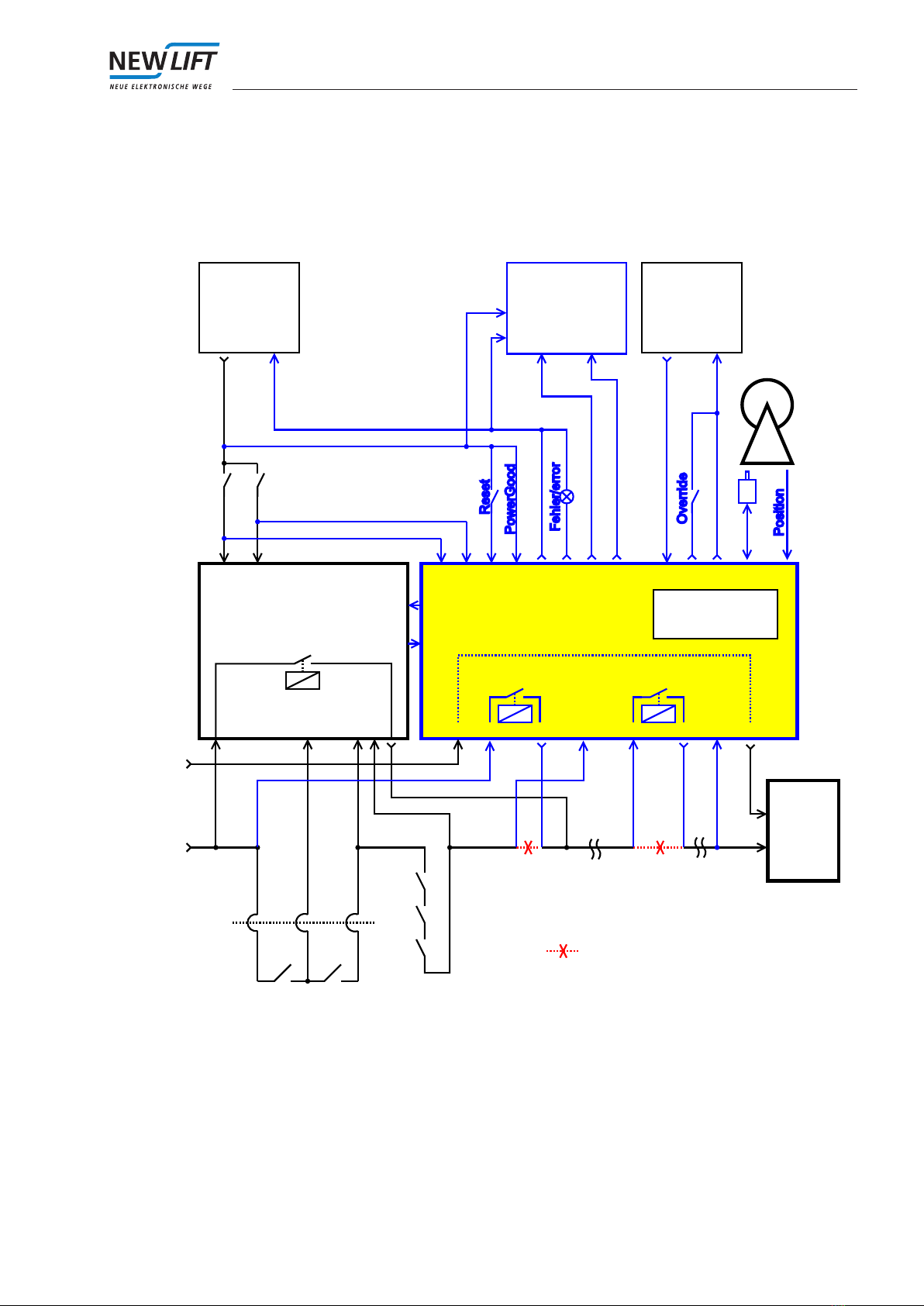

Figure 3: Overview of the complete system (variant 3)

Interfaces
12 SA3-SInstallation&CommissioningManual
5.2 Connectiontothecontrolsystem
The specied wire colours apply for the 16-pin standard cable.
SA3-S Wire Signal Level4
A-1 white PowerGood (input, high-active), the signal must become inacti-
ve in the event of a power failure (emergency power operation)
24V: no power failure
A-2 brown Error (output, high-active), the output can control a small error
lamp or similar
24V: error
A-3 green Door zone A (input, high-active) 24V: door zone
A-4 yellow Override (input, low-active) 0V: override
A-5 grey GND (control system, not buffered)
A-6 pink InMotion (input, low-active) 0V: InMotion
A-7 blue Reset (input, high-active), input for resetting an error state 24V: reset
A-8 red Door zone B (input, high-active) 24V: door zone
B-1 black Position /A (output) line driver
B-2 violet Position /B (output) line driver
B-3 grey/pink 24V emergency power supply
B-4 red/blue Display module (output, D-) line driver
B-5 white/green Position A (output) line driver
B-6 brown/
green
Position B (output) line driver
B-7 white/yellow GND emergency power supply
B-8 yellow/
brown
Display module (output, D+) line driver
Table 2: Pin assignments for the control system
PowerGood(A-1):
The signal indicates to the safety device whether the power supply of the lift is OK. During emergency power
operation, the safety device is separated from the power supply 10 sec. after the car is stopped to avoid loading
the supply batteries unnecessarily.
Error(A-2):
The output indicates that an error which must be reset manually has occurred in the device. A small signal lamp
can be operated on this output. Alternatively, the error can be read on the display.
Doorzone(A-3,A-8):
The two door zone inputs indicate that the car is currently in a door zone. They must be independent of one
another (2-channel).
The door zone inputs must be monitored by a tested safety circuit bypass control (EN81-1, 14.2.1.2) which
prevents operation of the lift in case of an error (EN81-1, 14.1.2.3.2.1.).
The door zone inputs are not connected, if the installation has no door bypass (the safety circuit bypass control).
Override(A-4):
If the override input is set to GND, the solenoid energises. It is used for freeing persons. If the safety device is
supplied with power (PowerGood), an error is detected, that ensures that the safety circuit is opened. The over-
ride input also functions in the event of a power failure, since this function is supplied by the emergency power
battery. If override is not active, the input must be high impedance.
Attention: The car must not be moved if the solenoid is deenergised, since the safety brake is then active. The
emergency release should remain locked until the override is active.
4 The unspecied input levels can be set to the opposite potential or be high impedance

Interfaces
SA3-SInstallation&CommissioningManual 13
InMotion(A-6):
The input is used to signal to the safety device that the car is to be moved by the control system. It is needed
for testing the solenoid. In addition, the solenoid deenergises if the car is at a standstill with closed doors (not
"InMotion").
This measure serves to save wear and tear on the solenoid and helps to reduce the stand-by losses. The refe-
rence potential is GND (A-5)
Reset(A-7):
An error state can be reset via this input (see chapter "Behaviour in case of errors").
Positionoutput(B-1,B-2,B-5,B-6)
The control system can be supplied with an incremental position signal via the position output. The reference
potential is GND (A-5)
Displaymodule(B-4,B-8):
An external display module can be connected via this output. It has the same display as the internal display.
5.3 Connectiontothesafetycircuit
As already explained above (see chapter „circuit types “), there are three possibilities to integrate the system in
the safety circuit of installation.
The system can be delivered for various voltage types of safety circuit (AC and DC). The standard version is
230V/50Hz.
Terminalassignmentofsignalsfromthesafetycircuit:
The specied wire designations apply for the 12-pin standard cable.
SA3-S Wire Signal
C-1 1 Door simulation (input, door relay)
C-2 2 Input N-wire (AC) or GND (DC)
C-3 3 Door simulation (output, door relay)
C-4 4 Earth
C-5 5 Earth
C-6 6 Door safety circuit (door input)
D-1 7 Safety circuit relay (input, scct relay)
D-2 8 Output N-wire (AC) or GND (DC)
D-3 9 Safety circuit relay (output, scct relay)
D-4 10 Earth
D-5 11 Safety circuit (scct input)
D-6 PE Earth
Table 3: Pin assignments for the safety circuit
In general:
› The safety circuit must be opened at the input C-6, if the car door or a shaft door is opened.
› The N-wire (the GND wire) of safety circuit must be led over the safety device.
The separation of N-wire connection must cause deactivating of the main contactor!
› The auxiliary control can bypass the safety circuit with a force-guided contact. Bypassing is required to free
trapped passengers.

Interfaces
14 SA3-SInstallation&CommissioningManual
5.3.1 Ageneralvariant
The general variant can be used for all types of installations.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
Türumgehung/door overbridge
(Sicherheitsschaltung/
safety circuit)
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
A-6
B-1,B-2
B-5,B-6
A-4A-5 B-3 B-7B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Variante 1:
Auftrennung des Sicherheitskreises
disruption of safety circuit
Figure 4: Modication of the safety circuit (variant 1)
Explanationofthewiringdiagram:
› The safety circuit is interrupted at the end of the series connection of the door contacts. The door contacts are
connected to input C-6.
› With the aid of the door relay, the safety device ensures that the safety circuit is closed if all doors are closed.
For this purpose, the start of the door series connection must be connected to input C-1, and the end (after
interruption) must be connected to C-3.
› The safety circuit input D-5 should be connected to the end of the safety circuit. It is responsible, among other
things for the detection of the loss of traction, i.e., if the a safety circuit is open but the car is still moving or is not
braked, it is „force-braked“.
› The relay of safety circuit can be looped in at any point in the safety circuit. It opens in case of an error (e.g.,
A3 detection) and is closed again by resetting the error. The safety circuit relay is not bypassed by override.
To release persons by means of auxiliary mode control, it must be placed at a point in the safety circuit that is
bypassed by auxiliary mode. The safety circuit relay is opened every 24 hours for a short time. This is neces-
sary to guarantee the proper operation of the relay.
Attention! During simultaneous use of override and the auxiliary control make sure that all shaft and car doors
are closed.

Interfaces
SA3-SInstallation&CommissioningManual 15
5.3.2 Thesystemwithoutdoorbypass
This variant is always to be used if the system does not have a door bypass.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
keine Türumgehung/
no door overbridge
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
A-6
B-1,B-2
B-5,B-6
A-4A-5 B-3 B-7B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Variante 2:
24V GND
Auftrennung des Sicherheitskreises
disruption of safety circuit
Figure 5: Modication of the safety circuit (variant 2)
Explanationofwiringdiagram:
› The safety circuit must not be disrupted after the doors. The input C-6 is be connected to the safety circuit after
the last door.
› The door relay is not integrated into the safety circuit.
› The safety circuit input D-5 should be connected to the end of the safety circuit. It is responsible, among other
things for the detection of the loss of traction, i.e., if the a safety circuit is open but the car is still moving or is not
braked, it is „force-braked“.
› The relay of safety circuit can be looped in at any point in the safety circuit. It opens in case of an error (e.g.,
A3 detection) and is closed again by resetting the error. The safety circuit relay is not bypassed by override.
To release persons by means of auxiliary mode control, it must be placed at a point in the safety circuit that is
bypassed by auxiliary mode. The safety circuit relay is opened every 24 hours for a short time. This is neces-
sary to guarantee the proper operation of the relay.
Attention! During simultaneous use of override and the auxiliary control make sure that all shaft and car doors
are closed.

Interfaces
16 SA3-SInstallation&CommissioningManual
5.3.3 Thesystemwithautomaticdoors
This variant should be used if the system has automatic doors, i.e. during normal operation shaft and car doors
always open simultaneously.
Hängekabel/
trailing cable
Fahrkorbtüren/
cabin door
B A
Türumgehung/door overbridge
(Sicherheitsschaltung/
safety circuit)
Sicherheitskreis/
safety circuit Sicherheitskreis/
safety circuit
Aufzug-
steuerung/
lift control
Sperrmittel/
shaft doors
SA3-S
Türzone/
door zone
Position
InFahrt/
moving
Motor-
schütze/
motor
contactor
Tür-Relais/
door relais
SHK-Relais/
safety circuit relais
C-1 C-3 D-1 D-3C-6 D-5
C-2 D-2
N-Leiter/neutral
A-3 A-8 A-7 A-1 A-2
A-6
B-1,B-2
B-5,B-6
A-4A-5 B-3 B-7B-4 B-8
N
S/N: 250 8/11
HW: VX.XX (230V/50Hz)
SW: XXXXXXXX
TÜV-A-AT-1/11/256CEES/X
Variante 3:
Automatische Türen/automatic doors
Auftrennung des Sicherheitskreises
disruption of safety circuit
Figure 6: Modication of the safety circuit (variant 3)
Explanationofwiringdiagram:
›Thesafetycircuitmustnotbedisruptedafterthedoors.TheinputC-6isconnectedtothesafetycircuitbet-
weencarandshaftdoors(lockingdevice).
›Thedoorrelayisnotintegratedintothesafetycircuit.
›Thesafetycircuitinput(D-5)shouldbeconnectedtotheendofthesafetycircuitifpossible.Italsodetects
thelossoftractioncapacity,i.e.iftheasafetycircuitinputisopen,thecarstillmovesanddoesnotbrake,it
willbe„brakedbyforce“.
›Therelayofsafetycircuitcanbewiredintothesafetyloopatanyposition.Itopensintheeventofanerror
(e.g.,A3release)andisclosedagainbyresettingtheerror.Therelayofasafetycircuitisnotbypassedby
override.Toreleasepersonsbymeansofauxiliarymodecontrol,itmustbeatapointinthesafetycircuitthat
isbypassedbyauxiliarymode.Therelayofsafetycircuitisopenedbrieflyevery24hours.Thisisnecessaryto
guaranteetheproperoperationoftherelay.
›Attention!Duringsimultaneoususeofoverrideandauxiliarycontrolmakesurethatallshaftandcardoors
areclosed.
