852973 HARPER HIGHSLEEPER
1 of 24

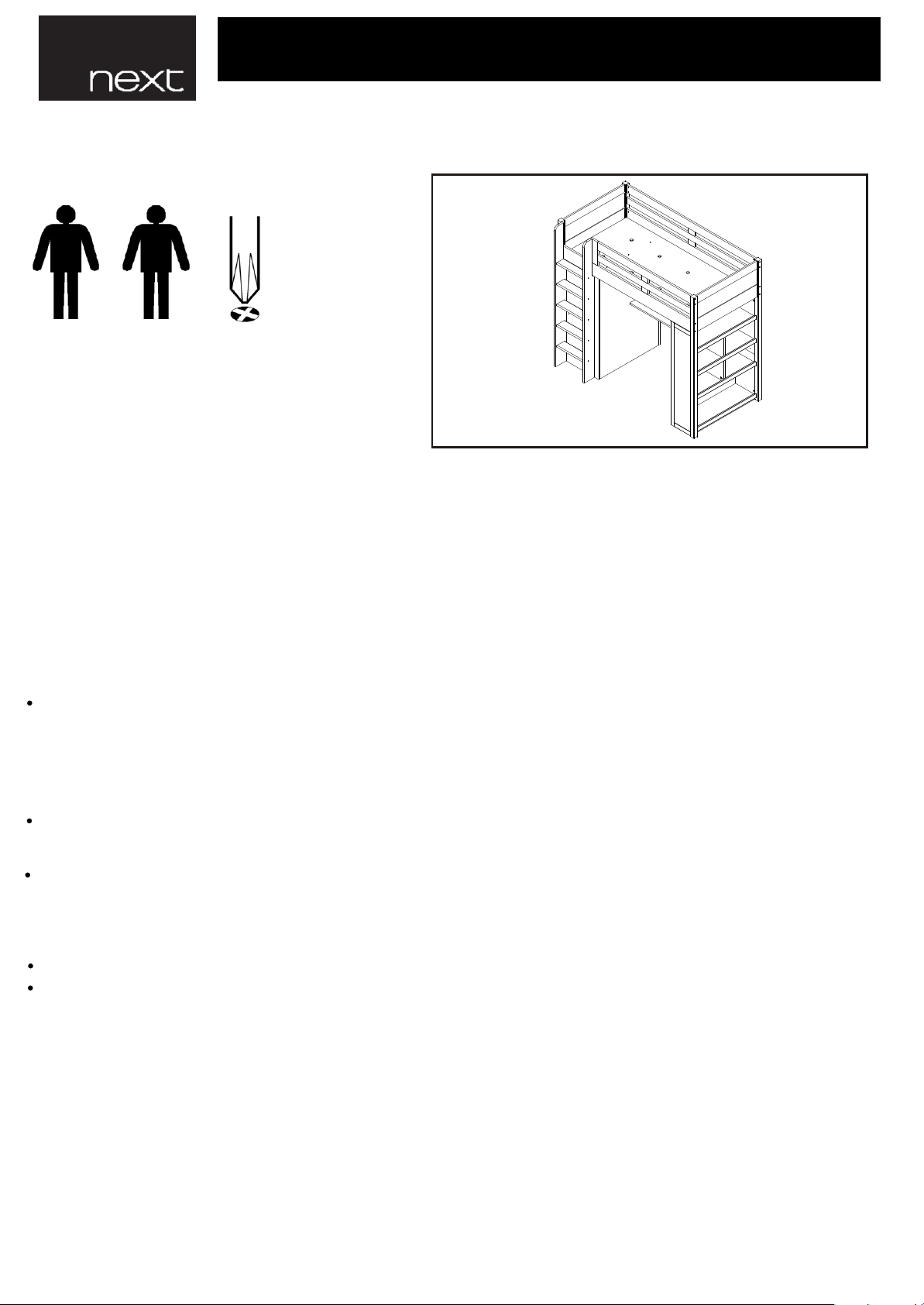

ASSEMBLY INSTRUCTIONS.
IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• We recommend the use of the wall attachment bracket for safety reasons.
Helpline
If you have any problems with this
product or require any replacement
fittings please contact Customer
Services Tel: [phone]
Regrettably self assembly items cannot be returned once assembly is part or fully completed
unless the item is found to be faulty. Should you need to return the unassembled product,
please repack in the original packaging.
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
Avoid keeping furniturein direct sunlight or closeto any heat sources as this can cause cracking,
discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
• The finish will mellow and change colour over time.
CARE INSTRUCTIONS
PRODUCT INFORMATION
SAFETY INFORMATION
Tools Needed
Made in Poland.
P5--HA80
(BS EN 747-1:2007)
Recommended mattress size 1900mm x 900mm x 120mm
Follow the manufacturer's assembly instructions in detail to ensure the safety
features of the bed are not compromised.
Warnings:
To ensure the safety, regularly check all the connecting bolts and glide pins making sure they are tight,
care should be taken that no screws are loose.
To prevent falls, the maximum mattress thickness should not exceed 185mm
The high beds and the upper beds of bunk beds are not suitable for children
under six years due to the risk of injury from falls.
Maximum mattress thickness is permanently marked on the inner side of upper bed.
The bunk bed and the high bed should not be used if any structural part is broken or missing.
Children can strangle in items such as robes, strings, cords, harnesses and belts
attached to or hung on a bunk bed or high bed.
Children can become trapped between the bed and the wall. To avoid risk of serious
injury the distance between the top safety barrier and the wall shall not exceed 75mm or shall be more than 230mm.

2 PERSON ASSEMBLY
ASSEMBLED DIMENSIONS
APPROXIMATE ASSEMBLY TIME
REQUIRED ASSEMBLY TOOLS
REQUIRED ASSEMBLY SPACE
FLOOR AREA
3.0 M x 3,0 M
4 hrs
DESCRIPTION:
Assembly
Instruction
2 of 24
1102mm
1785 mm
2005 mm
P5--HA80
852973 HARPER HIGHSLEEPER

PARTS LIST
NO PART LIST QTY NO PART LIST QTY NO PART LIST QTY
...
DESCRIPTION:
Assembly
Instruction
(1) RUNG
(2) TOP RUNG
(3) LEFT RUNG SIDE
(4) RIGHT RUNG SIDE
(5) HORIZONTAL PANEL
(6) RIGHT ROBE SIDE PANEL
(7) BACK PANEL
(8) HORIZONTAL SLAT 60MM
(9) HORIZONTAL SLAT 50MM
(10) LEFT ROBE SIDE PANEL
(11) DRAWER FRONT
(12) DRAWER BACK
(12L) LEFT DRAWER SIDE
(12R) RIGHT DRAWER SIDE
(13) DRAWER BOTTOM
(14) DOORS
(15) PLINTH
(16) BOTTOM PANEL
(17) MIDDLE HORIZONTAL PANEL
(18) VERTICAL PANEL
(19) TOP HORIZONTAL PANEL
(20) SHORT HORIZONTAL PANEL
(21) LEFT SIDE PANEL
(22) RIGHT SIDE PANEL
(23) SLAT
(24) BACK RAIL 1905x160
(25) LONG SLAT
(26) BACK RAIL 1905X100
(27) BACK RAIL 1905X80
(28) DISTANCE
(29) FRONT RAIL 1385X80
(30) FRONT RAIL 1385X100
(31) FRONT VERTICAL RAIL
(32) FRONT RAIL 1905X160
(33) HEADBOARD
(34) FOOTBOARD
(35) DESK PANEL
(36) BED BOTTOM
(37) MIDDLE RAIL 1905X160
3 of 24
4
1
1
1
3
1
1
1
1
1
2
2
2
2
2
2
2
1
1
1
1
1
1
1
4
1
2
1
1
4
1
1
1
1
1
1
1
1
1
PACK 1 CONSISTS OF PARTS :
1,2,3,4,33,34,
Fittings.
PACK 2 CONSISTS OF PARTS :
24,25,26,27,28,29,30,31,32,36,37
PACK 3 CONSISTS OF PARTS :
5,6,8,9,10,11,12,12L,12R,13,14
PACK 4 CONSISTS OF PARTS :
7,15,16,17,18,19,20,21,22,23,35
P5--HA80
852973 HARPER HIGHSLEEPER
1
2
3
1
1
1
4
5
6
5
5
7
9
8
10
11 12L
12
13
14
15
15
16
17
18
19
23
23
23
20
21
22
24
25
27
28
25
28
26
30
29
31
32
33
34
35
36
37
23
12R
14

HARDWARE LIST
DESCRIPTION:
10 20 30 40 50 60 70 80 90 100 mm
Assembly
Instruction
DO NOT MIX CONTENT OF HARDWARE BOXES
4 of 24
20x
8x45mm
DOWEL
A
BAG 1
1x
GLUE
B
BAG 1
CONFIRMAT
SCREW
B1
BAG 1
25x 80x
8x28m
DOWEL
C
BAG 1
44x
CAM BOLT
E
BAG 1
D
++
44x
CAM LOCK
BAG 1
P5--HA80
852973 HARPER HIGHSLEEPER
2x Left / 2x Right
L=400mm
ROLLER RUNNER
F
4x
12x 3,5x13mm
6,0x11mm
SCREW
SCREW
H
G
BAG 3 BAG 3
ATTACH TO DRAWER
ATTACH TO CARCASS
8x
6,3x13mm
SCREW
J
BAG 2
HINGE PLATE
I
BAG 2
4x
BAG 3
2x
2x 3,0x13mm
SCREW
CLOTHES BAR
SUPPORT
KL
BAG 4
BAG 4
7x
SCREW
M
BAG 1
4,0x30mm
4x
4x30mm
SCREW
P
BAG 5
4x
CAM BOLT
O
++
4x
CAM LOCK
N
12x10mm
5x35mm
BAG 5 BAG 5

HARDWARE LIST
DESCRIPTION:
10 20 30 40 50 60 70 80 90 100 mm
Assembly
Instruction
DO NOT MIX CONTENT OF HARDWARE BOXES
5 of 24 P5--HA80
852973 HARPER HIGHSLEEPER
2x
L=388mm
DRAWER BOTTOM SUPPORT
R
BAG 3
Q
12x
3,0x13mm
SCREW
BAG 3
6x
HANDLE
S
BAG 4
S1
6x
3,5x25mm
SCREW
BAG 4
8x 32x
4x13mm 4x35mm
SCREW SCREW
T1 U
BAG 2 BAG 1
HINGE
T
BAG 2
4x 18x 21x
8x50m 10x50m
DOWEL DOWEL
WW1
BAG 1 BAG 1
X
14x
Ø10x16mm
BAG 1
BARREL NUT
14x
Y
6,0x90mm
SCREW
BAG 1
1x
Y1
ALLEN WRENCH
BAG 1
Z
2x
BRACKET
BAG 1
Z1
8x
3,5x13mm
SCREW
BAG 1
Z2
8x
4x25mm
SCREW
BAG 1
1x
CLOTHES BAR
L=861mm
Z3

Top Tips before you start!
1. Please check that all parts are present before you start the assembly of your furniture,
as once assembled, the furniture is exempt from our home approval policy.
2. For ease and speed of assembly, we recommend that before you commence each step
of the assembly, that you identify all the parts required for that step.
3. For larger items, please ensure that you have sufficient space and people (as indicated
on page 1) to assemble your product safely.
4. We recommend that, where possible, all items are assembled near to the area in which
they will be placed in use, to avoid moving the product unnecessarily once assembled.
5. For the protection of your furniture, particularly items of high gloss finish, we recommend
that the product is placed on aprotected surface during assembly to prevent any damage.
6. During assembly please take care not to over-tighten any fittings, as this may damage
the product .
Care and Maintenance of your Furniture
Please periodically check all fittings and re-tighten as necessary.
Please do not jump on your furniture.
To clean your item, please use adamp cloth and wipe clean.
Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to
warp or finishes to de-laminate.
DESCRIPTION:
Assembly
Instruction
6 of 24 P5--HA80
852973 HARPER HIGHSLEEPER

SCREW IN CAM SCREWS
ONLY DOWN TO FIRST RING.
FLUSH
WITH
PANEL
1
PRESS PANELS TOGETHER ALIGNING
DOWEL WITH HOLES, CAM SCREWS WITH LOCKS.
3
TO SECURE PANELS,
TURN CAM LOCKS 1/2 TURN CLOCKWISE.
4
CAM SHOWN IN
LOCKED POSITION.
++
++
PRESS IN CAM LOCKS. ARROW ON CAM
LOCK MUST FACE HOLE IN PANEL EDGE.
DO NOT INSERT DOWELS
IN CAM SCREW / LOCK HOLES.
2
++
++
DESCRIPTION:
Assembly
Instruction
7 of 24 P5--HA80
852973 HARPER HIGHSLEEPER

DESCRIPTION:
ASSEMBLY INSTRUCTION FOR DRAWER SLIDE A&B
SPECIAL TIPS FOR DRAWER SLIDE A
SPECIAL TIPS FOR DRAWER SLIDE B
FRONT
FRONT
FRONT
FRONT
SECOND HOLE
SECOND HOLE
THIRD HOLE
LAST THIRD HOLE
LAST HOLE
BACK
BACK
BACK
BACK
400mm
3,5x13mm 6x11 mm 6x11mm
3x13mm
3x13mm
SIXTH HOLE
6x11 mm
Assembly
Instruction
ATTENTION !
Make sure second hole of drawer slide A
is put on first front hole of panel.
Step 1
852973 HARPER HIGHSLEEPER
8 of 24 P5--HA80

1
DESCRIPTION:
Assembly
Instruction
9 of 24
2
3
16x
4x
1x
1x
A
A
B
B
A
A
B
B
1
2
P5--HA80
852973 HARPER HIGHSLEEPER
DO THIS STEP FOUR TIMES (4x)
TOP
8mm
TOP
8mm
B1
10x
8mm
1
1
1
1
2
3
4
B1
B
1x
B

DESCRIPTION:
Assembly
Instruction
10 of 24
4
5
DO THIS STEP THREE (3x)
P5--HA80
852973 HARPER HIGHSLEEPER
18x
C
++
12x
D
++
D
++
D
FRONT
+
+
D
++
D
10x
E
6
I
2x 4x
J
2x Right
F
2x
6x H
G
E
front
F
H
G
G
G
front
I
J
1x
K
1x L
C
K
L
5

6
DESCRIPTION:
Assembly
Instruction
11 of 24
7
8
P5--HA80
852973 HARPER HIGHSLEEPER
7
12x
C
++
8x
D
++
D
C
++
D
++
D
++
D
++
D
++
D
++
D
++
D
C
8
FRONT
++
++
++
++
5
3x
M
4x
C
9
C
114,5 mm

DESCRIPTION:
Assembly
Instruction
12 of 24
9
10
P5--HA80
852973 HARPER HIGHSLEEPER
10x
E
10
I
2x 4x
J
2x Left
F
2x
6x H
G
E
1x
K
1x L
K
L
front
JI
G
G
F
front
H
G
++
++
++
++
++
++
1/4 TURN
CLOCKWISE.
6
7
++
++
++
++
++
++
++
++
5
55
9
8
++
++
++
++
++
3
114,5 mm
+
+
75
6

DESCRIPTION:
Assembly
Instruction
13 of 24
11
++
++
1/4 TURN
CLOCKWISE.
12
P5--HA80
852973 HARPER HIGHSLEEPER
++
++
++
++
7
++
++
++
++
++
++
++
++
5
55
9
8
++
++
++
++
10
++
3
4x
N
11 4x
O
4x
P
++
DO THIS STEP TWICE (2x)
N
++
++
12 12L
12R
++
O
13
12
12L
12R
P
13
12
12L
12R
++
++
1/2 TURN
CLOCKWISE.
++

DESCRIPTION:
Assembly
Instruction
14 of 24
13
14
P5--HA80
852973 HARPER HIGHSLEEPER
DO THIS STEP TWICE (2x)
F
Q
Q
13
11
11
4x
4x S1
S
Q
R
R
4x
F
12x
3x13mm
Q
2x Left /2x Right
11
S1
8x
4x
TT1
2x
2x
S1
S
DO THIS STEP TWICE (2x)
S
T1
T
T1
S
S1
14
S1
S
90o

DESCRIPTION:
Assembly
Instruction
15 of 24
15
P5--HA80
852973 HARPER HIGHSLEEPER
++
++
D
D
++
++
D
D
++
++
D
D
16
17
16
C
C
C
15
15
U
++
D
++
D
C
41x
C
++
20x
D
6x
U
6x
E
17
E
++
D
++
D
19
++
D
++
D
C
E
++
D
++
D
18
18
++
D
++
D
E
++
D
++
D
++
D
++
D
20
C
C
1x
B
B
B
B
B
front
38mm

DESCRIPTION:
Assembly
Instruction
16 of 24
16
17
P5--HA80
852973 HARPER HIGHSLEEPER
++
4x
D14x
E
22
E
++
D
++
D
21
++
D
++
D
E
++
++
++
++
++
++
16
++
++
++
++
++
++
17
18
22
19
++
++
1/2 TURN
CLOCKWISE.
++
++
++
++
++
20
21
++
++

DESCRIPTION:
Assembly
Instruction
17 of 24
18
19
P5--HA80
852973 HARPER HIGHSLEEPER
++
++
++
20
++
++
++
++
++
++
16
++
++
++
++
++
++
++
17
19
1x
B
++
23
23
23
B
X
X
2,5mm
X
24
25
X
8x
W10x
W1
8x
X
12x
U
1x
B
W
W1
W1
27
B
X
X
X
X
W
B
26
X
1
U
2
6 mm

DESCRIPTION:
Assembly
Instruction
18 of 24
20
21
P5--HA80
852973 HARPER HIGHSLEEPER
1x
B
24
25
27
26
28
28
B
B
10x
W11x
W1
6x
X
12x
U
1x
B
X
X
2,5 mm
X
32
25
X
W1
29
W
B
X
X
W
B
30
6 mm
X
1
U
2
W1

DESCRIPTION:
Assembly
Instruction
19 of 24
22
23
P5--HA80
852973 HARPER HIGHSLEEPER
1x
B
32
29
30
31
28
28
B
B
B
33
34
Y
Y
Y
Y
Y
Y
Y1 X
Y
33 32
Y1
X
Y
34
26
32
24
26
24
14x 1x
YY1
4x
E
EY1
Y1
Y

DESCRIPTION:
Assembly
Instruction
20 of 24
24
25
P5--HA80
852973 HARPER HIGHSLEEPER
++
++
++
++
++
++
++
++
