Safety information
This manual describes installation and service procedures
for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and under-
stand the hazards involved. Children shall
not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2017.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP24
Danger to person or machine.
!
Read the User Manual.
Serial number

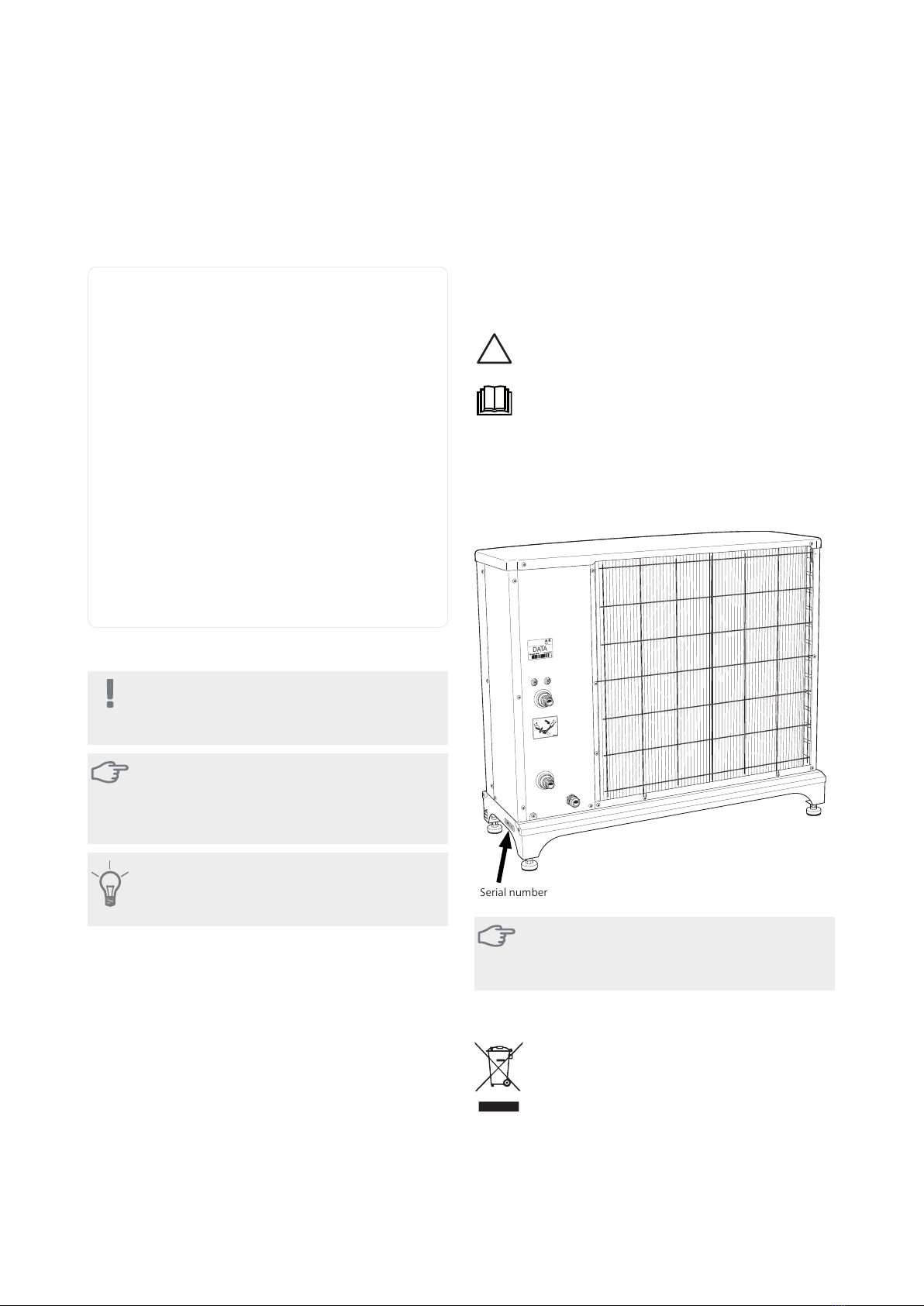

The serial number for F2040 can be found on the side
of the foot.
LEK
DATA
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type of
service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current legis-
lation.
F2040Chapter 1 | Important information4
1 Important information

Environmental information
The equipment contains R410A, a fluorinated green-
house gas with a GWP value (Global Warming Potential)
of 2088. Do not release R410A into the atmosphere.
5Chapter 1 | Important informationF2040

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Heating medium (page 24)
System flushed
System vented
Particle filter
Shut-off and drain valve
Charge flow set
Electricity (page 26)
Fuses property
Safety breaker
Earth circuit-breaker
Heating cable type/effect
Fuse size, heating cable (F3)
Communication cable connected
F2040 addressed (only when cascade
connection)
Connections
Main voltage
Phase voltage
When installing F2040-6, check that the
software version of the indoor mod-
ule/control module is at least v8320.
Miscellaneous
F2040Chapter 1 | Important information6

Transport and storage
F2040 must be transported and stored vertically.
Assembly
■Place F2040 outdoors on a solid level base that can
take the weight, preferably a concrete foundation. If
concrete slabs are used they must rest on asphalt or
shingle.
■The concrete foundation or slabs must be positioned
so that the lower edge of the evaporator is at the level
of the average local snow depth, although a minimum
of 300 mm.
■The F2040 should not be positioned next to sensitive
walls, for example, next to a bedroom.
■Also ensure that the placement does not inconveni-
ence the neighbours.
■F2040 must not be placed so that recirculation of the
outdoor air can occur. This causes lower output and
impaired efficiency.
■The evaporator should be sheltered from direct wind,
which negatively affects the defrosting function. Place
F2040 protected from wind against the evaporator.
■Large amounts of condensation water, as well as melt
water from defrosting, may be produced. Condensa-
tion water must be led off to a drain or similar (see
page 8.
■Care must be exercised so that the heat pump is not
scratched during installation.
LEK
LEK
LEK
Cirka 1 m
LEK
LEK
LEK
Cirka 1 m
min 300 mm
Min. 300 mm
Do not place F2040 directly on the lawn or other non
solid surface.
If there is a risk of snow slip from roof, a protective roof
or cover must be erected to protect the heat pump, pipes
and wiring.

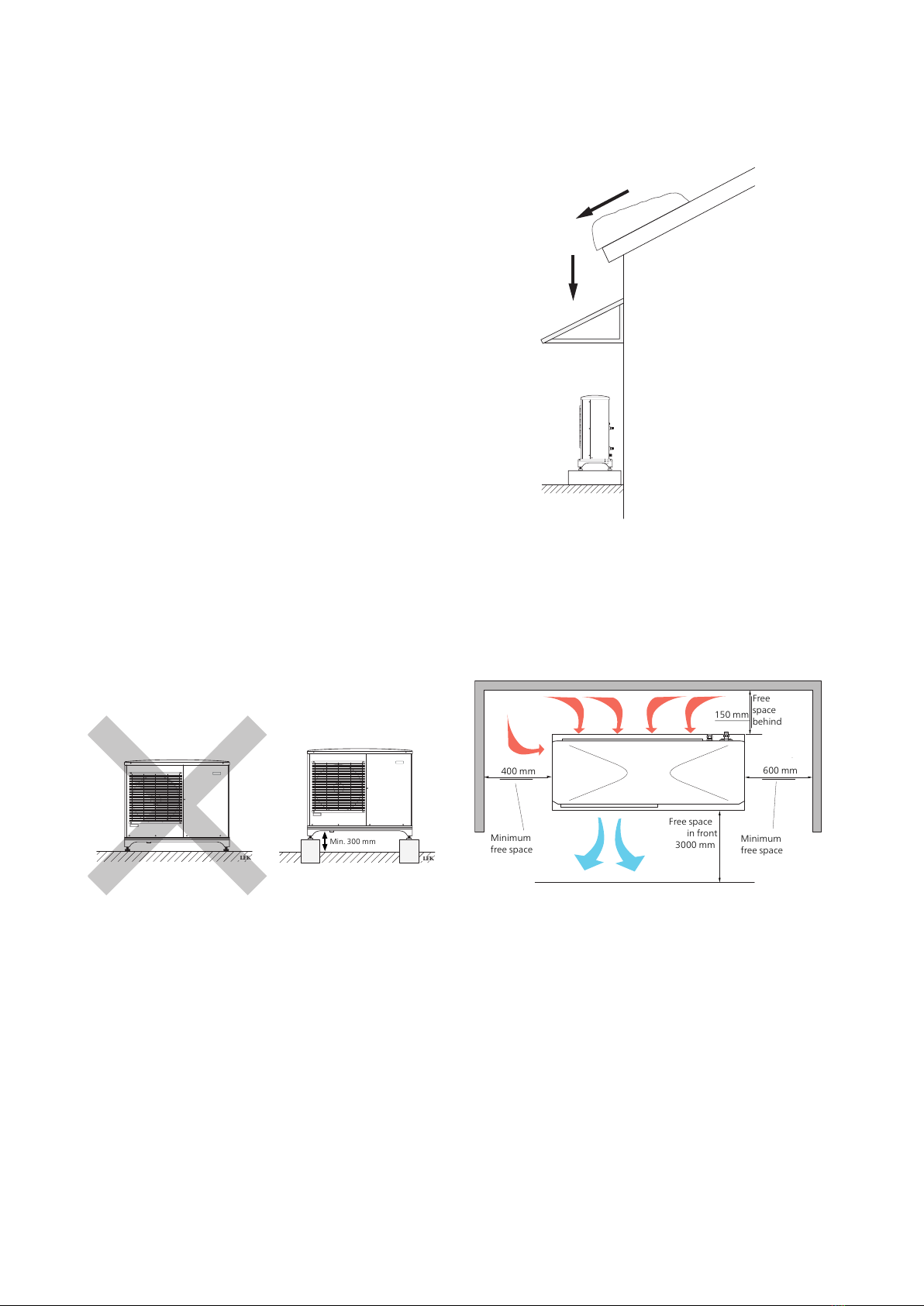

Installation area
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452 1075
1145
108
Ø40*
14
85
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm 600 mm
150 mm
3000 mm
Free space
in front
7Chapter 2 | Delivery and handlingF2040
2 Delivery and handling

Condensation water trough
The condensation water trough collects and leads away
most of the condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
Condensation runoff should be checked regu-
larly, especially during the autumn. Clean if
necessary.
NOTE
Pipe with heating cable for draining the con-
densation water trough is not included.
To ensure this function the accessory KVR 10
should be used.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
■The condensation water (up to 50 litres/24 hrs) that
collects in the trough should be routed away by a pipe
to an appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
■The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
■Route the pipe downward from F2040.
■The outlet of the condensation water pipe must be at
a depth that is frost free or alternatively indoors (with
reservation for local ordinances and regulations).
■Use a water trap for installations where air circulation
may occur in the condensation water pipe.
■The insulation must seal against the bottom of the
condensation water trough.

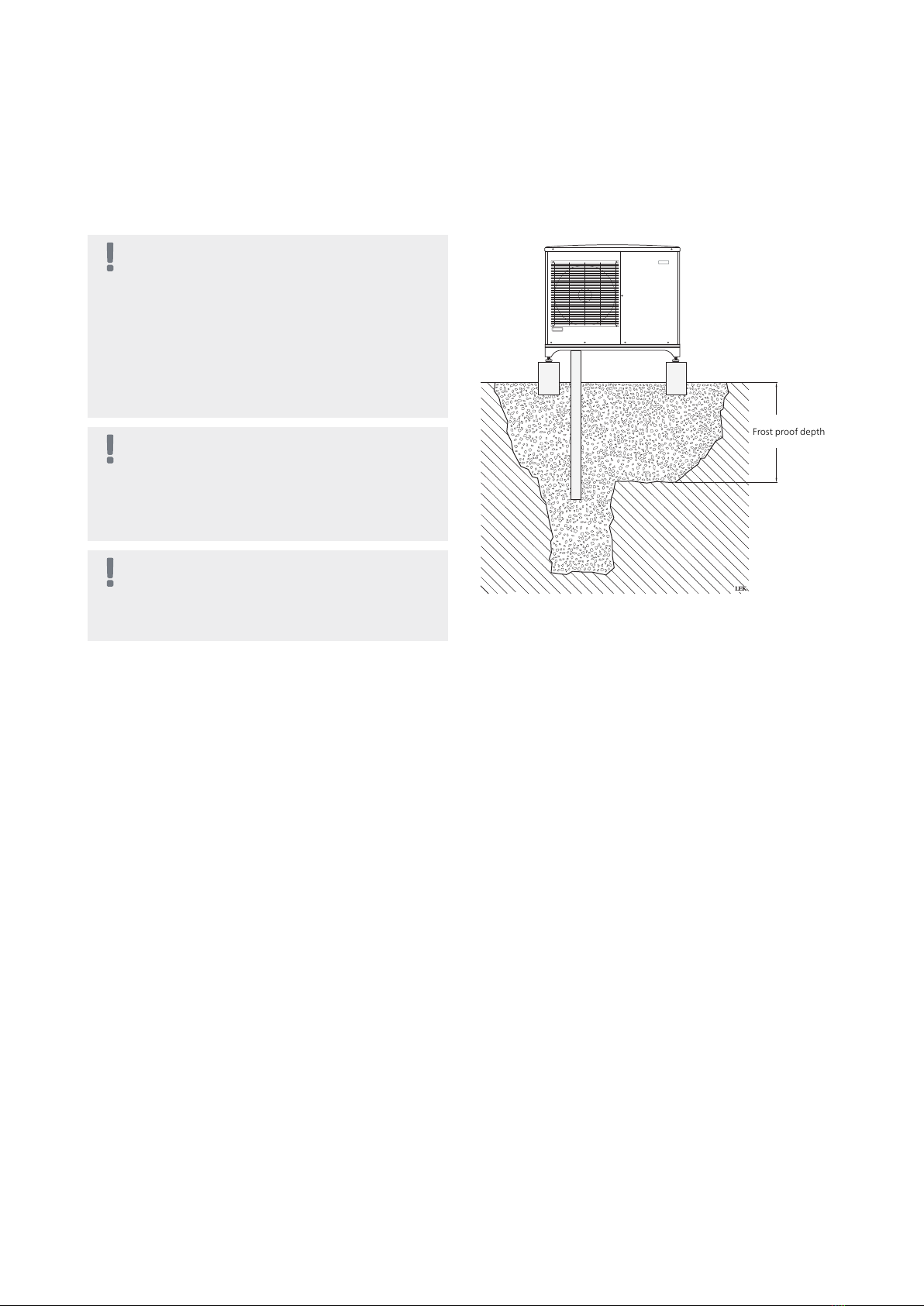

Recommended alternative for leading off
condensation water
Stone caisson
LEK
Frostfritt djup
Frost proof depth
If the house has a cellar the stone caisson must be posi-
tioned so that condensation water does not affect the
house. Otherwise the stone caisson can be positioned
directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
F2040Chapter 2 | Delivery and handling8

Drain indoors
Water seal
The condensation water is lead to an indoor drain (sub-
ject to local rules and regulations).
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
KVR 10 spliced as illustrated. Pipe routing inside house
not included.
Gutter drainage
Frostfritt
djup
LEK
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
Caution
If none of the recommended alternatives is
used good lead off of condensation water must
be assured.
Supplied components
LEK
LEK
Filterball (G1").
2 x flexible pipes (DN25, G1")
with 4 x gaskets.
9Chapter 2 | Delivery and handlingF2040

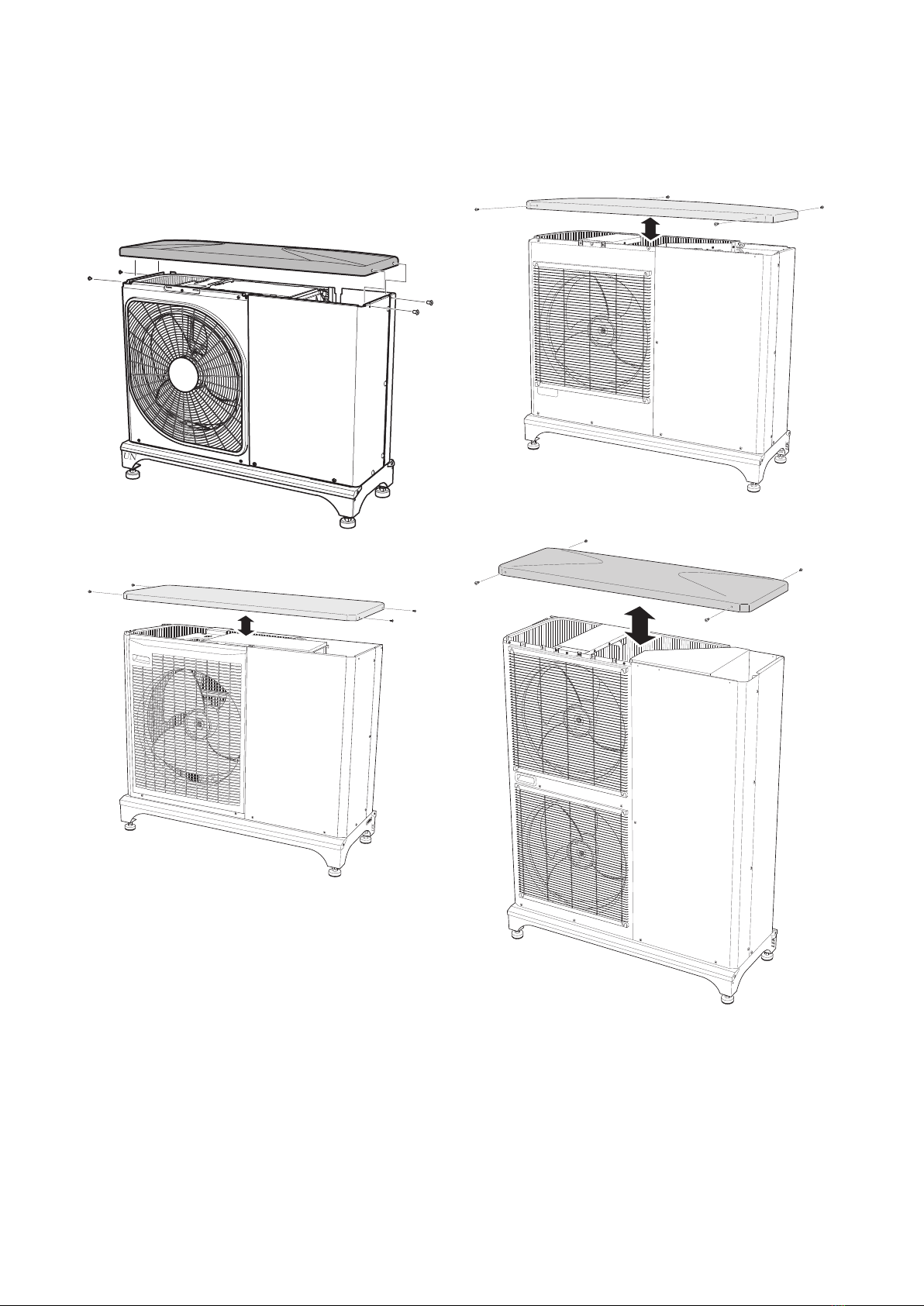

Removing the covers
F2040-6
UN
F2040-8
LEK
F2040-12
LEK
F2040-16
LEK
F2040Chapter 2 | Delivery and handling10

Removing the front panel
F2040-6
UN
F2040-8
LEK
F2040-12
LEK
F2040-16
LEK
11Chapter 2 | Delivery and handlingF2040

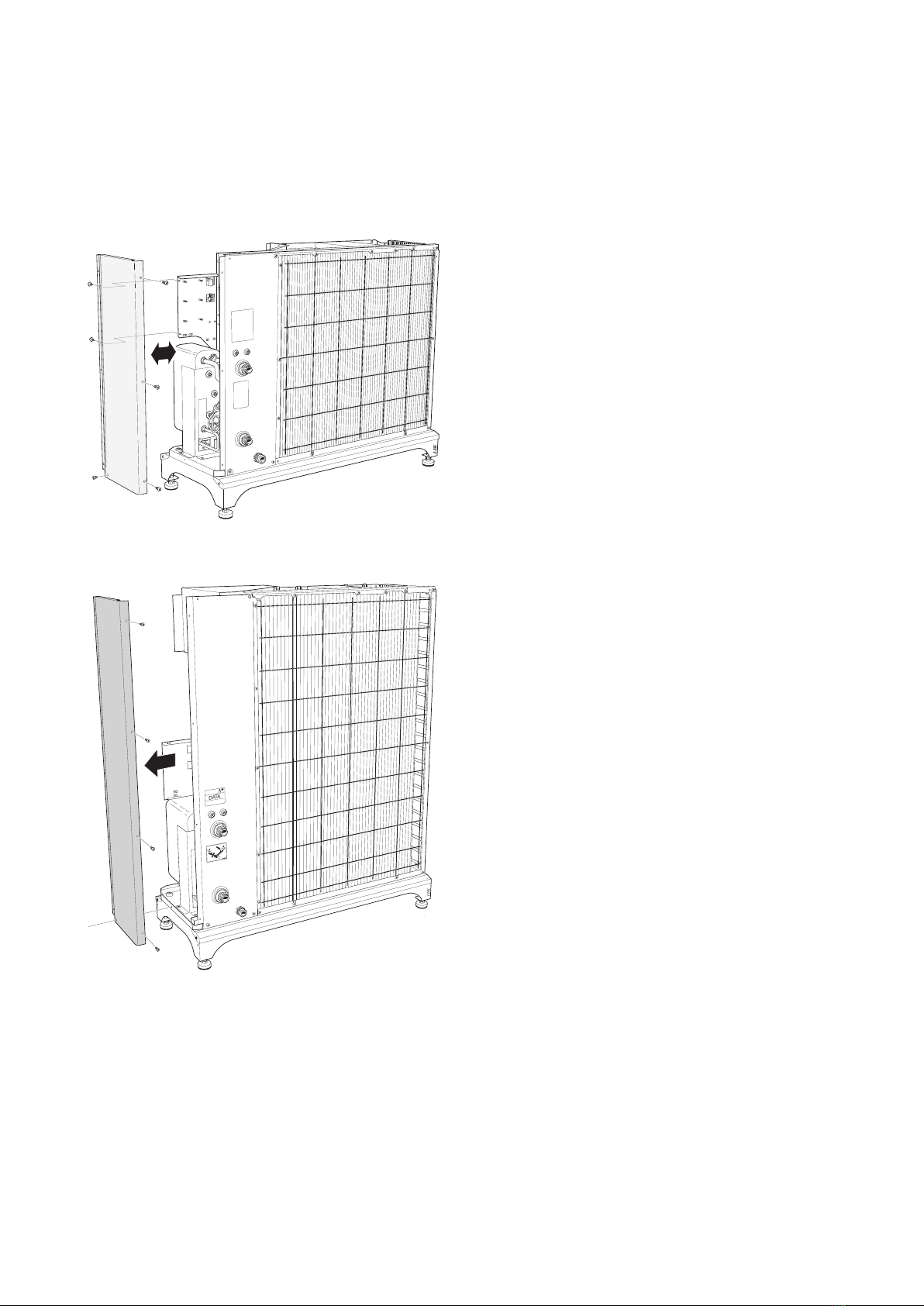

Removing the side panel
F2040-12
LEK
F2040-16
LEK
DATA
F2040Chapter 2 | Delivery and handling12

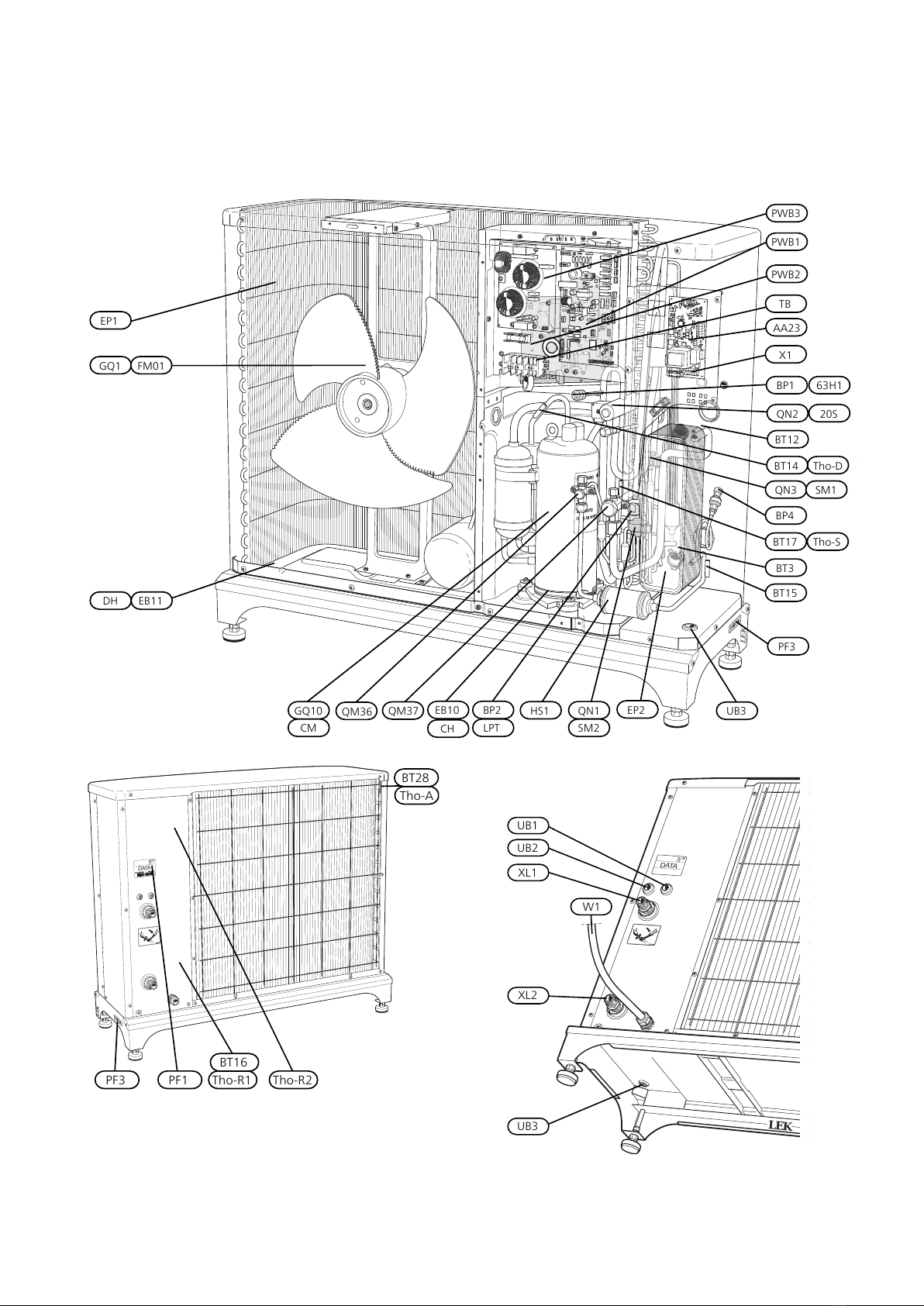

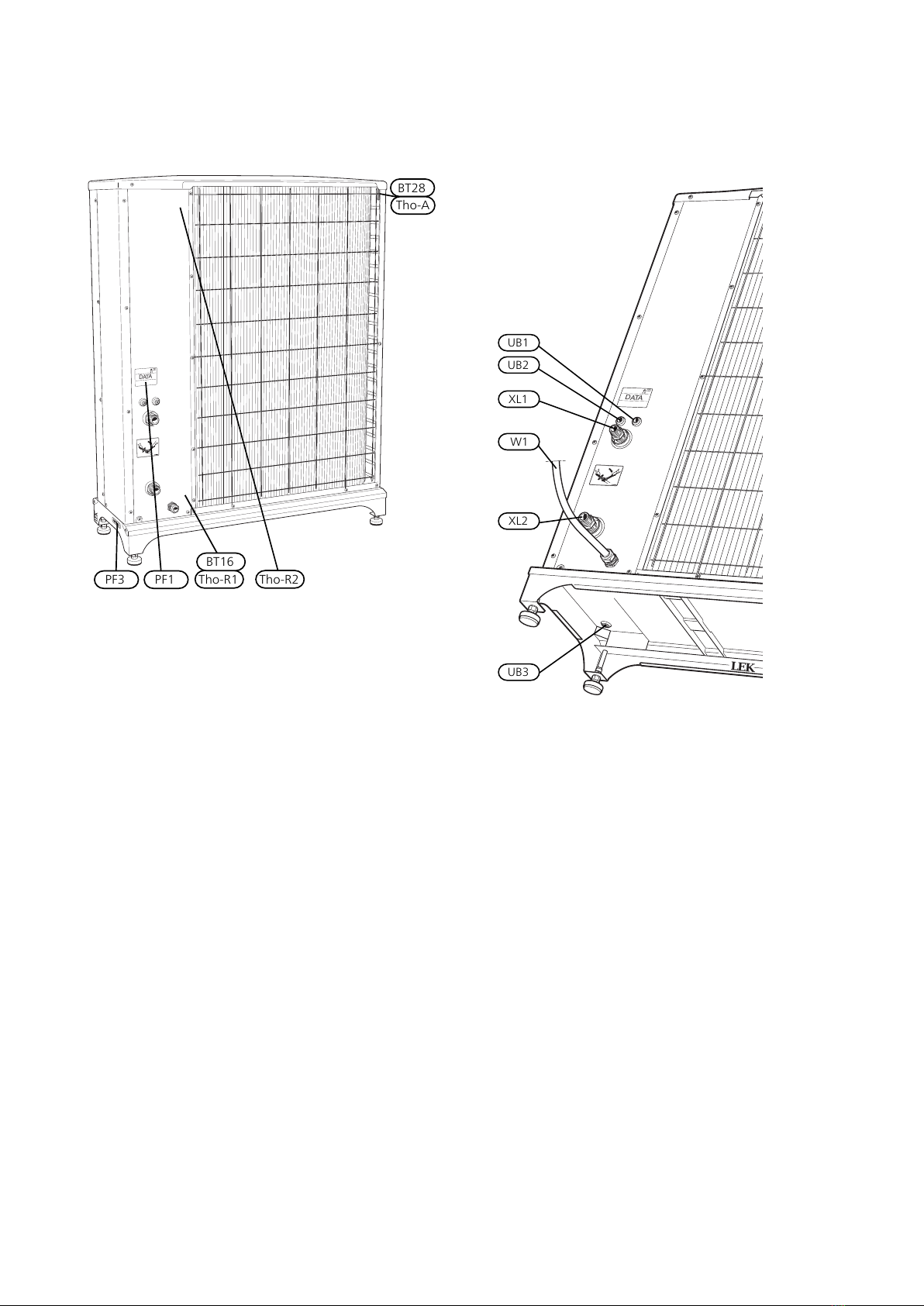

General
F2040-6
UN
GQ1
DH
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
PF3
GQ10
QN1
QM36
QM37
CH
EB10
BT17
FM01
HS1
BT15
QN2
AA23
BT12
BP1
X1
BP2
BP4
BT3
QN3
EP2
UB3
TBFPWB1
RF2
RF3
DATA
UB3
W1
UB1
UB2
XL1
XL2
DATA
PF3
BT28
Tho-R1
Tho-R1
PF1
BT16
Tho-A
BT16
13Chapter 3 | The heat pump designF2040
3 The heat pump design

Tho-A
CM
SM2
QN1
CH
EB10
GQ10
20S
63H1
LPT
SM1
Tho-SBT17
BT15
QN2
BT12
QN1
BP2
BP4
BT3
QN3
BT28
HS1
UB3
EP2
QM36
QM37
Tho-DBT14
F2040Chapter 3 | The heat pump design14

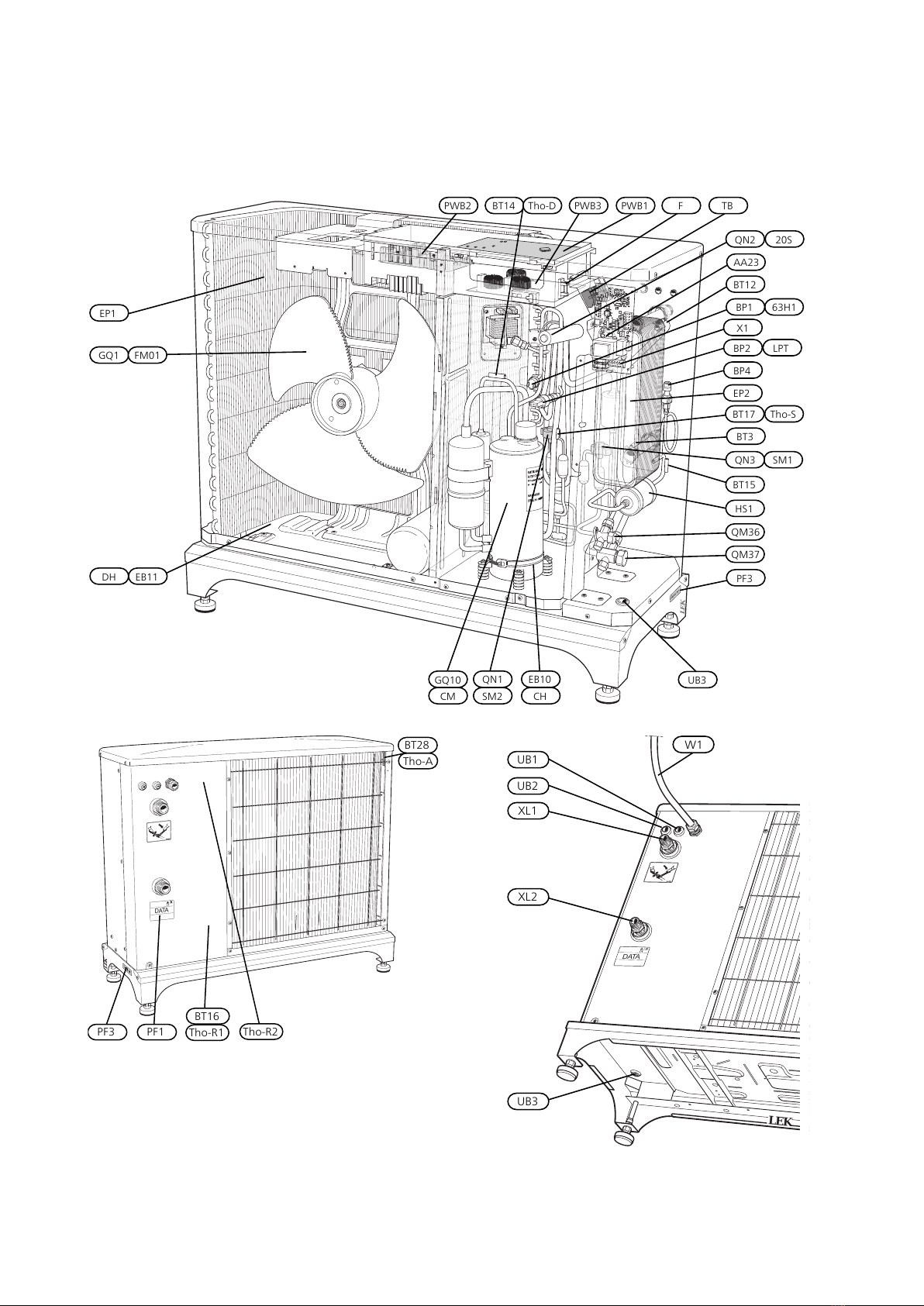

F2040-8
LEK
GQ1
DH
UB3
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
FM01
PWB2 PWB3 PWB1
BT12
BT15
BP4
QN2
BT3
PF3
HS1
EP2
GQ10 QN1
BP2
QM36
QM37
BP1
QN3
CH
EB10
AA23
X1
F TBBT14 Tho-D
Tho-SBT17
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
PF1PF3
Tho-A
BT28
Tho-R1 Tho-R2
BT16
15Chapter 3 | The heat pump designF2040

F2040-12
LEK
QN1
GQ1
GQ10 QM36
QN3
QM37
TB
BP1
QN2
PWB1
PWB2
PWB3
DH
UB3
BT3
BP4
PF3
BT15
EP1
EP2
HS1
BP2
BT12
X1
EB11
CM
20S
63H1
LPT SM2
SM1
FM01
CH
EB10
AA23
Tho-DBT14
BT17 Tho-S
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
Tho-A
BT28
PF1PF3 Tho-R1
BT16
Tho-R2
F2040Chapter 3 | The heat pump design16

F2040-16
LEK
GQ1
DH
X1
CM
63H1
CH
SM2
SM1
FM01
PWB2 PWB3 PWB1
QN2 20S
BT12
TB
BP1
PF3
QN3
BP4
BT3
BT15
UB3
GQ10 HS1
QN1
EP2
QM37
QM36
EB11
GQ2 FM02
EP1
F
LPT
BP2
AA23
Tho-D
BT14 EB10
Tho-SBT17
17Chapter 3 | The heat pump designF2040

LEK
DATA
XL2
UB1
UB2
XL1
UB3
W1
LEK
DATA
PF3 PF1
BT28
Tho-A
Tho-R1 Tho-R2
BT16
F2040Chapter 3 | The heat pump design18

List of components F2040
Pipe connections
Shut-off valve, liquid sideQM36
Shut-off valve, gas sideQM37
Connection, heating medium out from F2040,
G1" (Ø28 mm)
XL1
Connection, heating medium in to F2040,
G1" (Ø28 mm)
XL2
Sensors etc.
High pressure pressostatBP1 (63H1)
Temperature sensor, heating medium return
line
BT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14 (Tho-
D)
Temperature sensor, fluid pipeBT15
Temperature sensor 1, evaporatorBT16 (Tho-
R1)
Temperature sensor, suction gasBT17 (Tho-
S)
Temperature sensor, ambientBT28 (Tho-
A)
Low pressure transmitterBP2 (LPT)
High pressure sensorBP4
Temperature sensor 2, evaporatorTho-R2
Electrical components
Communication boardAA23
Fuse for external heating cable (250 mA), max
45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1 (FM01)
FanGQ2 (FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
EMC filter for inverterRF2
EMC filter for incoming supplyRF3
Terminal block, incoming supply and commu-
nication with board AA23
TB
Cooling components
4-way valveQN2 (20S)
CompressorGQ10 (CM)
Expansion valve, coolingQN3 (SM1)
Expansion valve, heatingQN1 (SM2)
Evaporator (air coil, copper pipe with alumini-
um flange)
EP1
CondenserEP2
Drying filterHS1
Miscellaneous
Type platePF1
Serial numberPF3
Cable gland, incoming supplyUB1
Cable grommet, communicationUB2
Cable gland, heating cable (EB14)UB3
Cable, incoming supplyW1
Designations in component locations according to
standard IEC 81346-1 and 81346-2. Designations within
brackets according to the supplier's standard.
19Chapter 3 | The heat pump designF2040

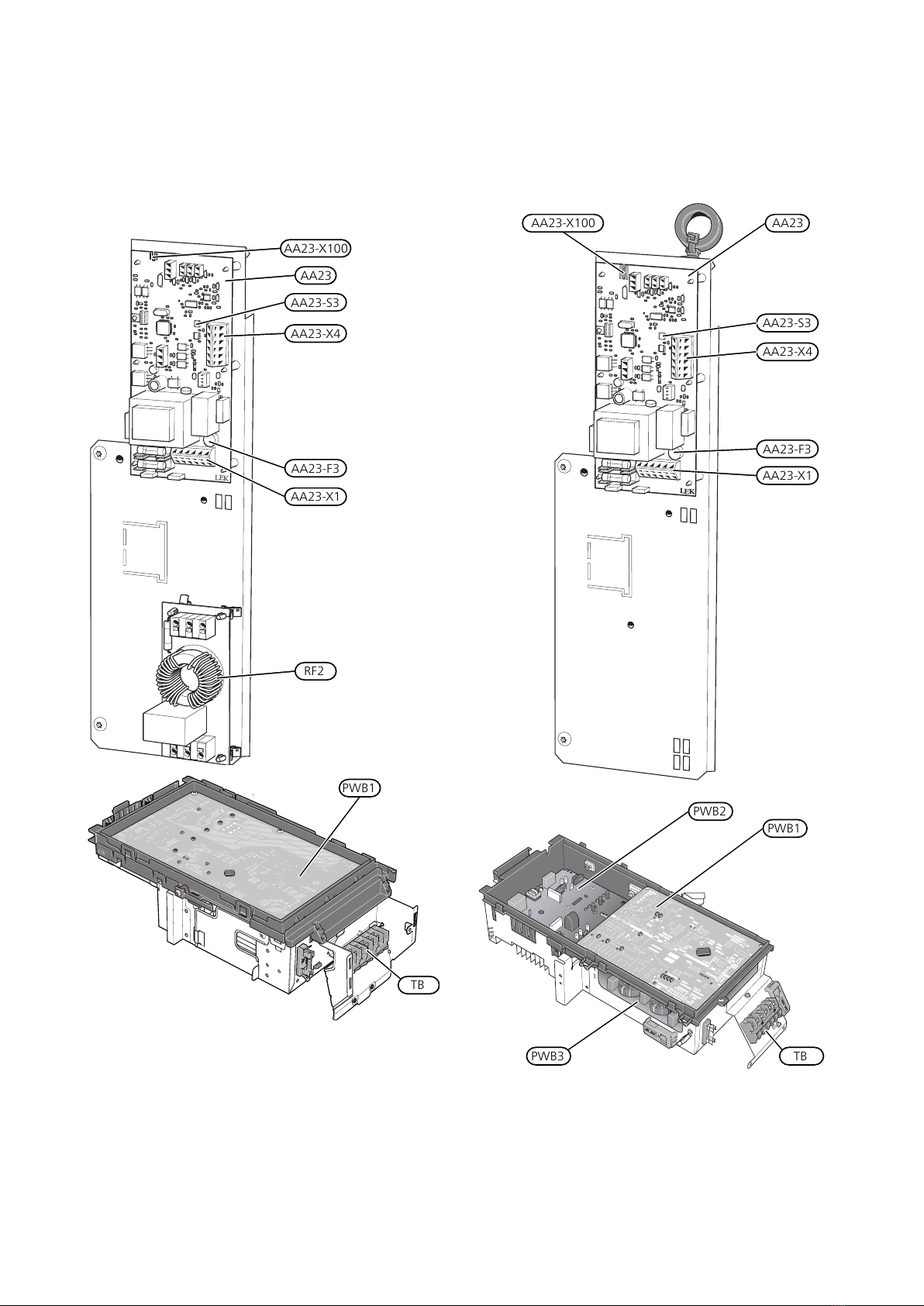

Electrical connection
F2040-6
LEK
AA23
AA23-X100
AA23-S3
AA23-X4
AA23-F3
AA23-X1
RF2
UN
PWB1
PWB2
PWB3
TB
F2040-8
LEK
AA23
AA23-X4
AA23-S3
AA23-X100
AA23-X1
AA23-F3
LEK
PWB2
PWB1
PWB3 TB
F2040Chapter 3 | The heat pump design20
