Installation
instructions

GB
82 CERTIFICATE
Declaration of performance according
to Regulation (EU) 305/2011
No. Ci60-CPR-190624
PRODUCT
Product type Insert lit with solid biofuels
Type designation Contura i60
Manufacturing number See rating plate on the insert
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13229:2001/AC:2006, EN-13229:2001/A2:2004/AC:2007
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-29 19 5301
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, June 24, 2019
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire NPD
Minimum distance to combustible material Rear: 100 mm
Side: 500 mm
Follow the given conditions in the installation
instructions.
Risk of falling embers Pass EN 13229:2001/AC:2006,
EN-13229:2001/A2:2004/AC:2007
Emissions from combustion CO 0,07%
Surface temperatures Pass
Cleaning options Pass
Mechanical durability Pass
Emissions of hazardous substances Pass
Nominal output 6 kW
Efficiency 81%
Flue gas temperature in connector at nominal
output
334°C

GB
83
CONTENTS
WARNING!
The insert becomes very hot
Parts of the insert become very hot when it is in use and
can cause burns if touched. You should also be careful
of the heat that transfers through the door glass.
Combustible materials must be kept at the stated safe
distance to prevent the risk of fire. A smouldering fire
emits gases that can suddenly ignite and cause material
damage and personal injury.
NB!
You are required to apply to your local
authority for permission to install a
fireplace/stove.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by a
qualified inspector. Your local chimney sweep must also be
informed of the installation, as this will affect the routines
for regular chimney-sweeping services.
A warm welcome to Contura.
Welcome to the Contura family. We hope you will
get a great deal of pleasure from your new insert.
Congratulations on your purchase of a Contura insert.
You have acquired a reliable quality product with a
timeless design and long service life. Contura produces
environmentally-friendly wood burning stoves that create
heat in the most efficient way possible.
Please read these instructions carefully and thoroughly
before installation. The Lighting instructions explain how
you can obtain optimal performance from your stove.
Contents
Technical specifications 84
Important dimensions 85
Prior to installation 85
Installation 93
Chimney 94
Recessing the insert 95
Recess example 96

Vermiculit
Rökhyllor
av plåt
Gjutgodsbotten
Spjäll
Typskylt
Asklåda
Roster
Serienummer
Justerbara fötter
Tilluftsstos
GB
84
Hearth plate
To protect the floor in front of the hearth
from falling embers, a non-combustible
floor covering must be placed at least 300
mm all around. A toughened glass hearth
plate is available as an accessory.
Application to local authority
You must apply for permission from your
local authority before installing a stove or
erecting a chimney. We recommend you
contact your local authority for advice and
information about obtaining permission.
General information
This manual contains instructions on how
to install the Contura i60. We recommend
the insert be installed by a qualified
tradesperson to ensure it functions safely
and properly. Our Contura dealers can
recommend suitable installers. Dealer
information is available at www.contura.eu
An instruction manual on how to obtain
optimal performance from your insert is
also provided. Please read this carefully
and keep for future reference.
Structural support
Check that the floor joists are strong
enough to bear the weight of the insert,
chimney and construction parts.
Vermiculite
Metal baffle
plates
Serial number
Grate
Adjustable feet
Air inlet
Ash pan
Type plate
Damper
Cast-iron base
FACTS
Technical
specifications
Model i60
Output 5-9 kW
Nominal output 6 kW
Efficiency 81%
Weight (kg) 140
Width (mm) 585
Depth (mm) 500
Height (mm) 1530
Connection sleeve diameter Ø150 mm ext.

Ci60
290
585
390
1530
1220
490
GB
85

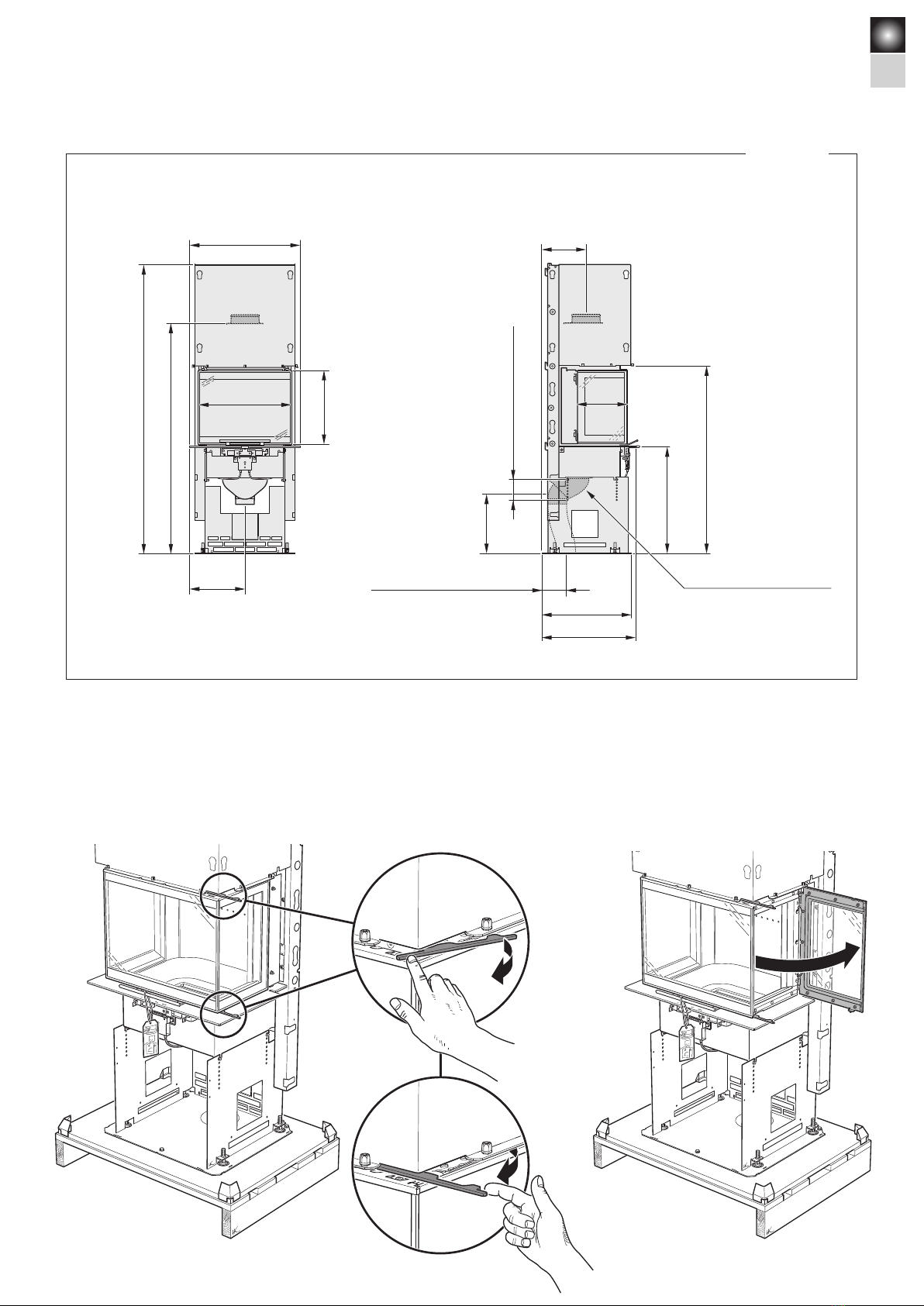

Opening a side glass panel
Prior to installation
IMPORTANT DIMENSIONS/PRIOR TO INSTALLATION
Important dimensions
235
565
985
475
500
315
270
Air inlet Ø100
110 Height adjustment
130 lead-in floor

x3
GB

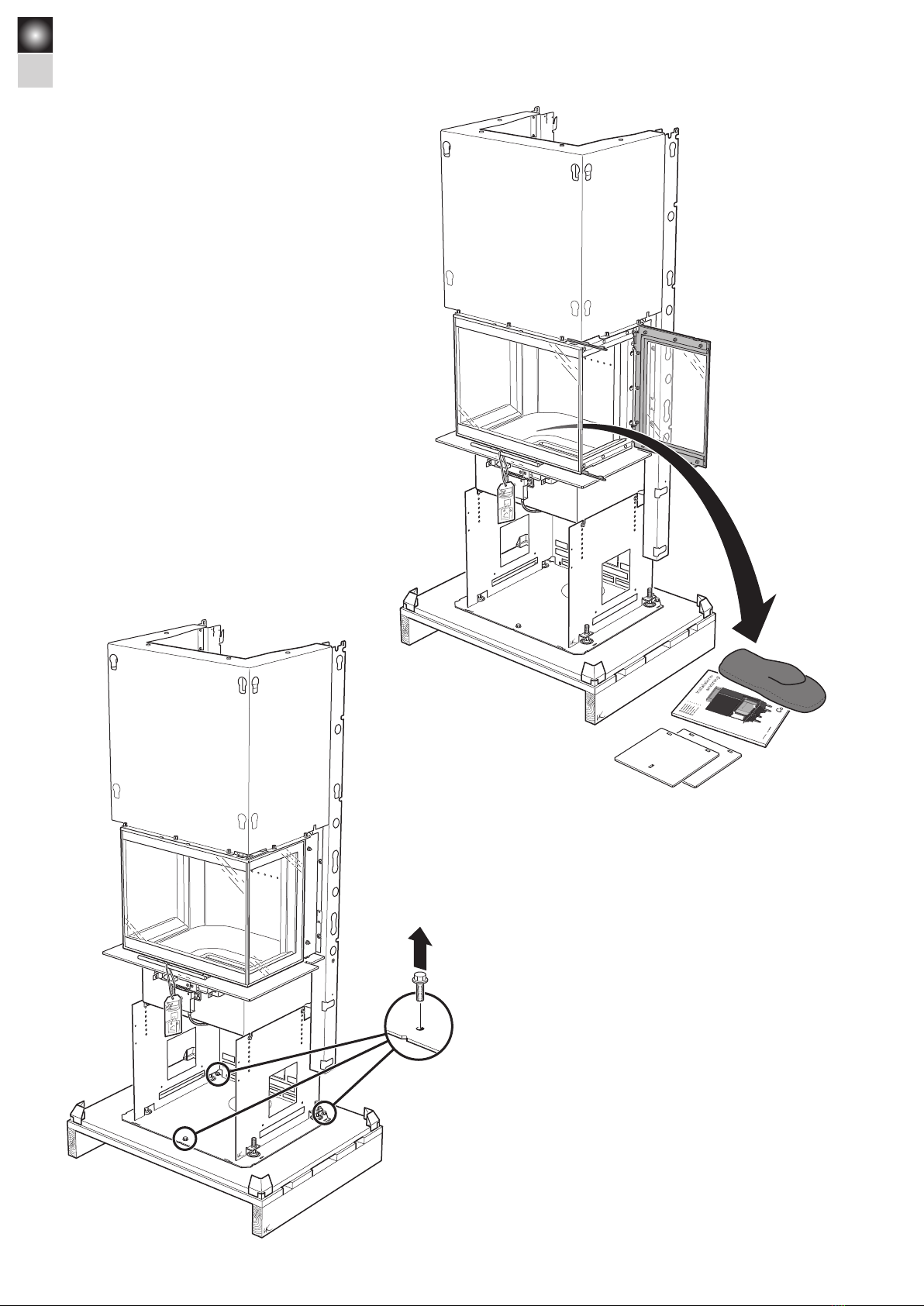

86 PRIOR TO INSTALLATION

10 mm
GB
87

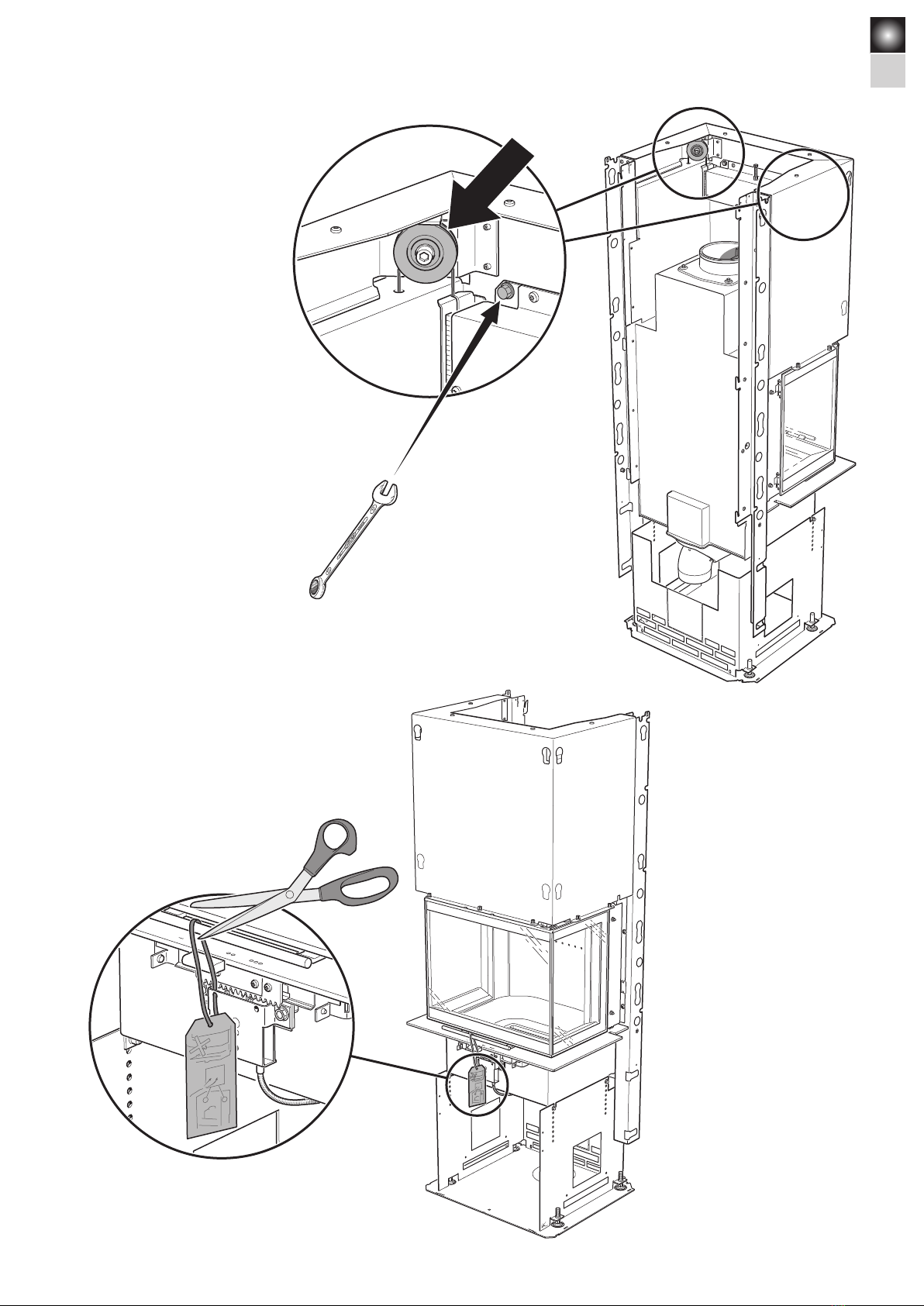

PRIOR TO INSTALLATION

13
13
VANADIUM
No. 7
CHROME
13 mm
GB
88
Check the performance of the insert as follows:
Use the adjustable feet to level the insert. Check that the door
can be opened and closed.
Check that the damper knob can be moved back and forth to the
max. and min. marks.
Performance check
PRIOR TO INSTALLATION

2
1
2
1
1
2
3
GB
89
PRIOR TO INSTALLATION

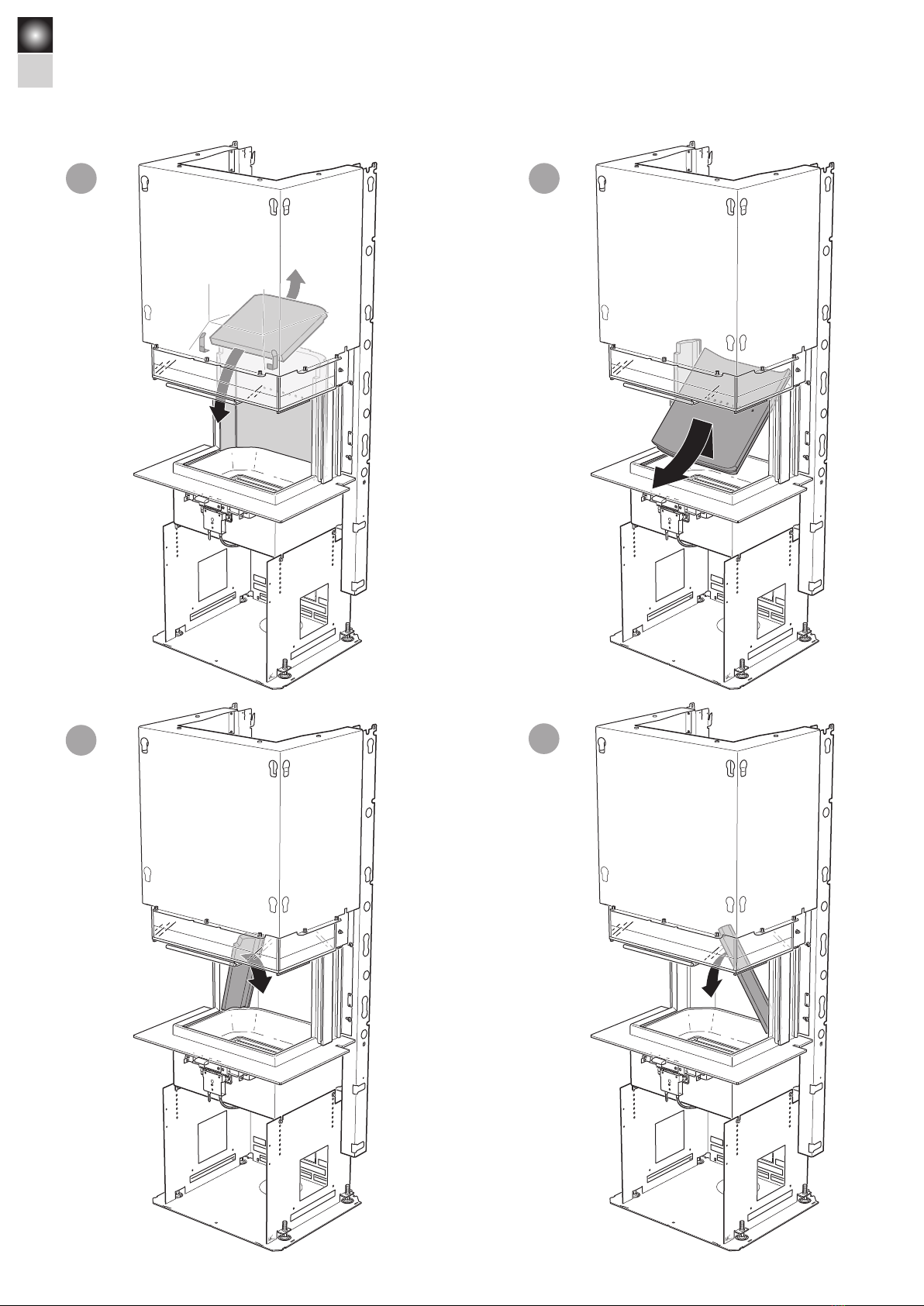

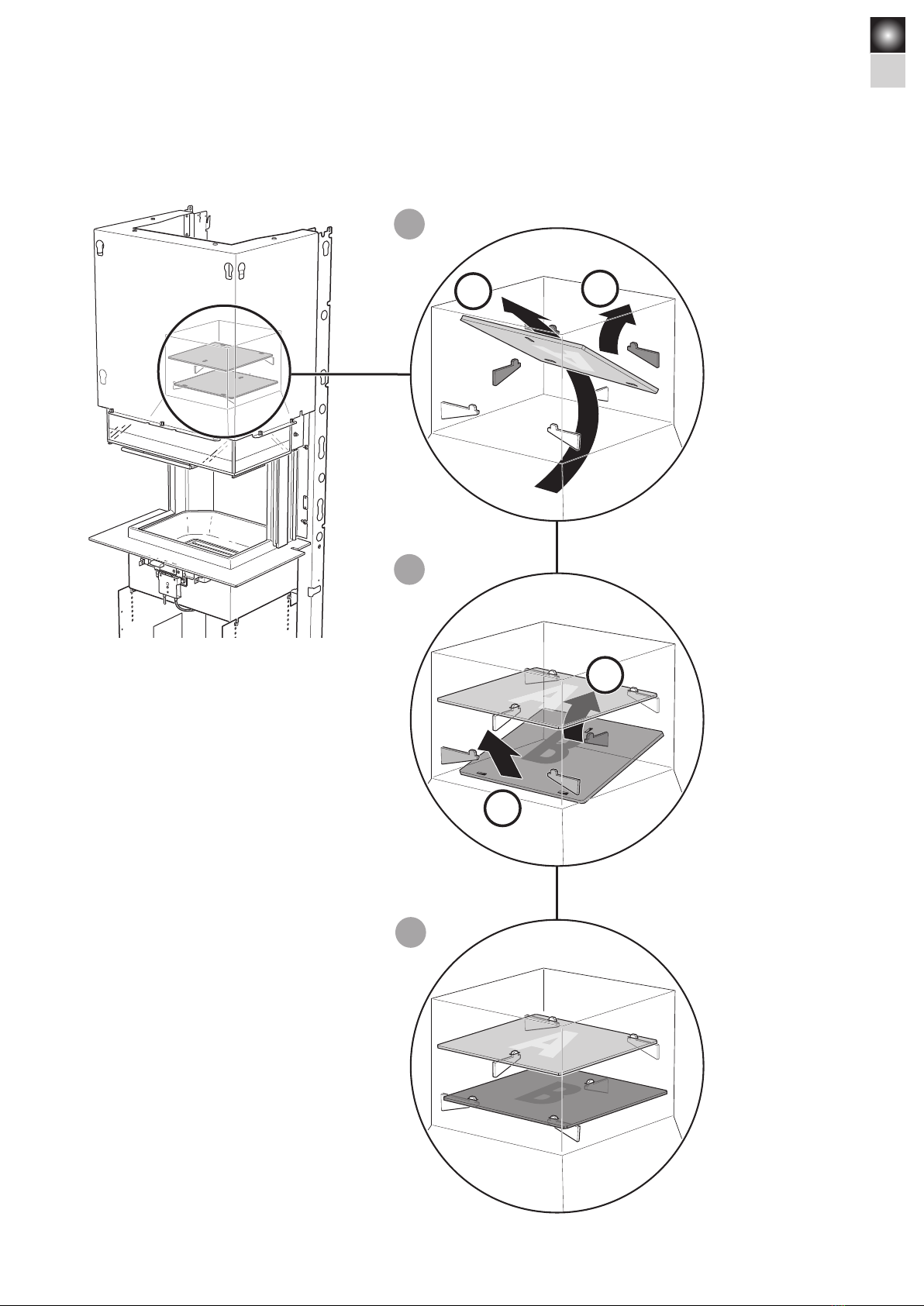

Installing the metal ba±e plates

1 2
34
GB
90

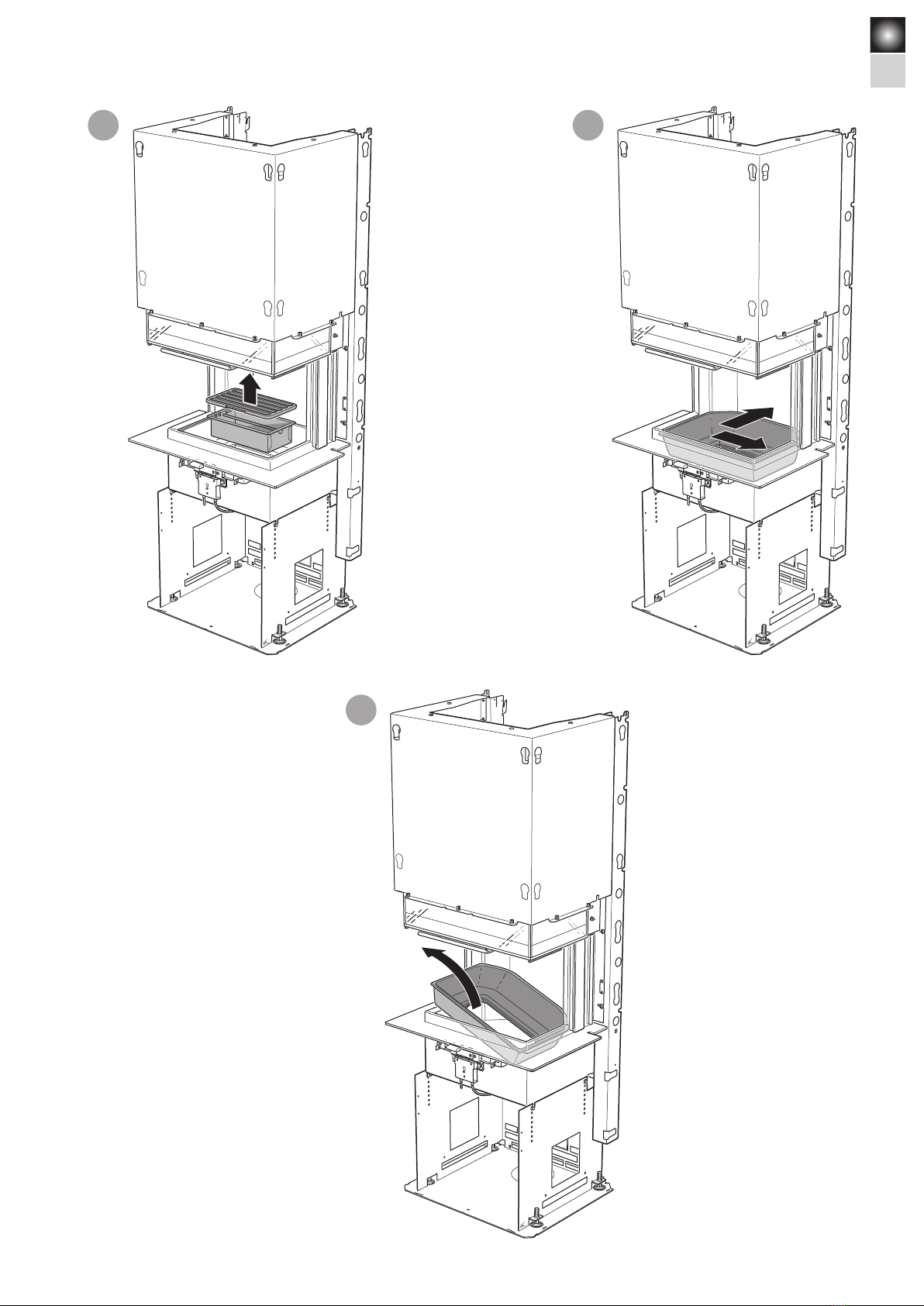

Removing the hearth cladding
PRIOR TO INSTALLATION

5 6
7
GB
91
PRIOR TO INSTALLATION

GB
92
Option

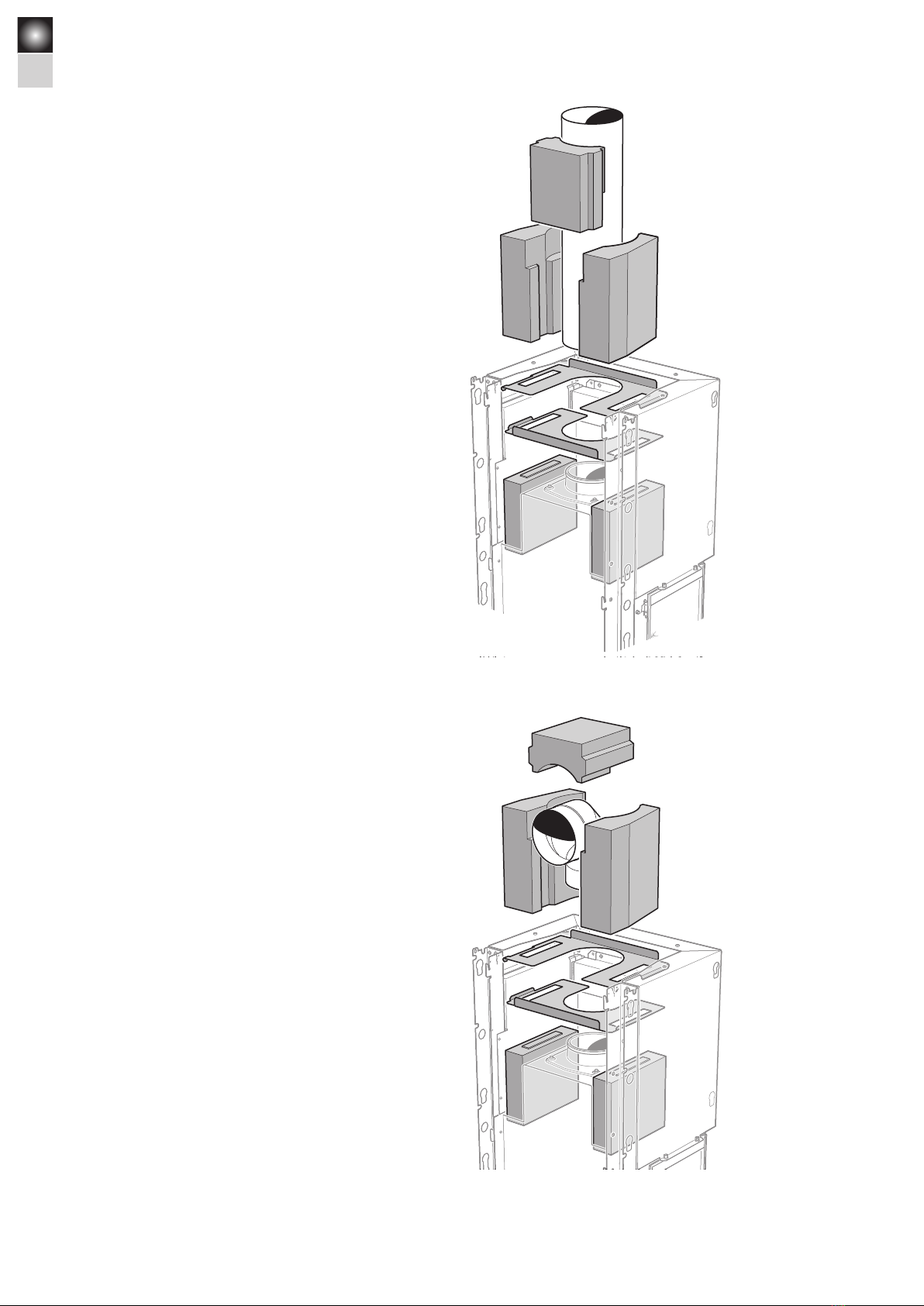

Installing Powerstone
OPTION

HK HK
HK
HK
GB
93
Knockout
Installation

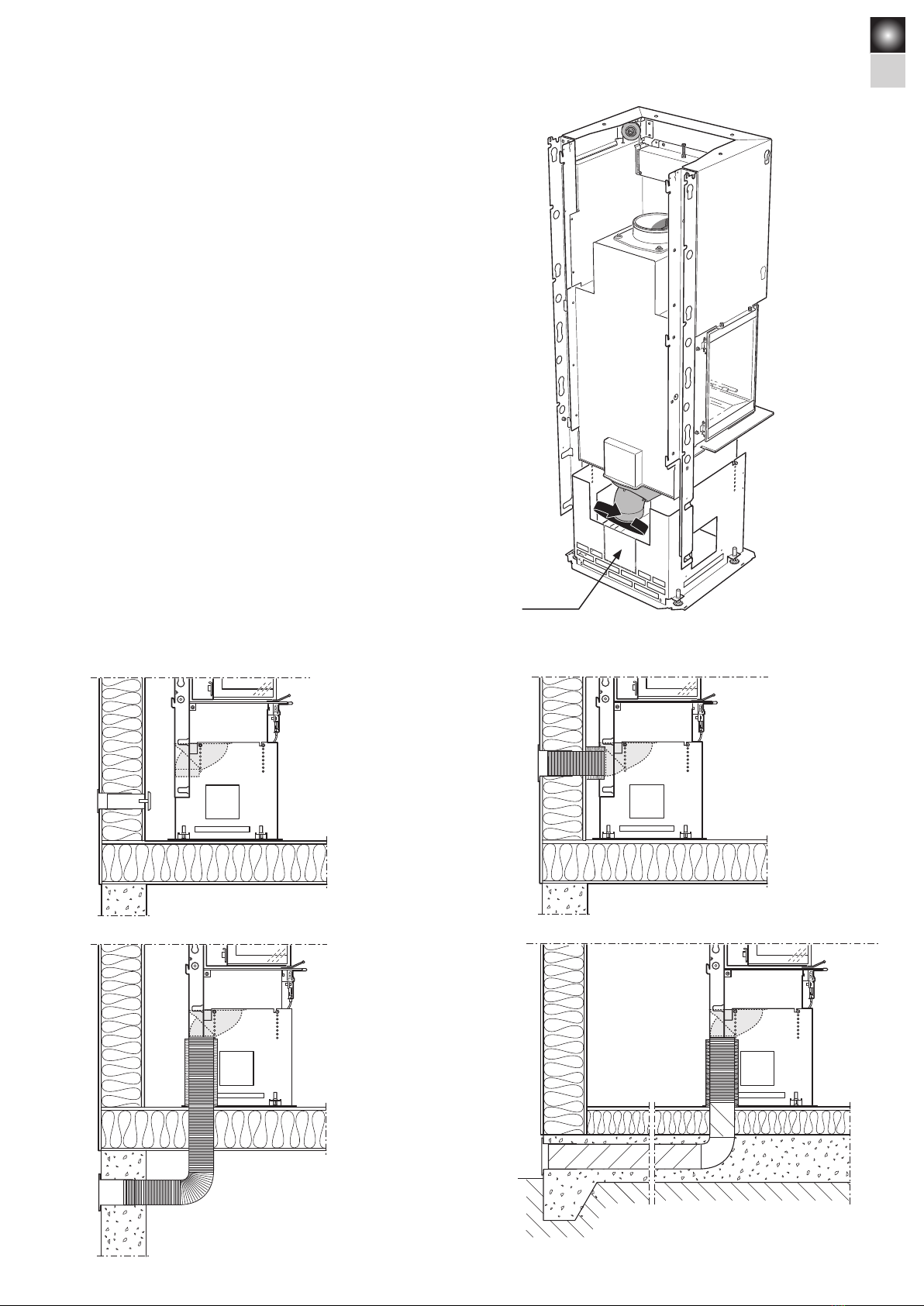

Combustion air supply
Supply of combustion must be provided. Combustion air can be
drawn directly via a duct from outside, or indirectly via a vent in
the outer wall of the room where the stove is placed. The amount
of combustion air that is used for combustion is approx. 25 m3/h.
Some installation alternatives are shown below. The connection
sleeve on the stove has an external diameter of Ø100 mm.
In warm spaces, the duct should be insulated to prevent
condensation using 30 mm mineral wool covered with a vapour
barrier (aluminium tape). It is important that the lead-in,
between the pipe and the wall (or floor), is sealed using jointing
compound.
A 1-metre combustion-air tube insulated to prevent
condensation is available as an optional extra.
Make sure that the installation complies with national and
regional regulations. The installation must be approved by an
authorised inspector.
INSTALLATION

170
1
3
2
4
10
10
VANADIUM
No.7
CHROME
GB
94
Self-closing door
(ONLY APPLIES TO GERMANY)
Rear connection
If connecting at the rear, we recommend using
a 45°+45° angle with a soot hatch and with the
centre 170 mm above the sleeve.
It is important that sweeping can be carried
out through convection grates or a hatch in the
surround.
Chimney
CHIMNEY/SELF-CLOSING DOOR
The insert is approved for connection to a chimney designed to
withstand flue gas temperatures of up to 350°C. The external
diameter of the connection sleeve is Ø150 mm.
The insert requires a draft in the chimney of at least –12 Pa. The
draft is affected primarily by the length and area of the chimney
and also by how well sealed it is. The minimum recommended
chimney length is 3.5 m and a suitable cross-section area is
150-200 cm2 (Ø140-160 mm). Carefully check that the chimney is
sealed and that there is no leakage of smoke from the soot doors
or connections.
Note that sharp bends and horizontal lengths in a flue pipe reduce
the draft in the chimney. The maximum horizontal length of flue
pipe allowed is 1 m, provided the flue pipe rises vertically for at
least 5 m. It must be possible to sweep the full length of the flue,
and the soot doors must be easily accessible.
If two fireplaces are connected to the same chimney flue, the
stove must be fitted with a self-closing door.

!
GB
95
Service
Make sure it is possible to access the damper control and
counterweight through hatches or ventilation grilles in the surround.

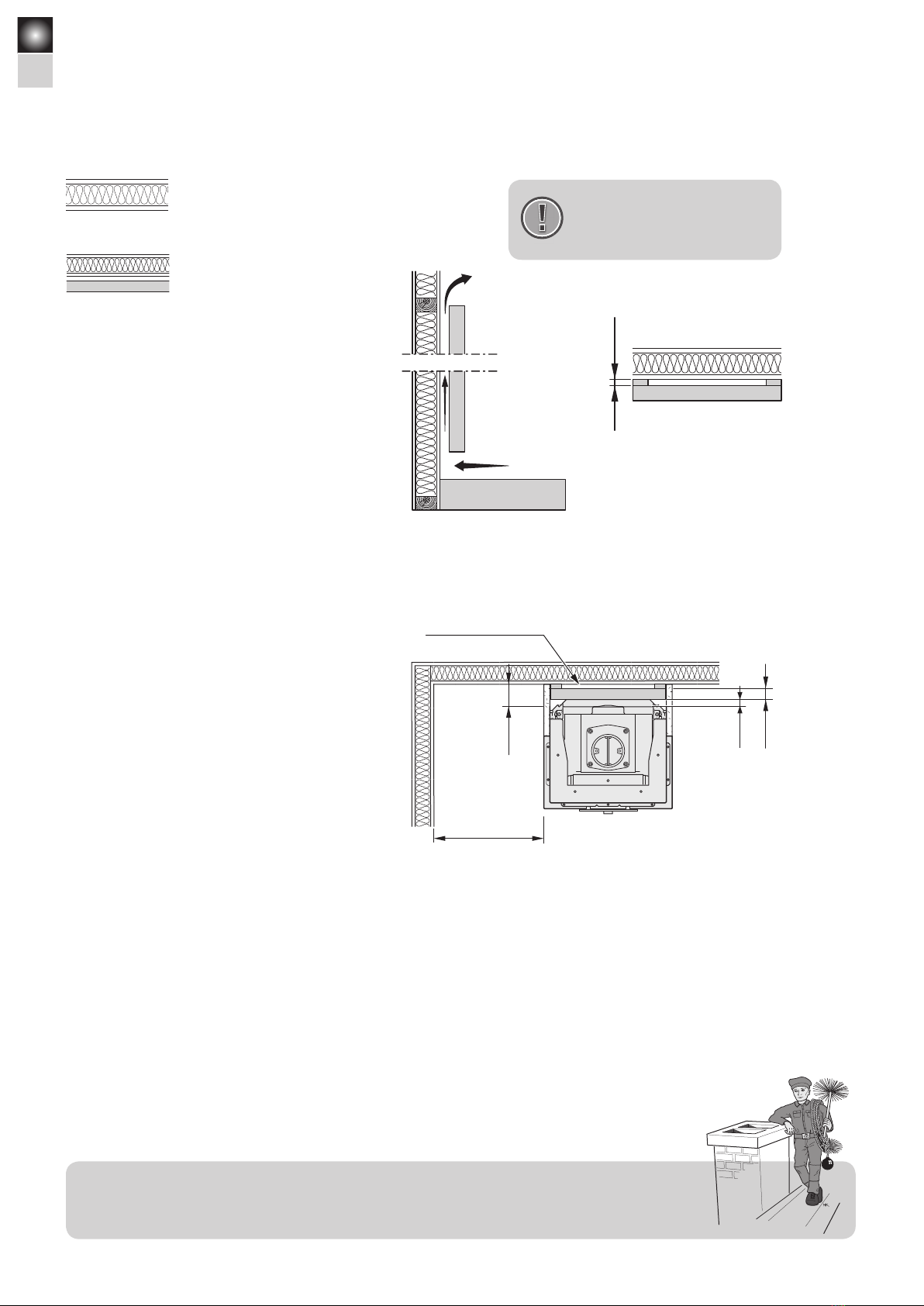

RECESSING THE INSERT
Convection air
Sealing
The recess must not go all the way up to the ceiling. Leave an air
gap of at least 20 mm closest to the ceiling. The recess must be
sealed off above the convection exhaust. The seal must be a 50
mm non-combustible material (see material requirements above)
and must be placed no more than 100 mm above the upper edge of
the convection exhaust. Use heat-resistant silicone, or a suitable
equivalent, between the seal and chimney.
The building material must not be combustible.
The thermal conductivity coefficient λmust be maximum
0.14 W/mK.
The building material must always be at least 50 mm thick.
Where the insulation properties of building material are given as a
U-value, it must be maximum 1.4 W/ m²K.
Material requirements
The convection air ventilates the surround, cools the insert and
carries hot air out into the room. The effective cross-section area
on the air intake and exhaust must not be less than the stated
values. The air intake must be positioned somewhere between
floor level and the bottom of the insert, at the front or on the
sides of the recess. The air exhaust must be positioned above the
highest point of the insert at the front or the sides of the recess.
If the air intakes or exhausts are positioned on the sides, the
areas for the left and right side respectively must be the same size
to ensure that the insert is evenly cooled.
The distance between the exhausts on the sides and a combustible
wall behind should be at least 100 mm.
Observe the minimum distance up to the ceiling (see the diagram
on page 95).
Convection air in: 300 cm²
Convection air out: 300 cm²
When recessing the insert, adjacent walls that are not classed as
fire walls or are considered unsuitable for exposure to heat must
be protected by non-combustible building material in accordance
with the specifications below.
All joints on the non-combustible material must be sealed using
the method indicated by the manufacturer. The space between
the insert and the recess must be ventilated in accordance with
specifications/dimensions diagrams on page 97.
When connecting a steel flue, please refer to the particular
manufacturer’s installation instructions. Observe the
requirements for safe distances from the steel flue to combustible
materials. Because of the strong heat radiating from the door,
combustible materials must be placed a minimum of 1 m from
the door. The insert must be installed with clearance to the
building material, not in direct contact with it, to allow for thermal
expansion of the insert.
Note that the area below and in front of the insert must comply
with building regulations. See section “Hearth plate”.
Recessing the insert
List of suitable materials:
Aerated concrete λ = 0.12-0.14
Vermiculite λ = 0.12-0.14
Calcium silicate λ = 0.09

20
100
100
500
20
500
50
100*
30
20 mm Luftspalt
GB
96
!
20 mm Air gap
Diagram of aerated wall
Two calcium silicate board
battens ensure that the air
space is maintained.
Wall made of combustible material
Aerated wall, comprising at least a 50 mm
calcium silicate board and an air space. There
must be a 20 mm air space between the
building board and the combustible wall. The
air space must allow air to flow freely along
the lower and upper edges (see diagram to the
right).
Wall made of non-combustible material that
is not in contact with combustible material
and therefore has no minimum thickness
requirement.
Unless otherwise stated, these
are the minimum dimensions.
Final inspection of the installation
It is extremely important that the installation is inspected by an authorised inspection body
before the stove is used. You should also read the “Lighting instructions” before lighting the stove
for the first time.
RECESSING THE INSERT
* The distance between the exhausts on
the sides and a combustible wall behind
should be at least 100 mm.
Recess example

700
max 100
50
30
100
min. 460
50
Area ut min. 300 cm2
Area in min. 300 cm2
20 mm Luftspalt
700
50
min. 100
20
max 100
50
30
100
min. 460
Area ut min. 300 cm2
Area in min. 300 cm2
Avtätning
20 mm Luftspalt
Area out min. 300 cm2
Area in min. 300 cm2
Heat shield
Luftspalt
550
50
30
100
min. 460
50
165
Area ut min. 300 cm2
Area in min. 300 cm2
20 mm Luftspalt
!
!
550
50
30
100
min. 460
50
165
Area ut min. 300 cm2
Area in min. 300 cm2
Avtätning
20 mm Luftspalt
Area out min. 300 cm2
Area in min. 300 cm2
Heat shield
Luftspalt
GB
97
Area int. min. 300 cm2
20 mm Air gap
20 mm Air gap
20 mm Air gap
20 mm Air gap
Area int. min. 300 cm2Area int. min. 300 cm2
Area int. min. 300 cm2
min. 100
min. 460 min. 460
Max. 100
Max. 100
Area ext. min. 300 cm2
Area ext. min. 300 cm2
Area ext. min. 300 cm2
Area ext. min. 300 cm2
Sealing
Sealing
Can be excluded if the chimney
breast behind is approved
and fully complies with safety
requirements according to the
authorised inspection body.
Always observe the
requirements for safe
distances from a steel
flue to combustible
materials
RECESSING THE INSERT
Unless otherwise
stated, these are the
minimum dimensions.

811412 IAV SE-EX Ci60-0
2019-07-09
NIBE AB · Box 134 · 285 23 · Markaryd · Sweden
contura.eu
Contura reserves the right to change dimensions and
procedures specified in these instructions without prior
notice. Access the latest version at contura.eu
