Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
VPB/VPBS is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
IP21 means that objects with a diameter larger than
or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against
vertically falling drops of water.
Serial number
The serial number can be found at the bottom right of
the front cover.
600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
Serial number
600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
Caution
Always give the product's serial number when
reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
VPB/VPBSChapter 1 | Important information2
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
DateSignatureNotesDescription
✔
Heat pump (page 11)
Shut off valves
Hot water (page 11)
Shut off valves
Cold water (page 11)
Shut off valves
Non-return valve
Mixing valve
Safety valve
Electricity (page 14)
Sensors
Direct-current anode (only VPB/VPBS E)
3Chapter 1 | Important informationVPB/VPBS

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
VPB/VPBSChapter 1 | Important information4

Transport
However. the VPB/VPBS may be carefully laid on its
back when being moved into a building. The centre of
gravity is in the upper part.
VPB/VPBS should be transported and stored vertically
in a dry place. However, the VPB/VPBS may be carefully
laid on its back when being moved into a building.
R
0
+2
0
-2
1
R
0
HMflow 49(50)°C
Hotwater
51°C
+2
0
-2
1
R
0
HMflow
49(50)°C
Hotwater
51°C
R
0
Assembly
■The water heater is only designed for upright install-
ation.
■Position VPB/VPBS on a firm base that can take the
weight, preferably on a concrete floor or foundation.
Use the water heater's adjustable feet to obtain a
horizontal and stable set-up.
30 - 50 mm
30 - 50 mm
15 - 40 mm
■The area where VPB/VPBS is located must be
equipped with floor drainage.
■The water heater's installation area should always
have a temperature of at least 10 °C and max 30 °C.
Supplied components
VPB/VPBS Enamel
Potentiostat
Location
The kit of supplied items is placed on top of the
product.
LEK
5Chapter 2 | Delivery and handlingVPB/VPBS
2 Delivery and handling

Removing the covers
Front cover
1
2
LEK
LEK
1. Remove the screws from the lower edge of the
front cover.
2. Lift the cover out at the bottom edge and up.
Side covers
LEK
LEK
LEK
The side covers can be removed to facilitate the install-
ation.
1. Remove the screws from the upper and lower
edges.
2. Twist the cover slightly outward.
3. Move the hatch backwards and slightly to the side.
4. Pull the cover to one side.
5. Pull the hatch forwards.
VPB/VPBSChapter 2 | Delivery and handling6

LEK
LEK
LEK
LEK
XL8 XL4 XL3 XL9 XL5
UA1
FR1
UA2
PF1
XL8 XL4 XL3 XL9
UA1
Sv PDB
UA2
Givarkabeldragning
Denna bild används för ?
LEK
LEK
LEK
LEK
XL8 XL4 XL3 XL9 XL5
UA1
FR1
UA2
PF1
XL8 XL4 XL3 XL9
UA1
Sv PDB
UA2
Givarkabeldragning
Denna bild används för ?
XL9
UA1
UA2
UL
QM22
XL5
W1
PF3
XL8 XL4 XL3
FR1
Sv PBD
Givarkabeldragning
LEK
LEK
LEK
XL4
XL13XL8 XL3 XL9
UA1
UA2
UA3
XL14
VPB 200 VPB 300/VPBS 300
XL9XL8 XL4 XL3
QM22
UA1
UA2
XL5
FR1
W1
UL
PF1
PF1
XL13 XL14
UA3

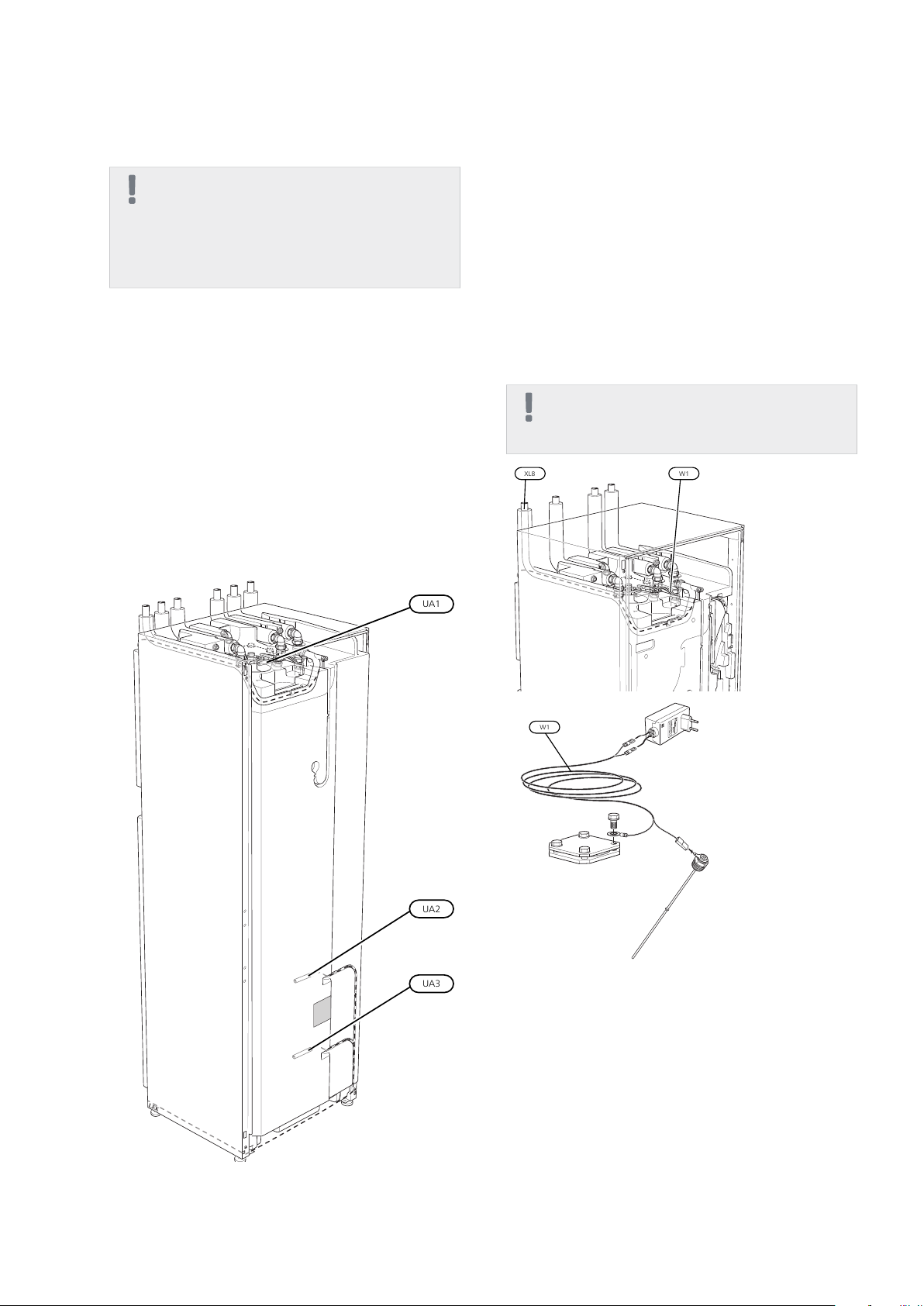

7Chapter 3 | The water heater designVPB/VPBS
3 The water heater design

Pipe connections
Connection, cold waterXL3
Connection, hot waterXL4
Connection, hot water circulation
(Not VPB/VPBS Cu)
XL5
Docking connection, supply line (from heat
pump*)
XL8
Docking connection, return line (to heat pump*)XL9
Connection, supply line (from solar heating sys-
tem) (Only VPBS 300)
XL13
Connection, return line (to solar heating system)
(Only VPBS 300)
XL14
HVAC components
Venting, charge coilQM22
Submerged tube for hot water sensor (display)UA1
Submerged tube for hot water sensor (control)UA2
Submerged tube for solar sensor (control)UA3
Electrical components
Direct-current anode (VPB/VPBS E)FR1
Cable to direct-current anode (VPB/VPBS E)W1
Miscellaneous
Rating platePF1
Serial number platePF3
Adjustable feetUL
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
*or another external heat source
VPB/VPBSChapter 3 | The water heater design8

General
Pipe installation must be carried out in accordance with
current norms and directives.
Internal support bushes should be fitted when a plastic
pipe or annealed copper pipe is used. The water heater
must be fitted with the requisite valves, such as a safety
valve, shut-off valve, non-return valve, and vacuum
valve. An overflow pipe must be routed from the safety
valve to a suitable drain. The size of the overflow pipe
must be the same as on the safety valve. Route the
overflow pipe from the safety valve enclosed along its
entire length and ensure that it is frost proof. The outlet
of the overflow pipe should be visible and clearly away
from any electrical components.

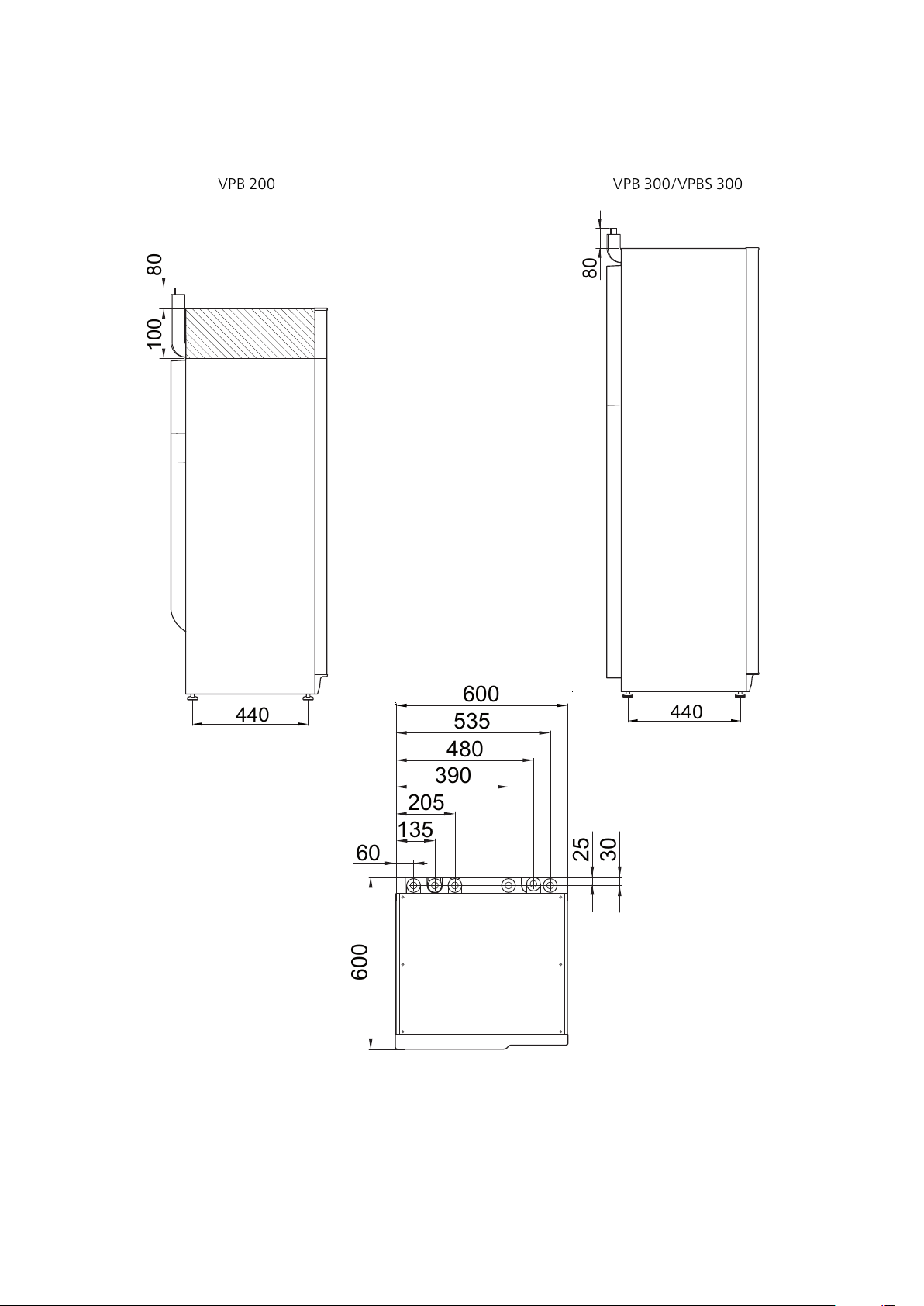

Dimensions and pipe connec-
tions
VPB 200/VPB 300
XL8 XL4 XL5* XL3 XL9
VPBS 300
XL8 XL13 XL4 XL3 XL9 XL14
XL5*
Connection
22mmXL3 Cold water Ø
22mmXL4 Hot water Ø
15mmXL5 Hot water circulation Ø
22mmXL8 Docking connection, flow line Ø
22mmXL9 Docking connection, return line Ø
22mmXL13 Solar flow line Ø
22mmXL14 Solar return line Ø
(*Not VPB/VPBS Cu)
9Chapter 4 | Pipe connectionsVPB/VPBS
4 Pipe connections

600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
VPB 200 VPB 300/VPBS 300
600
600
30
60
205
135
535
480
25
390
25-50 1775
80
600
600
30
60
205
480
25
390
25-50 1775
80
560 440
VPB/VPBSChapter 4 | Pipe connections10

Heat pump
Connecting to heat pump
The heat pump supply and return are connected to
VPB/VPBS.
Sun
Connecting to solar heating system
The solar heating system's supply and return are con-
nected to VPBS 300.
Cold and hot water
Connecting cold and hot water
There must be a mixer valve if the temperature can
exceed 60 °C.
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Mixing valve
Safety valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
11Chapter 4 | Pipe connectionsVPB/VPBS

Connecting hot water circulation
VPB/VPBS R and E have a connection that allows hot
water circulation.
To reduce the risk of bacterial growth in systems with
hot water circulation, the temperature of the circulating
water should not fall below 50 °C. There should not be
any non-circulatory hot water pipes. Adjust the hot
water system so that the temperature does not fall
below 50 °C at the ends of the system.
Installation alternative
VPB/VPBS can be connected in several different ways,
one of which is shown here.
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the heat
sources used.
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Mixing valve
Safety valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
VPB/VPBSChapter 4 | Pipe connections12

To ground source heat pump
VPB/VPBS can be docked with another heat source, for
example NIBE F1145.
T
To solar heating system
VPBS 300 can be docked to solar heating system.
T
P
13Chapter 4 | Pipe connectionsVPB/VPBS

NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
Sensors
VPB/VPBS can be supplemented with up to two hot
water sensors, one for display and one for control. The
display sensor is positioned in the submerged tube for
the display sensor (UA1) and the control sensor in the
submerged tube for control sensor (UA2). In cases
where it is only possible to connect one sensor, use the
submerged tube for control sensor (UA2).
VPBS 300 can also be supplemented with a solar sensor.
This is placed in the submerged tube for solar sensor
(UA3).
Use the sensors provided with the heat pump (or other
heat source). When no heat sensors have been
provided these must be ordered from the manufacturer
of the heat source.
Sv PBD
Givarkabeldragning
LEK
LEK
LEK
XL4
XL13XL8 XL3 XL9
UA1
UA2
UA3
XL14
UA1
UA2
UA3
The figure shows VPBS 300.
Direct-current anode
VPB/VPBS Enamel is equipped with direct-current an-
ode and supplied with potensiostat from the factory.
The anode cable (W1) is installed in the anode from
the factory and only needs to be connected to the po-
tentiostat.
1. Route the anode cable (W1) along the docking
pipe, flow line (XL8).
2. Connect the anode cable (W1) to the potentiostat.
3. Connect the potensiostat to a suitable 230 V wall
socket.
NOTE
The cable between the potentiostat and the
anode must either be extended or shortened.
LEK
LEK
W1
LEK
LEK
LEK
LEK
XL8 XL4 XL3 XL9 XL5
UA1
FR1
UA2
PF1
XL8 XL4 XL3 XL9
UA1
Sv PDB
UA2
Givarkabeldragning
Denna bild används för ?
XL8 W1
The figure shows VPB 200 E.
VPB/VPBSChapter 5 | Electrical installation14
5 Electrical installation

Filling and venting
Filling the hot water heater
1. Open a hot water tap in the house.
2. Fill the hot water heater through the cold water
connection (XL3).
3. When the water that comes out of the hot water
tap is no longer mixed with air, the water heater
is full and the tap can be closed.
Filling and venting the charge coil
Filling
1. Open the filling valve (external, not included with
the product). Fill the coil in the hot water heater
and the rest of the climate system with water.
2. Open the venting valve (QM22).
3. When the water that exits the venting valve
(QM22) is not mixed with air, close the valve. After
a while the pressure starts to rise.
4. Close the filling valve when the correct pressure is
obtained.
Venting
1. Vent the coil via the venting valve (QM22) and the
rest of the climate system via the relevant venting
valves.
2. Keep topping up and venting until all air has been
removed and the pressure is correct.
LEK
LEK
LEK
LEK
XL8 XL4 XL3 XL9 XL5
UA1
FR1
UA2
PF1
XL8 XL4 XL3 XL9
UA1
Sv PDB
UA2
Givarkabeldragning
Denna bild används för ?
XL3
QM22
The figure shows VPB 200.
15Chapter 6 | Commissioning and adjustingVPB/VPBS
6 Commissioning and adjusting

Start-up and inspection

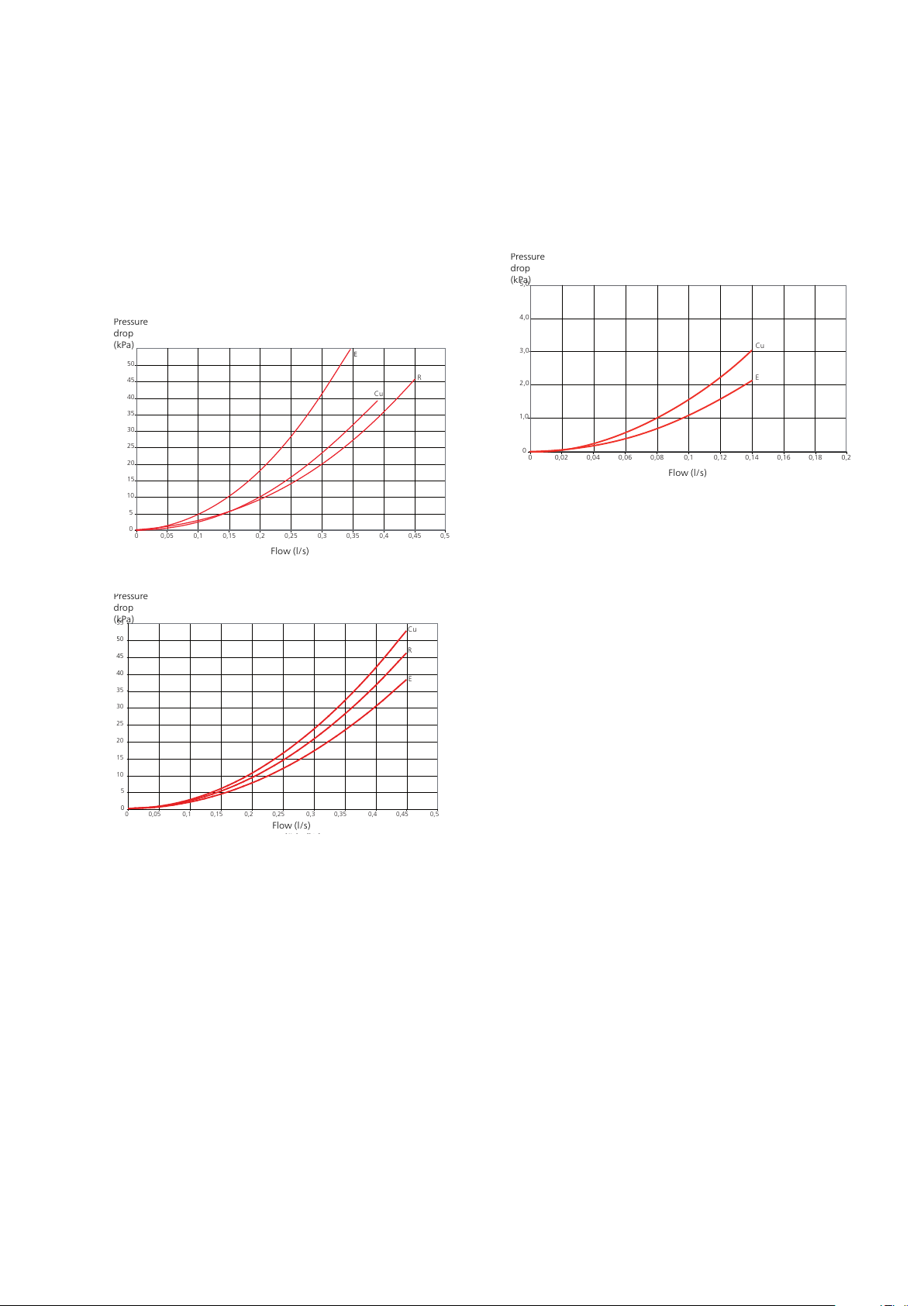

Pressure drop diagram, charge coil
Docking connection, flow line (XL8) and docking con-
nection, return line (XL9).
VPB 200
0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5
Flöde (l/s)
5
10
15
20
25
30
40
35
45
50
Tryckfall
(kPa)
0
0
Sv PBD
0,2 0,25 0,3 0,35 0,4 0,45 0,5
Flöde (l/s)
0 0,05 0,1 0,15
5
10
15
20
25
30
40
35
45
50
Tryckfall
(kPa)
0
E
Cu
Cu
R
Pressure
drop
(kPa)
Flow (l/s)
VPB 300 / VPBS 300
0
5
10
15
20
25
30
35
40
45
50
55
0 0,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5
Flöde (l/s)
Tryckfall
(kPa)
Cu
R
E
Pressure
drop
(kPa)
Flow (l/s)
Pressure drop diagram, solar coil
Connection, flow line solar heating system (XL13) and
connection, return line solar heating system (XL14).
VPBS 300
0,02 0,04 0,06 0,08 0,1 0,12 0,14 0,16 0,18 0,2
0
1,0
2,0
3,0
4,0
5,0
0
E
Cu
Pressure
drop
(kPa)
Flow (l/s)
VPB/VPBSChapter 6 | Commissioning and adjusting16

Service actions
Safety valve
The water heater's safety valve sometimes releases a
little water after hot water usage. This is because the
cold water, which enters the water heater to replace
the hot water, expands when heated causing the
pressure to rise and the safety valve to open.
The function of the safety valve must be checked regu-
larly. Perform checks as follows:
1. Open the valve by turning the knob anti-clockwise
carefully.
2. Check that water flows through the valve.
3. Close the valve by releasing it. If it does not close
automatically when released, turn it anti-clockwise
slightly.
Emptying
The water heater is emptied through the siphon (with
hose) in the cold water connection (XL3).
Drain the coil section through the siphon (with hose)
on the docking connection, return to heat pump (XL9).
Drain the solar coil through the siphon (with hose) on
the connection, return to solar heating system (XL14).
LEK
XL3 XL9
VPB 200/VPB 300
LEK
XL3 XL9 XL14
VPBS 300
17Chapter 7 | ServiceVPB/VPBS
7 Service

Dimensions and setting-out coordinates
600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
600
600
30
60
205
480
25
390
25-50 1775
80
560 440
VPB 300/VPBS 300
600
600
30
60
205
480
25
390
25-50 1475
80100
560 440
600
600
30
60
205
480
25
390
25-50 1775
80
560 440
VPB 200
600
600
30
60
205
135
535
480
25
390
25-50 1775
80
VPB/VPBSChapter 8 | Technical data18
8 Technical data
