Nibe VVM 310 User manual

User manual
APH
NIBE™ VVM 310
Indoor module
UHB GB 1338-3
231176

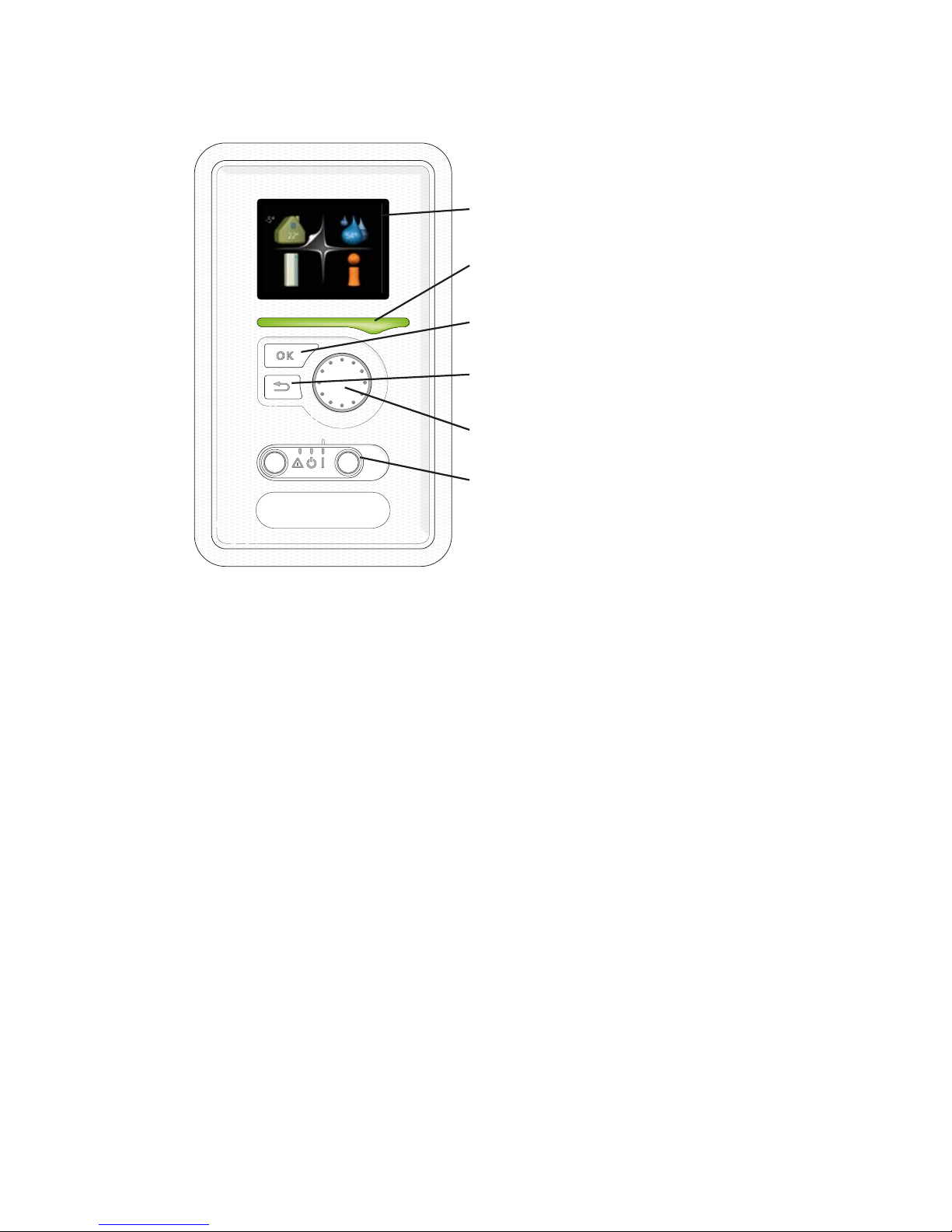

4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page
12.
How to scroll through menus and make different settings is described
on page 16.
6HW WKH LQGRRU FOLPDWH
;
0< ,167$//$7,21
,1'225 &/,0$7( +27 :$7(5
,1)2
The mode for setting the indoor temperature is reached, when in the
start mode in the main menu, by pressing the OK button twice. Read
more about the settings on page 25.
,QFUHDVH KRW ZDWHU YROXPH
;
; ,1'225 &/,0$7( +27 :$7(5
0< ,167$//$7,21 ,1)2
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button
twice. Read more about the settings on page 36.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page
58 for instructions.

Table of Contents
1 Important information 2
Important information 2
2 The heating installation – the heart of the
house 9
Installation function 10
Contact with VVM 310 11
Maintenance of VVM 310 21
3 VVM 310 – at your service 25
Set the indoor climate 25
Set the hot water capacity 36
Get information 40
Adjust the indoor module 43
4 Disturbances in comfort 56
Info-menu 56
Manage alarm 56
Troubleshooting 58
5 Technical data 60
6 Glossary 61
Item register 65
1NIBE™ VVM 310Table of Contents |

1Important information
Important information
Installation data
VVM 310Product
Serial number
Installation date
Installer
Accessories
✔
SetDe-
fault
set-
tings
NameNo.
0temperature (heating
curve offset)
1.1
9heating curve (curve
slope)
1.9.1
20min. flow line temp.1.9.3
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ VVM 310Chapter 1 | Important information2

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2013.
NOTE
VVM 310 must be installed via an isolator switch with
a minimum breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
MinMaxSystem pressure
0.01 MPa
(0.1 bar)
0.3 MPa
(3 bar)
Heating medium
0.01 MPa
(0.1 bar)
1.0 MPa
(10 bar)
Domestic water
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should ob-
serve when maintaining your installation.
3NIBE™ VVM 310Chapter 1 | Important information

TIP
This symbol indicates tips on how to facilitate using the product.
Marking
VVM 310 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
NIBE™ VVM 310Chapter 1 | Important information4

Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a fault.
5NIBE™ VVM 310Chapter 1 | Important information

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.volun-
dvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: [email protected] www.nibe.fi
AIT France, 10 rue des Moines, 67000 HaguenauFR
Tel : [phone] Fax : [phone] E-mail: inf[email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk,
0516 Oslo
NO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeen-
ergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: inf[email protected] www.nibe-evan.ru
NIBE™ VVM 310Chapter 1 | Important information6

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected]
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
7NIBE™ VVM 310Chapter 1 | Important information

VVM 310 - An excellent choice
VVM 310 is part of a new generation of products, which have been intro-
duced to supply your home with inexpensive and environmentally friendly
heating. Heat production is safe and economical with integrated hot water
coil, immersion heater, circulation pumps and control system.
The indoor module can be connected to an optional low temperature
heat distribution system, e.g. radiators, convectors or underfloor heating.
It is also prepared for connection to a number of different products and
accessories, e.g. solar or other external heat source, extra water heater,
swimming pool and climate systems with different temperatures.
VVM 310 is equipped with a control computer for good comfort, good
economy and safe operation. Clear information about status, operating
time and all temperatures in the system is shown on the large and easy to
read display. This means, for example, that external unit thermometers
are not necessary.
Excellent properties for VVM 310:
႑Coil for hot water
There is a stainless steel hot water coil integrated in the indoor module.
The water in the coil is heated by the hot water in the surrounding tank.
႑Buffer vessel
There is a buffer vessel integrated in the indoor module that equalises
the temperature of the water that is sent out in the climate system.
႑Scheduling the indoor comfort and hot water
Heating and hot water can be scheduled for each day of the week or
for longer periods (vacation).
႑Large display with user instructions
The indoor module has a large display with easy-to-understand menus
that facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the indoor module display shows what happened
and the actions to be taken.
႑Easy to install
The indoor module is easy to install together with NIBE F20XX or another
air water heat pump. When installing together with F20XX the heat
pump's values can be read off from the indoor module's display.
႑External heat source
VVM 310 is prepared for easy connection to a solar panel installation
and/or oil/gas/ wood fired boiler and district heating.
NIBE™ VVM 310Chapter 1 | Important information8

2The heating installation – the
heart of the house
Förångare
Kondensor 80 °C
2 °C-3 °C
0 °C-7 °C
Expansionsventil Kompressor
A
D
F
B
C
E
Värmebärare
Köldmedium
Uteluft
55 °C45 °C
H
I
I
G
+HDWLQJ PHGLXP
2XWGRRU DLU
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH 


The temperatures are only examples and may vary between different installations and
time of year.
9NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house

Installation function
An air/water-heat pump installation exploits outdoor air to heat up accom-
modation. The conversion of the outdoor air's energy to accommodation
heating occurs in three different circuits. *From the outdoor air, (1) , free
heat energy is retrieved and transported to the heat pump. In the refriger-
ant circuit, (2) the heat pump increases the retrieved heat's low temper-
ature to a high temperature. In the heating medium circuit, (3) the heat
is distributed around the house.
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air releases
the heating energy to the refrigerant and the air's temperature drops. The
cold air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which also
passes the evaporator. The refrigerant has a very low boiling point. In the
evaporator the refrigerant receives the heat energy from the outdoor air and
starts to boil.
C
The gas that is produced during boiling is routed into an electrically powered
compressor. When the gas is compressed, the pressure increases and the gas's
temperature increases considerably, from 0 °C to approx 80 °C.
D
From the compressor, gas is forced into a heat exchanger, condenser, where
it releases heat energy to the indoor module, whereupon the gas is cooled
and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve, where
the pressure drops so that the refrigerant returns to its original temperature.
The refrigerant has now completed a full cycle. It is routed to the evaporator
again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the indoor module's water, the heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heat energy to the house radiators/heating coils.
H
The indoor module's integrated hot water heater is in the boiler section. The
hot boiler water heats the hot water.
I
The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house10

Contact with VVM 310
External information
When the indoor module door is closed, information can be received via
an information window and a status lamp.
,QIRUPDWLRQ ZLQGRZ
6WDWXV ODPS
Information window
The information window shows part of the display that is on the display
unit (located behind the door to the indoor module). The information
window can display different types of information, e.g. temperatures,
clock, etc.
You determine what is to be displayed in the information window. Your
own combination of information is entered using the display unit. This
information is specific to the information window and disappears when
the front hatch of the indoor module door is opened.
Instructions on how to set the information window can be found on page
50.
Status lamp
The status lamp indicates the status of the indoor module: continuous
green light during normal function, continuous yellow light during activ-
ated emergency mode or continuous red light in the event of a deployed
alarm.
Alarm management is described on page 56.
11NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house

Display unit
$
%
&
'
(
)
'LVSOD\
6WDWXV ODPS
2. EXWWRQ
%DFN EXWWRQ
&RQWURO NQRE
6ZLWFK
,1'225 &/,0$7(
0< 6<67(0 ,1)2
+27 :$7(5
990 
There is a display unit behind the indoor module door, which is used to
communicate with VVM 310. Here you:
႑switch on, switch off or set the installation to emergency mode.
႑set the indoor climate and hot water as well as adjust the installation to
your needs.
႑receive information about settings, status and events.
႑see different types of alarms and receive instructions about how they
are to be rectified.
Display
Instructions, settings and operational information are shown on
the display. The easy-to-read display and menu system, facilitates
navigation between the different menus and options to set the
comfort or obtain the information you require.
A
Status lamp
The status lamp indicates the status of the indoor module. It:
႑lights green during normal operation.
႑lights yellow in emergency mode.
႑lights red in the event of a deployed alarm.
B
NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house12

OK button
The OK button is used to:
႑confirm selections of sub menus/options/set values/page in
the start guide.
C
Back button
The back button is used to:
႑go back to the previous menu.
႑change a setting that has not been confirmed.
D
Control knob
The control knob can be turned to the right or left. You can:
႑scroll in menus and between options.
႑increase and decrease the values.
႑change page in multiple page instructions (for example help
text and service info).
E
Switch
The switch assumes three positions:
႑On ()
႑Standby ( )
႑Emergency mode ( )
Emergency mode must only be used in the event of a fault on the
indoor module. In this mode, the compressor switches off and the
immersion heater engages. The indoor module display is not illumin-
ated and the status lamp illuminates yellow.
F
13NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house

Menu system
When the door to the indoor module is opened, the menu system’s four
main menus are shown in the display as well as certain basic information.
,1'225 &/,0$7(
0< 6<67(0 ,1)2
+27 :$7(5
,QGRRU WHPSHUDWXUH  LI URRP VHQVRUV DUH LQVWDOOHG
+RW ZDWHU WHPS
7HPSRUDU\ OX[ LI
DFWLYDWHG
2XWGRRU
WHPSHUDWXUH
(VWLPDWHG DPRXQW RI
KRW ZDWHU
,QIRUPDWLRQ DERXW
RSHUDWLRQ
INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 25.
Menu 1
HOT WATER
Setting and scheduling hot water production. See page 36.
Menu 2
INFO
Display of temperature and other operating information and access to
the alarm log. See page 40.
Menu 3
MY SYSTEM
Setting time, date, language, display, operating mode etc. See page 43.
Menu 4
NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house14

Symbols in the display
The following symbols can appear in the display during operation.
DescriptionSymbol
This symbol appears by the information sign if there is inform-
ation in menu 3.1 that you should note.
These two symbols indicate whether the compressor in the
outdoor unit or additional heat is blocked in VVM 310.
These can, for example, be blocked depending on which op-
erating mode is selected in menu 4.2, if blocking is scheduled
in menu 4.9.5 or if an alarm has occurred that blocks one of
them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if lux mode for the hot water is activated.
This symbol indicates whether VVM 310 has contact with NIBE
Uplink™.
This symbol indicates whether solar heating is active.
Accessory needed.
This symbol indicates whether "holiday setting" is activated
in menu 4.7.
15NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house

,1'225 &/,0$7(
0< 6<67(0 ,1)2
+27 :$7(5
WHPSHUDWXUH
,1'225 &/,0$7( 
DGYDQFHG
VFKHGXOLQJ RII
0DUNHG PDLQ
PHQX
0HQX QXPEHU ದ PDUNHG VXE PHQX 1DPH DQG PHQX QXPEHU ದ PDLQ PHQX
6\PERO ದ
PDLQ PHQX
6WDWXV LQIRUPDWLRQ ದ VXE
PHQXV
1DPH ದ VXE PHQXV6\PEROV ದ VXE PHQXV
Operation
To move the cursor, turn the control knob to the left or the right.
The marked position is brighter and/or has a turned up tab.
Selecting menu
To advance in the menu system select a main menu by marking
it and then pressing the OK button. A new window then opens with sub
menus.
Select one of the sub menus by marking it and then pressing the OK button.
NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house16

Selecting options
HFRQRP\
FRPIRUW PRGH 
QRUPDO
OX[XU\
$OWHUQDWLYH
In an options menu the current selected option is indicated by a green
tick.
To select another option:
1. Mark the applicable option. One of the options is pre-selected
(white).
2. Press the OK button to confirm the selected option. The selected
option has a green tick.
17NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house

Setting a value
time & date4.4
time
day
year
month
24 hrs
12 h
date
Values to be changed
To set a value:
1. Mark the value you want to set using the control knob.
2. Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
3. Turn the control knob to the right to increase the value and to
the left to reduce the value.
4. Press the OK button to confirm the value you have set. To change
and return to the original value, press the Back button.
NIBE™ VVM 310Chapter 2 | The heating installation – the heart of the house18
