Nieco 950E User manual

AUTOMATIC
FOODSERVICE
EQUIPMENT
AUTOMATIC ELECTRIC
BROILER
MODELS 950E and 930E
OWNER’S MANUAL
IMPORTANT: RETAIN THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
Broiler area must be kept free of combustible materials, and the flow of combustion and ventilation air must not
be obstructed. Operating personnel must not perform any maintenance or repair functions. Contact your Nieco
Authorized Dealer.
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.

2
TABLE OF CONTENTS
A. Machine Installation ...........................................................................................3
Pre-Installation
Mounting
Hood Requirements
Clearance
Electrical Connection
Pre-Operation Check
B. Operation.............................................................................................................4
Controls and Indicators
Broil Stabilizer Control
Conveyor Belt Speed
Step-by-Step Starting Procedure
Shutdown Procedure
C. Assembly/Disassembly and Cleaning ..............................................................7
D. Periodic Maintenance.........................................................................................9
E. Conveyor Belt Removal......................................................................................10
F. Conveyor Belt Tension.......................................................................................11
Broil Belt Problems
G. Parts and Location .............................................................................................12
950
930
H. Trouble Shooting Guide.....................................................................................18
I. Wiring Diagram ...................................................................................................20
950 Domestic U.S.A.
950 Export
930 Domestic U.S.A.
930 Export

4
A. INSTALLATION
PRE-INSTALLATION
Uncrate the broiler, and inspect for shipping damage. Contact the factory if there is obvious damage. Remove
the tape securing the machine parts, and install the parts in their proper location. Refer to the Parts and
Location section of this manual. If you find concealed damage to any part of this unit, contact your freight carri-
er immediately. The factory warranty does not cover freight damage.
MOUNTING
If the broiler was shipped with a tubular stand, refer to separate tubular stand assembly instructions.
Note: The four legs of the broiler stand are equipped with casters. Always set the brakes on the cast-
ers to prevent the broiler from shifting during operation or cleaning.
Adjust the legs on the broiler and the stand so that the broiler is level.
HOOD REQUIREMENTS
This appliance must be installed under a ventilation hood of adequate size and capacity:
Model 950 800 CFM (1020 CMH)
Model 930 600 CFM (760 CMH)
The hood should be at least 6" (15.2 cm) larger in all dimensions than the appliance top, and be 12" to 18"
(30.5 cm - 45.7 cm) above the top. Do not obstruct the flow of combustion and ventilation air. An adequate air
supply must be available for safe and proper operation.
Note: See the National Fire Prevention Association booklet on ventilation of cooking equipment. Write
to: NFPA, 470 Atlantic Ave., Boston, MA 02210. Local codes on venting must also be complied with.
CLEARANCE
For proper installation, the minimum clearance from combustible and non-combustible construction is 6" (15.2
cm) from the back and 6" (15.2 cm) from the front of the machine. Keep appliance area free from com-
bustibles.
To facilitate disassembly and service of the unit a minimum of 24" (61 cm) should be allowed on the front of
the broiler as well as the left side.
ELECTRICAL CONNECTION
Power requirements are stated on the unit nameplate and must be connected accordingly. Before starting
broiler, tighten all electrical connections in control box.
Note: This appliance must be electrically grounded in accordance with local codes or in the absence
of local codes, the National Electrical Code, ANSI/NFPA No. 70-1990. In Canada, in accordance with
the Canadian Electrical Code CSA 22.1 part 1, or local codes.
WARNING: This appliance should be connected with a five-pronged grounding plug for your
protection against shock hazard. Be sure to plug directly into a properly grounded five-prong
receptacle. Do not cut or remove grounding prong from plug.
Note: This appliance cannot be safely operated in the event of a power failure. No attempt should be
made to operate during a power failure. Disconnect power supply before servicing.
PRE-OPERATION CHECK
Be sure that all parts are installed in the proper location. Refer to OPERATION section for lighting procedure.
Start broiler and test for proper operation.

4
B. OPERATION

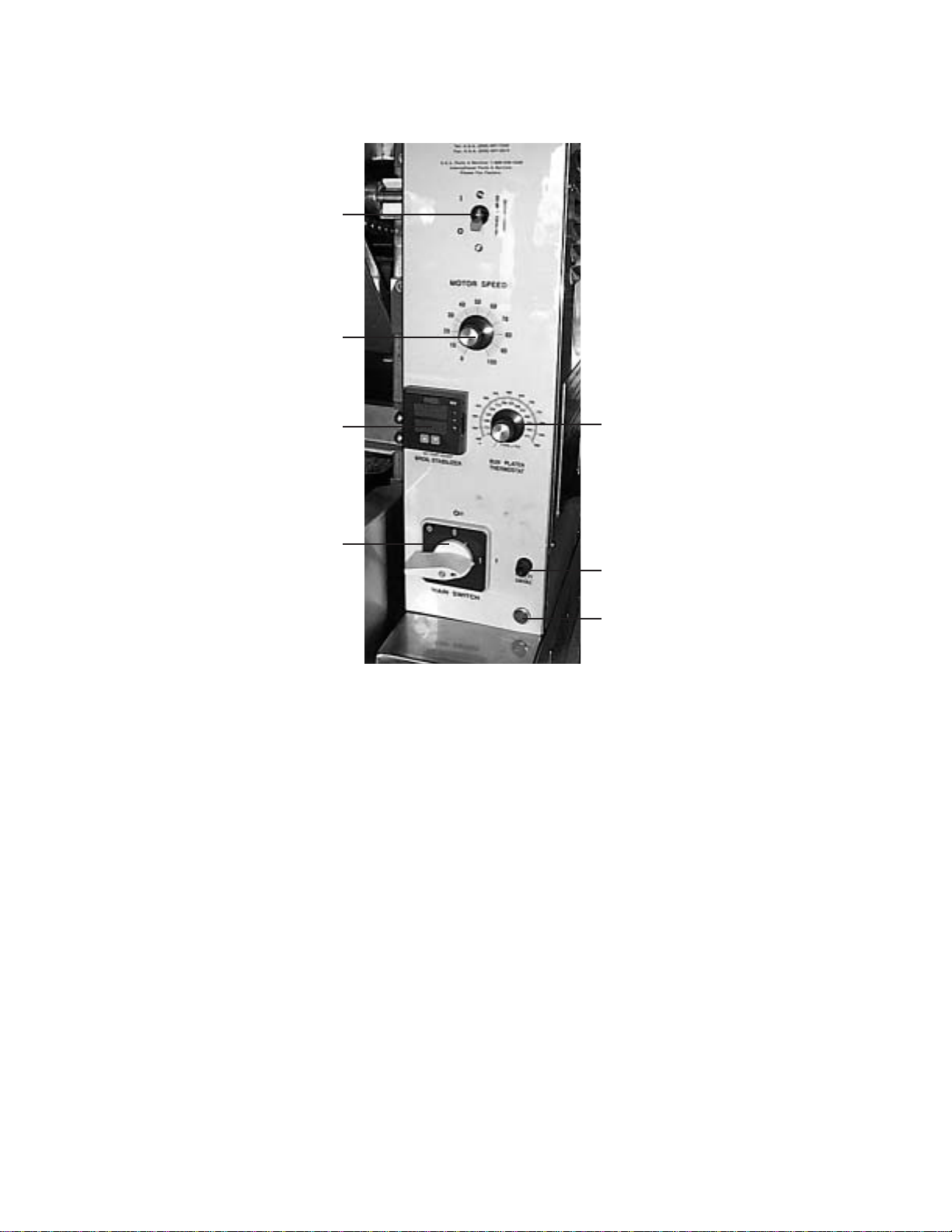

CONTROLS AND INDICATORS
CALIBRATING THE BROIL STABILIZER CONTROL
The 950 & 930 Electric broilers are equipped with a Broil Stabilizer Control that senses when the broiler is
cooking, and increases the temperature when in use. Refer to calibration instructions in this manual or on
the metal label plate on the control box of the broiler. The red light on the control may flash during normal
operation. No daily adjustment of the Broil Stabilizer Control is necessary.
FOOD PRODUCT SAFETY
The Nieco broiler is designed to cook food consistently. Careful setting of the conveyor belt speed is
necessary for proper performance. Always test the product to be sure it is cooked properly every
day. Follow established guidelines for food safety and handling.
1. Motor Breaker Switch
2. Motor Speed Control
3. Broil Stabilizer Control
Top Number = Actual Temperature
Bottom Number = Set Temperature
4. Main Power On/Off Switch
5. Bun Platen Thermostat
7. Main Power Indicator
Light (Red)
6. 5-Amp Fuse

5
BROIL TEMPERATURE STABILIZER CONTROL
Electric broilers are equipped with a Broil Temperature Stabilizer Control that senses when the
broiler is being used, and adjusts the temperature to keep the broiler hot during heavy use.
The control consists of two parts - a temperature probe to sense the internal temperature of
the broiler, and the control itself.
CALIBRATING THE BROIL STABILIZER CONTROL
In order to assure proper operation, the Broil Stabilizer Control must be calibrated for operation
in the restaurant. Every broiler will calibrate slightly differently, depending on supply voltage,
ventilation, etc. Follow these step by step instructions when the broiler is new, and once per
month after.
Step 1: Be sure all pieces of the broiler are in place. Make sure the broiler is plugged in and
the exhaust hood is turned on. Turn the broiler on by turning the main power switch to
the right. Turn on the conveyor belts using the motor breaker switch.
Step 2: Set the temperature (bottom number) to 200° F. Use the up or down arrows on the con-
trol to set the temperature. The bottom number is the set temperature and the top num-
ber is the actual temperature.
Step 3: Allow the broiler to heat up for 40 minutes. During this time, the actual temperature will
climb. Wait until the actual temperature stabilizes before proceeding.
Step 4: Set the ATC (bottom number) to 200° F higher than the actual temperature. For exam-
ple, if the broiler stabilizes at 700° F, then the proper setting should be 900° F.
WARNING
The broiler can be damaged if this control is not set according to instructions.
TROUBLE SHOOTING ERROR MESSAGES
Message Action
ER 4 Turn power on and off several times. If the message remains, replace control. If
the message disappears, the control may need to be reprogrammed. Call Nieco
or your local distributor for instructions.
ER 6 Cycle power on and off several times. If message remains, replace temperature
probe (P/N 4073).

6
STEP-BY-STEP STARTING PROCEDURE
Before starting broiler, be sure that all parts are installed in the proper location, and the ventilation hood is turned on.
1. Turn on Main Power Switch (A).
2. Turn on Motor Switch (B).
3. Set Motor Speed Control knob to desired
setting (C).
4. Set the Bun Platen Thermostat to the desired
setting (D). Use a setting of 230° C (450° F)
to start.
Allow the broiler 30 minutes to warm-up.
NOTE: FOR INITIAL START-UP REFER TO THE
BROIL STABILIZER CALIBRATION
INSTRUCTIONS.
(A) (B)
(C) (D)
SHUTDOWN PROCEDURE
For EMERGENCY Shutdown, turn the Main Power Switch off. Turn switch counter-clockwise.
For planned shutdowns, perform the following procedure:
1. Clear machine of all food products.
2. Turn Main Power Switch off.
3. Turn Motor Switch off.
CAUTION: Always turn machine completely off before unplugging power cord.
CAUTION: Allow machine to cool before removing any parts.

7
1. Remove the Side Panels by lifting up and
off (A). Wipe clean with a degreaser.
FROM THE FEED END OF THE BROILER
2. Remove the Incendalyst Awning by releas-
ing the finger tabs (B).
2. Remove the Patty Feeder by lifting up and
out (C). Clean daily by using soap and
water.
3. Remove the Grease Pan by sliding it out the
front (D). Clean daily by using soap and
water.
4. Remove the Belt Scraper (E). Notice the
position it sits in before removing, so that
you can replace it properly. Clean daily by
using soap and water or degreaser.
5. Scrape the shafts with the special tool pro-
vided or with a flat head screwdriver (F).
6. Remove the Lower Heat Reflector (G).
7. Remove the Crumb Tray (H).
C. ASSEMBLY / DISASSEMBLY AND CLEANING
TURN OFF POWER BEFORE BEGINNING CLEANING AND DISASSEMBLY
Clear machine of all food products. Allow the machine to run empty for ten minutes in order to burn off the residue on the
belt. Turn Main Power and Motor switches off. Allow the machine to cool before beginning disassembly.
(A) (B)
(C) (D)
(E) (F)
(G) (H)
D.1 Daily Cleaning

8
FROM THE LEFT SIDE OF THE BROILER
8. Remove the Left Side Panel (I).
9. Remove the Grease Chute and Grease Pan
(J).
FROM THE DISCHARGE END
10. Remove Discharge End Incendalyst Awning
(K).
11. Remove the Stripper Blade (L)- NOTE:
Lower Heat Reflector must be slid forward
or removed in order to remove the Stripper
Blade.
12. Remove the Patty Catch Pan and Insert
(M).
13. Remove the Bun Blade (N).
FROM THE TOP OF THE BROILER
14. Remove the Upper Heat Reflectors (O).
Clean all parts using ONLY a Burger King
approved degreasing agent. Sanitize all food
contact parts.
(I) (J)
(K) (L)
(M) (N)
(O)

9
D. PERIODIC MAINTENANCE
Note: Maintenance should be performed by authorized personnel only. Always disconnect the power
before performing any maintenance on the broiler.
Check the heating elements periodically for signs of wear. Rotating the top and bottom elements every 6 months
will increase the life of the elements, and improve the performance of the broiler.
The motor uses carbon brushes that will eventually wear out. Replace the brushes if there is excessive noise or
erratic performance from the motor.
Variations in supply voltage can affect the temperature of the broiler. Overfired elements can cause performance
problems and warping. Heating elements are available in different voltages, so adjustments to cooking perfor-
mance are made by using different voltage elements. Contact your distributor for more information.
Always keep the control box clean and free of grease. Do not spray anything on the controls.

10

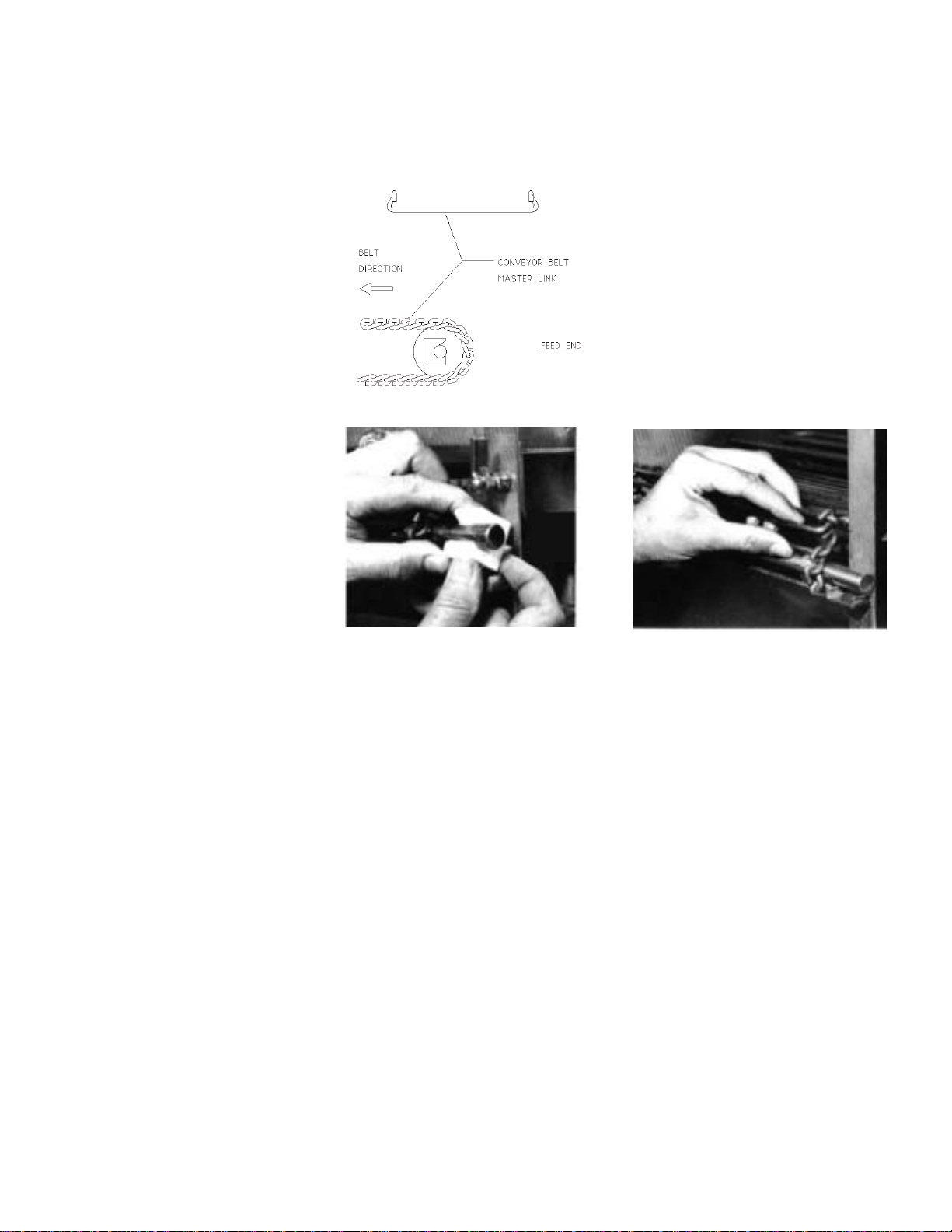

E. CONVEYOR BELT REMOVAL
Before beginning, notice the way the belt runs through the broiler. Also notice the direction the knuckles face. Be sure
to re-assemble in the same way.
1. Run belt until the Master Link is 1 near the front idler shaft.
2. Lift shaft and Teflon Blocks up, 2 3
and slide the blocks out.
3. Unhook the Master Link.
To reassemble, reverse the procedure. Be sure to reassemble the belt with the knuckle opening facing away from the
direction of travel.

11
F. CONVEYOR BELT TENSION
Maintain proper tension on the conveyor belts to prevent jamming. Bearing spacers (pictured below) are
supplied with the broiler to make minor tension adjustments. Major tension adjustments are made by
removing a link or links from the belt.
The diagram on the left shows the spacer in the stored position. The diagram on the right shows the
spacer behind the teflon bearing tightening the belts.
Belt tension should be checked monthly. To do this, allow the machine to cool, then grip the idler shaft at
each end and pull on it. If the shaft and bearings move 3/16” or more, the spacers should be placed
behind the bearings to tighten the belts. If the spacers are already behind the bearings, return them to
the stored position and remove a link from the conveyor belt.
BROIL BELT PROBLEMS
Interference with stripper blade:
The most common belt problem to be expected is the physical interference of the belt with the stripper
blade. This is caused by bent or warped rods, or loose belt, and can be fixed by replacing the rods that
are causing the problem. Other causes are bent stripper blades, or utensils jammed in the belt.
Blocked belts:
When trouble shooting drive problems, it is important to ensure that the belt is not being blocked. To do
this, detach the drive chain and turn the meat belt by hand. The belt, with the motor detached, should
turn freely and easily. If the blockage has occurred which is preventing the belt from turning, the block-
age should be removed before the drive chain is re-attached. The drive chain can be easily removed
from the drive sprocket (on the motor shaft) by loosening the mounting bolts and raising the motor.

12

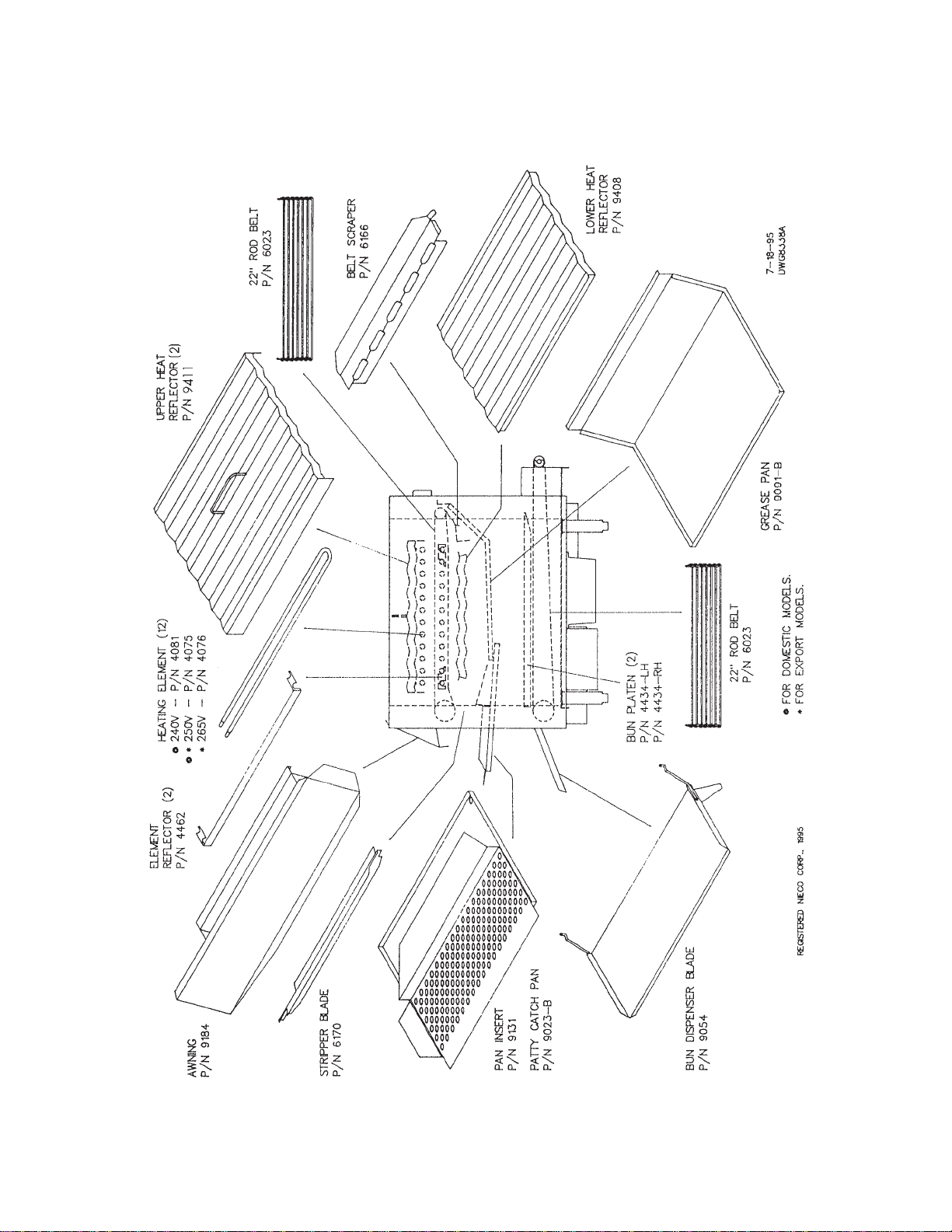

G. PARTS AND LOCATION
Models 950 Electric - Feed End View

13
PARTS AND LOCATION
Models 950 Electric - Left Side View

14
PARTS AND LOCATION
Models 950 Electric - Right Side View

15
PARTS AND LOCATION
Models 930 Electric - Feed End View

16
PARTS AND LOCATION
Models 930 Electric - Left Side View

17
PARTS AND LOCATION
Models 930 Electric - Right Side View

18
H. TROUBLE SHOOTING GUIDE
Identify the problem in the left column, and look for probable causes and solutions in the right hand columns. Probable
causes are listed in “most likely to happen” order. This sequence should be used to isolate the problem. Once the cause
is found, refer to OPERATION and PARTS AND LOCATION sections for explanation of function or repair part needed.
Wiring diagram is located inside electrical control box cover.
PROBLEM PROBABLE CAUSE SOLUTION
1. All elements go out or fail
to heat up.
2. Some elements are on,
but others refuse to heat.
3. Elements appear hotter or
colder than usual.
4. Bun Platen won’t heat.
5. Conveyor belts won’t
advance.
6. Motor control switch
trips.
1. Unit not plugged in properly.
2. Breaker switch on wall panel tripped.
3. Broiler circuit breakers tripped.
4. Broiler on/off switch defective.
1. Defective element.
2. Circuit breaker tripped.
3. Loose or broken wire.
1. Supply voltage is different than the ele-
ment ratings.
1. Unit not plugged in properly.
2. Wall circuit breaker tripped.
3. Defective thermostat/temperature con-
troller or relay contactor.
4. Loose or broken wire.
5. Temperature set too low.
1. Conveyor belt jammed.
2. Machine not plugged in properly.
3. Wall circuit breaker tripped.
4. Motor control switch off.
5. Motor speed dial turned to zero.
6. SCR unplugged or defective.
7. Drive chain broken.
8. Drive sprocket loose.
9. Gear motor defective.
10. Speed pot defective.
11. Loose or broken wire.
12. Motor unplugged.
13. Defective plug or receptacle.
1. Conveyor chains jammed.
2. SCR defective.
3. Motor brushes worn out.
4. Drive chain binding.
5. Shorted wire to motor.
6. Motor defective.
7. Switch defective.
1. Plug in properly.
2. Reset circuit breaker.
3. Reset circuit breaker inside control box.
4. Replace.
1. Replace.
2. Reset.
3. Check all wires. Tighten or replace.
1. Correct supply voltage or install ele-
ments that are rated for the supply volt-
age.
1. Plug in properly.
2. Reset circuit breaker.
3. Replace.
4. Check all wires. Tighten or replace.
5. Increase setting on digital display.
1. Remove jam. Reset motor switch.
2. Plug in properly.
3. Reset circuit breaker.
4. Turn on.
5. Increase setting.
6. Plug in or replace.
7. Repair or replace.
8 Tighten set screw on the sprocket.
9. Replace.
10. Replace.
11. Check all wires. Tighten or replace.
12. Plug in. Check for grease or dirt in the
socket.
13. Replace. Motor can be wired directly to
SCR base.
1. Remove jam. Reset motor switch.
2. Replace.
3. Replace.
4. Adjust chain tension. Lubricate.
5. Repair wire.
6. Replace.
7. Replace.

19
PROBLEM PROBABLE CAUSE SOLUTION
7. Conveyor speeds are
erratic.
8. Broiled product over or
under cooked.
9. Broiled product sticks to
conveyor belt.
10. Inconsistent broil.
11. Broiler frame or parts
warping.
1. SCR loose or defective.
2. Speed control pot defective.
3. Drive chain binding.
4. Gear motor defective.
5. Loose drive sprockets.
1. Wrong conveyor belt speed.
2. Incorrect elements installed.
1. Stripper blades not adjusted or installed
properly.
2. Product under broiled.
3. Elements too cool.
4. Heat reflectors not installed or installed
improperly.
1. Conveyor speed erratic.
2. Incoming product temperature erratic.
3. Air condition vent blowing on broiler.
4. Erratic voltage supply.
5. Supply voltage incorrect.
6. Broil Stabilizer Control failure.
1. Elements too hot.
1. Plug in or replace.
2. Replace.
3. Adjust chain tension. Lubricate.
4. Replace.
5. Tighten set screws on sprocket.
1. Adjust motor speed.
2. Match the voltage rating of the elements
to the supply voltage.
1. Adjust or install properly.
2. Decrease motor speed.
3. Check elements.
4. Refer to Parts & Location section for
proper placement of reflectors.
1. See #7 above.
2. Check freezers for proper operation.
3. Redirect air away from broiler.
4. Check supply. Contact electric company
if there are problems.
5. Match the supply voltage with the ele-
ment ratings.
6. Check probe and control.
1. Match supply voltage to element rating
plate on the broiler.

20
I. WIRING DIAGRAM
Model 950 Electric / Domestic (U.S.A.)
