CONTENTS
English
Introduction
Read this First......................................................................4
SAFETY AND OPERATION PRECAUTIONS..................5
Getting to know the Laser Rangefinder
Key features..........................................................................8

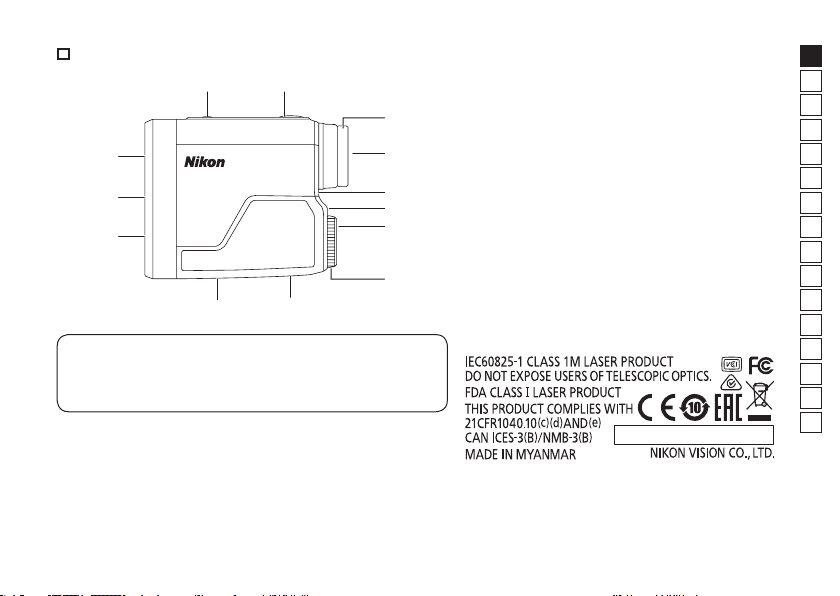

Nomenclature/Composition..........................................9

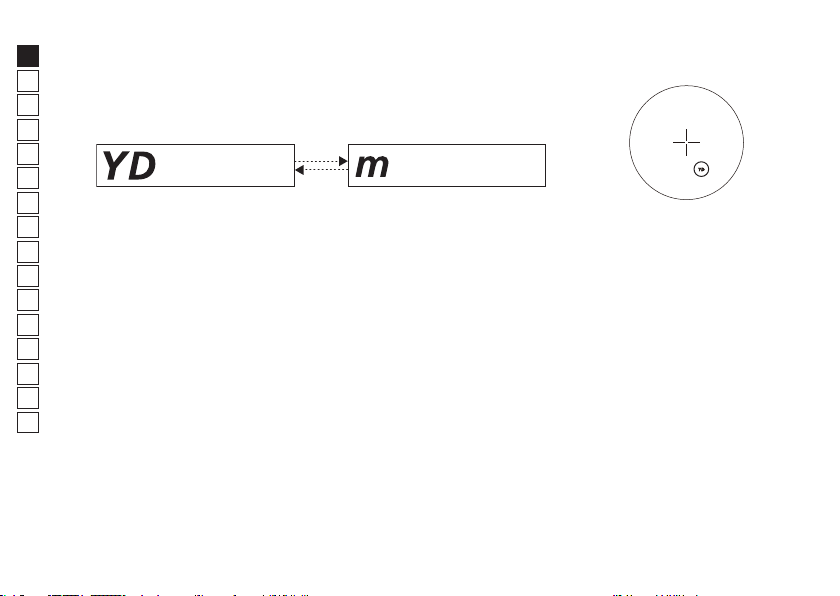

Internal display ................................................................ 10
Inserting/Replacing battery
Type of battery................................................................. 11
Inserting/Replacing battery........................................ 11

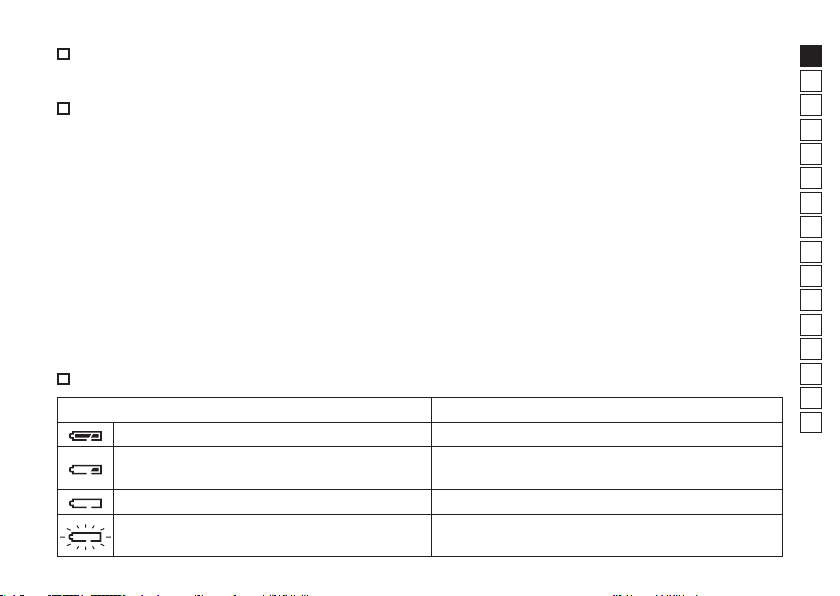

Battery level indicator ................................................... 11
Changing the distance display unit........................ 12
Measurement
Adjusting the focus of the internal display............ 13
Measuring.......................................................................... 13
Single measurement...................................................... 14
Continuous measurement........................................... 15
Technical notes
Specifications ................................................................... 16
Troubleshooting/Repair ............................................... 18
English

4
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
Introduction
 Read this First
Thank you for purchasing the Nikon Laser Rangefinder COOLSHOT 20 GII.
Before using the product, read this manual thoroughly to ensure proper use.
After reading this manual, keep it in a readily accessible place for future reference.
lAbout the manual
• No part of the manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without Nikon’s prior written permission.
• Illustrations and display content shown in this manual may differ from the actual product.
• Nikon will not be held liable for any errors this manual may contain.
• The appearance, specifications, and capabilities of this product are subject to change without notice.
lAbout controls for radio interference
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Notice for customers in Canada
CAN ICES-3(B)/NMB-3(B)

5
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 SAFETY AND OPERATION PRECAUTIONS
Strictly observe the guidelines
contained in this manual in
order to use this product safely
and prevent possible injury or
property damage to you and
others. Understand the contents
thoroughly for correct use of the
product.
WARNING
This indicates that improper use by
ignoring the contents described
herein can result in potential death
or serious injury.
CAUTION
This indicates that improper use by
ignoring the contents described
herein can result in potential injury
or material loss.
SAFETY PRECAUTIONS (Laser)
This product uses an invisible laser
beam. Be sure to observe the
following:
WARNING
• Do not press the PWR button while
looking into the laser emission
aperture. You may damage your
eyes.
• Do not aim at eyes.
• Do not point the laser at people.
• Do not look at lasers with other
optical instruments such as lenses
or binoculars. You may damage
your eyes.
• When not measuring, keep your
fingers away from the PWR button
to avoid accidentally emitting the
laser.
• When not in use for an extended
period, remove the battery.
• Do not disassemble, remodel, or
repair the product. The laser
emission may be harmful to your
health. If the product is
disassembled, remodeled, or
repaired, it is no longer
guaranteed by the manufacturer.
• Store the product in a place out of
reach of children.
SAFETY PRECAUTIONS
(Monocular)
WARNING
• Never look directly at the sun,
intense light, or lasers while using
this product. It may seriously
damage the eyes or cause
blindness.
CAUTION
• Keep the plastic bag used to wrap
this product or other small parts
out of reach of children. The bag
may block their mouths and noses
and cause them to suffocate.
• Be careful of children inadvertently
swallowing small parts or
accessories. If children swallow
such parts, see a doctor
immediately.
• Turn off this product when not in
use.
• When carrying this product, store
it in the case.
• If this product fails to operate
correctly for any reason,
discontinue use immediately and
consult with a Nikon authorized
service representative.

6
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
• Do not leave this product in an
unstable place. It may fall and
cause injury or malfunction.
• Do not use this product while
walking. You may walk into
something or fall and cause injury
or malfunction.
• Do not swing this product by the
strap.You may hit others and
cause injury.
• The rubber parts of this product
(such as the eyecup) or rubber
parts of the included case and
strap may deteriorate if used or
stored for a long period of time.
The deteriorated rubber may
attach on clothes and cause stains.
Check their condition before use,
and consult with a Nikon
authorized service representative
if a defect is found.
• Using the rubber eyecup for
extended periods of time may
cause skin inflammation. If you
develop any symptoms, stop use
and see a doctor immediately.
PRECAUTIONS
(Lithium battery)
Incorrect use may cause the lithium
battery to rupture or leak, which will
corrode the device or stain your
hands and clothing.
Be sure to observe the following:
• Install the battery with the + and
– poles positioned correctly.
• Remove the battery when this is
depleted or will not be used for
extended periods.
• Keep the battery away from fire or
water. Never disassemble the
battery.
• Do not charge the lithium battery.
• Do not short the terminal of the
battery chamber.
• Do not carry the battery together
with keys or coins in a pocket or
bag. You may short the battery and
cause overheating.
• If liquid leaked from the lithium
battery comes into contact with
clothing or skin, rinse with plenty
of water. If it enters the eyes or
mouth, rinse with water and
consult a doctor immediately.
• When disposing of the lithium
battery, follow your local area
regulations.
HANDLING AND OPERATION
PRECAUTIONS
• Do not subject this product to
physical shock.
• If you accidentally apply strong
physical shock or drop the product
and suspect a malfunction, consult
with your local dealer or a Nikon
authorized service representative
immediately.
• Do not use the product
underwater.
• Wipe off any rain, water, sand, or
mud on the product as soon as
possible with a soft, clean cloth.
• When this product is exposed to
extreme temperature changes
(suddenly brought from a cold
place to a warm place or vice-
versa), the lens surfaces may get
cloudy. Do not use the product
until the cloudiness has
disappeared.
• Do not leave the product in a car
on a hot or sunny day, or near heat
generating equipment.

7
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
• Do not leave the
eyepiece in direct
sunlight. The
condenser effect of
the lens may
damage the internal
display surface.
CARE AND MAINTENANCE
PRECAUTIONS
LENS
Be careful that you do not directly
touch the lens surface with your
hands when cleaning it. Remove
dust or lint with a blower*. For
fingerprints or other stains that
cannot be removed with a blower,
wipe the lens with a dry soft cloth or
cleaning cloth for eyeglasses, using a
spiral motion that starts at the center
of the lens and working towards the
edges. Wiping too firmly or wiping
with a hard material may damage
the lens. If this fails, gently wipe the
lens using a cloth lightly dampened
with commercial lens cleaner.
MAIN BODY
After gently removing dust with a
blower, clean the body surface with a
soft, clean cloth. After use at a
seaside, wipe off salt that may be on
the body surface with a damp, soft,
clean cloth, and then wipe with a dry
cloth. Do not use benzene, thinner,
or other cleaners containing organic
solvents.
STORAGE
Water condensation or mold may
occur on lens surfaces because of
high humidity. Therefore, store the
product in a cool, dry place. After use
on a rainy day or at night, thoroughly
dry it at room temperature, then
store in a cool, dry place.
* A rubber cleaning tool that blows
air from a nozzle.
En Symbol for separate collection applicable
in European countries
This symbol indicates that this battery is
to be collected separately.
The following apply only to users in
European countries.
• This battery is designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.
En Symbol for separate collection applicable
in European countries
This symbol indicates that this product is
to be collected separately.
The following apply only to users in
European countries.
• This product is designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.

8
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Key features
• Employs the First Target Priority algorithm that
makes a flagstick easy to measure
• High-quality 6× finder with multilayer coating
• Automatic continuous measurement for up to 4
seconds if single measurement fails
• Press and hold down the PWR button to activate
the continuous measurement function (up to
approx. 8 seconds)
• Automatic power shut-off (approx. 8 sec.
unoperated from standby screen)
• Rainproof — JIS/IEC protection class 4 (IPX4)
equivalent (under Nikon’s testing conditions)
• Invisible/Eyesafe EN/IEC Class 1M Laser
This product uses an invisible laser beam for
measuring. It measures the time the laser beam
takes to travel from the rangefinder to the target
and back. Laser reflectivity and measurement
results may vary according to climatic and
environmental conditions, as well as the color,
surface finish, size, shape and other
characteristics of the target.
Measurement may be inaccurate or fail in the
following cases:
• In snow, rain or fog
• Small or slender target
• Black or dark target
• Target has stepped surface
• Moving or vibrating target
• When measuring the surface of water
• Target measured through glass
• When the target is glass or a mirror
• When laser incidence to the target’s reflective
surface is oblique
lAbout measurement results
This device is a basic rangefinder. Its measurement results cannot be used as official evidence.
Getting to know the Laser Rangefinder

9
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Nomenclature/Composition
5
b
a
8
7
6
1
3
2
4
c
9
0
Composition
• Body ×1
• Case ×1
• Strap ×1
• Lithium battery (CR2) ×1
1PWR button (POWER ON/Measurement
button)
2MODE button
3Monocular objective lens
4Laser emission aperture
5Laser detector aperture
6Eyecup/Diopter adjustment ring
76× monocular eyepiece
8Diopter index
9Strap eyelet
0Battery-chamber cover“Open” indication
aBattery-chamber cover
bProduct number label
cIndication

10
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Internal display
1Target mark
: Aim at the target you want to measure.
Position the target at the center of the mark.
2Unit of measure (m: meter/YD: yard)
3Distance
: “Failure to measure”or“Unable to measure”
4Battery level indicator
5Laser irradiation mark
: Appears while the laser is being irradiated for a
measurement. Do not look towards the objective lens
side while this mark is shown.
5
4
3
2
1
• The internal display of this product is enlarged by the eyepiece. Although you may see dust that has
entered, it does not effect the accuracy of measurement.

11
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Type of battery
3V CR2 lithium battery ×1
 Inserting/Replacing battery
1. Open the battery-chamber cover.
Rotate the battery-chamber cover counterclockwise and remove it.
2. Insert the battery.
To replace the battery, take out the old battery before inserting a new one.
Follow the battery insertion mark inside the battery chamber to insert the + and - ends of the battery in
the correct orientation (insert so that the + end faces outward). If the battery is not inserted correctly,
the Laser Rangefinder will not operate.
3. Attach the battery-chamber cover.
Rotate the battery-chamber cover clockwise and secure it firmly. When attaching the battery-chamber
cover, securely screw it all the way and check that it is secured.
• The battery-chamber cover may be difficult to rotate because this product uses a rubber seal to
maintain its water resistance capabilities.
 Battery level indicator
Display Description
After power on, displays for 2 seconds only. Sufficient power available.
After power on, displays for 2 seconds only. Power getting low.
Prepare to replace the battery.
Displayed continuously. Low. Battery should be replaced with a new one.
Blinks. After blinking 3 times, automatically
powers off.
The battery is empty.
Replace the battery.
Inserting/Replacing battery

12
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
Changing the distance display unit
For the display unit of the measurement results, select YD (yards) or m (meters). Factory default setting is
YD (yard).
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button for more than two seconds. When the display
unit has been switched, release the button.
(yard) (meter)
• The setting is saved even when the Laser Rangefinder is turned OFF.

13
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
Measurement
Caution — Controls, adjustments or usage of procedures other than those specified herein may produce
negative effects or damage to your health due to laser radiation.
 Adjusting the focus of the internal display
If the internal display is difficult to see, adjust the focus with the following
procedure.
1. Press the PWR button to turn on the power.
2. Look through the eyepiece and rotate the diopter adjustment ring until the
internal display comes into focus.
Diopter adjustment ring
 Measuring
1. Press the PWR button to turn on the power.
• If you do not operate the button for about 8
seconds, the power turns off automatically.
2. Aim at the target.
Position the center of the target mark on the
target.
Immediately after power-on
Target mark
3. Press the PWR button to measure.
After measurement, the result is displayed for approx. 8 seconds, then power automatically turns off.
Press the PWR button while the power is on to measure again.

14
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Single measurement
Pressing the PWR button once starts single measurement, then displays the results.
• If measurement fails, measurement continues automatically for up to about 4 seconds until results are
obtained. Measurement stops when it is successful, even within about 4 seconds.
Example of measured
distance display
Example of measurement
failure

15
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Continuous measurement
Press and hold down the PWR button to start continuous measurement up to approx. 8 seconds. During
measurement, the measured result is displayed consecutively while the laser irradiation mark is blinking. If
you release your finger from the button, continuous measurement stops.
Standby
Continuous measurement
Press the PWR button once
Press and hold down the PWR
button
Single measurement*
* If measurement fails, measurement continues automatically for up to about 4 seconds until results are obtained.
lWhen measuring a flagstick at a golf course
Keep targeting the flagstick at the center of the target mark with the continuous measurement function
to minimize the effects of hand shake.

16
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Specifications
Measurement range (actual distance) 5 - 730 m/6 - 800 yd.
Distance display (increment)
1 m/yd.
Accuracy (actual distance)*1
±1 m/yd. (shorter than 100 m/yd.)
±2 m/yd. (100 m/yd.and over)
Magnification (×) 6
Effective diameter of objective lens (mm) 20
Angular field of view (real) (˚) 6.0
Eye relief (mm) 16.7
Exit pupil (mm) 3.3
Diopter adjustment ±4 m-1
Dimensions (L × H × W) (mm/in.) 91 × 73 × 37/3.6 × 2.9 ×1.5
Weight (g/oz.) Approx. 130/4.6 (without battery)
Operating temperature (˚C/˚F) -10 — +50/14 — 122
Operating humidity (%RH) 80 or less (without dew condensation)
Power source CR2 lithium battery × 1 (DC 3V)
Automatic power shut-off (after approx. 8 sec. unoperated)
Structure Rainproof*2
Electromagnetic compatibility FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB,
CU TR 020, ICES-003
Environment RoHS, WEEE
Laser classification IEC60825-1: Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product
Wavelength (nm) 905
Pulse duration (ns) 20
Technical notes

17
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
Output (W) 23
Beam divergence (mrad) Vertical: 3.33, Horizontal: 0.17
• The specifications of the product may not be achieved depending on the target object’s shape, surface texture and nature,
and/or weather conditions.
*1 Under Nikon’s measurement conditions.
*2 This product is equivalent to JIS/IEC protection class 4 (IPX4) (under Nikon’s testing conditions). This rating does not
guarantee the water resistance performance of the unit or that it will be free from damage or problems under all
conditions. Please observe the following when using:
  •Donotoperateorholdtheproductinrunningwater.
  •Ifanymoistureisfoundonmovablepartsofthisproduct,stopusingtheproductandwipeitoff.
Battery life
Approx. 20,000 times (at approx. 20°C (68°F))
This figure may differ according to conditions such as temperature and other factors. Use only as a guide.
 •ThebatterysuppliedwiththisNikonLaserRangefinderisforoperationchecking.Duetonaturalelectricaldischarge,the
life of this battery will likely be shorter than that noted above.

18
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
 Troubleshooting/Repair
If this product fails to function as expected, check the list below before consulting your local dealer or the
store where you purchased it.
lIf there is a problem with the product.
Problem Cause/Solution
• Does not turn on • Press the PWR button (top of the body). • Check that the battery is inserted correctly.
• Replace the battery with a new one.
• Unable to measure
• Anomalous result
• Confirm the settings.
• Confirm if it can measure a large target close to you (example: a building
approx. 15 m/yd. ahead of you).
• Clean the lens surface if necessary.
lIf you require a repair, please contact your local dealer or the store where you purchased the product.
Do not repair or disassemble. It may result in a serious incident.
Please note that Nikon is not responsible for any direct or indirect damage if the user attempts to repair or
disassemble the product.

19
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
CONTENIDO
Español
Introducción
Lea esto primero ............................................................. 20
PRECAUCIONES DE SEGURIDAD Y
FUNCIONAMIENTO......................................................... 21
Primeros pasos con el telémetro láser
Características clave....................................................... 24
Nomenclatura/Componentes .................................... 25
Pantalla interna................................................................ 26
Inserción/Sustitución de la batería
Tipo de batería................................................................. 27
Inserción/Sustitución de la batería........................... 27
Indicador del nivel de batería..................................... 27
Cambio de la unidad de visualización de la
distancia............................................................................... 28
Medición
Ajuste del enfoque de la pantalla interna.............. 29
Medición ............................................................................ 29
Medición única ................................................................ 30
Medición continua ......................................................... 31
Notas técnicas
Especificaciones .............................................................. 32
Solución de problemas/Reparación......................... 34
Español

20
En
Es
Fr
De
It
Sv
Nl
Ru
Pl
Fi
No
Dk
Cz
Ro
Hu
Kr
Introducción
 Lea esto primero
Muchas gracias por comprar el telémetro láser de Nikon COOLSHOT 20 GII.
Antes de usar el producto, lea detenidamente este manual para asegurarse de que lo usa correctamente.
Una vez que lea este manual, manténgalo en un lugar de fácil acceso para futuras referencias.
lAcerca del manual
• N inguna parte del manual puede ser reproducida, transmitida, transcrita, almacenada en un sistema de recuperación
ni traducida a ningún idioma de ninguna forma ni por ningún medio sin el permiso previo por escrito de Nikon.
• Las ilustraciones y el contenido que aparecen en este manual pueden diferir del producto real.
• Nikon no será considerada imputable por ningún error que pueda contener este manual.
• El aspecto, las especificaciones y las capacidades de este producto pueden cambiar sin previo aviso.
lAcerca de los controles sobre radiointerferencia
• Este dispositivo cumple con la Parte 15 de las Reglas de la FCC. El funcionamiento está sujeto a las dos
condiciones siguientes:
(1) Este dispositivo no puede provocar interferencias peligrosas, y
(2) Este dispositivo debe aceptar cualquier interferencia recibida, incluidas las interferencias que pueden
provocar un funcionamiento no deseado.
• E
ste equipo ha sido evaluado y cumple con los límites para un dispositivo digital de clase B, de conformidad con
la Parte 15 de las reglas de la FCC y con la directiva sobre CEM de la UE. Estos límites están diseñados para
proporcionar una protección razonable contra la interferencia perjudicial en una instalación residencial. Este
equipo genera, usa y puede irradiar energía de frecuencia de radio y, si no se instala y usa de conformidad con
las instrucciones, podría causar una interferencia perjudicial a las comunicaciones de radio. Sin embargo, no hay
garantía de que la interferencia no ocurra en una instalación particular. Si el equipo provoca perturbaciones en
la recepción de radio o televisión, lo que se puede comprobar apagando y volviendo a encender el equipo, el
usuario debería intentar corregir la interferencia mediante una o más de las medidas siguientes:
• Reoriente o reubique la antena receptora.
• Aumente la separación entre el equipo y el receptor.
• Consulte al distribuidor o a un técnico de televisión/radio experimentado.
Aviso para los clientes de Canadá
CAN ICES-3(B)/NMB-3(B)
