Nikon Prostaff 1000i User manual

En
Fr
Instruction manual/Manuel d’utilisation
LaserRangefinder/Télémètre laser

2
En
Fr
English.................................................... 3
Français ................................................ 25

3
En
Fr
CONTENTS
English
Introduction
Read this First......................................................................4
SAFETY AND OPERATION PRECAUTIONS..................5
Getting to know the Laser Rangefinder
Key features..........................................................................8
Nomenclature/Composition..........................................9
Internal display ................................................................ 10
Functions
Target priority mode (First Target Priority mode/
Distant Target Priority mode) ..................................... 11
Inserting/Replacing battery
Type of battery................................................................. 12
Inserting/Replacing battery........................................ 12
Battery level indicator ................................................... 12
Navigating the menus
Operation diagram of the setting menus
(PROSTAFF 1000i)............................................................ 13
Changing the distance display unit (F1)
(PROSTAFF 1000i)............................................................ 14
Changing the measurement display mode (F2)
(PROSTAFF 1000i)............................................................ 15
Changing the target priority mode (F3)
(PROSTAFF 1000i)............................................................ 16
Operation diagram of the setting menus
(PROSTAFF 1000)............................................................. 17
Changing the distance display unit (F1)
(PROSTAFF 1000)............................................................. 18
Changing the target priority mode (F2)
(PROSTAFF 1000)............................................................. 19
Measurement
Adjusting the focus of the internal display............ 20
Measuring.......................................................................... 20
Single measurement...................................................... 21
Continuous measurement........................................... 21
Technical notes
Specifications (PROSTAFF 1000i/PROSTAFF 1000) ... 22
Troubleshooting/Repair ............................................... 24
English

4
En
Fr
Introduction
 Read this First
Thank you for purchasing the Nikon Laser Rangefinder PROSTAFF 1000i/PROSTAFF 1000.
Before using the product, read this manual thoroughly to ensure proper use.
After reading this manual, keep it in a readily accessible place for future reference.
lAbout the manual
• No part of the manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without Nikon’s prior written permission.
• Illustrations and display content shown in this manual may differ from the actual product.
• Nikon will not be held liable for any errors this manual may contain.
• The appearance, specifications, and capabilities of this product are subject to change without notice.
lAbout controls for radio interference
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Notice for customers in Canada
CAN ICES-3(B)/NMB-3(B)

5
En
Fr
 SAFETY AND OPERATION PRECAUTIONS
Strictly observe the guidelines
contained in this manual in
order to use this product safely
and prevent possible injury or
property damage to you and
others. Understand the contents
thoroughly for correct use of the
product.
WARNING
This indicates that improper use by
ignoring the contents described
herein can result in potential death
or serious injury.
CAUTION
This indicates that improper use by
ignoring the contents described
herein can result in potential injury
or material loss.
SAFETY PRECAUTIONS (Laser)
This product uses an invisible laser
beam. Be sure to observe the
following:
WARNING
• Do not press the PWR button while
looking into the laser emission
aperture. You may damage your
eyes.
• Do not aim at eyes.
• Do not point the laser at people.
• Do not look at lasers with other
optical instruments such as lenses
or binoculars. You may damage
your eyes.
• When not measuring, keep your
fingers away from the PWR button
to avoid accidentally emitting the
laser.
• When not in use for an extended
period, remove the battery.
• Do not disassemble, remodel, or
repair the product. The laser
emission may be harmful to your
health. If the product is
disassembled, remodeled, or
repaired, it is no longer
guaranteed by the manufacturer.
• Store the product in a place out of
reach of children.
SAFETY PRECAUTIONS
(Monocular)
WARNING
• Never look directly at the sun,
intense light, or lasers while using
this product. It may seriously
damage the eyes or cause
blindness.
CAUTION
• Keep the plastic bag used to wrap
this product or other small parts
out of reach of children. The bag
may block their mouths and noses
and cause them to suffocate.
• Be careful of children inadvertently
swallowing small parts or
accessories. If children swallow
such parts, see a doctor
immediately.
• Turn off this product when not in
use.
• When carrying this product, store
it in the case.
• If this product fails to operate
correctly for any reason,
discontinue use immediately and
consult with a Nikon authorized
service representative.

6
En
Fr
• Do not leave this product in an
unstable place. It may fall and
cause injury or malfunction.
• Do not use this product while
walking. You may walk into
something or fall and cause injury
or malfunction.
• Do not swing this product by the
strap. You may hit others and
cause injury.
• The rubber parts of this product
(such as the eyecup) or rubber
parts of the included case and
strap may deteriorate if used or
stored for a long period of time.
The deteriorated rubber may
attach on clothes and cause stains.
Check their condition before use,
and consult with a Nikon
authorized service representative
if a defect is found.
• Using the rubber eyecup for
extended periods of time may
cause skin inflammation. If you
develop any symptoms, stop use
and see a doctor immediately.
PRECAUTIONS
(Lithium battery)
Incorrect use may cause the lithium
battery to rupture or leak, which will
corrode the device or stain your
hands and clothing.
Be sure to observe the following:
• Install the battery with the + and
– poles positioned correctly.
• Remove the battery when this is
depleted or will not be used for
extended periods.
• Keep the battery away from fire or
water. Never disassemble the
battery.
• Do not charge the lithium battery.
• Do not short the terminal of the
battery chamber.
• Do not carry the battery together
with keys or coins in a pocket or
bag. You may short the battery and
cause overheating.
• If liquid leaked from the lithium
battery comes into contact with
clothing or skin, rinse with plenty
of water. If it enters the eyes or
mouth, rinse with water and
consult a doctor immediately.
• When disposing of the lithium
battery, follow your local area
regulations.
HANDLING AND OPERATION
PRECAUTIONS
• Do not subject this product to
physical shock.
• If you accidentally apply strong
physical shock or drop the product
and suspect a malfunction, consult
with your local dealer or a Nikon
authorized service representative
immediately.
• Do not use the product
underwater.
• Wipe off any rain, water, sand, or
mud on the product as soon as
possible with a soft, clean cloth.
• When this product is exposed to
extreme temperature changes
(suddenly brought from a cold
place to a warm place or vice-
versa), the lens surfaces may get
cloudy. Do not use the product
until the cloudiness has
disappeared.
• Do not leave the product in a car
on a hot or sunny day, or near heat
generating equipment.

7
En
Fr

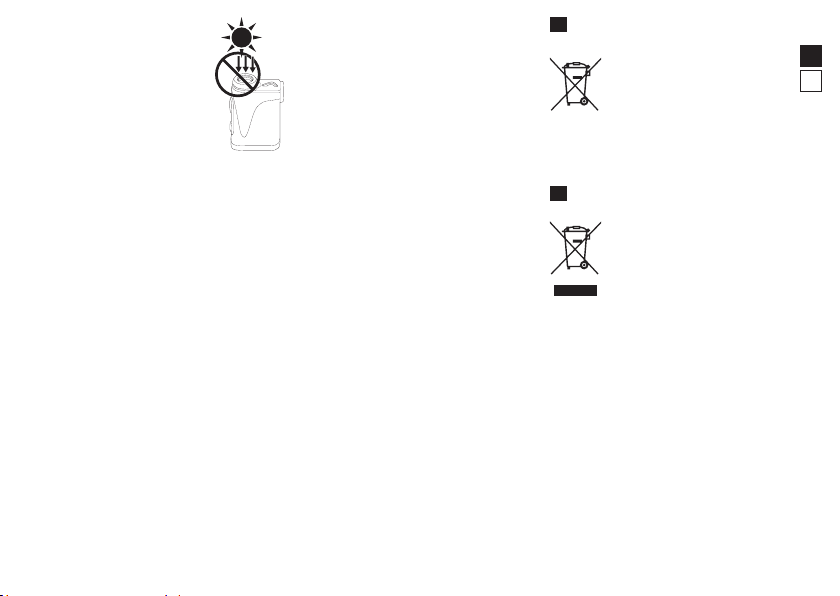

• Do not leave the
eyepiece in direct
sunlight. The
condenser effect of
the lens may
damage the internal
display surface.
CARE AND MAINTENANCE
PRECAUTIONS
LENS
Be careful that you do not directly
touch the lens surface with your
hands when cleaning it. Remove
dust or lint with a blower*. For
fingerprints or other stains that
cannot be removed with a blower,
wipe the lens with a dry soft cloth or
cleaning cloth for eyeglasses, using a
spiral motion that starts at the center
of the lens and working towards the
edges. Wiping too firmly or wiping
with a hard material may damage
the lens. If this fails, gently wipe the
lens using a cloth lightly dampened
with commercial lens cleaner.
MAIN BODY
After gently removing dust with a
blower, clean the body surface with a
soft, clean cloth. After use at a
seaside, wipe off salt that may be on
the body surface with a damp, soft,
clean cloth, and then wipe with a dry
cloth. Do not use benzene, thinner,
or other cleaners containing organic
solvents.
STORAGE
Water condensation or mold may
occur on lens surfaces because of
high humidity. Therefore, store the
product in a cool, dry place. After use
on a rainy day or at night, thoroughly
dry it at room temperature, then
store in a cool, dry place.
* A rubber cleaning tool that blows
air from a nozzle.
En Symbol for separate collection applicable
in European countries
This symbol indicates that this battery is
to be collected separately.
The following apply only to users in
European countries.
• This battery is designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.
En Symbol for separate collection applicable
in European countries
This symbol indicates that this product is
to be collected separately.
The following apply only to users in
European countries.
• This product is designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.

8
En
Fr
 Key features
• Horizontal distance mode and actual distance
mode can be easily switched (PROSTAFF 1000i only)
• Target Priority Switching System for measuring
overlapping subjects
• High-quality 6× finder with multilayer coating
• Automatic continuous measurement for up to 4
seconds if single measurement fails
• Press and hold down the PWR button to activate
the continuous measurement function (up to
approx. 8 seconds)
• Automatic power shut-off (approx. 8 sec.
unoperated from standby screen)
• Rainproof — JIS/IEC protection class 4 (IPX4)
equivalent (under Nikon’s testing conditions)
• Invisible/Eyesafe EN/IEC Class 1M Laser
This product uses an invisible laser beam for
measuring. It measures the time the laser beam
takes to travel from the rangefinder to the target
and back. Laser reflectivity and measurement
results may vary according to climatic and
environmental conditions, as well as the color,
surface finish, size, shape and other
characteristics of the target.
Measurement may be inaccurate or fail in the
following cases:
• In snow, rain or fog
• Small or slender target
• Black or dark target
• Target has stepped surface
• Moving or vibrating target
• When measuring the surface of water
• Target measured through glass
• When the target is glass or a mirror
• When laser incidence to the target’s reflective
surface is oblique
lAbout measurement results
This device is a basic rangefinder. Its measurement results cannot be used as official evidence.
Getting to know the Laser Rangefinder

9
En
Fr

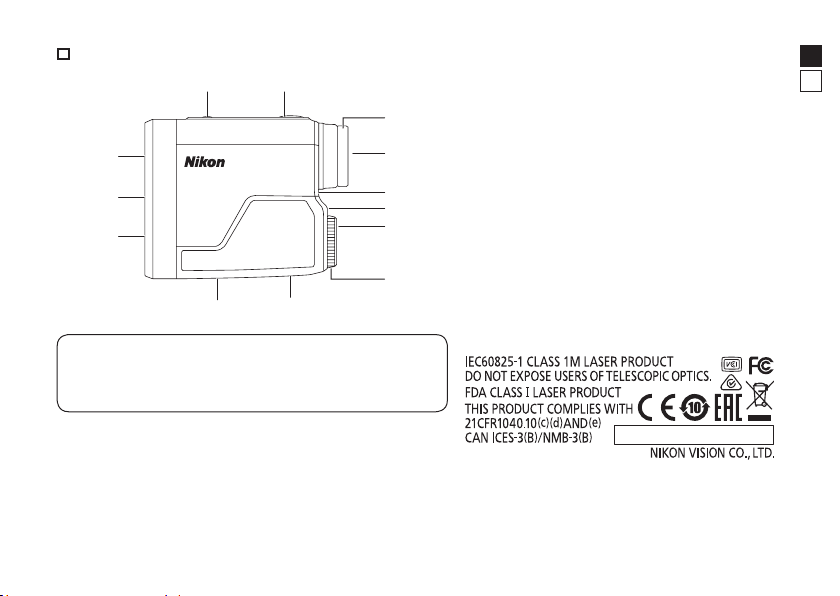

 Nomenclature/Composition
5
b
a
8
7
6
1
3
2
4
c
9
0
Composition
• Body ×1
• Case ×1
• Strap ×1
• Lithium battery (CR2) ×1
1PWR button (POWER ON/Measurement
button)
2MODE button
3Monocular objective lens
4Laser emission aperture
5Laser detector aperture
6Eyecup/Diopter adjustment ring
76× monocular eyepiece
8Diopter index
9Strap eyelet
0Battery-chamber cover “Open”indication
aBattery-chamber cover
bProduct number label
cIndication

10
En
Fr
 Internal display
1Target mark
: Aim at the target you want to measure.
Position the target at the center of the mark.
2Unit of measure (m: meter/YD: yard)
3Distant Target Priority mode
4Battery level indicator
5First Target Priority mode
6Horizontal distance mode (PROSTAFF 1000i only)
7Distance
: “Failure to measure”or “Unable to measure”
8Laser irradiation mark
: Appears while the laser is being irradiated for a
measurement. Do not look towards the objective lens
side while this mark is shown.
7
4
3
2
1
6
5
8
• The internal display of this product is enlarged by the eyepiece. Although you may see dust that has
entered, it does not effect the accuracy of measurement.

11
En
Fr
 Target priority mode (First Target Priority mode/Distant Target Priority mode)
This Nikon Laser Rangefinder employs the First Target Priority/Distant Target Priority switching system.
(Factory default setting is Distant Target Priority mode.)
When measuring overlapping subjects:
First Target Priority mode displays the distance of the closest subject and Distant Target Priority mode
displays that of the farthest subject.
Functions

12
En
Fr
 Type of battery
3V CR2 lithium battery ×1
 Inserting/Replacing battery
1. Open the battery-chamber cover.
Rotate the battery-chamber cover counterclockwise and remove it.
2. Insert the battery.
To replace the battery, take out the old battery before inserting a new one.
Follow the battery insertion mark inside the battery chamber to insert the + and - ends of the battery in
the correct orientation (insert so that the + end faces outward). If the battery is not inserted correctly,
the Laser Rangefinder will not operate.
3. Attach the battery-chamber cover.
Rotate the battery-chamber cover clockwise and secure it firmly. When attaching the battery-chamber
cover, securely screw it all the way and check that it is secured.
• The battery-chamber cover may be difficult to rotate because this product uses a rubber seal to
maintain its water resistance capabilities.
 Battery level indicator
Display Description
After power on, displays for 2 seconds only. Sufficient power available.
After power on, displays for 2 seconds only. Power getting low.
Prepare to replace the battery.
Displayed continuously. Low. Battery should be replaced with a new one.
Blinks. After blinking 3 times, automatically
powers off.
The battery is empty.
Replace the battery.
Inserting/Replacing battery

13
En
Fr
• Operating the MODE button
There are two ways to press the MODE button. Operate the button while following the descriptions in this manual.
- “Press and hold”means to continue pressing the button for 1.5 seconds or longer.
- “Press”means to press the button quickly (less than 1.5 seconds).
 Operation diagram of the setting menus (PROSTAFF 1000i)
Press and hold the MODE button.
Press the MODE button.
Press the PWR button.
Standby
Measurement display mode: F2
Distance display unit: F1
(Distant Target Priority mode)
N/A (Actual distance mode)(Horizontal distance mode)
(yard) (meter)
(First Target Priority mode)
Target priority mode: F3
If you press and hold the MODE button or do not operate the buttons for about 8 seconds while operating
the setting menus, the displayed setting is saved and the Laser Rangefinder returns to standby.
Navigating the menus

14
En
Fr

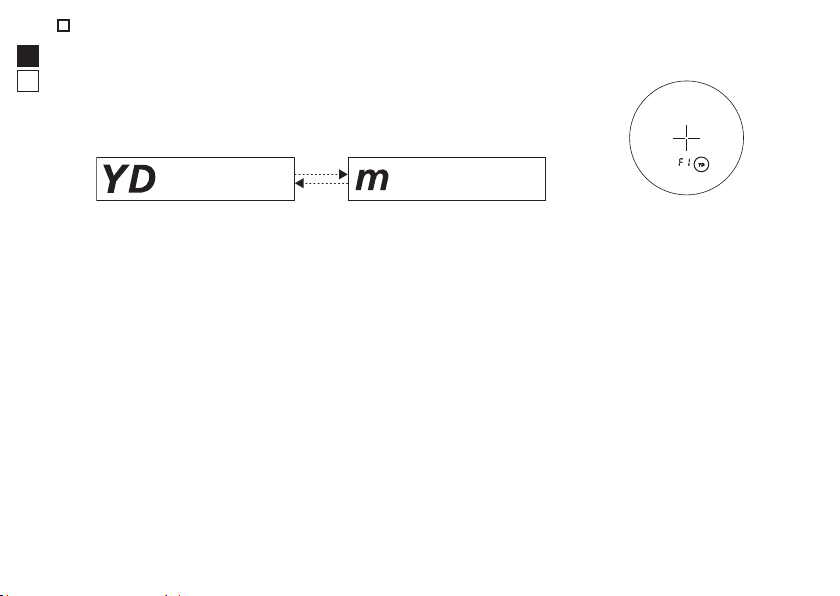

 Changing the distance display unit (F1) (PROSTAFF 1000i)
For the display unit of the measurement results, select YD (yards) or m (meters). Factory default setting is
YD (yard).
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
• You can now change the distance display unit.
3. The setting switches every time you press the PWR button.
(yard) (meter)
• If you press and hold the MODE button or do not operate the buttons for
about 8 seconds, the displayed setting is saved and the Laser Rangefinder
returns to standby.
• The setting is saved even when the Laser Rangefinder is turned OFF.

15
En
Fr

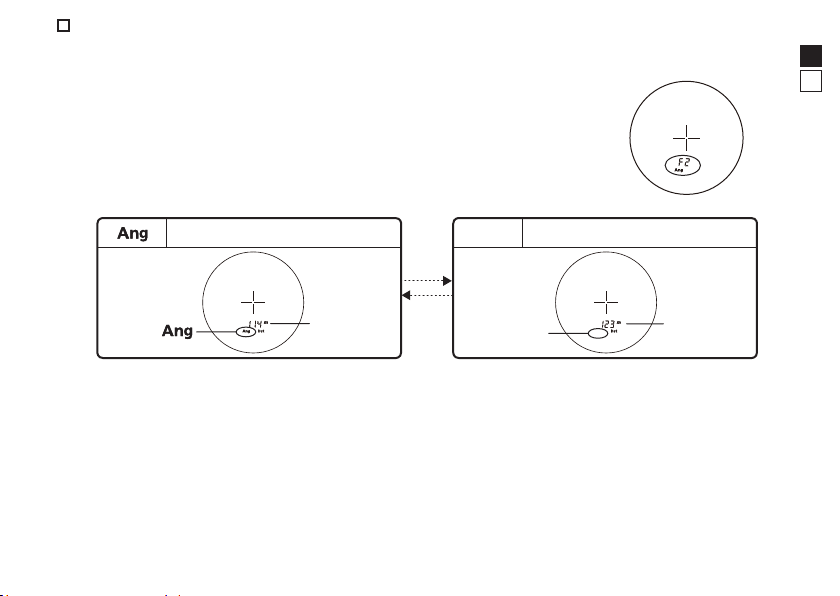

 Changing the measurement display mode (F2) (PROSTAFF 1000i)
Horizontal distance mode and actual distance mode can be switched. Factory default setting is horizontal
distance mode.
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button once.
• You can now change the measurement display mode.
4. The setting switches every time you press the PWR button.
Horizontal distance mode Actual distance mode
N/A Actual
distance
Horizontal
distance
N/A
• If you press and hold the MODE button or do not operate the buttons for
about 8 seconds, the displayed setting is saved and the Laser Rangefinder
returns to standby.
• The setting is saved even when the Laser Rangefinder is turned OFF.

16
En
Fr
 Changing the target priority mode (F3) (PROSTAFF 1000i)
This Nikon Laser Rangefinder employs the First Target Priority/Distant Target Priority switching system.
Factory default setting is Distant Target Priority mode.
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button twice.
• You can now change the target priority mode.
4. The setting switches every time you press the PWR button.
(Distant Target
Priority mode)
(First Target
Priority mode)
• If you press the MODE button or do not operate the buttons for about 8
seconds, the displayed setting is saved and the Laser Rangefinder returns to
standby.
• The setting is saved even when the Laser Rangefinder is turned OFF.
lFirst Target Priority mode and Distant Target Priority mode
When measuring overlapping subjects:
First Target Priority mode displays the distance of the closest subject and Distant Target Priority mode
displays that of the farthest subject.

17
En
Fr

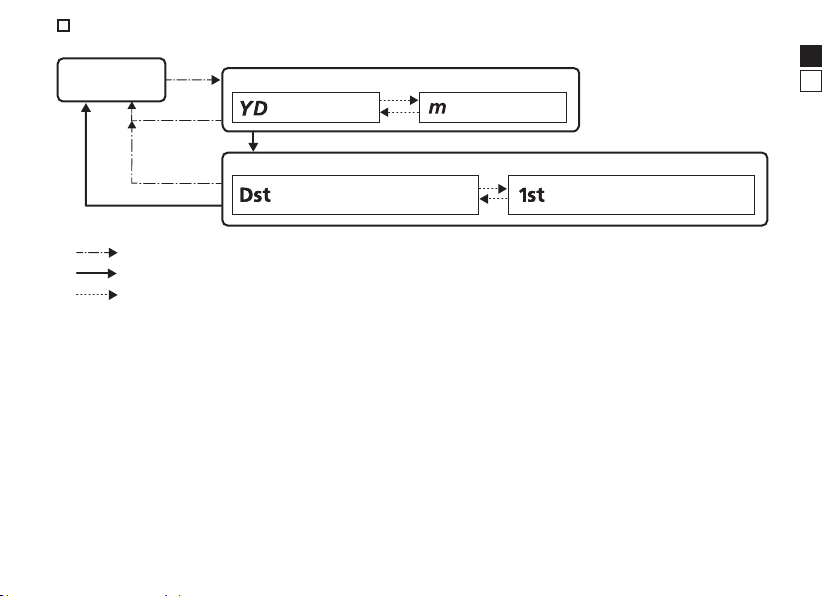

 Operation diagram of the setting menus (PROSTAFF 1000)
(meter)
(First Target Priority mode)(Distant Target Priority mode)
(yard)
Standby Distance display unit: F1
Target priority mode: F2
Press and hold the MODE button.
Press the MODE button.
Press the PWR button.
If you press and hold the MODE button or do not operate the buttons for about 8 seconds while operating
the setting menus, the displayed setting is saved and the Laser Rangefinder returns to standby.

18
En
Fr
 Changing the distance display unit (F1) (PROSTAFF 1000)
For the display unit of the measurement results, select YD (yards) or m (meters). Factory default setting is
YD (yard).
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
• You can now change the distance display unit.
3. The setting switches every time you press the PWR button.
(yard) (meter)
• If you press and hold the MODE button or do not operate the buttons for
about 8 seconds, the displayed setting is saved and the Laser Rangefinder
returns to standby.
• The setting is saved even when the Laser Rangefinder is turned OFF.

19
En
Fr
 Changing the target priority mode (F2) (PROSTAFF 1000)
This Nikon Laser Rangefinder employs the First Target Priority/Distant Target Priority switching system.
Factory default setting is Distant Target Priority mode.
1. Press the PWR button to turn on the Laser Rangefinder.
2. Press and hold the MODE button.
3. Press the MODE button once.
• You can now change the target priority mode.
4. The setting switches every time you press the PWR button.
(Distant Target
Priority mode)
(First Target
Priority mode)
• If you press the MODE button or do not operate the buttons for about 8
seconds, the displayed setting is saved and the Laser Rangefinder returns to
standby.
• The setting is saved even when the Laser Rangefinder is turned OFF.
lFirst Target Priority mode and Distant Target Priority mode
When measuring overlapping subjects:
First Target Priority mode displays the distance of the closest subject and Distant Target Priority mode
displays that of the farthest subject.

20
En
Fr
Measurement
Caution — Controls, adjustments or usage of procedures other than those specified herein may produce
negative effects or damage to your health due to laser radiation.
• Before measuring, be sure to confirm each menu setting. Refer to“Navigating the menus”for menu details
and how to change the settings.
 Adjusting the focus of the internal display
If the internal display is difficult to see, adjust the focus with the following
procedure.
1. Press the PWR button to turn on the power.
2. Look through the eyepiece and rotate the diopter adjustment ring until the
internal display comes into focus.
Diopter adjustment ring
 Measuring
1. Press the PWR button to turn on the power.
• If you do not operate the button for about 8
seconds, the power turns off automatically.
2. Aim at the target.
Position the center of the target mark on the
target.
Immediately after power-on
Target mark
3. Press the PWR button to measure.
After measurement, the result is displayed for approx. 8 seconds, then power automatically turns off.
Press the PWR button while the power is on to measure again.
