Nikro PDU4000 User manual

MODEL PDU4000
UPRIGHT AIR DUCT
CLEANING SYSTEM
INSTRUCTION MANUAL

RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY
• Unit must be electrically grounded.
• Do not operate in standing water.
• If electrical components become wet, allow them to dry completely before
using.
• Unplug unit before performing any maintenance, filter changes or
cleaning.
• Inspect cord and plug for damage before use.
• Do not touch cord with wet hands or while standing on wet surface.
• Do not operate in flammable or explosive areas.
• Do not clean unit while plugged in.
• This unit has been designed for indoor use only.
• Do not use to exhaust hazardous or explosive materials or vapors
IMPORTANT SAFETY INSTRUCTIONS
a. “Do not operate any unit with a damaged cord or plug. Discard unit or return it to an authorized
service facility for examination and/or repair.”
b. “Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
c. Arrange cord away from traffic area and where it will not be tripped over.”
IMPORTANT
SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
“READ AND SAVE THESE INSTRUCTIONS”
RISK OF ELECTRIC SHOCK CAN CAUSE
INJURY OR DEATH.
UNPLUG UNIT BEFORE SERVICING.
TO REDUCE THE RISK OF ELECTRIC SHOCK:

All Nikro Industries Inc. products that have rated efficiencies of 99.97% @ 0.3
microns and/or 99.99% @ 0.3 microns, have H.E.P.A. filters that have been
individually tested to meet these minimum efficiencies.
Although all the filters have been pre-tested, the possibility of leaks or filter failure due to
handling, transportation, punctures, loaded filters, moisture, wear and tear, etc., does
exist.
Therefore, when using this equipment in highly sensitive areas or where any
release of particles above and beyond the minimum efficiencies would be
detrimental and harmful to humans, plants or property; it is strongly recommended
that the units be individually tested prior to their use.
This is to assure that they are maintaining the efficiency levels, which they were
designed to filter out.
FAILURE TO DO SO COULD RESULT IN SERIOUS HARM TO HUMAN LIFE,
PLANT LIFE AND/OR PROPERTY.
BACKDRAFTING AND CARBON MONOXIDE FUMES
To prevent the backdrafting of deadly carbon monoxide, when using your
PDU4000 to create a negative pressure in a containment area, turn off all open
combustion devices such as but not limited to fireplaces, hot water heaters,
furnaces, boilers etc.
1115 N. Ellsworth Ave., Villa Park, IL 60181
Telephone: [phone] FAX: [phone] Toll Free: 800-875-6457

PRODUCT INSPECTION
1. Thoroughly inspect your machine for any shipping damage.
2. Your machine has already been thoroughly tested at the Nikro Industries manufacturing plant
prior to shipping.
3. Please do not discard any of the packaging until you have inspected the vacuum and it is
operational. Make sure the contents are intact and complete. If there are any missing parts
please contact Nikro Industries immediately.
CONTENTS
1 - #PDU4000 – Air Duct Cleaning System
1 – #860147 – 12” x 25’ PVC Flex Duct
2 – #860249 – 12” Quick Connect Hose Clamps
1 – #860111 – 12” Duct Mounting Flange
Replacement Filters:
#862328 – Reusable Bulk Collection Bag (1 installed in Unit)
#862200 – Merv 11 Cube Filter (1 installed in Unit)
#862323 – HEPA Filter (1 installed in Unit)
#PDU
4000
#860147
#860249
#860111

Your #PDU4000 Portable Air Duct Cleaning System has been thoroughly tested and inspected at the factory and
is fully assembled and ready for use. However, prior to plugging the unit in, inspect it for any damage that may
have incurred during shipping.
ELECTRICAL RATING:
115V 11 Amps 60 HZ - Each Motor
Use minimum of 12-3 gauge extension cords.
Each motor cord requires a separate 15 amp or 20 amp circuit.
FILTER AND SET-UP PROCEDURES
1) Turn off and unplug unit.
2) Remove the top cover w/12” flange by loosening the twist lock
latches. (see photo 1)
3) Place the HEPA filter in the HEPA filter cabinet, make sure the air flow
arrows on filter are pointing towards the blower assembly. Use the 4
bolts and tabs to secure the HEPA filter. (see photo 2)
4) Connect the spacer frame by using the 4 – 5/16 nuts. (see photo 3)
5) Place the Merv 11 Cube Filter inside the top cover filter holding
channel.
(see photo 4)
6) Place the top cover w/12” flange on the housing and secure into place
using the 4 – twist lock latches. (see photo 5)
7) Connect the 12” clear hose to the 12” intake flange on the top cover
and using the hose clamp provided, secure tightly.
8) Mount the duct intake collar at your access point.
9) Connect the 12” clear hose to the duct intake collar using the hose
clamp provided.
10) Unit is ready for operation.

FILTER CHANGING PROCEDURE
Your Nikro Portable Air Duct Cleaner is equipped with a filter monitor gauge which is located on
the lower filter cabinet. When this gauge reads 4" or higher, the following steps should be taken:
1) Turn off unit.
2) Inspect the 12" clear hose assuring that it is not kinked or clogged.
3) Empty or replace the Merv 11 cube filter.
4) If gauge continues to read at 4" or higher, go to Step #5.
5) Replace the HEPA filter.
6) If gauge remains at 4" or higher DO NOT USE THE UNIT. Contact the Nikro Factory
immediately.

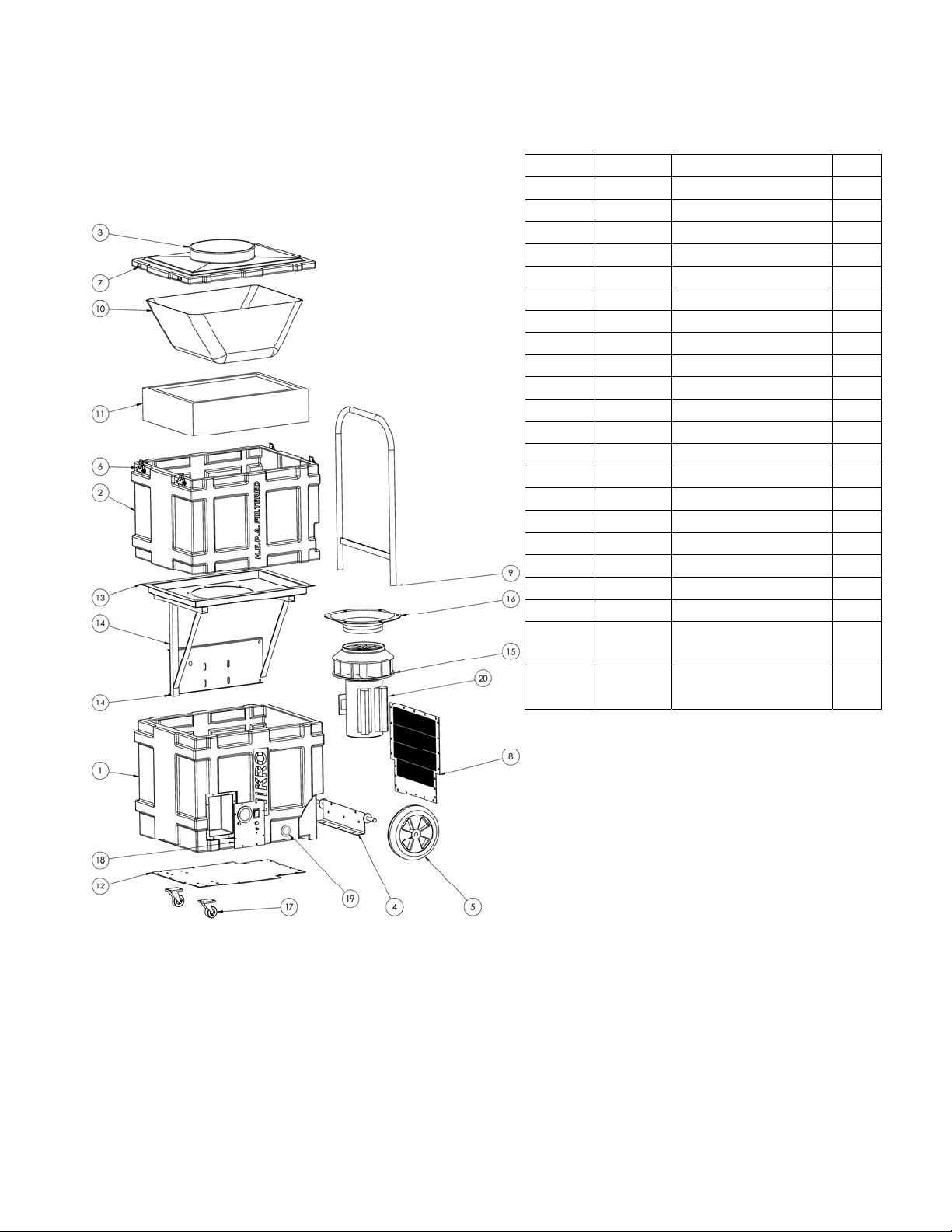

#PDU4000 ASSEMBLY
PC NO PART NO PART NAME QTY
1 862233 MOTOR CABINET 1
2 862234 FILTER CABINET 1
3 862232 DOOR 1
4 862228 AXLE BRACKET 1
5 862194 10” WHEEL 2
6 860576 LATCH 4
7 860726 STRIKE 4
8 862203 EXHAUST PANEL 1
9 862230 HANDLE 1
10 862200 MERV 11 CUBE FILTER 1
11 862323 HEPA FILTER 1
12 862202 BOTTOM PLATE 1
13 862348 BAFFLE 1
14 862414 MOTOR SHELF 1
15 860694 BLOWER 2
16 862319 BLOWER CONE 2
17 862304 3” CASTER 2
18 862197 CONTROL PANEL 1
19 862294 RECESSED PLUG 2
20 860682 MOTOR 2
NOT
SHOWN 862670 4” LOCKING CASTER 2
NOT
SHOWN 862328 REUSABLE BULK COLLECTION BAG 1

#PDU4000 CONTROL PANEL
PC
NO PART NO PART NAME QTY
1 860699 GAUGE 1
2 862293 SWITCH 2
3 860722 HOSE BARB NUT 1
4 860721 HOSE BARB 1
5 860570 BREAKER 2
6 861067 RUNNING LIGHT 2
7 860722 CONTROL PANEL PLATE 1

WARRANTY
Nikro PDU4000 is warranted for 3 years from the date delivered to the original
end user and may not be assigned or transferred.
Parts, which become defective due to faulty workmanship or materials during
normal use in this period will be repaired or exchanged at no charge if returned
and approved by an authorized Nikro service center. All replaced or repaired
parts shall only be warranted for the remainder of the original three year warranty
period.
After the expiration of the three year warranty, all warranties on this unit including
fitness for a proposed usage or purpose will become void.
The end user shall be responsible for freight charges incurred to deliver
warranted product to an approved Nikro service center. Nikro shall be
responsible for freight charges incurred in returning unit to customer, but not to
exceed the original freight charges to customer.
It shall be wholly Nikro’s decision to repair, replace or refund the purchase price
of any such defective goods.
This warranty does not apply to normal wear and tear, neglect, misuse, abuse or
incorrect installation. If any other replacement parts, filters or attachments are
used other than original Nikro parts, this warranty will become void.
Nikro disclaims responsibility for loss of production, profits, goodwill or any other
costs that may indirectly occur due to the failure of this product.
H.E.P.A. FILTER STANDARDS AND CERTIFICATION
All Nikro H.E.P.A. filters are manufactured and individually tested using the MIL-
STD 282 D.O.P. test, or the IEST-RP-CC-001.3 test method.
Each filter is tested and certified to have a minimum efficiency of 99.97% @ 0.3
micron particles. All filters are then individually labeled and registered by the
manufacturer.
All H.E.P.A. filters used in Nikro equipment meet, and in most cases, exceed the
minimum standard of 99.97% efficiency @ 0.3 micron particles, and comply with
OSHA and EPA standards for cleaning the air of toxic and nuisance dust such as
mold, lead and asbestos.
