SPECIFICATIONS SHEET
TSP-1
INTELLIPAD®CI KEYPAD ACCESSORY
TSP-1 Touch Screen Power Module

MULTIZONE PRODUCTS
FEATURES
■Power module for use with Niles touch screen keypads
■Required for installations with four or more touch screens connecting to a single Niles MultiZone
Receiver or Preamplifier
■Powers up to three touch screens
■Includes UL-listed regulated in-line power supply with universal voltage capability
SPECIFICATIONS:
■Dimensions 2-1/2" wide x 3-1/2" high x 1-1/8" deep
Warranty: Two-year limited
TSP-1
Stock Number
FG01059
IntelliPad®Ci Keypads Accessories
NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: [phone] – www.nilesaudio.com NATSP-1PDF
©2004 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.

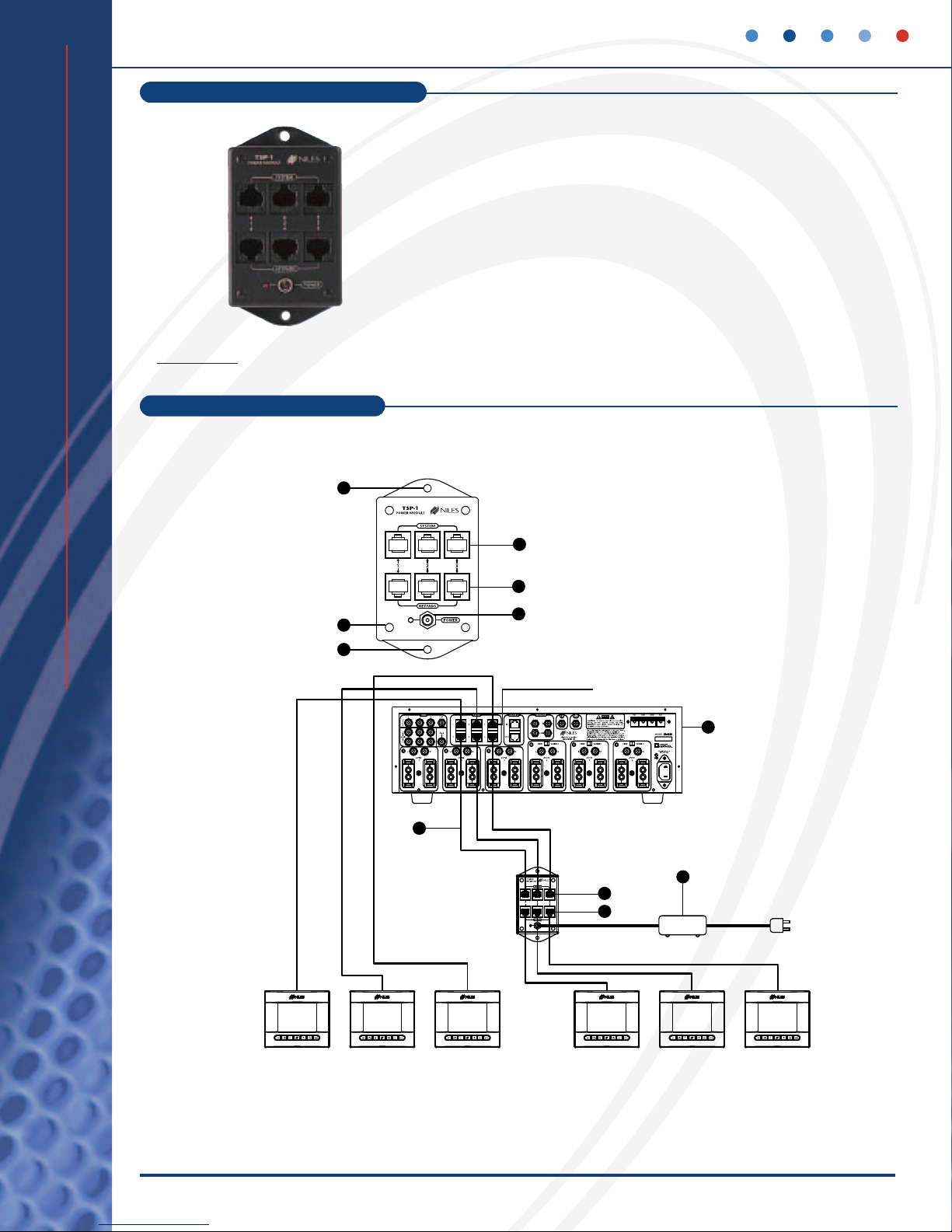

Product Detail
A TSP-1 connects to the zoned Keypad Input of a Niles MultiZone Control System and a touch screen keypad. Up to
three touch screen keypads may be connected to a TSP-1.
a
b
c
a
e
c
d
d
e
b
a
Close Up Detail
(a) Screw holes for mounting (screws
not included).
(b) Red LED Power indicator.
(c) Three system outputs connect the
TSP-1 to the Keypad input of Niles
MultiZone Control System.
(d) Three keypad inputs accept
connections from touch screen
keypads.
(e) Power jackprovided for connection
of the included DCpower adapter.
ConnectionDetail
(a) Niles ZR4630 MultiZone Control System.
(b) Cable for connection to aNiles MultiZone Control System.
(c) Output to Keypad Input of aNiles MultiZone Control System.
(d) Inputs from touch screen keypads.
(e) 16VDCin-line power adapter plugged into an unswitched ACoutlet.
Niles ZR-4630
(back)
Zone 1Zone 2Zone 3Zone 4Zone 5Zone 6
TSP-1
Keypad Inputs
