Nokeval 592D User manual

1
No 090203 Nokeval
Manual
Model 592D

2
Nokeval oy
Yrittäjäkatu 12
37100 Nokia, Finland
Tel. [phone]
Fax. [phone]

3
Field dsplay 592D has 57 mm digit heigth. The large
display is designed for max. 20 meters distance. The field
display consist of two displays, 5 digits, max. 99999.
ModelhasredLEDdisplaywhichcanbeseenalsooutdoor
applications using a sun shade in the enclosure. The
• Dual 5 digits, 57 mm display
• Microprosessor based
• Pt100 sensor, thermocouples, 0/4..20
mA, 0/5..10V, potentiometers
Analog input:
Dual large field displays
Specification:
Voltage inputs:
Scaleable inputs: -9999..99999
0-1V, 0..5V, 1-5V, 0-10VDC
Input ranges : 20, 50, 500, 1000 mV
Input impedance: 1 Mohm, for 500 and 1000 mV, 10
kohm for 25 and 50 mV.
Decimal point selectable
Accuracy: 0.05 % of FS.
Current input 0/4..20 mA:
Display range: -9999....+99999
Offset: 0-99 %
Desimal point selectable
Input impedance: 50 ohm .
Accuracy: 0,05 % of FS.
Potentiometer input:
Input range 25....1000 ohm or
2...10 kohm
Scaleable display.
RTD sensors:
Pt100
2-, 3-, or 4 wire connection
Temperature rangee -200... +700 °C
Resolution 0.1 or 1 °C
Accuracy:
0,05% of FS + 0,1 °C (4-wire.)
0,05% of FS + 0.2 °C. (3-wire)
Error between channels, max. ± 0,1 °C.
Lead wire resistance effect:
(3-wire) 0.005%/ohm.
Other RTD-sensors available:
PT500, Pt1000, Ni100, Ni1000
Thermocouples:
K -100....+1250 °C
J,J/DIN -100..... +900 °C
T -50...... +350 °C
E -50....... +350 °C
R,S 0......+1700 °C
B 0... . +1800 °C
W3 0......+2300 °C
W5 0......+2490 °C
W 1000.. ..+2300 °C
N -200.....+1200 °C
Accuracy 1.5 °C ± 1 numero
S,R types 2.5 °C ± 1 numero
Lead wire < 1000 ohms, no effect
Cold junction effect: < 0.05 °C/°C.
General specification:
5 digits., red, LED, digit height 57 mm. Grey plastic
case.
Digit size 57 mm
Protection IP65
Power supply 230 VAC, 20 W
analog conversion is 15 bit and resolution 1/32000.
Continuosautocalibrationquaranteeslongtermaccuracy.
When you display big numbers the last digits on right may
be set to indicate zeros (null digits).

4

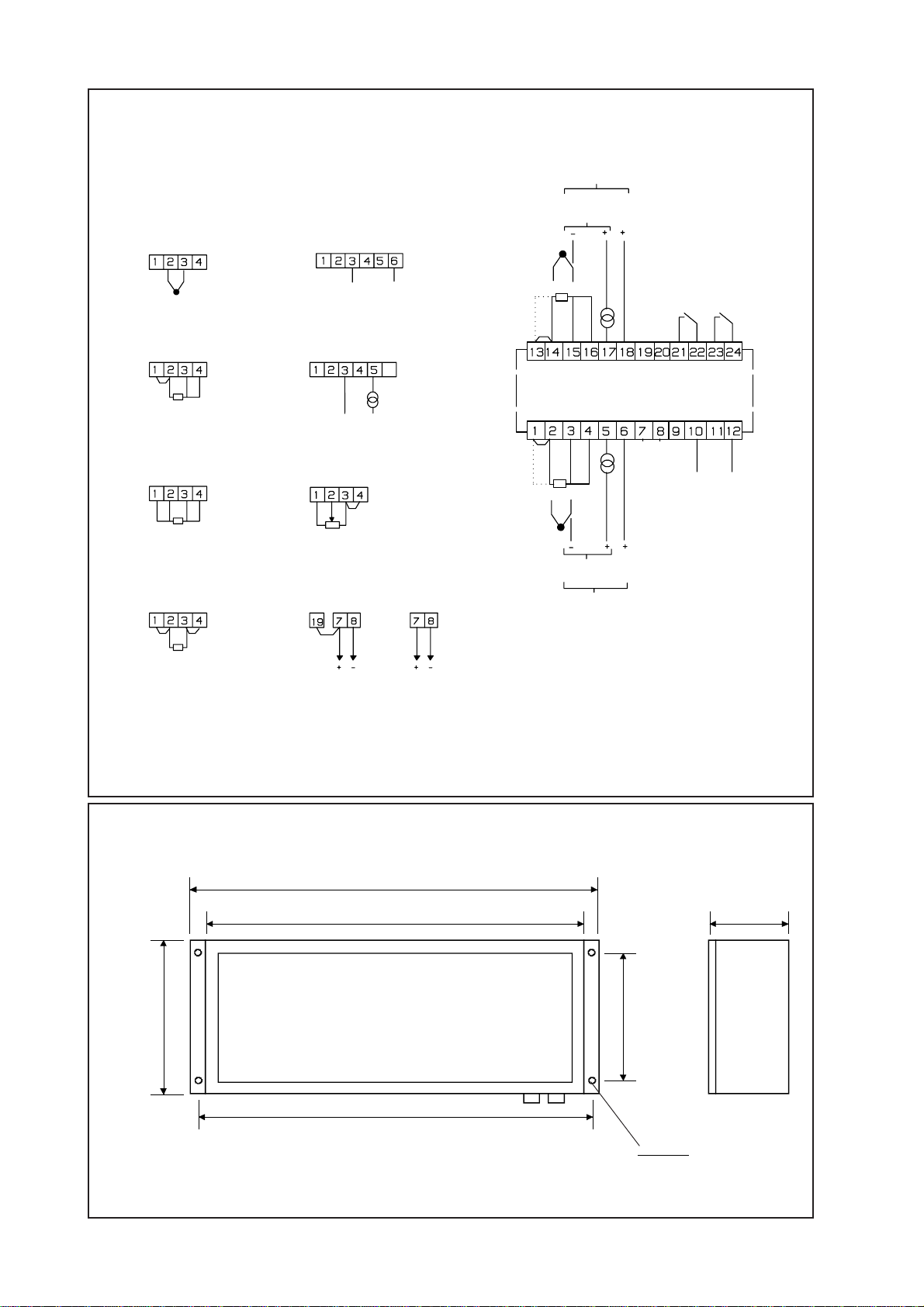

Connections for channel B
as channel A.
A
B+ - c + +
+ - c +
K1 K2
Pt100
2,3 4-
wire
Pt100
2,3 tai 4-
wire
+ -
Input: 0/1..5/10VDC:
Current 0/4..20 mA:
Potentiometer:
mA
5/10 V
5/10 V
mA
Output (V)
0/1...5/10 V
Thermocoupleand
mV-input:
+
Pt100 3-wire.
Pt100 4-wire.
Pt100 2-wire.
TC
mV
TC
mV
+Power supply
10 ja 12
Standard:
220 V AC
Channel A
Channel B
- +
- +
Output (mA):
(0) 4..20 mA
Connections
N L
Note 1.
Output 0/1..5/10 : Connect jumper to
connectors 7 and 19.
Power supply:
Standard 220
Others 110, 24 V AC or
24 V D
24 VDC, connectors:
11(+) ja 10 (-).
Contacts:
selectable nc or no
Alarms
max. 240 V, 2 A
Protection: IP65
Black metal case
Wire connections: 2 x 13.5 mm
Dimensions: mm
Dimensions
670
625 120
646
210
250
d 7.0

5
Keyboard for configuration
Mother board
*-button
2
1
E T *
B
A
*
A B
Channel A Channel B
*
CONF
CONF
CONF END
*
END
*-button **
Channel AB
(optional) Common When display shows
symbol END you can
exit from programming
stage by pressing *-key.
Only when two
channels in use
(optional)
Indication lights
of alarm one and
two
Selection for upwards
(up button)
Selection for downwards
(down button)
Display
Indication lights
of channel 1 and 2
Youcan enterconfiguration stagethrough threebut-
tons on circuit board. Buttons E and T, on the left,
transfer indication lights in main menu and *-button
confirms selection. Alarms are available on request.
You can enter initial setting stage when all indication
lights are OFF. See chapter "initial settings" on next
page.
Indication lights (A and B)
AB AB off
(E,T)
confirms selection

6
Configuration
You can configurate the meter by three push buttons on circuit board. Display will show symbols,
which can be changed, or the settings may be controlled only. *-button will not change
settings but it transfers display and program to next stage.
Select config stage by pressing E , T and * -buttons at the same time.
CONF-text appears on the display. Now you are ready to start configuration.
Initial settings You can select the number of channels, output etc.
Display Push buttons
CONF Turn off lights A ja B by arrow keys and press *-button.
d i Select the number of digits (4 or 5 digits)
CH x Select one or two input channels. A=(CH1)1, B=(CH2) 2
SP 0 Extended channel AB. 0=OFF 1=ON
OU x Factory default, must be set to = 0
AL 0 Factory default, must be set to = 0
1 nc Factory default, do not change
1 nc Factory default, do not change
F 50 Select line 50 or 60 Hz (default 50 Hz)
CCxx Special functions.
Setting of secret code
xx = 88, Secret code for configuration
xx = 89, Secret code for only alarms
Setting of secret code for configurations
CC 88 Choose number 88 by down-button. Display will show text CODE.
CODE Press *-button.
0000 Display will show number number 0000 and first 0 is blinking.
Choose any number between 0..9 and make following number to
blink by *-button. When 4 number code is set press *-button. Exit by
choosing CC90 and press *-button. Secret code is saved first when
you leave program stage (END). Code number 0000 is not in use.
You may select any number between 0001...9999.
Setting of secret code for only alarms
CC 89 Choose number 89 by down-button. Display will show text CODE.
CODE Press *-button.
0000 Display will show number number 0000 and first 0 is blinking.
Choose any number between 0..9 and make following number to
blink by *-button. When 4 number code is set press *-button. Exit by
choosing CC90 and press *-button. Secret code is saved first when
you leave program stage (END). Code number 0000 is not in use.
You may select any number between 0001...9999.

7

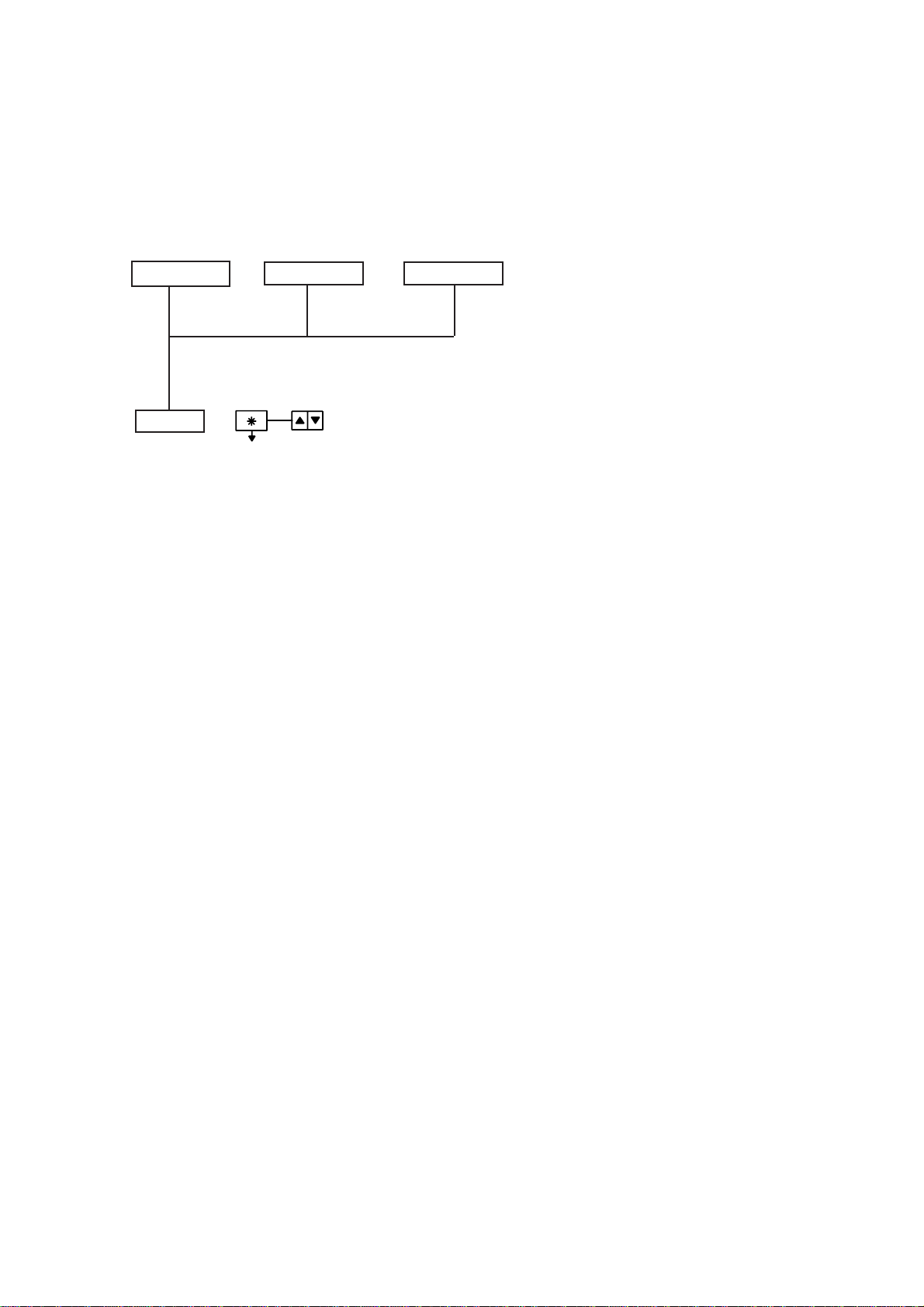

Channel A Channel B Channel AB
CONF Select channel A (CH1), B (CH) or AB (lights on front )
SExx Select measuring sensor, xx = 0 ... 74
1 0..20 mA Scaleabledisplay
2 4..20 mA Scaleabledisplay
11 Pt100 3-wire
12 Pt100 4-wire
13 Pt500 3-wire *
14 Pt500 4-wire *
15 Pt1000 3-wire *
16 Pt1000 4-wire *
17 Ni100 3-wire *
18 Ni100 4-wire *
19 Ni1000 3-wire *
20 Ni1000 4-wire *
21 1000 ohm Linear reistor 0..1000 ohm
22 500 ohm Linear resistor 0...500 ohm
31 TC B Thermocouple *
32 TC E Thermocouple
33 TC J Thermocouple ANSI FeCuNi
34 TC J DIN Thermocouple DIN FeCuNi
35 TC K Thermocouple
36 TC N Thermocouple
37 TC R Thermocouple
38 TC S Thermocouple
39 TC T Thermocouple
40 TC W Thermocouple *
41 TC W3 Thermocouple *
42 TC W5 Thermocouple *
51 0...10 VScaleabledisplay
52 0...5 V Scaleabledisplay
53 1...5 V Scaleabledisplay
54 0...1V Scaleabledisplay
61 Potentiometer max. 0-1000 ohm
62 Potentiometer max. 0-500 ohm
63 Potentiometer max. 0-50 ohm
64 Potentiometer max. 0-25 ohm
71 1000 mV
72 500 mV
73 50 mV
74 25 mV * = preliminary information
You can configurate both channel individually. Sensor types, alarms, display scaling and output
signals. Before channel configuration you shall decide in chapter "Initial Settings" whether
one or two channels, secret code etc. will be used. See chapter "Initial settings".
Channel settings

8

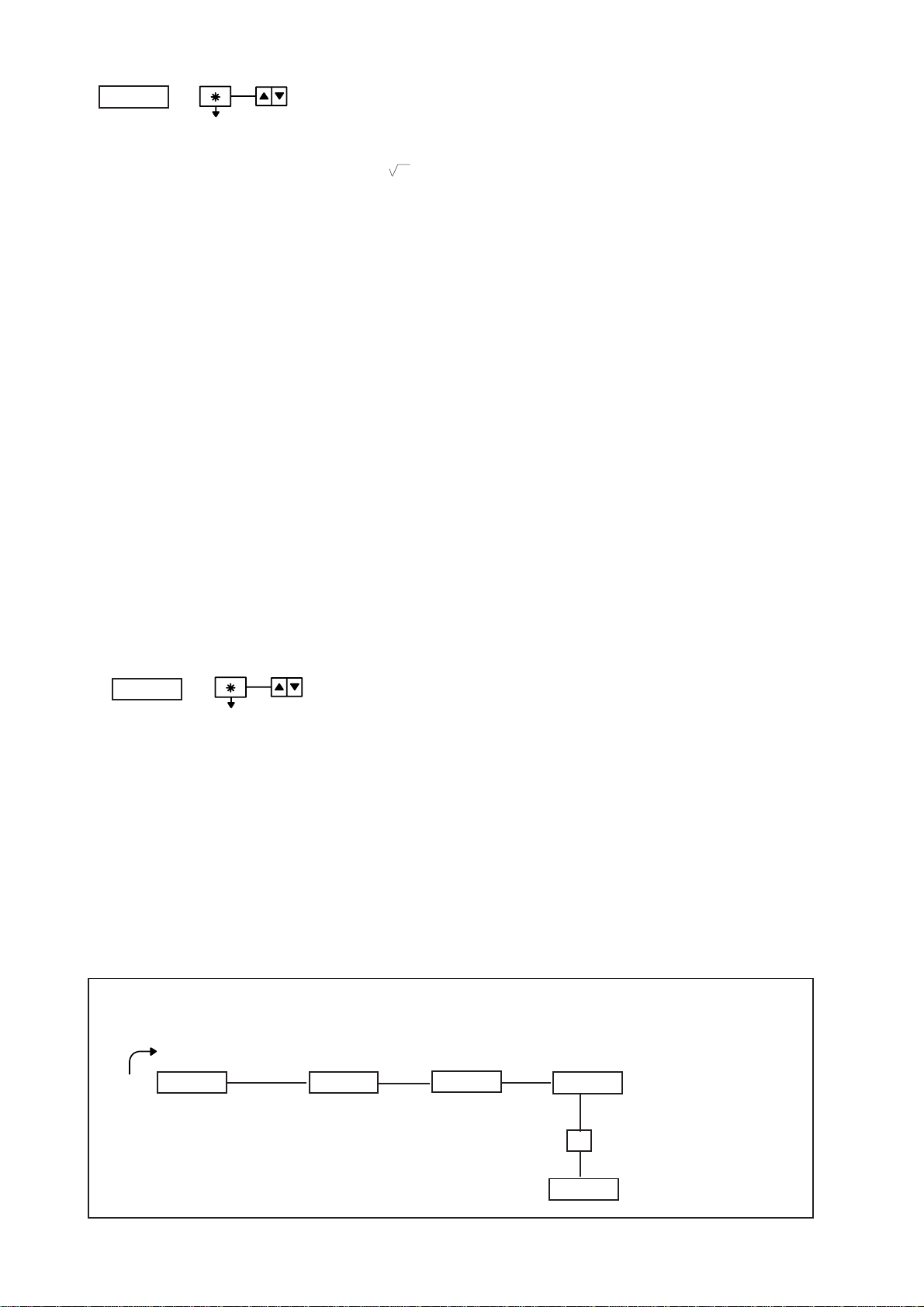

FU x Select function for channel A or B
0 Lineardisplay
1
2x
3 log x
4 ln x
510
6xe
7 average (3 measuring values)
8 average (5 measuring values)
9 min. value Reset: press both arrows keys
simultaneusly 10 max. value Reset: press both arrows keys
simultaneusly
EN x Select whether the channel will be displayed by automa-
tic scanning =0 (not displayed), 1= (displayed)
ED x External display, 0=Off, 1=On (only for serial output)
DE x Decimals in display , x = 0 ... 3
LOFF Offset changing, f.ex. -1.0 degrees below measured
value xxxx Select offset value. You can change it any time
Scaleable inputs:
If sensor number is 1, 2, 12, 13, 14, 15, 16, 17, 18 or 19,
you have to select min/max display as follows:
LO Low-end of display (f.ex.. 4mA=0.0)
xxxx Select value
HI High-end of display (f.es. 20 mA=100.0)
xxxx Select value
OC x Factory default = 0, do not change
2
CONFCONF CONF
*
AB
DONE
Press *-button
A B
Light A
END
Select END-text by arrow buttons and press *-button. When text [DONE] appears,
all parameter are saved to memory and indicator is ready to measure in a few seconds..
End of configuration

9
CONFCONF CONF END
A B Lights A....AB AB End of
configuration
You can select the number of channels, output etc.
Display Push buttons
CONF Turn off lights A ja B by arrow keys and press *-
button.
CH x Select one or two input channels, x, , 1=1 2=2
channels
SP 0 Exrtended channel AB. 1=OFF, 1=ON
OU x Output 0/4..20 mA or 0/1..5/10VDC On=1, Not
used=0 CCxx Customized calibration of potentiometers and current
output xx = 11, Potentiometer, channel A
xx = 12, Potentiometer, channel B
xx = 21, Current output 0/4..20 mA
xx = 22, Voltage output, 0/1..5/10 V
CC 11 (A) or CC 12 (B) (Select number by arrow-keys).
1. Run potentiometer to min. position (or max. position in of reverse function) when display shows
symbol P_lo and press then *-button. Resp. when display shows P_Hi
2. Return by arrow buttons symbol 0 and press *-button so many times until display shows
configuration start symbol CONF. You can now get symbol END by arrow buttons. Confirm exit
by *-button. The display now shows symbol DONE and the meter is calibrated fror the real path
angle.
adding output card.
Teaching potentiometer position
If the path of the actuator is not from zero to max.
value but, only a apart of it, you may calibrate meter
to correspond the real-path. Indicator saves to its
memory min./max. positions and this does not chan-
ge the scaling of the display. F.ex. display is scaled
0..100% corresponding 0-1000 ohm. In the field,
however,whenthevalveisclosedtherealvalueis70
ohmandwhenclosedtherealvalueis872ohm.This
means that display do not show 0-100% as desired.
This drawback can be easily corrected as follows:
Potentiometer input
Meter accepts pot. input in both channels, each
having its own scaling. Standard ranges are
0..25...1000 ohm. Inside the meter you can change
two resistor for range 10 times, ie. 0..250...10000
ohm.Ifyou usethe expanded rangeyou cannotuse
RTD´s. Standard range allows RTD, or some other
sensor on the other channel. You can set all mathe-
maticalfunctionsalso topot.input asf.ex.logaritmic
scaling display. You can also have output signal by

10
CONFCONF
*
CONF END
FU Choosing the function. see table 2
EN x You can pass a channel in automatic scanning,
0=pass, 1=shows
ED x External display 0=OFF, 1=ON
DE x Number of decimals, x = 0 ... 3
AC x Alarms and output can be chosen for channel A
and B. Set output and alarms to channel A and B.
Go to page "programming" and continue from point A
Cxx or press *-button, without doing any settings,
see point "exit".
Press *-button

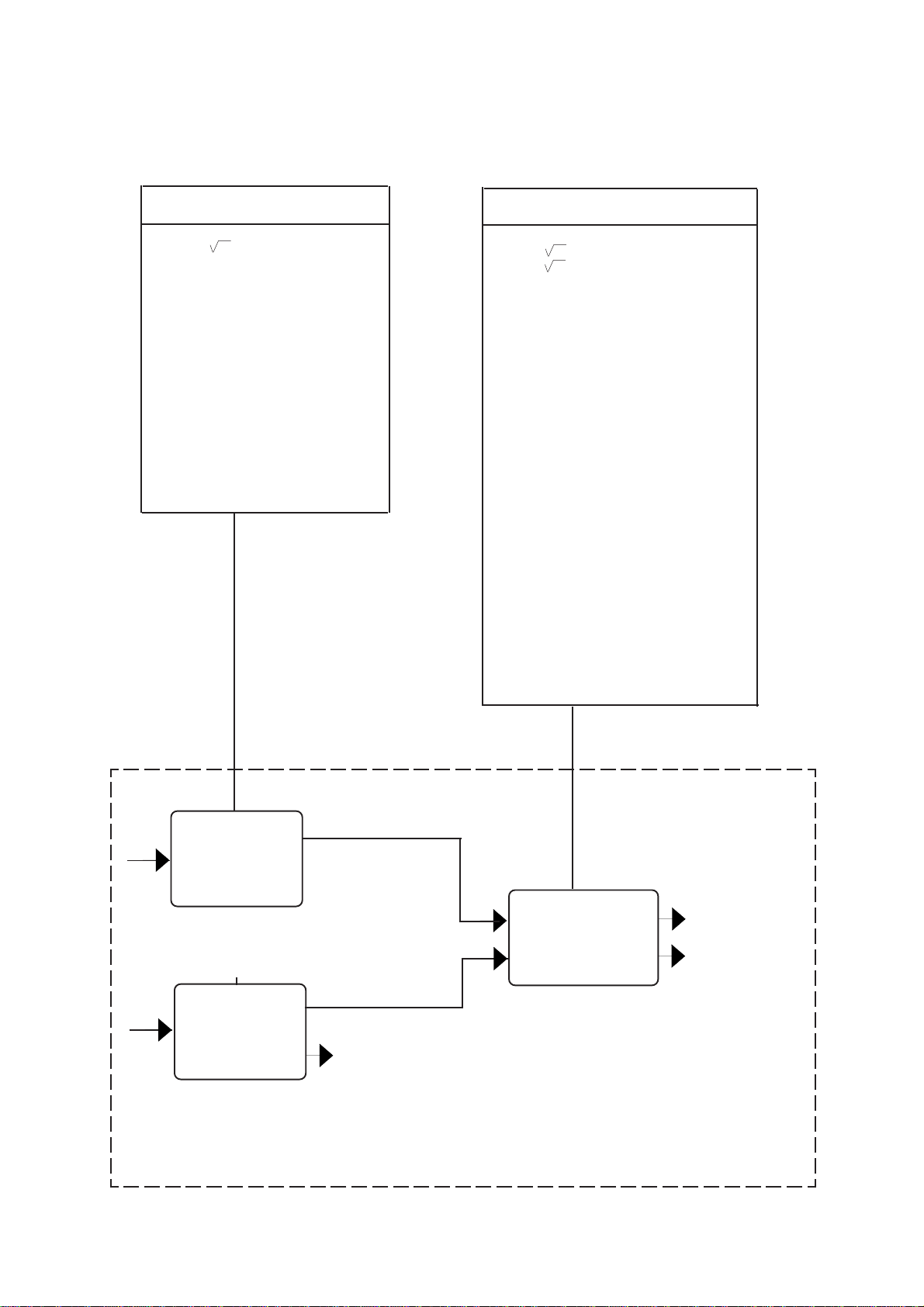

Third channel AB
The lights A and B (AB) indicate that display
shows the result of calcutation, which can be
used as a separate channel. You can select
the functions like sum, subtraction, square root
etc. in a separate table.
A B Lights A....AB AB
Channel A or B
Definition of mathematical functions for third channel
(optional)
The display may show the third (extended channel)
i.e. the result of the calculations between the two
channels.ThebothsignallightsAandBlitatthesame
time. The third channel operates excatly like the
physical channels and may have alarms or output
signal.
Definition of functions to channel AB
Choose channel AB to display by arrow buttons and
press *-button

11
No Function
Table 1
No Function
Table 2
Functions of channel A and B Functions of channel AB
(optional)
2
1x
2X
2
3 log x
4 ln x
510
6x e
7 avg(3 measurements)
8 avg(5 measurements),
9 min. value
10 max. value
11 min.value, with reset
12 max. value, with reset
0 No functions
avg=averagevalue
Channel B
Pt100 sensor
Range 0..600 C Alarm K2
Channel A
4-20 mA input
Range 0..1000
Channel AB
Function17
Channels A- B
Output 4..20 mA
Alarm K2
1 x (channel A)
2 x (channel B)
3x
2(channel A)
4x
2(channel B)
5 log x (channel A)
6 log x (channel B)
7 ln x (channel A)
8 ln x (channel B)
9 10 (channel A)
1o 10 (channel B)
11 x e (channel A)
12 x e (channel B)
13 avg(3 measurem) channel A
14 avg(3 measurem), channel B
15 avg(5 measurem), channel A
16 avg(5 measurem.),channel B
17 A-B
18 A+B
19 A*B
20 A/ B
21 A/B%
22 avg(A, B)
0 No function in use
Display 592

12
Nokeval oy
Yrittäjäkatu 12
37100 Nokia, Finland
Tel. [phone]
Fax. [phone]
