Nokia CK-20W - Multimedia Car Kit Instruction sheet

1 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Installation Guidelines
Nokia Multimedia Car Kit CK-20W
and Nokia Navigation Pack LD-2

2 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Contents
• Product overview
• Purpose of this guide
• Installation guidelines
1. Connection options for music and voice
2. Installation and placement of components in the car
3. Connection options for phone and music player

3 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
To provide the technical background information needed for carrying out professional
installation.
Only a qualified service technician should install or service the car kit using the approved
original Nokia parts supplied in the sales package. Faulty installation or service may be
dangerous and may invalidate any warranty which may apply to the car kit. End users
should remember that the car kit comprises complex technical equipment that requires
professional installation using special tools and expert know-how.
Instructions given in this guide are general guidelines which apply for the installation of
the car kit in an automobile. However, due to the wide variety of car types and models
available on the market, this guide cannot consider the individual technical
requirements relevant for any particular vehicle. Contact the vehicle manufacturer for
detailed information about the vehicle in question.
Purpose of these guidelines

4 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

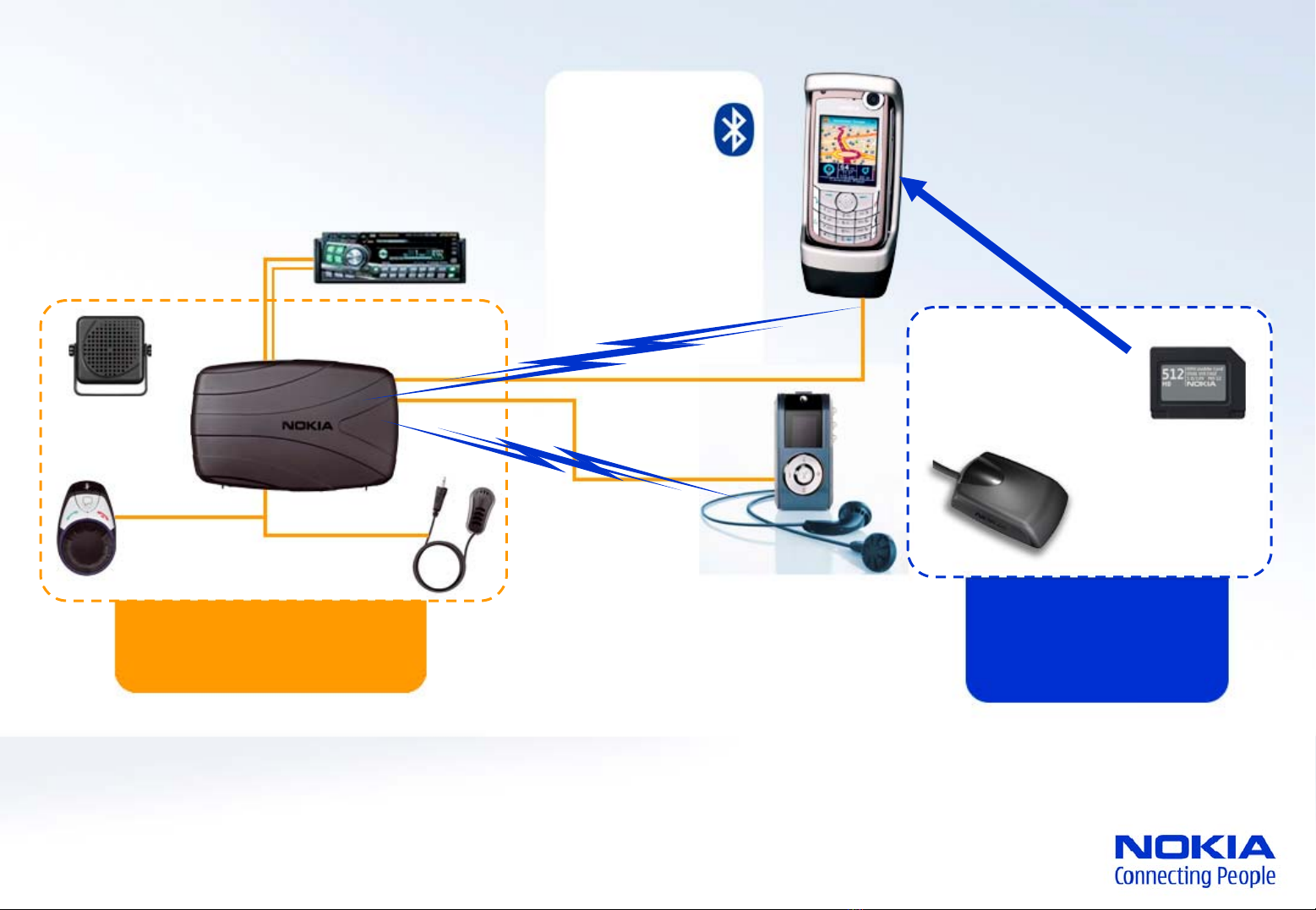

Nokia Multimedia
Car Kit CK-20W
Nokia
Navigation
Pack LD-2
Microphone
Handsfree, music
and navigation
over Bluetooth
wireless
technology
Connection to car
stereo or dedicated
speaker
Input Device
navigation
application with map
data
GPS receiver (wired
connection to the
handsfree unit)
Speaker
Mini-SD card
(inserted in
mobile phone)
Music over Bluetooth
profile A2DP
Navigation over
Bluetooth profile SPP
Product overview
+
Music over 3.5 mm
jack analog cable
Dedicated mobile
music player, e.g.
MP3 player
Handsfree over
Pop-Port™

5 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
1 = Power cable 2 = speaker-out (mono)
3 = Data cable or audio 4 = Input device
& charging cable
5 = GPS receiver 6 = line-out
7 = Microphone
1 2 3 4 5 6 7
Connectors

6 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

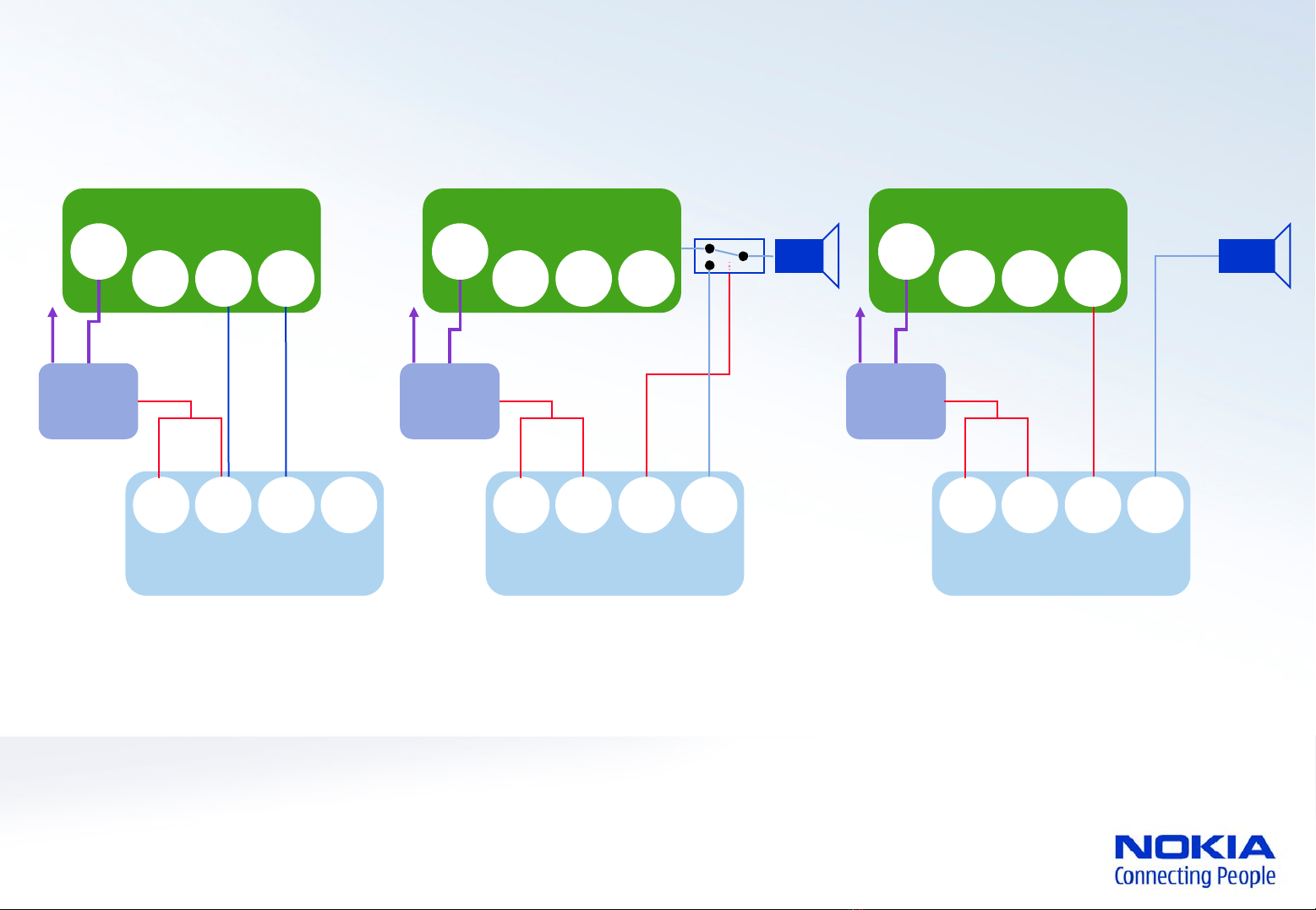

Installation modes: hands-free and music (1)
Aux-in / Phone-in Aux-in / Mute box Aux-in / Speaker
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
Left
Stereo
Right Mono
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
Left
Stereo
Right Mono
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
Left
Stereo
Right Mono
Car sound system Car sound system
Car
speaker
Car sound system
Dedicated
speaker
Required configuration: set the car kit to stereo mode. Please read the Installation Guide
provided in the sales package for further information.
* Please note: CRM can be left open in the event that the car sound system does not support the connection.

7 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Installation modes: hands-free and music (2)
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
aux-in
Mute
Stereo
left
Stereo
right Mono
Car sound system
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
left
Stereo
right Mono
FM modulator / Phone-in FM modulator / Mute box Aux-in / Speaker
Antenna
FM
modulator
Car
speaker
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
left
Stereo
right Mono
Dedicated
speaker
FM
modulator
FM
modulator
Antenna Antenna
Car sound system Car sound system
Required configuration: set the car kit to stereo mode. Please read the Installation Guide
provided in the sales package for further information.
* Please note that CRM can be left open in the event the car sound system does not support the connection.

8 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Installation modes: hands-free only
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
aux-in
Mute
Stereo
left
Stereo
right Mono
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
aux-in
Mute
Stereo
left
Stereo
right Mono
No music / Phone-in No music / Mute boxNomusic/Speaker
Car
speaker
Handsfree unit
CRM*
Mono/
Phone-in
Stereo
Aux-in
Mute
Stereo
left
Stereo
right Mono
Dedicated
speaker
Car sound systemCar sound system Car sound system
Required configuration: set the car kit to mono mode. Please read the Installation Guide
provided in the sales package for further information.
* Please note: CRM can be left open in the event that the car sound system does not support the connection.

9 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Overview
Connection
options
for music and voice
Connection options
for phone
and music player

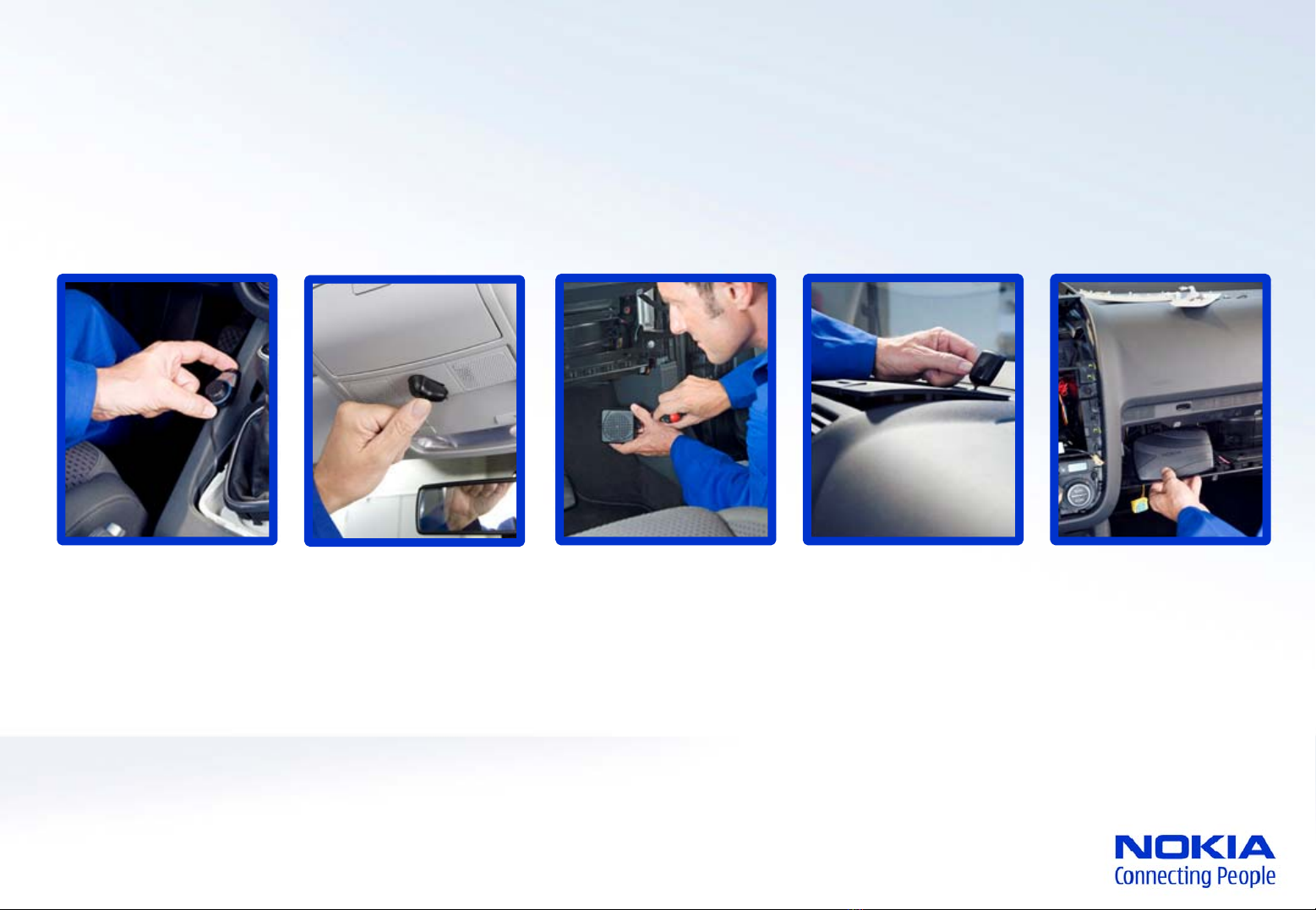

Installation and
placement of
components in the car

10 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Voice Music
Phone-in Aux-in
In order to ensure correct car sound system
mute and audio volume behavior, voice and
music must be handled differently.
Various connection options – which can be
freely combined – are available for each.
Overview of connection options:
•Voice:
– Phone-in
– Mute box (i.e. relay to switch car
speakers between sound system and
car kit)
– Speaker
•Music:
–Aux-in
– CD changer port
–FMmodulator(wired or wireless)
Mute box
Speaker
CD changer port
FM modulator
Connection options

11 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

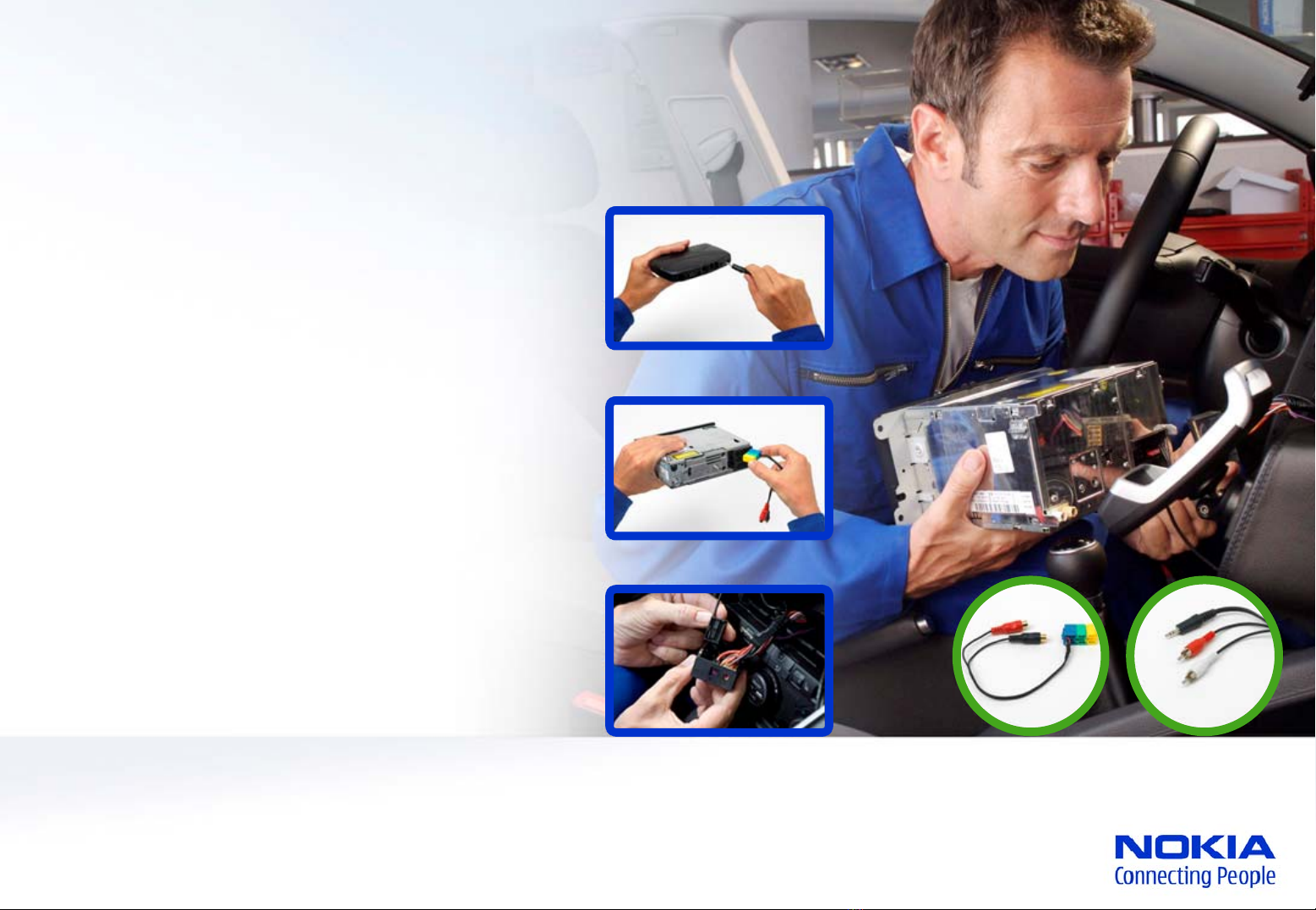

Music
• Audio signals: from Nokia Multimedia
Car Kit CK-20W line-out to aux-in
of car sound system
Cables/Adapters needed:
• Cable between Nokia Multimedia
Car Kit CK-20W (3.5 mm jack)
and aux-in
• Not standardized, but adapter cables
for most aftermarket and OEM sound
systems available
Car sound system aux-in

12 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Music
• Audio signals: from Nokia Multimedia
Car Kit CK-20W line-out to CD changer
port of car sound system*
Cables/Adapters needed:
• Cable between Nokia Multimedia
Car Kit CK-20W (3.5 mm jack)
and the CD changer port
• Not standardized but adapter cables
for most aftermarket and OEM sound
systems available
* The CD changer port and aux-in of the car sound
system are similar, with the exception of the
connection jack arrangement.
Car sound
system CD changer port

13 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Music
• Audio signals from Nokia Multimedia
Car Kit CK-20W stereo line-out to
audio-in port of FM modulator
• Radio frequency signals from FM
modulator to one of the radio channels
Cables/Adapters needed:
• Cable between Nokia Multimedia
Car Kit CK-20W (3.5 mm jack)
and audio input of modulator
• Adapter for antenna connector
may be required
FM Modulator (wired)

14 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Music
FM transmitter*)
• Audio signals from Nokia Multimedia
Car Kit CK-20W line-out to audio-in port of
FM modulator
• Radio frequency signals from FM modulator
are transmitted to car radio antenna
Cables/Adapters needed:
• None (adapter for 3.5 mm jack may be
required)
* Availability of individual products may vary by region.
Check and comply with national/local laws regarding the
use of a radio transmitters.

15 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Voice
• Audio signals: stereo left from Nokia
Multimedia Car Kit CK-20W line-out to
phone-in port of the car sound system
• Mute signal from power cable
to car sound system
Cables/Adapters needed:
• Adapter cable from line-out (3.5 mm
jack) to the phone-in of car sound system
(caution: do not use speaker-out, as it
carries a mono signal only)
• Splitter may be required to
simultaneously connect music signal
Car sound system phone-in

16 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.
Voice
• Mute box overrides front speakers;
car kit feeds speakers directly
• Audio signals from Nokia Multimedia
Car Kit CK-20W speaker-out (mono) to
mute box
• Mute signal from power cable to mute box
Cables/Adapters needed:
• Adapter from ISO to proprietary connector
for car sound system and speaker may be
required
• Speaker connectors not standardized (ISO,
VDA etc.), but adapter cables for most
aftermarket and OEM sound systems
available
• Cable from 3.5 mm jack to the mute box
Mute box

17 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

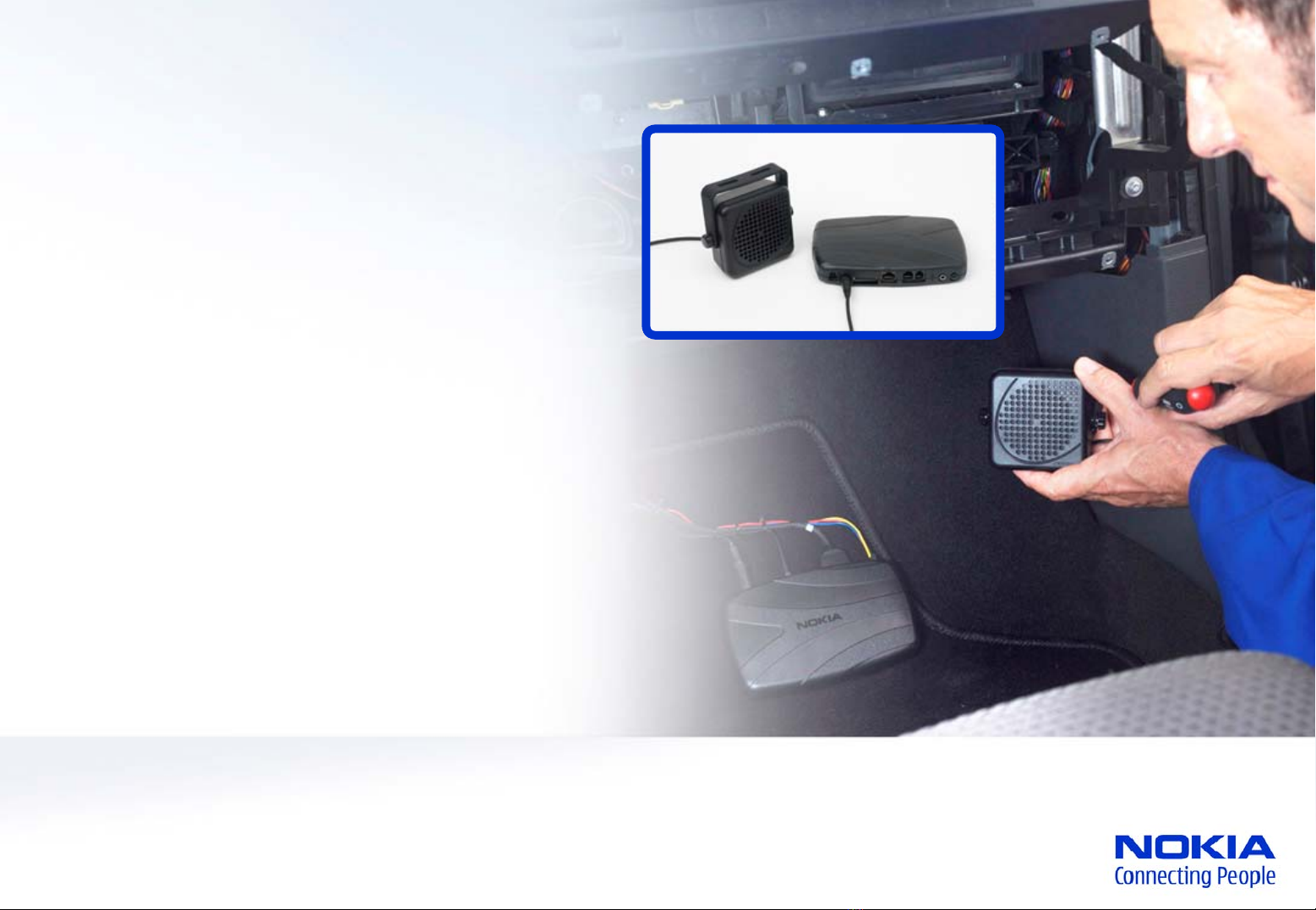

Speaker
• Voice signals from Nokia Multimedia
Car Kit CK-20W speaker-out (mono) to
speaker (cable permanently attached to
speaker)
• Mute signal from power cable
to car sound system
Cables/Adapters needed:
• Connector to transmit mute signal to car
sound system may be required (e.g. mini-
ISO, Fakra)
Dedicated speaker

18 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

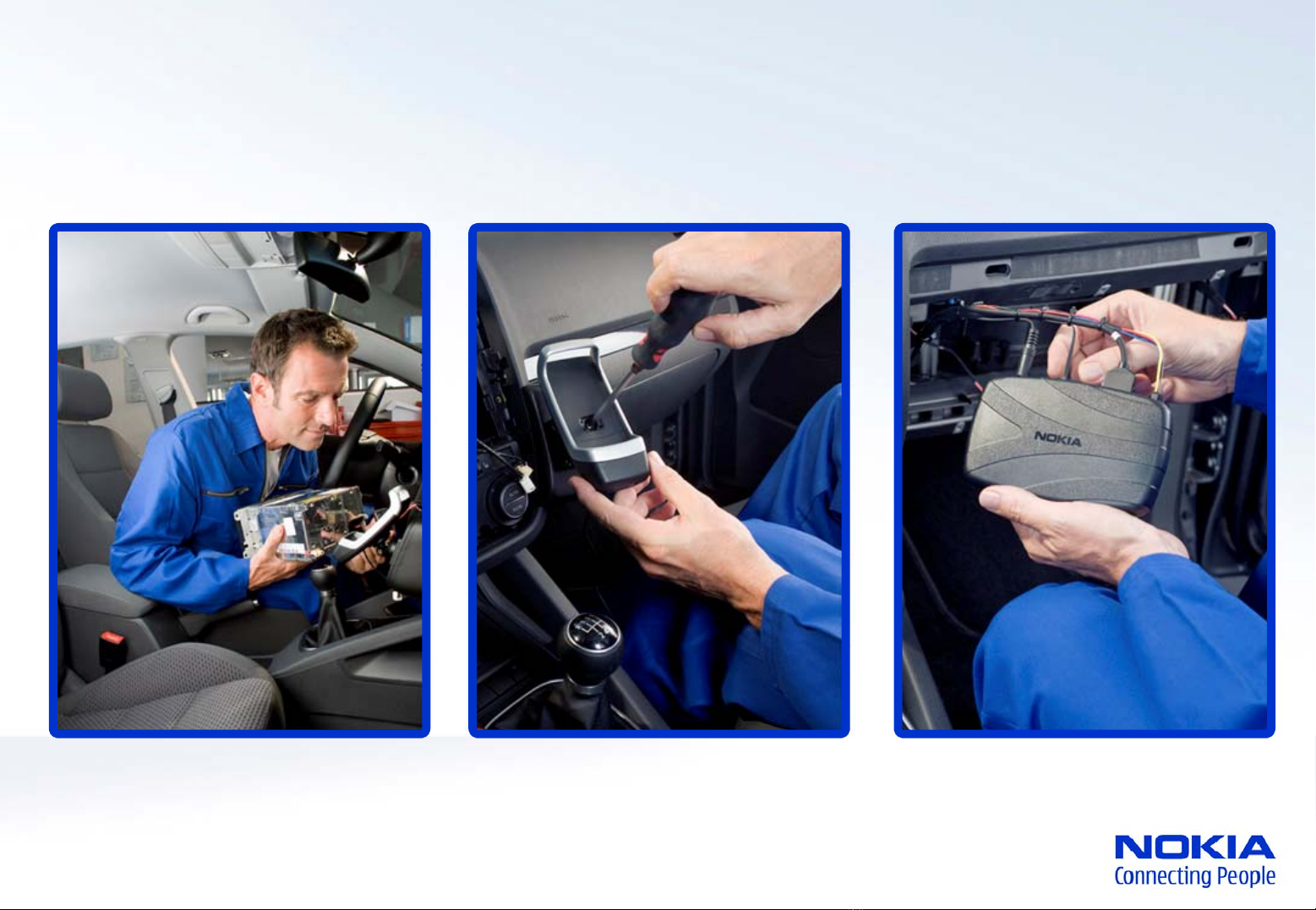

Installation
Recommended placement of components
External/ Separate
speaker
(for handsfree voice audio
GPS receiver Handsfree unit
Input device
Best place is on
Microphone
Best place is near
the center console
within reach.
the rear mirror
pointing to the
driver‘s mouth.
in mono quality only)

19 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

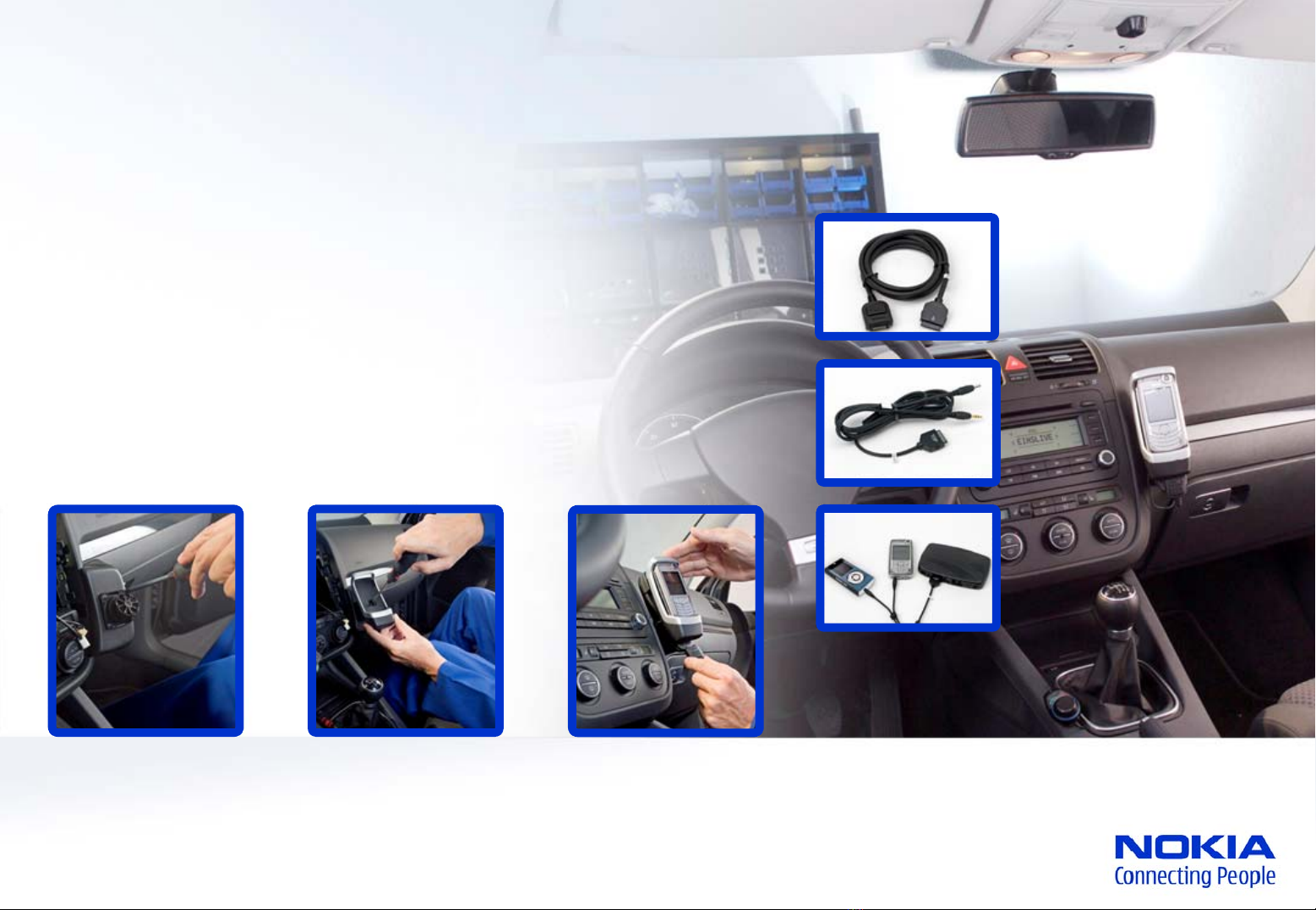

Installation
• Position mobile holder for optimum accessibility and visibility
for the driver; avoid all possible interference with vehicle operation
and airbag function*
•Select the right cable for the device:
– Data cable for a mobile phone with Pop-PortTM connector
– Audio and charging cable to connect a mobile music
player with 3.5 mm jack connector and to charge
mobile phone
•Note: the audio and charging cable can be connected to two
devices; a clip is included to secure the cable while not in use
*Additional antenna couplers are standard equipment or available
options for some Nokia mobile holders
Wired connection of phone and music player

20 Copyright © 2007 Nokia. All rights reserved.
Please note: car accessories must be installed or repaired by qualified
professionals only. Carefully read the User Guide and Installation Guide
for each system to be installed.

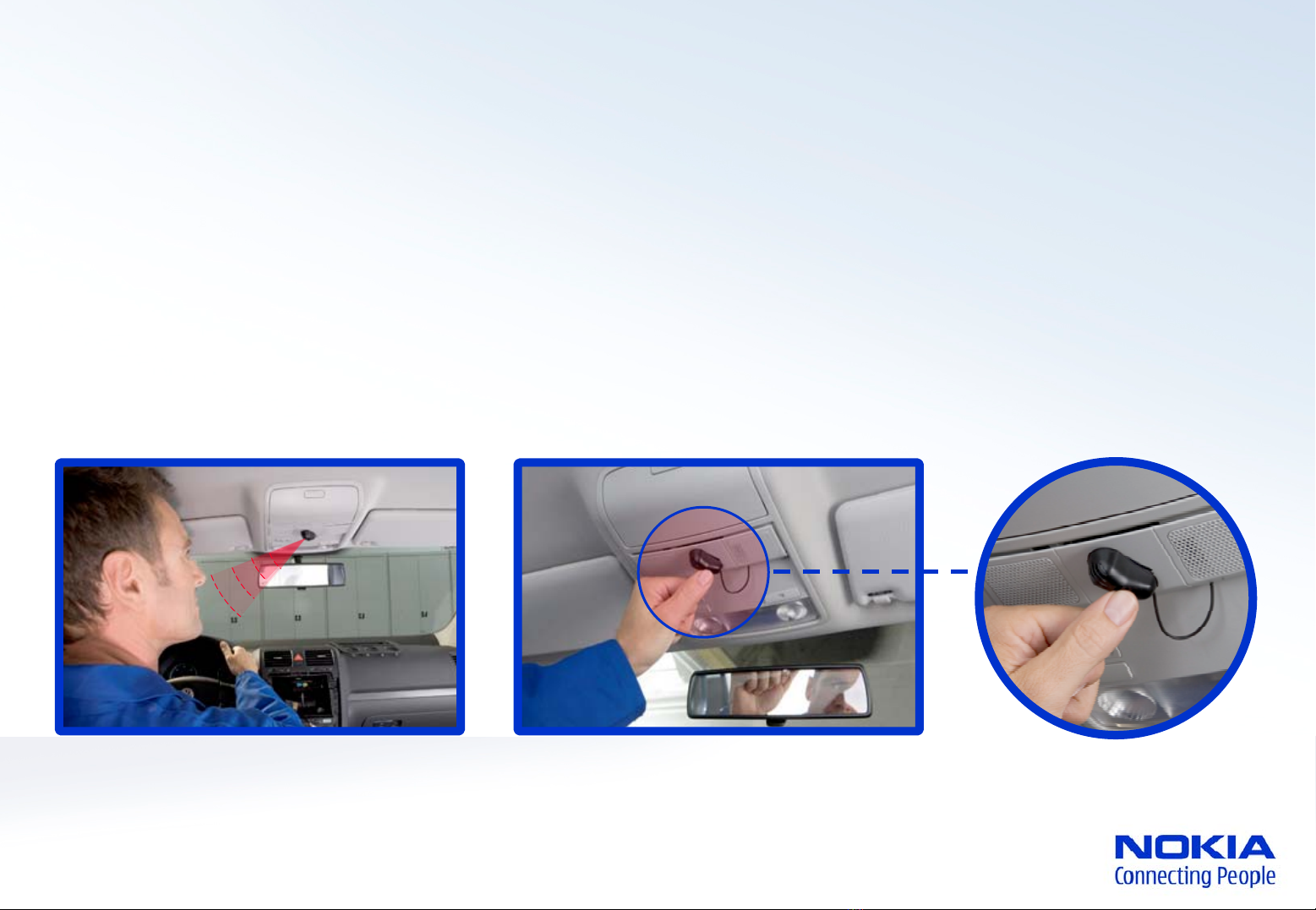

Optimum position of the external microphone
Installing the microphone close to the rear mirror
• Best place for installation is near the rear mirror
• Use the Velcro tape to properly fix the microphone
• Optimum performance is gained when the microphone points to the driver’s mouth
