1. Introduction
The Nokia Wireless Plug-in Car Handsfree (HF-6W) is an
easy fit hands-free product, which is based on
Bluetooth wireless technology and powered with a
digital signal processor (DSP).
You can use the handsfree for call handling and to
charge a compatible Nokia mobile phone.
Read this user guide carefully before using the
handsfree. Check also http://www.nokia-asia.com/
support or your local Nokia Web site for the latest
version of this guide, additional information,
downloads, and services related to your Nokia product.
9239331_HF6W_1_en.fm Page 7 Thursday, April 28, 2005 9:42 AM

Get started
8
2. Get started
Before you can start to use the handsfree, you must
install the handsfree in the car, and pair a compatible
phone with the handsfree.

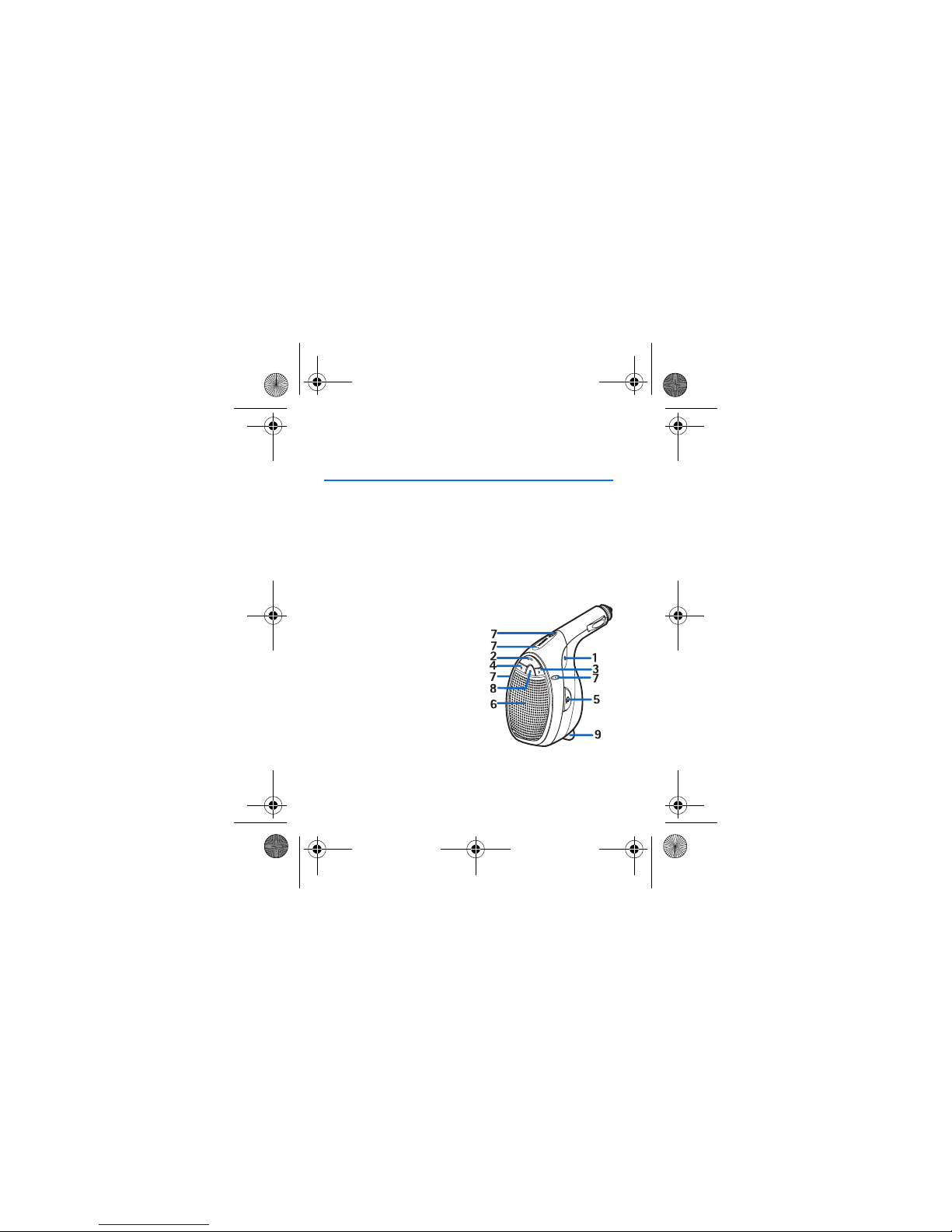

■Handsfree parts
• Power key (1)
• Answer/end key (2)
• Volume up key (3)
• Volume down key (4)
• Cable release key (5)
• Speaker (6)
• Microphones (7)
• Indicator lights (8)
• Charger cable (9)
9239331_HF6W_1_en.fm Page 8 Thursday, April 28, 2005 9:42 AM

Get started
9
English
■Install the handsfree in the car
To function properly, the handsfree must be connected
to the cigarette lighter socket of a car, and power must
be supplied by the car battery.

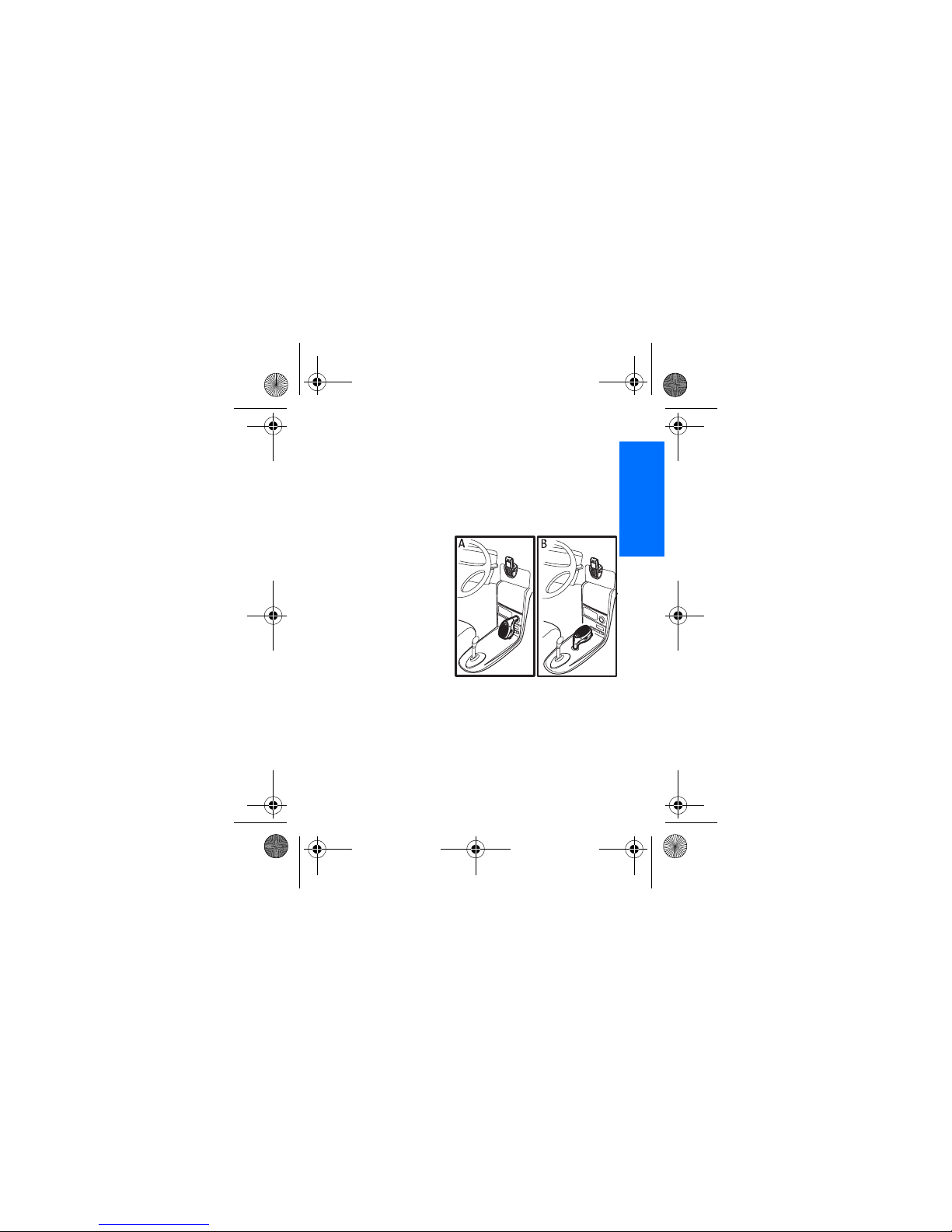

Insert the handsfree
into the cigarette
lighter socket of your
car as shown in
Figure A or Figure B.
Make sure that the
handsfree is properly
locked in place, and
does not interfere
with the normal
operation of the car.
9239331_HF6W_1_en.fm Page 9 Thursday, April 28, 2005 9:42 AM

Get started
10

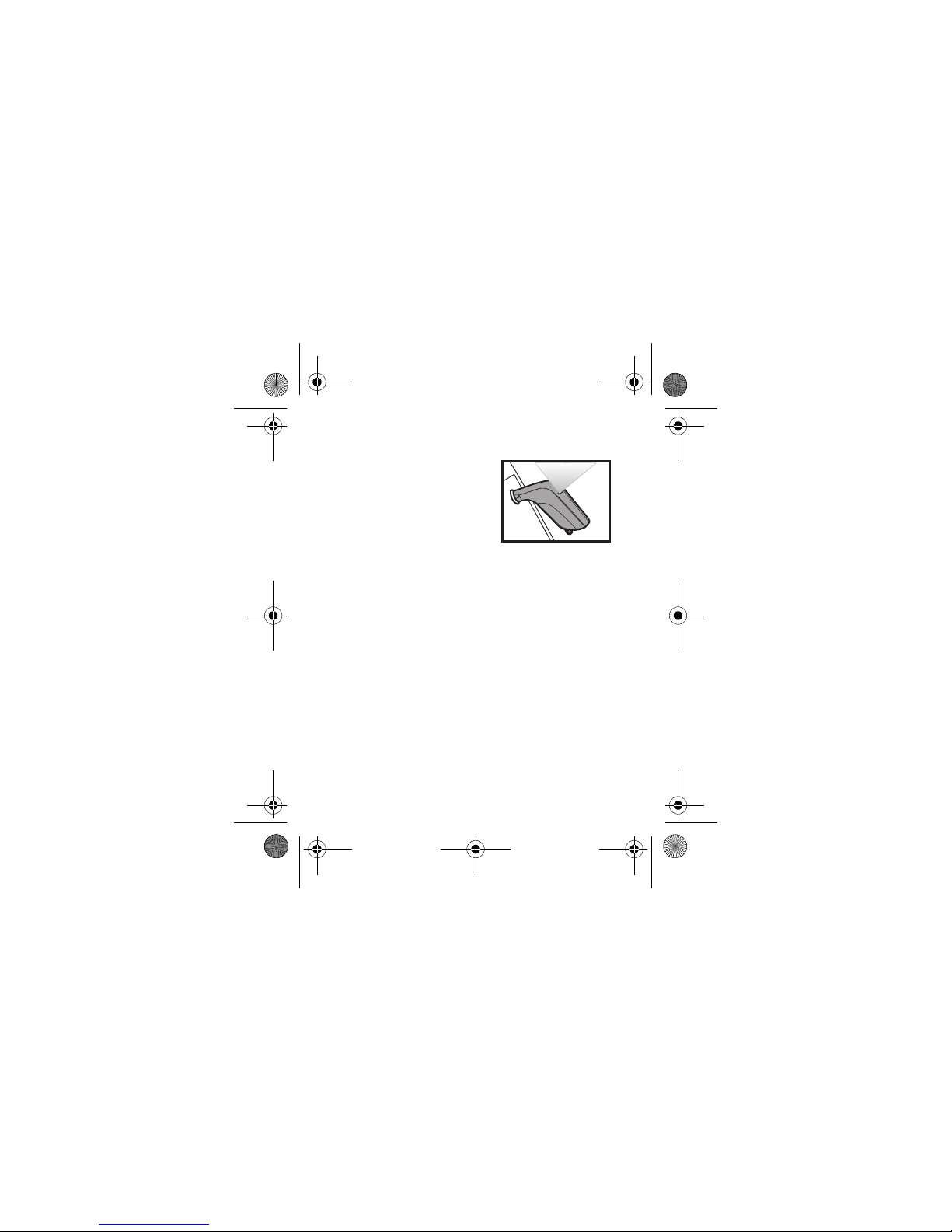

Speech tracking works optimally
when the speech sound is
coming from the area indicated
with light gray in the figure. If
you encounter unsatisfactory
performance, realign the device.
In some car models, the cigarette lighter socket is
powered by the car battery even when the ignition key is
removed. In those cases, the car battery might be
discharged if the handsfree is left on, or if the handsfree
is turned off but connected to the cigarette lighter socket
for a long time. Contact the vehicle manufacturer for
more information.
■Switch the handsfree on and off
To switch on, press the power key. The handsfree beeps,
and the green indicator light is displayed briefly.
9239331_HF6W_1_en.fm Page 10 Thursday, April 28, 2005 9:42 AM

Get started
11
English
To switch off, press the power key when no call is in
progress. The handsfree beeps, and the red indicator
light is displayed briefly.
■Pair the handsfree with a phone
The handsfree is specially designed for compatible
Nokia phones that support Bluetooth wireless
technology. You can, however, use the handsfree with
any compatible Bluetooth device that supports the
Bluetooth Handsfree profile. Refer to the user guide of
your phone for more information on Bluetooth wireless
technology.
Before you can use the handsfree, you must pair it with
a compatible phone.
1. Make sure that the compatible phone is switched on.
2. Make sure that the handsfree is installed properly,
and press the power key to switch it on.
9239331_HF6W_1_en.fm Page 11 Thursday, April 28, 2005 9:42 AM

Get started
12
3. Set the phone to search for Bluetooth devices. See the
user guide of your phone for instructions.
4. Select the handsfree (Nokia HF-6W) from the list.
5. Enter the Bluetooth passcode 0000 to pair the
handsfree with the phone. The phone becomes the
default phone for the handsfree, if the handsfree has
not been previously paired with another phone.
The handsfree beeps shortly, and a continuous blue
indicator light indicates an active Bluetooth
connection.
6. Start to use the handsfree.
Disconnect the handsfree from the phone
If you want to disconnect the handsfree from your phone
(for example, to connect the phone to another Bluetooth
device), switch off the handsfree, or disconnect the
handsfree in the Bluetooth menu of the phone.
9239331_HF6W_1_en.fm Page 12 Thursday, April 28, 2005 9:42 AM

Get started
13
English
You do not need to delete the pairing with the
handsfree to disconnect it.
Reconnect the handsfree to the phone
If you want to reconnect the handsfree to the default
phone or the last used phone, make sure the Bluetooth
feature is activated in the phone, and switch on the
handsfree. When you reconnect a paired handsfree, you
are not asked for its passcode.
You can set your phone to connect with the handsfree
automatically when the handsfree is switched on. To do
this in Nokia phones, change your paired device settings
in the Bluetooth menu.
If the handsfree does not automatically reconnect to
the default or the last used phone, press and hold the
answer/end key. The handsfree starts to search for the
default phone, followed by the last used phone.
Otherwise, make the connection in the Bluetooth menu
of your phone.
9239331_HF6W_1_en.fm Page 13 Thursday, April 28, 2005 9:42 AM

Basic use
14
3. Basic use
■Call functions
To make a call, use your phone in the normal way.
To redial the last dialed number, press the answer/end
key twice.
To activate voice dialing, press the answer/end key until
you hear a voice dialing tone. For more information, see
the user guide of your phone. Voice dialing is only
available with phones that support this feature.
Answer and end a call
When you receive a call, the green indicator light blinks,
and you hear a ringing tone through the handsfree. If the
incoming call alert setting in your phone is off, no ringing
tone is played through the handsfree.
9239331_HF6W_1_en.fm Page 14 Thursday, April 28, 2005 9:42 AM

Basic use
15
English
To answer a call, or to end the currently active call, press
the answer/end key. You can also answer or end the call
using the phone.
Automatic answer
If the automatic answer function is activated on the
phone, the phone automatically answers the incoming
call after a defined time period, and forwards it to the
handsfree.
Reject a call
If you do not want to answer a call, briefly press the
answer/end key twice.
Mute or unmute an ongoing call
Press the power key briefly. When the call is muted, the
red indicator light is shown continuously.
9239331_HF6W_1_en.fm Page 15 Thursday, April 28, 2005 9:42 AM

Basic use
16
Switch the call between handsfree and
phone
Press the answer/end key for more than 1 second.
Multiple calls
To make multiple calls, use the keypad of the phone.
To answer a waiting call from the handsfree, first end the
active call, and then answer the second call.
■Adjust the handsfree volume
To adjust the handsfree volume, use the volume keys on
the handsfree or the keypad of your phone.
■Charge a compatible phone battery
You can charge the batteries of compatible Nokia phones
while using the handsfree. Pull out the charger cable
from the handsfree, and connect it to the phone. When
9239331_HF6W_1_en.fm Page 16 Thursday, April 28, 2005 9:42 AM

Basic use
17
English
the battery is fully charged, disconnect the phone from
the charger cable, and press the cable release key on the
handsfree to retract the cable.
■Use the handsfree with multiple
paired phones
You can pair the handsfree with up to eight compatible
phones, but connect to only one phone at a time.
The phone that was first paired with the handsfree is
called the default phone. The phone that was last used
with the handsfree is called the last used phone.
When the handsfree is switched on, the handsfree tries
to connect to the default phone within a few seconds.
If the handsfree cannot connect to the default phone,
the handsfree tries to connect to the last used phone
within a few seconds.
If the handsfree cannot connect to either phone, it
remains discoverable for other phones.
9239331_HF6W_1_en.fm Page 17 Thursday, April 28, 2005 9:42 AM

Basic use
18
To use the handsfree with a paired phone that is not the
default phone or the last used phone, make the
connection in the Bluetooth menu of the phone.
■Reset the handsfree
You can reset the handsfree to clear all settings,
including pairing information. Switch off the handsfree,
and then press and hold the power key and the volume up
key simultaneously for 10 seconds. During resetting, the
green and red indicator lights blink alternately. After the
handsfree is reset, it beeps twice.
■Troubleshooting
If you cannot connect the handsfree to the compatible
phone, proceed as follows:
• Make sure that the Bluetooth feature is activated on
the compatible phone.
9239331_HF6W_1_en.fm Page 18 Thursday, April 28, 2005 9:42 AM

Basic use
19
English
• Make sure that the handsfree is properly installed,
switched on, and paired with the compatible phone.
Check also that there is power supplied by the car
battery.
• If you use several Bluetooth devices, make sure you
ended the previous Bluetooth connection from the
phone.
• Ensure that the handsfree is within 10 meters of the
phone and that there are no obstructions or
electronic devices between the two.
• The network capacity and parameters of your
network operator may degrade the sound quality of
phone calls. This may occur, for example, in traffic
jams, when many people in the same area are talking
on the phone at the same time.
9239331_HF6W_1_en.fm Page 19 Thursday, April 28, 2005 9:42 AM

Care and maintenance
20
Care and maintenance
Your device is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will help
you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity and all types of
liquids or moisture can contain minerals that will corrode
electronic circuits.
• Do not use or store the device in dusty, dirty areas. Its
moving parts, electronic components, and microphones can
be damaged.
• Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices and warp or melt
certain plastics.
• Do not store the handsfree in cold areas. When it warms up
to its normal temperature, moisture can form inside, which
may damage electronic circuit boards.
• Do not attempt to open the device.
9239331_HF6W_1_en.fm Page 20 Thursday, April 28, 2005 9:42 AM
