Nokia CK-7W User manual

Advanced Car Kit CK-7W
User’s Guide
Installation Guide
9230221_CK-7_1_en.fm Page 1 Thursday, August 12, 2004 4:13 PM

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION, declare under our sole responsibility that the
product HF-5 is in conformity with the provisions of the following
Council Directive: 1999/5/EC. A copy of the Declaration of Conformity
can be found at:
http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the
contents of this document in any form without the prior written
permission of Nokia is prohibited.
Nokia and Nokia Connecting People are trademarks or registered
trademarks of Nokia Corporation. Other products and company names
mentioned herein may be trademarks or tradenames of their respective
owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products
described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data
or income or any special, incidental, consequential or indirect damages
howsoever caused.
The contents of this document are provided “as is”. Except as required by
applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the
right to revise this document or withdraw it at any time without prior
notice.
The availability of particular products and services may vary by region.
Please check with the Nokia dealer nearest to you.
9230221 / Issue 2
9230221_CK-7_1_en.fm Page 2 Thursday, August 12, 2004 4:13 PM

Contents
3
English
Contents
Contents ............................................................................................... 3
For your safety..................................................................................... 4
Introduction ......................................................................................... 5
Your Nokia Advanced Car Kit CK-7W.............................................................................. 5
Bluetooth wireless technology .......................................................................................... 6
Bluetooth passcode............................................................................................................... 6
1. Getting started................................................................................. 7
Overview .................................................................................................................................. 7
Use of enhancements........................................................................................................... 8
2. Installation ....................................................................................... 9
Safety information................................................................................................................ 9
Configuration........................................................................................................................ 11
Installing the Advanced Car Kit CK-7W........................................................................ 13
Function test......................................................................................................................... 16
3. Putting the Advanced Car Kit CK-7W into service..................... 17
Connecting a mobile phone using Bluetooth wireless technology....................... 17
Pairing using a Bluetooth passcode............................................................................... 17
Automatic pairing with a compatible mobile phone ................................................ 18
Connecting a mobile phone over the data cable ....................................................... 18
4. Operation........................................................................................ 19
Remote control button ...................................................................................................... 19
Switching the Advanced Car Kit CK-7W on/off ......................................................... 20
Operating the Advanced Car Kit CK-7W ...................................................................... 20
Care and maintenance....................................................................... 23
9230221_CK-7_1_en.fm Page 3 Thursday, August 12, 2004 4:13 PM

For your safety
4
For your safety
Read these simple guidelines. Breaking the rules may be dangerous or
illegal. Further detailed information is given in this user’s guide.
Keep all miniature SIM cards and accessories out of the reach of small
children.
ROAD SAFETY COMES FIRST
Remember that the safety of operating a motor vehicle in
traffic requires the full attention of all motorists. Only use
your Advanced Car Kit CK-7W if traffic conditions permit safe
use and check if local laws/regulations restrict the use of
mobile phones while driving.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
QUALIFIED INSTALLATION AND SERVICE
Only a qualified professional may install or repair phone
equipment.
CONNECTING TO OTHER DEVICES
When connecting to any other device using Bluetooth
wireless technology, read the relevant user’s guide for
detailed safety instructions. Do not connect incompatible
products.
FUSE REPLACEMENT
Replace a blown fuse with a fuse of the same type and size.
Never use a fuse with a higher rating!
9230221_CK-7_1_en.fm Page 4 Thursday, August 12, 2004 4:13 PM

Introduction
5
English
Introduction
■Your Nokia Advanced Car Kit CK-7W

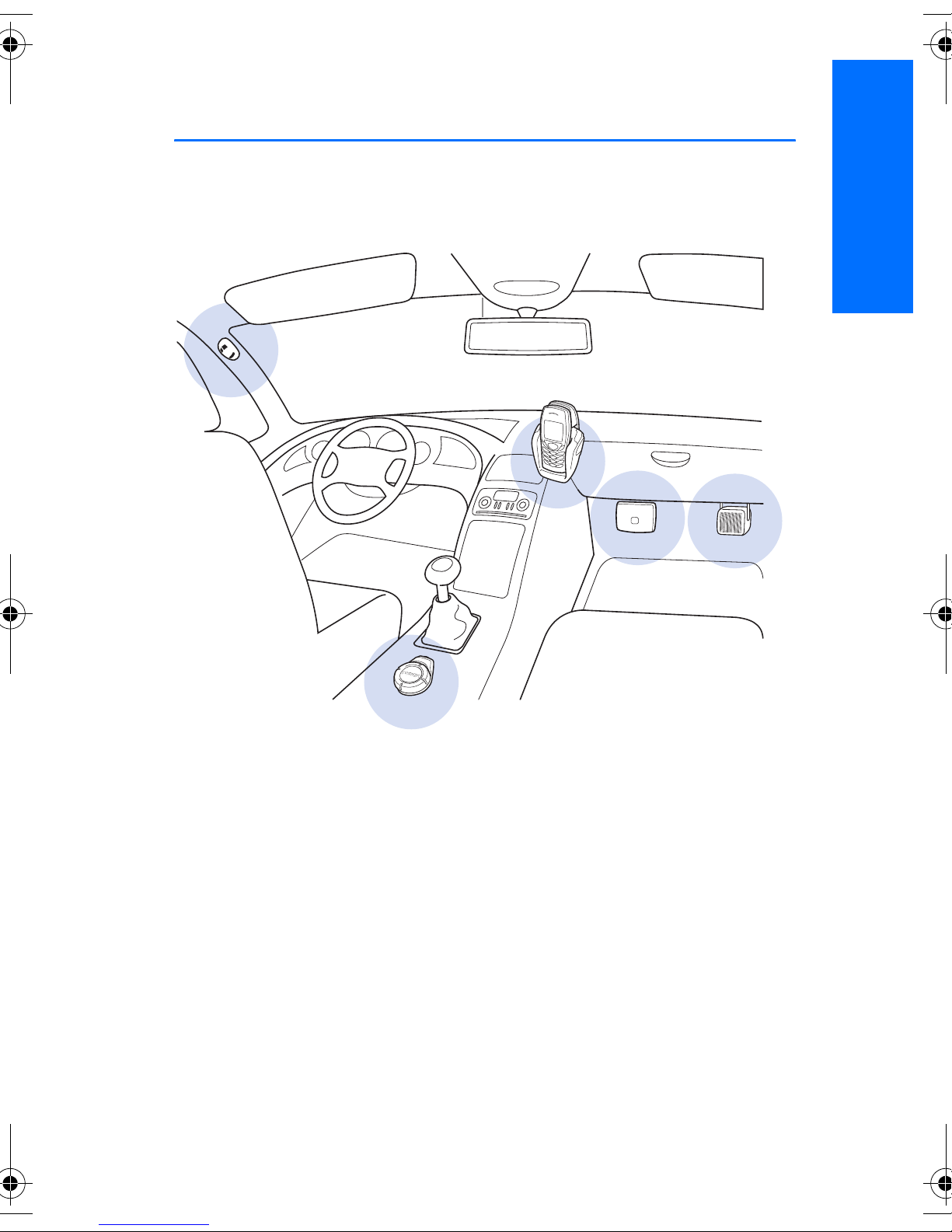

Advanced Car Kit CK-7W equipment installation in the cockpit
The Nokia Advanced Car Kit CK-7W was developed for installation in
motor vehicles to enable handsfree operation of mobile phones and use
of individual phone features.
A special emphasis was placed on quick and easy installation. A mobile
phone can be connected to the Advanced Car Kit in one of two ways:
using an optional phone holder with a cable or over a Bluetooth wireless
connection.
In some countries, use of the Advanced Car Kit may be restricted by law.
Please observe the applicable rules/regulations.
9230221_CK-7_1_en.fm Page 5 Thursday, August 12, 2004 4:13 PM

Introduction
6

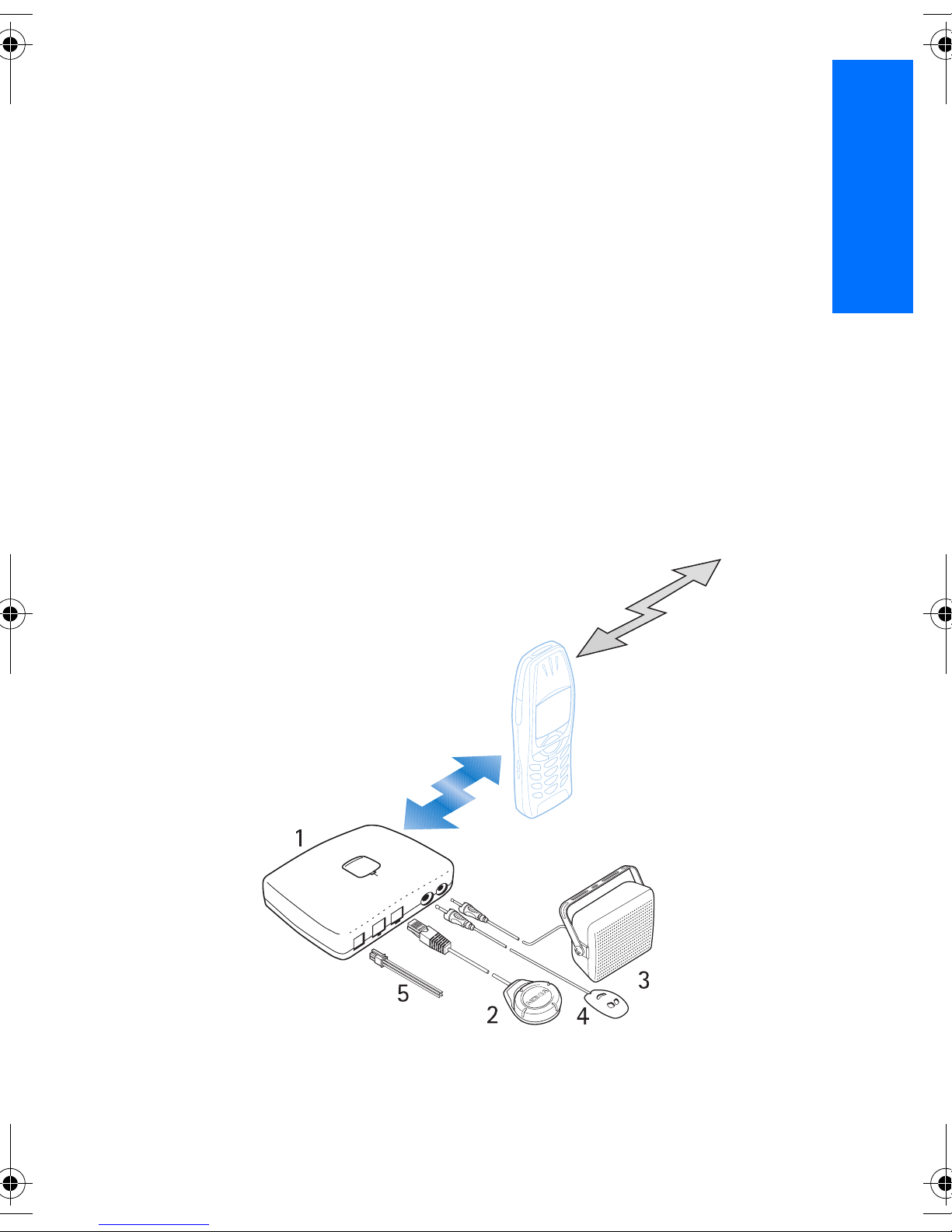

■Bluetooth wireless technology
Bluetooth wireless technology is an international standard for short-
range wireless communication. It allows you to establish a wireless
connection within a range of 10 metres between your Advanced Car Kit
and a compatible device.
The Advanced Car Kit is intended for use with any mobile phone that
supports the Bluetooth Handsfree Profile (Bluetooth HFP).
The wireless connection between the compatible devices established
using Bluetooth technology is free of charge for the user. In some
countries, there may be restrictions on using Bluetooth devices. Check
with your local authorities.
■Bluetooth passcode
The first time you wish to establish a wireless connection to a
compatible device using Bluetooth technology, you will need to input a
passcode to pair the devices.
The passcode is 0000.
9230221_CK-7_1_en.fm Page 6 Thursday, August 12, 2004 4:13 PM

Getting started
7
English
1. Getting started
■Overview

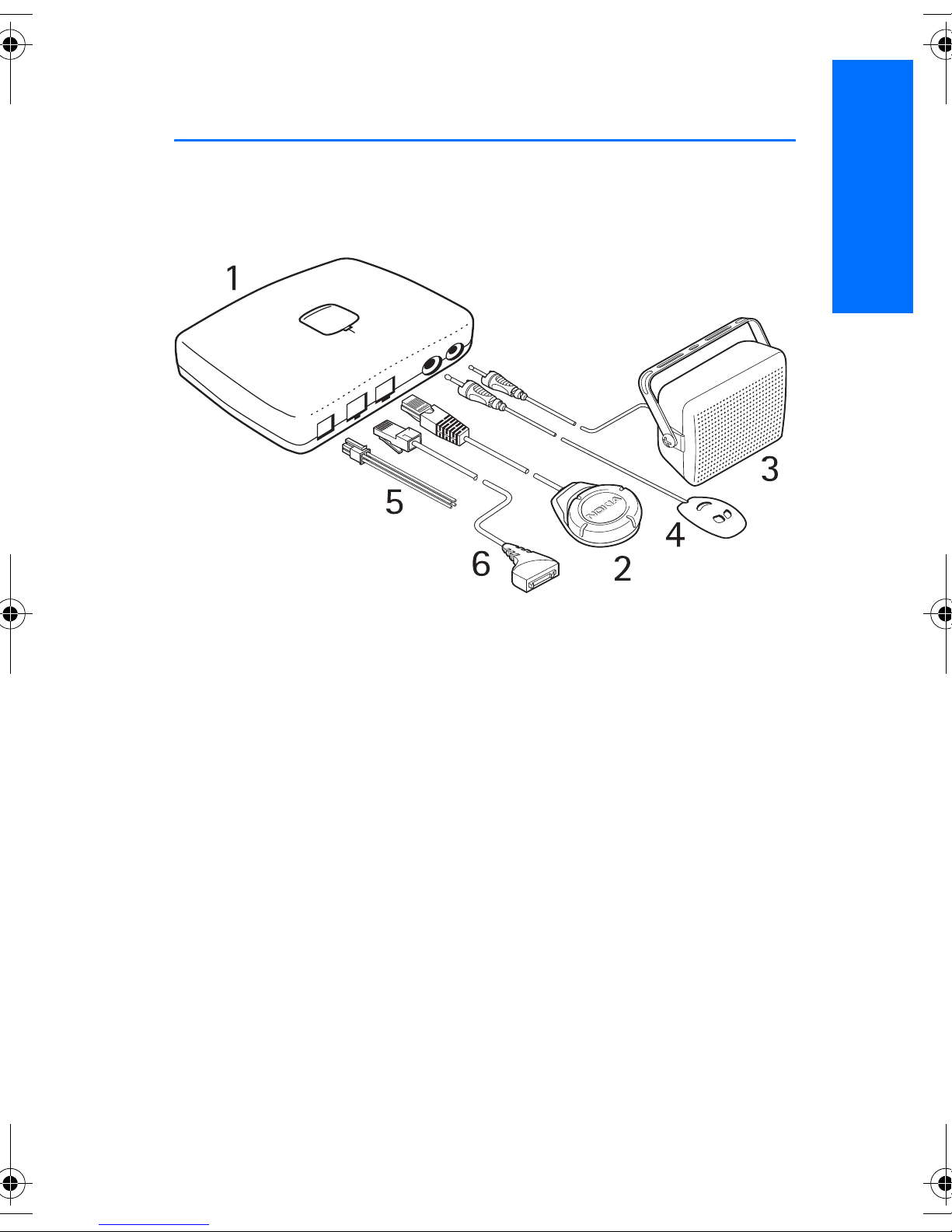

The Advanced Car Kit CK-7W includes the components shown above.
• 1 Handsfree unit HF-5 with mounting plate MK-2
• 2 Remote control button CU-7
• 3 Loudspeaker HFS-12
• 4 Microphone HFM-8
• 5 Cable set PCU-4
• 6 Data cable CA-27
9230221_CK-7_1_en.fm Page 7 Thursday, August 12, 2004 4:13 PM

Getting started
8
■Use of enhancements
Depending on the setup, a variety of optional enhancements are
available to extend your Advanced Car Kit. Before any installation work
is started, ask for professional advice on the enhancements that would
best suit your needs. Use only approved enhancements. Ensure that only
compatible products are connected to your Advanced Car Kit.
Phone holder
You will need a phone holder designed for a compatible mobile phone if
the mobile phone is to be connected direct to the handsfree unit using
the data cable.
Antenna coupler
An antenna coupler is required to connect an external antenna. A range
of antenna couplers are commercially available for the mobile phones
and phone holders on the market. An antenna coupler improves in-
vehicle reception of the mobile phone.
GSM antenna
A compatible GSM antenna enables optimised wireless connections.
If you have installed an external antenna, remember that in order to
comply with RF exposure requirements for mobile transmitting devices,
a minimum distance of 20 cm must be maintained between the antenna
and all persons.
9230221_CK-7_1_en.fm Page 8 Thursday, August 12, 2004 4:13 PM

Installation
9
English
2. Installation
■Safety information
The basic safety guidelines set out below are to be observed when
installing the Advanced Car Kit CK-7W.
Note:
• Only qualified personnel should service the Advanced Car
Kit CK-7W or install it in a vehicle. Faulty installation or
service may be dangerous and may invalidate any warranty
which may apply to the unit.
• The Advanced Car Kit CK-7W may only be installed by a
qualified service technician using the approved original
Nokia parts supplied in the sales package. End users should
remember that the Advanced Car Kit CK-7W comprises
complex technical equipment that requires professional
installation using special tools and expert know-how.
• Note that the instructions contained in this installation
guide are general guidelines which apply for the
installation of the Advanced Car Kit CK-7W in an
automobile. However, due to the wide variety of car types
and models available on the market, this guide cannot
consider the individual technical requirements relevant for
any particular vehicle. Contact the vehicle manufacturer
for further detailed information about the vehicle in
question.
• The Advanced Car Kit CK-7W is suitable for use only in
vehicles with a 12 volts negative grounding. Use on other
supply voltages all alternative polarity will damage the
equipment.
9230221_CK-7_1_en.fm Page 9 Thursday, August 12, 2004 4:13 PM

Installation
10
• Remember that modern automotive systems include on-
board computers where key vehicle parameters are stored.
Improper disconnection of the car battery may cause loss
of data, necessitating extensive effort for re-initialisation
of the system. If you have any concerns, contact your car
dealer before any installation work is done.
• Do not wire Advanced Car Kit CK-7W equipment to the
high-voltage lines of the ignition system.
• All equipment must be mounted so that it does not
interfere with the operation of the vehicle.
• Your service technician may be able to provide you with
information on alternatives for mounting the equipment
suitably in your vehicle without requiring boreholes.
• The mount for the phone holder is to be fixed to the
dashboard or to any other location in the cockpit area
where the display is clearly visible for the user but does not
impair control or operation of the vehicle. The keypad
should be within easy reach of the driver.
• Make sure not to impact the steering or braking systems or
other key systems essential for proper operation of the car
when installing Advanced Car Kit CK-7W equipment.
Check to make sure that deployment of the airbag is not
blocked or impaired in any way.
• Do not smoke when working on the car. Make sure that
there is no source of fire or flame nearby.
• Take care not to cause damage to electrical cables, fuel or
brake lines or safety equipment during installation work.
• RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles (e.g.
electronic fuel injection systems, electronic anti-skid
braking systems, electronic speed control systems, airbag
systems). Should you note a fault or change in the
operation of such a system, contact your car dealer.
9230221_CK-7_1_en.fm Page 10 Thursday, August 12, 2004 4:13 PM

Installation
11
English
• Ensure that cables are placed so that they will not be
subjected to mechanical wear and tear (e.g. not laid under
car seats or over sharp edges).
■Configuration
In principle, the Advanced Car Kit CK-7W offers two different basic
configurations for installation:
Connecting a mobile phone using Bluetooth wireless
technology
To be able to establish a connection from a compatible mobile phone to
the handsfree unit, both devices first have to be paired.
A compatible mobile phone supporting Bluetooth wireless technology is
required for this setup.
9230221_CK-7_1_en.fm Page 11 Thursday, August 12, 2004 4:13 PM

Installation
12
Connecting a mobile phone using the data cable and a
phone holder
When connected via the data cable, the compatible mobile phone is
ready for operation with the Advanced Car Kit when placed into the
phone holder.
Depending on your mobile phone and your vehicle equipment,
enhancements such as a phone holder, antenna coupler or external
antenna may be required.
9230221_CK-7_1_en.fm Page 12 Thursday, August 12, 2004 4:13 PM

Installation
13
English
■Installing the Advanced Car Kit CK-7W
See "Introduction" on page 5 for an example of a suitable installation of
the Advanced Car Kit equipment.
Handsfree unit
When installing the handsfree unit, ensure that the cables for the
microphone and loudspeaker will reach the places you intend to mount
these components.
Take care not to mount the handsfree unit inside a closed metal housing
or in a place in the car where it would be shielded from radio waves as
this may impair the use of the Bluetooth feature.
To mount the unit, first attach the mounting plate supplied with the
Advanced Car Kit and then secure the handsfree unit using the screw
that goes through the unit. Finally, insert the cover imprinted with the
Nokia logo into the recess and press it into place.
9230221_CK-7_1_en.fm Page 13 Thursday, August 12, 2004 4:13 PM

Installation
14
Remote control button
The remote control button should be located so that it is within easy
reach of the user. However, ensure that it is placed so that the cable for
connection to the handsfree unit can be mounted. A suitable mounting
position for the remote control button may be on the console between
the front seats.

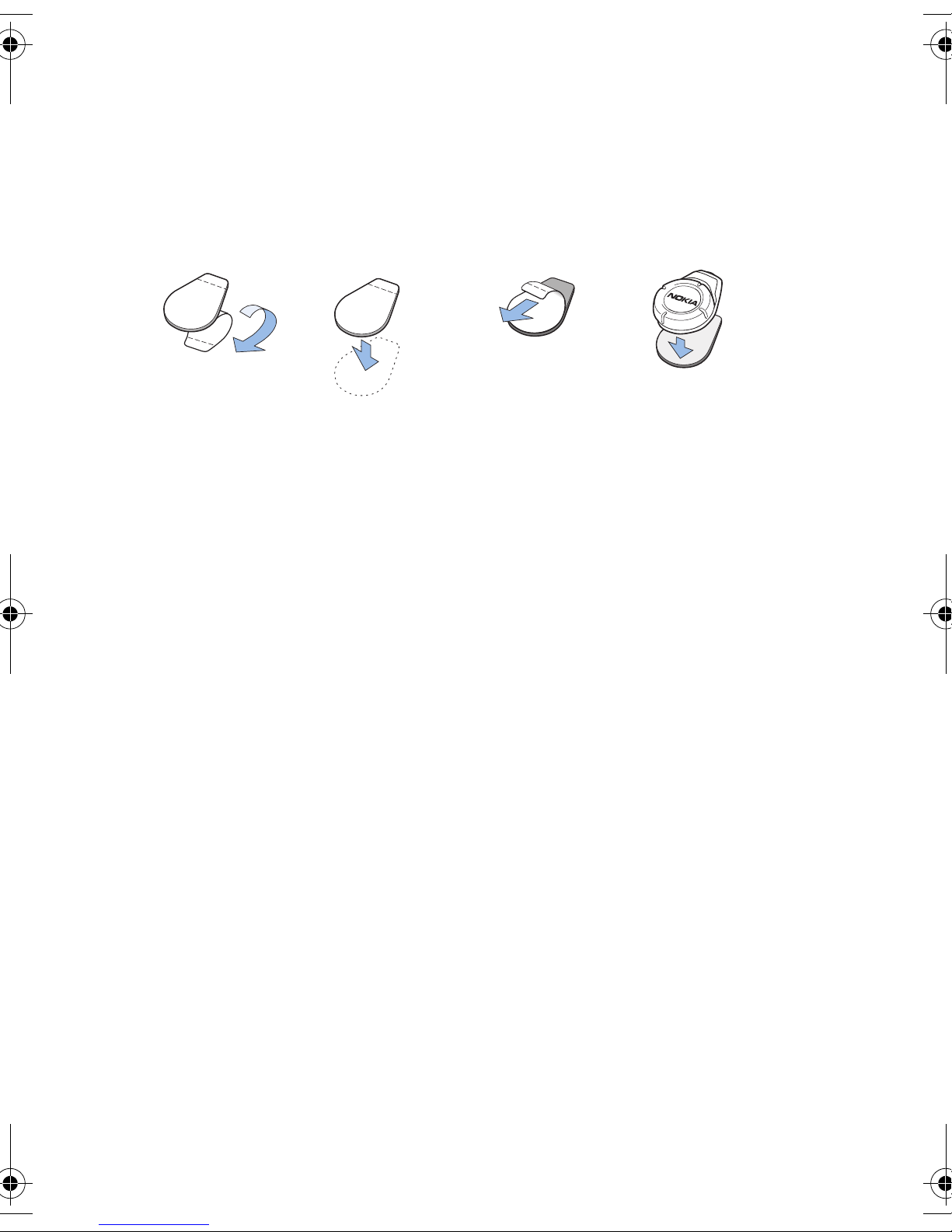

To mount the remote control button, use the hook and loop tape
provided. First detach the two parts of the pads from each other. Attach
the pad with the loops first: peel off the protective sheet from the
adhesive side (A) and attach the pad to the desired location in your car
(B). Make sure that the surface where you intend to attach the pad is dry
and free from dirt and dust.
Attach the pad with the hooks next: peel off the protective sheet from
the adhesive side (C) and attach the pad to the underside of the remote
control button.
Press the remote control button (D) firmly onto the loop pad mounted in
the car.
Loudspeaker
To ensure good acoustic quality, mount the loudspeaker so that it is
pointed in the user’s direction. We recommend that you mount the
loudspeaker a minimum distance of 1 metre away from the microphone
to avoid feedback.
The Advanced Car Kit also supports connection to a compatible car radio
system. If yo wish to use the car radio installed in your vehicle with the
Advanced Car Kit for audio output, ask your service technician for
professional advice.
Connect the loudspeaker or a compatible car radio system to the
"SPEAKER" output.
A
B
C
D
9230221_CK-7_1_en.fm Page 14 Thursday, August 12, 2004 4:13 PM

Installation
15
English
Microphone
Careful selection of the mounting location of the microphone can
increase the quality of voice transmission.
Mount the microphone approx. 30 cm from the driver’s head, and
position it so that it points towards the driver’s mouth. Experience has
shown that the best locations are near the rearview mirror or the sun
visor. We recommend that you keep the microphone a minimum
distance of 1 metre away from the Advanced Car Kit phone loudspeaker
to avoid feedback.
Take care to mount the microphone so that it is not exposed to air
streams from the vents. Do not lay the microphone cable in the heating,
ventilation or AC system. Use the double-sided adhesive tape supplied
to fix the microphone as this will prevent noise from the car body being
transmitted into the interior.
Insert the plug into the "MIC" socket in the handsfree unit and turn it
clockwise to lock it firmly.
Note: Use of any other microphone than the microphone
supplied with the Advanced Car Kit (HFM-8) may impact the
transmission quality.
Cable set
The wires making up the cable harness are to be connected as per the
wiring diagram.
• Connect the black wire to the vehicle ground (GND).
• Connect the yellow wire to the MUTE connection of the car radio.
If your car radio does not have a mute connection, this line may
remain unconnected. In this case, your car radio will not be muted
automatically during a call.
9230221_CK-7_1_en.fm Page 15 Thursday, August 12, 2004 4:13 PM

Installation
16
An additional relay can be used to enable the car radio to be muted.
When a call is accepted, the Advanced Car Kit switches the yellow
line (MUTE) to ground, muting the car radio. When the call is ended,
the yellow line is separated from ground and the car radio is
unmuted.
• Connect the blue wire to the IGNS line of the car using the 1A fuse
supplied.
Some vehicles do not come with an IGNS connection. This line is not
necessary for operation of the Advanced Car Kit; the blue wire can be
left unconnected. However, in this case, the Advanced Car Kit does
not switch off automatically when the ignition is turned off. To
prevent accidental draining of the car battery, the Advanced Car Kit
automatically switches off after two minutes unless a mobile phone
is connected over Bluetooth wireless technology or the data cable.
• Connect the red wire to the positive terminal of the 12V car battery
using the 2A fuse supplied.
The four-pin plug of the cable set is plugged into the "DC" port of the
handsfree unit.
Data cable
The data cable connects the handsfree unit with a compatible mobile
phone, i.e. via the phone holder.
Plug one end of the cable into the "PHONE" socket in the handsfree unit
and the other into the phone holder.
If the Advanced Car Kit is to be used only with Bluetooth wireless
technology, the data cable does not need to be connected.
■Function test
After your Advanced Car Kit has been installed, it needs to be checked to
ensure that it is working properly. When testing the operation of the
equipment, also check that it has been mounted so that it in no way
impairs the driver during operation of the vehicle.
9230221_CK-7_1_en.fm Page 16 Thursday, August 12, 2004 4:13 PM

Putting the Advanced Car Kit CK-7W into service
17
English
3. Putting the Advanced Car Kit
CK-7W into service
A compatible mobile phone can be connected to the Advanced Car Kit
CK-7W in one of two ways: over a Bluetooth wireless connection or
using a compatible phone holder with a cable.
■Connecting a mobile phone using Bluetooth
wireless technology
The first time you establish a wireless link from your Advanced Car Kit
using Bluetooth technology, you will have to pair the handsfree unit
with the compatible mobile phone that you are using. This only needs to
be done once: after this the devices will automatically recognise each
other and establish the link.
Note: If you wish to establish a connection using Bluetooth
wireless technology, make sure that there is no mobile phone
inserted in the phone holder.
Pairing using a Bluetooth passcode
1. Make sure that the mobile phone is switched on and the battery is
charged.
2. Switch on the Advanced Car Kit. For further information, see
"Switching the Advanced Car Kit CK-7W on/off" on page 20.
3. Open the Bluetooth menu in the mobile phone and activate the
Bluetooth function.
4. Make the required settings on the mobile phone to activate a search
for Bluetooth devices within range. For further information on the
settings required on your mobile phone, see the relevant user’s guide.
5. Select Advanced Car Kit from the list of Bluetooth devices found.
6. When prompted, key in the Bluetooth passcode 0000.
7. The mobile phone has now been paired with the Advanced Car Kit
and is ready for operation.
9230221_CK-7_1_en.fm Page 17 Thursday, August 12, 2004 4:13 PM

Putting the Advanced Car Kit CK-7W into service
18
Note: The Advanced Car Kit can only establish a Bluetooth
wireless connection to one compatible mobile phone.
Therefore, you may need to end or break an existing Bluetooth
wireless connection.
Automatic pairing with a compatible mobile phone
1. Make the appropriate settings in the mobile phone so that it will pair
with your Advanced Car Kit without requiring separate acceptance
or authorisation. For further information on the settings required on
your mobile phone, see the relevant user’s guide.
2. Switch on the Advanced Car Kit.
3. The Advanced Car Kit now starts an automatic 30-second search for
mobile phones that have previously been paired with it using the
Bluetooth passcode. The Advanced Car Kit pairs with the mobile
phone that it has last paired with. The active Bluetooth search is
indicated by the flashing light on the remote control button.
■Connecting a mobile phone over the data cable
If you are using this form of connection, the mobile phone is ready for
use with the Advanced Car Kit when placed into the phone holder; you
do not need to pair the devices.
If a mobile phone is inserted into a phone holder connected to the
Advanced Car Kit via the data cable, this phone is the active device and
you will not be able to establish a connection to any device via
Bluetooth wireless technology. Inserting a mobile phone that is
currently involved in an active Bluetooth wireless connection into a
phone holder connected to the Advanced Car Kit CK-7 will cause the
Bluetooth wireless connection to be terminated automatically.
9230221_CK-7_1_en.fm Page 18 Thursday, August 12, 2004 4:13 PM

Operation
19
English
4. Operation
The Advanced Car Kit CK-7W can be controlled with the remote control
button or operated using the keypad of a compatible mobile phone.
■Remote control button
1 The button can be used as follows:
•Press
• Press and hold (approx. 1 second)
• Press twice briefly
• Press and hold for a long time (longer than 10 seconds)
2 The ring can be used as follows:
• Turn to the left
• Turn to the right
3 The indicator light has three states:
•On
• Flashing
• Off
9230221_CK-7_1_en.fm Page 19 Thursday, August 12, 2004 4:13 PM

Operation
20
■Switching the Advanced Car Kit CK-7W on/off
When you turn on the ignition of your car, you automatically switch on
the Advanced Car Kit. The indicator light goes on to show that the
Advanced Car Kit is activated.
When you turn off the car ignition, you deactivate the Advanced Car Kit
and the indicator light goes off.
If the Advanced Car Kit has been installed without connecting the
ignition sense cable (IGNS), to switch the Advanced Car Kit on, either
press the button briefly or insert a compatible mobile phone in the
phone holder, if one has been installed.
Note: If the Advanced Car Kit has been installed without using
the IGNS cable, when switched on, it will stay in service as long
as a compatible mobile phone remains in the phone holder.
If there is currently no connection to a mobile phone, the
Advanced Car Kit will switch itself off after 2 minutes.
■Operating the Advanced Car Kit CK-7W
You can use the remote control button to access the following phone
features:
Accepting a call
To accept an incoming call, press the button.
Ending a call
To end an active call, press the button.
Rejecting a call
If you do not wish to accept a call, press and hold the button.
Making a call
Select the desired entry from the phonebook of the mobile phone or key
in the desired number on your mobile phone.
9230221_CK-7_1_en.fm Page 20 Thursday, August 12, 2004 4:13 PM
