The Nokia HF-6W Wireless Plug-in Car Handsfree is an easy fit hands-free product,
that is based on Bluetooth wireless technology and powered with a digital signal
processor (DSP).
You can use the hands-free device to make calls and to charge a compatible
Nokia mobile phone.
Read this user guide carefully before using the hands-free device. Check also
http://www.nokia.com/support or your local Nokia Web site for the latest version
of this guide, additional information, downloads, and services related to your
Nokia product.

Get started
6
1. Get started
Before you can start to use the hands-free device, you must install it in the car,
and pair it with a compatible phone.

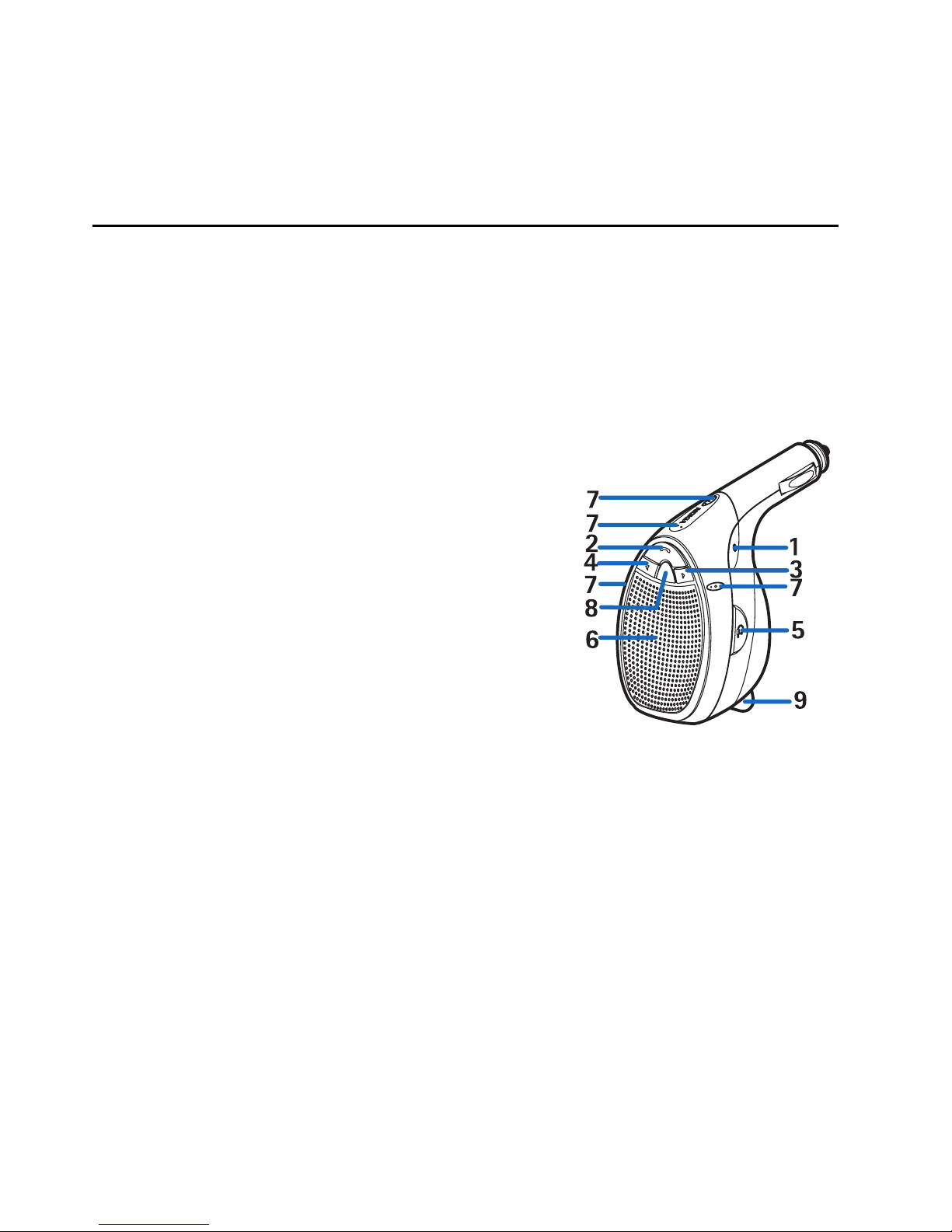

■Parts
• Power key (1)
• Call or end key (2)
• Volume up key (3)
• Volume down key (4)
• Cable release key (5)
• Speaker (6)
• Microphones (7)
• Indicator lights (8)
• Charger cable (9)
■Install the hands-free device in the car
To function properly, the device must be connected to the cigarette
lighter socket of a car, and power must be supplied by the car battery.

Get started
7

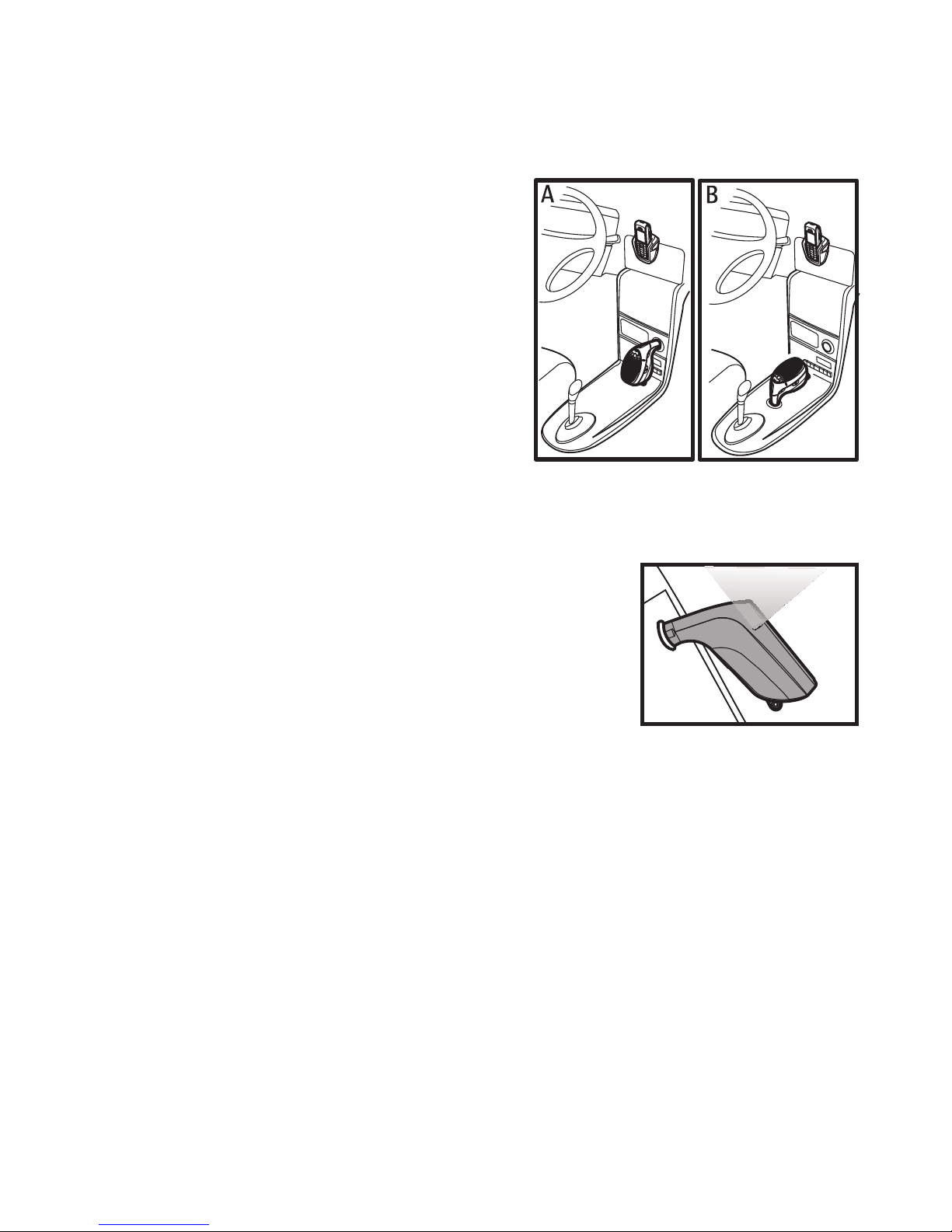

Insert the device into the cigarette lighter
socket of your car as shown in Figure A
or Figure B.
Make sure that the device is properly locked
in place and does not interfere with the
normal operation of the car.
Speech tracking works best when the
speech sound is coming from the area indicated with
light gray in the figure. If you encounter unsatisfactory
performance, realign the device.
In some car models, the cigarette lighter socket is
powered by the car battery even when the ignition key
is removed. In those cases, the car battery might be
discharged if the device is left on, or if the handsfree device is turned off but
connected to the cigarette lighter socket for a long time. Contact the vehicle
manufacturer for more information.

Get started
8
■Switch device on and off
To switch on, press the power key. The device beeps, and the green indicator light
is displayed briefly.
To switch off, press the power key when no call is in progress. The device beeps,
and the red indicator light is displayed briefly.
■Pair the device with a phone
The device is specially designed for compatible Nokia phones that support
Bluetooth wireless technology. You can, however, use the device with any
compatible Bluetooth device that supports the Bluetooth hands-free profile.
Refer to the user guide of your phone for more information on Bluetooth
wireless technology.
Before you can use the device, you must pair it with a compatible phone.
1. Make sure that the compatible phone is switched on.
2. Make sure that the device is installed properly, and press the power key to
switch it on.
3. Set the phone to search for Bluetooth devices. See the user guide of your
phone for instructions.
4. Select the handsfree (Nokia HF-6W) from the list.

Get started
9
5. Enter the Bluetooth passcode 0000 to pair the device with the phone.
The phone becomes the default phone for the device, if it has not been
previously paired with another phone.
The device beeps shortly, and a continuous blue indicator light indicates
an active Bluetooth connection.
6. Start to use the device.
Disconnect the device from the phone
If you want to disconnect the device from your phone (for example, to connect the
phone to another Bluetooth device), switch off the device, or disconnect the device
in the Bluetooth menu of the phone.
You do not need to delete the pairing with the device to disconnect it.
Reconnect the device to the phone
If you want to reconnect the device to the default phone or the last used phone,
make sure the Bluetooth feature is activated in the phone, and switch on the
device. When you reconnect a paired device, you are not asked for its passcode.
You can set your phone to connect with the device automatically when the device
is switched on. To do this in Nokia phones, change your paired device settings in
the Bluetooth menu.
If the device does not automatically reconnect to the default or the last used
phone, press and hold the call/end key. The device starts to search for the default
phone, followed by the last used phone. Otherwise, make the connection in the
Bluetooth menu of your phone.

Basic use
10
2. Basic use
■Call functions
To make a call, use your phone in the normal way.
To redial the last dialed number, press the call/end key twice.
To activate voice dialing, press the call/end key until you hear a voice dialing tone.
For more information, see the user guide of your phone. Voice dialing is only
available with phones that support this feature.
Answer and end a call
When you receive a call, the green indicator light blinks, and you hear a ringing
tone through the device. If the incoming call alert setting in your phone is off,
no ringing tone is played through the device.
To answer a call or to end the currently active call, press the call/end key.
You can also answer or end the call using the phone.
Automatic answer
If the automatic answer function is activated on the phone, the phone
automatically answers the incoming call after a defined time period,
and forwards it to the device.
Reject a call
If you do not want to answer a call, briefly press the end key twice.

Basic use
11
Mute or unmute an ongoing call
Press the power key briefly. When the call is muted, the red indicator light is shown
continuously.
Switch between device and phone
Press the call/end key for more than 1 second to switch the call between the device
and the phone.
Multiple calls
To make multiple calls, use the keypad of the phone.
To answer a waiting call from the handsfree device, first end the active call;
then answer the second call.
■Adjust the device volume
To adjust the device volume, use the volume keys on the device or the keypad
of your phone.
■Charge a compatible phone battery
You can charge the batteries of compatible Nokia phones while using the
hands-free device. Pull out the charger cable from the device, and connect it
to the phone. When the battery is fully charged, disconnect the phone from
the charger cable; press the cable release key on the device to retract the cable.

Basic use
12
■Use the device with paired phones
You can pair the device with up to eight compatible phones, but connect to only
one phone at a time.
The phone that was first paired with the device is called the default phone.
The phone that was last used with the device is called the last used phone.
When the device is switched on, it tries to connect to the default phone within
a few seconds.
If the device cannot connect to the default phone, it then tries to connect to
the last used phone within a few seconds.
If the device cannot connect to either phone, it remains discoverable for other
phones.
To use the device with a paired phone that is not the default phone or the
last used phone, make the connection in the Bluetooth menu of the phone.
■Reset the device
You can reset the device to clear all settings, including pairing information.
Switch off the device; then press and hold the power key and the volume up key
simultaneously for 10 seconds. During resetting, the green and red indicator lights
blink alternately. After the device is reset, it beeps twice.

Basic use
13
■Troubleshooting
If you cannot connect the device to the compatible phone, proceed as follows:
• Make sure that the Bluetooth feature is activated on the compatible phone.
• Make sure that the device is properly installed, switched on, and paired with
the compatible phone.
• Check that there is power supplied by the car battery.
• Make sure you ended the previous Bluetooth connection from the phone,
if you use several Bluetooth devices.
• Ensure that the device is within 10 meters of the phone and that there are
no obstructions or electronic devices between the two.
• The network capacity and parameters of your network operator may degrade
the sound quality of phone calls. This may occur, for example, in traffic jams,
when many people in the same area are talking on the phone at the same time.

Care and maintenance
14
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or moisture
can contain minerals that will corrode electronic circuits.
• Do not use or store the device in dusty, dirty areas. Its moving parts, electronic
components, and microphones can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When it warms up to its normal
temperature, moisture can form inside, which may damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts, microphones or the
speaker, and prevent proper operation.
If the device is not working properly, take it to the nearest authorized service
facility for service.

Additional safety information
15
Additional safety information
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Faulty installation or service may be dangerous and may invalidate any warranty
that may apply to the device. Check regularly that all wireless device equipment in
your vehicle is mounted and operating properly. Do not store or carry flammable
liquids, gases, or explosive materials in the same compartment as the device, its
parts, or enhancements. For vehicles equipped with an air bag, remember that air
bags inflate with great force. Do not place objects, including installed or portable
wireless equipment in the area over the air bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly installed and the air bag inflates,
serious injury could result.

FCC notice
16
FCC notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device may not cause harmful interference; and
2) This device must accept any interference received, including interference that
may cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult
the dealer or an experienced radio/TV technician for help.
NOTE: FCC Radiation Exposure Statement: This equipment complies with
FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.

Guía del Usuario del Equipo
Inalámbrico para Auto
Manos Libres Enchufable
Nokia HF-6W
9236363Edición 1

2
DECLARACIÓN DE CONFORMIDAD
Nosotros, NOKIA CORPORATION, declaramos bajo nuestra única responsabilidad
que el producto HF-6W se adapta a las condiciones dispuestas en la siguiente
Normativa del Consejo: 1999/5/EC. Una copia de la Declaración de Conformidad
está disponible en http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2005 Nokia. Todos los derechos reservados.
Se prohíbe la duplicación, transferencia, distribución o almacenamiento parcial o total
del contenido de este documento en ninguna forma sin previo permiso escrito de Nokia.
Nokia es una marca registrada de Nokia Corporation. Otros nombres de productos y compañías
aquí mencionados podrían ser marcas o nombres comerciales de sus respectivos propietarios.
Bluetooth es una marca registrada de Bluetooth SIG, Inc.
Nokia opera bajo un sistema de desarrollo continuo. Nokia se reserva el derecho de hacer
cambios en cualquier producto descrito en esta guía sin previo aviso.
Bajo ningún concepto Nokia será responsable por pérdidas de datos o ganancias, ni por
ningún otro daño especial, incidental, consecuente, o por cualquier causa directa o indirecta.
El contenido de este documento se proporciona “tal cual”. Además de las exigidas por las leyes,
no se emite ninguna otra garantía de ningún tipo, sea expresa o implícita, incluyendo, pero sin
limitarse a, garantías implícitas de mercado y de capacidad para un propósito particular, en
cuanto a la precisión, fiabilidad o contenido de este documento. Nokia se reserva el derecho
de revisar este documento o retirarlo en cualquier momento sin previo aviso.
La disponibilidad de ciertos productos podría variar por región. Consulte con su distribuidor
local de Nokia.
Control de exportaciones
Este dispositivo podría contener bienes, tecnología o software sujetos a leyes y regulaciones de
exportación de los Estados Unidos y otros países. Se prohíbe su desvío contraviniendo las leyes.
9236363 / Edición 1 ESP
Impreso en México

Contenido
3
Contenido
Para su seguridad................................................................................. 4
Introducción......................................................................................... 5
1. Inicio................................................................................................. 6
Piezas ....................................................................................................................................... 6
Instalar el dispositivo manos libres en el automóvil .................................................. 6
Encender y apagar el dispositivo...................................................................................... 8
Vincular el dispositivo con un teléfono.......................................................................... 8
Desconectar el dispositivo del teléfono .................................................................. 9
Reconectar el dispositivo al teléfono....................................................................... 9
2. Uso básico....................................................................................... 10
Funciones de llamada........................................................................................................ 10
Contestar y finalizar una llamada........................................................................... 10
Respuesta automática................................................................................................ 10
Rechazar una llamada................................................................................................ 11
Silenciar o activar el sonido de una llamada en curso ..................................... 11
Cambiar entre el dispositivo y el teléfono............................................................ 11
Varias llamadas ............................................................................................................ 11
Ajustar el volumen del dispositivo................................................................................. 11
Cargar una batería de teléfono compatible................................................................ 12
Usar el dispositivo con teléfonos vinculados.............................................................. 12
Restaurar el dispositivo..................................................................................................... 13
Resolución de problemas.................................................................................................. 13
Cuidado y mantenimiento................................................................. 14
Información adicional de seguridad................................................. 15
Aviso de la FCC .................................................................................. 16

Para su seguridad
4
Para su seguridad
Lea estas sencillas normas. El incumplimiento de estas normas puede ser peligroso
o ilegal. Lea la guía del usuario completa para obtener más información.
LA SEGURIDAD EN LA CARRETERA ES LO MÁS IMPORTANTE
Obedezca todas las leyes locales. No ocupe las manos en otras tareas
mientras conduce. Su primera consideración cuando conduce debe
ser la seguridad en la carretera.
INTERFERENCIA
Todos los dispositivos inalámbricos pueden ser susceptibles a
interferencia, lo cual afectaría su rendimiento.
CONEXIÓN A OTROS DISPOSITIVOS
Antes de conectar a otro dispositivo, lea la Guía del usuario para
obtener información detallada sobre la seguridad. No conecte
productos incompatibles.
SERVICIO TÉCNICO ESPECIALIZADO
Sólo personal de servicio calificado puede reparar este dispositivo.
Nota: En algunos lugares, puede haber restricciones sobre el uso de
dispositivos Bluetooth. Consulte con las autoridades locales o con
su proveedor de servicio. Si utiliza las funciones Bluetooth o permite
que funcionen en segundo plano cuando hay otras funciones activas,
aumenta la demanda de energía de la batería y se reduce su duración.
