Nokia 302 User manual

Nokia 302 User Guide
5555555
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 5
Get started 7
Keys and parts 7
Write with the
keyboard 9
Messaging key 11
Insert a SIM card and
battery 11
Insert a memory card 13
Charge the battery 14
Switch the phone on or
off 16
Antenna locations 17
Attach a strap 17
Basic use 18
Access codes 18
Lock the keys 20
Indicators 21
Copy content from your
old phone 22
Change the volume of a
call, song, or video 23
Use your phone without
a SIM card 23
Calls 24
Make a call 24
Call the last dialled
number 24
View your missed calls 24
Contacts 25
Save a name and phone
number 25
Use speed dial 26
Write text 27
Write using the
keyboard 27
Predictive text input 28
Messaging 29
Send a message 29
Listen to voice
messages 31
2 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Personalise your
phone 31
About the home screen 31
Personalise the home
screen 32
Personalise your phone
tones 33
Time management 34
Change the time and
date 34
Alarm clock 34
Add an appointment 35
Connectivity 36
Bluetooth 36
USB data cable 38
Connect to a WLAN 39
Music and audio 42
FM radio 42
Media player 44
Camera 46
Take a picture 46
Record a video 47
Send a picture or video 47
Web 48
About the web browser 48
Browse the web 49
Clear your browsing
history 50
Keep in touch with
your online friends 51
About Communities 51
Mail and chat 52
About Mail 52
Send a mail 52
Read and reply to mail 53
About Chat 53
Chat with your friends 53
Nokia Services 54
Availability and costs of
Nokia Services 54
Access Nokia Services 55
Phone management 55
www.nokia.com/support 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Update phone software
using your phone 55
Update phone software
using your PC 57
Restore original
settings 57
Back up your pictures
and other content to a
memory card 58
Protect the
environment 58
Save energy 58
Recycle 59
Product and safety
information 59
Index 71
4 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. For further information, read the
complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is
not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals
or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted
areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
Safety 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do
not hold the device near your ear when the
loudspeaker is in use.
6Safety
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Get started
Keys and parts
1Charger connector
2Headset connector/Nokia AV connector (3.5 mm)
3Micro-USB connector
Get started 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

4Earpiece
5Screen
6Selection key
7Social key
8Call key
9Bluetooth key. Press and hold to access the Bluetooth
settings.
10 WLAN key. Press and hold to access the WLAN settings.
11 Navi™ key (scroll key)
12 Selection key
13 Messaging key
14 End/Power key
15 Keyboard
1
2
3
4
5
8Getstarted
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1Camera lens. Before using the camera, remove the
protective tape from the lens.
2Wrist strap hole
3Loudspeaker
4Memory card slot
5Back cover release latch
Write with the keyboard
Your phone has a full keyboard.
1Function key. To insert special characters printed at
the top of keys, press the function key, and then press
the corresponding key. To enter several special
Get started 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

characters in a row, press the function key twice. To
return to normal mode, press the function key.
2Shift key. To switch between the upper and lower
case modes, press the shift key twice. To enter a single
upper case letter in lower case mode, or a single lower
case letter in upper case mode, press the shift key, and
then press the desired alphabet key.
3Sym key. To insert special characters not shown on
the keyboard, press the sym key, and select the desired
character.
4Backspace key. To delete a character, press the
backspace key. To delete several characters, press and
hold the backspace key.
5Enter key. To move the cursor to the next row or text
input field, press the enter key. Additional functions
are based on the current context.
6Ctrl key. To copy, cut, or paste text, while pressing
and holding the ctrl key, press C, X, or V. To select all,
while pressing and holding the ctrl key, press A.
Insert a variation of a letter
You can insert, for example, letters with accents. To insert
á, press and hold the sym key, and then press Arepeatedly,
until the desired letter is displayed. The order and
availability of letters depends on the selected writing
language.
10 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Messaging key
To quickly write a mail or message, view your inbox, or
start chatting, on the home screen, press the messaging
key .
Set what happens when you press the key
Select Menu > Settings and My shortcuts > Messaging
key, and select an option.
Insert a SIM card and battery
Important: This device is designed to be used with a
standard SIM card (see figure) only. Use of incompatible SIM
cards may damage the card or the device, and may corrupt
data stored on the card. Please consult your mobile
operator for the use of a SIM card that has a mini-UICC
cutout.
This phone is intended for use with a BL-5J battery. Always
use original Nokia batteries.

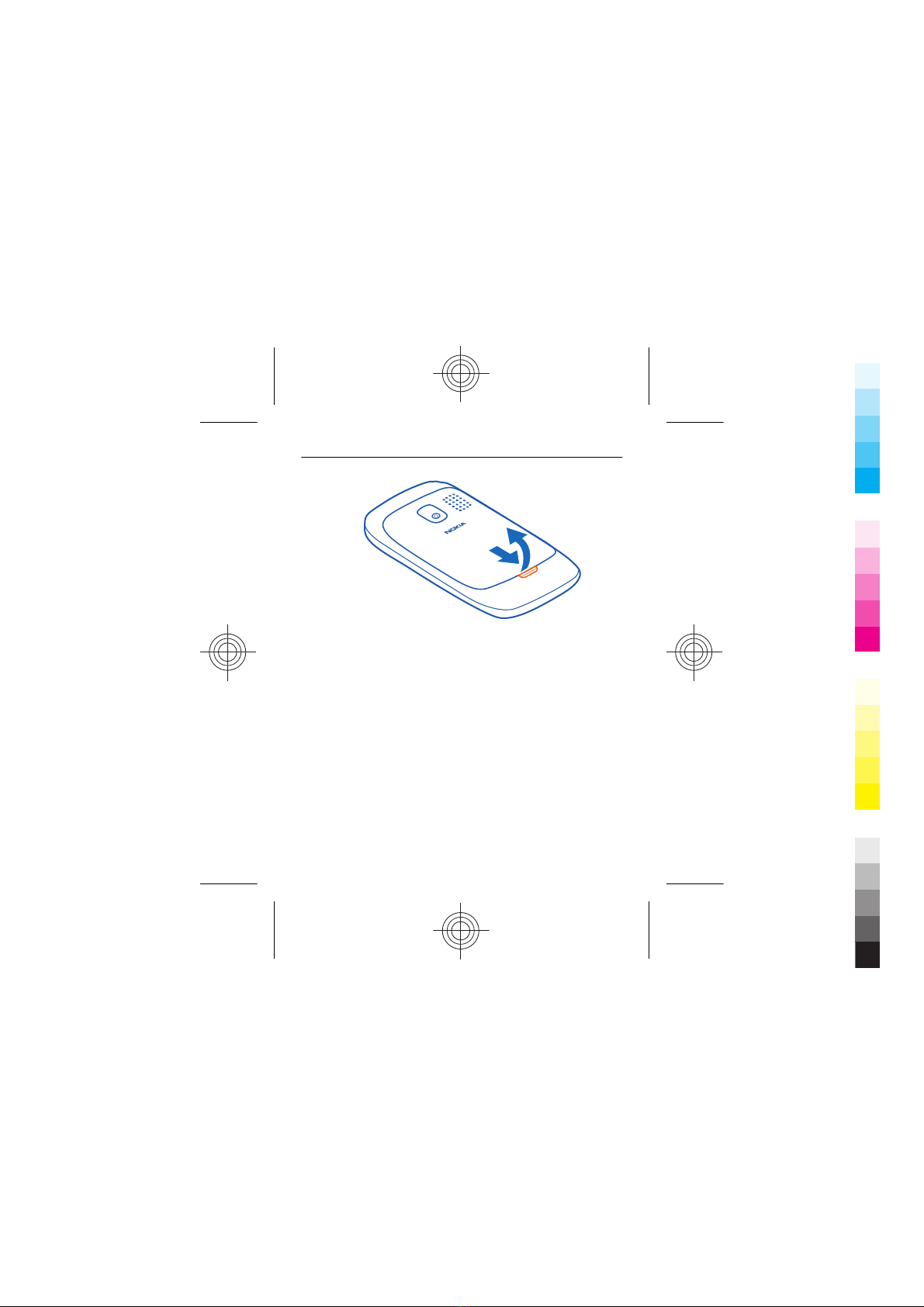

1 Pull the back cover release latch toward the bottom of
the phone, and remove the cover.
Get started 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2 If the battery is inserted, lift it out.
3 Slide the SIM card holder to unlock it (1), and use your
fingernail to lift it. Make sure the contact area would
face down when the SIM card holder is lowered (2),
insert the SIM card into the holder, and lower the
holder (3). Slide the card holder to lock it (4).
12 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

4 Line up the contacts of the battery and the battery
compartment, and insert the battery. To replace the
back cover, direct the top locking catches toward their
slots, and press down until the cover locks into place.
Insert a memory card
Use only compatible memory cards approved by Nokia for
use with this device. Incompatible cards may damage the
card and the device and corrupt data stored on the card.
Your phone supports memory cards with a capacity of up
to 32 GB.
Get started 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1 Open the cover of the memory card slot (1).
2 Make sure the contact area of the memory card is
facing down, and insert the card (2). Push the card in,
until it locks into place.
3 Close the cover of the memory card slot (3).
Remove the memory card
Push the card in, until it is released, and pull the card out.
Charge the battery
Your battery has been partially charged at the factory, but
you may need to recharge it before you can switch on your
14 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

phone for the first time. If the phone indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the phone.
3 When the phone indicates a full charge, disconnect the
charger from the phone, then from the wall outlet.
You do not need to charge the battery for a specific length
of time, and you can use the phone while it is charging.
If the battery is completely discharged, it may take several
minutes before the charging indicator is displayed or
before any calls can be made.
If the battery has not been used for a long time, to begin
charging, you may need to connect the charger, then
disconnect and reconnect it.
Get started 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Switch the phone on or off
Press and hold the power key until the phone vibrates.
You may be prompted to get the configuration settings
from your network service provider. For more information
on this network service, contact your network service
provider.
16 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Antenna locations
The antenna area is highlighted.
Avoid touching the antenna area while the antenna is in
use. Contact with antennas affects the communication
quality and may reduce battery life due to higher power
level during operation.
Attach a strap
Remove the back cover, thread the strap through the hole,
and loop the strap around the wrist strap peg.
Get started 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

The strap may be available separately.
Basic use
Access codes
PIN or PIN2
code
(4-8 digits)
These protect your SIM card against
unauthorised use or are required to access
some features.
You can set your phone to ask for the PIN
code when you switch it on.
18 Basic use
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

If not supplied with your SIM card or you
forget the codes, contact your service
provider.
If you enter the code incorrectly three
times in a row, you need to unblock the
code with the PUK or PUK2 code.
PUK or PUK2
code
(8 digits)
These are required to unblock a PIN or
PIN2 code.
If not supplied with your SIM card, contact
your service provider.
IMEI number
(15 digits)
This is used to identify valid phones in the
network. The number can also be used to
block, for example, stolen phones.
To view your IMEI number, dial *#06#.
Lock code
(security
code)
(min. 5
digits)
This helps you protect your phone against
unauthorised use.
You can set your phone to ask for the lock
code that you define. The default lock code
is 12345.
Keep the code secret and in a safe place,
separate from your phone.
Basic use 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

If you forget the code and your phone is
locked, your phone will require service.
Additional charges may apply, and all the
personal data in your phone may be
deleted.
For more information, contact a Nokia
Care Point or your phone dealer.
The personal unblocking key (PUK) code and the universal
personal unblocking key (UPUK) code (8 digits) are required
to change a blocked PIN code and UPIN code, respectively.
The PUK2 code (8 digits) is required to change a blocked
PIN2 code. These codes are not supplied with the SIM card.
Contact your local service provider for the codes.
Lock the keys
To avoid accidentally making a call when your phone is in
your pocket or bag, lock the keys.
Select Menu, and press the function key.
Unlock the keys
Select Unlock, and press the function key.
20 Basic use
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
