Nokia C2-01 User manual

Nokia C2-01 User Guide
Issue 1.1
9224259

Contents
Safety 4
About your device 5
Network services 7
Get started 8
Keys and parts 8
Insert SIM card and
battery 9
Insert a memory card 11
Remove the memory
card 13
Charge the battery 13
Attach the wrist strap 14
Switch the device on or
off 14
GSM antenna 15
Headset 16
Basic use 17
Keypad lock 17
Access codes 18
Volume control 19
Standby mode 19
Indicators 20
Navigate the menus 21
Shortcuts 22
Operator menu 22
Use your device without
a SIM card 22
Write text 23
Nokia account and
Nokia's Ovi services 24
About Ovi Store 25
Contacts 25
Calls 27
Make and answer a
call 27
Loudspeaker 28
Dialling shortcuts 28
Log 29
Messaging 29
Text and multimedia
messages 29
Mail 32
Chat with your
friends 33
2 www.nokia.com/support

Flash messages 34
Nokia Xpress audio
messages 34
Voice messages 35
Message settings 35
Organiser 36
Alarm clock 36
Calendar and to-do
list 37
Web or Internet 38
Connect to a web
service 38
Media 39
Camera and video 39
FM radio 40
Voice recorder 42
Music player 42
Gallery 44
Settings 46
Profiles 46
Tones 47
Display 47
Date and time 48
Synchronisation and
backup 48
Connectivity 49
Call and phone 52
Restore factory
settings 53
Find more help 53
Support 54
About device software
updates 54
Update device software
using your device 55
Update device software
using your PC 57
Protect the
environment 57
Save energy 57
Recycle 58
Product and safety
information 59
www.nokia.com/support 3

Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
4

QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
About your device
The wireless device described in this guide is approved for
use on the (E)GSM 850, 900, 1800, and 1900 MHz networks,
and UMTS 850/1900/2100 MHz networks. Contact your
service provider for more information about networks.
Your device may have preinstalled bookmarks and links for
third-party internet sites and may allow you to access
third-party sites. These are not affiliated with Nokia, and
Nokia does not endorse or assume liability for them. If you
access such sites, take precautions for security or content.
5

Warning:
To use any features in this device, other than the alarm
clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference
or danger.
When using this device, obey all laws and respect local
customs, privacy and legitimate rights of others, including
copyrights. Copyright protection may prevent some
images, music, and other content from being copied,
modified, or transferred.
Make back-up copies or keep a written record of all
important information stored in your device.
When connecting to any other device, read its user guide
for detailed safety instructions. Do not connect
incompatible products.
The images in this guide may differ from your device
display.
Refer to the user guide for other important information
about your device.
6

Network services
To use the device you must have service from a wireless
service provider. Some features are not available on all
networks; other features may require that you make
specific arrangements with your service provider to use
them. Network services involve transmission of data. Check
with your service provider for details about fees in your
home network and when roaming on other networks. Your
service provider can explain what charges will apply. Some
networks may have limitations that affect how you can use
some features of this device requiring network support
such as support for specific technologies like WAP 2.0
protocols (HTTP and SSL) that run on TCP/IP protocols and
language-dependent characters.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have customized items such as menu
names, menu order, and icons.
During extended operation such as a high speed data
connection, the device may feel warm. In most cases, this
condition is normal. If you suspect the device is not
working properly, take it to the nearest authorised service
facility.
7

Get started
Keys and parts
1End/Power key
2Earpiece
3Display
4Selection keys
5Navi™ key (scroll key)
6Call key
7Keypad
8

8Charger connector
9Headset connector/Nokia
AV Connector (3.5 mm)
10 Camera lens
11 Micro USB connector
12 Loudspeaker
13 Microphone
14 Memory card slot
15 Wrist strap hole
Insert SIM card and battery
Important: Do not use a mini-UICC SIM card, also
known as a micro-SIM card, a micro-SIM card with an
adapter, or a SIM card that has a mini-UICC cutout (see
figure) in this device. A micro SIM card is smaller than the
standard SIM card. This device does not support the use of
micro-SIM cards and use of incompatible SIM cards may
damage the card or the device, and may corrupt data
stored on the card.
9

The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
1 Press and slide the back cover towards the bottom of
the phone, and remove it (1).
2 Remove the battery (2).
3 Open the SIM card holder (3), insert the SIM card with
the contact surface facing down (4), and close the
holder (5).
10

4 Insert the battery (6), and replace the back cover (7).
Insert a memory card
Use only compatible microSD cards approved by Nokia for
use with this device. Nokia uses approved industry
standards for memory cards, but some brands may not be
fully compatible with this device. Incompatible cards may
11

damage the card and the device and corrupt data stored
on the card.
Your device supports microSD memory cards with a
capacity of up to 16 GB.
A compatible memory card may be supplied with the
device, and may already be inserted in the device. If not,
do the following:

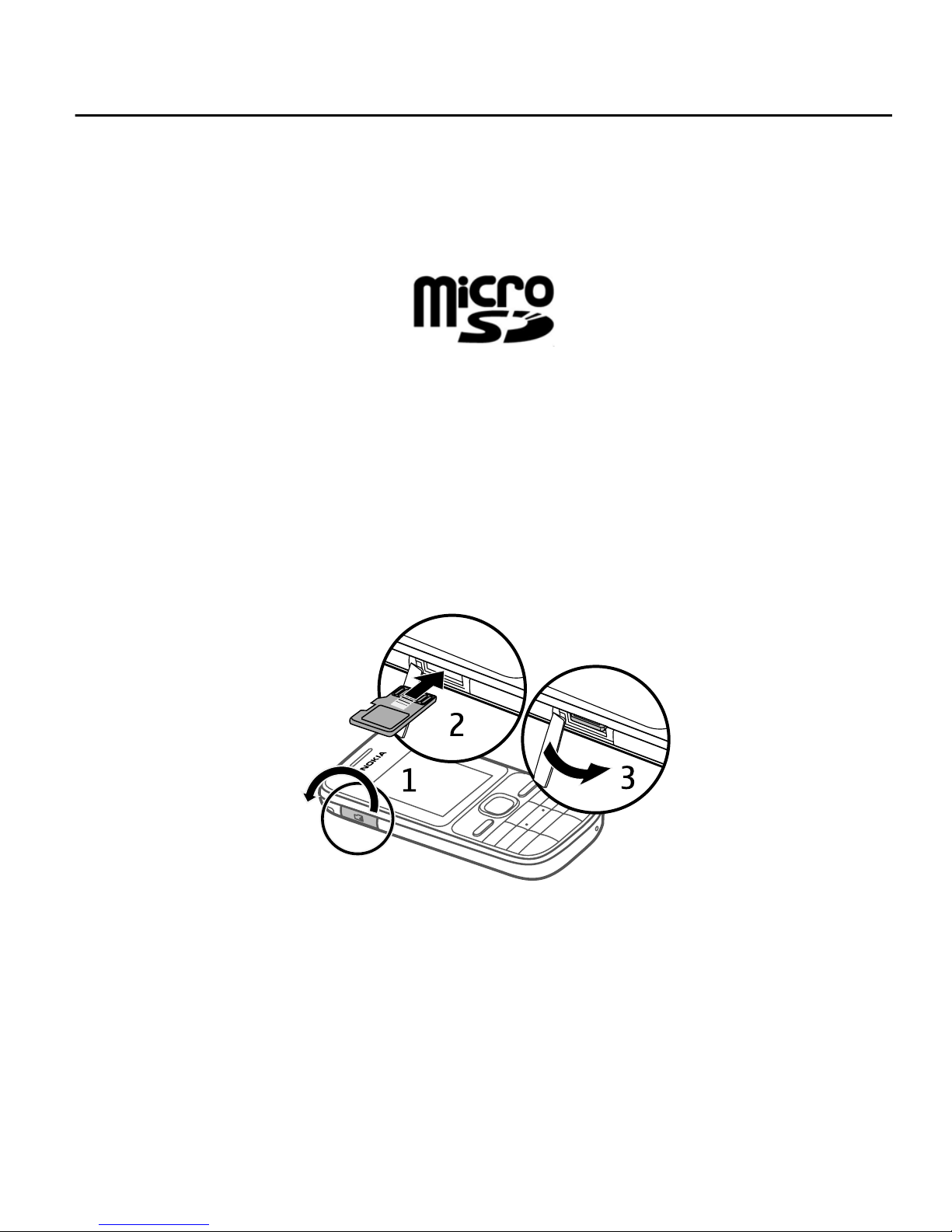

1 Open the cover of the memory card slot.
2 Insert the card into the memory card slot with the
contact surface facing up, and press until it locks into
place.
3 Close the cover of the memory card slot.
12

Remove the memory card
Important: Do not remove the memory card
during an operation when the card is being accessed.
Doing so may damage the memory card and the device,
and corrupt data stored on the card.
You can remove or replace the memory card during phone
operation without switching the device off, but you need
to make sure that no application is currently accessing the
memory card.
Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
13

1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
Attach the wrist strap
Thread the wrist strap as shown, and tighten it.
Switch the device on or off
Press and hold the power key .
14

You may be prompted to get the configuration settings
from your service provider (network service). For more
information, contact your service provider.
GSM antenna
15

Your device may have internal and external antennas.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
cause a higher power level during operation and may
reduce the battery life.
The figure shows the GSM antenna area marked in grey.
Headset
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
Warning:
When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it
can endanger your safety.
When connecting any external device or any headset, other
than those approved by Nokia for use with this device, to
16

the Nokia AV Connector, pay special attention to volume
levels.
Do not connect products that create an output signal as
this may cause damage to the device. Do not connect any
voltage source to the Nokia AV Connector.
Basic use
Keypad lock
To prevent accidental keypresses, select Menu, and press
*within 3.5 seconds to lock the keypad.
To unlock the keypad, select Unlock, and press *within 1.5
seconds. If the security keyguard is activated, enter the
security code when requested.
To set the keypad to lock automatically after a defined
length of time when the device is not being used, select
Menu > Settings > Phone > Automatic keyguard >
On.
To answer a call when the keypad is locked, press the call
key. When you end or reject a call, the keypad locks
automatically.
17

When the device or keypad is locked, calls may be possible
to the official emergency number programmed into your
device.
Access codes
The security code helps to protect your device against
unauthorised use. The preset code is 12345. You can create
and change the code, and set the device to request the
code. Keep the code secret and in a safe place separate
from your device. If you forget the code and your device is
locked, your device will require service. Additional charges
may apply, and all the personal data in your device may be
deleted. For more information, contact a Nokia Care point
or your device dealer.
The PIN code supplied with the SIM card protects the card
against unauthorised use. The PIN2 code supplied with
some SIM cards is required to access certain services. If you
enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your service provider.
The module PIN is required to access the information in the
security module of your SIM card. The signing PIN may be
required for the digital signature. The barring password is
required when using the call barring service.
18

To set how your device uses the access codes and security
settings, select Menu > Settings > Security.
Volume control
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
To adjust the earpiece or loudspeaker volume during a call
or when listening to an audio file or the FM radio, scroll up
or down.
Standby mode
When the phone is ready for use, and you have not entered
any characters, the phone is in the standby mode.
1Network signal strength
2Battery charge level
3Network name or operator logo
4Functions of selection keys
19

The left selection key is Go to for you to view the functions
in your personal shortcut list. When viewing the list, select
Options > Select options to view the available functions,
or select Options > Organise to arrange the functions in
your shortcut list.
To have the phone display a list of selected features and
information that you can directly access from the standby
mode, select Menu > Settings > Display > Home
screen.
Indicators
You have unread messages.
You have unsent, cancelled, or failed
messages.
The keypad is locked.
The device does not ring for incoming calls or
text messages.
An alarm is set.
/ The device is registered to the GPRS or EGPRS
network.
/ A GPRS or EGPRS connection is open.
/ The GPRS or EGPRS connection is suspended
(on hold).
The device is registered to a 3G (UMTS)
network.
Bluetooth is activated.
20
