Nokia C2-02 User manual

Nokia C2–02 User Guide
5555555
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 5
Get started 7
Keys and parts 7
Insert a SIM card and
battery 8
Insert a memory card 12
Charge the battery 13
Attach a strap 15
Switch the device on or
off 15
GSM antenna 16
Basic use 17
Access codes 17
Lock the keys and
screen 19
Touch screen actions 19
Swipe to open an
application or activate a
feature 22
Indicators 22
Copy contacts or pictures
from your old device 23
Change the volume of a
call, song, or video 25
Calls 25
Make a call 25
Call the last dialled
number 26
View your missed
calls 26
Contacts 27
Save a name and phone
number 27
Write text 28
Switch between text
input modes 28
Write using traditional
text input 29
Use predictive text
input 30
2 www.nokia.com/support
2 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Messaging 31
Send a message 31
View a conversation 32
Listen to voice
messages 33
Personalise your
device 33
About the home
screen 33
Personalise the home
screen 34
Personalise your device
tones 35
Time management 37
Change the time and
date 37
Set an alarm 37
Add an appointment 38
Connectivity 38
Bluetooth 38
USB data cable 40
Music and audio 41
FM radio 41
Media player 44
Pictures and videos 45
Take a picture 45
Record a video 46
Send a picture or
video 46
Web 47
About Ovi Browser 47
Browse the web 48
Clear your browsing
history 50
Keep in touch with
your online friends 50
About Communities 50
Mail and chat 51
About Mail 51
Send a mail 52
www.nokia.com/support 3
www.nokia.com/support 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Read and reply to
mail 52
About Chat 53
Chat with your
friends 53
Ovi Maps 54
About Maps 54
View your current
location on the map 56
Find a place 56
Share your location or a
place 57
Nokia's Ovi services 58
Availability and costs of
Nokia's Ovi services 58
Access Nokia's Ovi
services 58
Find help 58
Support 58
My Nokia 59
Keep your device up to
date 60
Protect the
environment 66
Save energy 66
Recycle 66
Product and safety
information 67
Index 79
4 www.nokia.com/support
4 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is
not allowed or when it may cause interference
or danger, for example, in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
Safety 5
www.nokia.com/support 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do
not hold the device near your ear when the
loudspeaker is in use.
6Safety
6 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Get started
Keys and parts
1Display
2Call key
Get started 7
www.nokia.com/support 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

3Keypad
4Earpiece
5Wrist strap hole
6Volume up/Zoom key
7Volume down/Zoom key
8Key lock switch
9End/Power key
10 Microphone
11 Nokia AV Connector (3.5 mm)
12 Micro USB connector
13 Charger connector
14 Camera lens
15 Loudspeaker
Insert a SIM card and battery
Note: Switch the device off and disconnect the
charger and any other device before removing any covers.
Avoid touching electronic components while changing any
covers. Always store and use the device with any covers
attached.
8Getstarted
8 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Important: Do not use a mini-UICC SIM card, also
known as a micro-SIM card, a micro-SIM card with an
adapter, or a SIM card that has a mini-UICC cutout (see
figure) in this device. A micro SIM card is smaller than the
standard SIM card. This device does not support the use of
micro-SIM cards and use of incompatible SIM cards may
damage the card or the device, and may corrupt data
stored on the card.
Important: To prevent damage to the SIM card,
always remove the battery before you insert or remove the
card.
This device is intended for use with a BL-5C battery. Always
use original Nokia batteries.
The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
Get started 9
www.nokia.com/support 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

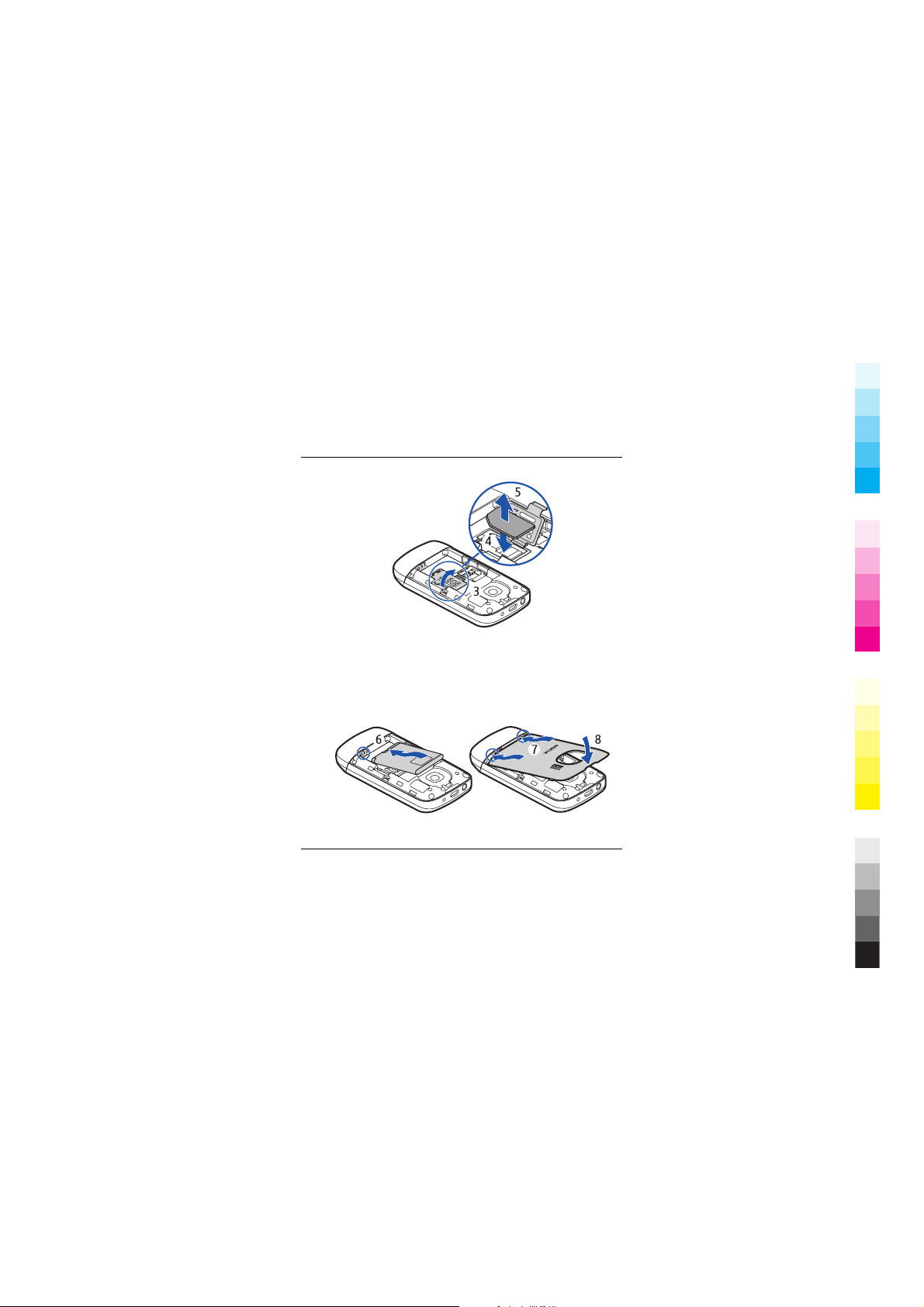

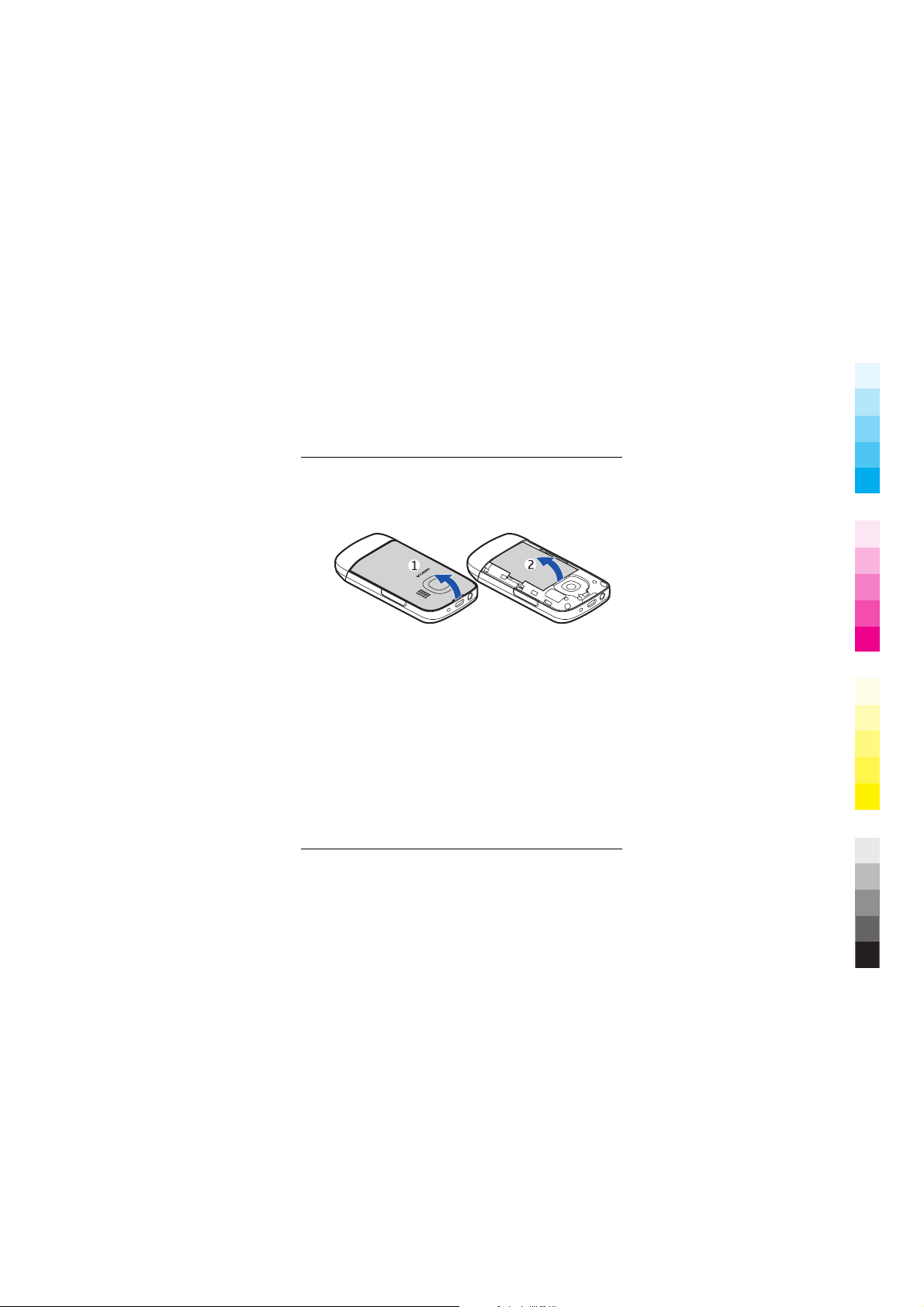

1 Place your finger in the recess at the top of the device,
and carefully lift and remove the back cover (1). If the
battery is inserted, lift it out (2).
2 Open the SIM card holder (3), and insert or remove the
SIM card (4 or 5). Make sure the contact area of the card
is facing down.
10 Get started
10 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

3 Line up the contacts of the battery and the battery
compartment, and insert the battery (6). To replace the
back cover, direct the bottom locking catches toward
their slots (7), and press down until the cover locks into
place (8).
Get started 11
www.nokia.com/support 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Insert a memory card
Use only compatible memory cards approved by Nokia for
use with this device. Incompatible cards may damage the
card and the device and corrupt data stored on the card.
Your device supports memory cards with a capacity of up
to 32 GB.
1 Switch the device off, and remove the back cover and
battery.
12 Get started
12 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2 To release the memory card holder, slide the holder in
the direction indicated by the arrow on the holder.
Open the memory card holder (1).
3 Insert a compatible memory card. Make sure the
contact area of the card is facing down (2).
4 Close the memory card holder (3).
5 To lock the memory card holder, slide the holder to its
original position (4).
Remove the memory card
1 Switch the device off.
2 Remove the back cover and battery.
3 To release the memory card holder, slide the holder in
the direction indicated by the arrow on the holder.
Open the memory card holder, and remove the
memory card.
Charge the battery
Your battery has been partially charged at the factory, but
you may need to recharge it before you can switch on your
device for the first time. If the device indicates a low
charge, do the following:
Get started 13
www.nokia.com/support 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

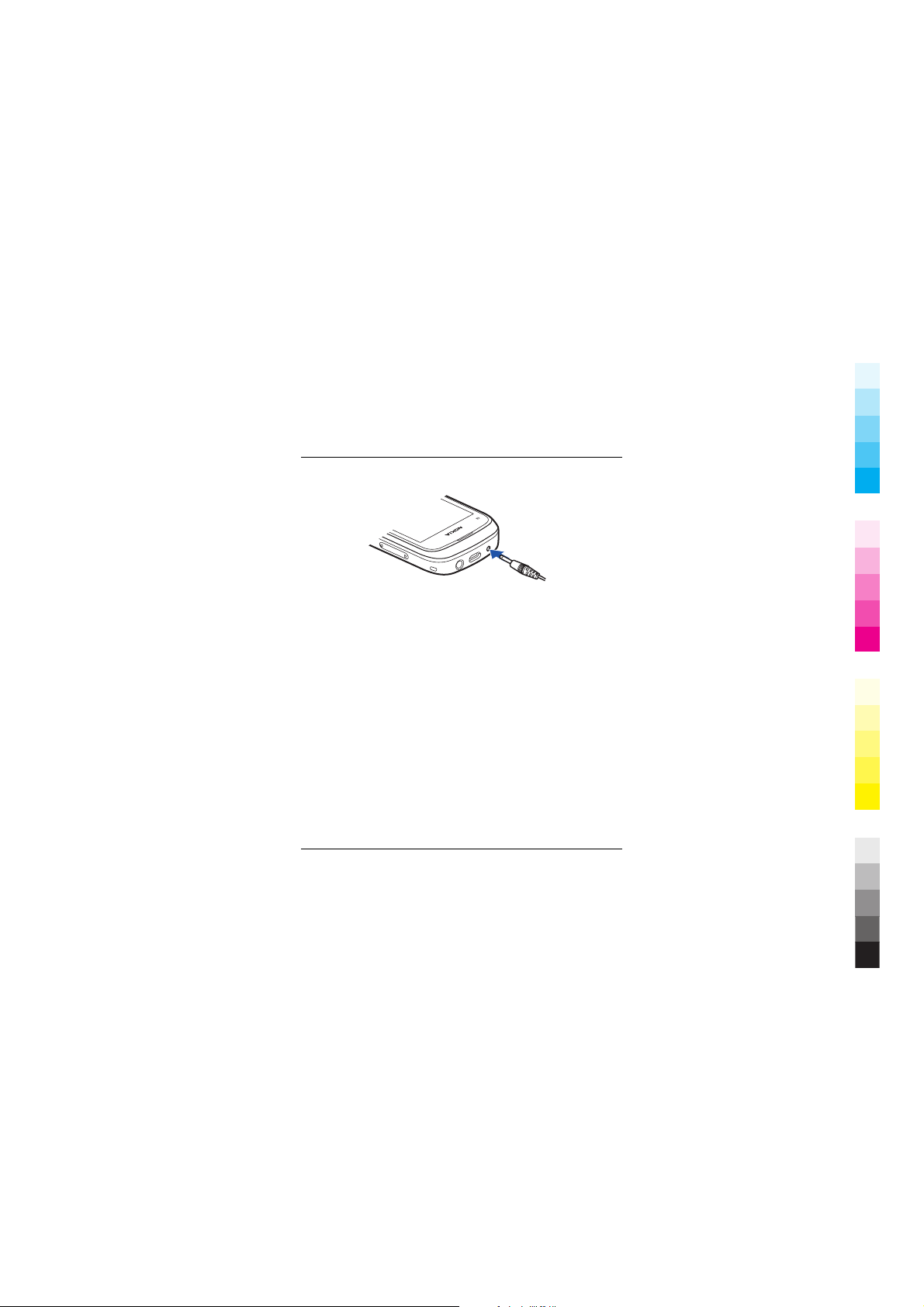

1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging.
If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
If the battery has not been used for a long time, to begin
charging, you may need to connect the charger, then
disconnect and reconnect it.
14 Get started
14 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Attach a strap
Switch the device on or off
Press and hold the power key .
Get started 15
www.nokia.com/support 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

You may be prompted to get the configuration settings
from your service provider (network service). For more
information, contact your service provider.
GSM antenna

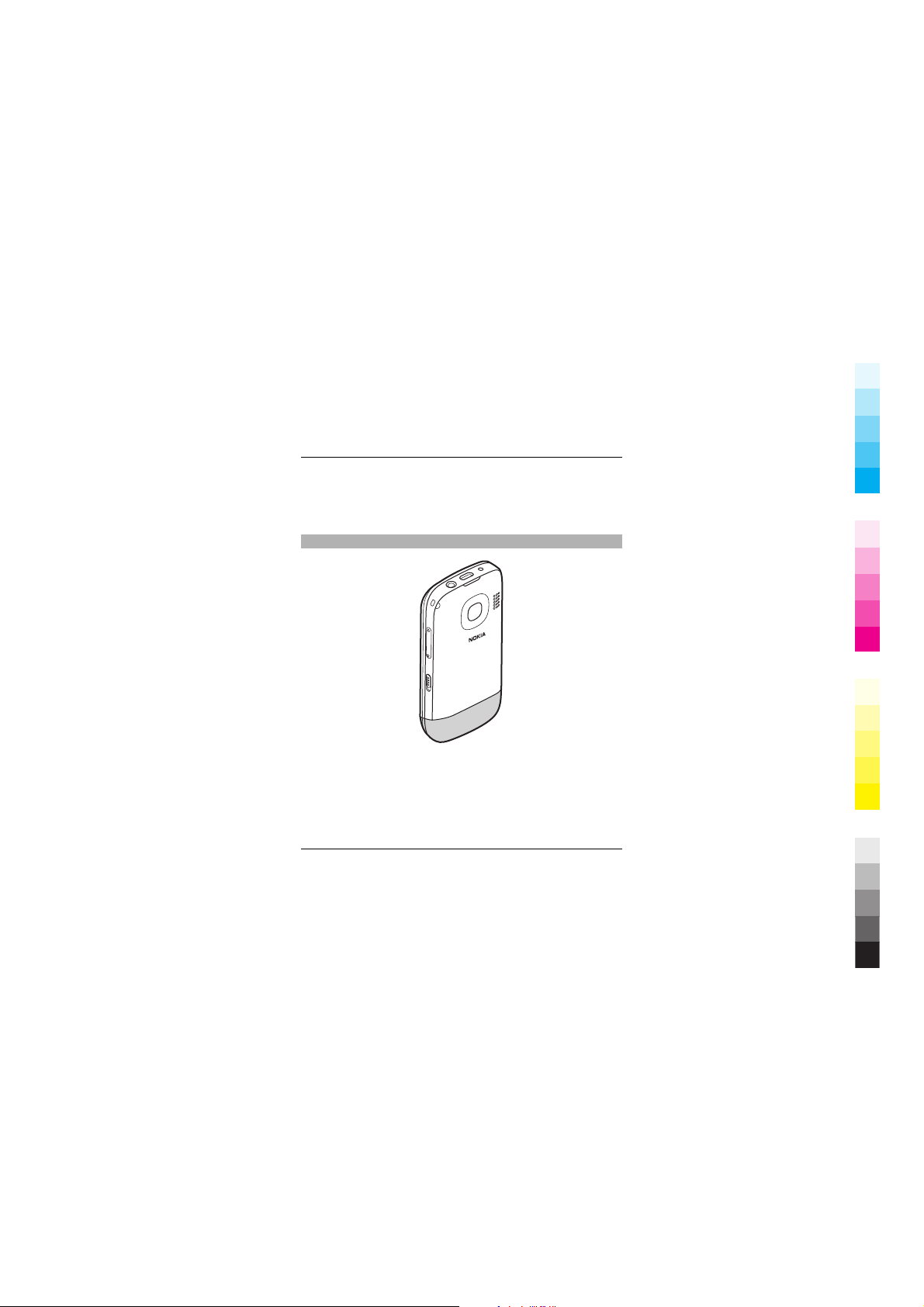

The figure shows the GSM antenna area marked in grey.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
16 Get started
16 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

cause a higher power level during operation and may
reduce the battery life.
Basic use
Access codes
Select Menu > Settings > Security > Access codes.
PIN or PIN2
code
(4-8 digits)
These protect your SIM card against
unauthorised use or are required to access
some features.
If not supplied with the card or you forget
the codes, contact your service provider.
You can set your device to ask for the PIN
code when you switch it on.
If you enter the code incorrectly three
times in a row, you need to unblock the
code with the PUK or PUK2 code.
The module PIN is required to access the
information in the security module of your
SIM card. The signing PIN may be required
for the digital signature.
Basic use 17
www.nokia.com/support 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

PUK or PUK2
code
(8 digits)
These are required to unblock a PIN or
PIN2 code.
If not supplied with your SIM card, contact
your service provider.
Security code
(5–10 digits)
This protects your device against
unauthorised use.
You can set your device to ask for the
security code that you define. The default
security code is 12345.
Keep the code secret and in a safe place,
separate from your device.
If you forget the code and your device is
locked, your device will require service.
Additional charges may apply, and all the
personal data in your device may be
deleted.
For more information, contact a Nokia
Care Point or your device dealer.
Barring
password
This is required for call barring services.
18 Basic use
18 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

(4 digits) For more information, contact your service
provider.
Lock the keys and screen
To avoid accidentally making a call when your device is in
your pocket or bag, lock the keys and screen of your device.
Slide the key lock switch.
Unlock the keys and screen
Slide the key lock switch.
Tip: If the key lock switch is out of reach, to unlock the
device, press the end key, and select Unlock.
Touch screen actions
To interact with the touch screen user interface, tap or tap
and hold the touch screen.
Open an application or other screen element
Tap the application or element.
Basic use 19
www.nokia.com/support 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Access item-specific options
Tap and hold the item. A pop-up menu with available
options opens.
Scroll in a list or menu
Place your finger on the screen, slide it quickly up or down
the screen, and then lift your finger. The content of the
screen scrolls with the speed and direction it had at the
moment of release. To select an item from a scrolling list
and to stop the movement, tap the item.
20 Basic use
20 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
