Nokia N95-4 Specification sheet

www.nokia.com/us
www.nokia.ca
Model: Nokia N95-4 © 2008 Nokia. All rights reserved. Nokia, the Nokia Original
Enhancements logo, Nseries and N95 are trademarks or registered trademarks
of Nokia Corporation. Printed in XXXX.
Modèle : Le N95-4 de Nokia © 2008 Nokia. Tous droits réservés. Nokia, le logo
Nokia Original Enhancements, Nseries et N95 sont des marques de commerce
ou des marques déposées de Nokia Corporation. Imprimé au XXXX.
9209388 N5545 Ver. 1.0 04/08
Get Started
Guide d’introduction Nokia N95-4

1
Get started
Nokia N95-4
9209388, Issue 1 EN
Remarque: La version française du guide se trouve à la page 17.

2
Keys and parts (front)
Model number: Nokia N95-4.
Hereinafter referred to as Nokia N95 8GB.
1Power key
2Selection keys to select commands and access Options
3Menu key to access the main menu
4Call key
5Edit key to open a list of commands when you
edit text
6Scroll key to move around the menus and to select items
7Numeric keypad
8Clear key
9End key
10 Multimedia key to access the multimedia menu and
open the music player
11 Light sensor
12 Secondary camera with lower resolution

3
Keys and parts (landscape)
1Media keys under the 2-way slide
•Next key
•Play/pause key
•Stop key
•Previous key
2Zoom/volume key
3Review key to view the last stored image
or video clip
42-stage capture key for auto-focus, still image
capture, and video recording
When you open the media keys under the 2-way slide,
the media mode is activated and the display is shown in
landscape orientation.
Use the media keys to control music and video players.
To activate the main camera, press and hold the capture key.
To lock the focus on an object, press the capture key halfway
down. To take a picture, press the capture key down.
To activate the video mode, select in the active
toolbar. To shoot video, press the capture key down.

4
Keys and parts (back)
1Charger connector
2Mini-USB connector to connect to a compatible PC
3Stereo speakers with 3D sound effect
4Main camera for high resolution image capture and
video recording (up to 5 megapixel)
5Camera flash
6Nokia AV Connector (3.5 mm) for compatible headsets,
headphones, and TV-out cables, for example, the Nokia
Video Connectivity Cable
7Infrared (IR) window

5
Insert the (U)SIM card and battery
A USIM card is an enhanced version of the SIM card and is
supported by UMTS mobile phones.
Always switch the device off and disconnect the charger before
removing the battery.
For availability and information on using SIM card services, contact
your SIM card vendor. This may be the service provider or other vendor.
1With the back of the
device facing you, press
and hold the release
button, slide the cover,
and lift it up.
2To release the (U)SIM card holder, lift the holder up
from the handle.
3Insert the (U)SIM card. Make sure that the contact area
on the card is facing the connectors on the device and
the bevelled corner on the card is facing the base of
the device.
4Close the holder, and lock it into place.
5Insert the battery. To secure the battery into place,
press it gently.
6Replace the cover so that the locking catches are directed
towards their slots, and slide the cover into place.

6
Switch the device on
1Press and hold the power key.
2If the device asks for a (U)PIN code
or lock code, enter it, and press the
left selection key. The factory
setting for the lock code is 12345.
Your device has internal antennas.
Note: As with any radio transmitting device, avoid
touching an antenna unnecessarily when the
antenna is in use. For example, avoid touching the
cellular antenna during a phone call. Contact with
a transmitting or receiving antenna affects the
quality of the radio communication, may cause the
device to operate at a higher power level than
otherwise needed, and may reduce the battery life.
1Cellular antenna
2Bluetooth technology/
wireless LAN antenna
3GPS receiver
Charge the battery
1Connect a compatible
charger to a wall outlet.
2Connect the power cord
to the device. If the
battery is completely
discharged, it may take a
while before the charging
indicator starts scrolling.
3When the battery is fully
charged, the charging indicator stops scrolling.
Disconnect the charger from the device, then
from the wall outlet.
Tip: Disconnect the charger from the wall outlet
when the charger is not in use. A charger that is
connected to the outlet consumes power even when
it is not connected to the device.

7
Transfer content
Transfer personal content from
another Nokia device
With the Switch application, you can transfer content,
such as contacts, between two compatible Nokia devices
using Bluetooth connectivity or infrared. To transfer data
to your Nokia N95 8GB, press , and select Tools >
Utilities > Switch.
Transfer content from PC
You can use your device with a variety of compatible PC
connectivity and data communications applications.
You can, for example, transfer music, images, and videos
between your device and a compatible PC by using a
compatible USB data cable, Bluetooth connectivity, or
Nokia Nseries PC Suite installed on your compatible PC.
Always create the connection from the PC to synchronise
with your device.
Support
Help
The help function provides instructions when using the
applications in the device. To access it from an application,
select Options > Help.
User guide
Refer to the user guide for other important information
about your device.
Online
Check www.nseries.com/support or your local Nokia
website for the latest guides, additional information,
downloads, and services related to your Nokia product.
Tip: You can also access the support pages from the
web browser in your device.

8
Keypad lock (keyguard)
When the keys are locked, is displayed.
To lock the keys, press the left selection key, then the right
selection key.
To unlock the keys, open the 2-way slide, or press the left
selection key, then the right selection key.
To have the keypad lock activated automatically after a
time-out or when the 2-way slide is closed, press , and
select Tools > Settings > General > Security > Phone
and SIM card.
Tip: If you want to close the 2-way slide without
activating the keypad lock, press any key after you
close the slide.
When the keypad lock is on, calls may be possible to the
official emergency number programmed into your device.
Shortcuts
•To switch between open applications,
press and hold .
•To open Music player, press and hold the
multimedia key.
•In many applications, to view the most
used option items, press the scroll key.
•To open Gallery, press once.
•To call your voice mailbox
(network service), press and hold .
•To open the multimedia menu, press the multimedia key.
•To change the profile, press the power key, and select
a profile.
•To switch between General and Silent profiles, press
and hold . If you have two phone lines (network
service), this action switches between the two lines.
•To open the last dialed numbers list, press the call key.
•To use voice commands, press and hold the right
selection key.
•To start the Web browser (network service), press and
hold .

9
Personalisation
In the personalisation menu, you can change several settings
in your device. Press , and select Tools > Settings >
General > Personalisation and from the following:
•Themes — to change the theme, wallpaper and
power saver settings
•Display > Light time-out — to adjust the
backlight timeout
•Display > Font size — to
adjust the size of the text
and icons on the display

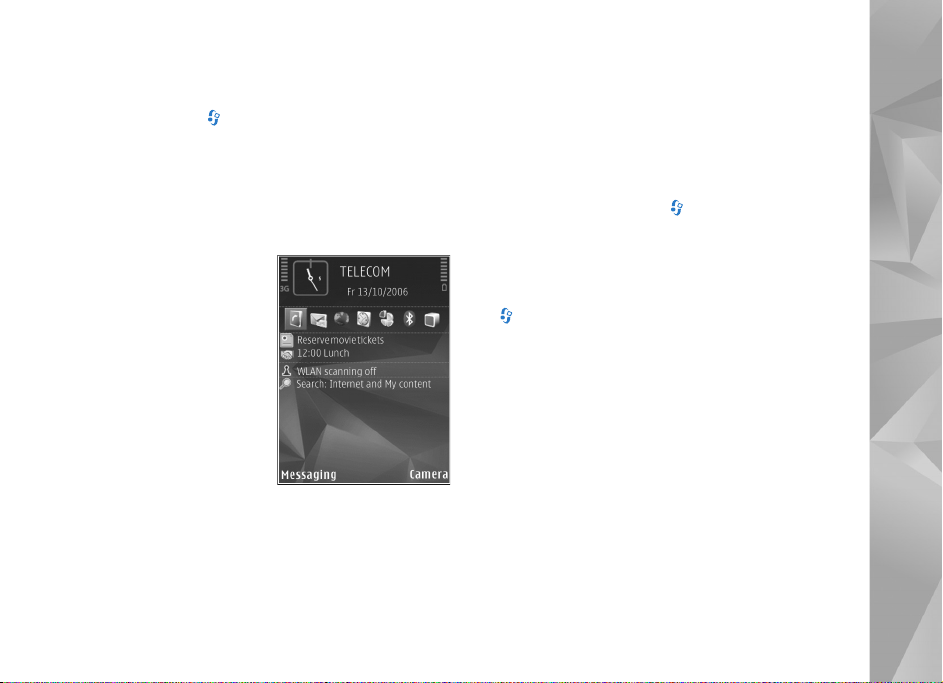

•Standby mode > Active
standby — to switch the
active standby on or off.
The active standby
display shows application
shortcuts and events
from applications.
•Standby mode > Shortcuts — to assign a shortcut to
the selection keys in the standby mode
•Standby mode > Active standby apps. — to change the
default shortcut icons in the active standby mode. Some
shortcuts may be fixed, and you cannot change them.
There are also other items you can modify:
•To modify a profile, press , and select Tools >
Profiles > Options > Personalise. You can, for
example, customise the ringing tones and message
alert tones.
•To change the clock shown in the standby mode, press
, and select Applications > Clock > Options >
Settings > Clock type.
