Nokia RM-685 User manual

RM-685 User Guide
RM-583_EN_RUIM_CT.fm Page 1 Tuesday, April 6, 2010 2:48 PM
Draft

© 2010 Nokia. All rights reserved.
Nokia, Nokia Connecting People and Navi are trademarks or registered
trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Includes RSA BSAFE cryptographic or security protocol software
from RSA Security.
Nokia operates a policy of ongoing development. Nokia reserves the right
to make changes and improvements to any of the products described in
this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE
RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER
CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE
THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
RM-583_EN_RUIM_CT.fm Page 2 Tuesday, April 6, 2010 2:48 PM
Draft

The availability of particular products and applications and services for
these products may vary by region. Please check with your Nokia dealer for
details, and availability of language options.
Export controls
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
The third-party applications provided with your device may have been
created and may be owned by persons or entities not affiliated with or
related to Nokia. Nokia does not own the copyrights or intellectual
property rights to the third-party applications. As such, Nokia does not
take any responsibility for end-user support, functionality of the
applications, or the information in the applications or these materials.
Nokia does not provide any warranty for the third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE
APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA
NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF
TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR
THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS,
COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS
FCC NOTICE
Your device may cause TV or radio interference (for example, when using a
telephone in close proximity to receiving equipment). The FCC can require
you to stop using your telephone if such interference cannot be eliminated.
If you require assistance, contact your local service facility. This device
RM-583_EN_RUIM_CT.fm Page 3 Tuesday, April 6, 2010 2:48 PM
Draft

complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or
modifications not expressly approved by Nokia could void the user's
authority to operate this equipment.
xxxxxxx, Issue 1
RM-583_EN_RUIM_CT.fm Page 4 Tuesday, April 6, 2010 2:48 PM
Draft

Contents
SAFETY 6
1. Get started 10
Insert the UIM card and the battery
10
Insert microSD card 11
Charge the battery 12
Switch your device on or off 13
Normal operation position 13
Access codes 14
Nokia support on the web 15
Green tips 15
2. Your device 17

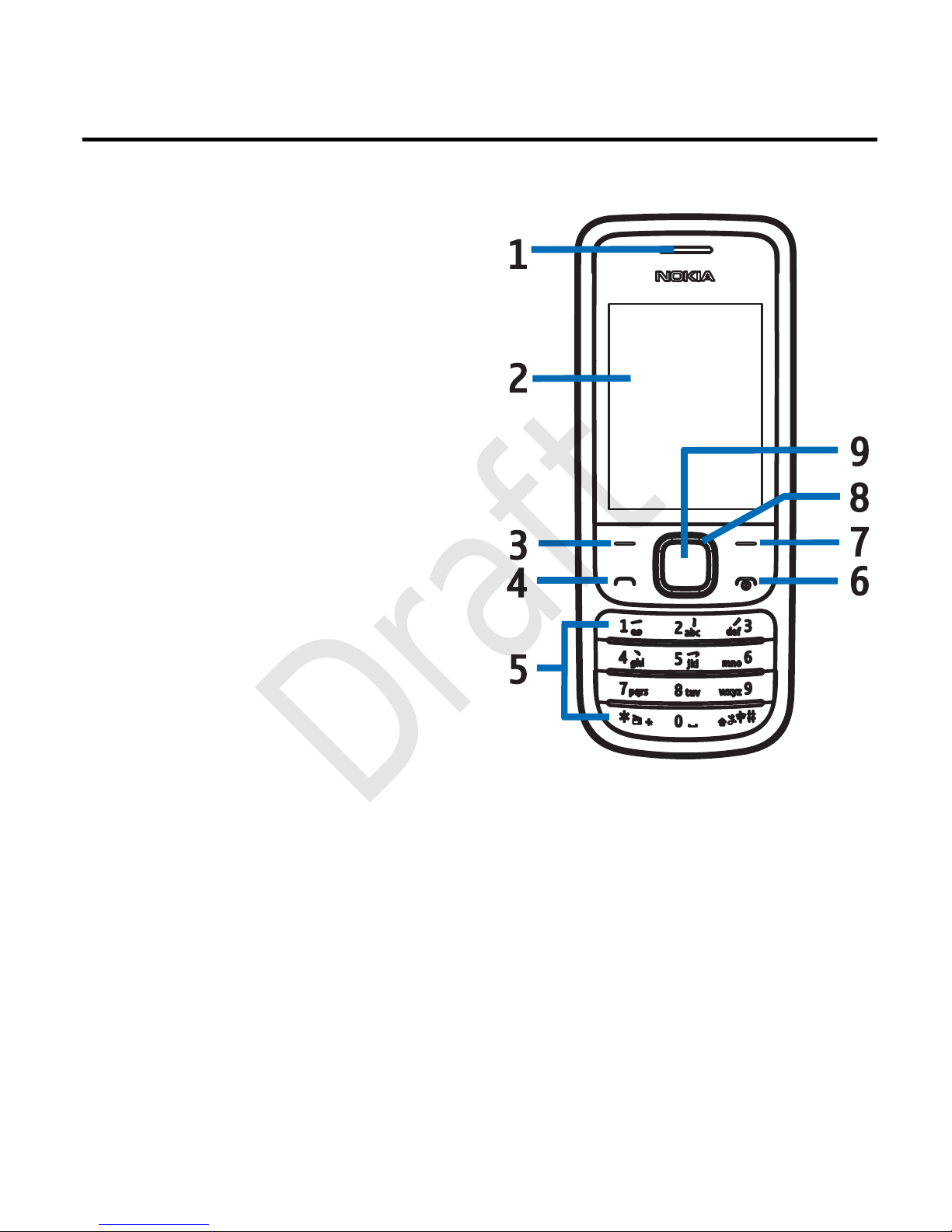

Keys and parts (front) 17

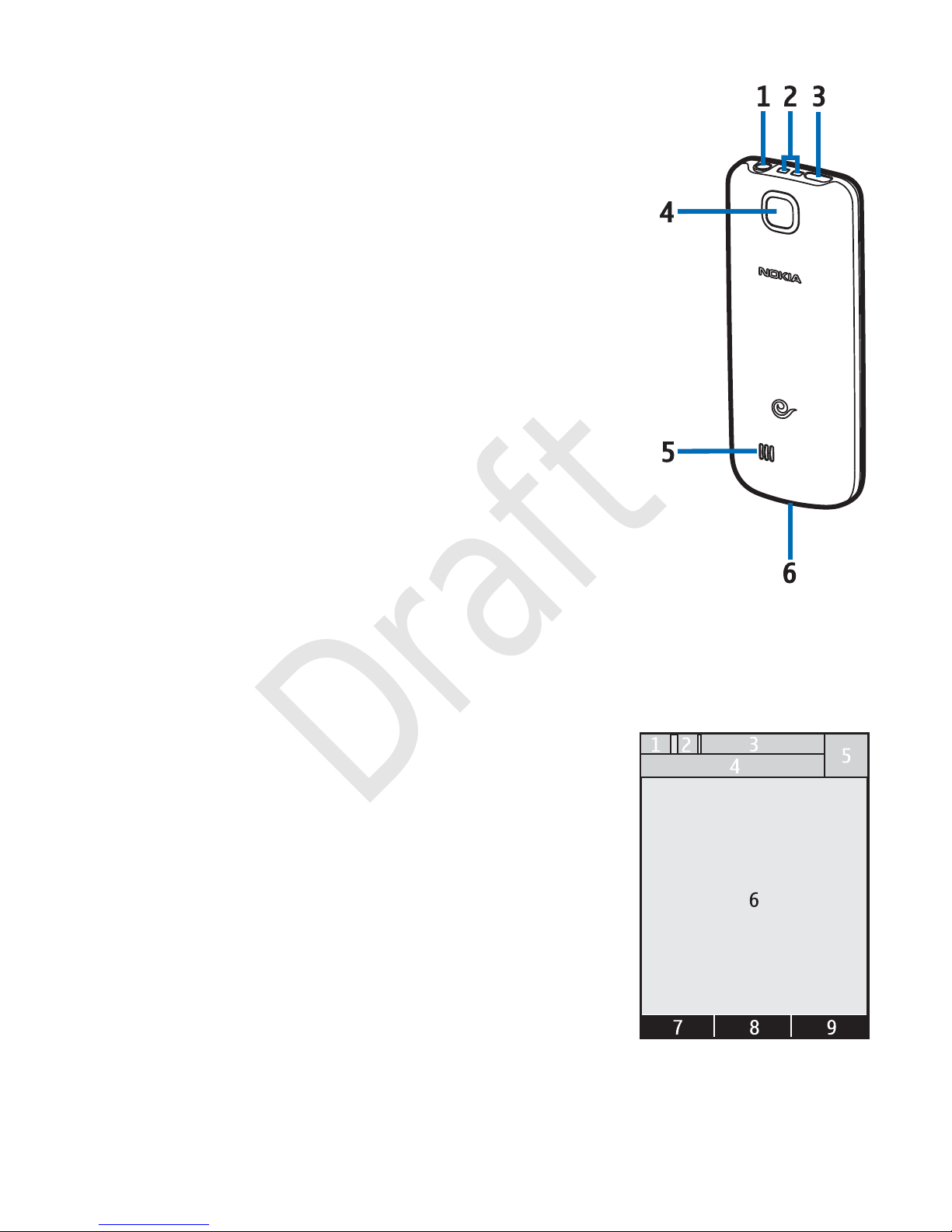

Keys and parts (back) 18
Standby mode and shortcuts 18
Active standby mode 19
Keyguard 20
Data transfer 21
Flight profile 21
Indicators 21
3. Call functions 23
Make a call 23
Answer and reject a call 23
Make a conference call 23
Loudspeaker 24
4. Text entry 25
Chinese input 25
English input 26
5. Navigate the menu 29
Messaging 29
Log 36
Contacts 36
Operator menu 40
Gallery 41
Media 41
Settings 45
Organiser 55
Extras 57
6. Accessories 59
7. Battery and charger
information 64
Battery Information 67
Nokia battery authentication
guidelines 68
Care and maintenance 71
Additional safety information
75
Index 82
RM-583_EN_RUIM_CT.fm Page 5 Tuesday, April 6, 2010 2:48 PM
Draft

6
SAFETY
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for further
information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use
is prohibited or when it may cause interference or
danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to
operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel, chemicals, or
blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this
product.
RM-583_EN_RUIM_CT.fm Page 6 Tuesday, April 6, 2010 2:48 PM
Draft

7
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not
connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
■About your device
The wireless device (RM–685) described in this guide is approved
for use on the CDMA 800 MHz network. Contact your service
provider for more information about networks.
When using the features in this device, obey all laws and respect
local customs, privacy and legitimate rights of others, including
copyrights.
Copyright protection may prevent some images, music, and other
content from being copied, modified, or transferred.
Your device may have preinstalled bookmarks and links for third–
party internet sites. You may also access other third–party sites
through your device. Third–party sites are not affiliated with
Nokia, and Nokia does not endorse or assume liability for them. If
you choose to access such sites, you should take precautions for
security or content.
RM-583_EN_RUIM_CT.fm Page 7 Tuesday, April 6, 2010 2:48 PM
Draft

8
Warning: To use any features in this device, other than
the alarm clock, the device must be switched on. Do not
switch the device on when wireless device use may
cause interference or danger.
When connecting to any other device, read its user guide for
detailed safety instructions. Do not connect incompatible
products.
■Network services
To use the device you must have service from a wireless service
provider. Many of the features require special network features.
These features are not available on all networks; other networks
may require that you make specific arrangements with your
service provider before you can use the network services. Using
network services involves transmission of data. Check with your
service provider for details about fees in your home network and
when roaming in other networks. Your service provider can give
you instructions and explain what charges will apply. Some
networks may have limitations that affect how you can use
network services. For instance, some networks may not support
all language-dependent characters and services.
Your service provider may have requested that certain features be
disabled or not activated in your device. If so, these features will
not appear on your device menu. Your device may also have a
RM-583_EN_RUIM_CT.fm Page 8 Tuesday, April 6, 2010 2:48 PM
Draft

9
special configuration such as changes in menu names, menu
order, and icons. Contact your service provider for more
information.
RM-583_EN_RUIM_CT.fm Page 9 Tuesday, April 6, 2010 2:48 PM
Draft

10
1. Get started
■Insert the UIM card and the battery
Always switch the device off and disconnect the charger
before removing the battery.
1. To remove the back cover, with
the back of the device facing
you, push to slide the back
cover toward the bottom of the
device.
2. Insert your finger into the finger
grip, and lift the battery from its
compartment.
3. With the contacts facing down
and the bevelled corner on the
card facing away from the top of
the device, insert the UIM card
into the holder.
RM-583_EN_RUIM_CT.fm Page 10 Tuesday, April 6, 2010 2:48 PM
Draft

11
4. Align the contacts of the battery
with those in the device, insert
the battery into the battery slot,
and push down the other end of
the battery to snap it into place.
5. Align the back cover with the
slots in the device, and push the
back cover toward the top of the
device until the cover is securely
in place.
■Insert microSD card
This device supports up to 16 GB microSD memory.
Use only compatible microSD card approved by Nokia.
Nokia uses approved industry standards for memory cards,
but some brands may not be fully compatible with this
device. Incompatible cards may damage the card and the
device and corrupt data stored on the card.
1. Remove the back cover.
RM-583_EN_RUIM_CT.fm Page 11 Tuesday, April 6, 2010 2:48 PM
Draft

12

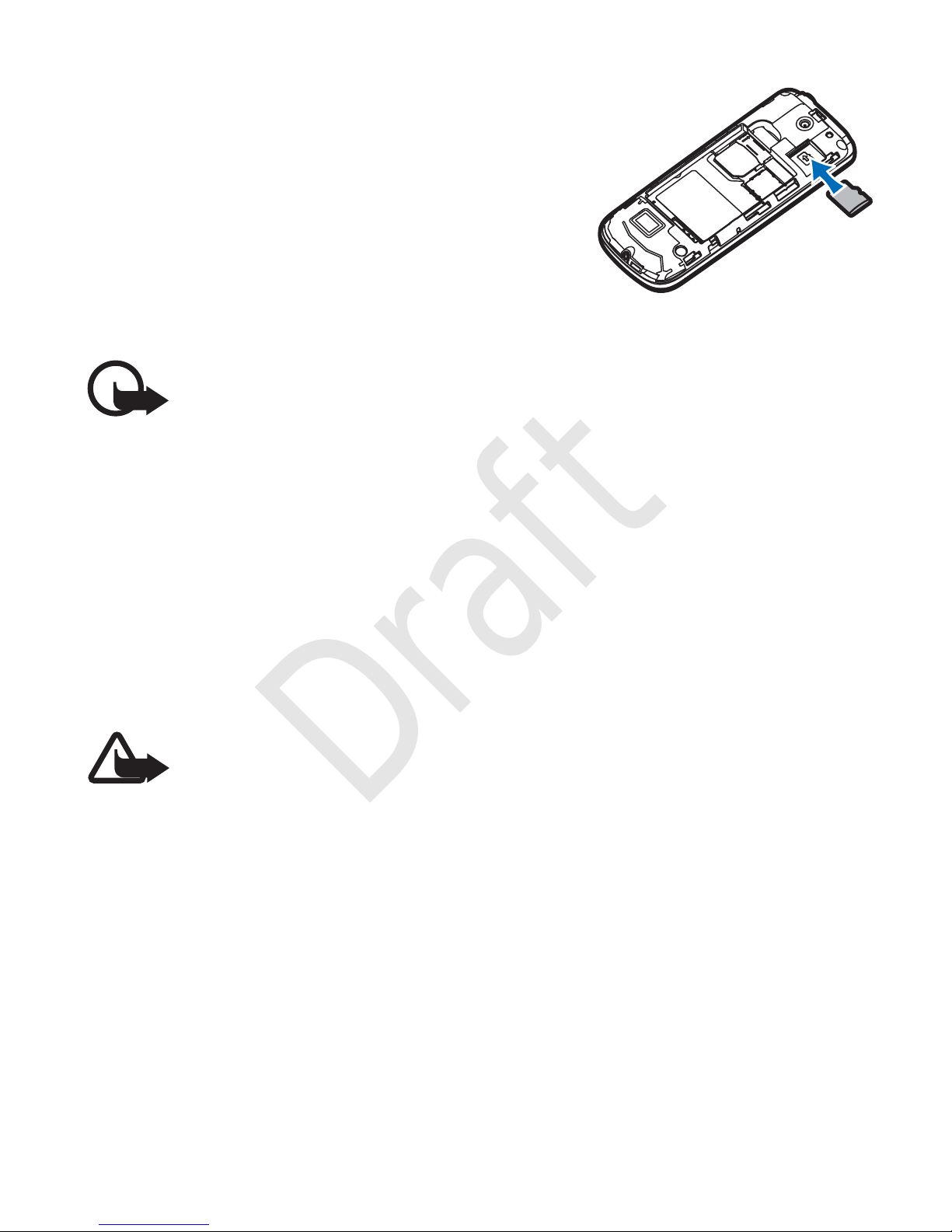

1. Insert the card into the microSD
card slot with the contact
surface facing down, push the
card until it is into place.
2. Close the back cover.
Important: Do not remove the memory card in the
middle of an operation when the card is being
accessed. Removing the card in the middle of an
operation may damage the memory card as well
as the device, and data stored on the card may be
corrupted.
■Charge the battery
Warning: Use only batteries, chargers, and
accessories approved by Nokia for use with this
particular model. The use of any other type may
invalidate any approval or warranty, and may be
dangerous.
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
1. Connect the charger to a wall outlet.
RM-583_EN_RUIM_CT.fm Page 12 Tuesday, April 6, 2010 2:48 PM
Draft

13
2 Connect the charger to the
device.
3. When the device indicates a
full charge, disconnect the
charger from the device, then
from the wall outlet.
You do not need to charge the battery for a specific length
of time, and youYou can use the device while it is
charging. If the battery is completely discharged, it may
take several minutes before any calls can be made.
■Switch your device on or off
To switch your device on or off, press and
hold the power key for at least 2 seconds.
■Normal operation position
Your device has an internal antenna.
Hold the device in the upright
position.
RM-583_EN_RUIM_CT.fm Page 13 Tuesday, April 6, 2010 2:48 PM
Draft

14
Note: As with any radio transmitting device, avoid
touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
such an antenna affects the communication
quality and may cause the device to operate at a
higher power level than otherwise needed and
may reduce the battery life.
■Access codes
The lock code supplied with the device helps to protect
your device against unauthorised use. The default code is
1234. You can change the lock code and keep the new
code secret and in a safe place separate from your device.
If you forget the code and the device is locked, your device
will require service. Additional charges may apply, and all
the personal data in your device may be deleted. For more
information, contact Nokia Care Centre or your device
dealer. To change the code, see "Security", p. 52.
The PIN code within the UIM card protects the card from
unauthorised use. If you enter an incorrect PIN code for
three times, the PUK code is needed to unlock the device.
For the PUK code, contact your service provider.
RM-583_EN_RUIM_CT.fm Page 14 Tuesday, April 6, 2010 2:48 PM
Draft

15
■Nokia support on the web
See www.nokia.com/support or your local Nokia website
for the latest version of this guide, additional information,
downloads, and services related to your Nokia product.
■Green tips
Here are tips on how you can contribute to
protecting the environment.
Save energy
When you have fully charged the battery and
disconnected the charger from the device, unplug the
charger from the wall outlet.
You do not need to charge your battery so often if you do
the following:
• Close and disable applications, services, and
connections when not in use.
• Decrease the brightness of the screen, if available in
your device.
RM-583_EN_RUIM_CT.fm Page 15 Tuesday, April 6, 2010 2:48 PM
Draft

16
• Set the device to enter the power saver mode after the
minimum period of inactivity, if available in your
device.
• Disable unnecessary sounds, such as keypad and
ringing tones.
Recycle
Most of the material in Nokia phone are recyclable. Check
how to recycle your Nokia products at www.nokia.com.cn/
werecycle, or with a mobile device www.nokia.mobi/
werecycle. Also check recycle packaging and user guides
at your local recycling scheme.
Learn more
For more information on the environmental attributes of
your device, see www.nokia.com/ecodeclaration.
RM-583_EN_RUIM_CT.fm Page 16 Tuesday, April 6, 2010 2:48 PM
Draft

17
2. Your device
■Keys and parts
(front)
1. Earpiece
2. Display
3. Left selection key
4. Call key
5. Keypad
6. Power/End key
7. Right selection key
8. NaviTM key; hereafter
referred to as scroll key
9. Middle selection key
RM-583_EN_RUIM_CT.fm Page 17 Tuesday, April 6, 2010 2:48 PM
Draft

18
■Keys and parts (back)
1. Nokia Audio connector
2. Wrist strap eyelet
3. Charger/Micro USB connector
4. Camera lens
5. Loudspeaker
6. Microphone
■Standby mode and
shortcuts
When the device is ready for use, and no character has
been entered, the phone is in the standby mode.
1 — Signal strength of the cellular
network
2 — Battery charge status
3 — Indicators
4 — The network name or the operator
logo
5 — Clock
RM-583_EN_RUIM_CT.fm Page 18 Tuesday, April 6, 2010 2:48 PM
Draft

19
6 — Display
7 — The function of the left selection key is Menu.
8 — The function of the middle selection key is .
9 — The function of the right selection key is Go to.
All the selection keys are configured by your service
provider. They may vary depending on your service
provider.
• To access the call log, press the call key once.
• To activate the radio function, press and hold the * key
for at least 3 seconds.
• To access the internet, press and hold the 0 key for at
least 3 seconds.
• To switch between Silent and General profile, press
and hold the # key for at least 3 seconds.
• For shortcuts of the scroll key, see "My shortcuts",
p. 47.
■Active standby mode
The active standby displays a list of selected device
features and information that you can directly access.
RM-583_EN_RUIM_CT.fm Page 19 Tuesday, April 6, 2010 2:48 PM
Draft

20
To activate the active standby, select Menu > Settings >
Display > Active standby > Active standby mode > On.
To view or customise the active standby key, see "Display",
p. 45.
In the standby mode, select the active standby key to
activate the navigation, then scroll up or down in the list,
and select Select, View, or Edit.
To stop navigation, select Exit.
To organise and change the active standby, select Options
and from available options.
■Keyguard
You can lock the keypad to prevent accidental keypresses.
To lock the keypad, select Menu, and press *within 5
seconds. To unlock the keypad, select Unlock, and press *
within 2 seconds.
When the keypad is locked, it unlocks if you receive a call.
When the call ends, it is locked automatically again.
To modify the default delay for the keyguard, see "Phone",
p. 49.
RM-583_EN_RUIM_CT.fm Page 20 Tuesday, April 6, 2010 2:48 PM
Draft
