Nokia RM-718 User manual

Nokia C6–01 User Guide
9223131
Issue DRAFT 2010-07-23
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 3
About this user guide 4
Use the in-device user guide 4
Get started 4
Keys and parts 4
Lock or unlock the keys and
screen 5
Insert the SIM card 5
Insert or remove the memory
card 6
Charging 7
Attach the wrist strap 8
Switch the device on 9
Nokia account and Nokia's Ovi
services 9
Copy contacts or pictures from your
old device 9
Device set-up 10
Touch screen actions 10
Interactive home screen
elements 11
Call a phone number 12
View your missed calls 12
Save phone numbers and mail
addresses 12
Send a message 13
Personalisation 13
Personalise your tones 13
Change your theme 13
Switch between home screens 13
Personalise the home screen 14
Add items to the home screen 14
Social networks 14
About Social 14
Take a picture 15
Upload a picture to a service 15
Connect a USB mass storage
device 16
Back up files 16
Install Nokia Ovi Suite on your
PC 16
Copy music from your PC 17
Find more help 18
Support 18
Keep your device software and
applications up to date 18
Access codes 19
Green tips 20
Save energy 20
Recycle 20
Product and safety
information 20
2 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide
for further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when
mobile phone use is not
allowed or when it may
cause interference or
danger, for example, in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel
may install or repair this
product.
KEEP YOUR DEVICE DRY
Your device is not water-
resistant. Keep it dry.
GLASS PARTS
The front cover of the device
is made of glass. This glass
can break if the device is
dropped on a hard surface
or receives a substantial
impact. If the glass breaks,
do not touch the glass parts
of the device or attempt to
remove the broken glass
from the device. Stop using
the device until the glass is
replaced by qualified service
personnel.
PROTECT YOUR HEARING
Listen to a headset at a
moderate level, and do not
hold the device near your
ear when the loudspeaker is
in use.
www.nokia.com/support 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

About this user guide
This short user guide helps you get
started with your device. With a short
printed user guide, Nokia helps save
energy and paper.
Your device contains a complete in-
device user guide, which you can refer
to for additional information about
your device. To read the in-device user
guide, select Menu > Applications >
User guide.
For even more support information, go
to www.nokia.com/support, or using a
mobile device, nokia.mobi/support.
Use the in-device user guide
Select Menu > Applications > User
guide.
Open the user guide from an
application
Select Options > User guide. This is
not available for every application.
Search the user guide
When the user guide is open, select
Options > Search, and enter a letter
or a word in the search field.
Switch between the user guide and
an application
Press and hold the menu key, swipe
left or right, and select the desired
application.
Links to related topics may be at the
end of instructions. indicates a link
to a related topic, and indicates a
link to a web page.
Get started
Keys and parts
Front
1Earpiece
2Light sensor
3Proximity sensor. Automatically
disables the touch screen during
calls.
4Menu key
5Call key
6Secondary camera
7End/Power key
Do not cover the area above the touch
screen with, for example, protective
film or tape.
4 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Sides, back, and bottom
8Camera flash / Flashlight
9Volume/Zoom key
10 Lock switch / Flashlight switch
11 Camera key
12 Camera
13 Loudspeaker
14 Charger connector
15 Wrist strap peg
16 Charging indicator
17 Nokia AV connector (3.5 mm)
18 Micro USB connector
19 Microphone
Touch screen
To control your device, lightly touch
the screen with your fingertips. The
screen does not respond when you use
your fingernails.
If your fingertips are cold, the screen
may not respond to your touch.
To avoid scratching the touch screen,
never use a pen, pencil, or other sharp
object to write on the touch screen.
Flashlight
The camera flash can be used as a
flashlight. To switch the flashlight on
or off, slide and hold the lock switch for
two seconds. The flashlight can only be
used when all applications are closed.
Do not shine the flashlight in anyone's
eyes.
Lock or unlock the keys and screen
To avoid accidentally making a call
when your device is in your pocket or
bag, lock the keys and screen of your
device.
Slide the lock switch.
Set the keys and screen to lock
automatically
1 Select Menu > Settings and
Phone > Display > Screen/
keylock time-out.
2 Define the length of time after
which the keys and screen are
locked automatically.
Insert the SIM card
Do not attach any stickers to your SIM
card.
1 To remove the back cover of the
device, press the back cover with
www.nokia.com/support 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

your fingers, slide the cover open,
and lift the cover off.
2 Remove the battery.
3 Open the cover of the SIM card slot.
4 Insert the SIM card into the card
holder. Make sure the contact area
of the card is facing down.
5 Close the SIM card holder, and slide
the cover of the holder to lock it.
6 Replace the battery and back
cover.
Insert or remove the memory card
Use only compatible memory cards
approved by Nokia for use with this
device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.
Do not attach any stickers to your
memory card.
Insert the memory card
If a memory card is not already
inserted:
1 Remove the back cover.
2 Make sure the contact area of the
memory card is facing down.
6 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Push the card in, until you hear a
click.
3 Replace the back cover.
Remove the memory card
1 Push the card in, until you hear a
click.
2 Pull the card out.
Charging
About the battery
Your device has a removable,
rechargeable battery. Use only Nokia
approved chargers designated for this
device. You can also use a compatible
USB data cable to charge your device.
When the battery charge is low, power
save mode is activated. To deactivate
power save mode, press , and select
Deactivate power saving. When
power save mode is activated, you may
not be able to modify the settings of
certain applications.
Insert the battery
1 Remove the back cover.
2 Line up the battery contacts, and
insert the battery.
3 Replace the back cover.

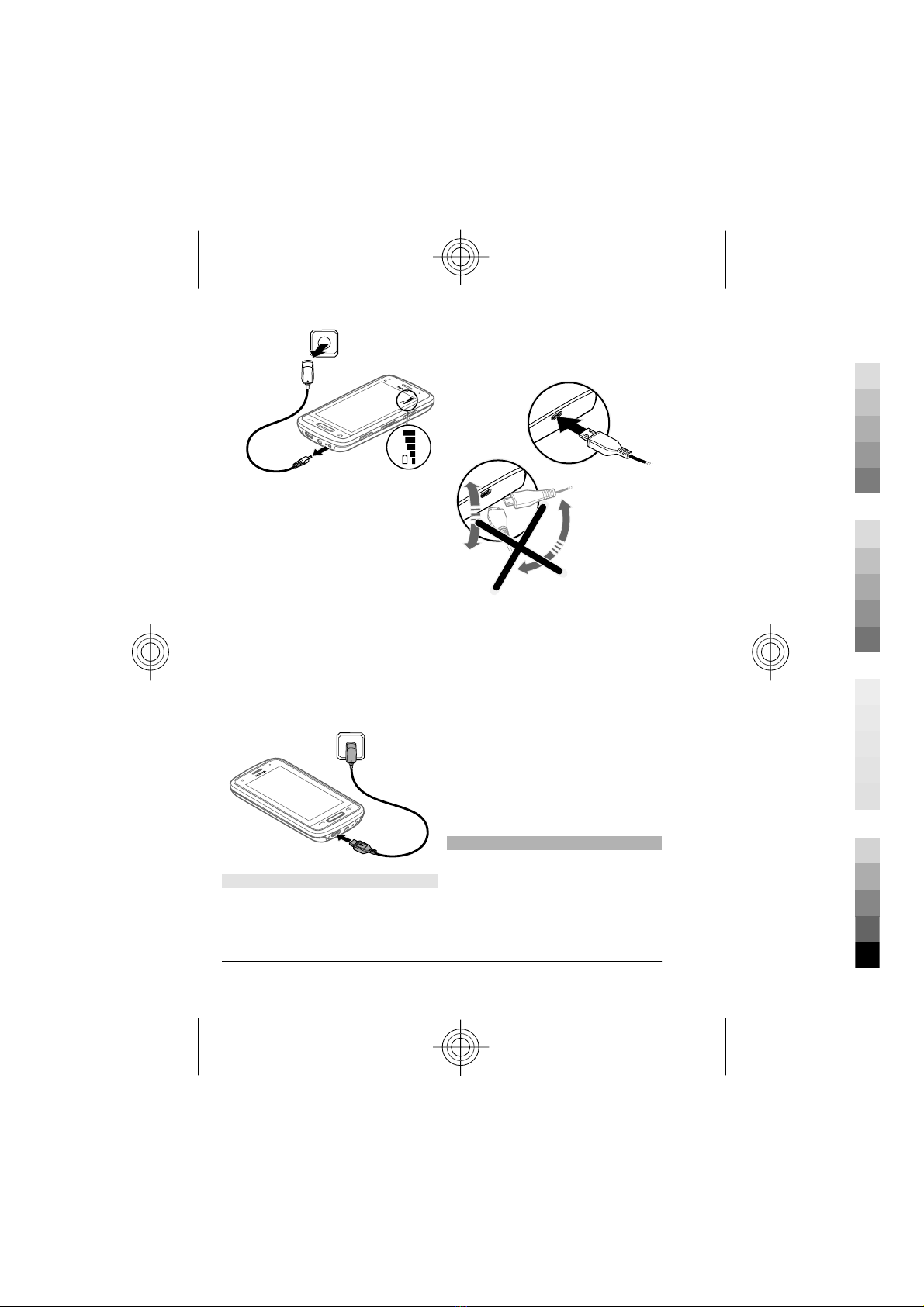

Charge the battery
Your battery has been partially
charged at the factory, but you may
need to recharge it before you can
switch on your device for the first time.
If the device indicates a low charge, do
the following:
1
www.nokia.com/support 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2
You do not need to charge the battery
for a specific length of time, and you
can use the device while it is charging.
If the battery is completely discharged,
it may take several minutes before the
charging indicator appears on the
display or before any calls can be
made.
If the battery has not been used for a
long time, to begin charging, you may
need to connect the charger, then
disconnect and reconnect it.
Tip: You can also use a compatible USB
charger to charge your battery.
Charge the battery over USB
Battery low, but you don't have a
charger with you? You can use a
compatible USB cable to connect to a
compatible device, such as a computer.
To avoid breaking the charger
connector, be careful when connecting
or disconnecting the charger cable.
If connected to a computer, you can
synchronise your device while
charging.
Charging over USB can take longer to
start, and may not work if you connect
through a non-powered USB hub. Your
device charges more quickly when
connected to a wall outlet.
When the battery is charging, the
charging indicator light next to the USB
connector is lit. When the battery
charge is low, the charging indicator
light flashes. It may take a while for
charging to start.
Attach the wrist strap
Thread the wrist strap as shown, and
replace the back cover.
8 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Switch the device on
Press and hold .
Switch the device off
Press and hold .
Nokia account and Nokia's Ovi
services
When you switch on yourdevice for the
first time, you can create a Nokia
account, so you can access Nokia's Ovi
services.
With Ovi services, you can, for
example:
•Download mobile games,
applications, videos, pictures,
themes, and ringing tones from
Ovi Store
•Synchronise your favourite
locations from your device to the
Ovi Maps internet service
To learn more about Ovi services, go to
www.ovi.com.
To create a Nokia account later, use
your device to access an Ovi service,
and you are prompted to create an
account.
Copy contacts or pictures from your
old device
Use the Phone switch application to
copy, for example, contacts, calendar
entries, and pictures from your
previous compatible Nokia device, free
of charge.
Select Menu > Applications >
Tools > Phone setup and Data
transfer.
If your old Nokia device does not have
the Phone switch application, your
new device sends it in a message. Open
the message in the old device, and
follow the instructions.
www.nokia.com/support 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

1 Select the device you want to
connect to, and pair the devices.
Bluetooth needs to be activated.
2 If the other device requires a
passcode, enter the passcode. The
passcode, which you can define
yourself, must be entered in both
devices. The passcode in some
devices is fixed. For details, see the
user guide of the device.
The passcode is valid only for the
current connection.
3 Select the content and OK.
Device set-up
To define some basic settings for your
device, select the Phone setup widget
which is on one of your home
screens. To switch between home
screens, swipe left or right. With the
Phone set-up widget, you can do the
following:
•Copy contacts, pictures, and other
content from your previous Nokia
device
•Personalise your device, by
changing the ringing tone and
visual theme
•Set up mail
•Update your device software
To define the settings later, you can
also select Menu > Applications >
Tools > Phone setup.
Touch screen actions
To interact with the user interface, tap
or tap and hold the touch screen.
Open an application or other screen
element
Tap the application or element.
Access item-specific options
Tap and hold the item. A pop-up menu
with available options opens. For
example, to send an image or delete an
alarm, tap and hold the image or
alarm, and from the pop-up menu,
select the appropriate option.
If you tap and hold the home screen,
editing mode is activated.
10 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
