Nokia X5-00 User manual

Nokia X5–00 User Guide
1111111
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Contents
Safety 5
Nokia X5–00 customised for China
Mobile 6
About your device 6
Magnets and magnetic fields 8
Synchronisation settings and data
deletion 8
Network services 8
Get started 9
Insert SIM card and battery 9
Keys and parts 12
Keys and parts (back and sides) 13
Switch the device on 14
Charge the battery 15
Memory card 17
Headset 19
Strap 20
Shortcuts 21
Display indicators 21
Network settings 23
Support 23
Find help 24
Instructions inside - In-device
help 24
Nokia support and contact
information 25
Additional applications 25
Settings 25
Access codes 26
Prolong battery life 27
Free memory 28
Your device 29
Transfer content 29
Lock the keypad 30
Find items 30
Mobile Search 31
Offline profile 31
Personalise your device 32
Set tones for profiles 32
Modify the standby mode 33
Modify the main menu 33
Music folder 34
Music player 34
Music key 36
Radio applications 37
Camera 40
About the camera 40
Activate the camera 40
Image capture 40
Video recording 45
2Contents
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Camera settings 47
Positioning (GPS) 49
About GPS 49
Assisted GPS (A-GPS) 50
Hold your device correctly 51
Licenses 52
Use licences 52
Web browser 54
Browse the web 54
Web feeds and blogs 55
Empty the cache 56
End the connection 56
Connection security 57
My favorites 57
Monternet 58
China Mobile services 58
Service shortcut 58
Connections 59
Bluetooth connectivity 60
Remote configuration 63
Write text 65
Input method indicators 65
Default input method 65
Switch input methods 66
Pinyin input method 66
Stroke input method 68
Insert special characters and
punctuation marks in Chinese input
mode 71
Traditional text input 71
Predictive text input 72
Tips on text input 72
Messaging 73
Messaging main view 73
Write and send messages 74
E-mail 75
Make calls 77
Voice calls 77
Make a video call 77
Video call in the standby mode 78
Phonebook manager 79
Green tips 79
Save energy 79
Recycle 80
Save paper 80
Learn more 80
Contents 3
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

e100 80
Product and safety
information 81
Index 109
4Contents
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle
while driving. Your first consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
Safety 5
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
Nokia X5–00 customised for China Mobile
The instructions in this user guide only apply to Nokia X5–00 customised for China
Mobile.
The post-sales service point and service content are similar for both customised and
other non-customised devices. With regards to the menus and features provided
with the device customised for China Mobile, see Monternet or contact China Mobile
customer service hotline for more information, post-sales service, and technical
support.
Nokia does not provide any warranty on technical support for the services rendered
by any network service provider, content provider, or service provider.
For information on the content and pricing of the services provided by China Mobile,
contact China Mobile customer service hotline.
About your device
The wireless device described in this guide is approved for use on the GSM 900, 1800,
1900 networks (hereafter referred to as 2G networks), and TD-SCDMA /TD-HSDPA
networks (hereafter referred to as 3G networks). Contact your service provider for
more information about networks.
6Safety
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Your device supports several connectivity methods and like computers may be
exposed to viruses and other harmful content. Exercise caution with messages,
connectivity requests, browsing, and downloads. Only install and use services and
software from trustworthy sources that offer adequate security and protection,
such as applications that are Symbian Signed or have passed the Java Verified™
testing. Consider installing antivirus and other security software on your device and
any connected computer.
Your device may have preinstalled bookmarks and links for third-party internet sites
and may allow you to access third-party sites. These are not affiliated with Nokia,
and Nokia does not endorse or assume liability for them. If you access such sites,
take precautions for security or content.
Warning:
To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause
interference or danger.
When using this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights. Copyright protection may prevent
some images, music, and other content from being copied, modified, or transferred.
Make back-up copies or keep a written record of all important information stored
in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
The images in this guide may differ from your device display.
Refer to the user guide for other important information about your device.
Safety 7
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
Synchronisation settings and data deletion
Pay attention to synchronisation settings. Data deletion as part of normal
synchronisation process is determined by the settings selected.
Network services
To use the device you must have service from a wireless service provider. Some
features are not available on all networks; other features may require that you make
specific arrangements with your service provider to use them. Network services
involve transmission of data. Check with your service provider for details about fees
in your home network and when roaming on other networks. Your service provider
can explain what charges will apply. Some networks may have limitations that affect
how you can use some features of this device requiring network support such as
support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on
TCP/IP protocols and language-dependent characters.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu.
Your device may also have customized items such as menu names, menu order, and
icons.
8Safety
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Get started
Insert SIM card and battery
Always switch the device off and disconnect the charger before removing the
battery.
1 With the back of the device facing you, press the release button, and lift up the
back cover.

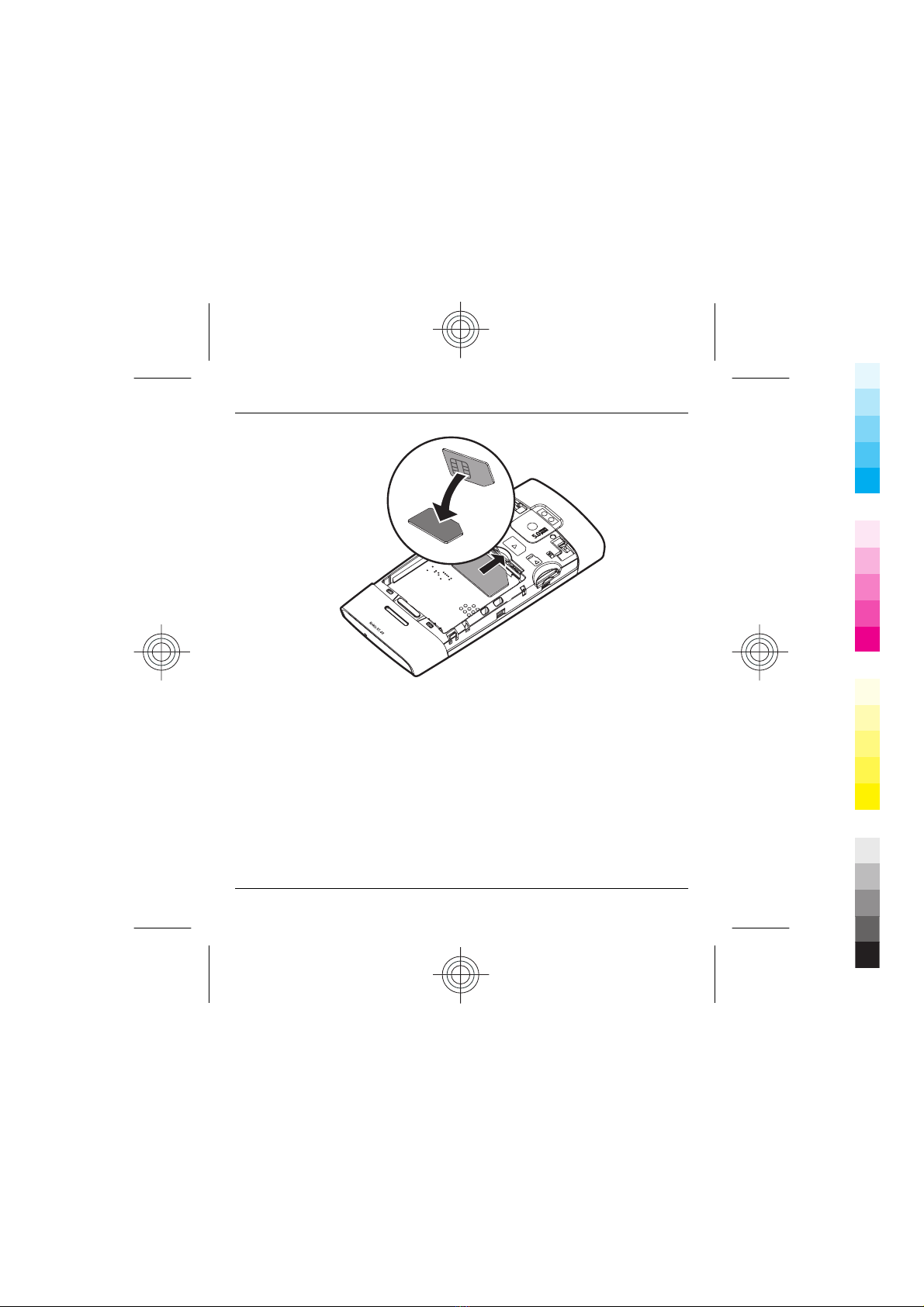

2 Insert the SIM card into the card slot. Make sure the contact area of the card is
facing down.
Get started 9
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

3 Insert the battery.
10 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

4 To replace the back cover, direct the top locking catches toward their slots, and
press down until the cover locks into place.
Get started 11
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Important: To prevent damage to the SIM card, always remove the battery before
you insert or remove the card.

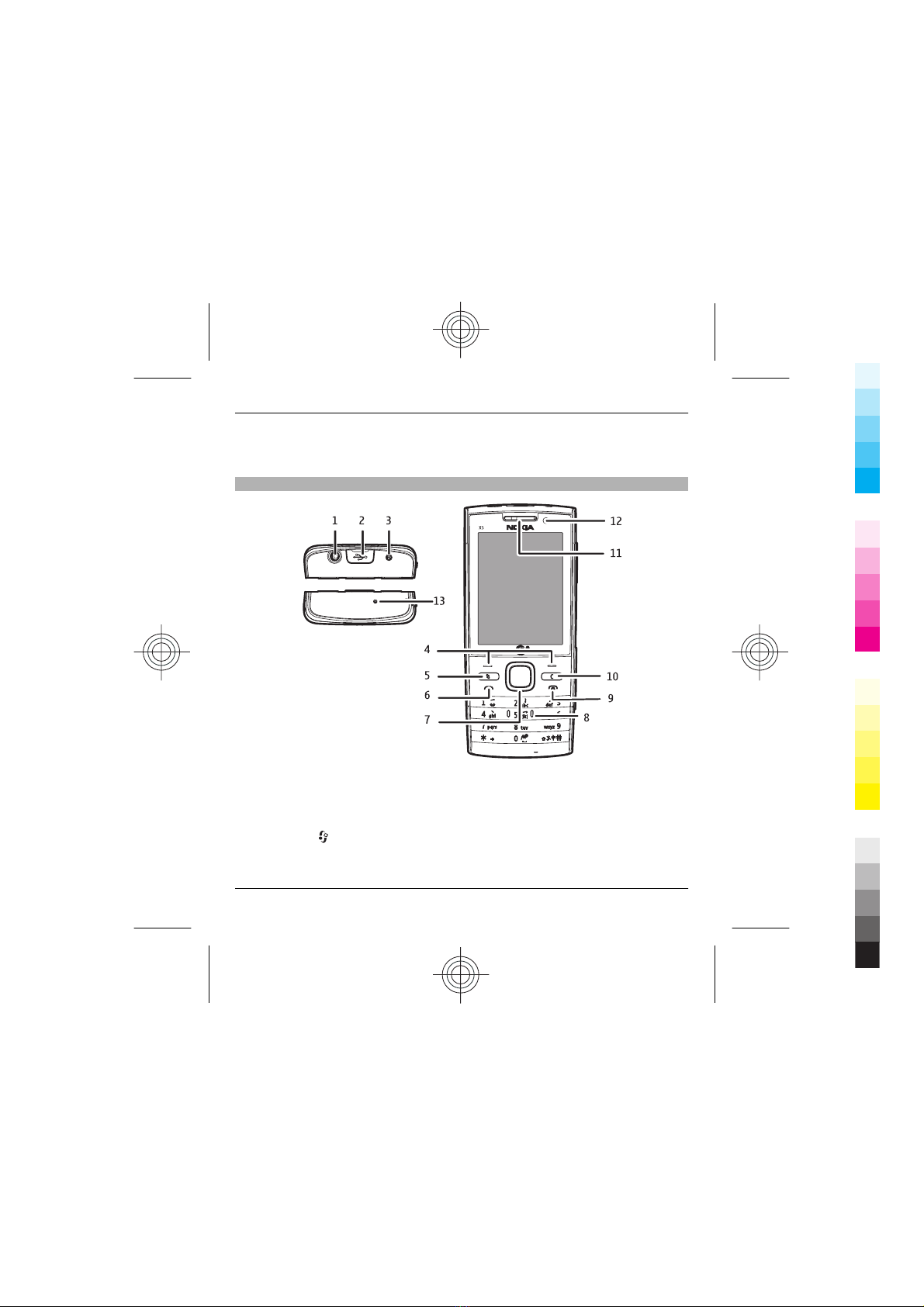

Keys and parts
1Nokia AV Connector (3.5 mm)
2Micro USB connector
3Charger connector
4Selection keys
5Menu key
6Call key
7Navi™ key (scroll key)
12 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

8Keypad
9End/Power key
10 Clear key C
11 Earpiece
12 Secondary camera
13 Microphone

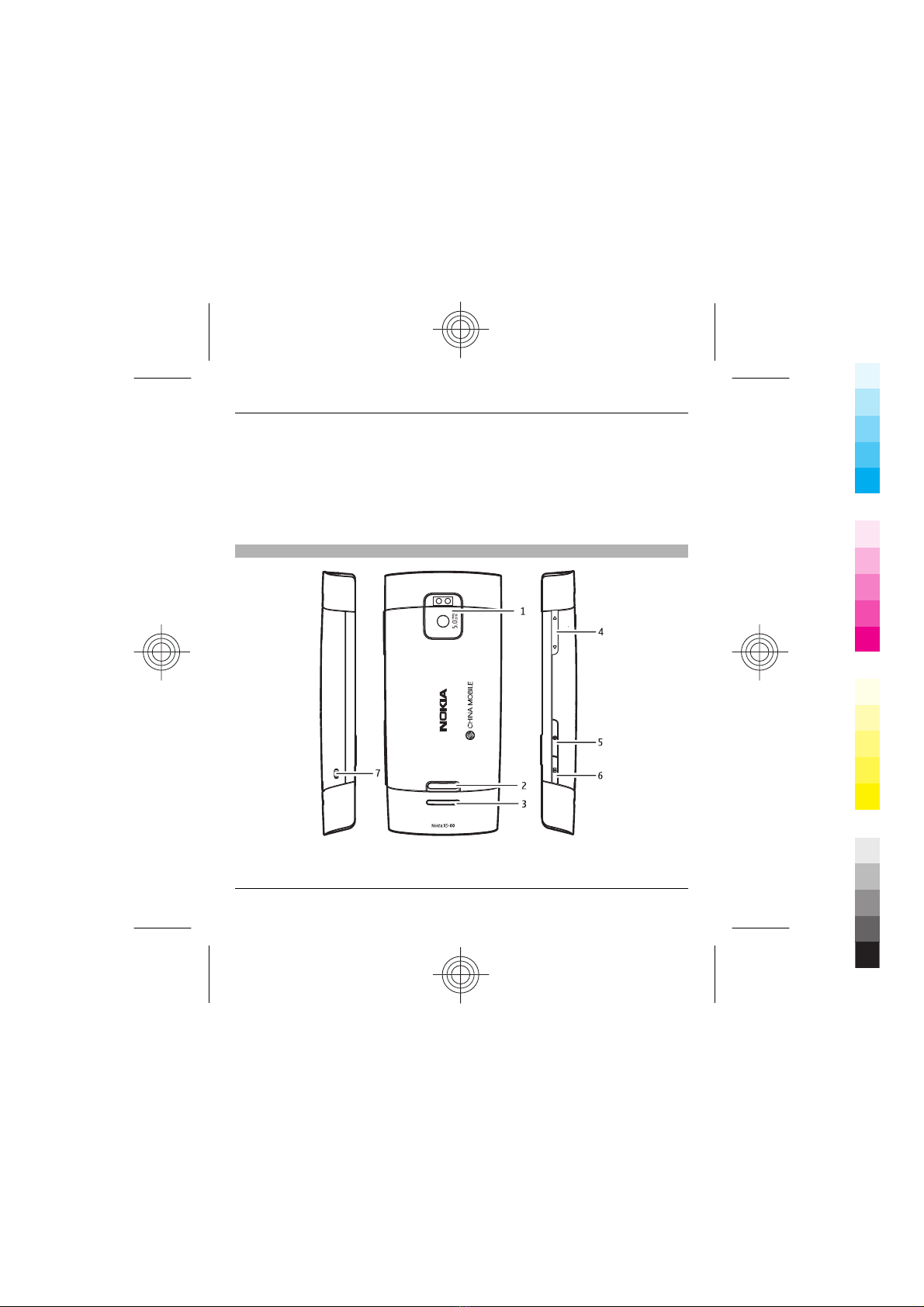

Keys and parts (back and sides)
1Main camera
Get started 13
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2Cover release button
3Speaker
4Volume keys
5Music key
6Capture key
7Wrist strap eyelet

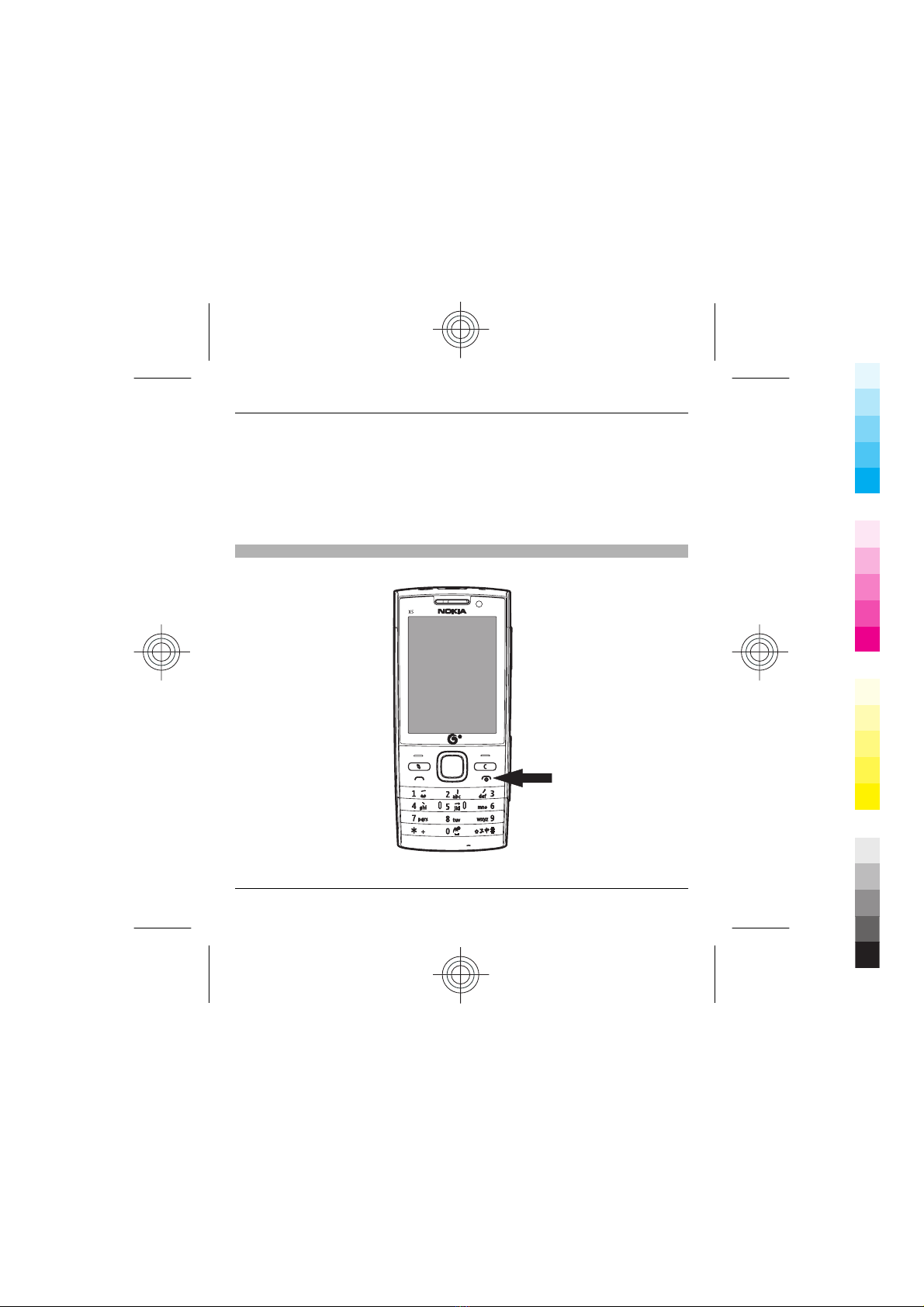

Switch the device on
1 Press and hold the power key.
14 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

2 If prompted, enter the PIN code or lock code. The factory setting for the lock
code is 12345.

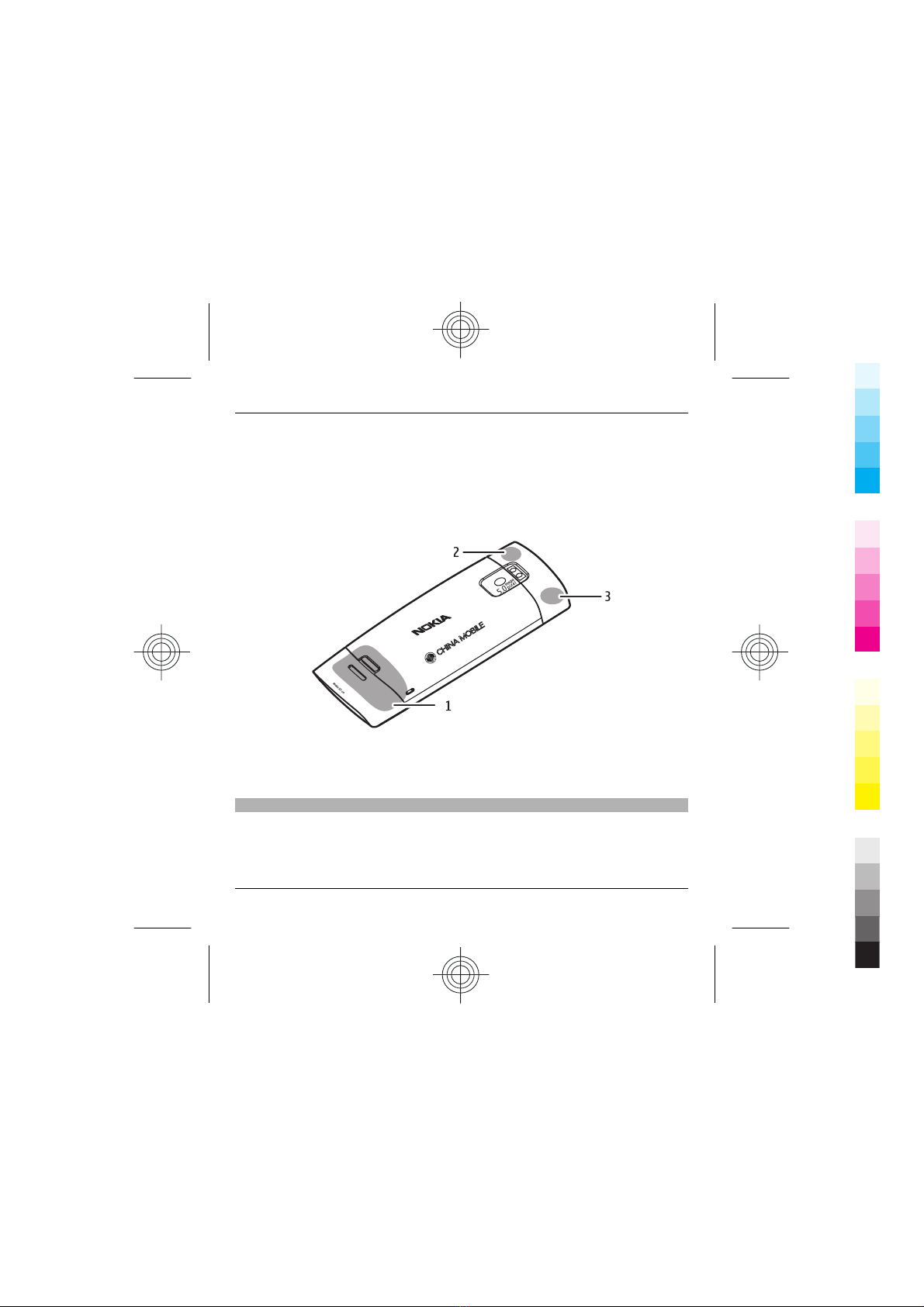

Your device may have internal and external antennas. Avoid touching the antenna
area unnecessarily while the antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may cause a higher power level
during operation and may reduce the battery life.
1Cellular antenna
2GPS receiver
3Antenna for Bluetooth technology
Charge the battery
Note: Use the adapter cable with the USB connector only for charging. It is not a
data cable.
Get started 15
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Your battery has been partially charged at the factory. If the device indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the lead from the adapter cable to the USB connector of the charger.
3 Connect the lead from the adapter cable to the charger connector of your device.
4 When the device indicates a full charge, disconnect the charger from the device,
then from the wall outlet.
You do not need to charge the battery for a specific length of time, and you can use
the device while it is charging. If the battery is completely discharged, it may take
several minutes before the charging indicator appears on the display or before any
calls can be made.
16 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Memory card
Use only compatible microSD cards approved by Nokia for use with this device. Nokia
uses approved industry standards for memory cards, but some brands may not be
fully compatible with this device. Incompatible cards may damage the card and the
device and corrupt data stored on the card.

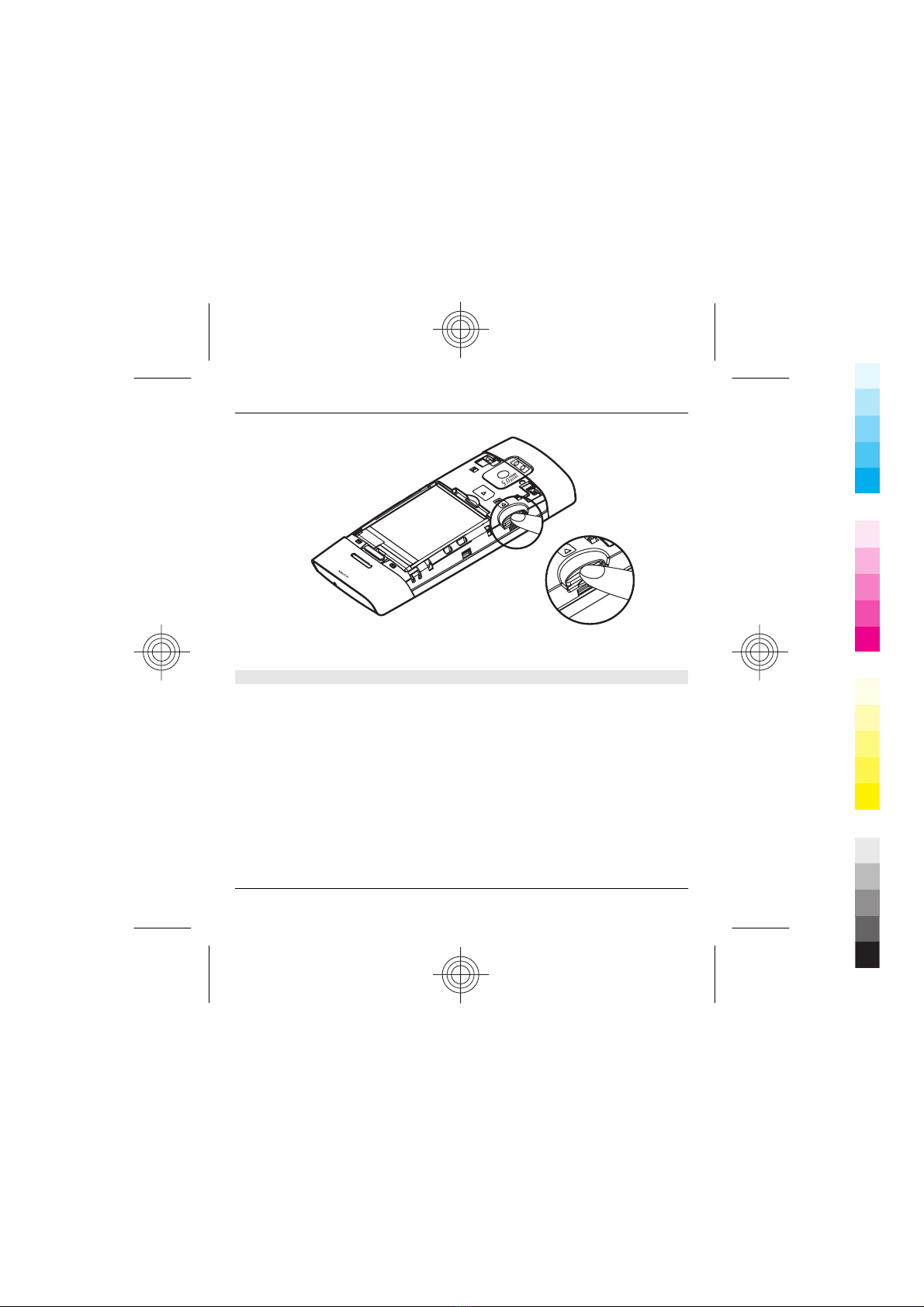

Insert a memory card
The memory card may be supplied with the device, and may already be inserted.
1Openthecover.
2 Place the card in the slot with the contact area facing down.
Get started 17
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

3 Push the card gently to lock it into place. Close the cover.
Remove a memory card
Important: Do not remove the memory card during an operation when the card
is being accessed. Doing so may damage the memory card and the device, and
corrupt data stored on the card.
1 Press the power key briefly, and select Remove memory card > Yes.
2 Open the back cover.
3 Press the memory card gently to release it.
18 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

4 Pull the card out, and select OK.
5 Replace the back cover.

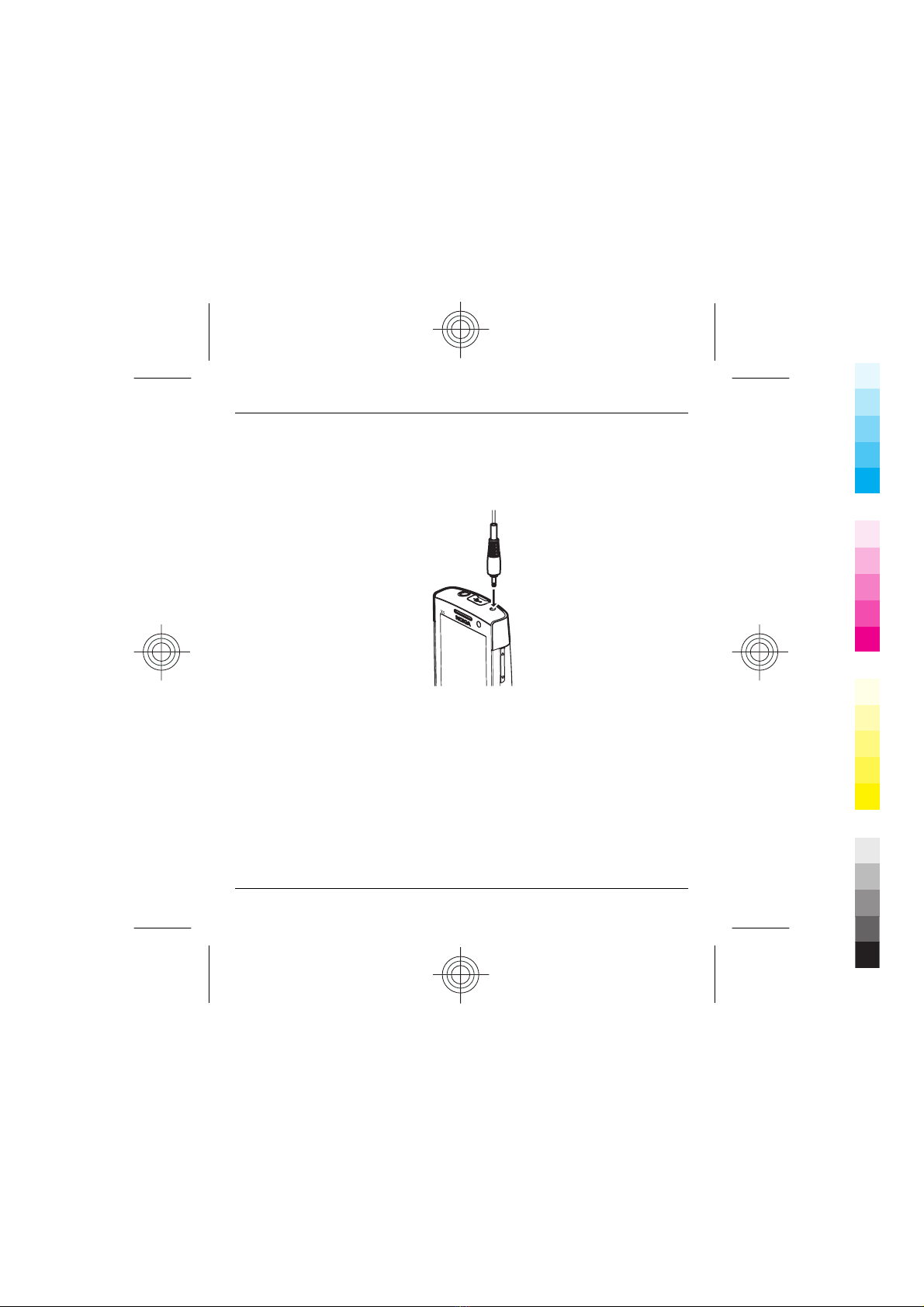

Headset
You can connect a compatible headset or compatible headphones to your device.
You may need to select the cable mode.
Get started 19
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do
not use the headset where it can endanger your safety.
To make handsfree phone calls, use a headset with a compatible remote control
unit, or use the microphone on the device.
Do not connect products that create an output signal as this may cause damage to
the device. Do not connect any voltage source to the Nokia AV Connector.
When connecting any external device or any headset, other than those approved
by Nokia for use with this device, to the Nokia AV Connector, pay special attention
to volume levels.
Strap
Remove the back cover, thread the strap as illustrated, tighten it, and replace the
back cover.
20 Get started
www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
