Nokia X1-00 User manual

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
1
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
SERVICE MANUAL
Level 1&2
RM-732 / RM-733
Transce iver characteristics
Band
RM-732:
EGSM900/1800
RM-733:
EGSM850/1900
D isp lay
128x160 TFT display
Operating System
S30 system Base 9
Connections:
3.5 mm AV connector, Stereo FM radio, MicroSD card
support up to 16GB
Transceiver with BL-5J battery pack
Ta lk t ime
Standby
Ectel: 7 h
Best: 13.1 h
Ectel: 1170 h
Best: 1466h
Note:
Talk times are dependent on network parameters
and phone settings

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
2
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
Table of contents
1. COPYRIGHT..........................................................................................................................................................................4
2. WARNINGS AND CAUTIONS.............................................................................................................................................5
2.1 WARNINGS.................................................................................................................................................................5
2.2 CAUTI ONS...................................................................................................................................................................5
3. ESD PROTECTION ...............................................................................................................................................................6
4. CARE AND MAINTENANCE ................................................................................................................................................7
5. BATTERY INFORMATION...................................................................................................................................................8
6. EXPLODED VIEW.................................................................................................................................................................9
7. SERVICE DEVICES ................................................................................................................................................................10
8. SOFT WARE UPD ATE...........................................................................................................................................................11
9. DISASSEMBLY INSTRUCTIONS.........................................................................................................................................12
10. ASS EMBLY HI NTS................................................................................................................................................................18

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
3
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
CHANGE HISTORY
Status
Version No.
Date
Comments
Approved
1.0
08.03.2 011
First approved version
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
Nokia Care Academy
[e-mail]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
4
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
1. COPYRIGHT
Copyright © 2011 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this documentwithout prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in rela tion to the
accuracy, reliability or contents of this document. Nokia reserves the r ight to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
I MPORT ANT
This document is intended for use by qualified service personnel only.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
5
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
a. Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MAN AGEMENT SYSTEMS AND ANTI –SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
b. Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–s ta tic wo rksta tion and tha t an anti–static wris t
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted af ter servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
6
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
3. ESD PROTECTION
Nokia requires that service points have sufficien t ESD protection (against sta tic
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All elec tronic parts of the product are susceptible to ESD. Resis tors, too, can be
damaged by static elec tr icity discharge.
All ESD sensitive parts must be packed in metallized protec tive bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
7
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
•Keep the phone and all its parts and accessories out of the reach of small
children.
•Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
•Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
•Do not store the phone in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain plastics.
•Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
•Do not drop, knock or shake the phone. Rough handling can break internal
circuit boards.
•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
•Do not pa int the phone. Paint can clog the moving parts and prevent proper
operation.
•Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications or attachments could damage the phone and may
violate regulations governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
8
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
5. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attemp t to discharge the battery by any other means Use the ba ttery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the ba ttery. Accidental sho rt-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery ( meta l str ip s
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a f ire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
9
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
6. EXPLODED VIEW
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
Ver. 1.0
A2
A3
LIGHT SWAP PACKAGE
(I0009 - I0011)
D-COVER ASSEMBLY
(I0012 - I0017
A1 ATO SWAP PACKAGE
(I0003 - I0008) A2, A3
SCREW TORX+
SIZE 4 M1.4x4.5
I0003
DC JACK
I0014
KEYMAT
I0002
LIGHT SWAP PWB
I0011
A-COVER
I0001
UI SHIELDING
I0005
LIGHT GUIDE
I0004
DOME SHEET
I0010
D-COVER
I0013
TYPE LABEL
I0012
IHF SPEAKER
I0016
AV JACK
I0015 SPEAKER GASKET
I0017
DISPLAY
I0009
EARPIECE
I0006
EARPIECE ADHESIVE
I0008
BATTERY COVER
I0019
SCREW TORX+
SIZE 4 M1.4x45
I0018

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
10
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
7. SERVICE DEVICES

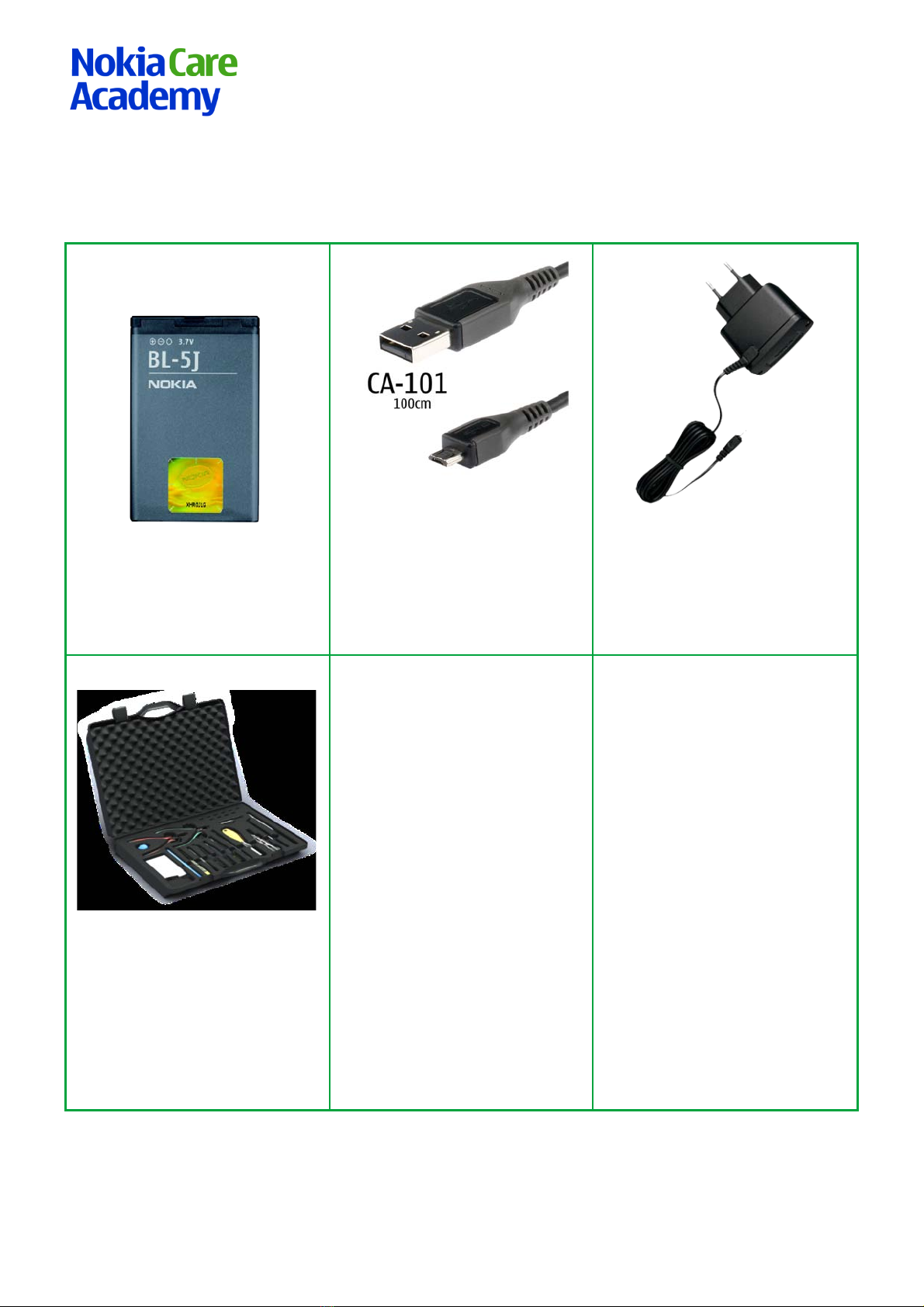

BL-5J Battery
CA-101 Service Cable
AC-3 Travel Charger
Nokia Standard Toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on Nokia
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on Nokia
Online.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
11
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
8. SOFTWARE UPDATE

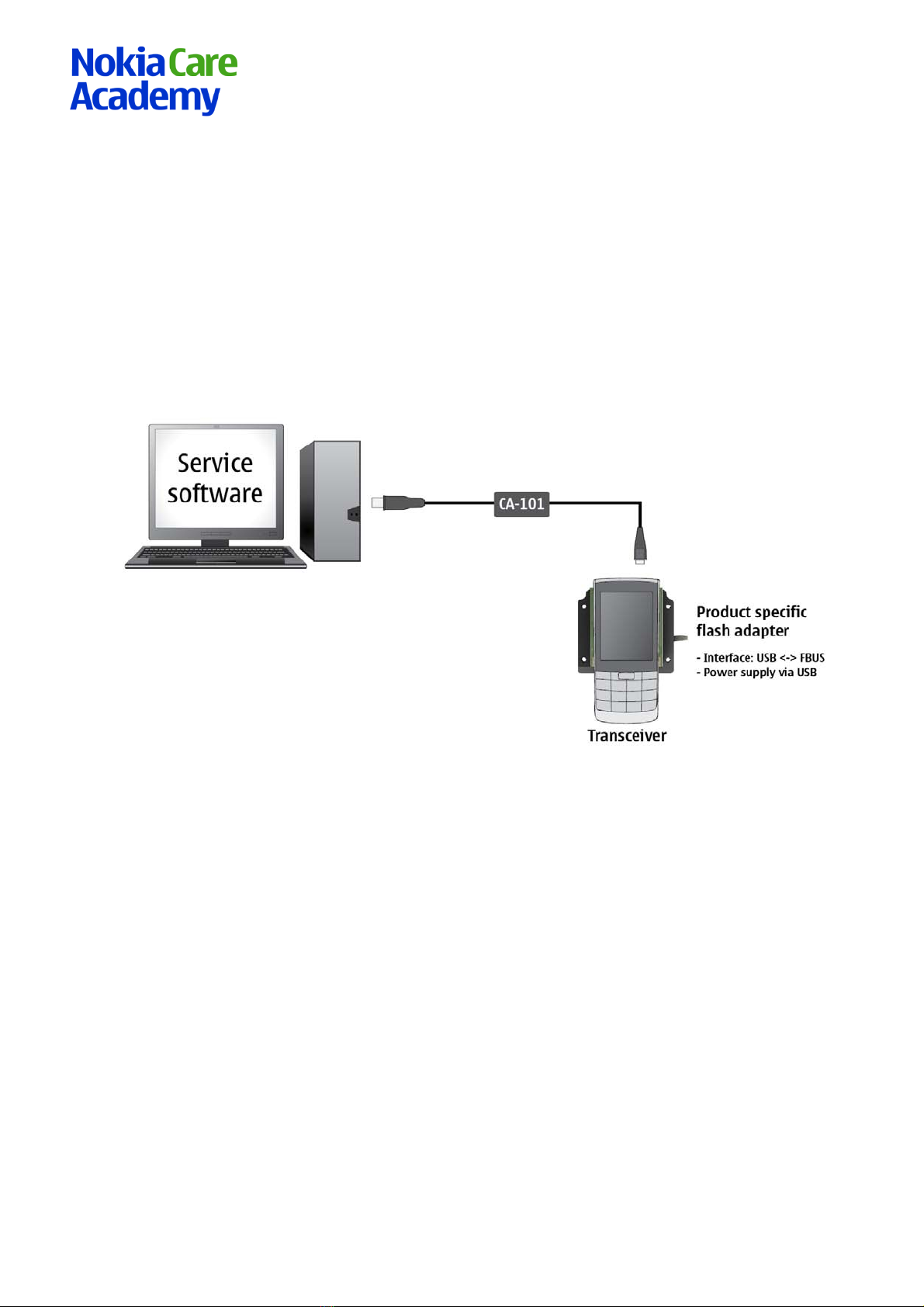

Flash concept (Point of Sale)
Please check always for the latest version of flash software, which is available on Nokia Online.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
12
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
9. DISASSEMBLY INSTRUCTIONS
1) Nokia X1-00 disassembly.
2) You must use the Nokia Standard Toolkit version
2. You will also need the DC plug and the AV plug.
3) Protect the A-COVER with the protective f ilm. 4) Open the BATTERY COVER by using the release
notch.
5) Remove the BATTERY COVER.
6) Unscrew the two Torx+ size 4 screws. Do not use
them again. Discard them.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
13
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
7) Open the MICROSD slot. If there is a card inserted
remove it.
8) Release the A-COVER from the D-COVER by sliding
the SRT-6 to direction shown.
9) Release the sides of the A-COVER by sliding the
SRT-6 to direction shown.
10) Remove the A-COVER.
11) Protect the other side of the A-COVER with the
protective f il m.
12) Release the shown clips with the SS-93.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
14
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
13) Remove the KEYMAT.
14) Protect the DI SPL AY with a protec tive f ilm.
15) Unscrew the four Torx+ size 4 screws.
16) Use the SRT-6 to release the ENGINE BOARD.
17) Remove the ENGINE BOARD. 18) Release the two clips holding the UI SHIELDING
with the SS-93.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
15
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0

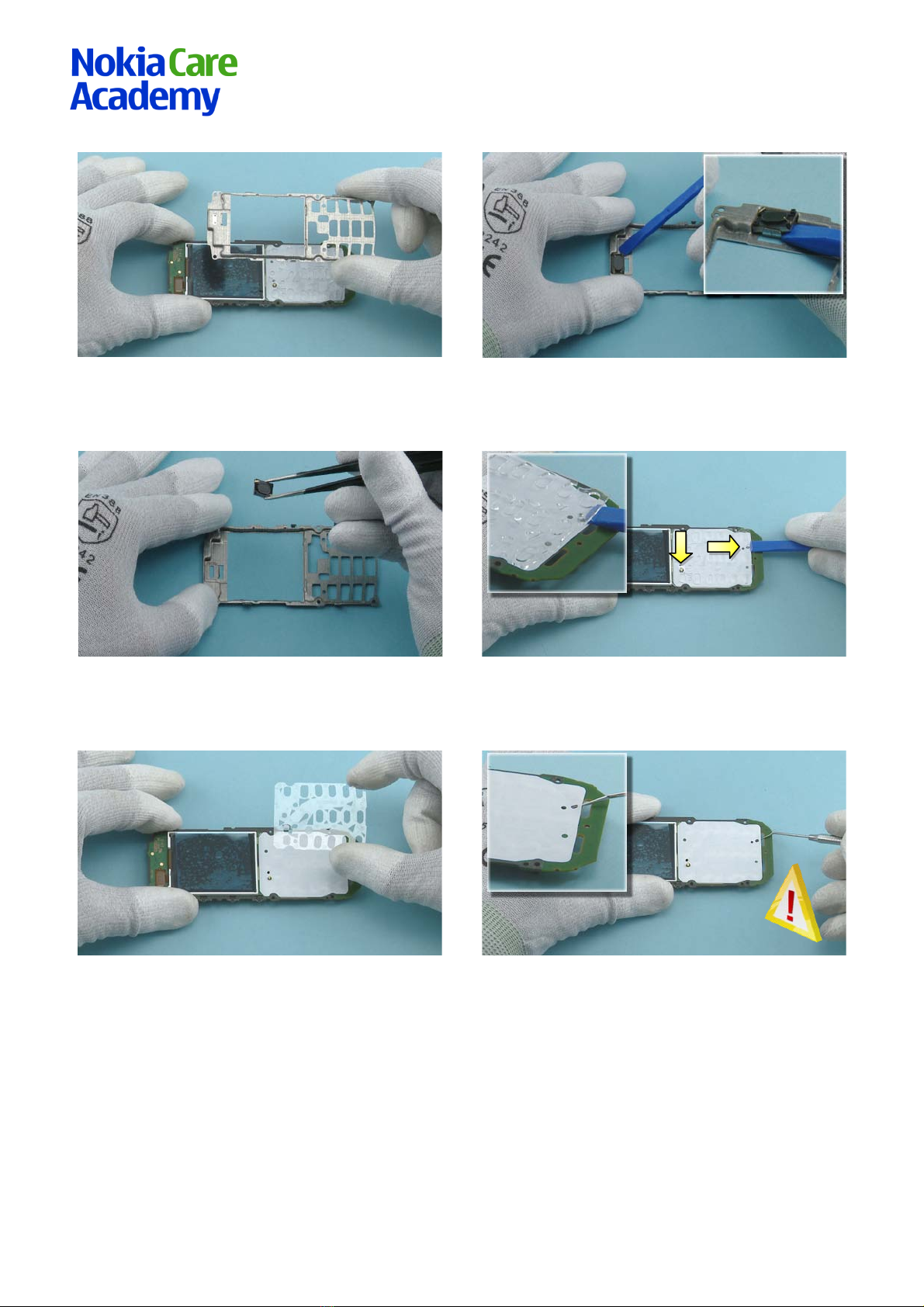

19) Remove the UI SHIELDING.
20) Use the SS-93 to release the EARPIECE from the UI
SHIELDING.
21) Remove the EARPIECE with the tweezers.
22) Release the two guiding pins holding the LIGHT
GUI DE with the SS-93.
23) Remove the LIGHT GUIDE. 24) Use the dental tool release the DOMESHEET. Be
careful not to injure yourself with the sharp end of
the dental tool!

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
16
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
25) Peel of the DOMESHEET.
26) Remove the DOMESHEET. Do not use it again.
Discard it.
27) Use the AV plug to lif t the AV J AC K from its socket.
28) Remove it with the tweezers.
29) Use the DC plug to lift the DC J ACK from its socket. 30) Remove it with the tweezers.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
17
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0

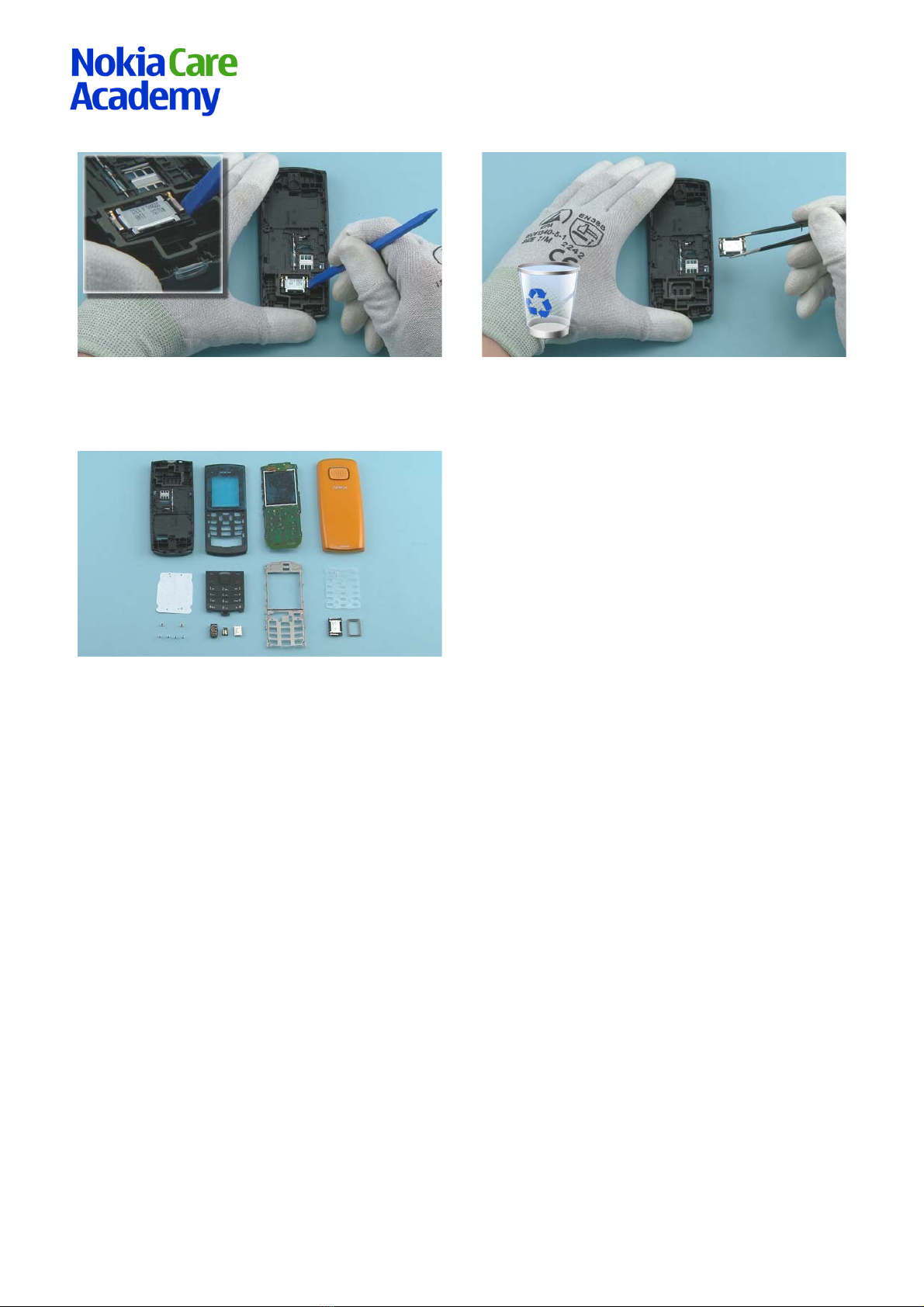

31) Use the SS-93 to release the IHF SPEAKER.
32) Remove it with the tweezers. Do not use it again.
Discard it.
33) The Nokia X1-00 disassembly is now complete.
-END OF DISASSEMBLY-

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
18
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
10. ASSEMBLY HINTS
1) Insert the IHF SPEAKER with the tweezers. Make
sure that the pins are correctly aligned.
2) Push the IHF SPEAKER down from the shown place
to activate the adhesive.
3) Place the EARPI ECE to its place with the tweezers. 4) Push the EARPIECE down with the SS-93 to activa te
the adhesive.
5) Tighten the TORX + size 4 screws to the torque of
17 Ncm.
6) Tighten the TORX + size 4 screws to the torque of
15 Ncm.

Nokia X1-00
RM-732 / RM-733
Service Manual Level 1&2
19
Co nf id e nt ial | C o p yr ig ht © 2011Nokia |A ll rights reserved
V e r s io n 1 .0
11. SOLDER COMPONENTS
Not included
