Nokia HS 11W User manual

User Guide for the Wireless
Headset (HS-11W)
9235752
Issue 1
9235752_HS-11W_1_en.fm Page 1 Monday, September 20, 2004 3:06 PM

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the
product HS-11W is in conformity with the provisions of the following
Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can
be found at http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products described
in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or
income or any special, incidental, consequential or indirect damages
howsoever caused.
9235752_HS-11W_1_en.fm Page 2 Monday, September 20, 2004 3:06 PM

The contents of this document are provided "as is". Except as required by
applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Nokia reserves the right to revise
this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check
with the Nokia dealer nearest to you.
In some countries there may be restrictions in using Bluetooth devices.
Check with your local authorities.
9235752 / Issue 1
English
9235752_HS-11W_1_en.fm Page 3 Monday, September 20, 2004 3:06 PM

Contents
4
Contents
1. Introduction............................................................ 6
Bluetooth wireless technology........................................................ 6
2. Getting started ....................................................... 8
Overview................................................................................................ 9
Chargers and batteries .................................................................... 11
Charging the battery........................................................................ 11
When the battery charge falls low........................................... 13
Switching the headset on or off................................................... 13
Pairing the headset with a compatible phone ......................... 14
Disconnecting the headset from the phone .......................... 15
Connecting the paired headset to your phone ..................... 16
Troubleshooting................................................................................. 17
3. Using the headset................................................. 18
Placing the headset on the ear..................................................... 19
Making a call...................................................................................... 19
Redialling the last dialled number............................................... 20
Voice dialling...................................................................................... 20
9235752_HS-11W_1_en.fm Page 4 Monday, September 20, 2004 3:06 PM

Contents
5
English
Answering and ending a call ......................................................... 20
Rejecting a call.................................................................................. 21
Automatic answer............................................................................. 21
Adjusting the earphone volume.................................................... 21
Muting an ongoing call................................................................... 21
Switching the call between phone and headset...................... 22
Using the headset with several phones...................................... 22
Resetting the headset...................................................................... 23
4. Battery information ............................................. 25
Charging and Discharging .............................................................. 25
Care and maintenance ............................................... 27
9235752_HS-11W_1_en.fm Page 5 Monday, September 20, 2004 3:06 PM

Introduction
6
1. Introduction
The Wireless Headset HS-11W can be connected to a
compatible phone that supports Bluetooth technology.
This allows you freedom to make and receive calls while
on the move or in the office.
Read this user guide carefully before using the headset.
In addition to this user guide, read also the user guide for
your phone, which provides important safety and
maintenance information. Keep the headset out of reach
of small children.
■Bluetooth wireless technology
The Bluetooth technology makes it possible to connect
compatible communication devices without using cables.
A Bluetooth connection does not require that the phone
and the headset be in line of sight, but both devices
9235752_HS-11W_1_en.fm Page 6 Monday, September 20, 2004 3:06 PM

Introduction
7
English
should be within 10 metres of each other. Connections
can be subject to interference from obstructions, such as
walls, or other electronic devices.
The Wireless Headset HS-11W is specially designed for
compatible Nokia phones that support Bluetooth
technology. The headset can, however, be used with any
compatible Bluetooth devices that support the
compatible Handsfree or Headset profiles. (A profile is a
set of Bluetooth commands that the phone uses to
control the headset).
The Wireless Headset HS-11W is compliant with the
Bluetooth Specification 1.1 supporting the following
profiles: Headset Profile 1.1, Handsfree Profile 1.0.
However, interoperability between the Wireless Headset
HS-11W and other Bluetooth-enabled products is not
guaranteed because it depends on compatibility. Check
with the manufacturers of other devices to determine
their compatibility with this device.
9235752_HS-11W_1_en.fm Page 7 Monday, September 20, 2004 3:06 PM

Getting started
8
2. Getting started
Note: The use of wireless devices may be
restricted in some situations. Observe any
restrictions and obey all signs and instructions
concerning use of wireless devices.
9235752_HS-11W_1_en.fm Page 8 Monday, September 20, 2004 3:06 PM

Getting started
9
English
■Overview
The headset contains the following parts, as shown in
Figure 1.
Power key (1): Switches the headset on and off. You can
also mute or unmute the ongoing call by pressing the
power key briefly.
Earphone (2): Relays the caller’s voice.
Figure 1
9235752_HS-11W_1_en.fm Page 9 Monday, September 20, 2004 3:06 PM

Getting started
10
Indicator light (3): Displays the current status of the
headset.
Volume key (4): Increases or decreases the earphone
volume during a call.
Microphone (5): Picks up your voice.
Answer/end key (6): Answers or ends the call. This key
can also be used for voice dialling, redialling and
switching an active call between the headset and the
compatible phone.
Charger connector (7)
Before you can start using the headset, you must:
• Charge the battery
• Pair a compatible phone with the headset
9235752_HS-11W_1_en.fm Page 10 Monday, September 20, 2004 3:06 PM

Getting started
11
English
■Chargers and batteries
Check the model number of any charger before using it
with this device. The Wireless Headset HS-11W is
intended for use with the following chargers: AC-1, ACP-
12, and LCH-12.
Warning: Use only batteries and chargers
approved by Nokia for use with this particular
enhancement. The use of any other types may
invalidate any approval or warranty, and may be
dangerous.
For availability of approved enhancements, please check
with your dealer. When you disconnect the power cord of
any enhancement, grasp and pull the plug, not the cord.
■Charging the battery
This device has an internal, nonremovable, rechargeable
battery. Do not attempt to remove the battery from the
device as you may damage the device.
9235752_HS-11W_1_en.fm Page 11 Monday, September 20, 2004 3:06 PM

Getting started
12

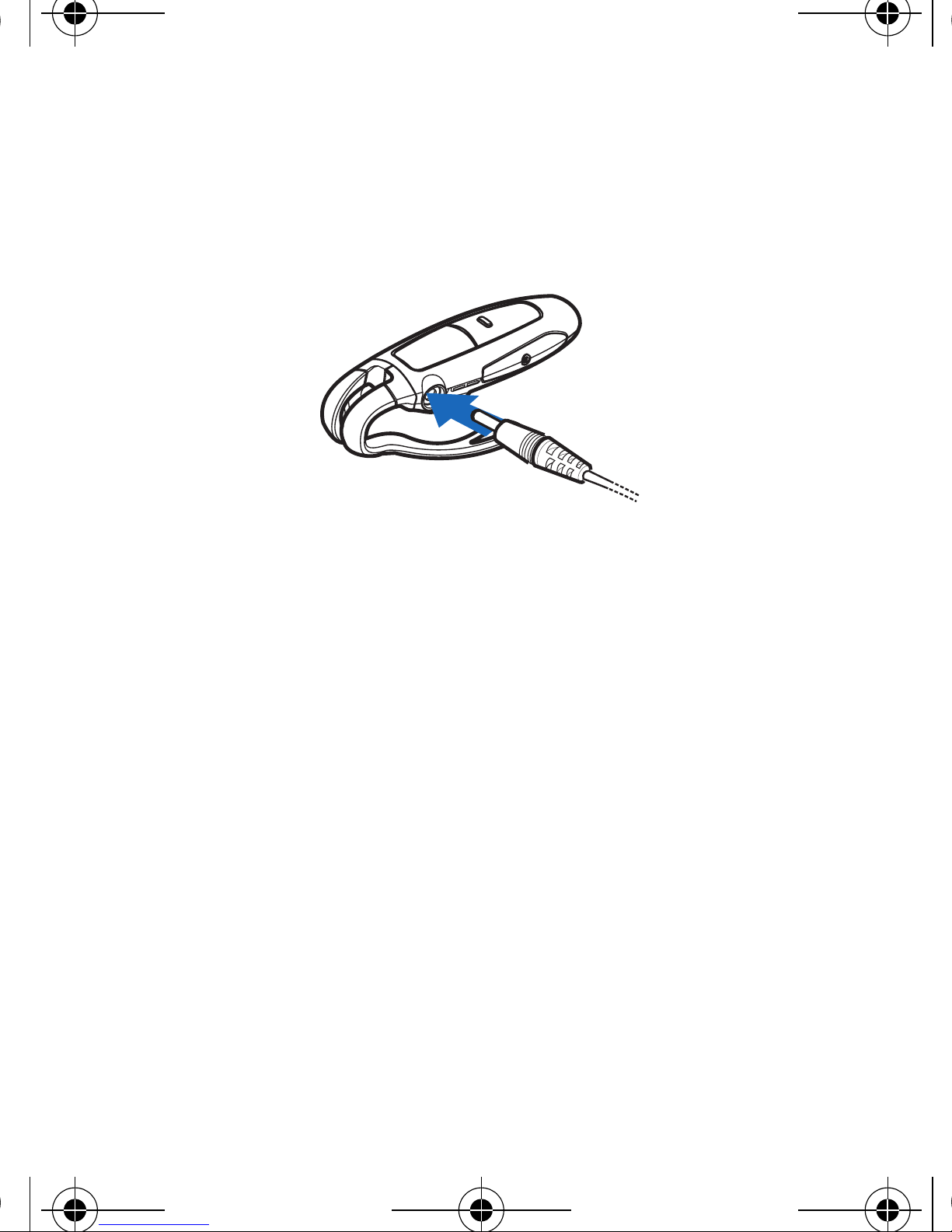

1. Connect the charger cable to the headset as shown in
Figure 2.
2. Connect the charger to a wall outlet. The red indicator
light is displayed during charging. If the battery is
completely discharged, it may take a few minutes
before the red indicator is shown. Charging the
battery fully may take up to 2 hours depending on the
charger.
3. When the battery is fully charged, the green indicator
light is displayed. Disconnect the charger from the
wall outlet and the headset.
Figure 2
9235752_HS-11W_1_en.fm Page 12 Monday, September 20, 2004 3:06 PM

Getting started
13
English
When the battery charge falls low
The fully charged battery has power for up to 6 hours of
talk-time or up to 160 hours of standby time. (In the
standby mode, the headset is switched on but no call is in
progress.)
When the battery is running out of power, the headset
beeps and the red indicator light starts to blink. Charge
the battery as described above.
■Switching the headset on or off
To switch on: Press and hold the power key for 2
seconds. The headset beeps and the green indicator light
starts blinking fast. The blinking continues slower after
the headset is connected to your phone.
To switch off: Press and hold the power key for 2
seconds. The headset beeps and the red indicator light is
displayed briefly.
9235752_HS-11W_1_en.fm Page 13 Monday, September 20, 2004 3:06 PM

Getting started
14
■Pairing the headset with a compatible
phone
1. Make sure that your phone is switched on.
2. Switch on the headset.
3. Enter the Bluetooth menu of your phone and make
sure that the Bluetooth feature is activated.
4. Enter the submenu where you can set the phone to
search for Bluetooth devices, and start the search.
5. Select the headset from the list.
6. Enter the passcode 0000 to associate ("pair") and
connect the headset to your phone.
Once you have entered the passcode, your phone
becomes the default phone for the headset, if the
headset has not been previously paired with another
phone. See also Using the headset with several
phones on page 22.
9235752_HS-11W_1_en.fm Page 14 Monday, September 20, 2004 3:06 PM

Getting started
15
English
The headset beeps and appears in the phone menu
where you can view the Bluetooth devices that are
currently paired with your phone.
7. Start using the headset (see page 18).
Disconnecting the headset from the
phone
You can disconnect the headset from your phone when,
for example, you want to use another Bluetooth device
with your phone.
The headset can be disconnected in the following ways:
• Switch off the headset.
• Disconnect the headset in the Bluetooth menu of your
phone.
• Move the headset more than 10 meters away from the
phone.
9235752_HS-11W_1_en.fm Page 15 Monday, September 20, 2004 3:06 PM

Getting started
16
The headset is also disconnected if its battery becomes
discharged.
Note that you do not need to delete the pairing with the
headset to disconnect it. When you reconnect a paired
headset, you are not asked for its passcode.
Connecting the paired headset to your
phone
To connect the headset to your phone, switch on the
headset, make the connection in the Bluetooth menu of
your phone, or press and hold answer/end key.
You can set your phone to accept Bluetooth connection
requests from your paired headset. In this case, the
headset can connect to your phone automatically when
it is switched on. In Nokia phones this can be done by
changing your paired devices settings in the Bluetooth
menu.
9235752_HS-11W_1_en.fm Page 16 Monday, September 20, 2004 3:06 PM

Getting started
17
English
■Troubleshooting
If you cannot connect the headset to your phone, do as
follows:
• Make sure that the headset is switched on and paired
with your phone.
• Make sure that the Bluetooth feature is activated on
your phone.
• Check that the headset is within 10 metres of your
phone and that there are no obstructions between the
headset and the phone, such as walls or other
electronic devices.
• The pairing information list of the headset may be full.
The headset can store the information of up to eight
phones at a time. If the list becomes full, reset the
headset to the original settings (see page 23).
• If the headset does not automatically reconnect to
the default or last used phone, press and hold the
answer/end key for 2 second.
9235752_HS-11W_1_en.fm Page 17 Monday, September 20, 2004 3:06 PM

Using the headset
18
3. Using the headset
Note: The use of wireless devices may be
restricted in some situations. Observe any
restrictions, and obey all signs and instructions
concerning use of wireless devices.
9235752_HS-11W_1_en.fm Page 18 Monday, September 20, 2004 3:06 PM

Using the headset
19
English
■Placing the headset on the ear
Slide the headset onto your ear as shown in Figure 3.
■Making a call
When the headset is connected to your phone, make the
call by using your phone in the normal way.
Figure 3
9235752_HS-11W_1_en.fm Page 19 Monday, September 20, 2004 3:06 PM

Using the headset
20
■Redialling the last dialled number
Press the answer/end key twice briefly while no call is in
progress.
■Voice dialling
This functionality is only available if your phone supports
voice dialling. When no call is in progress, press and hold
the answer/end key for 2 seconds, and proceed as
described in the user guide of your phone.
■Answering and ending a call
Press the answer/end key to answer the call or to end the
currently active call.
You can also answer or end the call by using your phone
in the normal way.
9235752_HS-11W_1_en.fm Page 20 Monday, September 20, 2004 3:06 PM
