Nokia HS HS 4W User manual

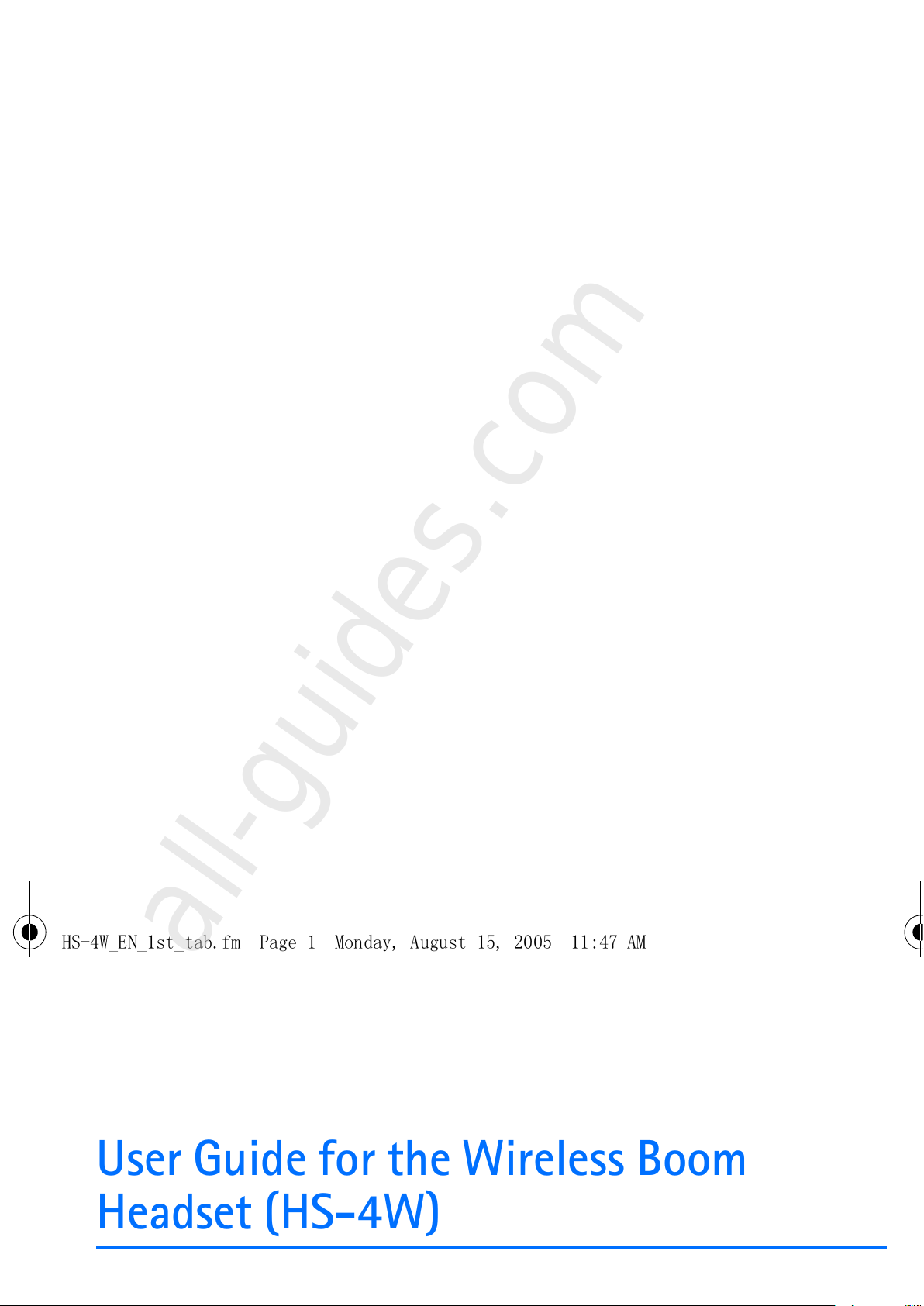

User Guide for the Wireless Boom
Headset (HS-4W)
9231046
Issue 1
HS-4W_EN_1st_tab.fm Page 1 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com
all-guides.com

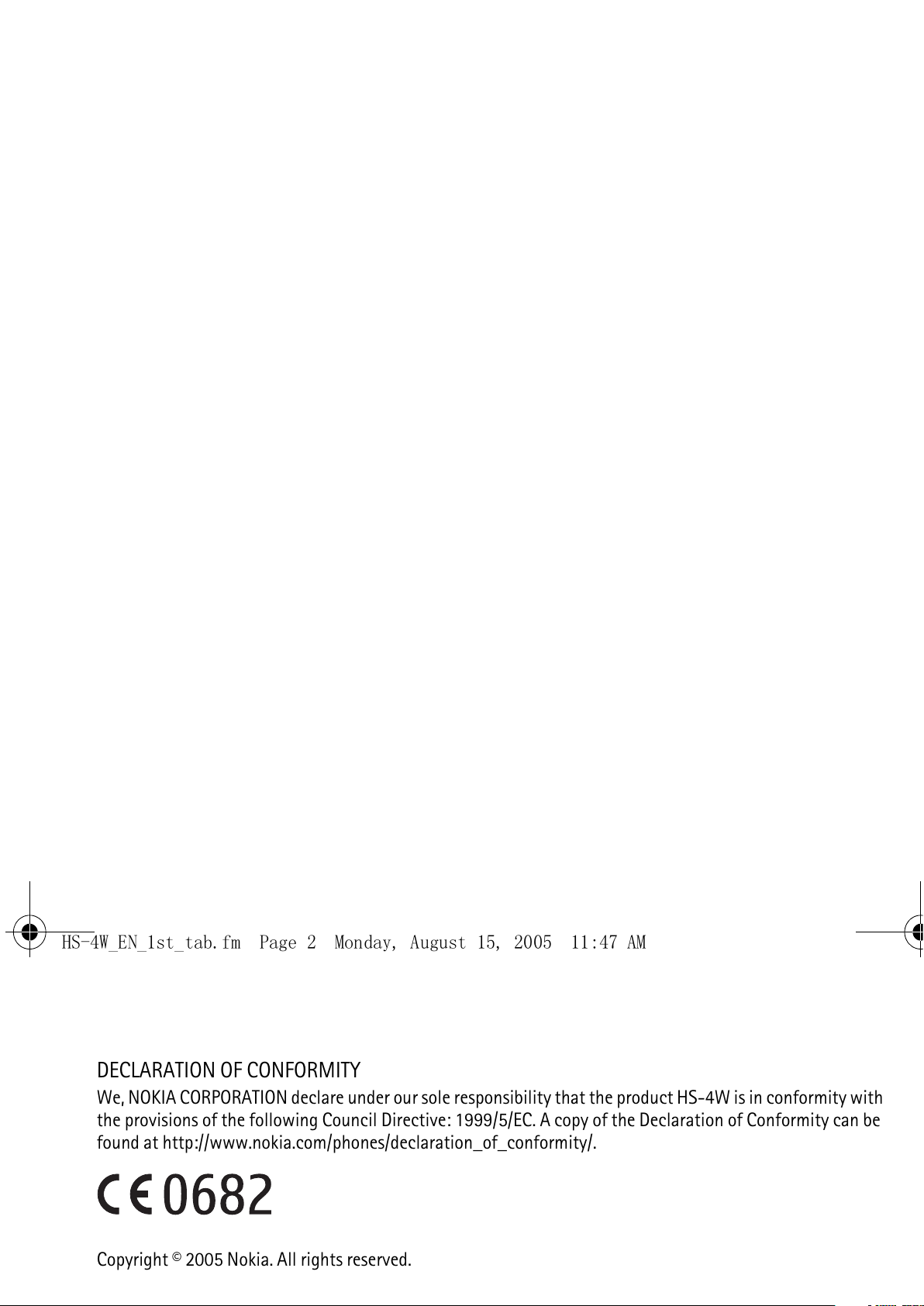

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product HS-4W is in conformity with
the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any
kind, either express or implied, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.
In some countries there may be restrictions in using Bluetooth devices. Check with your local authorities.
9231046
Issue 1
HS-4W_EN_1st_tab.fm Page 2 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Contents
3
EnglishEnglish
Contents
Introduction.............................. 4
Bluetooth wireless technology.......... 4
Bluetooth passcode............................... 5
1. Getting started ..................... 6
Overview .................................................. 6
Chargers and batteries......................... 8
Charging the battery ............................ 9
When the battery charge falls
low........................................................ 10
Pairing the headset with
a compatible phone............................ 10
Disconnecting the headset from
the phone ........................................... 11
Reconnecting the paired headset
to the compatible phone ............... 12
Troubleshooting ................................... 12
2. Using the headset .............. 14
Switching the headset on or off ..... 14
Placing the headset over the ear. 15
Call functions........................................ 15

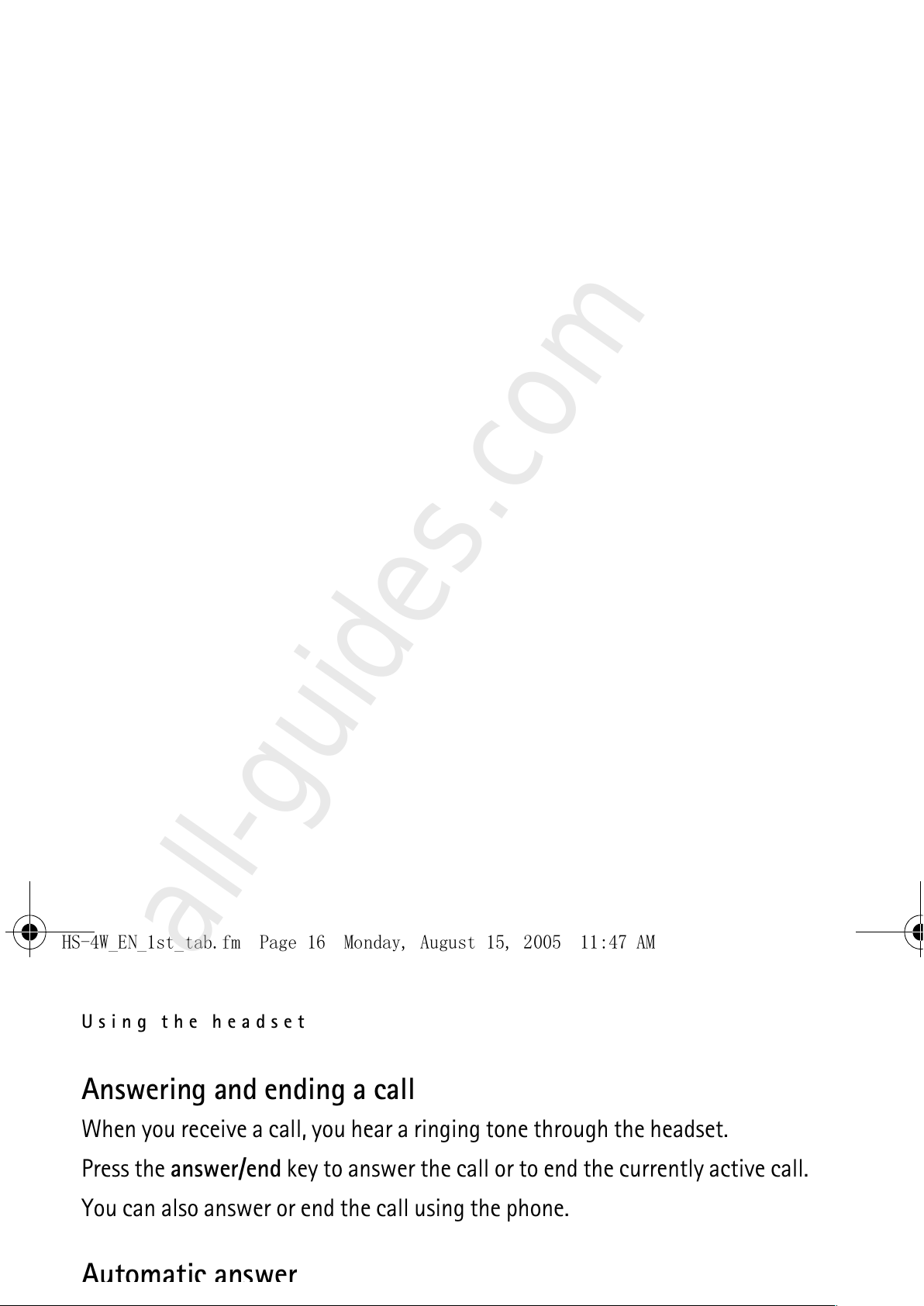

Answering and ending a call ........ 16
Automatic answer............................ 16
Rejecting a call ................................. 16
Redialling the last dialled
number................................................ 16
Muting an ongoing call.................. 16
Voice dialling..................................... 17
Adjusting the earphone volume ...... 17
Switching the call between phone
and headset........................................... 17

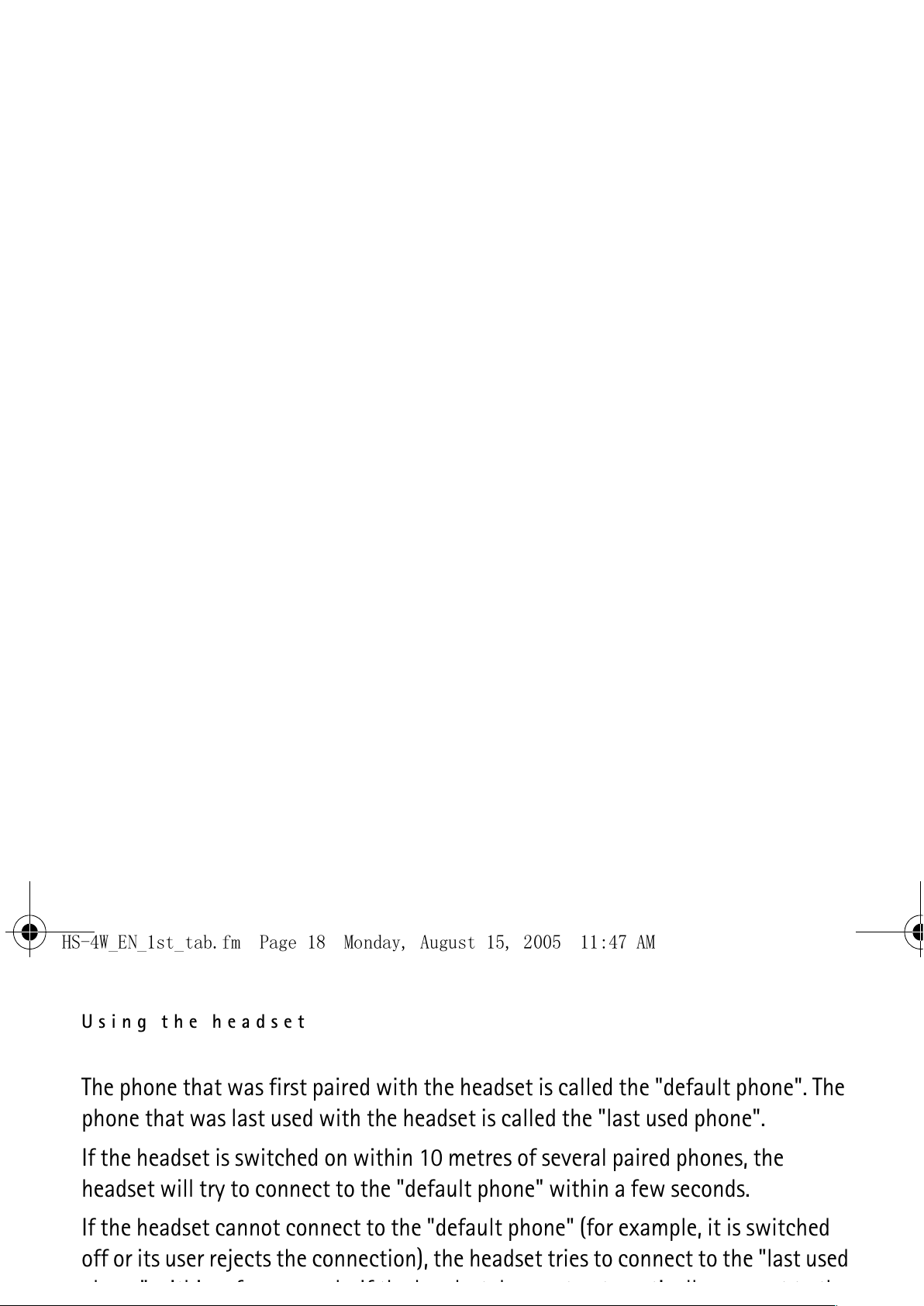

Using the headset with several
paired phones ....................................... 17
Resetting the headset ........................ 18
3. Battery information ........... 19
Charging and Discharging................. 19
Care and maintenance........... 21
HS-4W_EN_1st_tab.fm Page 3 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Introduction
4
Introduction
The Wireless Boom Headset HS-4W can be connected to a compatible phone that
supports Bluetooth technology. This allows you freedom to make and receive calls
while on the move or in the office.
Read this user guide carefully before using the headset. In addition to this Wireless
Boom Headset HS-4W user guide, read also the phone’s user guide, which provides
important safety and maintenance information. Keep the headset out of reach of
small children.
■Bluetooth wireless technology
The Wireless Boom Headset HS-4W is specially designed for compatible Nokia
phones that support Bluetooth technology. The headset can, however, be used with
any compatible Bluetooth devices that support the compatible Handsfree or
Headset profiles. (A profile is a set of Bluetooth commands that the phone uses to
control the headset).
The Bluetooth technology makes it possible to connect compatible communication
devices without using cables. A Bluetooth connection does not require that the
phone and the headset be in line of sight, but both devices should be within 10
HS-4W_EN_1st_tab.fm Page 4 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Introduction
5
English

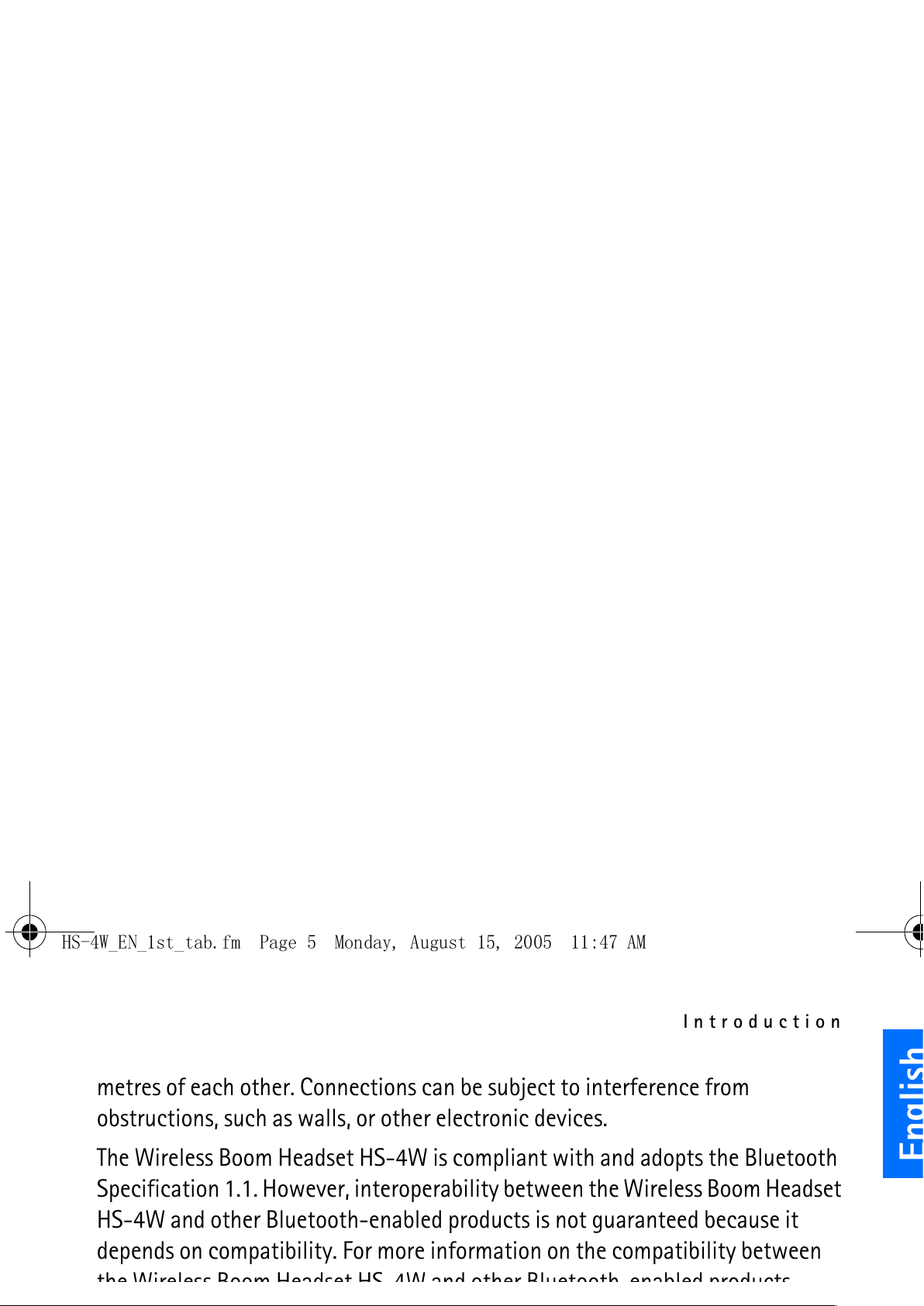

metres of each other. Connections can be subject to interference from
obstructions, such as walls, or other electronic devices.
The Wireless Boom Headset HS-4W is compliant with and adopts the Bluetooth
Specification 1.1. However, interoperability between the Wireless Boom Headset
HS-4W and other Bluetooth-enabled products is not guaranteed because it
depends on compatibility. For more information on the compatibility between
the Wireless Boom Headset HS-4W and other Bluetooth-enabled products,
please check with your dealer.
■Bluetooth passcode
You need a Bluetooth passcode for pairing the headset with a compatible phone.
The passcode is 0000.
HS-4W_EN_1st_tab.fm Page 5 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
6
1. Getting started
Note: The use of wireless devices may be restricted in some situations.
Observe any restrictions and obey all signs and instructions concerning
use of wireless devices.
■Overview
HS-4W_EN_1st_tab.fm Page 6 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com
all-guides.com

Getting started
7
English
The headset contains the following parts, as shown in Figure 1.
1 - Power key: Switches the headset on and off, or mutes the ongoing call.
2 - Speaker: Relays the caller’s voice.
3 - Indicator light: Displays the current status of the headset. The indicator
light can be yellow, green or red. If the light is yellow, a Bluetooth connection is
active. The green and red lights indicate the status of a call and charging.
4 - Volume control key: Increases/decreases the earphone volume during a call.
5 - Microphone: Picks up your voice.
6 - Answer/end key: Answers or ends the call. This key can also be used for voice
dialling, redialling and switching an active call between the headset and the
compatible phone.
7 - Charger connector
Before you can start using the headset, you must:
• Charge the battery
•Pair a compatible phone with the headset
HS-4W_EN_1st_tab.fm Page 7 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
8
■Chargers and batteries
Check the model number of any charger before using it with this device. The
Wireless Boom Headset HS-4W is intended for use with the following chargers:
AC-1, ACP-7, ACP-8, ACP-9, ACP-12, and LCH-12.
HS-4W_EN_1st_tab.fm Page 8 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
9
English

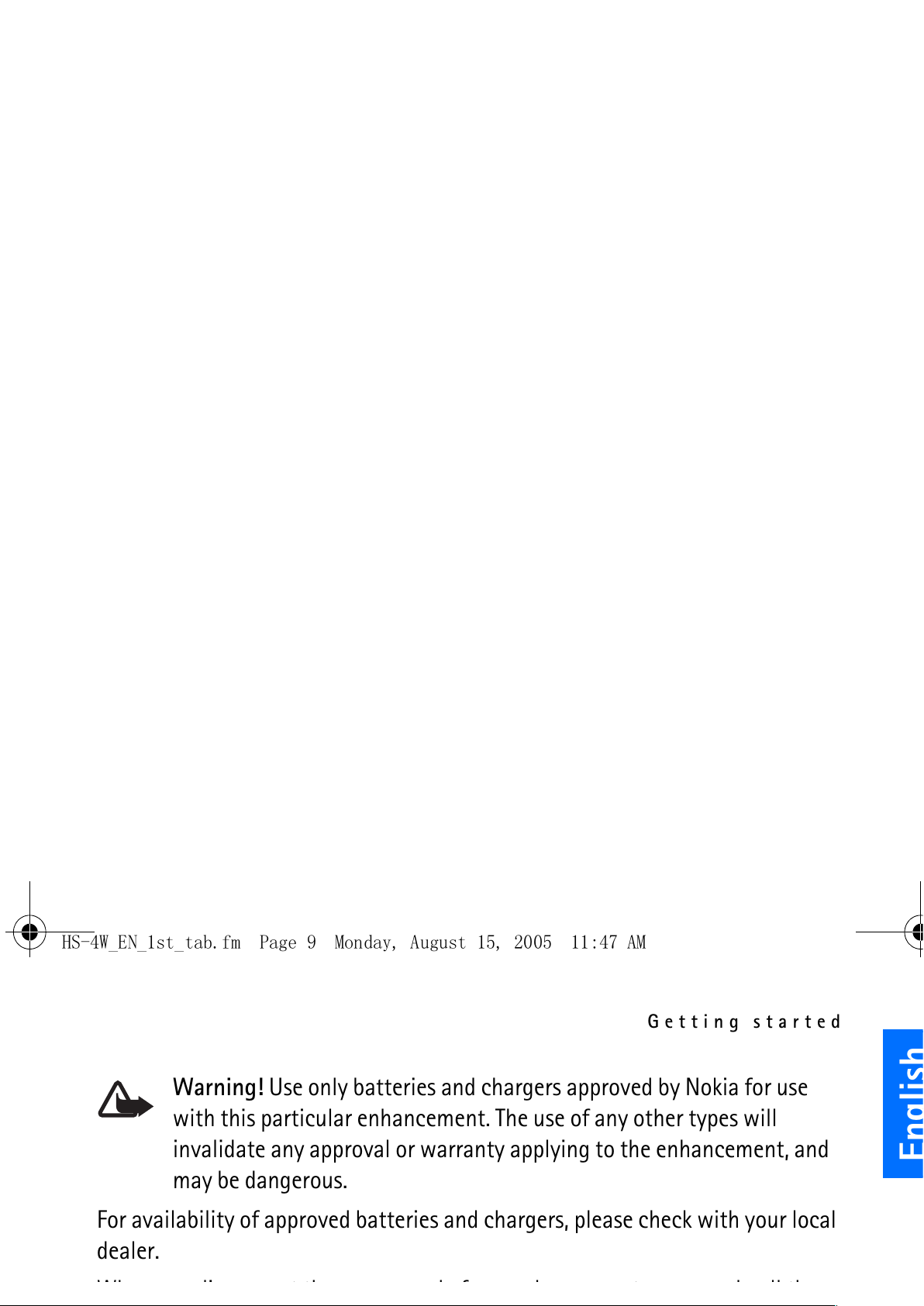

Warning! Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types will
invalidate any approval or warranty applying to the enhancement, and
may be dangerous.
For availability of approved batteries and chargers, please check with your local
dealer.
When you disconnect the power cord of any enhancement, grasp and pull the
plug, not the cord.
■Charging the battery
1. Connect the charger cable to the headset as shown in Figure 2. Before
connecting the charger cable to the headset, open the flap.
2. Connect the charger to an AC wall outlet. The red indicator light is displayed
during charging. Charging the battery fully may take up to 2 hours 45
minutes depending on the charger.
3. When the battery is fully charged, the green indicator light is displayed.
Disconnect the charger from the AC wall outlet and the headset.
HS-4W_EN_1st_tab.fm Page 9 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
10
When the battery charge falls low
Fully charged batteries last up to 6 hours of talk-time and up to 160 hours of
standby time. However, talk and standby times may vary when used with different
handsets, other Bluetooth enabled-products, battery condition, usage settings,
usage style and environments. (In standby mode the headset is switched on but no
call is in progress.)
When the battery is running out of power, the headset beeps. Charge the battery as
described above.
■Pairing the headset with a compatible phone
1. Make sure that the compatible phone is switched on.
2. Switch on the headset. Make sure that the headset is charged.
3. Activate the Bluetooth connection from the phone. For more information, see
the user guide of the phone.
4. Set the phone to search for Bluetooth devices as instructed in the user guide of
the phone.
5. Select the Nokia HS-4W from the list.
6. Enter the generic passcode 0000 to associate ("pair") and connect the headset
to the phone.
HS-4W_EN_1st_tab.fm Page 10 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
11
English

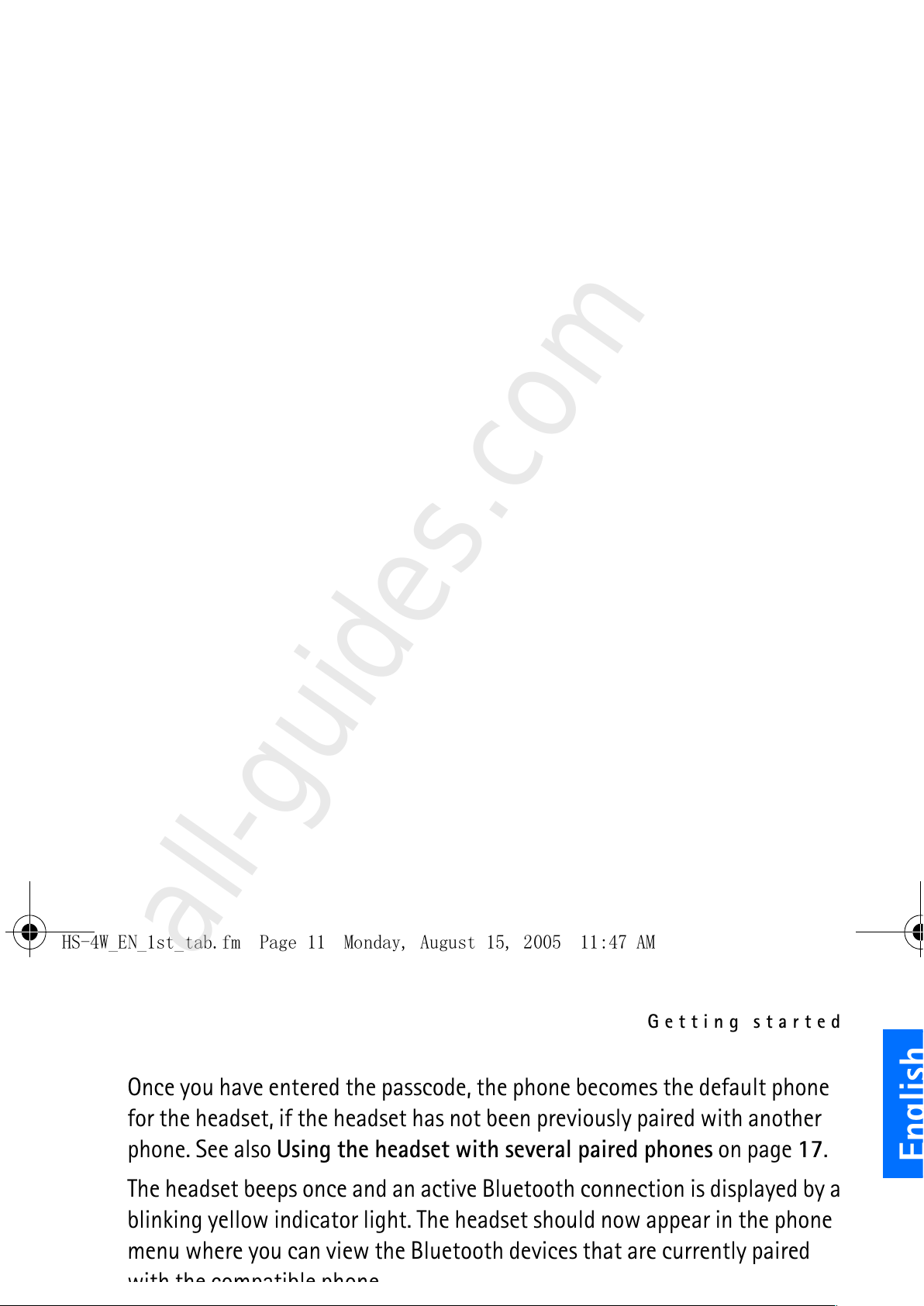

Once you have entered the passcode, the phone becomes the default phone
for the headset, if the headset has not been previously paired with another
phone. See also Using the headset with several paired phones on page 17.
The headset beeps once and an active Bluetooth connection is displayed by a
blinking yellow indicator light. The headset should now appear in the phone
menu where you can view the Bluetooth devices that are currently paired
with the compatible phone.
7. Start using the headset (see page 14).
Disconnecting the headset from the phone
The headset can be disconnected from the phone, if, for example, you want to
use another Bluetooth device with it. To disconnect the headset:
• Switch off the headset. OR:
• Disconnect the headset in the phone’s Bluetooth menu. OR:
• Move the headset more than 10 metres away from the phone.
The headset is also disconnected if the battery of the headset or the phone
becomes flat.
Note that you do not need to delete the pairing with the headset to disconnect
it. When you reconnect a paired headset, you are not asked for its passcode.
HS-4W_EN_1st_tab.fm Page 11 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com
all-guides.com

Getting started
12

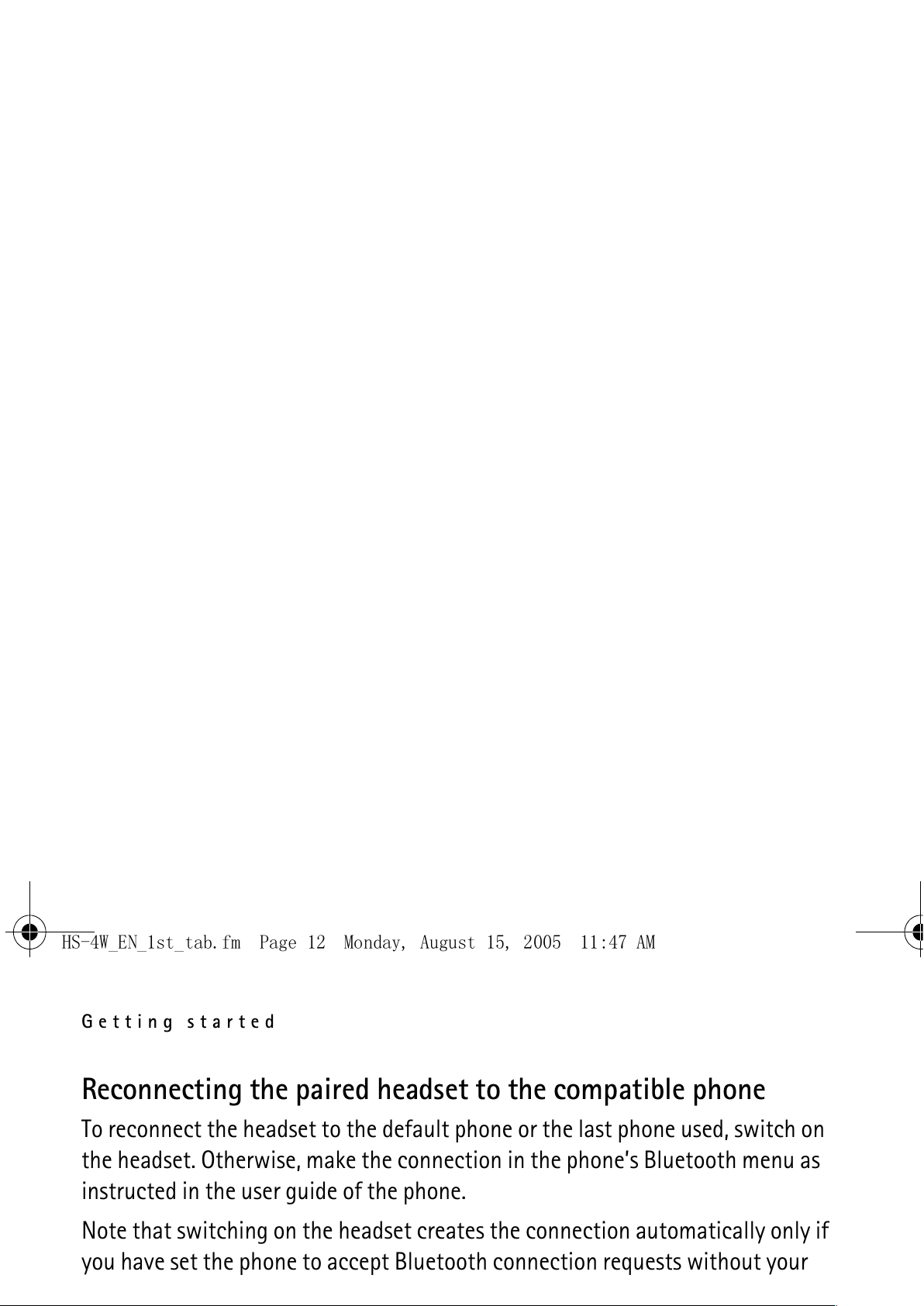

Reconnecting the paired headset to the compatible phone
To reconnect the headset to the default phone or the last phone used, switch on
the headset. Otherwise, make the connection in the phone’s Bluetooth menu as
instructed in the user guide of the phone.
Note that switching on the headset creates the connection automatically only if
you have set the phone to accept Bluetooth connection requests without your
permission. In Nokia phones this can be done by changing your paired devices
settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to the compatible phone, proceed as follows:
• Make sure that the Bluetooth feature is activated on the compatible phone.
• Make sure that the headset is switched on and paired with the compatible
phone.
• Make sure that you have disconnected the previous Bluetooth connection from
the phone.
• Check that the headset is within 10 metres of the phone and that there are no
obstructions, such as walls, or other electronic devices between the headset
and the phone.
HS-4W_EN_1st_tab.fm Page 12 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Getting started
13
English
• The pairing information list of the headset may be full. The headset can store
the information of up to 8 phones at a time. If the list becomes full, reset the
headset to the original settings. See Resetting the headset on page 18.
•If the headset does not automatically reconnect to the default or last used
phone, press and hold the answer/end key.
HS-4W_EN_1st_tab.fm Page 13 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Using the headset
14
2. Using the headset
Note: The use of wireless devices may be restricted in some situations.
Observe any restrictions and obey all signs and instructions concerning use
of wireless devices.
■Switching the headset on or off
To switch on the headset, press and hold the power key for 2 seconds. The headset
beeps and the green indicator light starts blinking. The indicator light changes to
yellow when the headset is connected to a compatible phone.
To switch off the headset, press and hold the power key for 2 seconds when no call
is in progress. The headset beeps and the red indicator light is displayed briefly.
HS-4W_EN_1st_tab.fm Page 14 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Using the headset
15
English
Placing the headset over the ear
Slide the headset onto your ear as shown in Figure 3.
■Call functions
When the headset is connected to the phone, make a call by using the phone in
the normal way. Note that the call functions depend on the phone that you use.
HS-4W_EN_1st_tab.fm Page 15 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Using the headset
16
Answering and ending a call
When you receive a call, you hear a ringing tone through the headset.
Press the answer/end key to answer the call or to end the currently active call.
You can also answer or end the call using the phone.
Automatic answer
If, on the phone, the Automatic answer function is set to on, the phone
automatically answers the incoming call after one ring and forwards it to the
headset.
Rejecting a call
When you receive an incoming call that you do not want to answer, briefly press
the answer/end key twice.
Redialling the last dialled number
Press the answer/end key twice briefly when no call is in progress.
Muting an ongoing call
You can mute or unmute the ongoing call by pressing the power key briefly.
HS-4W_EN_1st_tab.fm Page 16 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com
all-guides.com

Using the headset
17
English
Voice dialling
When no call is in progress, press and hold the answer/end key until you hear a
tone that indicates that you can say the desired name ("voice tag"). Say the
voice tag. The phone plays the voice tag and dials the related phone number.
You can also activate voice dialling with the phone. For details on voice dialling,
see the phone’s user guide.
Note that this function is only available if the phone supports voice dialling.
■Adjusting the earphone volume
Press the volume control key to increase or decrease the volume.
■Switching the call between phone and headset
You can switch an active call between the headset and a compatible device. To
switch the call from the headset to a phone and vice versa, press and hold the
answer/end key or use the respective function in your phone.
■Using the headset with several paired phones
Before the headset can be used, the compatible phone has to be paired with the
headset. The headset can be paired with up to 8 compatible phones but
connected to only one phone at a time.
HS-4W_EN_1st_tab.fm Page 17 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Using the headset
18
The phone that was first paired with the headset is called the "default phone". The
phone that was last used with the headset is called the "last used phone".
If the headset is switched on within 10 metres of several paired phones, the
headset will try to connect to the "default phone" within a few seconds.
If the headset cannot connect to the "default phone" (for example, it is switched
off or its user rejects the connection), the headset tries to connect to the "last used
phone" within a few seconds. If the headset does not automatically connect to the
default or last used phone, press and hold the answer/end key.
If the headset cannot connect to either of these phones, it remains discoverable for
other phones, which is displayed by the blinking green indicator light.
If you want to use the headset with a paired phone that is not a "default phone" or
"last used phone", make the connection in the phone’s Bluetooth menu.
■Resetting the headset
You can reset the headset to its original settings, for example, to change the
default user of the headset. Resetting the headset clears all of its settings,
including pairing information. To reset the headset:
Press and hold the power key and the upper end of the volume control key for 10
seconds. After the headset has been reset, it beeps twice and the red and the green
indicator lights alternate for several seconds.
HS-4W_EN_1st_tab.fm Page 18 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Battery information
19
English
3. Battery information
Your headset is powered by a rechargeable battery. Take good care of the battery
and follow the guidelines below.
■Charging and Discharging
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk time and standby time) is
noticeably shorter than normal, contact your nearest qualified service facility.
Use only batteries approved by the manufacturer and recharge your battery only
with the chargers approved by the manufacturer. Unplug the charger when not
in use. Do not leave the battery connected to a charger for longer than a week,
since overcharging may shorten its lifetime. If left unused a fully charged battery
will discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged.
HS-4W_EN_1st_tab.fm Page 19 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com

Battery information
20
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object (coin, clip or pen) causes direct connection of the + and - terminals
of the battery (metal strips on the battery), for example, when you carry a spare
battery in your pocket or purse. Short-circuiting the terminals may damage the
battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59° F and 77° F). A headset with a hot
or cold battery may temporarily not work, even when the battery is fully charged.
Batteries' performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire!
Discard batteries according to local regulations (e.g. recycling). Do not dispose as
household waste.
HS-4W_EN_1st_tab.fm Page 20 Monday, August 15, 2005 11 47 AM
All manuals and user guides at all-guides.com
