OPERATOR’S MANUAL
EVOTORQUE® BATTERY PACK
(EBP SERIES)
MODEL EBP 60334
Part Number 34466 | Issue 1 | Original Instructions (English)
© Norbar Torque Tools Ltd 2019
NORBAR TORQUE TOOLS PTE LTD
194 Pandan Loop
#07-20 Pantech Business Hub
SINGAPORE 128383
Tel + 65 6841 1371
Email [e-mail]
NORBAR TORQUE TOOLS (SHANGHAI) LTD
91 Building- 7F, No. 1122, Qinzhou North Road,
Xuhui District, Shanghai
CHINA 201103
Tel + 86 21 6145 0368
Email [e-mail]
NORBAR TORQUE TOOLS INDIA PVT. LTD
Plot No A-168, Khairne Industrial Area,
Thane Belapur Road, Mahape,
Navi Mumbai – 400 709
INDIA
Tel + 91 22 2778 8480
Email [e-mail]
www.norbar.com
NORBAR TORQUE TOOLS LTD
Wildmere Road, Banbury, Oxfordshire,
OX16 3JU
UNITED KINGDOM
Tel + 44 (0)1295 753600
Email [e-mail]
NORBAR TORQUE TOOLS
45–47 Raglan Avenue, Edwardstown,
SA 5039
AUSTRALIA
Tel + 61 (0)8 8292 9777
Email [e-mail]
NORBAR TORQUE TOOLS INC
36400 Biltmore Place, Willoughby,
Ohio, 44094
USA
Tel + 1 866 667 2279
Email [e-mail]

EN
English
Operator’s Manual
Original Instructions
DA
Dansk
Betjeningsvejledning
Oversættelse af oprindelige instruktioner
NL
Nederlands
Handleiding
Vertaling Van De Originele Instructies
FI
Suomi
Käyttäjän opas
Käännös a lkuperäisistä ohjeista
FR
Français
Manuel d'utilisation
Traduction des instructions originales
DE
Deutsch
Bedienungsanleitung
Übersetzung der Originalanweisungen
IT
Italiano
Manuale d'uso
Traduzione delle istruzioni generali
NO
Norsk
Manual for maskinoperatør
Oversettelse av de originale instruksjonene
PL
Polski
Instrukcja obsługi
Tłumaczenie oryginalnej instrukcji
PT
Português
Manual do utilizador
Tradução das Instruções Originais
ES
Español
Manual del operario
Traducción de las instrucciones originales
SV
Svenska
Bruksanvisning
Översättning av bruksanvisning i original
Cold Weather Operation
The Lithium-Ion battery can be used in temperatures
down to -20°C (-4°F). When the battery pack is very
cold, run the tool at no load to warm battery and then
use the tool normally.
Hot Weather Operation
If the Lithium-Ion battery temperature reaches 70°C
(158°F), the protection circuit will turn off the battery
and all four LED’s will flash. Once the battery has
cooled down below 65°C (149°F), the battery will
resume normal operation.
Storage
Do not expose your battery pack to water or rain; this
could damage the battery pack.
Fully charge the battery before placing it in storage.
For optimum life, store the Ni-Cad and Lithium-Ion
batteries at room temperature away from moisture.
Permanent capacity loss can result if batteries are
stored for a long period at high temperature, over
49°C (120°F).
MAINTENANCE
When charging or discharging a nickel-cadmium or
Lithium-Ion battery over a short period of time, the
internal temperature of the battery pack increases
substantially. This is normal.
• Under ideal working conditions the useful life of a
lithium ion battery pack is around 1,000
charge/discharge cycles. Improper care and
maintenance shortens battery life and the amount
of time the battery holds a charge.
• Use only with Norbar charging equipment that
specifies a EBP series battery pack.
• Avoid short circuiting the battery pack. Permanent
damage to the pack can occur from high current
discharge.
5

1
SAFETY MESSAGES
Norbar provides safety messages to cover
reasonable situations that may be encountered when
operating, servicing or repairing cordless tools. It is
the responsibility of operators and servicing
technicians to be knowledgeable about the
procedures, tools and materials used, and to satisfy
themselves that the procedures, tools and materials
will not compromise their safety, that of others in the
workplace or the tool.
General Safety Rules
WARNING
Read all safety warnings, instructions, illustrations,
and specifications provided with this battery pack.
Failure to follow all instructions as listed below may
result in electric shock, fire and/or serious injury. The
term “power tool” in all of the warnings listed below
refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
SAVE ALL
WARNINGS AND
INSTRUCTIONS FOR
FUTURE
REFERENCE
Work Area Safety
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
• If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
Personal Safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
• Use personal protective equipment. Always
wear eye protection. Personal protective
equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves

2
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power Tool Use And Care
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
• Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc., in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Specific Safety Rules
Risk of electric shock.
• Hold power tools by insulated gripping
surfaces when performing an operation where
the fastener may contact hidden wiring or its
own cord. Fasteners contacting a “live” wire may
make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
Battery Tool Use And Care
• Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
• Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury or fire.
• When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may
cause irritation or burns.
• Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or
temperature above 120°F (49°C) may cause
explosion.
• Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specified range may
damage the battery and increase the risk of fire.
Service
• Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
• For the location of the nearest Norbar repair
centre, please call Norbar customer service at
[phone]
Compatible Products
• Only use battery with Norbar EvoTorque®
Tools (EBT series). Other tools are not
compatible.
• Only charge battery with Norbar EvoTorque®
Battery Charger (CTC123 (60335)). Other
chargers are not compatible.

3
BATTERY PACK SAFETY
MESSAGES
WARNING
Risk of explosion or fire.
• Do not store the tool and battery in locations
where the temperature may reach or exceed
120°F (49°C).
• EBP chargers will not charge battery when
temperature is below 32°F (0°C) or above
113°F (45°C).
• Do not incinerate the battery, even if severely
damaged or completely exhausted. The
battery may explode in fire.
• Cover the battery pack terminals with heavy
adhesive tape after removing the battery pack.
• Do not attempt to destroy or disassemble the
battery pack or remove any of its components.
• Do not charge battery pack using an engine
generator or DC power source.
• Charge battery pack in a well ventilated area.
Explosion or flames can cause injury.
Risk of electric shock.
• Do not disassemble the battery.
• Do not short circuit the battery.
• Charge battery pack only with Norbar brand
chargers for specified battery packs.
• Disconnect battery pack when not in use,
before servicing and when changing
accessories.
• Do not charge battery pack using an engine
generator or DC power source.
Electric shock or fire can cause injury.
Risk of burn.
• Battery leakage may occur under conditions of
extreme usage or temperature.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may
cause irritation or burns.
• Ensure the switch is in the off position before
inserting battery pack. Inserting the battery pack
into power tools that have the switch on invites
accidents.
• When battery pack is not in use, do not place
it in a clothing pocket. Battery leakage or sparks
may cause burns or fire.
Risk of short circuit and fire.
• Do not short battery pack.
• Do not touch the terminals with any
conductive material.
• Avoid storing battery pack with conductive
materials such as nails, screws, coins, and
other metallic objects.
• Do not carry battery pack in aprons or pockets
that contain conductive objects. Short circuit
can cause fire and severe burns.
Safety Rules for Battery
Disposal
WARNING
Risk of explosion or fire.
Do not throw away used batteries! Placing spent
Lithium-Ion batteries into the general waste may be
ILLEGAL.
Where possible contact RBRC™
to dispose of the battery. The
RBRC™ seal on the Lithium-Ion
battery contained in this product
indicates that Norbar is voluntarily
participating in an industry
program to collect and recycle these batteries at the
end of their useful life.
Alternatively dispose of the battery following local
regulations.
If in doubt contact a Norbar authorized repair centre
for recycling information.
Explosion or flames can cause injury.
Risk of fire.
• Do not attempt to disassemble the battery or
remove any component projecting from the
battery terminals.
• Prior to recycling, protect exposed terminals
with heavy insulating tape to prevent shorting.
Fire can cause injury.
SAVE THESE
INSTRUCTIONS

4

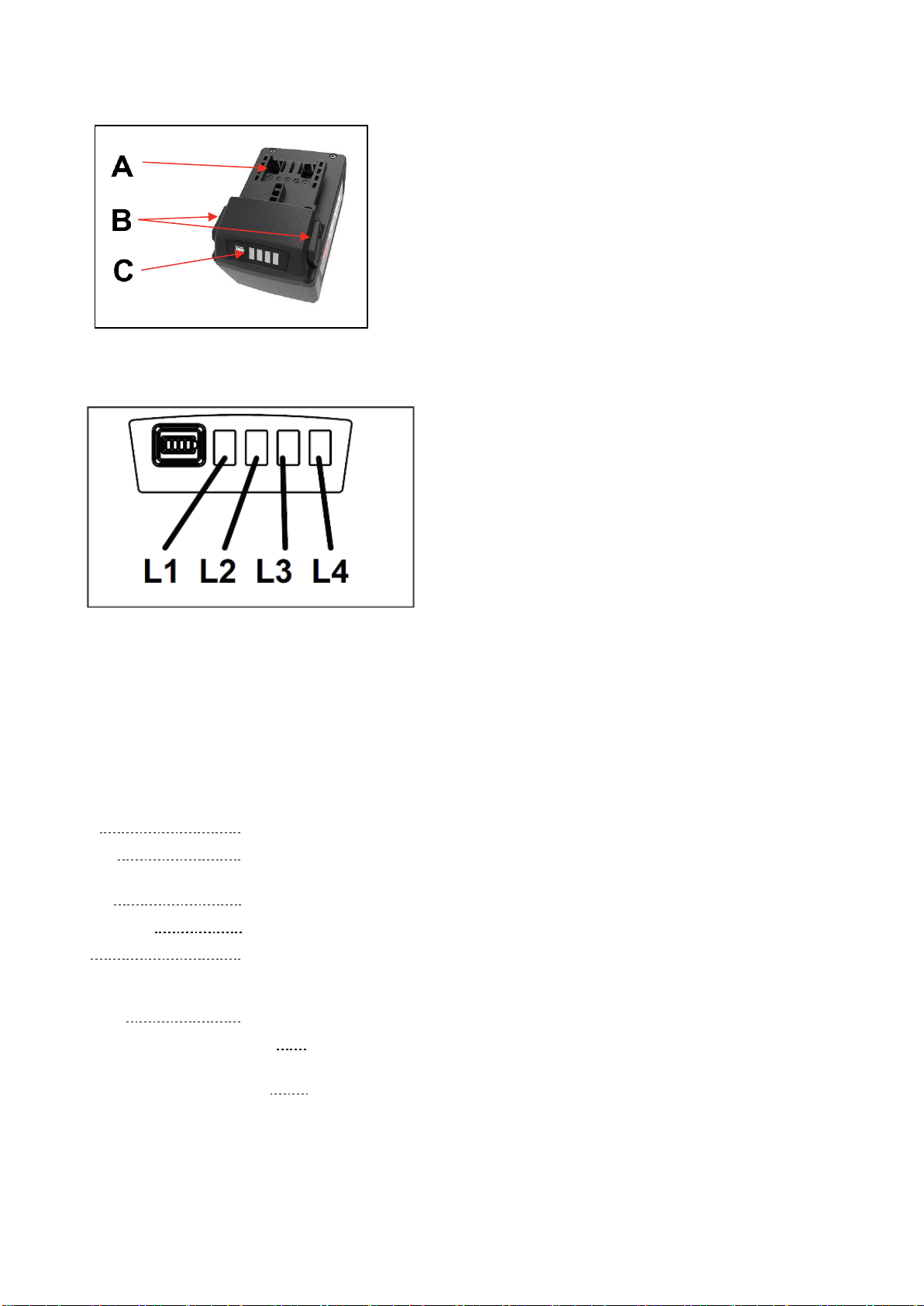

FUNCTIONAL DESCRIPTION
A – Terminal
B – Latch Button
C – Fuel Gauge
L1 - Solid Light 25% Charge
L2 - Solid Light 50% Charge
L3 - Solid Light 75% Charge
L4 - Solid Light 100% Charge
BATTERY PACK
SPECIFICATIONS
(Norbar EBP 60334)
Type Lithium-Ion
Voltage 18 VDC
(3.6V X 5 cell pairs)
Weight 0.75 kg (1.65 lb)
Charge Time 70 min (approximately)
Life 1,000 cycles (Note: 1 cycle
= 1 charge and 1
discharge)
Capacity 5.0 A•H
Discharge Temperature Range -20°C (-4°F) to
60°C (140°F)
Charging Temperature Range 0°C (32°F) to
45°C (113°F)
BATTERY PACK
Fuel Gauge
Press the fuel gauge button, the display lights will
light up and show the battery pack’s remaining run
time. The lights stay on for 5 seconds.
Note: If fuel gauge is not working, charge the battery
pack.
Charge Cycle Counter
Press the fuel gauge button for twenty (20) seconds
to read the charge cycle counter.
Count number of flashes to figure out cycle count.
Example 1:
L1 - Flashes one (1) time
L2 - Flashes three (3) times
L3 - Flashes four (4) times
L4 - Flashes five (5) times
It means battery was charged 1,345 times
Example 2:
L1 - No flashes
L2 - Flashes six (6) times
L3 - Flashes seven (7) times
L4 - Flashes eight (8) times
It means battery was charged 678 times
Battery Pack Protection
To maximize performance and battery life, the
Lithium-Ion battery’s protection circuit monitors
battery voltage, discharge amperage and
temperature.
When the battery voltage falls below the usable
range, the battery will shut off, and the 1st LED will
flash. After the trigger is released, the LED will stop
flashing when the battery voltage returns to the
usable range. If the 1st LED continues to flash for
more than a few seconds, the battery needs
charging.
Battery over temperature - indicated by all (4) LED
lights flashing on the battery. This means that internal
temperature of the battery is too high and it will stop
the battery operation to prolong battery life. The lights
will continue to flash for four (4) minutes after each
trigger pull until temperature lowers to an acceptable
level. External fan cooling can be used to speed the
battery cooling time.
If a hot or cold battery is placed on charger, charger
will not charge the battery and will be indicated by a
Yellow flashing light on the charger. The charger goes
into a fast charge mode when the battery temperature
is between 0°C (32°F) and 45°C (113°F).

EN
English
Operator’s Manual
Original Instructions
DA
Dansk
Betjeningsvejledning
Oversættelse af oprindelige instruktioner
NL
Nederlands
Handleiding
Vertaling Van De Originele Instructies
FI
Suomi
Käyttäjän opas
Käännös a lkuperäisistä ohjeista
FR
Français
Manuel d'utilisation
Traduction des instructions originales
DE
Deutsch
Bedienungsanleitung
Übersetzung der Originalanweisungen
IT
Italiano
Manuale d'uso
Traduzione delle istruzioni generali
NO
Norsk
Manual for maskinoperatør
Oversettelse av de originale instruksjonene
PL
Polski
Instrukcja obsługi
Tłumaczenie oryginalnej instrukcji
PT
Português
Manual do utilizador
Tradução das Instruções Originais
ES
Español
Manual del operario
Traducción de las instrucciones originales
SV
Svenska
Bruksanvisning
Översättning av bruksanvisning i original
Cold Weather Operation
The Lithium-Ion battery can be used in temperatures
down to -20°C (-4°F). When the battery pack is very
cold, run the tool at no load to warm battery and then
use the tool normally.
Hot Weather Operation
If the Lithium-Ion battery temperature reaches 70°C
(158°F), the protection circuit will turn off the battery
and all four LED’s will flash. Once the battery has
cooled down below 65°C (149°F), the battery will
resume normal operation.
Storage
Do not expose your battery pack to water or rain; this
could damage the battery pack.
Fully charge the battery before placing it in storage.
For optimum life, store the Ni-Cad and Lithium-Ion
batteries at room temperature away from moisture.
Permanent capacity loss can result if batteries are
stored for a long period at high temperature, over
49°C (120°F).
MAINTENANCE
When charging or discharging a nickel-cadmium or
Lithium-Ion battery over a short period of time, the
internal temperature of the battery pack increases
substantially. This is normal.
• Under ideal working conditions the useful life of a
lithium ion battery pack is around 1,000
charge/discharge cycles. Improper care and
maintenance shortens battery life and the amount
of time the battery holds a charge.
• Use only with Norbar charging equipment that
specifies a EBP series battery pack.
• Avoid short circuiting the battery pack. Permanent
damage to the pack can occur from high current
discharge.
5

OPERATOR’S MANUAL
EVOTORQUE® BATTERY PACK
(EBP SERIES)
MODEL EBP 60334
Part Number 34466 | Issue 1 | Original Instructions (English)
© Norbar Torque Tools Ltd 2019
NORBAR TORQUE TOOLS PTE LTD
194 Pandan Loop
#07-20 Pantech Business Hub
SINGAPORE 128383
Tel + 65 6841 1371
Email [e-mail]
NORBAR TORQUE TOOLS (SHANGHAI) LTD
91 Building- 7F, No. 1122, Qinzhou North Road,
Xuhui District, Shanghai
CHINA 201103
Tel + 86 21 6145 0368
Email [e-mail]
NORBAR TORQUE TOOLS INDIA PVT. LTD
Plot No A-168, Khairne Industrial Area,
Thane Belapur Road, Mahape,
Navi Mumbai – 400 709
INDIA
Tel + 91 22 2778 8480
Email [e-mail]
www.norbar.com
NORBAR TORQUE TOOLS LTD
Wildmere Road, Banbury, Oxfordshire,
OX16 3JU
UNITED KINGDOM
Tel + 44 (0)1295 753600
Email [e-mail]
NORBAR TORQUE TOOLS
45–47 Raglan Avenue, Edwardstown,
SA 5039
AUSTRALIA
Tel + 61 (0)8 8292 9777
Email [e-mail]
NORBAR TORQUE TOOLS INC
36400 Biltmore Place, Willoughby,
Ohio, 44094
USA
Tel + 1 866 667 2279
Email [e-mail]
