Nortel NN42030-110 User manual

Nortel Mobile Communication 3100
Web User Interface User Guide
Title page

Nortel Mobile Communication 3100
Release: 3.1
Publication: NN42030-110
Document status: Standard 04.03
Document release date: November 2009
Copyright © 2009 Nortel Networks
All Rights Reserved
While the information in this document is believed to be accurate and
reliable, except as otherwise expressly agreed to in writing NORTEL
PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR
CONDITION OF ANY KIND, EITHER EXPRESS OR IMPLIED. The
information and/or products described in this document are subject to
change without notice.
Nortel, Nortel Networks, the Nortel logo, and the Globemark are
trademarks of Nortel Networks.
All other trademarks are the property of their respective owners.

Contents
Web User Interface User Guide 3
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Your Nortel MC 3100 Web UI . . . . . . . . . . . . . . . . . . . . . . . . . . 5
New in this Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
MC 3100 Web UI overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Enterprise requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Configuring the MC 3100 Web UI . . . . . . . . . . . . . . . . . . . . 11
Accessing the MC 3100 Web UI . . . . . . . . . . . . . . . . . . . . . . . 11
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessing the MC 3100 Web UI . . . . . . . . . . . . . . . . . . . 11
Adding a phone number or device . . . . . . . . . . . . . . . . . . . . . 13
Adding a phone number . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting up a route schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting up a route schedule . . . . . . . . . . . . . . . . . . . . . . . 16
Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Logging on to the Web UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Logging on to the Web UI . . . . . . . . . . . . . . . . . . . . . . . . 17
Exiting the application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Contents
4 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
Making a call from the History or Search Results screen 21
Recently Made Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Reviewing a list of Recent Calls . . . . . . . . . . . . . . . . . . . . 21
Searching the corporate directory . . . . . . . . . . . . . . . . . . . . . 21
Searching the corporate directory . . . . . . . . . . . . . . . . . . 22
Adding more devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adding more devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Activating call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Activating call routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Working with voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Checking voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Retrieving voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuring voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Mobile Do Not Disturb mode . . . . . . . . . . . . . . . . . . . . . . . . . 28
Enabling Do Not Disturb mode . . . . . . . . . . . . . . . . . . . . . 28
Disabling Do Not Disturb mode . . . . . . . . . . . . . . . . . . . . 28
Mid Call features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Placing a call on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Releasing a call from hold . . . . . . . . . . . . . . . . . . . . . . . . 29
Placing a call on hold and making another call . . . . . . . . 29
Canceling a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Swapping two calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Executing a consultative transfer . . . . . . . . . . . . . . . . . . . 29
Executing a blind transfer . . . . . . . . . . . . . . . . . . . . . . . . . 30
Executing a consultative conference . . . . . . . . . . . . . . . . 30
Blind conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Welcome
Web User Interface User Guide 5
Welcome
This section contains the following topics:
•“Your Nortel MC 3100 Web UI” on page 5
•“New in this Release” on page 5
•“MC 3100 Web UI overview” on page 6
Your Nortel MC 3100 Web UI
Operating in your mobile Web browser, you can use the Mobile
Communication Client 3100 Web User Interface (MC 3100 Web UI) to
access enterprise telephony features using the Mobile Communication
3100 solution.
Note: The MC 3100 Web UI panes you see on your device may differ
from the illustrations in this document, due to variations in the way
devices display data.
New in this Release
The following sections detail what’s new in Web User Interface User
Guide (NN42030-110) in Nortel Mobile Communication 3100
Release 3.1.
Features
This release contains information about the following:
•“Activating call routing” on page 26
Other changes
There are no other changes to this document.

Welcome
6 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
Revision history
November 2009
Standard 04.03. This document is issued to support Nortel Mobile
Communication 3100 Release 3.1. Technical updates were
made.
November 2009
Standard 04.02. This document is issued to support Nortel Mobile
Communication 3100 Release 3.1. Route Schedule configuration
and Do Not Disturb activation were updated.
October 2009
Standard 04.01. This document is issued to support Nortel Mobile
Communication 3100 Release 3.1.
March 2009
Standard 03.02. This document is issued to support Nortel Mobile
Communication 3100 Release 3.0. Changes were made to
technical content.
March 2009
Standard 03.01. This document is issued to support Nortel Mobile
Communication 3100 Release 3.0.
MC 3100 Web UI overview
With MC 3100 Web UI, you can perform the following tasks:
• Associate a single number-your office extension-with all of your
outbound phone calls.
• Answer office calls on your mobile device or any defined device.
• Search for people in the corporate directory.
• See whether you have new voice mail messages in your mailbox.
• Statically redirect your incoming calls to an alternate contact number
such as your home phone or another number.

Welcome
Web User Interface User Guide 7
• Force all calls to voice mail using the Do Not Disturb option.
• Communicate using of the following methods:
• dial a number
• select a contact from corporate search result
• Available outbound call modes:
• Call-me-First—In this mode, your calls are set up in two stages.
First, the system calls you at the location of your choice. After you
answer, the system calls the other party
• Available telephony features (support varies by network):
• call hold and retrieve
• call mute
• supervised and unsupervised call transfer
• call swap
• caller ID/caller name display (information varies by network)
• conference call

Welcome
8 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009

Getting started
Web User Interface User Guide 9
Getting started
This section contains the following topics:
•“Enterprise requirements” on page 9
•“Hardware requirements” on page 9
•“Licensing” on page 10
Enterprise requirements
The Nortel Mobile Communication 3100 Web User Interface (MC 3100
Web UI) requires the following applications at the enterprise site:
• Mobile Communication Gateway 3100
• Nortel Communication Server 1000 (CS 1000) Release 5.5
programmed with an account for each user
Hardware requirements
The MC 3100 Web UI supports the following minimum requirements:
• Mobile devices with:
• a color screen
• a web browser
• a minimum screen size of 160 X 120.
Web page rendering is dynamically optimized for higher resolution
formats.
• Personal computer with a Web browser
The Nortel MCC 3100 Web UI was tested using the default browsers on
the following platforms:
• Microsoft Windows Mobile 6.0 and 6.1
• Windows Internet Explorer
• RIM BlackBerry

Getting started
10 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
•Nokia
• Apple iPhone
• Opera
Languages
English is the only supported language.
Licensing
Provided that there is sufficient capacity on the system, the first time you
log in to the system you receive a license to use the MC 3100 Web UI.
You retain this license regardless of your status on the network (logged in
or out). Only the system administrator has the authority to revoke your
license and make it available for another user.

Configuring the MC 3100 Web UI
Web User Interface User Guide 11
Configuring the MC 3100 Web UI
This section describes how to configure the Mobile Communication 3100
Web User Interface (MC 3100 Web UI) and how to add a phone number
or device.
Note: MCC 3100 Web UI provides enterprise mobility features using
the existing web browser on client devices. You are not required to
install new client software to use Web UI.
The following topics are discussed:
•“Accessing the MC 3100 Web UI” on page 11
•“Adding a phone number or device” on page 13
Accessing the MC 3100 Web UI
You can use any computer (desktop PC or laptop) or your mobile device
to access the MC 3100 Web UI.
Prerequisites
• Obtain the following from your administrator:
— the MC 3100 Web UI Uniform Resource Locator (URL)
— your user ID and password
Accessing the MC 3100 Web UI
1. On your computer or mobile device, open a web browser.
2. In the URL box, type the MC 3100 Web UI URL provided by your
administrator.
Examples:
http://mc3100.customerxyz.com:8080/mp
https://mc3100.customerxyz.com:8443/mp

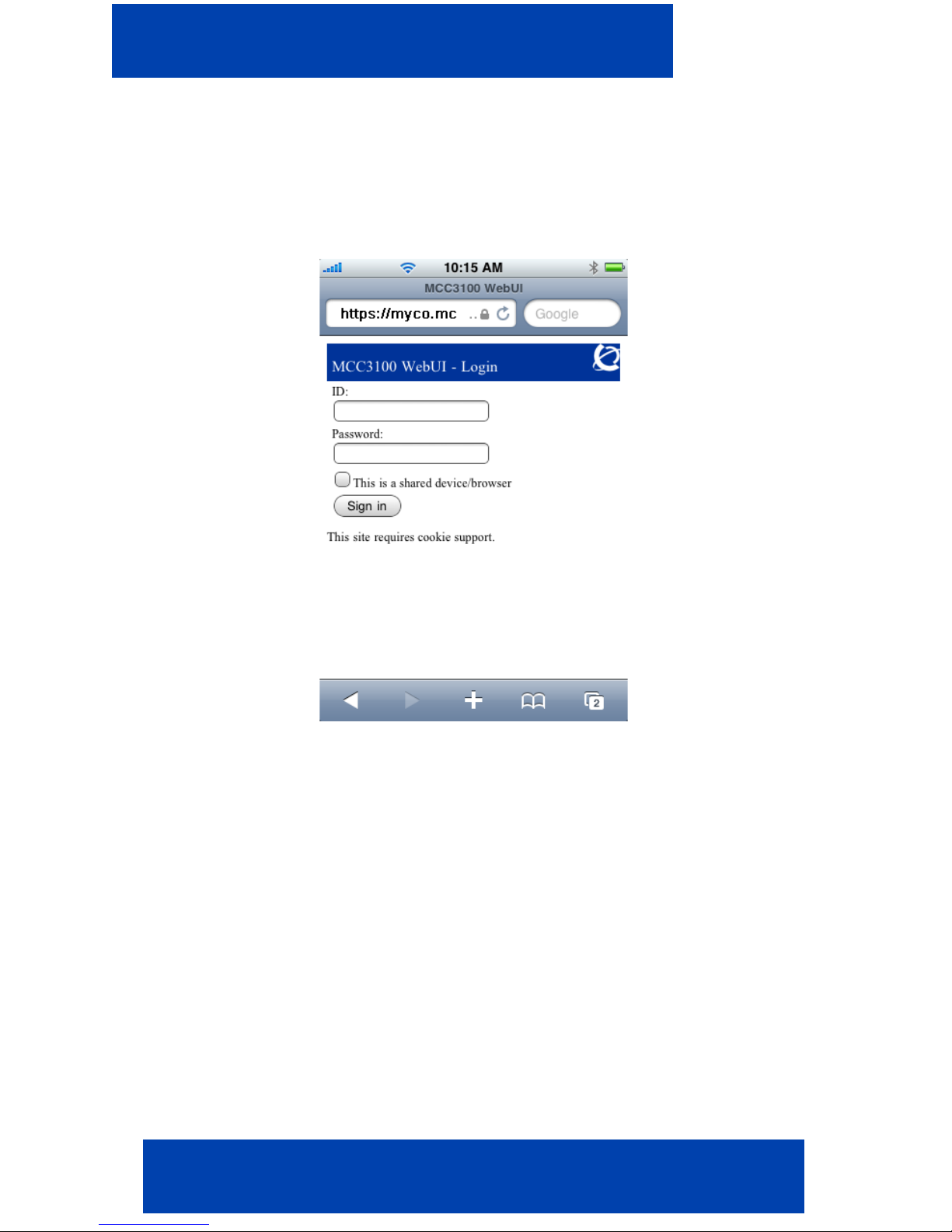

The Login page appears.
3. Enter your ID and password provided by your system administrator.

Configuring the MC 3100 Web UI
12 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
Contact your administrator if you enter your ID and password
correctly but cannot log on.
4. Optionally, select the This is a shared device/browser check box to
automatically log a user off the MC 3100 Web User Interface when a
Web session times out or is closed.

Configuring the MC 3100 Web UI
Web User Interface User Guide 13

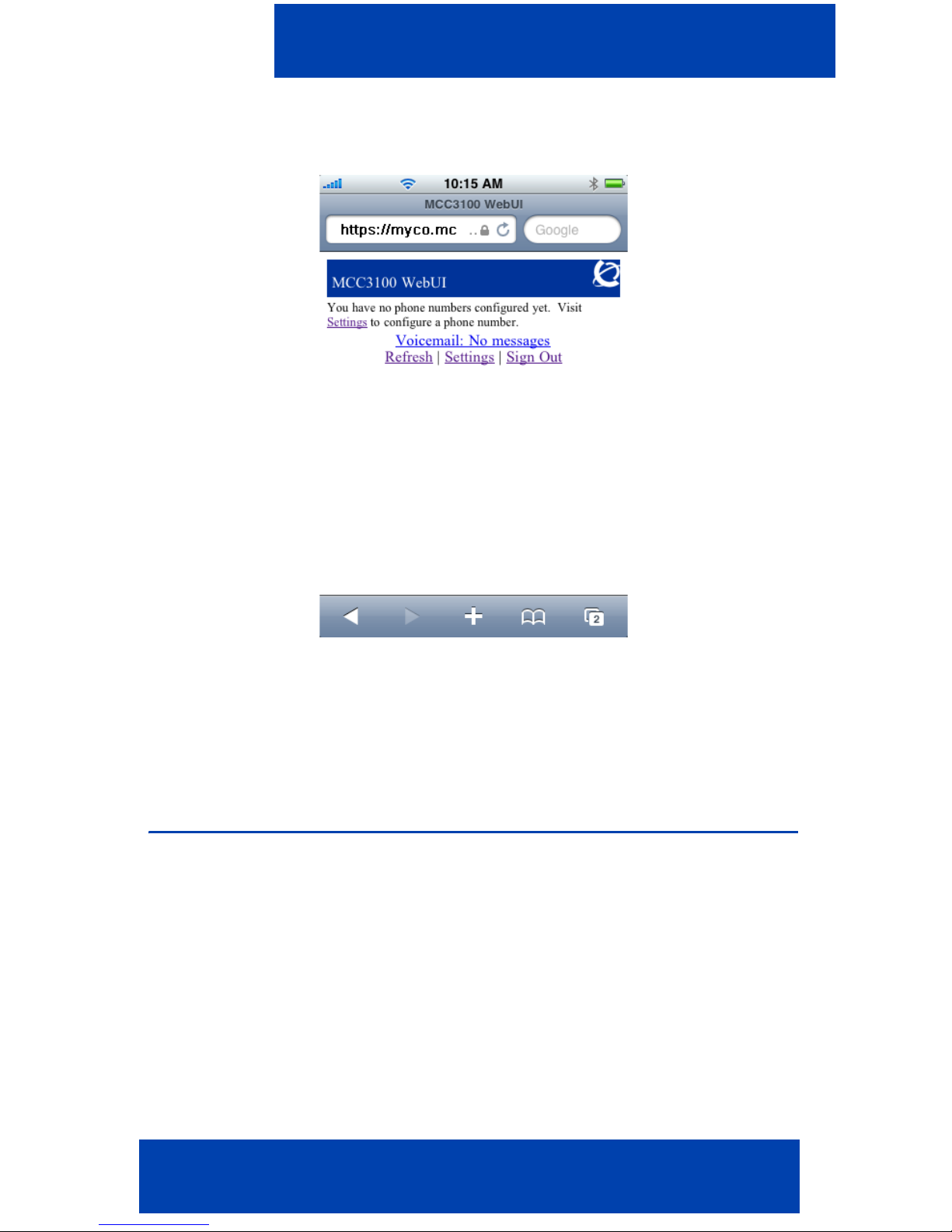

5. Click Sign In. The initial setup page appears with the following
message: You have no phone numbers configured yet.
Note: The initial setup page appears only after you log on for the first
time or if you delete all the phone numbers associated with your
MC 3100 Web UI account.
6. For future ease of use, bookmark this URL.
Adding a phone number or device
After you access the MC 3100 Web UI for the first time, you receive a
prompt to add a phone number or device.

Configuring the MC 3100 Web UI
14 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
Adding a phone number

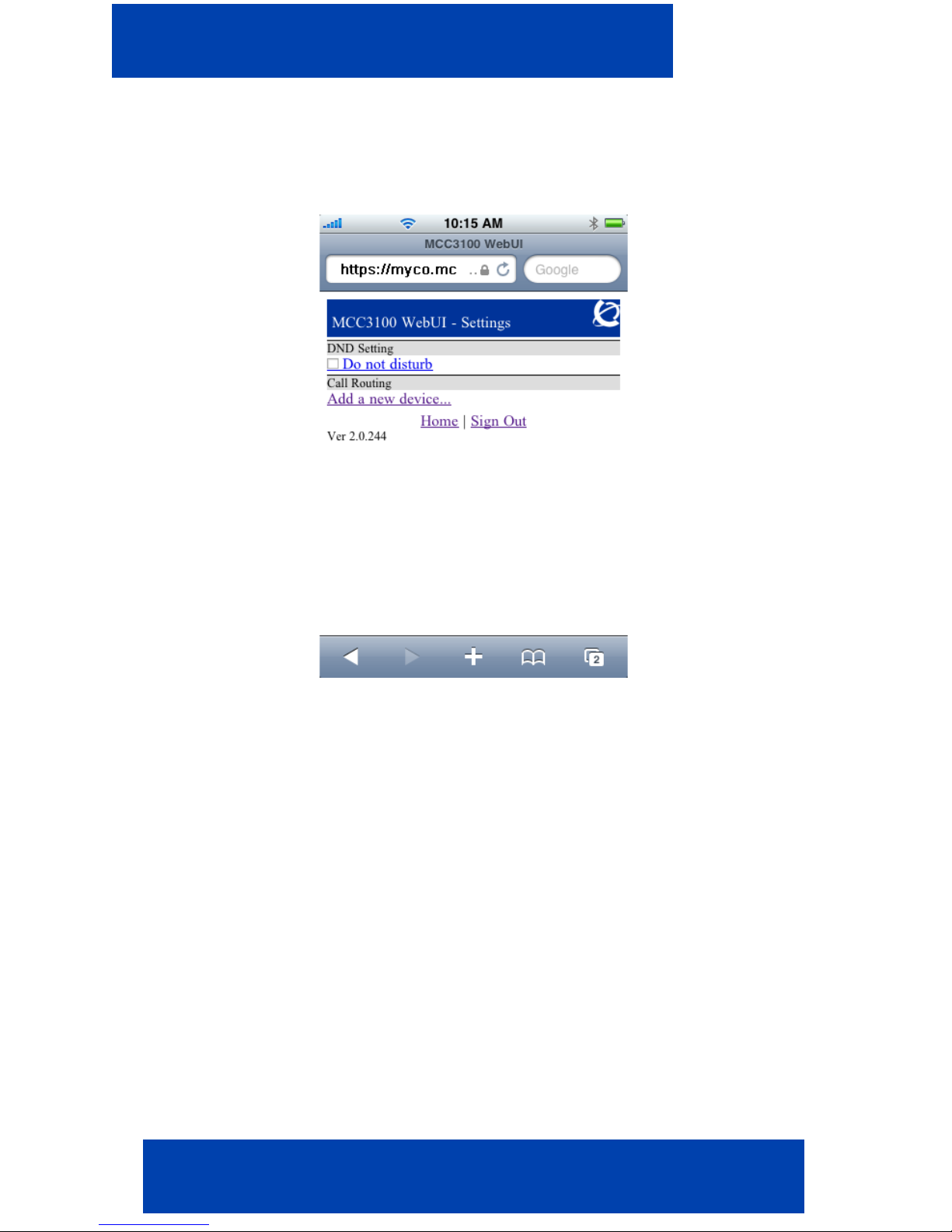

1. Click Settings to add the initial phone number or device. The Settings
pane appears.

Configuring the MC 3100 Web UI
Web User Interface User Guide 15
2. Click Add a new device.
3. In the Device Name box, type a unique name for the new phone
number or device.
4. In the Number box, type the phone number associated with the
device name.
Note: The format for the phone number must match the format for
your enterprise infrastructure. If you are unsure of the format for your
enterprise, contact your administrator.
5. Click Save.
6. Your voicemail service number is assigned a default value by your
administrator. If your voicemail service number is different from the
default, or you are instructed to change this number by your
administrator, enter the voicemail service number and click Save.

Configuring the MC 3100 Web UI
16 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
Setting up a route schedule
You can optionally set up a route schedule so that at specific times you
receive calls on a specific phone or device.
When call routing is selected, time periods that are not configured in the
route schedule automatically receive Do Not Disturb mode. When in Do
Not Disturb mode, you cannot place outgoing calls from the MC 3100
Web UI without reconfiguring Advanced Call Routing.
Setting up a route schedule
1. From the Settings page, click Use Advanced call routing.
2. Click the Add a route schedule link.
The Add new routing rule pane appears.
3. Create a rule.
a. Select one of the preconfigured devices from the Send calls to
list.
b. Enter the time in the From and To boxes. Use 24-hour format or
12-hour format with am or pm suffix.
Examples: 23:59, 2359, 11:59pm, 1159pm
c. Place a check mark beside the days that this rule should be
active.
4. Click Save.
You can create more than one schedule. For example, you might want
one schedule for your normal working hours, and a second schedule for
regular meetings or appointments.
If you create more than one schedule, the schedule may overlap with
another schedule. Sort your schedules in priority order, so that the more
important schedule is higher in the list.

Basic functions
Web User Interface User Guide 17
Basic functions
This section contains the following topics:
•“Logging on to the Web UI” on page 17
•“Exiting the application” on page 20
•“Making calls” on page 20
•“Recently Made Calls” on page 21
•“Searching the corporate directory” on page 21
•“Adding more devices” on page 24
•“Activating call routing” on page 26
•“Working with voice mail” on page 27
•“Mobile Do Not Disturb mode” on page 28
•“Mid Call features” on page 28
Logging on to the Web UI
Complete this procedure to log on to the Mobile Communication 3100
Web User Interface (MC 3100 Web UI).
Prerequisites
• Obtain the following from your administrator:
— the MC 3100 Web UI URL
— your user ID and password
Logging on to the Web UI
1. On your computer or mobile device, open a web browser.
2. Click the bookmark that you previously created.
OR

Basic functions
18 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
In the URL box, type the MC 3100 Web UI URL provided by your
administrator.
For example, http://mc3100.customerxyz.com:8080/mp
3. Press Enter. The Login page appears.
Figure 1: Login page on an iPhone (with keyboard)

Basic functions
Web User Interface User Guide 19
Figure 2: Login page on an iPhone (with no keyboard)
4. In the ID box, type your SIP ID.
5. In the Password box, type your password.
6. Select the This is a shared device/browser check box to
automatically log you off the MC 3100 Web UI when the Web session
times out or is closed.

Basic functions
20 NN42030-110 MC 3100 3.1 Standard 04.03 November 2009
7. Click Sign In. The home pane appears.
Exiting the application
1. Go to the Home panel of the MC 3100 Web UI.
2. Select Menu, Quit.
Nortel recommends that you exit from the MC 3100 Web UI before you
shut off your device.
Making calls
After you log on to the MC 3100 Web UI, you can make calls.
Making a call
1. On the Home page, check the contents of the Calls go to field.
If the Calls go to field specifies Do Not Disturb, see “Mobile Do Not
Disturb mode” on page 28.
