NovaStar VX4 User manual

User's Manual
LED Video Controller VX4S/VX4
Rev1.1.2 NS160110080
Xi’an NovaStar Tech Co., Ltd.

Statement
You are welcome to use the products from Xi’an NovaStar Tech Co., Ltd. (hereinafter
referred to as Novastar). It is our great pleasure to offer this manual to help you
understand and use the product. We strive for precision and reliability during the
compilation of this manual, and the contents of this manual are subject to change
without notice. If you have any problem in use or you have any suggestion, please
feel free to contact us according to the contact information provided in this manual.
We will do our utmost to satisfy your needs. Also, we would like to express our
sincere thanks to your suggestions and make assessment as soon as possible for
adoption.
Copyright
No part of this manual may be reproduced or transmitted in any form or by any
means without prior written consent of Xi’an NovaStar Tech Co., Ltd.
Trademark
is a registered trademark of NovaStar Tech Co., Ltd.
Safety Statement
To avoid potential hazards, please use this equipment according to the regulations.
In case of damages, non-professionals should not disassemble it for maintenance
without permission. Please contact the after-sales department of the company.
High voltage danger: The operating voltage of this product is 100-240V
AC.
Grounding: This production is connected to ground via the ground
wire of power supply. Please ensure good grounding of grounding
conductor.
Electromagnetic interference: The device should be kept far away from
magnets, motors and transformers.
Moisture proof: Keep the equipment in a dry and clean environment. In
case of liquid immersion, please pull the plug immediately.
Keep away from flammable and explosive dangerous goods.
Prevent liquids or metal fragments from being immersed into the
machine to avoid safety accidents.
Xi’an NovaStar Tech Co., Ltd.

Contents
1 Model description ����������������������������������������������������������������������������������������������1
2 Appearance��������������������������������������������������������������������������������������������������������1
Front Panel ............................................................................................................................ 1
Rear Panel.............................................................................................................................. 2
3 Signal connection ����������������������������������������������������������������������������������������������3
4 Dimension����������������������������������������������������������������������������������������������������������3
5 Operating motion instruction������������������������������������������������������������������������������3
6 Main Interface����������������������������������������������������������������������������������������������������4
7 Operation instruction������������������������������������������������������������������������������������������5
Step1: Input Settings ......................................................................................................... 5
Step2: Screen Settings....................................................................................................... 5
Setp3: Brightness ................................................................................................................ 7
Setp4: Output Settings...................................................................................................... 7
Image Mosaic....................................................................................................................... 8
Advanced Settings.............................................................................................................. 9
Factory Reset......................................................................................................................15
Communication Settings................................................................................................15
Language.............................................................................................................................15
8 Specications���������������������������������������������������������������������������������������������������16
9 FAQ �����������������������������������������������������������������������������������������������������������������17
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-1-
1 Model description
Model Description (input interface type)
VX4 DVI×2, VGA×3, CVBS×3, HDMI×1, DP×1
VX4S DVI×1, VGA×2, CVBS×2, HDMI×1, DP×1, SDI×1
Tips: VX4 has different type and number of interface with VX4S, but their functions and
specifications are basically the same. In this manual, VX4 is described as the example.
2 Appearance

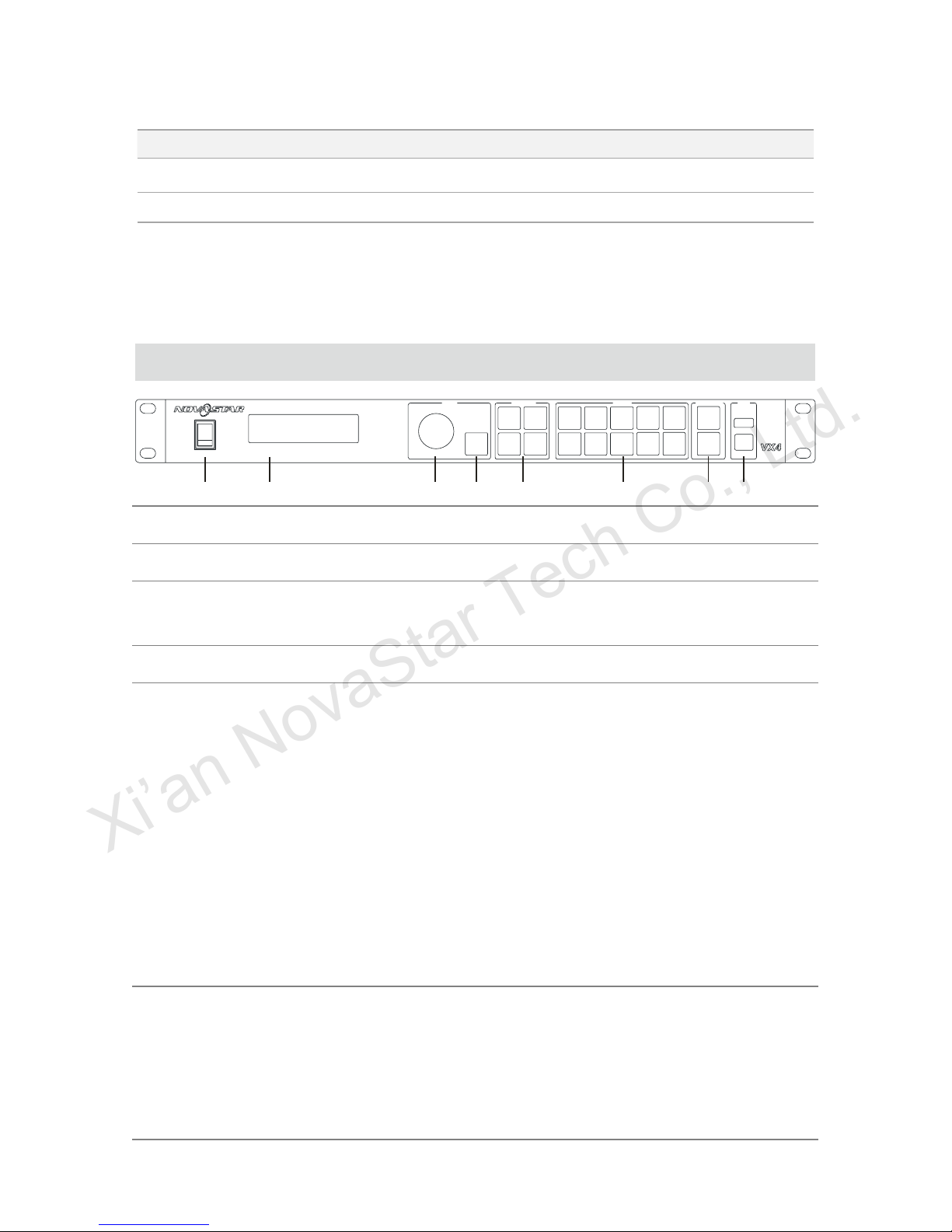

Front Panel
OFF
ON
I
0
LEDDisplayVideo Controller
MENU CONTROL
ESC
PIP SCALE
MODE TEST
INPUTS FUNCTION
HDMI
1
DVI1
2
DVI2
3
VGA1
4
VGA2
5
DP
0
CVBS3
9
CVBS2
8
CVBS1
7
VGA3
6
USB
TAKE
Fn
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
①:
Power switch�
②:
Operation screen (Please see the section-Main Interface for detail).
③:
Knob� To press knob means Enter or OK, rotating knob represents selection or
adjustment.
④:
ESC� Escape current operation or selection.
⑤:
Four control keyboard shortcuts�
PIP: PIP Turn-on/off. The lighting of this key represents the turn-on of PIP;
otherwise, PIP is turned off.
SCALE: Picture zoom turn-on/turn-off. The lighting of this key represents the turn-
on of zoom function; otherwise, zoom function is unavailable.
MODE: Shortcut menu of loading or storage of display model. The key is light when
entering the model or shortcut menu, in case of exiting, the key is not bright.
TEST: Shortcut of turn-on/off of testing picture. In case of entering testing picture,
the key is bright; otherwise, the key is not bright.
⑥:
Shortcut keys for switching of 10 signal input source. Short press to set as the main
screen input source, and long press to set as PIP input source. The key is bright
after press when the video source has signal; the key flashes when the input of
video source has no signal. The setting result can be checked while setting on the
display screen and OLED screen.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-2-
⑦:
Function keys�
TAKE: Display switching shortcut key. After short pressing TAKE key, PIP will
be opened; if it has been opened, the switching between MAIN and PIP will be
realized. Fn: Custom shortcut key.
⑧:
Flat mouth (Type A, female USB) is USB interface, which connects U disk;
Square mouth (Type B female USB) is USB controlling interface, communication with
PC.
Rear Panel
Input Source
Audio Audio Input
DP DP Input
HDMI HDMI Input
CVBS1~CVBS3 3-Channel PAL/NTSC TV composite video Inputs
DVI -1~DVI-2 2-Channel DVI Inputs
VGA1~VGA3 3-Channel VGA Inputs
Output Interface
DVI LOOP DVI LOOP Output
Monitor -VGA OUT VGA Monitoring Interface
Monitor -DVI OUT DVI Monitoring Interface
LED Out 1、2、3、4 4-Channel LED Outputs
Controlling Interface
ETHERNET Network Control (Communication with PC, or Access
Network)
Type B, female USB USB Control (Communication with PC, or Cascade IN)
Type A, female USB USB Cascade OUT
Power
AC 100-240V ～ 50/60HZ AC Power Interface
Tips:The two USB interfaces ( typeA) on front panel and rear panel are both forbidden to
connect with PC directly.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-3-
3 Signal connection
Connect the required hardware equipment reference with the interface descriptions
of the previous chapters.

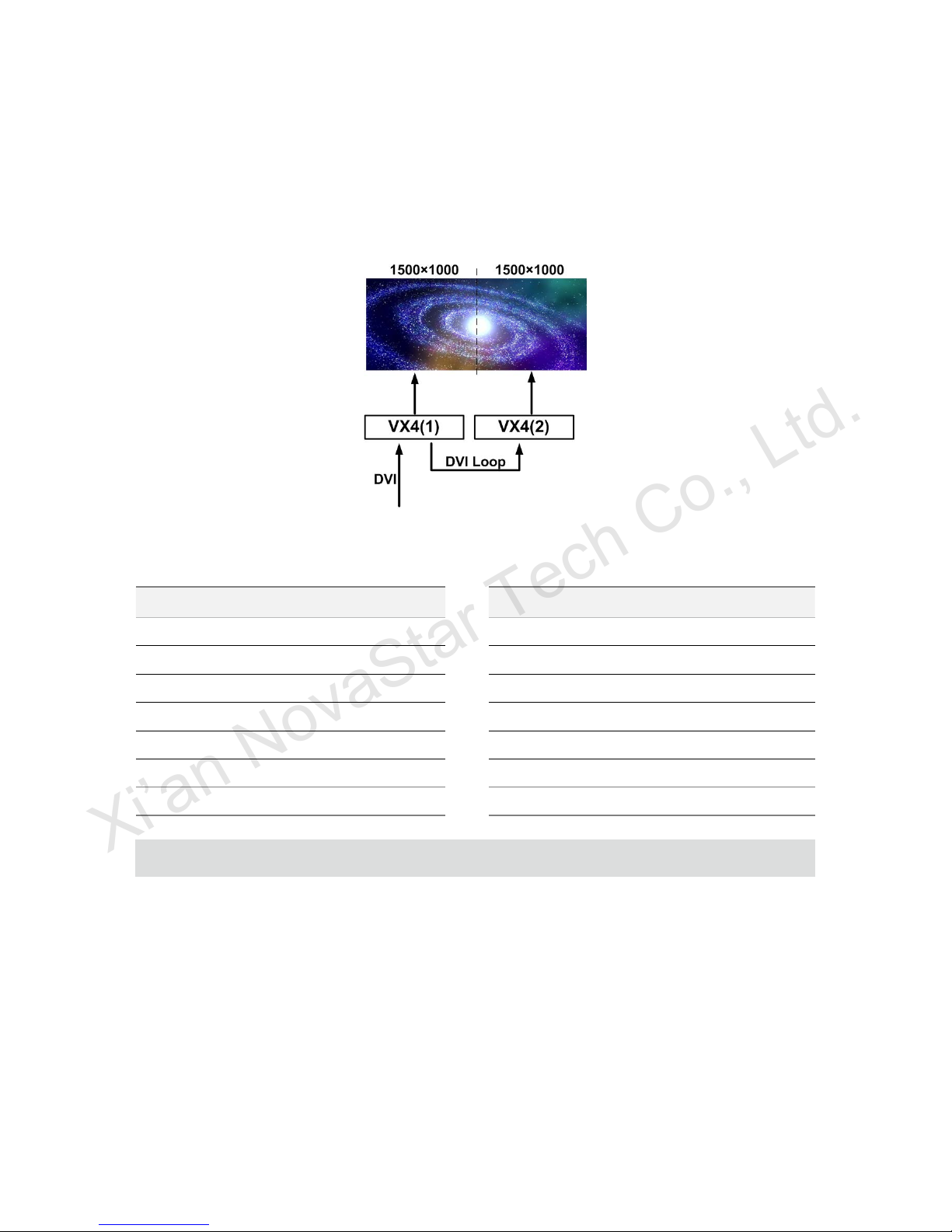

If it is required to control more than one set of VX4, please connect them according
to the following figure.
4 Dimension
2.5
482.6
440
251.5
45
VX4 's dimension (Unit:mm)
5 Operating motion instruction
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-4-
Knob:
Press the knob under the main interface to enter the operation interface menu;
Rotate the knob to select menu or press the knob under the operation interface
of menu to select current menu or enter submenu;
Rotate the knob to adjust the parameter after selecting the menu with
parameter; press the knob again for confirmation after adjustment.
ESC: Return key, exit current menu or operation.
Key lock/unlock: long press knob and ESC key simultaneously.

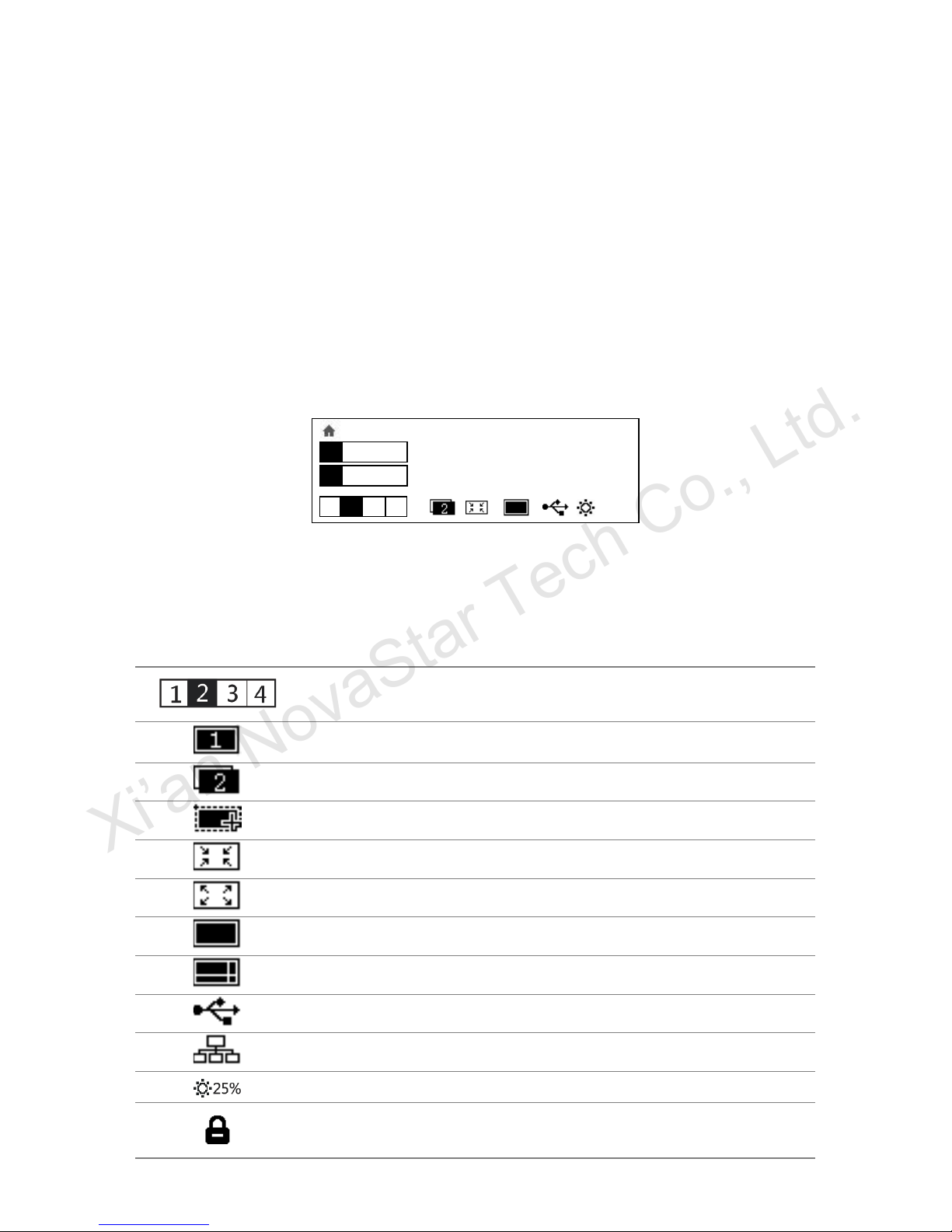

6 Main Interface
After starting the controller, the main interface of OLED display is as follows:
1VGA1
2HDMI
1024x768@60Hz
1024x768@60Hz
NovaStar 192�168�0�10
1
2
34
25%
First row: Company name; the name and IP of the product are shown alternately;
Second row: Main screen 1; signal source; input source signal format;
Third row: PIP 2; signal source; input source signal format;
Forth row: Status bar. the meanings of all icons are shown below.
LED Output (it is output Port 2 in primary mode currently, and
the backup status is displayed as )
PIP is turned off
PIP is turned on
The current effect is point-to-point display
It is “scale down” mode
It is “scale up” mode
Image Mosaic is not enabled;
Image Mosaic is enabled;
It is USB control currently
It is network port control currently
The current brightness is 25%
Sign of press key lock. When this icon appears at the main
interface, it is in locking state for key and knob functions.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-5-
7 Operation instruction
The functions of VX4 are powerful with very simple operation, and multiple
operations can be completed with a knob and a return key. The design of more than
one shortcut keys makes operations more efficient.
Generally, the LED display can be used normally, and the brightness is moderate after
conducting the following four steps: Input settings → Screen settings → Brightness →
Output settings. Other menus such as screen control and senior setting can help users
better control LED display.
See the following section for details of operations.
Step1: Input Settings
Set resolution of input source signal. Resolution can be directly set and changed
for digital input interfaces DVI, HDMI and DP. Resolution can only be modified with
other input methods on input devices.
Input resolution can be set in two methods:
Method one: Preset Resolution.
Selection is made in preset resolution of the controller. If there is no preset
resolution, you can select the second method and customize resolution.
Brightness
Output Settings
25%
Screen Settings
Input Settings
1024x768
1280x1024
1366x768
1440x900
Preset Resolution
Custom Resolution
Method two: Custom Resolution.
Set Horizontal Res, Vertical Res and Custom· refresh rate and then select "Apply" and
press the knob for application. If the application is not confirmed, custom resolution
is invalid.
Width (H)
Height(V)
Custom Refresh Rate
Apply
1920
1080
60Hz
59.94Hz
50Hz
30Hz
Preset Resolution
Custom Resolution
Step2: Screen Settings
The precondition of Screen setting in shortcut is that the screen must be regular
rectangle (not special-shaped), cabinet must be regular rectangle and the size of
each cabinet are identical.

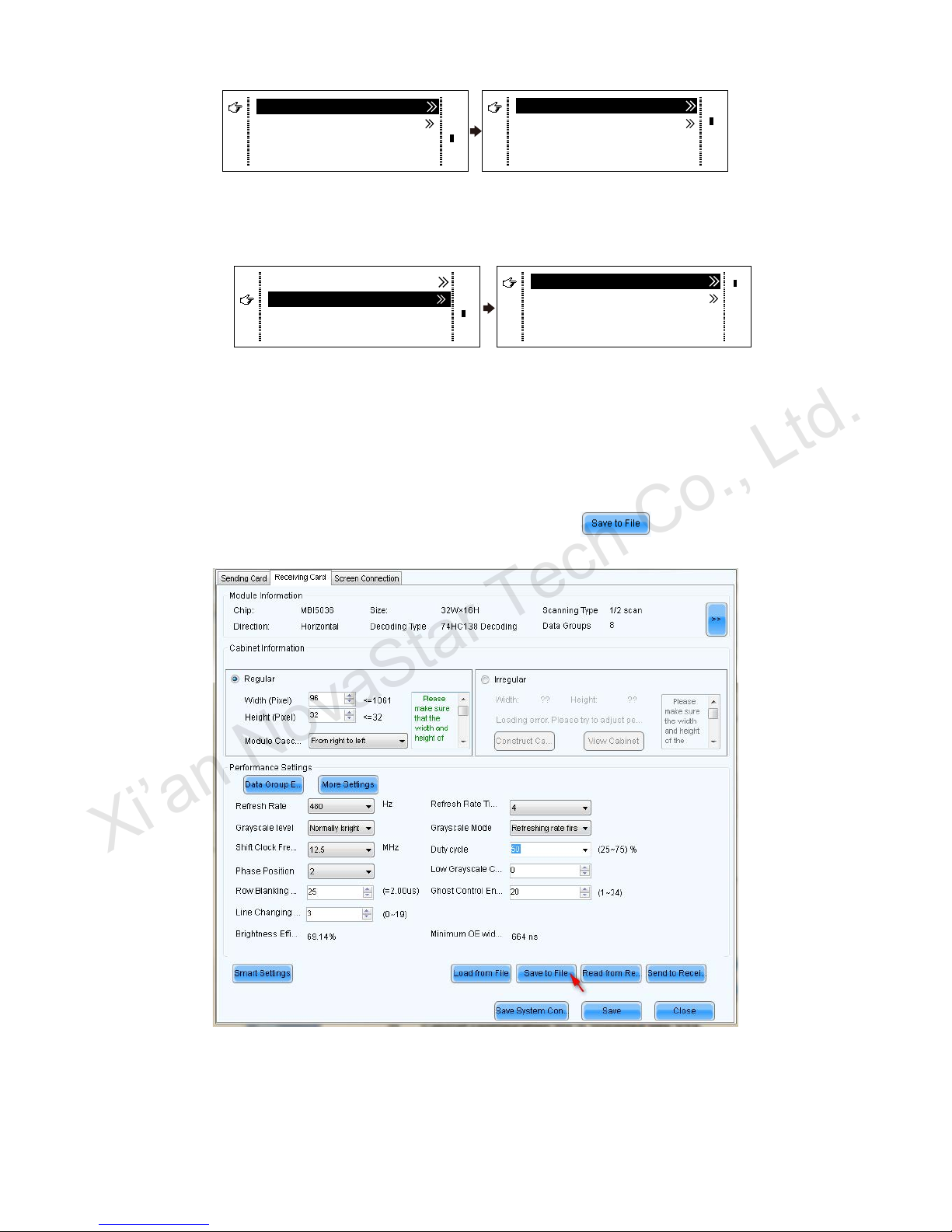

Step 1 The screen being power-on, if the cabinet is in normal display, enter into
Step 2; if the cabinet is in abnormal display, first, load the cabinet file, and
save it to the receiving card; see detailed operation in Advanced Settings ;
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-6-
Step 2 Return to the “Screen Settings” submenu. Rotate the button to switch to
submenus of other options respectively to perform configurations, as shown
in the following figures:
Brightness
25%
Input Settings
Cabinet Row Qty
Cabinet Column Qty
Port 1 Cabinet Qty
Data Flow（Front View）
3
3
4
Screen Settings
Output Settings
Step 3 Set Cabinet Row Qty and Cabinet Column Qty according to the actual
situation of the screen;
Step 4 Set Port1 Cabinet Qty. The device has some limitations on the cabinet
quantity of ports. For details, see precautions for screen settings;
Step 5 Set the Data Flow (Front View). Pay attention to precautions for screen
settings c), d) and e) below.
Precautions for screen settings:
（a）If the number of ports
with loads is n (n≤4), the first
n-1 ports must load the same
number of cabinets, which must
also be an integral multiple of
the number of cabinet rows or
columns and be greater than or
equal to the number of cabinets
for the nth ports.
Example:
For example, if port 1, port 2, port 3 have loads,
port 1 and port 2 must have the same number of
cabinets, which must also be an integral multiple
of the number of cabinet rows or columns.
Therefore, you only need to set port 1 cabinet Qty
according to the actual situation when setting the
screen. The number of receiving cards port 3 loads
must be smaller than or equal to port 1.
（b）In the case of special-shaped cabinets, different cabinet sizes and special-
shaped screen, the NovaLCT-Mars software is required to be connected to configure
the screen.
（c）During Data Flow setting, you can rotate the button to see the effects of
different data flow on the screen in real time. If you are satisfied with the effect of
current data flow, you must press the button to save the setting. You can press the ESC
to exit from the current operation.
（d）During Data Flow setting, you must ensure that the data flow of each port is
downward in the same direction.
（e）During Data Flow setting, you must ensure that Port 1 is the start position of
the whole data flow connection.
VX4 can load 2.3 million (2048x1152@60Hz) pixels in maximum. The width of lateral
load can reach to 3840 pixels in maximum (3840x600@60Hz); the longitudinal load
can reach to 1920 pixels in maximum (1920 x1200@60Hz).
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-7-
Setp3: Brightness
Return to the main menu interface. Press the Knob to select the corresponding value
of Brightness. You can rotate the Knob to adjust the value at this time.
Brightness
Screen Settings
Input Settings
Output Settings
25%
Brightness
Screen Settings
Input Settings
Output Settings
25%

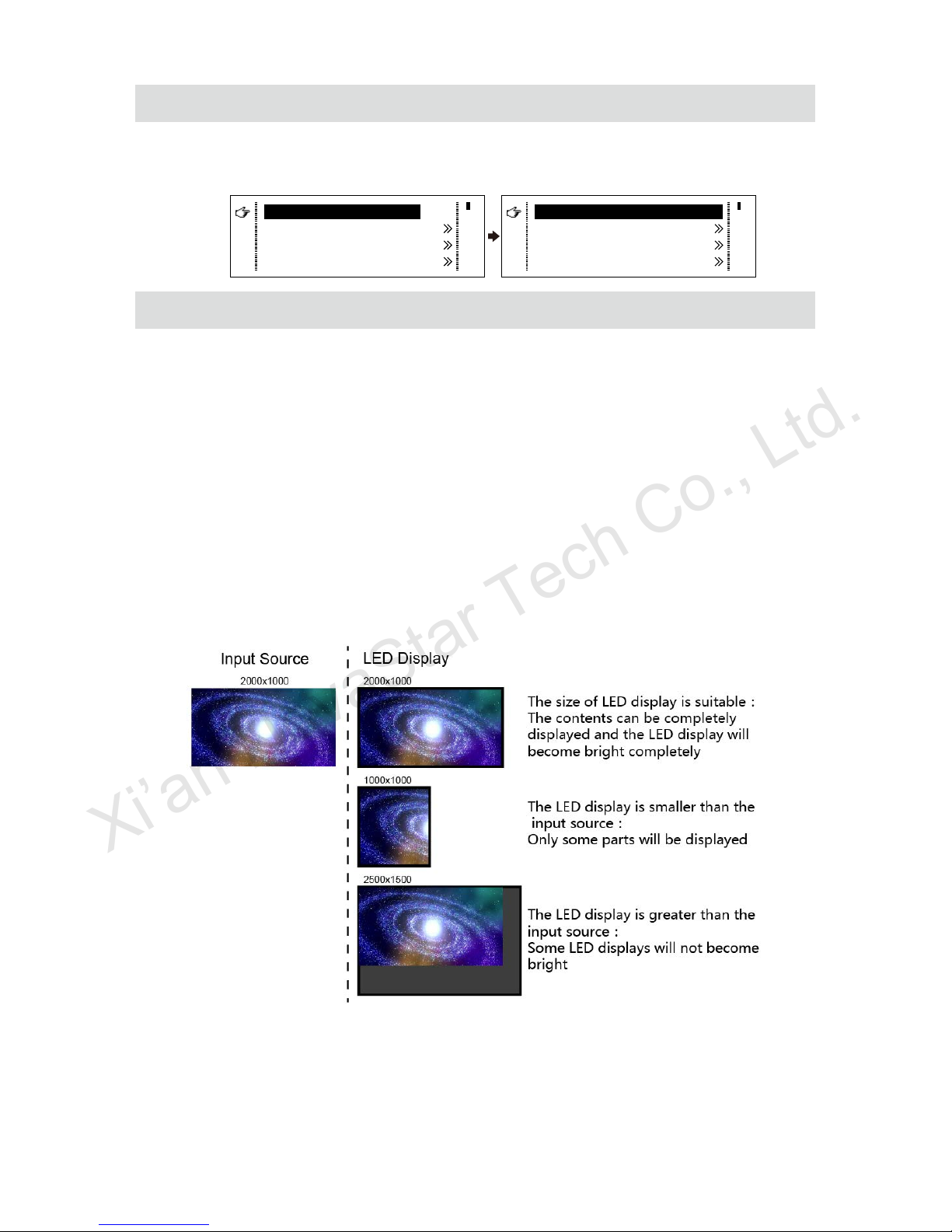

Setp4: Output Settings
Output settings are divided into three cases:
First one: disable Scaling, i.e., the sizes of output image and input image are the
same, and original scale output is used. If the input resolution is smaller than the LED
display in one direction, LED display may not become bright in this direction; if the
input resolution is greater than the LED display in one direction, the input contents
may not be displayed completely in this direction. This option is applicable to the
application scenarios requiring point-to-point display. Horizontal offset and vertical
offset of images can be set according to the needs, and at this time the displayed
contents may move to the left or top at the LED display.
At this point [Scaling] is disabled.
Second one: Auto Fit� At this point [Scaling] is enabled, and [Auto Fit] is enabled.
When enabling [Auto Fit], the input contents will be fully zoomed to the size of LED
display, and the input contents will be adaptive to the size of LED display. This mode
is suitable for full-screen playback of the contents.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-8-

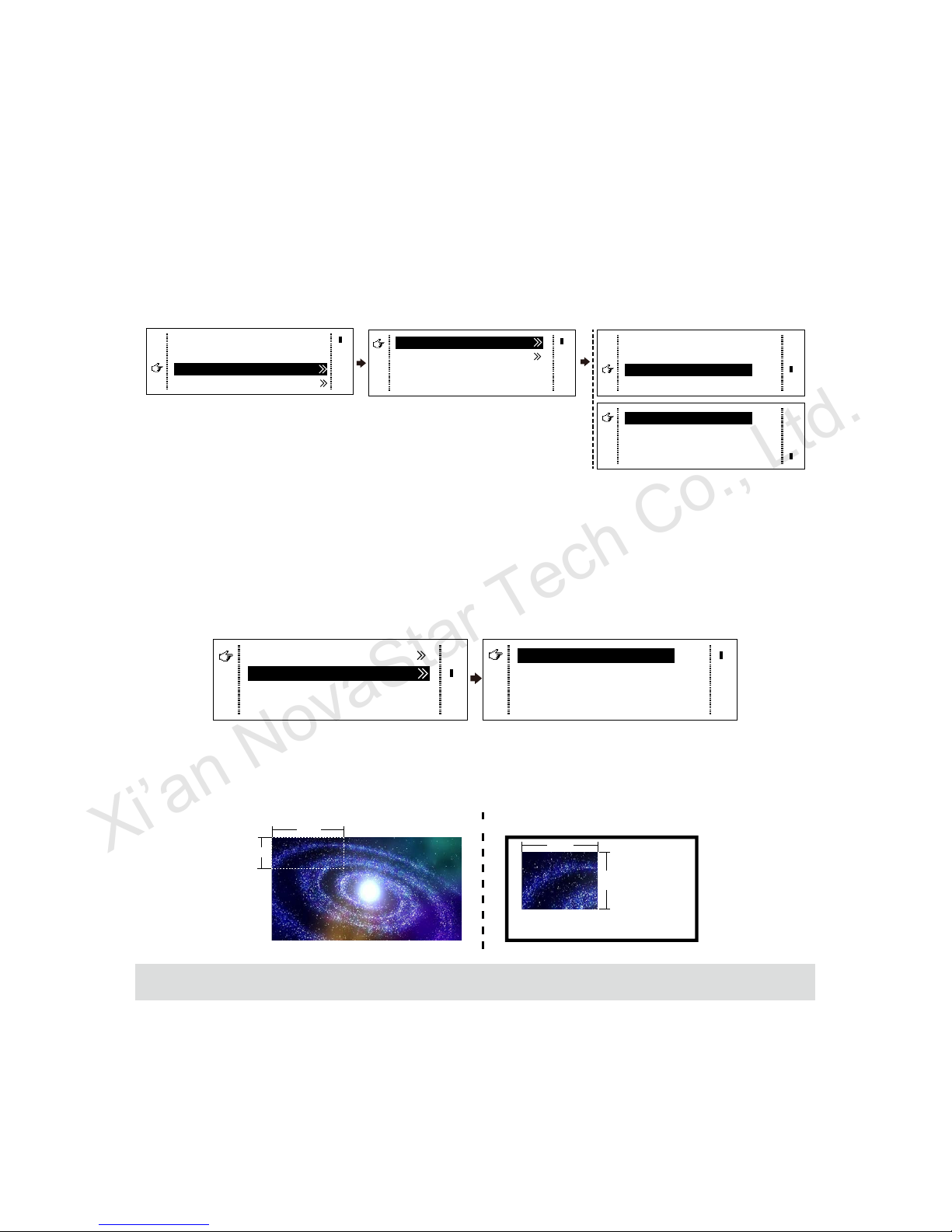

Third one: Custom Scaling� At this point [Scaling] is enabled, while [Auto Fit] is
disabled.
The following steps should be performed for custom scaling:
Step 1 Set the input Capture, i.e., capture part of the interesting screens from one
starting point of inputting image and display it on LED display. It is generally
required to set Horizontal Res (smaller than or equal to the lateral resolution
of input source), Vertical Res (smaller than or equal to the vertical resolution
of input source), horizontal X and vertical Y.
Scaling
Auto Fit
Custom Scaling
Image Offset
Enable
Disable
Input Source
Width(H)
Height(V)
Start X
HDMI
720
Input Capture
Output Window
240
Start Y
0
0
Step 2 Set output window, the size of window is smaller than or equal to the size
of LED display; after setting the window, the images can only be adaptive to
the displayed size within the range of window. This option is applicable to
the application scenarios requiring reserving border at the LED display or
restricting playing area.
Height (V)
Start X
Start Y
600
100
Input Capture
Output Window
Width (H)
800
100
After setting according to the above two steps, the captured contents will only be
input and displayed at the set area on the LED display, as shown below:
Input Source LED Display
(100,100)
800
600
(0,0)
720
240
Image Mosaic
When the display screen is huge, two or more VX4 need to be cascaded for loading
the huge screen;
Choose the method of Image Mosaic: Equal Division, Unequal Division.
Equal Division: Each VX4 has same load area. It is only required to set total pixel
points, rows ,columns of the big screen and the serial No. of each VX4.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-9-
Unequal Division: Each VX4 could have different load area . It is required to set
the total pixel points and the load area size as well as load area staring position
of each VX4.
Image Mosaic example: The total number of pixels of LED display is 3000×1000,
exceeding the load capacity of single VX4. Two sets of VX4 are used for Image Mosaic
processing. The connection method is shown in the right figure.
Please choose Equal Division or Unequal Division while setting detailed parameters.
The specific parameter settings are shown in the following tables.
Equal Division Unequal Division
VX4（1）VX4（2）VX4（1）VX4（2）
Total Width Pixels 3000 Total Width Pixels 3000
Total Height Pixels 1000 Total Height Pixels 1000
Mosaic Row Qty 1Load Area Width 1500 1500
Mosaic Column Qty 2Load Area Height 1000 1000
Load Area Position 1 2 Load Area Start X 01500
—— —— —— Load Area Start Y 0 0
Advanced Settings
Several setting options of main functions are included in advanced settings, as
shown in the figure below. Operation of each function will be detailed for users in
the following text.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-10-
Image Mosaic
Factory Reset
Advanced Settings
Communication Settings
PIP
Redundancy
Advanced Attr
Presettings
Fn Settings
Audio Settings
Display Control
Inputs Backup
OLED Brightness
13
Hardware Version
V1�3�0�0
Output Resolution
Cabinet Settings
PIP
PIP
LAYOUT
Main Source
PIP Source
Disable
R+B
Height（V）
Start X
Start Y
128
0
128
0
Transparency
Window Swap
PIP Crop Settings
0
PIP
Redundancy
Advanced Attr
Presettings
Width（H）
Control the turn-on/off of PIP, Set input source of main screen and PIP, as well as
parameters of PIP.
Layout: the position of PIP relative to main screen, including eight modes of layout
such as Custom, Left Top, Left Bottom, Right Top etc. When choosing any mode
except Custom , the values of horizontal and vertical offset of PIP are able to adjust
to the corresponding values of layout automatically. The meaning of each layout
mode is shown below:
Custom refers to that the size and position of PIP need to be set.
Left Top, Left Bottom, Right Top, Right Bottom, Center refer to that PIP overlaps
with the top-left corner, bottom-left corner, top-right corner, bottom- right
corner and center of main screen.
Top Bottom, Left Right refer to that main screen and PIP are distributed from top
to bottom or left to right.
Main source/PIP source: Input source switching of main picture and PIP is the same as
the role of input source switching on the front panel.
Horizontal Res : Horizontal offset of PIP
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-11-
Vertical Res : Vertical offset of PIP
Horizontal X : Horizontal width of PIP
Vertical Y : Vertical height of PIP
PIP Crop Settings: Picture is cropped from the set starting position and is displayed
on PIP and its size is set horizontal width and vertical height.
Enable this function and then set horizontal width, vertical height, horizontal X and
vertical Y.
Transparency: the transparency of PIP
Window Swap: swap play content of main screen and PIP.
The Conflict List of PIP Signal Source（VX4）
Input Source of Main Channel
HDMI DVI1 DVI2 VGA1 VGA2 VGA3 CVBS1 CVBS2 CVBS3 DP
PIP
Input
Source
HDMI √×√ √ √ √ √ √ √
DVI1 √ √ ×√ √ ×√√√
DVI2 ×√ √ √ √ √ √ √ √
VGA1 √×√ √ √ ×√√√
VGA2 √ √ √ √ ×√√√√
VAG3 √ √ √ √ ×√√√√
CVBS1 √×√×√ √ √ √ √
CVBS2 √ √ √ √ √ √ √ ×√
CVBS3 √ √ √ √ √ √ √ ×√
DP √ √ √ √ √ √ √ √ √
The Conflict List of PIP Signal Source (VX4S)
HDMI Input Source of Main Channel
HDMI DVI VGA1 VGA2 CVBS1 CVBS2 SDI DP
PIP
Input
Source
HDMI ×√√√√√√
DVI ×√√√√√√
VGA1 √ √ ×√√√√
VGA2 √√×√ √ √ √
CVBS1 √√√√ ×√√
CVBS2 √√√√×√ √
SDI √√√√√√ √
DP √√√√√√√
Redundancy
Set this controller as primary or backup mode.
Advanced Attribute
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-12-
PIP
Redundancy
Presettings
Advanced Attr
VGA Auto ADJ
ADC Calibration
Video Synchronization Enable
Go Homepage（s） 60
VGA Auto ADJ: Sampling parameters of VGA input signal are automatically
adjusted so that the VGA picture is clear and complete. Select this menu and
then press the knob once and perform VGA automatic adjustment once. (VGA1
does not support this feature)
ADC calibration: when analog signal accesses, processors that are not calibrated
by ADC may have defects such as color cast or picture dark. VX4 can
automatically make ADC calibration based on input analog signal (including
CVBS and VGA) to solve the problems above. Select this menu and then press
the knob once and perform ADC calibration once.
Video Synchronization: allow that the input and output of VX4 are synchronous.
Go Homepage(s): The time period during which the system stops at current
interface and then automatically returns to home screen when there is no
operation. The system default value is 60s.
Presettings
Save the current configuration parameters as Presettings. The Presettings can be
directly loaded next time, and 10 Presettings are saved by default.
Custom Button
Fn Settings. The functions of custom button include Black Out, Freeze、VGA Auto
ADJ、Video Synchronization. Press Fn key to directly conduct the function switch.
Audio Settings
Control the enabling /disenabling of Audio, volume and Audio mode.
For example, when using the audios input via Audio In port, it is required to enable
audios first and then select the Audio mode to be fixed; when using the Audio from
HDMI, set the Audio mode to be accompanied after enabling audios and then switch
source to HDMI, and the Audio we hear comes from HDMI.
Fn Settings
Audio Settings
Display Control
Inputs Backup
Audio
Volume
Audio Mode
Enable
100
Display Control
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-13-
Normal
Black out
Freeze
Test Pattern
Fn Settings
Audio Settings
Display Control
Inputs Backup
Image Settings
Switching Effect
Normal: Normally display. Blank Out: The display is blank
Freeze: The current play lists are frozen.
Testing Pattern: There are eight kinds of testing screens in total, including pure
color and lines.
Image Settings
Contrast, Saturation, Hue, Color Temperature, Red, Green, Blue and Gamma value
are set according to the requirements. After they are adjusted to satisfaction, the
parameters should be saved.
Switching Effect:Set the effects when switching screens, including Quick switch,
Fade, Shrink Center, Shrink Left Top, Zoom Center, Zoom Left Top and turning
off. After selecting the desired effect, it will take effect after pressing the knob.
Tips: When enabling PIP function, the switching effect will automatically disappear. Only
when PIP function is turned off, the special effect function of channel switching can take
effect.
Inputs Backup
To specify backup for input source and automatically switch to backup source if the
signal of input source has faults, which makes it more reliable.
Fn Settings
Audio Settings
Display Control
Inputs Backup
Backup
Backup 1
Backup 2
Backup 3
Enable
HDMI
VGA1
CVBS1
DP
SDI
VGA2
Custom Backup
CVBS2 SDI
HDMI DP
Indicating that DP has been set as the backup of HDMI and main input
source(which cannot be changed) is in left side of the arrow while backup(which can
be changed) is in the right side;
Both main input source and backup can be customized in Custom mode.
Output Resolution
This function can be used to set the the output resolution of monitoring. Users
can set the function according to actual use and choose either Reset Resolution or
Custom.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-14-
Preset Resolution
Custom Resolution
OLED Brightness
13
Hardware Version
V1�3�0�0
Output Resolution
Cabinet Settings
Cabinet Settings
Load RCFG Files
Save to RV Card
OLED Brightness
13
Hardware Version
V1�3�0�0
Output Resolution
Cabinet Settings
Load Cabinet Files
VX4 is connected with PC. NovaLCT-Mars runs on PC and the cabinet setting file
saved previously is imported into controller.
1 ) Save cabinet configuration file.
After receiving card is configured, click and save cabinet
configuration file (.rcfg) to local file on PC.
2 ) Cabinet configuration file is imported into VX4.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-15-
3 ) Load Cabinet Files.
RG 128×128
Load RCFG Files
Save to RV Card
Save to RV Card
All current configurations about the recieving card of VX4 are saved into
receiving card and will not be lost after power fault.
OLED Brightness
Adjust the gray scale of OLED display.
Hardware Version
View the hardware version of VX4. If new version has been published, LCT-Mars can
be connected via PC and the hardware program of VX4 can be upgraded
Factory Reset
Reset to factory default setting.
Communication Settings
Set the communication mode and network parameter of VX4.
The communication modes include USB priority and LAN (local area network) priority.
When VX4 is connected to USB control and LAN control interface simultaneously,
USB takes priority in the settings, adopts USB control; otherwise, LAN takes priority
in the settings, adopts LAN control.
The network parameter can be set both manually and automatically. Ensure that the
IP address is not conflict with other equipment when setting parameter manually.
Language
Switch Language.
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-16-
8 Specications
Input
Port Number Resolution Specication
VX4 VX4S
VGA 3 2 VESA Standard, support max 1920×1200@60Hz input
DVI 2 1 VESA Standard (support 1080i input), support HDCP
CVBS 3 2 PAL/NTSC
HDMI 1 1 EIA/CEA-861 standard, in accordance with HDMI-1.3
standard, support HDCP
DP 1 1 VESA Standard
SDI 0 1 480i、576i、720P、1080i/P
Output
Port Number Resolution Specication
VX4 VX4S
DVI LOOP 1 1 Consistent with DVI input
VGA 1 1
1280×1024@60Hz 1440×900@60Hz
1680×1050@60Hz 1600×1200@60Hz
1600×1200@60Hz – Reduced
1920×1080@60Hz 2560×816@60Hz
2048×640@60Hz 1920×1200@60Hz
2048×1152@60Hz 1024×1280@60Hz
1536×1536@60Hz
Self-defined output resolution (Bandwidth
optimization)
Horizontal resolution maximum 3840 pixels
Vertical resolution maximum 1920 pixels
DVI 1 1
SDI LOOP 0 1 Consistent with SDI input
Specication of complete machine
Input Power AC 100-240V, 50/60Hz
Overall Power Consumption 25W
Operating Temperature -20~60℃
Size 482.6×251.5×45（mm）
Weight 2.55 Kg
Xi’an NovaStar Tech Co., Ltd.

VX4S/VX4 User's Manual
-17-
9 FAQ
Questions Methods
LED display is off
Inspect whether the power connection is correct and the switch
has been turned on;
Play the Self test image and confirm whether the connection of
LED is correct and works normally;
Inspect whether VX4 output has signal and shows blank screen;
Inspect whether the mode and parameter of screen
configuration are correct;
Monitoring port
output is abnormal
Check whether there is image input in input channel and
whether it is correctly displayed;
Check whether PIP has been turned on, whether there is signal
input in 2 channel and whether it is correctly displayed;
Check whether monitoring output is connected correctly and it
is not loose;
Please confirm whether Monitor supports the output resolution
of VX4;
Try to cut off the power of equipment and restart it, reset VX4
and operate again;
Phase of VGA
input offset Perform VGA Auto ADJ;
PIP display is
abnormal
Check whether there is signal input in 2 channel and it is
normally displayed;
Check PIP and confirm whether parameter setting is normal;
Fading is abnormal Check whether Switching effect has been enabled;
Image Mosaic is
abnormal
Check whether the VX4 Image Mosaic switch has been turned on
and whether Image Mosaic parameters settings is correct;
Check whether input signal source is normal;
Sound is abnormal
Check whether the volume settings is appropriate;
Check whether the Audio mode setting is correct;
Confirm VX4 is well connected to multifunction card, and the
corresponding output port icon on the main interface has
been highlighted; confirm whether the audio output mode of
multifunction card is HDMI mode (it is required to connect LCT
for confirmation and setting);
Please preliminarily investigate problems according to the above steps; if you cannot
eliminate the problems, please contact the local dealer or our company’s customer
service personnel.
There is high voltage inside the machine. In order to guarantee your safety, please do
not maintain the processor by yourself.
Xi’an NovaStar Tech Co., Ltd.
