Novus NVR-4204P4-H1 User manual

User’s ma n ua l
(s h o rt )
NVR-4204P4-H1
NVR-4308P8-H1
NVR-4116-H1

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
INFORMACJE
IMPORTANT SAFEGUARDS AND WARNINGS
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 26 February 2014 on the harmonisation
of the laws of the Member States relating to the making available on the mar-
ket of electrical equipment designed for use within certain voltage limits.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT
AND OF THE COUNCIL of 26 February 2014 on the harmonisation
of the laws of the Member States relating to electromagnetic compatibility
(OJ L 96, 29.3.2014, p. 79–106, with changes)
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic
equipment (WEEE) (OJ L 197, 24.7.2012, p. 38–71,with changes)
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 8 June 2011 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment
(OJ L 174, 1.7.2011, p. 88–110, with changes)

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
SAFETY REQUIREMENTS
ATTENTION!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT PROVISIONED FOR THE
PRODUCT IN ITS USER’S MANUAL AVAILABLE AT WWW.NOVUSCCTV.COM AND
OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR THAT ARISES FROM
THE NORMAL APPLICATION OF THE PRODUCT, ITS MANUFACTURER MUST BE
CONTACTED OR THE RESPONSIBILITY OF THE MANUFACTURER FOR THE
RESULTS OF SUCH AN ACTION SHELL BE EXCLUDED.
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the device in high humidity environment (i.e. close to swimming pools,
bath tubs, damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence;
9. Mounting the device on unstable surface or using not recommended mounts is forbidden.
Improperly mounted device may cause a fatal accident or may be seriously damaged itself. The
device must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the devices technical datasheet. Therefore, it is forbidden to
supply the devices from a power sources with unknown parameters, unstable or not meeting
producer’s requirements;
11. You cannot allow any metal objects get inside the recorder. It might cause serious damage. If a
metal object gets inside the device contact the authorised Novus service immediately.
12. The manufacturer does not bear responsibility for damage or loss of data stored on HDDs or other
media occurred during the usage of the product.
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com website in order to access the newest
manual .
NOVUS NVRs are dedicated to work with NOVUS cameras. Using only NOVUS products
guarantees the highest image quality. Connecting cameras from other manufacturers to NOVUS
NVRs may decrease video quality.
The manufacturer reserves the right to printing errors and technical changes without prior
notice.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
FOREWORD INFORMATION
1. FOREWORD INFORMATION
1. 1. Main characteristics
• Network Video Recorders.
• Recording resolution up to 3840 x 2160.
• H.264, H.265 compression.
• Dual stream recording.
• Support 1 x SATA 3,5” HDD.*
• E-SATA connector for external HDD matrix NV-5000EST-H4 (supports up to 4 x HDD 3.5”
SATA).**
• Operating system based on Linux.
• Main monitor 1 x HDMI (4K UltraHD), 1 x VGA (FullHD).
• Support fisheye cameras.**
• Ethernet PoE ports.
• Intelligent video analysis.
• Backup: onto HDD or USB Flash Memory through USB port & through the network.
• Software: NHDR-5000 Viewer (application for remote administration, live monitoring and recorded
data search ).
• User friendly multi-lingual OSD.
• IR remote control and PC mouse control (in-set included).
*The list of recommended disk models and their capacity is available on Novus Security website in
the Compatible Disk file in the product “Downloadable files” tab.
** Function depends on the model.

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
1.2. Technical data
*** with dual streaming mode.
FOREWORD INFORMATION
NVR-4204P4-H1 NVR-4308P8-H1 NVR-4116-H1
Video
IP Cameras 4 channels at 3840 x 2160
resolution (video + audio)
8 channels at 3840 x 2160
resolution (video + audio)
16 channels at 3840 x 2160
resolution (video + audio)
Supported Resolution max. 3840 x 2160
max. 2160 x 2160 for fisheye cameras max. 3840 x 2160
Compression H.264, H.265
Monitor Output main (split screen, full screen, sequence): 1 x VGA, 1 x HDMI (4K UltraHD) (up to 2
monitors simultaneously)
Dualstreaming Support yes
Fisheye support yes, 2000/4000 IP series cameras -
Audio
Audio Output 1 x line-out (RCA), 1 x HDMI
Recording
Recording Speed 120 fps (4 x 30 fps for 3840
x 2160 and lower)
240 fps (8 x 30 fps for 3840
x 2160 and lower)
480 fps (16 x 30 fps for 3840 x
2160 and lower)
Stream Size 40 Mb/s in total from all
cameras
128 Mb/s in total from all
cameras
100 Mb/s in total from all
cameras
Recording Mode time-lapse, triggered by: manual, alarm input, motion detection, intelligent image analysis
functions, PIR alarm
Prealarm/Postalarm up to 3 s/up to 600 s
Display
Display Speed 120 fps (4 x 30 fps)*** 240 fps (8 x 30 fps)*** 480 fps (16 x 30 fps)***
Playback
Playback Speed 120 fps (4 x 30 fps) *** 240 fps (8 x 30 fps) *** 240 fps (16 x 30 fps) ***
Recorded Data Search by date/time, events, image analysis events, motion in a defined area, tags
Backup
Backup Methods DVD (option), USB port (HDD or Flash memory), network
Backup File Format JPG, BMP, PNG, MP4, AVI, RF
Storage
Internal storage available mount: 1 x HDD 3.5” 10 TB SATA *
Total Internal Capacity 10 TB
External storage 1 x eSATA-
Total External Capacity - 24 TB
Alarm
Internal Alarm Input/Output 4/1 relay type 8/1 relay type -
System Reaction to Alarm
Events
buzzer, e-mail, alarm output activation, screen message,
recording activation, PTZ, Full Screen, picture to Cloud,
video to Cloud
buzzer, e-mail, alarm output
activation, screen message,
recording activation, PTZ, Full
Screen, FTP picture upload, FTP
video upload, picture to Cloud,
video to Cloud
Intelligent image analysis
Supported functions Exception, Tripwire, Zone entrance, Abandoned Object, Object Disappearance, Face
Detection, Pedestrian Detection, Cross Counting, Sound detection

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
FOREWORD INFORMATION
1.3. Package contents
Unpack the device carefully. After unpacking, ensure that package contains the following items:
• Network Video Recorder.
• Power supply 100 ~ 240 VAC/12 VDC PSU or 100 ~ 240 VAC/48 VDC PSU.
• Power cord.
• USB Mouse.
• IR remote controller.
• User’s manual (short).
If any of the elements has been damaged during transport, pack all the elements back into the original
packaging and contact your supplier.
NVR-4204P4-H1 NVR-4308P8-H1 NVR-4116-H1
Network
Network Interface
1 x Ethernet - RJ-45
interface, 10/100 Mbit/s
4 x Ethernet PoE - RJ-45
interface, 10/100 Mbit/s
with Extended mode
1 x Ethernet - RJ-45
interface, 10/100/1000 Mbit/s
8 x Ethernet PoE - RJ-45
interface, 10/100 Mbit/s with
Extended mode
1 x Ethernet - RJ-45 interface,
10/100/1000 Mbit/s
Network Protocols Support
HTTP, TCP/IP, IPv4, HTTPS,
FTP, DHCP, DNS, DDNS, NTP,
RTSP, UPnP, SNMP, SMTP
HTTP, TCP/IP, IPv4, HTTPS, DHCP, DNS, DDNS, NTP,
RTSP, UPnP, SNMP, SMTP
PC/MAC Software Internet Explorer, NHDR-5000 Viewer/NHDR-5000 Viewer
Smartphone Software RxCamView (iPhone, Android)
Max. Number of Connections
with NVR 40 40 40
Bandwidth 40 Mb/s in total to all client
workstations
128 Mb/s in total to all client
workstations
64 Mb/s in total to all client
workstations
PTZ
PTZ Functions pan/tilt/zoom, preset commands, patterns
Auxiliary Interfaces
USB Ports 3 x USB 2.0 2 x USB 3.0, 1 x USB 2.0 2 x USB 2.0
Operating system
Operating System Linux
OSD languages: Polish, English, others
Control PC mouse and IR remote controller (in-set included), network
System Diagnostic automatic control of: HDDs, network, camera connection loss
Security password protection, IP filtering
Installation parameters
Dimensions (mm) 300 (W) x 53 (H) x 227 (D)
Weight 1.1 kg (without HDD)
Power Supply
48 VDC (100 ~ 240
VAC/48 VDC PSU in-set
included)
48 VDC (100 ~ 240 VAC/48
VDC PSU in-set included)
12 VDC (100 ~ 240 VAC/12
VDC PSU in-set included)
Power Consumption 20 W (with 1 HDD) +
120 W PoE
20 W (with 1 HDD) +
240 W PoE 20 W (with 1 HDD)
Operating Temperature -10°C ~ 45°C

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
2. STARTING THE DEVICE
2.1. Electrical connection and other rear panel elements.
NVR-4204P4-H1
NVR-4308P8-H1
NVR-4116-H1
STARTING THE DEVICE
5
12
7 8 10
2
9 13
7 8 4 5 1 9 10 11
2 6
3
7 8 4 5 1 9 10 11
2 6
3

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
1. POWER DC: Power supply connector for 48V adapter.
2. POWER SW: Power switch.
3. ALARM IN: Alarm input terminal.
4. ALARM OUT: Alarm output, relay.
5. AUDIO OUT: Audio output for connecting speakers and amplifier (RCA connector).
6. AUDIO IN: Audio mono inputs (RCA LINE IN type) for connecting microphone. Allows
intercom connection between the recorder and the client station. The connection
is initiated from the client software or browser. Sound is not recorded.
7. VGA: VGA main monitor connector, use the D-SUB VGA cable to connect monitor.
8. HDMI: HDMI main monitor connector, use the HDMI cable to connect monitor.
9. USB: USB port for external Flash memory, mouse connection and other USB
compatible devices.
10. WAN: RJ-45 ethernet port for connecting to the local network.
11. POE LAN: RJ-45 ethernet ports for connecting PoE cameras.
12. E-SATA: E-SATA connector for NV-5000EST-H4 HDD matrix.
13. POWER DC: Power supply connector for 12V adapter.

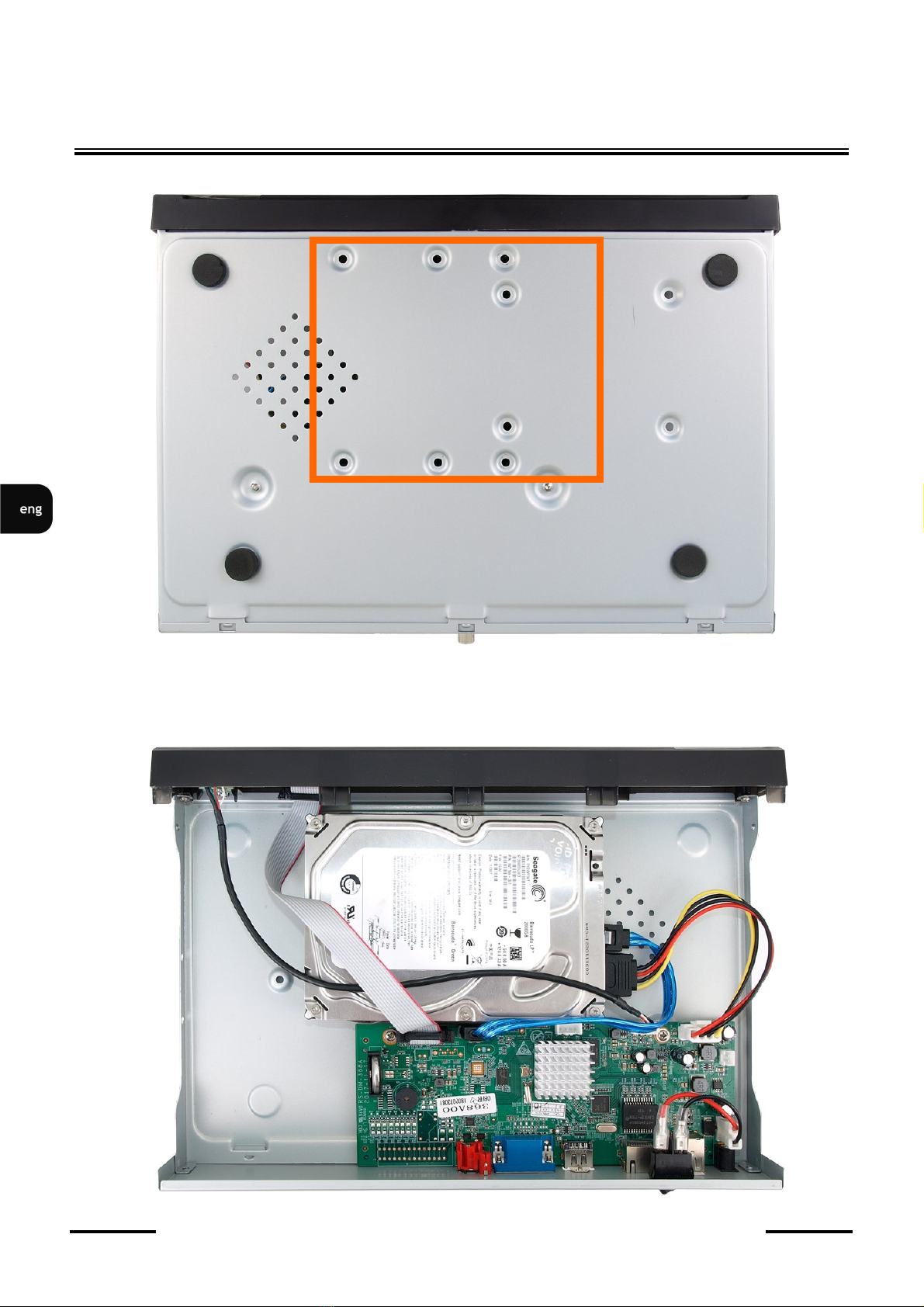

2.2. Hard drive mounting
Note:
In order to obtain info on latest compatible HDDs together with their capacities, please contact
your distributor or visit www.novuscctv.com website. AAT SYSTEMY BEZPIECZEŃSTWA Sp.
z o.o. company does not bear responsibility for any issues arising from usage of unsupported SD
cards/HDDs.
List of compatible HDDs contains all disks supported by NVR model, including desktop HDDs.
However due to the fact that image recording prefers reliability usage of 24x7 recording HDDs is
therefore advised.
If a disk was used in another device, it is necessary to format it. Please take it into account due to
the irrecoverable data loss resulting from said process.
NVRs support 1 x 3,5" SATA HDD. Follow the instruction to mount the HDD. Photos are illustrative,
may differ slightly from the described recorder.
Before staring the process make sure the power supply is not connected.
STARTING THE DEVICE

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9
In order to mount HDD, unscrew 5 screws on the back and both sides as depicted below and remove
top cover.
Mounting place is highlighted below. Put the HDD in the place.
STARTING THE DEVICE
HDD

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
Turn the NVR aside holding HDD. Screw it tightly to the bottom.
Connect SATA and power cable to HDD. Install the top cover on the NVR and screw it back.
STARTING THE DEVICE
HDD

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
11
2.3. Connecting the power supply
Before starting the device, connect the supplied DC adapter to the power socket located on the rear
panel of the recorder.
To start the device turn on the power switch on the back panel. Initialization lasts about 60 seconds.
During this time executing any device functions and pressing any buttons is prohibited. To shut down
the device please use the menu.
CAUTION:
Make connection when the power is not applied and the power switch is turned off. Do not
modify the connection of power supplies and their grounding.
In order to ensure uninterrupted operation of the device, make sure that all connections are
made correctly and permanently, preventing their accidental disconnection.
If the device was brought from a room with a lower temperature, wait until it reaches the
temperature of the room in which it is to work. Do not turn on the device immediately after
bringing it from a cooler place. Condensation of water vapor in the air may cause short circuits
and, consequently, damage the device.
Before starting the device familiarize yourself with the description and the role of the individual
inputs and outputs located on the rear panel and adjusting elements that the device is equipped
with.
2.4. Connecting monitor
NVRs support following interfaces for main monitor: HDMI, VGA.
HDMI interface support the following resolutions: 1024x768, 1280x1024, 1440x900, 1280x720,
1920x1080, 2560x1440, 3840x2160. VGA interface supports resolution up to 1920x1080.
2.5. Connecting ethernet and IP cameras
It is recommend to configure the camera before connecting to the recorder, as described in the user
manual of the camera. Please note that the cameras should be addressed with the unique IP address
from the range supported by the recorder.
NVR-4204P4-H1 and NVR-4308P8-H1 recorders have built-in RJ-45 PoE ports, which allow to
connect PoE powered cameras directly to the recorder. The maximum cable length from the recorder
to each camera is 100m. In Extended PoE (EPOE) mode, data transmission speed is reduced to
10Mbps, cable length can be up to 200m. EPOE mode can be turned on for selected cameras.
NVRs with built-in PoE ports use different addressing for PoE ports, different for connecting to the
router through the WAN port.
By connecting a NOVUS 2000 or 4000 series IP camera to the PoE port, the camera will be
automatically added to the list if the camera has a default password.
STARTING THE DEVICE

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
12
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
Connecting IP cameras and ethernet to NVR-4204P4-H1 (alike NVR-4308P8-H1)
Connecting IP cameras and ethernet to NVR-4116-H1
STARTING THE DEVICE
NVR-4116-H1
INTERNET PC
ROUTER
POE IP CAMERA
INTERNET PC
ROUTER
IP CAMERA
IP CAMERA
NVR-4204P4-H1

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
13
2.6. Security recommendations for network architecture and configuration
WARNING!
Below are shown security recommendations for network architecture and configuration
of CCTV systems that are connected to the Internet to reduce the risk
of unauthorized interference with the system by a third party.
1. Absolutely change the default passwords and user names (if the device gives this possibility) of
all applied network devices (recorders, cameras, routers, network switches, etc.) to the
severely complexity password. Use lowercase and uppercase letters, numbers, and special characters
if there is such possibility.
2. Depending on the available functionality in the order to restrict access to the used network devices at
the administrator account level, it is recommended to configure the users accounts accordingly.
3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open the
access to recorder system from the Internet on all ports, which gives possibility for an unauthorized
interference with the system.
Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance
of the connection (detailed information about ports of communication in different models of recorders,
cameras, etc. can be found in the operating instructions).
4. Use routers with firewall function and make sure it is enabled and properly configured.
5. It is recommended to change the default network communication port numbers of used devices
if there is such possibility.
6. If used network devices has aUPnP feature and it is not used, turn it off.
7. If used network devices has aP2P feature and it is not used, turn it off.
8. If used network devices support HTTPS protocol for connection, it is recommended to use it.
9. If used network devices support IP filtering for authorized connections function, it is recommended
to use it.
10. If used recorder has two network interfaces it is recommended to use both of them to physically
separate network for cameras and network for Internet connection. The only device in the system,
accessible from Internet is recorder - there is no physically access directly to any camera.
STARTING THE DEVICE

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
14
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
2.7. Connecting alarm inputs / output
NVR-4204P4-H1 and NVR-4308P8-H1 have alarm inputs and output. Alarm terminal is shown below.
Alarm inputs, may be set either as normal open (N.O.) or normal closed (N.C.) Check the NVR menu
settings (chapter “Alarm section” in user’s manual). The ground of the alarm device needs to be
connected to one of the G connectors. Detailed information on alarm configuration can be found in the
chapter "Alarms" in the user manual.
Alarm output is a relay with 2 connectors (ALARM connectors on terminal). Max contact ratings are
3A 250VAC / 3A 30VDC.
2.8. Front panel elements
1. IR receiver.
2. Power LED (red). When the LED is light on, it means NVR is working.
3. HDD LED (green). Flickering indicates the recording or playback is in progress.
4. USB port for external HDDs, Flash memory or USB mouse connection.
STARTING THE DEVICE
NVR-4308P8-H1
8765G4321GALARM ALARM
Alarm Inputs Alarm Output
NVR-4204P4-H1
4321GALARM ALARM
Alarm Inputs Alarm Output
1 2 3 4

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
15
3. NVR OPERATING
3.1. Control
Recorders can be controlled using IR remote controller or USB mouse.
3.1.1. Controlling via IR remote controller
IR remote controller is included with NVR. IR range depends on battery status and may vary between a
few and several meters.

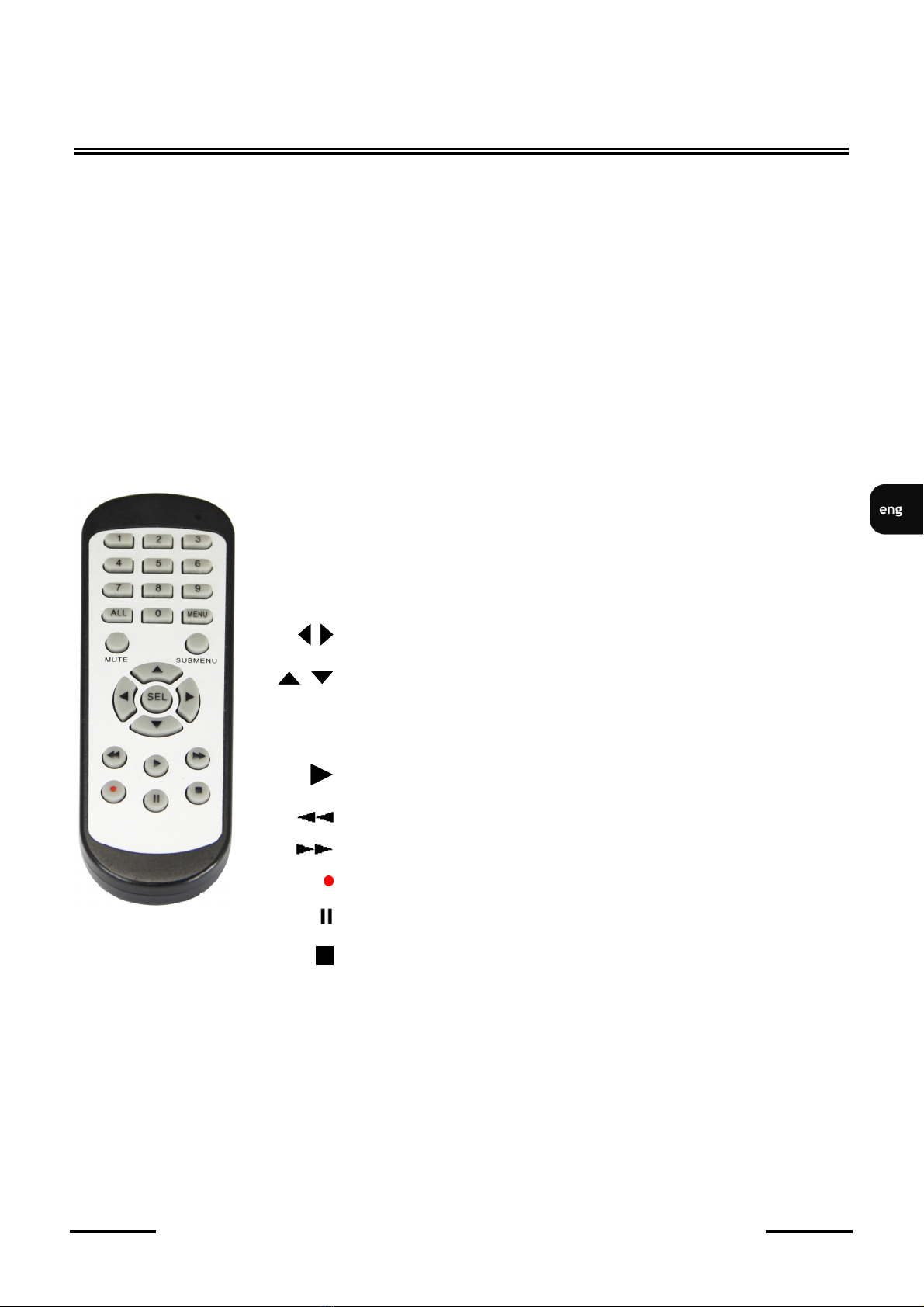

Controller is supplied with two AAA batteries. Buttons functions are listed below.
3.1.2. Controlling via USB mouse
It is possible to control NVR functions using an USB mouse. Double-clicking on any camera in
division mode (e.g. 2x2, 3x3, etc.) switches the display to full-screen mode. Another double-click
returns to previous display mode. Move cursor to the bottom of the screen to display menu bar. Press
left mouse button on the channel video to display channel menu. Certain positions allow to select them
via mouse scroll. Depending on NVR operating mode, right mouse button leaves menu.
NVR OPERATING
0 - 9
Numeric buttons for channel selection. Channel 10 and another
can be selected using buttons combination. i.e. to open channel
15 press „1” and then „5”.
ALL Toggles between different display formats: 1, 4, 9, etc.
MENU Enters to main menu. Pressing this button cancel the selection
and leaving the menu also.
SUBMENU In live mode open the Popup menu.
Navigation control „left”, „right”. In live mode open the Popup
menu.
Navigation control „up” , „down”.
SEL Button is used for confirm the selection and start to editing
fields. In live mode open the Popup menu.
Switch on playback mode. Open Record Search menu. In live
mode open the Popup menu.
Slow down playback speed.
Fast up playback speed.
Turn on manual record.
Playback pause, press again to play frame by frame.
Stop the playback. In live mode stop the manual recording.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
16
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
NVR OPERATING
3.2. First Launch Wizard
3.2.1. Language selection and creating password
To start the unit connect the power cable to DC adapter, turn on the power switch on back panel and
wait for initialization. It lasts for approximately 60 seconds. During this time executing any device
functions and pressing any buttons is prohibited. After first launch NVR displays window as below. It
allows to change the language. Select the desired one from the Language list.
Default language is English. If you change the language, all the descriptions will be translated
automatically.
Click on the field to expand list or display virtual keyboard.
New Admin Name - name of administrator account (default: admin).
Password Strenght - the scale showing how strong is the written password. It is updated on the fly
while typing the password in the next fiels. Password strenght can be Low, Medium or High and
marked with Red, Yellow or Green color.
New Admin Password - it is required to create access password. It must contain 5-15 characters.
Confirm password - enter the access password again to confirm.
Show Password - shows password instead of masking marks.
Unlock Pattern Enable - enables an alternative authentication method for the password using the
pattern. It allows to enter administrative settings and make changes. Some settings, such as disk
formatting, import/export settings still require password authentication.
Draw - the function shows when Unlock Pattern function is enabled. It allows to create an unlock
pattern. There is 3x3 board to create a pattern by dragging the mouse cursor. The pattern has to be
confirmed by dragging the mouse cursor again.
Apply - saves settings.

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
17
NVR OPERATING

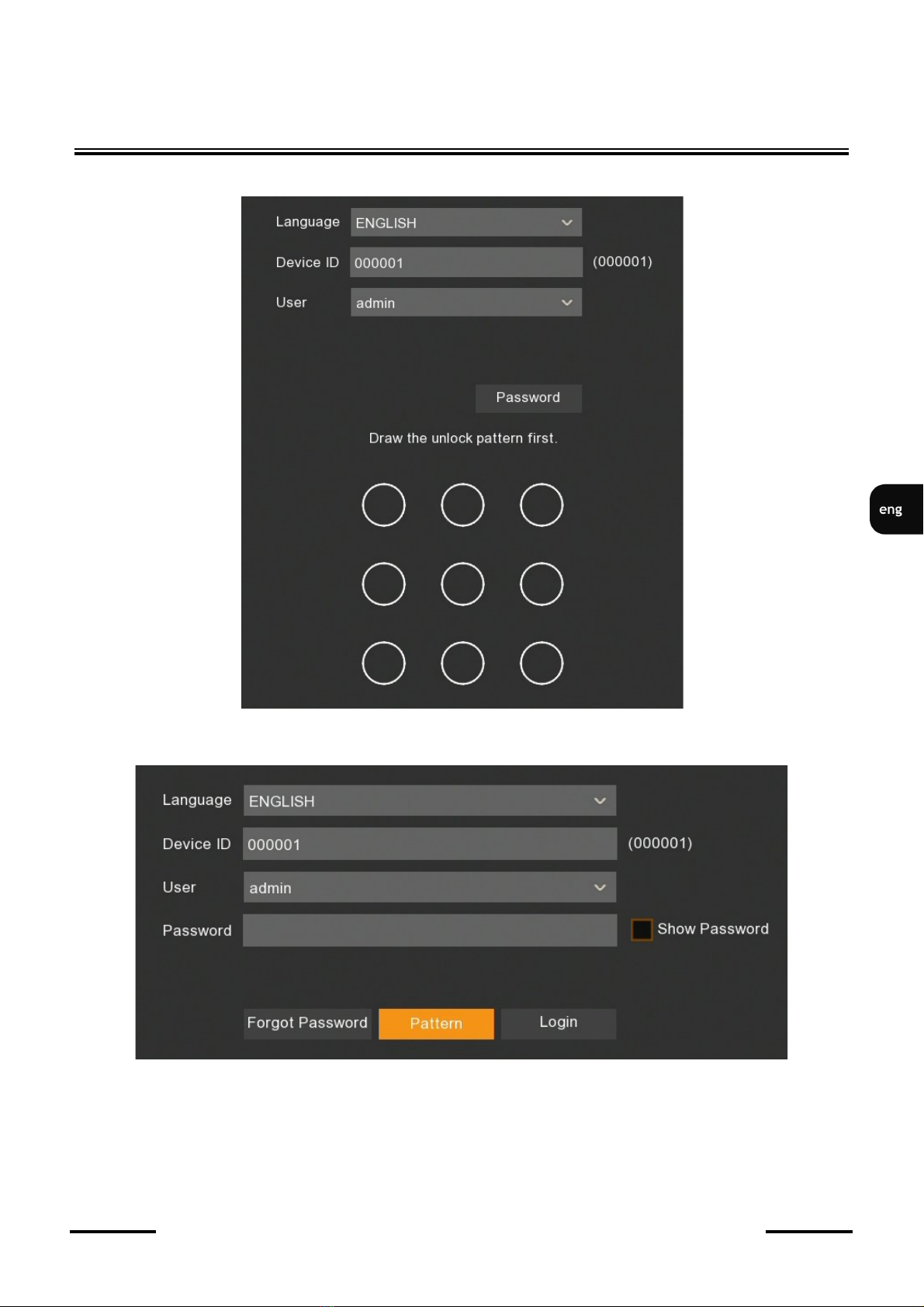

The next step is to log in using the created user data.
The Password button switch to login window using defined password.
The Pattern window switch back to previous window.
After authentication the First Launch Wizard opens.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
18
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
NVR OPERATING
3.3. Frist Launch Wizard
The first launch wizard provides a quick way to configure basic NVR settings.
When the Start Wizard will be pressed, subsequent sections of the wizard will appear.
The Next and Previous buttons allow to toggle between consecutive sections. The Cancel button exits
the wizard without saving any changes.

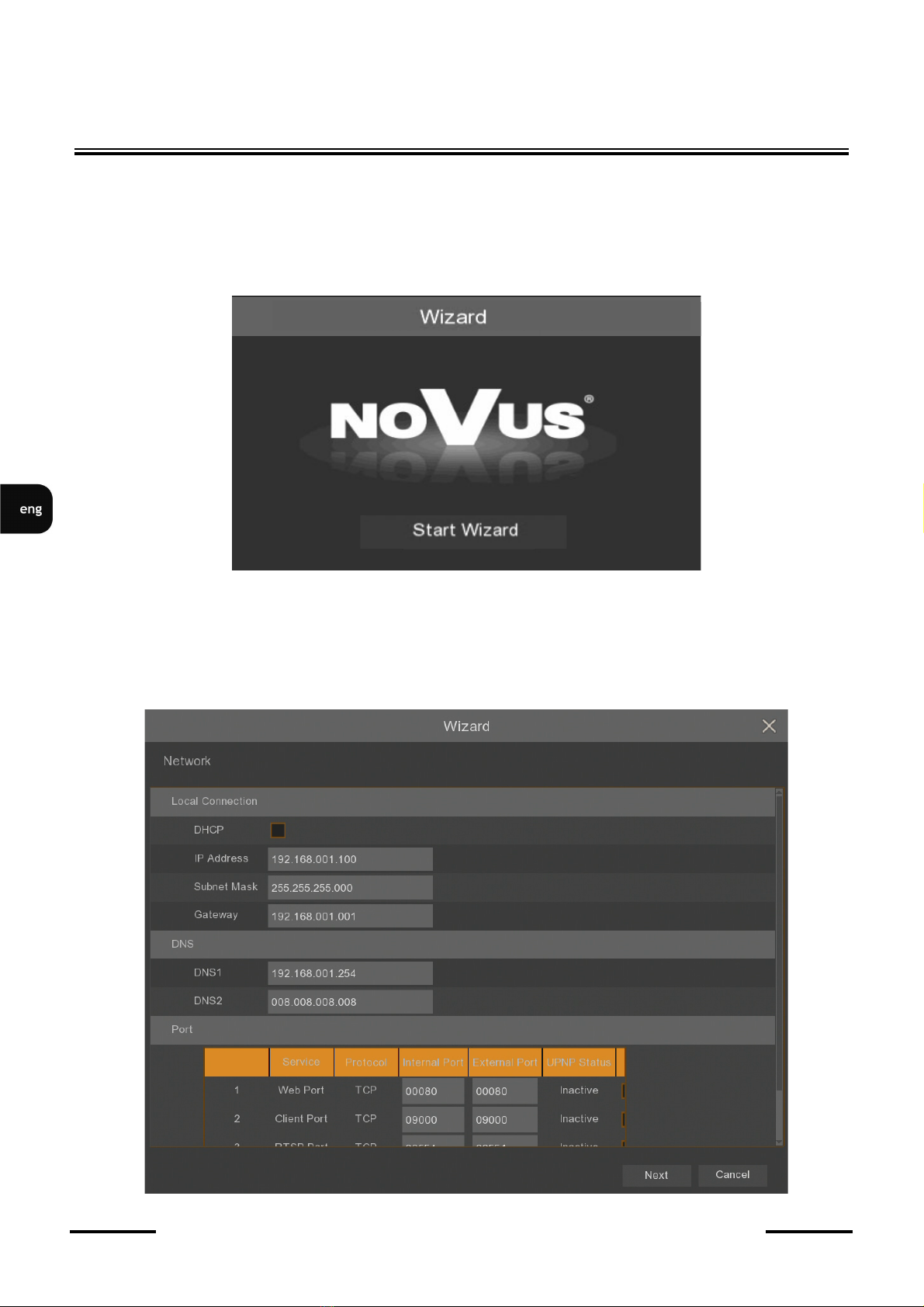

3.3.1. Network Settings

NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
19
NVR OPERATING
This section contains basic network settings:
DHCP - enable network settings retrieval from a DHCP server.
IP Address - network address of the recorder in the local network.
Subnet Mask - number dividing in IP address the network part.
Gateway - IP address of the router for Internet connection.
DNS1 - domain server address.
DNS2 - alternative domain server address.
Web Port- the port used to connect with the NVR network plugin by Internet Explorer browser.
Client Port - the port used to connect with the NVR by NHDR-5000Viewer, NMS, RxCamView.
RTSP Port - the port used for RTSP streaming from NVR..
HTTPS - the port used while the connection with HTTPS protocol.
UPNP - enable the UPnP discovery feature. The UPnP function must be supported by the router.
UPNP Status - informs if the UPnP function is active for the port (Active or Inactive).
Caution! NVR-4116-H1 cannot be assigned a network address 10.10.xxx.xxx
3.3.2. Time and date settings
This section contains all the date and time options in the recorder.
Date - select day from calandar.
Time - current NVR time. It can be written manually.
Date Format - dispaly format of the date (MM/DD/YY, YY-MM-DD, DD/MM/YY).
Time Format - display format of time (12 Hour or 24 Hour).
Time Zone - display a time zone depending on the region.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
20
NVR-4204P4-H1, NVR-4308P8-H1, NVR-4116-H1 User’s manual (short) ver.1.4
NVR OPERATING
The recorder allows to synchronize time with the NTP server. The NTP server can be selected from
drop-down list. The User-Deifined option allows to enter any IP address of the time server.
The correct network settings and connection are required to allow communication with the NTP server.
The recorder allows to set daylight saving time.
Time Offset - defines time advancing (1Hour, 2Hour).
DST Mode - defines method of switching by specified Week, or by specified Day.
Start Time - defines first day of DST.
End Time - defines last day of DST.
3.3.3. Adding IP cameras
The section allows for adding IP cameras to the NVR. All channels of NVR-4204P4-H1 and NVR-
4308P8-H1 recorders are in automatic PoE mode by default. It means that connecting Novus 2000 or
4000 series IP camera to PoE port add it automatically to the list (camera has to have default
password).
Caution! Automatic PoE mode supports only Novus 2000 and 4000 series IP cameras.
