Novus NVR-7308P8-H2 User manual

U s e r ’s m a n u a l
(s h o rt )
NVR-7308P8-H2
NVR-7316P8-H2
NVR-7524P8-H4

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
2

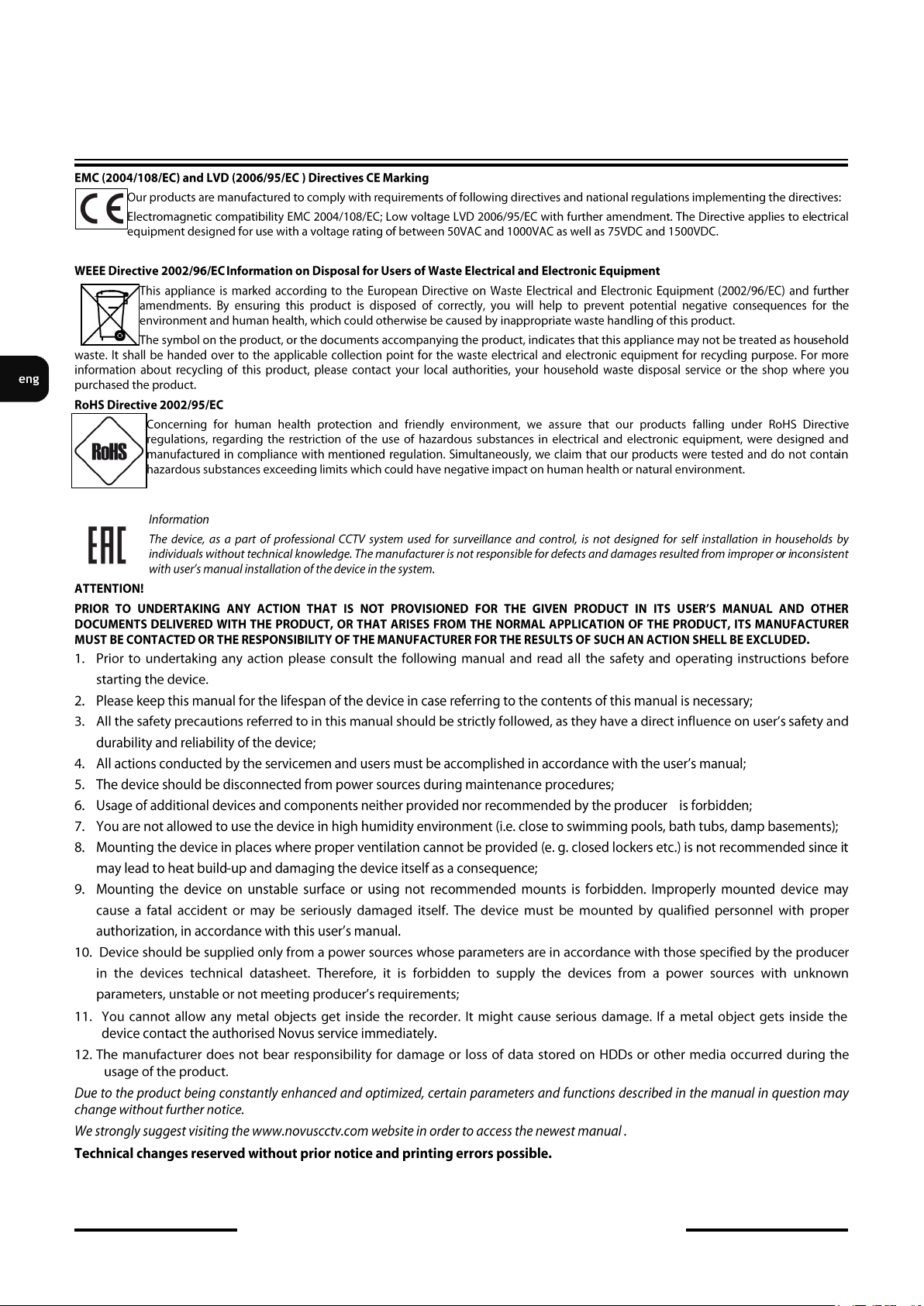

IMPORTANT SAFEGUARDS AND WARNINGS

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
3
FOREWORD INFORMATION
1. FOREWORD INFORMATION
1.1. Network recorder’s technical data
NVR-7308P8-H2
Video
IP Cameras 8 channels at 2592 x 1944 resolution (video + audio)
Supported Cameras/Protocols NOVUS, ONVIF
Supported Resolution max. 2592 x 1944
Compression H.264
Monitor Output main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA (up to 2 monitors simultaneously)
Dualstreaming Support yes*
Audio
Audio Output 1 x line-out (RCA), 1x HDMI
Recording
Recording Speed
240 fps (8 x 30 fps for 1280 x 720), 240 fps (8 x 30 fps for 1920 x 1080),
240 fps (8 x 30 fps for 2048 x 1536), 240 fps (8 x 30 fps for 2560 x 1440),
240 fps (8 x 30 fps for 2592 x 1944)
Stream Size 150 Mb/s in total from all cameras
Recording Mode time-lapse, triggered by: manual, alarm input, motion detection
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility
of combining individual recording modes
Prealarm/Postalarm up to 30 s/up to 180 s
Display
Display Speed 240 fps (8 x 30 fps)**
Playback
Playback Speed 240 fps (8 x 30 fps) **
Recorded Data Search by date/time, events
Backup
Backup Methods USB port (HDD or Flash memory), network, eSATA port (HDD)
Backup File Format AVI, DAT
Storage
Internal storage for recording available mount: 2 x HDD 3.5” SATA***
Total Capacity 12 TB
Alarm
Internal Alarm Input/Output 2/1 relay type
Motion Detection supports camera’s motion detection*
System Reaction to Alarm Events buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP
ONVIF Protocol Support Profile S (ONVIF 2.2 or higher)
PC/MAC Software NMS, Internet Explorer, Firefox, Chrome, Opera/Safari
Max. Number of Connections with NVR 2
Bandwidth 150 Mb/s in total to all client workstations
PTZ
PTZ Functions pan/tilt/zoom, preset commands*
Auxiliary Interfaces
USB Ports 1 x USB 2.0, 1 x USB 3.0
Operating system
Operating System Linux
Operation Mode triplex
OSD languages: Polish, English, others
Control PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, network, camera connection loss
Security password protection, IP filtering, MAC filtering
Installation parameters
Dimensions (mm) 340 (W) x 77 (H) x 217 (D)
Weight 3.2 kg
Power Supply 100 ~ 240 VAC
Power Consumption 40 W (with 2 HDDs) + 123 W PoE
Operating Temperature 0°C ~ 50°C
* Function depends on communication protocol, for details please check compatibility table in section DOWNLOADABLE FILES.
** Available with dual streaming mode.
*** List of compatible HDD models and maximum of their capacities is available in section DOWNLOADABLE FILES.

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
4
FOREWORD INFORMATION
NVR-7316P8-H2
Video
IP Cameras 16 channels at 2592 x 1944 resolution (video + audio)
Supported Cameras/Protocols NOVUS, ONVIF
Supported Resolution max. 2592 x 1944
Compression H.264
Monitor Output main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA (up to 2 monitors simultaneously)
Dualstreaming Support yes*
Audio
Audio Output 1 x line-out (RCA), 1x HDMI
Recording
Recording Speed
480 fps (16 x 30 fps for 1280 x 720),
480 fps (16 x 30 fps for 1920 x 1080),
480 fps (16 x 30 fps for 2048 x 1536),
480 fps (16 x 30 fps for 2560 x 1440),
480 kl/s (16 x 30 fps for 2592 x 1944)
Stream Size 150 Mb/s in total from all cameras
Recording Mode time-lapse, triggered by: manual, alarm input, motion detection
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility
of combining individual recording modes
Prealarm/Postalarm up to 30 s/up to 180 s
Display
Display Speed 480 fps (16 x 30 fps)**
Playback
Playback Speed 480 fps (16 x 30 fps) **
Recorded Data Search by date/time, events
Backup
Backup Methods USB port (HDD or Flash memory), network, eSATA port (HDD)
Backup File Format AVI, DAT
Storage
Internal storage for recording available mount: 2 x HDD 3.5” SATA***
Total Capacity 12 TB
Alarm
Internal Alarm Input/Output 2/1 relay type
Motion Detection supports camera’s motion detection*
System Reaction to Alarm Events buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP
ONVIF Protocol Support Profile S (ONVIF 2.2 or higher)
PC/MAC Software NMS, Internet Explorer, Firefox, Chrome, Opera/Safari
Max. Number of Connections with NVR 2
Bandwidth 150 Mb/s in total to all client workstations
PTZ
PTZ Functions pan/tilt/zoom, preset commands*
Auxiliary Interfaces
USB Ports 1 x USB 2.0, 1 x USB 3.0
Operating system
Operating System Linux
Operation Mode triplex
OSD languages: Polish, English, others
Control PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, network, camera connection loss
Security password protection, IP filtering, MAC filtering
Installation parameters
Dimensions (mm) 340 (W) x 77 (H) x 217 (D)
Weight 3.2 kg
Power Supply 100 ~ 240 VAC
Power Consumption 40 W (with 2 HDDs) + 123 W PoE
Operating Temperature 0°C ~ 50°C
* Function depends on communication protocol, for details please check compatibility table in section DOWNLOADABLE FILES.
** Available with dual streaming mode.
*** List of compatible HDD models and maximum of their capacities is available in section DOWNLOADABLE FILES.

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
5
FOREWORD INFORMATION
NVR-7524P8-H4
Video
IP Cameras 24 channels at 2592 x 1944 resolution (video + audio)
Supported Cameras/Protocols NOVUS, ONVIF
Supported Resolution max. 2592 x 1944
Compression H.264
Monitor Output main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA (up to 2 monitors simultaneously)
Dualstreaming Support yes*
Audio
Audio Output 1 x line-out (RCA), 1x HDMI
Recording
Recording Speed
720 fps (24 x 30 fps for 1280 x 720),
720 fps (24 x 30 fps for 1920 x 1080),
720 fps (24 x 30 fps for 2048 x 1536),
720 fps (24 x 30 fps for 2560 x 1440),
720 fps (24 x 30 fps for 2592 x 1944)
Stream Size 150 Mb/s in total from all cameras
Recording Mode time-lapse, triggered by: manual, alarm input, motion detection
Schedule individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility
of combining individual recording modes
Prealarm/Postalarm up to 30 s/up to 180 s
Display
Display Speed 720 fps (24 x 30 fps)**
Playback
Playback Speed 720 fps (24 x 30 fps) **
Recorded Data Search by date/time, events
Backup
Backup Methods USB port (HDD or Flash memory), network, eSATA port (HDD)
Backup File Format AVI, DAT
Storage
Internal storage for recording available mount: 4 x HDD 3.5” SATA***
Total Capacity 24 TB
Alarm
Internal Alarm Input/Output 4/2 relay type
Motion Detection supports camera’s motion detection*
System Reaction to Alarm Events buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment
Network
Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP
ONVIF Protocol Support Profile S (ONVIF 2.2 or higher)
PC/MAC Software NMS, Internet Explorer, Firefox, Chrome, Opera/Safari
Max. Number of Connections with NVR 2
Bandwidth 200 Mb/s in total to all client workstations
PTZ
PTZ Functions pan/tilt/zoom, preset commands*
Auxiliary Interfaces
USB Ports 1 x USB 2.0, 1 x USB 3.0
Operating system
Operating System Linux
Operation Mode triplex
OSD languages: Polish, English, others
Control PC mouse (in-set included), network
System Diagnostic automatic control of: HDDs, network, camera connection loss
Security password protection, IP filtering, MAC filtering
Installation parameters
Dimensions (mm) 440 (W) x 70 (H) x 301 (D)
RACK Mount 19" 1.5U
Weight 3.7 kg
Power Supply 100 ~ 240 VAC
Power Consumption 60 W (with 4 HDDs) + 123 W PoE
Operating Temperature 0°C ~ 50°C
* Function depends on communication protocol, for details please check compatibility table in section DOWNLOADABLE FILES.
** Available with dual streaming mode.
*** List of compatible HDD models and maximum of their capacities is available in section DOWNLOADABLE FILES.

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
6
FOREWORD INFORMATION
1.2. Main characteristics
 Supports resolution up to 2592 x 1944
 8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s
 Supported protocols: ONVIF
 Monitor outputs: 2 (HDMI, VGA)
 Recording speed up to 720 fps at 2592 x 1944 (for NVR-7524P8-H4)
 Recorded stream size up to 200 Mb/s in total from all cameras (for NVR-7524P8-H4)
 Internal HDDs mount up to 4 (for NVR-7524P8-H4)
 RACK mount (for NVR-7524P8-H4)
WARNING!
ONVIF protocol support was verified with IP cameras based on ONVIF ver. 2.2 and compatible
with the "PROFILE S".
Implementation of the ONVIF protocol by different manufacturers may vary by some functions,
which can make them work improperly or not in accordance with expectation. AAT HOLDING
Company is not responsible for incompatibility problems resulting from cameras of other brands
than NOVUS, which are using ONVIF protocol. If you are using ONVIF protocol cameras other
than NOVUS brand it is recommended to test each time whether required functions work
correctly.
1.3. Package contents
Unpack the device carefully. After unpacking, please ensure that package contains the following items:
 Network Video Recorder
 SATA cables for HDDs (NVR-7524P8-H4 only)
 USB Mouse
 Accessory bag with RACK mount and screws (NVR-7524P8-H4 only)
 Power cord
 User’s manual (short)
If any of the elements has been damaged during transport, pack all the elements back into the original
packaging and contact your supplier.

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
7
STARTING THE DEVICE
2. STARTING THE DEVICE
2.1 Electrical connection and other back panel elements.
NVR-7308P8-H2, NVR-7316P8-H2 back panel
NVR-7524P8-H4 back panel
1. FAN: NVR fan, do not cover it.
2. POWER SW: NVR power switch.
3. POWER SOCKET: To plug in the power cord
4. GROUND CONNECTOR: To connect ground cable
5. AUDIO IN: Audio mono inputs to connect microphones*.
6. VGA: Main monitor connectors, use the D-SUB VGA cable to connect monitor.
7. E-SATA: To connect external HDD for backup records.
8. TERMINAL: Alarm input, alarm output, RS-485* interface.
9. SS: USB 3.0 port for external Flash memory and other USB devices.
10. 1080P (HDMI): Main monitor connectors, use the HDMI cable to connect monitor.
11. AUDIO OUT: Port to connect local speaker with pre-amplifier.
12. LAN: RJ-45 connector port to connect to the local network and internet.
13. IPC LAN: 8 x RJ-45 connector ports with PoE support for IP cameras
* Will be available in the future.
8
2
9
10 11 12 13
1 3 4 7 6 1 5
8
2
9 10 11 12 13
1 3 7 6 5 4

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
8
STARTING THE DEVICE

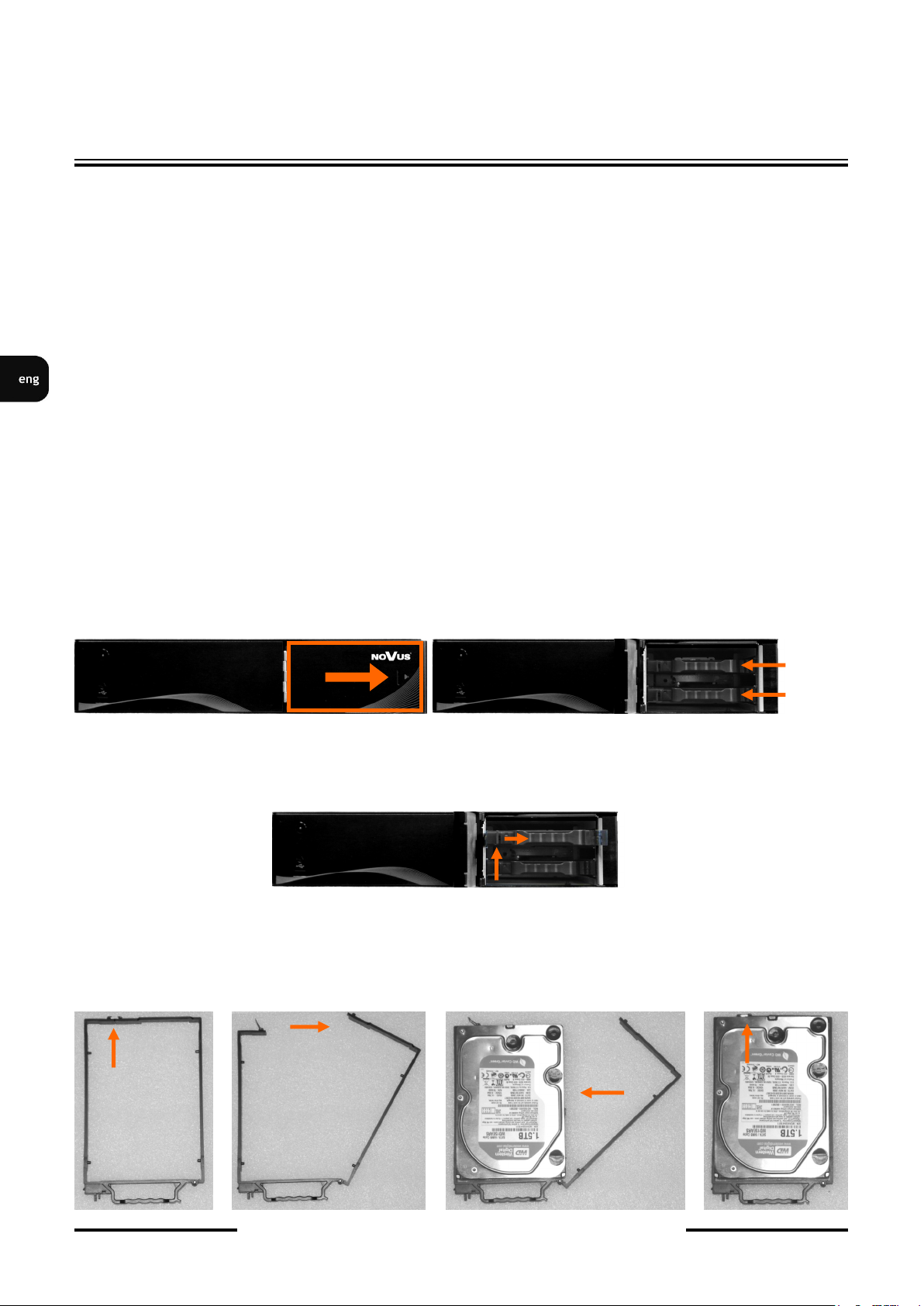

2.2 HDD mounting
Novus NVR supports 2 internal SATA HDD (models NVR-7308P8-H2, NVR-7316P8-H2) or 4
internal SATA HDD (model NVR-7524P8-H4).
WARNING!
In order to find information regarding the compatible models of HDDs and their maximum
capacities, please contact Novus distributor or check the information presented at
www.novuscctv.com. AAT HOLDING Company is not responsible for any problems from using
not recommended hard drives.
The list of compatible HDDs contains all the HDDs that can be used with a given DVR including
HDDs designed for office use - so called desktop disks. However, due to the fact that reliability of
the recording process and data safety are paramount factors of any CCTV system, we strongly
advise to use HDDs designed for continuous (24/7) operation.
You need to format disks if they were used in a different device. All data saved on HDD prior to
format will be lost.
Installation HDD in NVR-7308P8-H2, NVR-7316P8-H2
In order to mount HDD, please move front HDD cover to the right, and next open it.
There are two HDD brackets inside. To remove bracket carefully push lock switch (A) to the right side
(B) and then pull out the bracket.
When you have removed HDD bracket carefully unlock bracket connector (C) and open the bracket
(D). Next mount HDD on place (E), close the bracket and lock by connector (F). Notice that you don't
have to use any screw to install HDD, installing one HDD take less than 30s.
HDD2
HDD1
A
B
C
D
E F

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
9
STARTING THE DEVICE
Next put bracket with HDD on his place, and carefully push it into NVR socket. The same way install
HDD2 if necessary. After installing all HDD close the front cover.
Installation HDD in model NVR-7524P8-H4
In order to mount HDD, please unscrew 3 screws on the NVR back, 2 screw on left side and 2 screw on
right side (check at image below). Next move up and remove top cover.
Inside of NVR you will see 2 brackets for 2 HDDs each. To install HDD unscrew HDD bracket from
the NVR bottom.
Put HDD1 up side down under the bracket like on image and screw it by 4 screws. Next put HDD2
upside down into bracket like on image and screw it by 4 screw.
HDD1
HDD2
HDD3
HDD4

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
10
STARTING THE DEVICE
When all HDDs are installed mount bracket to the NVRs side and screw it tightly. Then connect the
power cable and data cable to the disks. In the same way install HDDs in other brackets, and mount
bracket in NVR.
At the end install the top cover on the NVR and screw it back.
2.3. Connecting the power supply.
Please connect provided power cord in the rear power port of the NVR like depicted below.
To start the unit turn on the power switch on back panel. Initialization lasts approximately 60 seconds.
During this time executing any device functions and pressing any buttons is prohibited. To shut down
the device please use the menu.
CAUTION:
Make connection when the power is not applied and the power switch is turned off.
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded.
However, even if it's not earth-grounded, never modify it on your own for earth-grounding.
Make sure that power adapter is placed near of NVR and secured from accidental disconnection.
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
POWER CORD
POWER SWITCH

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
11
2.4. Connecting monitor
This product supports following interfaces for main monitor: HDMI, VGA.
For HDMI and VGA outputs following resolutions are supported: 800x600, 1024x768, 1280x720
1280x1024, 1366x768, 1440x900, 1920x1080.
After changing resolution you have to confirm it by clicking YES. In case of monitor does not display
anything please wait 8 seconds, then previous resolution will be restored.
2.5. Connecting camera and Network
NVRs have built-in 8 PoE ports RJ-45 with PoE support, which can be used for connecting cameras.
Please notice that the Ethernet connection is effective within 100 meter distance. To connect IP
cameras please connect cables like on image and follow the described below.
 In case of adding IP cameras to built-in PoE switch, you don not have to set up any parameters
of camera. After connecting camera to RJ45 port it would be automatically powered, discovered
in network and connected to NVR.
 In case of connecting cameras by using external switch you have to configure its network
settings (according to NVR LAN setting) like it is described in Camera User Manual.
Note:
NVR saves password automatically. If you provide unique password while adding one camera it
would be automatically used for connecting with other cameras.
Note:
To ensure recording stability from an overloaded network traffic, or unauthorised access, it is
strongly recommended to create separate network secured by router firewall from the user network.
If you use a switch to connect additional cameras it is recommended not to exceed 60% of the
maximum throughput of the network interface. When connecting more than 6 cameras via a external
switch we recommend you to use a 1000 Mbit switch
STARTING THE DEVICE
ETHERNET SWITCH
INTERNET
PC
COMPUTER
IP CAMERAS
NOVUS NVR
IP CAMERAS

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
12
2.6. Connecting external devices
 Connecting audio ports
Audio output signal normally are above 200mV 1kΩ. You can connect to it the audio amplifier with
the external speakers.
 Connecting USB devices
NVR has 1 x USB 2.0 port on front and one 1 x USB 3.0 on back. They could be used for connecting
external Flash memory, USB HDD, mouse connection and other USB compatible devices. To connect
storage memory it is recommended to use port USB 3.0
 Connecting alarms ports
NVR-7000 series has local alarm input and output. To connect alarm input please refer image below:
To activate alarm input (1,2,etc) connect it to +12V pin from NVR, or connect between pin GND and
alarm input external voltage from range 1~12VDC.
Depending of sensor type select in NVR N.O. or N.C. mode.
To connect alarm input please refer image below:
Alarm output it’s a relay with 2 connectors 1A and 1B. Do not exceed maximum relay parameters:
voltage 24V AC/DC and current 1A.
STARTING THE DEVICE
In1 In2 12V GND
NVR
SENSOR
In1 In2 12V GND
NVR
SENSOR
1~12VDC
1A 1B
NVR
ALARM
POWER
SUPPLY

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
13
NVR OPERATING
3. NVR OPERATING
3.1. Front panel description
1. ON/OFF Reset button (maintenance only) / Hardware turn on/off button.
2. USB USB 2.0 port for external Flash memory and mouse connection.
3. LED Shows power, recording, network connection or active alarm statuses.
3.2. Controlling via USB mouse
It is possible to control NVR via an USB mouse connected to the USB port. Double-click on any
camera in split screen display mode switches the display to full-screen mode. Subsequent double-click
returns to previous display mode. Move cursor to the top or click the right key of mouse to bring up
MAIN MENU and select START icon.
Certain positions allow to select them via mouse scroll. Depending on NVR operating mode, pressing
RMB displays a corresponding function menu.
3.3. System operations
To start NVR plug power cable and switch on power button. The power led turns on. After booting, the
video output default is multi-window output mode.
Note:
If the currently selected NVR menu language is not as expected, to change it, please follow the
procedure described in chapter 4.3 of this manual.
2 3 1
2 1 3

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
14
By default local authorization of NVR is disabled so you can manipulate NVR without any username
or password. After configuring NVR it is strongly recommended to set up user password.
Default login is root/pass. For safety reasons, it is recommended to change default user name
and password.
In order to shutdown or reboot NVR you should move cursor to the bottom icon or click the right
key of mouse and select START icon . Next click the SYSTEM MAINTAINANCE and SYSTEM
SHUTDOWN. You could also use button at front or rear panel turn bring shutdown menu.
In pop-up window choose LOGOUT, SHUTDOWN or RESTART and wait until it will be finish.
To prevent unauthorized access, it is recommended to log out when you leave the screen, or set up
AUTOLOCK feature.
Note:
When user is not login or has limited rights all inactive icon and menus are greyed out.
CAUTION:
If you turn off the system in an abnormal manner such as removing the power cord while the
system is working, the disk will acquire or increase the numbers of bad sectors, causing data
loss and shortened life cycle of the disk.
NVR OPERATING

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
15
3.4. Startup configuration
Prior to using NVR for the first time, initial setup is strongly advised. Before you connect the IP
cameras to the NVR, please set up network and stream parameters of IP cameras in the right way.
Note:
For suggested values for IP camera setting please refer to the “Cameras Capability Table” available
on the www.novuscctv.com website. If you set wrong values some problems may appear: the NVR
cannot search the IP camera, the stream cannot be connected, the image is not fluent, the image quality
is bad and so on.
In case of first NVR start QUICK SETTING menu window will occur (if function wasn’t disabled
earlier). To configure NVR please follow procedure like below, after step 5 NVR will be ready to
work:

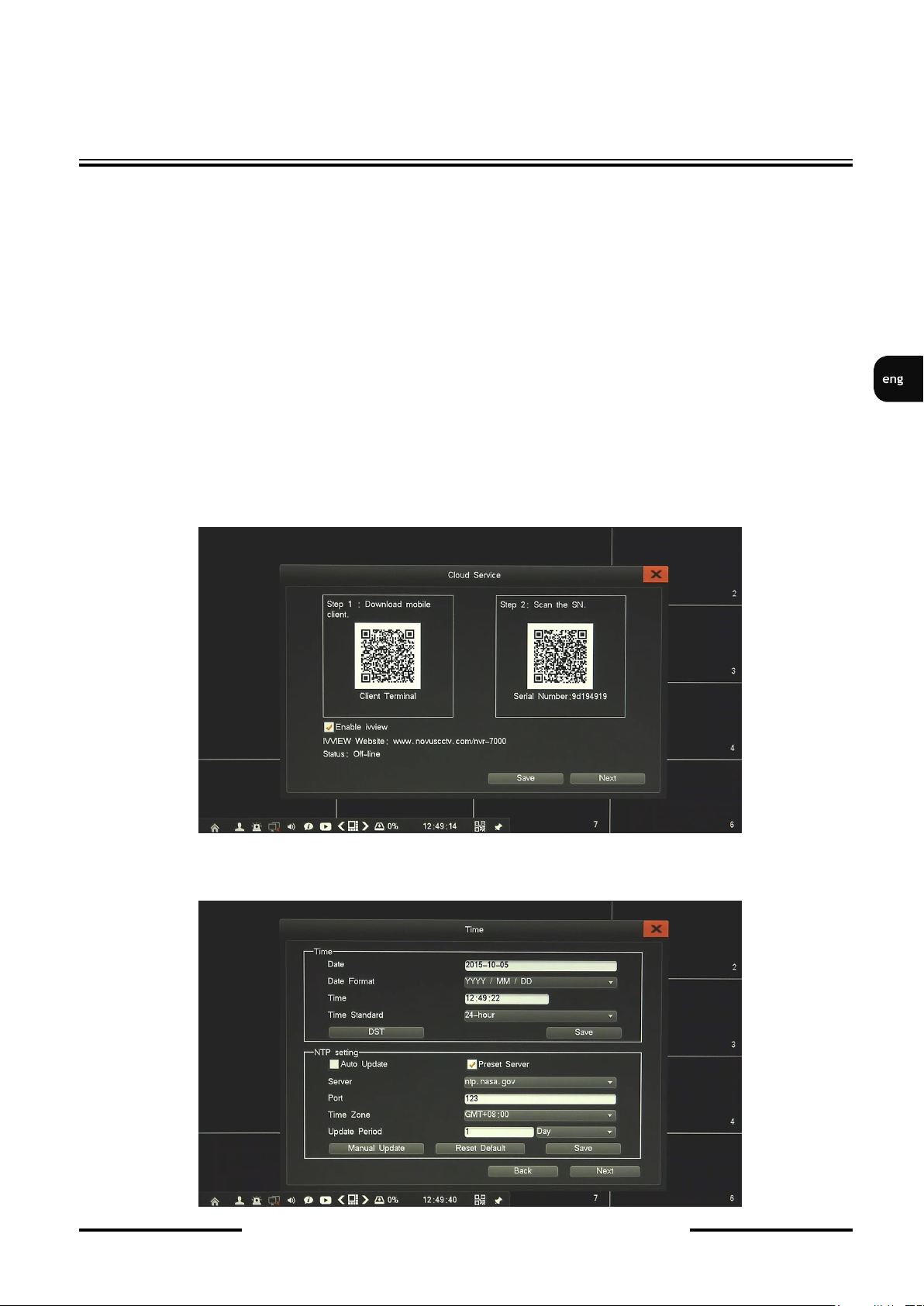

I. Cloud Service: menu allows to enable cloud access to NVR. After changing parameters click
SAVE button. There are also two QR codes to scan in mobile device, first is link for mobile
software, and second is serial number of NVR to easy connect NVR.
II. Time Settings: menu allows to configure NVR local time and NTP settings. After changing
parameters click SAVE button for each submenu.
NVR OPERATING

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
16
III. Network Settings: set up network parameters according to you ISP information: IP (by default it
is 192.168.1.100) SUBNET MASK (by default it is 255.255.255.0). Optionally if you are going
to connect NVR to the Internet (for cloud access, sending email, etc) set up GATEWAY,
PRIMARY and BACKUP DNS. You can alternatively check DHCP mode (DHCP server is
required in this method in target network) then all settings will be set up automatically.
Note:
When you use DHCP server check IP address lease and its linking with NVR MAC address to avoid
changing or losing IP address during device operation or network/DHCP server breakdown. This
solution is not recommended for security systems.
Note:
Be sure that IP addresses and subnet mask of the NVR and the IP cameras are in the same network
subnet (e.g. for the NVR IP address 192.168.1.188, and mask 255.255.255.0 appropriate address for
the camera ranges from 192.168.1.1 to 192.168.1.254, for example 192.168.1.201). It is not allowed to
set the same addresses for multiple devices.
IV. HDD Manage: menu allows to prepare new installed hard disk to work. If you run it for the first
time simply click ALL FORMAT button, and wait until progress will finish.
NVR OPERATING

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
17
V. IP Camera Management: menu allows to manage IP cameras connected to the system. There are
two possibility to connect IP cameras:
 Camera is connected to build-in PoE switch. In such situation camera will be automatically
discovered and added to NVR at channel corresponding to PoE port of NVR (A selection).
Also no need to provide camera password if it’s camera default password. If you modify
password you have to fill it in by clicking EDIT channel. I it will also fit to other cameras it
would be automatically used for them. Please note that only first 8 channels are working
this way.
Note:
NVR has included automating camera IP assign. If IP conflict will be detected IP addresses of
conflicted cameras would be changed automatically.
 Camera is connected to external switch by LAN port. In such situation all cameras will be
discovered and displayed as list (B). To add camera just click + , if its status is green
then it would be added to the system at first empty channel (after PoE channels - C), if
status would be red then pop up window occurs to provide user name and password. In
the same way add other cameras.
Note:
NVR saves password automatically. If you provide unique password while adding one camera it would
be automatically used for connecting with other cameras.
NVR OPERATING
A
C
B

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
18
VI. Bitrate Integrated Management: menu allows to modify mainstream and substream values.
Stream size could be chosen by user for each stream. After changing value, confirm it by SAVE
button. It is also possible to set streams size automatically by using SMART CONFIG button.
After pressing button streams would be set according to current image resolution and frame rate.
At the bottom of screen there are displayed information about available bandwidth for recording
camera and amount of days, which could be stored on HDD free space.
When finished all steps close wizard by FINISH button at the bottom of screen. Now system is ready to
work.
NVR OPERATING

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
19
4. NVR MENU
4.1. Live monitoring
NOVUS network video recorders features a multilingual OSD menu allowing to adjust the settings of
the device. Available languages are: English, Polish, and others
As soon as the NVR completes its initialization process, it will enter the real-time monitoring image.
Displaying all cameras simultaneously is the default mode. On the bottom of screen STATUS BAR is
displayed.
At the right top right corner of video channel, shows its channel number is shown. In the bottom right
corner of each channel image, shows capture recording status icon (motion, alarm, manual) is shown.
STATUS BAR description:
NVR MENU
VIDEO WINDOW
STATUS BAR QUICK MENU

NVR-7308P8-H2, NVR-7316P8-H2, NVR-7524P8-H4, User’s manual (Short) ver.1.0
All rights reserved © AAT Holding S.A.
20
Right mouse click on screen will bring QUICK MENU for quick operation.
QUICK MENU description:
NVR MENU
