Novus NVR-6304P4A-H1-II User manual

Quick start guide
NVR-6304P4A-H1-II
NVR-6308P8A-H1-II

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
2
CAUTIONS AND WARNINGS
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Exclusion of liability in the event of damage to data contained on disks or other devices or media:
The manufacturer is not liable in the event of damage or loss of data contained on disks or other
devices or carriers during the operation of the Product.
Obligation to consult the Manufacturer before performing any action not provided for
in the instruction manual or other documents:
Before performing an action that is not provided for a given Product in the user manual, other
documents attached to the Product or does not result from the normal purpose of the Product, it is
necessary, under pain of exclusion of the Manufacturer's liability for the consequences of such action,
to contact the Manufacturer.
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area,
or environmental conditions.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE
COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States
relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)
(OJ L 197, 24.7.2012, p. 38–71, with changes).
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances
in electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).
COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards
the list of restricted substances.
DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction
of the use of certain hazardous substances in electrical and electronic equipment.
DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 26 February 2014 on the harmonisation
of the laws of the Member States relating to the making available on
the market of electrical equipment designed for use within certain voltage limits.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
3
SAFETY REQUIREMENTS
1. Please read this manual carefully before installation and operation;
2. Please keep this manual for the lifespan of the device in case referring to the contents of this
manual is necessary;
3. It is necessary to comply with the safety requirements described in the manual, as they have
adirect impact on the safety of users and the durability and reliability of the device;
4. All activities performed by installers and users must be carried out as described in the manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. It is not allowed to use any additional devices, components or accessories not provided for and not
recommended by the manufacturer;
7. Do not install this device in places where proper ventilation cannot be provided (e.g. closed
cabinets, etc.), as this may cause heat build-up and may result in damage;
8. Do not place the device on unstable surfaces. Installation must be carried out by qualified
personnel with appropriate permissions in accordance with the recommendations provided in this
manual;
9. The device may be powered only from sources with parameters compliant with those indicated
by the manufacturer in the technical data;
Before using the device, read the instruction manual in order to ensure proper and safe operation
of the device. Failure to comply with the instructions may lead to damage to the device and/or
safety violations.
The user may not repair the device himself. Repairs and maintenance of the device may only be
performed by qualified service personnel.
The device, which is an element of a professional CCTV system used for supervision and
control, is not intended for self-assembly in households by persons without specialist
knowledge.
As the product is constantly improved and optimised, some of its parameters and functions may have
changed from those described in this manual. If in doubt, please refer to the user manual
at www.novuscctv.com
The user manual located at www.novuscctv.com is always the most up-to-date version.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
4
FOREWORD INFORMATION
1. FOREWORD INFORMATION
1.1. Main characteristics
• Network Video Recorder for 4 / 8 IP cameras.
• 1 x Gigabit Ethernet port.
• Recording resolution up to 3840 x 2160.
• H.264, H.265, H.265+, H.265 Smart compression.
• Recording stream up to 80 Mb/s in total from all cameras.
• ONVIF protocol support.
• Dual stream recording
• Support 1 x SATA 3,5” HDDs. *
• Operating system based on Linux.
• Main monitor 1 x HDMI (4K UltraHD), 1 x VGA (FullHD).
• Exception, Scene Change, Video Blurred, Video Color Cast, Tripwire, Zone entrance, Abandoned
Object, Object Disappearance, Face Detection, Perimeter Intrusion Detection by pedestrian
or vehicle, Line Cross Detection by pedestrian or vehicle, Analysis of Recognized Number Plate
Numbers (LPR)**
• Backup: onto HDD or USB Flash Memory through USB port and through the IP network.
• Software: N Control 6000 (application for remote administration, live monitoring and recorded data
search).
• N-VID6 application for live and playback functions from mobile devices.
• User friendly multi-lingual OSD.
• IR remote controller and PC mouse included
*List of compatible HDD models and maximum capacities is available on the product website
www.novuscctv.pl in the DOWNLOADABLE FILES tab in the "HDD Compatible disks" file.
** Functions depend on connected camera model.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
5
FOREWORD INFORMATION
1.2. Recorders’ technical data
*** With dualstream mode.
NVR-6304P4A-H1-II NVR-6308P8A-H1-II
Video
IP Cameras up to 4 channels at 3840 x 2160
resolution (video + audio)
up to 4 channels at 3840 x 2160
resolution (video + audio)
Compression H.264, H.265, H.265+, H.265 Smart
Monitor Output main (split screen, full screen, sequence): 1 x HDMI (4K UltraHD), 1 x VGA
(up to 2 monitors simultaneously)
Dualstreaming Support yes
Fisheye Support yes, 6000 IP series cameras
using any web browser, N-VID6, N Control 6000
Audio
Audio Input/Output 1 x line-in (RCA) / 1 x HDMI, 1 x line-out (RCA)
Recording
Recording Speed 120 fps (4 x 30 fps for 3840 x 2160
and lower)
240 fps (8 x 30 fps for 3840 x 2160
and lower)
Stream Size 80 Mb/s in total from all cameras
Recording Mode continuous, triggered by: manual, alarm input, motion detection, intelligent ima-
ge analysis functions
Prealarm/Postalarm up to 5 s/up to 600 s
Display
Display Speed 120 fps (4 x 30 fps) *** 240 fps (8 x 30 fps) ***
Playback
Playback Speed 120 fps (4 x 30 fps) *** 240 fps (8 x 30 fps) ***
Recorded Data Search by date/time, events, image analysis events, POS, motion in a defined area, tags,
license plate number
Backup
Backup Methods USB port (HDD or Flash memory), network
Backup File Format MP4, AVI, RPAS (player included)
Storage
Internal Storage available mount: 1 x HDD 3.5” 10 TB SATA
Total Internal Capacity 10 TB
Alarm
Camera Alarm Input/
Output supports IP camera’s alarm input/output
Motion Detection supports camera’s motion detection
System Reaction to
Alarm Events
buzzer, alarm output activation, recording activation, PTZ, e-mail with ata-
tchment, Full Screen, PUSH message, voice prompt, snapshot
Intelligent image analysis
Supported Functions
Exception, Scene Change, Video Blurred, Video Color Cast, Tripwire, Zone en-
trance, Abandoned Object, Object Disappearance, Face Detection, Perimeter
Intrusion Detection by pedestrian or vehicle, Line Cross Detection by pedestrian
or vehicle, Analysis of Recognized Number Plate Numbers (LPR)
Database Capacity 1000 license plates

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
6
FOREWORD INFORMATION
The availability of individual functions (including image analysis) depends on the model of the
cameras used, as well as the software version of the recorder and cameras.
Presented display and playback speeds are achieved using dual-streaming. Detailed data on hard drives
can be found at www.novuscctv.com in the compatibility table available in the DOWNLOADABLE
FILES tab.
1.3. Package contents
Unpack the device carefully. After unpacking, please ensure that package contains the following items:
• Network Video Recorder
• USB Mouse
• Remote control
• Power supply 48VDC
• Quick start guide
If any of the elements has been damaged during transport, pack all the elements back into the original
packaging and contact your supplier.
NVR-6304P4A-H1-II NVR-6308P8A-H1-II
Network
Network Interface
1 x Ethernet - RJ-45 interface,
10/100/1000 Mbit/s,
4 x Ethernet PoE (IEEE802.3af/at, Class
4) - RJ-45 interface, 10/100 Mbit/s, with
Extended mode
1 x Ethernet - RJ-45 interface,
10/100/1000 Mbit/s,
8 x Ethernet PoE (IEEE802.3af/at, Class
4) - RJ-45 interface, 10/100 Mbit/s, with
Extended mode
Network Protocols
Support
HTTP, TCP/IP, IPv4/v6, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP,
SNMP, IEEE 802.1X, PPPoE, SMTP, P2P, POS, HTML5
ONVIF Protocol Support Profile S (ONVIF 2.2 or higher)
PC/MAC Software NOVUS MANAGEMENT SYSTEM VSS, NOVUS MANAGEMENT SYSTEM
AC, NMS, Internet Explorer, Firefox, Chrome, Opera, N Control 6000, Edge/Safari,
Mobile applications N-VID6 (iPhone, Android)
Number of Simultaneous
Connections
up to 64 clients, up to 8 main streams
or 16 substreams or 4 playback streams in
total
up to 64 clients, up to 12 main streams
or 32 substreams or 8 playback streams in
total
Bandwidth 80 Mb/s in total to all client workstations
PTZ
PTZ Functions pan/tilt/zoom, preset commands
Auxiliary Interfaces
USB Ports 2 x USB 2.0
Operating system
Operating System Linux
OSD languages: Polish, English, others
Control PC mouse and IR remote controller (in-set included), network
System Diagnostic automatic control of: HDDs, network, camera connection loss
Security password protection, IP filtering, MAC filtering, ARP guard
Installation parameters
Dimensions (mm) 300 (W) x 52 (H) x 248 (D)
Weight 1.16 kg (without HDD)
Power Supply 100 ~ 240 VAC
Power Consumption 20 W (with 1 HDD) + 48 W PoE 20 W (with 1 HDD) + 72 W PoE
Operating Temperature -10°C ~ 50°C

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
7
STARTING THE DEVICE
NOTE!
ONVIF protocol support was verified with IP cameras based on ONVIF ver. 2.2 and compatible
with the "PROFILE S".
Implementation of the ONVIF protocol by different manufacturers may vary by some functions,
which can make them work improperly or not in accordance with expectation. AAT SYSTEMY
BEZPIECZEŃSTWA SP. Z O.O. is not responsible for incompatibility problems resulting from
cameras of other brands than NOVUS, which are using ONVIF protocol. If you are using
ONVIF protocol cameras other than NOVUS brand it is recommended to test each time whether
required functions work correctly.
2. STARTING THE DEVICE
2.1 Description of the rear panel electrical connectors
NVR-6304P4A-H1-II
NVR-6308P8A-H1-II
1. DC IN: To plug in the 48V power cord.
2. PoE PORTS: RJ-45 ethernet ports to connect PoE IP cameras.
3. AUDIO IN: Audio mono input to connect microphone.
4. AUDIO OUT: Audio output.
5. VGA: D-SUB connector, to connect VGA monitor.
6. HDMI: HDMI connector, use the HDMI cable to connect monitor.
7. USB: USB 2.0 port to connect mouse external Flash memory and other USB devices.
8. LAN: RJ-45 connector port to connect to the local network and Internet.
1 2
3
5 6 7
8
4
1 2
3
5 6 7
8
4

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
8
STARTING THE DEVICE
2.2 HDD mounting
Novus NVR-6304P4A-H1-II and NVR-6308P8A-H1-II supports 1 internal SATA HDD
NOTE!
In order to find information regarding the compatible models of HDDs and their maximum
capacities, please contact Novus distributor or check the information presented at
www.novuscctv.com. AAT SYSTEMY BEZPIECZEŃSTWA SP. Z O.O. company is not
responsible for any problems from using not recommended hard drives.
The list of compatible HDDs contains all the HDDs that can be used with a given DVR including
HDDs designed for office use - so called desktop disks. However, due to the fact that reliability of
the recording process and data safety are paramount factors of any CCTV system, we strongly
advise to use HDDs designed for continuous (24/7) operation.
You need to format disks if they were used in a different device. All data saved on HDD prior to
format will be lost.
HDD installation in NVR-6304P4A-H1-II, NVR-6308P8A-H1-II
In order to mount HDD, unscrew the three screws on the rear panel and 2 screws on the sides of the
housing, in the places shown in the picture below and remove the recorder housing by sliding it back
and then lifting it up.
NOTE!
Before removing top cover unplug the power cord from the NVR. When NVR is turned on before
disconnecting the power cord, shut down the recorder using the NVR menu.
If you use the disk previously used in another device, it is necessary to format it before using.
Formatting the drive erase all the data from disk. All drives in the recorder should be exactly the
same type.
By default, SATA cables are packed together with NVR accessories, while HDD power cable is
connected to the NVR PSU and ready for connecting the HDD.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
9
STARTING THE DEVICE
After removing the casing, mount the disks using mounting screws (4 pcs.), and then connect the power
and signal cables.
After connecting the hard drive mount the cover and start it to check the correctness of connections and
format the hard drive.
NOTE!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
2.3. Connecting the power supply.
The power supply supplied with the device must be connected to the 230V mains. The end of the
power supply supplying 48VDC power should be connected to the power connector located on the
back of the case.
Initialization lasts approximately 60 seconds. During this time executing any device functions and
pressing any buttons is prohibited. To shut down the device please use the menu.
NOTE!
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded.
However, even if it's not earth-grounded, never modify it on your own for earth-grounding.
Make sure that power adapter is placed near of NVR and secured from accidental disconnection.
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
10
STARTING THE DEVICE
2.4. Connecting monitor
This product supports following interfaces for main monitor: HDMI, VGA.
For HDMI following resolutions are supported: 1024x768, 1280x1024, 1920x1080 and 3840x2160.
NOTE:
Emergency switching of the screen resolution is possible after pressing the right mouse button
for more than 5 seconds until you hear a sound signal from the recorder.
2.5. Connecting cameras and network
NVRs have built-in 4 or 8 PoE ports RJ-45 with PoE support, which can be used for connecting
cameras. Please notice that the Ethernet connection is effective within 100 meter distance. In extended
mode, the length of the cable can reach up to 200m, but the bandwidth of the link is limited to 10Mbps.
Additionally, the recorders have a LAN port that allows to connect the recorder to a switch.
We recommend to configure the cameras before connecting to the recorder as described in the camera
user's manual. Please remember that cameras should be addressed with a unique IP address supported
by the recorder.
Connecting cameras and network devices to the recorder:
NETWORK SWITCH
IP CAMERAS
IP CAMERAS
INTERNET
PC

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
11
2.6. Connecting external devices
• Connecting audio ports
The audio output allows to connect a loudspeaker with an amplifier. The signal at the audio output is
about 200mV with an impedance of 1kΩ.
• Connecting USB devices
NVR has 1 x USB 2.0 port on front panel and 1 x USB 2.0 on back. They could be used to connect
external Flash memory, mouse and other USB compatible devices.
2.7. Security recommendations for network architecture and configuration
NOTE!
Below are shown security recommendations for network architecture and configuration
of CCTV systems that are connected to the Internet to reduce the risk
of unauthorized interference with the system by a third party.
1. Absolutely change the default passwords and user names (if the device gives this possibility)
of all applied network devices (recorders, cameras, routers, network switches,
etc.) to the severely complexity password. Use lowercase and uppercase letters, numbers, and special
characters if there is such possibility.
2. Depending on the available functionality in the order to restrict access to the used network devices
at the administrator account level, it is recommended to configure the users accounts accordingly.
3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open
the access to recorder system from the Internet on all ports, which gives possibility for
an unauthorized interference with the system.
Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance
of the connection (detailed information about ports of communication in different models of recorders,
cameras, etc. can be found in the operating instructions).
4. Use routers with firewall function and make sure it is enabled and properly configured.
5. It is recommended to change the default network communication port numbers of used devices
if there is such possibility.
6. If used network devices has aUPnP feature and it is not used, turn it off.
7. If used network devices has aP2P feature and it is not used, turn it off.
8. If used network devices support HTTPS protocol for connection, it is recommended to use it.
9. If used network devices support IP filtering for authorized connections function, it is recommended
to use it.
10. If used recorder has two network interfaces it is recommended to use both of them to physically
separate network for cameras and network for Internet connection. The only device in the system,
accessible from Internet is recorder - there is no physically access directly to any camera.
Note: In order to ensure stability and protection against overload and unauthorized access, we
recommend separating the network monitoring of LANs used by users.
STARTING THE DEVICE

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
12
NVR OPERATING
3. NVR OPERATING
3.1. Front panel description
1. LED Diodes for monitoring NVR activity.
- REC - monitors recording activity
- NET - monitors networking activity
- PWR - activities when power is on
2. USB USB 2.0 port for external Flash memory and mouse connection.
3.2. Controlling via USB mouse
It is possible to control NVR via an USB mouse connected to the USB port. Double-click on any
camera in split screen display mode switches the display to full-screen mode. Subsequent double-click
returns to previous display mode. During configuration, the selection of individual items is made using
the left mouse button. In selected positions, the value of a selected field can be changed using the
mouse wheel.
3.3. First Launch Wizzard
In order to start the device, connect the power cable to the power supply, turn on the switch located on
the back of the housing and wait for the recorder menu to start.
After the NVR first launch, a window is displayed that allows to select the language and location.
To select the English language, select ENGLISH in the left-hand window and select the recorder
location in the right-hand window.
1
2

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
13
NVR OPERATING
In the next step, read and accept the Privacy Statement. Check the checkbox at the bottom
of the window and press OK.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
14
NVR OPERATING

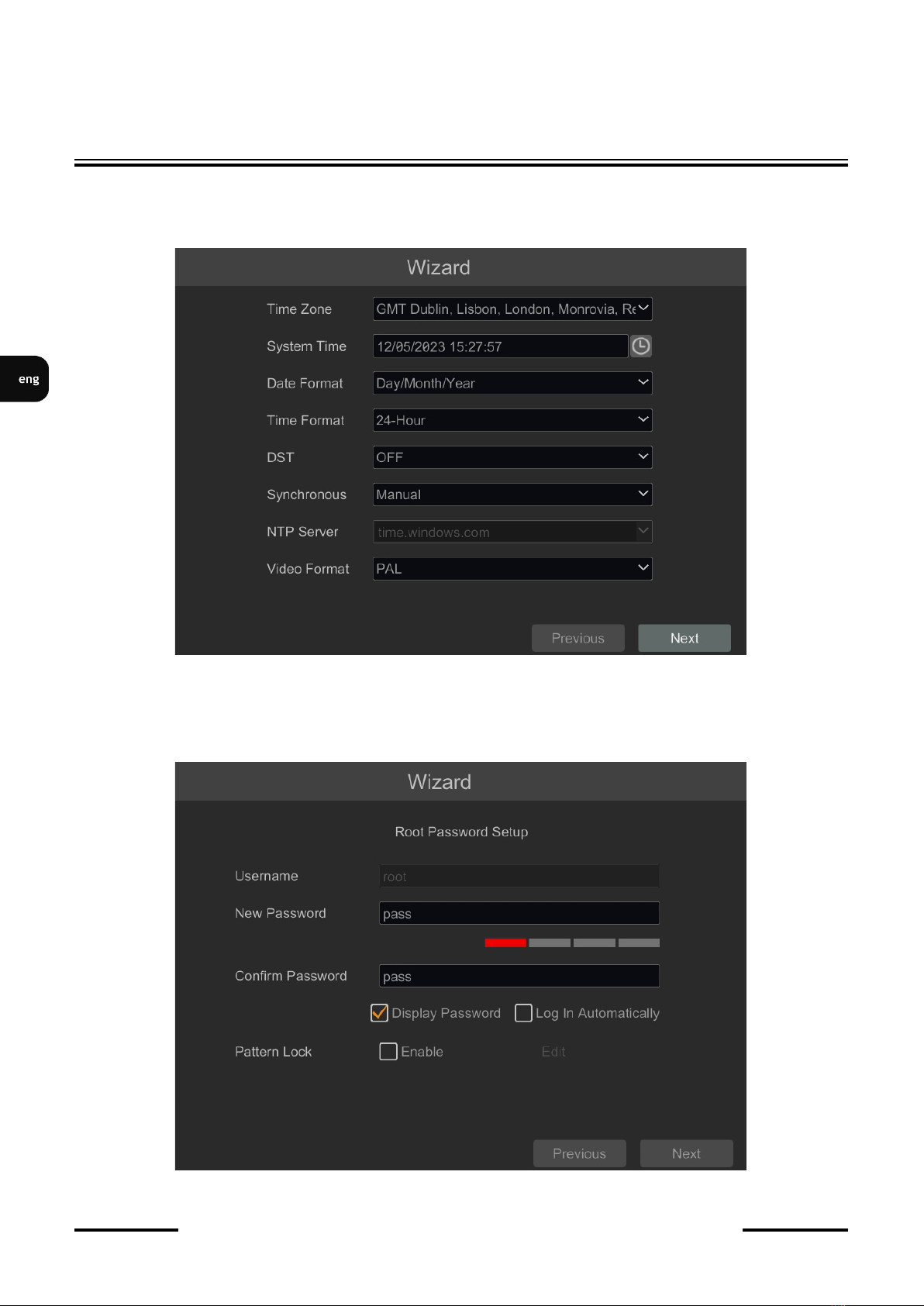

The next wizard window allows to set time parameters such as TIME ZONE, SYSTEM TIME, DATE
FORMAT, TIME FORMAT, DST, SYNCHRONOUS, NTP SERVER and VIDEO FORMAT. After
making your selection, click the NEXT button.
Change the password in the password change wizard. The password must be at least 8 characters long.
It should contain a number, and upper and lower case letters. Enter them on the screen keyboard
available after clicking in the NEW PASSWORD and CONFIRM PASSWORD fields.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
15
NVR OPERATING
To display the entered password, check the DISPLAY PASSWORD box. Selecting LOG IN
AUTOMATICALLY checkbox will automatically log the user into the system after starting
the recorder. By selecting the ENABLE field in the PATTERN LOCK row, it is possible to activate
the setting of enabling access for the user by means of a graphic pattern instead of entering the
password. To start the graphic symbol settings, click the EDIT button. Then, holding down the left
mouse button, move the cursor between the displayed circles twice to mark the pattern that will be
used to unlock the device.
After clicking on the NEXT button, a window is displayed that allows you to set a set of questions
and answers that can unlock access to the recorder.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
16
NVR OPERATING
To add a question, click on the QUESTION field to enter the question using the keyboard. Then click
on the ANSWER field to enter the answer to the question. Clicking on the ADD button adds a set of
questions and answers. Clicking the NEXT button takes you to the window in which information about
the disk connected to the recorder is displayed.
If the STATUS field displays information about the inaccessibility of the disk, format the disk
by clicking on the FORMAT button. A window appears asking to confirm that you want to format the
disk.
NOTE!
Formatting causes the loss of information stored on the hard drive.
Pressing the OK button confirms the intention to format the disk.
The status of the disk should be "READ AND WRITE" after successful formatting.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
17
NVR OPERATING
3.4. Startup configuration
After the first start of the NVR, the setup wizard window is displayed (if the function has not been
disabled before). In order to properly configure the recorder, follow these steps with the procedure:
NOTE!
For suggested values for IP camera setting please refer to the “Cameras Capability Table”
available on the www.novuscctv.com website. If you set wrong values some problems may
appear: the NVR cannot search the IP camera, the stream cannot be connected, the image is not
fluent, the image quality is bad and so on.
Before starting work with the network recorder, you must perform the initial configuration
of the device. At the bottom of the window, checkbox Enable wizard next time is checked. If you
uncheck this box, the wizard will not start at the next restart.
Click Wizard Setup to start.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
18
NVR OPERATING
I. NETWORK SETTINGS:
The menu allows to change the recorder's network settings necessary for communication. By default,
the recorder has the IP address and DNS settings from the DHCP server enabled. If the address
retrieval fails, the recorder is available at 192.168.1.100 with the subnet mask of 255.255.255.0.
The displayed menu allows to change the settings after uncheck the OBTAIN AN IP ADDRESS
FROM AUTOMATICALLY checkbox and the OBTAIN DNS AUTOMATICALLY field. The
following network recorder settings are available, such as: IP (default 192.168.1.100) Subnet mask
(default setting is 255.255.255.0). If the NVR needs to be connected to the Internet (for remote access,
sending emails, etc.), the IP addresses for Gateway and for Primary and Secondary DNS. You can
change the default HTTP and HTTPS ports intended for displaying the device's web panel as well as
RTSP ports and server data port.
There is the addressing of the second network interface of the recorder for PoE ports on the right side.
The IP address and subnet mask are set for this interface. It is also possible to set the operating mode of
network ports - Non-long line mode guarantees standard transmission over a distance of up to 100m
with a bandwidth of 100Mb/s, Long line mode allows for transmission up to 200m with a bandwidth
limit of 10Mb/s.
NOTE!
The addresses of the LAN interface and the interface for PoE ports must belong to different
subnets.
Parameter changes must be confirmed with the NEXT button

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
19
NVR OPERATING
II. ADD CAMERA:

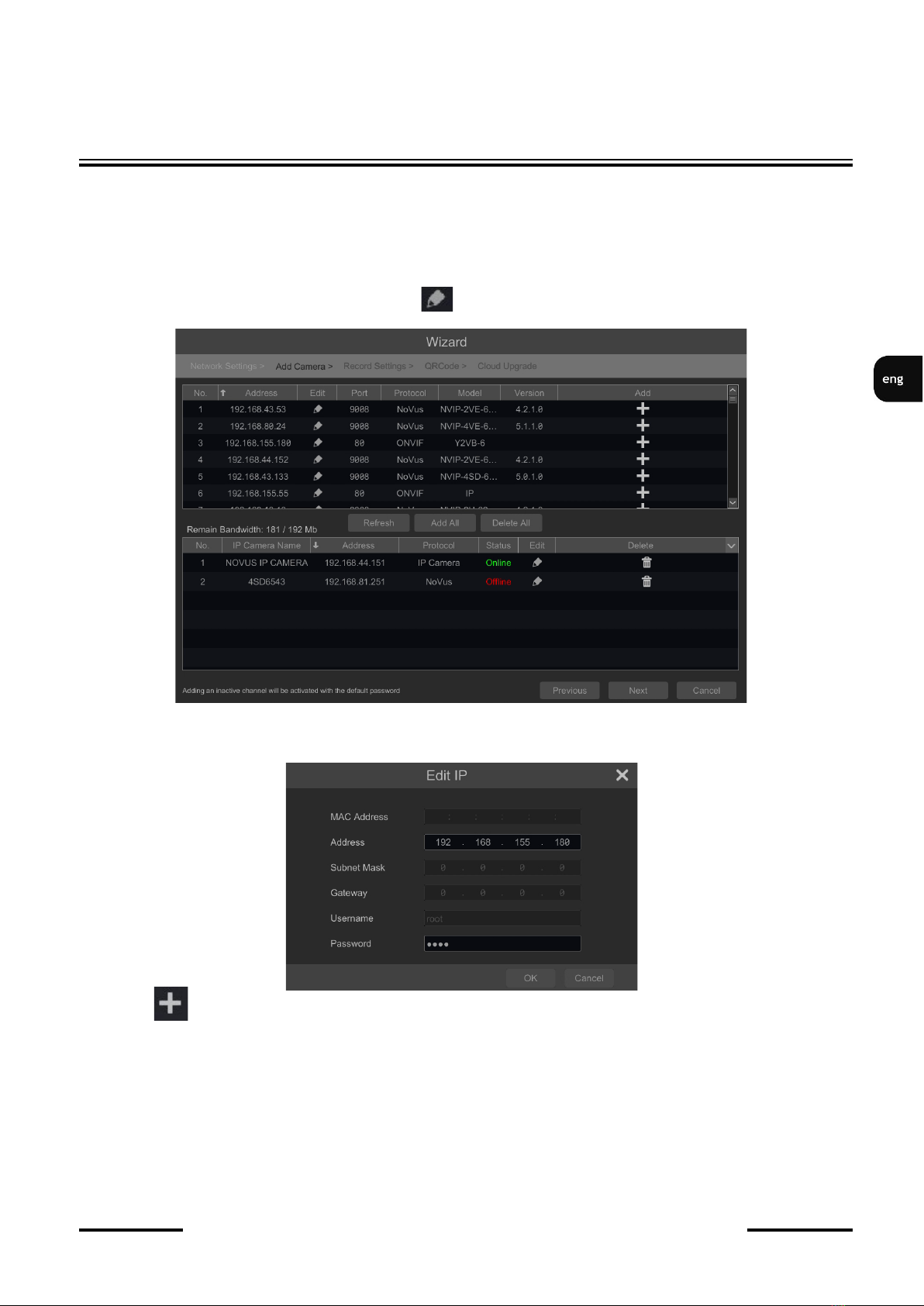

Next window allows to configure the IP camera and add them to the recorder. Upper window displays
cameras found by the NVR in local network. Before adding cameras to the system, make sure that
they have a unique IP address. Cameras with IP addresses that have already been added to the NVR
will not be displayed in the search part.
To change the addressable cameras, click on the icon in the column EDIT (This works only with
NOVUS IP 6000 camera series).
Enter the address in the IP ADDRESS field and set the masks in the SUBNET MASK, then press
the OK button to save the settings.
Press the button to add the camera to the system
In the lower window there is a list of available channels. It is possible to change the name
of the channel after clicking in the EDIT field.
NOTE!
The process of adding NOVUS IP 6000 series cameras with software 5.1.x and higher in which
the activation process has not been carried out cannot be correctly carried out in the start-up
wizard (v1.4.8 NVR firmware). You can check the camera firmware version in the VERSION
column.

NVR-6304P4A-H1-II, NVR-6308P8A-H1-II Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA sp. z o.o.
20
NVR OPERATING

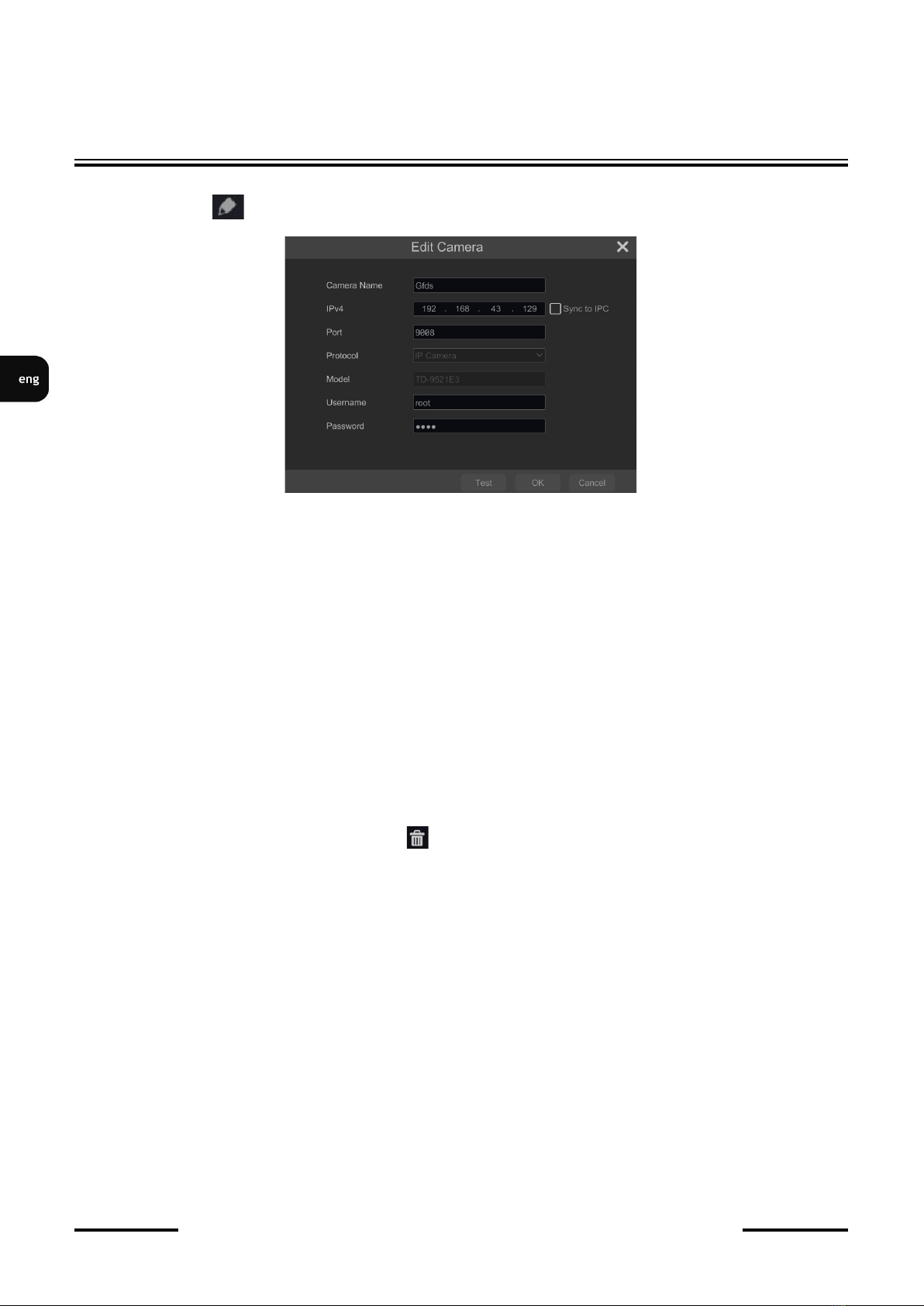

Added camera is displayed on the bottom of the menu list. To edit the connection settings of the
camera, press the button in EDIT column.
If you are having problems connecting to the camera, you must enter the correct user name
in the USER NAME and password in the PASSWORD field and then press the OK button to save the
settings.
NOTE!
It should be borne in mind that if the camera password is changed from the level of e.g. a web
browser, the newly defined password must also be entered in the recorder. Otherwise, after
alonger time from changing the password or after restarting the camera or recorder, the
communication between the camera and the recorder will be lost. This is especially important for
cameras with firmware version 5.1.0.0 and newer. These cameras do not have a defined default
password (it means that the cameras are not activated by default), a new strong password should
be defined when connecting to the camera for the first time. Without defining a new strong
password, the camera configuration from the web browser will not be possible.
If the NVR connected to the camera in STATUS filed will be displayed “Connected”.
To remove a camera from the list, press the in DELETE column.
