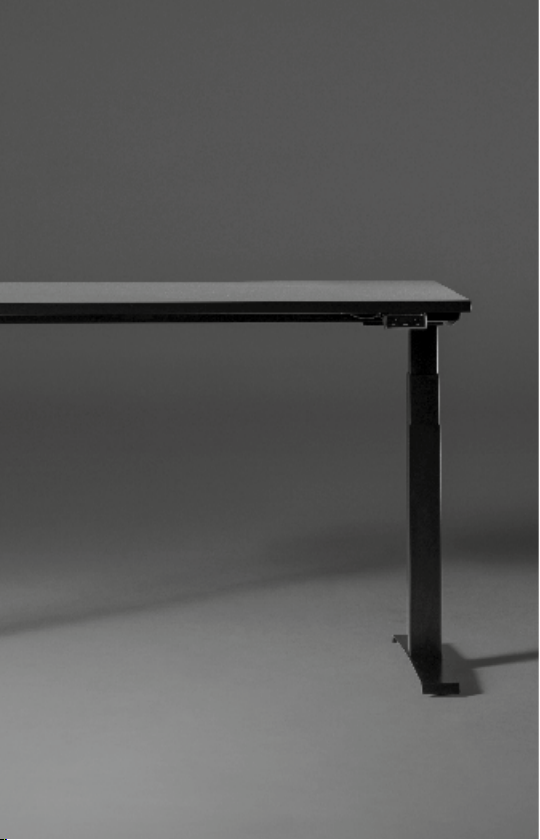

Nowy Styl eModel 2.0 User manual

eModel 2.0
en Users manual
pl Instrukcja obsługi
de Bedienungsanleitung
fr Guide d’utilisation

EN Users manual 
PL Instrukcja obsługi 
DE Bedienungsanleitung 
FR Guide d’utilisation 

httpsnowystylgroupcomfilesdoc
eModel--Users-manualEpdf

4EN
EN
Users manual

EN5
MALFUNCTIONS

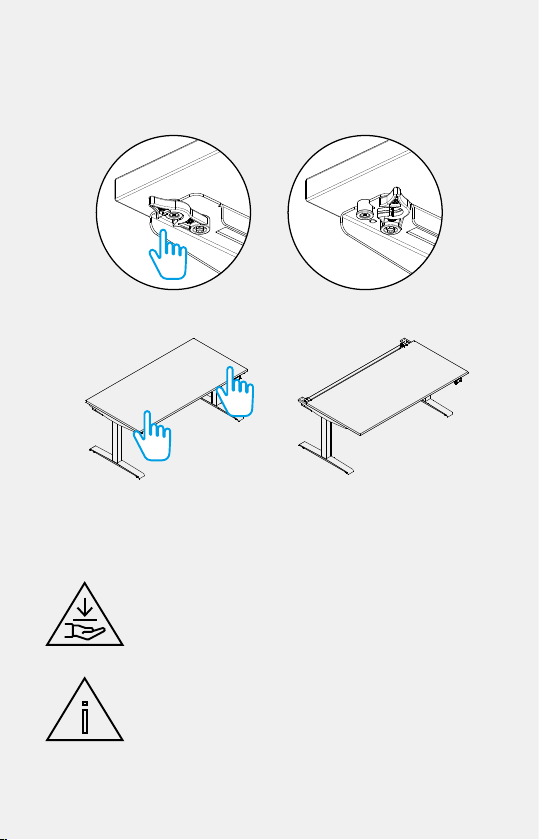

SLIDING TOP FUNCTION
ERROR MESSAGES ON THE DISPLAY
CONTROL PANEL FUNCTIONS
CONTROL PANEL WITH DISPLAY AND AMEMORY FUNCTION
 System initialisation  First start-up
 Height adjustment
 Saving aselected height
 Changing the display measurement unit
 Aligning the displayed height with the actual height
 Restoring default settings
 Setting the desk to stop at adesired maximum lowest or highest position
(eg to avoid collision with apedestal under the desk or awindow sill)
CONTROL PANEL FUNCTIONS THE UPDOWN ADJUSTMENT BUTTON

 System initialisation  First start-up
 Height adjustment


6EN

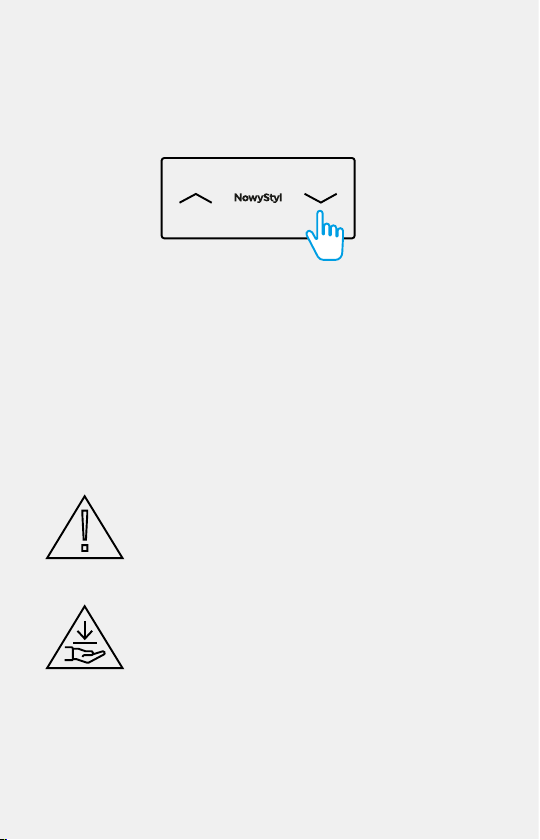

To ensure correct operation, the workstation base needs to be initialised before first use.
Note: Use only the control module provided by the manufacturer
for each specific product type. The adjustment range limits have
been set at the factory.
Danger: The anti-collision function is not active during an initialisa-
tion or reset procedure. Please always be mindful of apotential risk
of crushing during those procedures.
| Press and hold the “down” button until the workstation reaches its lowest position, then
release the button.
The same function applies if the wires connecting the columns with the control module have
been disconnected. If the control module is forcing initialisation, the workstation can only move
“down” at slow speed.
Releasing the button too early may cause the workstation to malfunction. If this happens, the
initialisation procedure must be repeated.

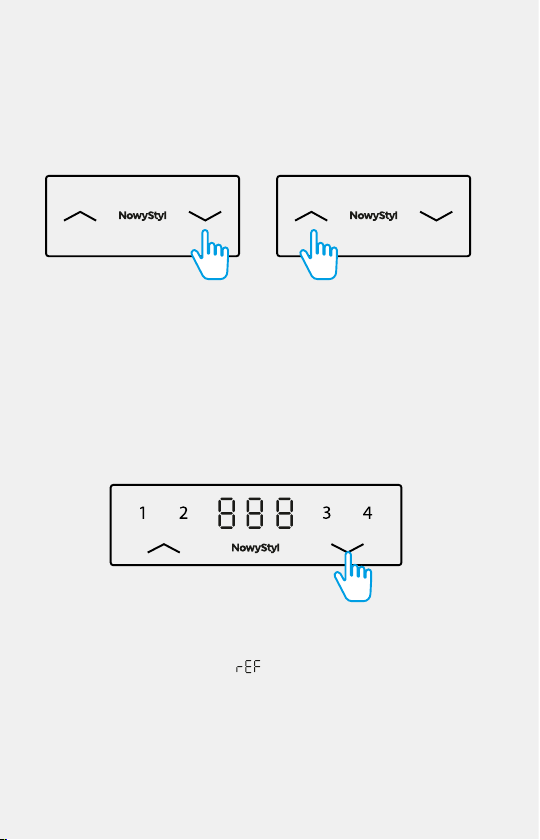

1. Control panel functions: the up/down adjustment button
1.1 System initialisation / First start-up

1.2 Height adjustment
EN7
2. Control panel functions: control panel with adisplay and amemory function
2.1 System initialisation / First start-up
To decrease desk height:
| Press and hold the “down” button
until the desired height is reached.
The “down”/”up” movement of the desk will continue until you release the button or until the
lowest/highest possible position is reached.
On uneven floor, use glides to level the workstation before adjusting its height.
| Press and hold the “down” button until the workstation reaches its lowest position, then
release the button.
During the initialisation procedure, the symbol will be shown on the display
The same function applies if the wires connecting the columns with the control module have
been disconnected, or when aheight setting error has occurred in an end position, or when
the actual height is not aligned with the height shown on the display. If the control module is
forcing initialisation, the workstation can only move “down” at slow speed.
Releasing the button too early may cause the workstation to malfunction. If this happens, the
initialisation procedure must be repeated.
To ensure correct operation, the workstation base needs to be initialised before first use.
To increase desk height:
| Press and hold the “up” button until the
desired height is reached.

8EN
Note: Use only the control module provided by the manufacturer
for each specific product type. Adjustment range limits.
Danger: The anti-collision function is not activated during an
initialisation or reset procedures. Please always be mindful of
apotential risk of crushing during those procedures.

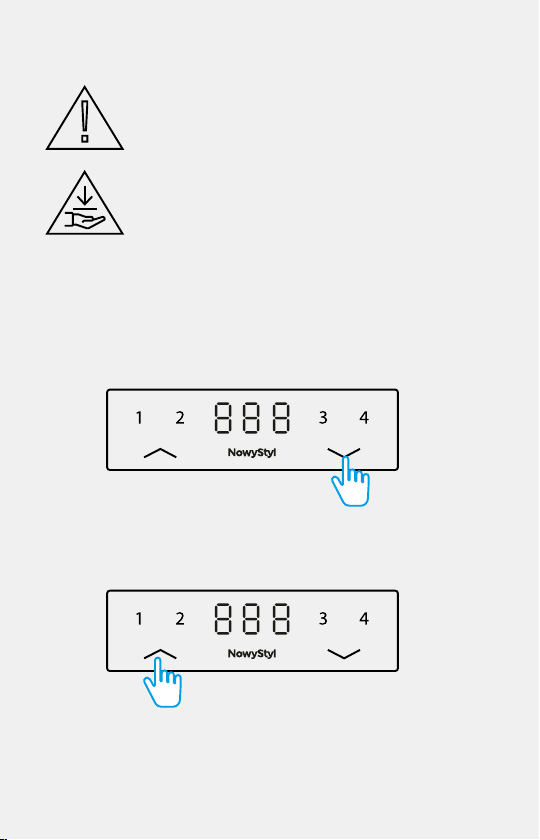

2.1 System initialisation / First start-up
2.2 Height adjustment
To decrease desk height:
| Press and hold the “down” button until the desired height is reached.
To increase desk height:
| Press and hold the “up” button until the desired height is reached.
The “down”/”up” movement of the desk will continue until you release the button or until the
lowest/highest possible position is reached.
On uneven floor, use glides to level the workstation before adjusting its height.

EN9

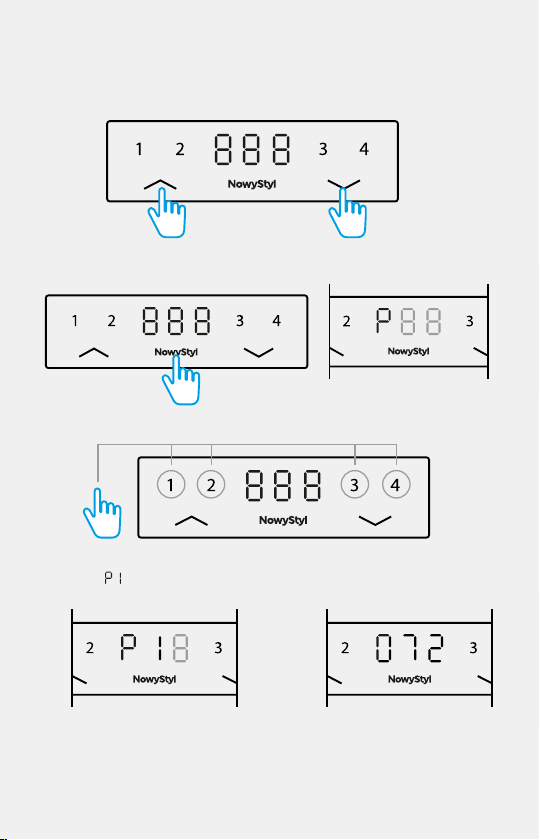

2.1 System initialisation / First start-up 2.3 Saving aselected height setting
1. Use the “up” and “down” buttons to set the desired desk height – the height will be
shown on the display.
2. Press the “logo” button. The “P” symbol will be shown on
the display
The height setting will be saved under the selected number, and asymbol will appear on the
display, e.g. . After approx. 2 seconds, the value of the saved height setting will appear on
the display.
Height settings can be saved.
To set the workstation to asaved height setting press and hold the number button under which
your selected height has been saved until the desired height is reached.
If the button is released before the saved height is reached, the top will stop at the height at
which the button was released.
3. Press one of the buttons with anumber: 1, 2, 3or 4.

10EN

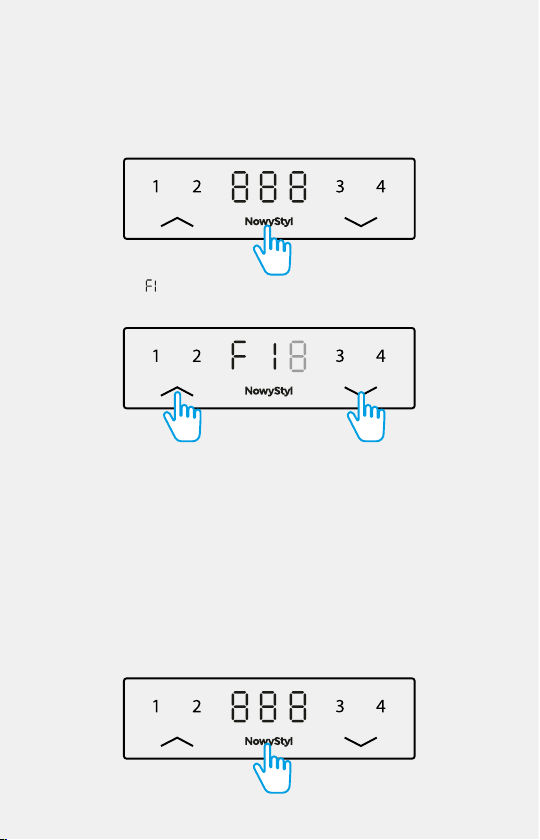

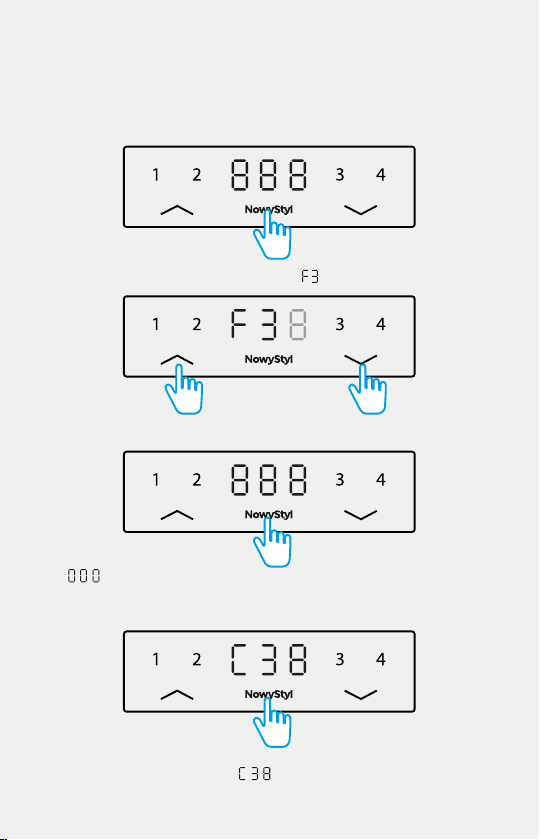

2.4 Changing the display measurement unit
2.5 Aligning the displayed height with the actual heightj
1. Press and hold the “logo” button for approx. 5 seconds
1. Press and hold the “logo” button for approx. 5 seconds
2. Confirm option from the control panel menu by pressing the “logo” button again
3. Select one of the measurement units by pressing the “up” or “down” button
4. Confirm the measurement unit selection by pressing the “logo” button. To exit the menu
without making aselection, wait for about 10 seconds until the height value is shown on
the display again.
The symbol “I” will appear for inches and “C” for centimetres
Desk height can be displayed in centimetres or inches. To change the measurement unit:
If the actual height does not correspond to the height shown on the control panel display, it can
be corrected. To do that, you need to:

EN11

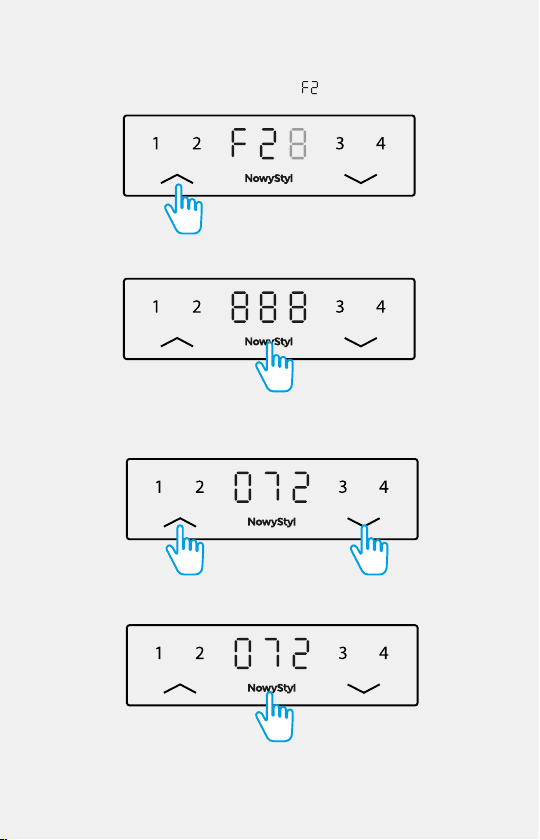

2.5 Aligning the displayed height with the actual height
2. Use the “down” or “up” buttons to select option from the menu
3. Confirm the selection by pressing the “logo” button again
4. Measure the actual height, then use the “up” or “down” button to increase or decrease
the number on the display until the actual height value is reached.
5. Confirm the value by pressing the “logo” button again
To exit the menu without making aselection, wait for about 10 seconds until the height value is
shown on the display again.

12EN
2.6 Restoring default settings
To restore the workstation to default settings, perform the following steps:
1. Press and hold the “logo” button for approx. 5 seconds
2. Use the “down” or “up” buttons to select option from the menu
3. Confirm the selection by pressing the “logo” button again
The symbol will be shown on the display
4. Press the “logo” button again
Default settings have been restored. The symbol will be shown on the display.
Finish by performing system Initialisation/First start-up – see page 8.

EN13

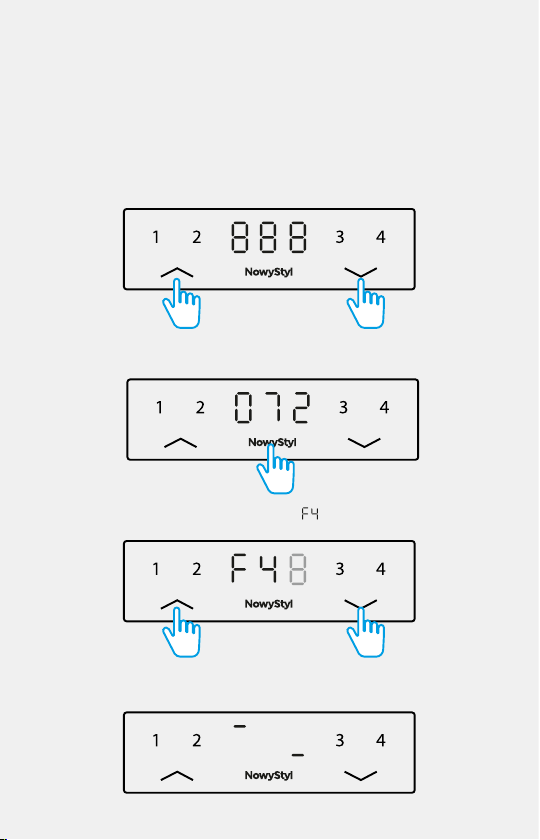

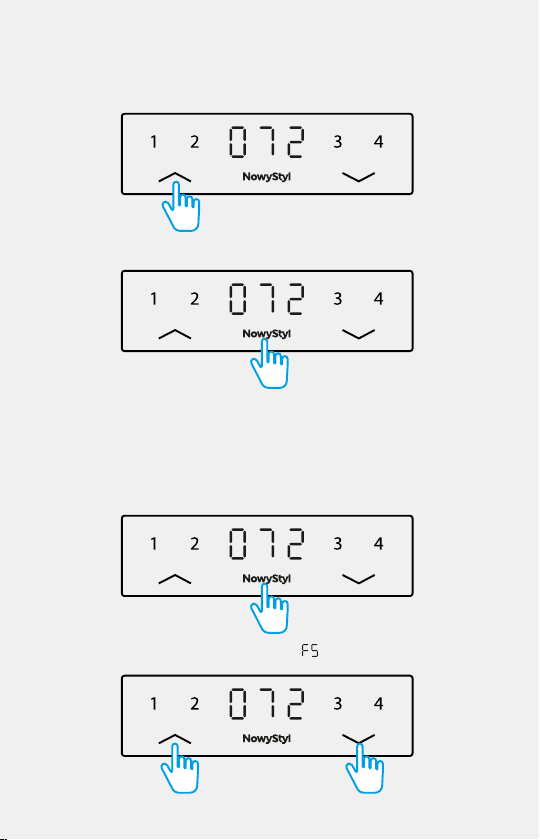

2.7 Setting the desk to stop at adesired lowest or highest position
This function restricts the adjustment range to selected safe height settings, taking into ac-
count the surroundings – objects located near the workstation, e.g. apedestal under the desk
or awindow sill.
To set the desk to stop at adesired lowest or highest position:
1. Use the “up” and “down” buttons to set the desired desk height – the height will be
shown on the display.
2. Press and hold the “logo” button for approx. 5 seconds.
3. Use the “down” or “up” buttons to select option from the menu.
Ahighlighted bar will appear in the upper left and lower right corner of the display.

14EN

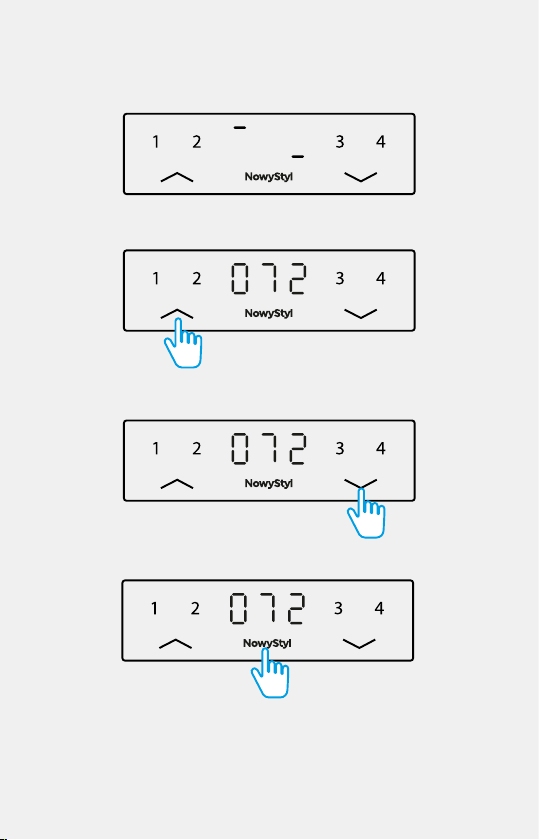

To program the desk to stop at the highest position
1. To save the upper boundary position, press the “up” button.
To cancel the the highest position stop setting
1. Press and hold the “logo” button for approx. 5 seconds.
2. Use the “down” or “up” buttons to select option from the menu.
2. Confirm by pressing the “logo” button again
To program the desk to stop in the lowest position, press the “down” button and proceed
accordingly.
To exit the menu without making aselection, wait for about 10 seconds until the height value is
shown on the display again.
2.7 Setting the desk to stop at adesired lowest or highest position

4. Confirm by pressing the “logo” button.
EN15
3. To remove the highest position setting, press the “up” button
or to remove the lowest position setting, press the “down” button.
To exit the menu without making aselection, wait for about 10 seconds until the height value
is shown on the display again.
Abar will appear at the top and bottom of the display.
2.7 Setting the desk to stop at adesired lowest or highest position

16EN
3. Malfunctions
Type of error Cause Solution
The workstation
does not move
Disconnected power cord Connect the power cord,
check its connection to the
control module.
No connection or inaccurate
connection of electrical
components
Check the component
connections to the control
module.
No connection to the
control panel
Connect the control panel to
the control module.
Maximum load exceeded Reduce the load.
Continuous adjustment
time exceeded
Reactivation will take place
after 3 minutes.
Note:
The maximum time of
uninterrupted operation of
the lifting mechanism is 2
minutes, followed by abreak
in desk adjustment of at least
18 minutes.
DRIVE damage
Contact the Customer
Service.
Control module damage
Drive damage
The workstation performs
only aslow downward
movement
The control module forces
initialisation or reset
Perform system initialisation
/ first start-up following the
user manual.
The workstation moves
slowly
Maximum load exceeded Reduce the load on the
desk top.
The workstation makes
ashort movement in one
direction
No connection or inaccurate
connection of electrical
components
Check the component con-
nections to the
control module.
Damaged drive Contact the
Customer Service.

EN17

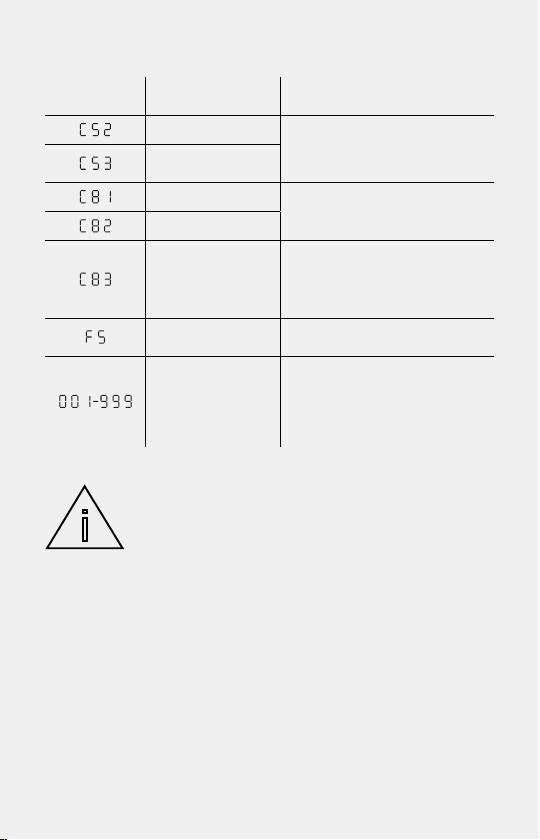

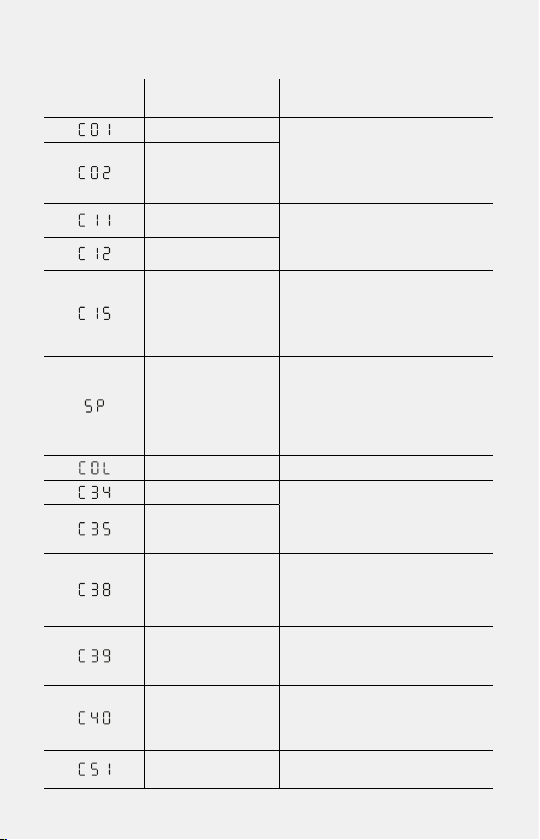

4. Error messages on the display
Symbol on the
display
Description Solution
Short circuit on DRIVE 1 Unplug the power supply. Check cables
connecting the column to the control
module for damage or connect the appro-
priate DRIVE to the appropriate socket. If
needed, perform system initialisation / first
start-up following the user manual.
Short circuit on DRIVE 2
The cable connecting
DRIVE 1 is disconnected
Check the connection of the cables con-
necting the column to the control module
and perform arestart/first start-up.
The cable connecting
DRIVE 2 is disconnected
No measurable
movement
Unplug the power supply. Check cables
connecting the column to the control
module for damage or connect the appro-
priate DRIVE to the appropriate socket. If
needed, perform system initialisation / first
start-up following the user manual.
System protection /
system stop. The control-
ler monitors operation
time and maximum
temperature. One of
the two values has been
exceeded.
Wait for the control module to cool down
and the display to turn off. The controller
will allow movement for 20 s. After abreak
of 18 minutes, the workstation can be
adjusted again constantly for maximum
2 minutes.
Collision detected Remove the obstacle
Overload on DRIVE 1 Maximum load has been exceeded. Reduce
the load by removing extra items from the
desk top. Level the workstation with glides.
Perform system initialisation / first start-up
following the user manual.
Overload on DRIVE 2
Loss of DRIVE
synchronisation
Reduce the load by removing extra items
from the desk top- if applicable.
Level the workstation with glides. Perform
system initialisation / first start-up follow-
ing the user manual.
Loss of controller
synchronisation
Check if the cables are properly connected
to the controller and the mains. Perform
system initialisation / first start-up follow-
ing the user manual.
Anti- collision
sensor error
Height adjustment is possible but without
the anti-collision system. Check the exter-
nal anti-collision sensor for connection to
the control module.
Conflicting operations on
two different controllers.
Stop the operation of all elements con-
nected to the control module

18EN
Symbol on the
display
Description Solution
The “up” button hangs
Replace the control panel
The “down” button
hangs
Voltage too low Possible grid or power supply interfer-
ence. Unplug the power supply. Contact
the Customer Service.
Voltage too high
Parameter discrepancy The controller does not match the number
of columns. Prepare information
about the device. Contact Customer
Service to check the parameters of the
electrical set of the workstation.
Restart / first start-up
required
Perform system initialisation / first start-
up following the user manual
Short circuit on DRIVE 1 Unplug the power supply. Check cables
connecting the column to the control
module for damage or connect the appro-
priate DRIVE to the appropriate socket.
If needed, perform system initialisation /
first start-up following the user manual.
4. Error messages on the display
Note: If apower failure occurs or the power cord is pulled out
during height adjustment, areset may be necessary.
If an error cannot be fixed as described above, unplug the power supply, wait afew minutes,
and try the system initialisation / first start-up procedure again.
If the error persists, disconnect the power supply and contact Customer Service.

Note: Risk of crushing or trapping when sliding the desk top.
EN19
5. Sliding top function
This function is available for aworkstation model with sliding top.
1. Release the slide lock on the right and left side at the underside of the desk top.
2. Pull the desk top to yourself by holding it with both hands.
3. To lock the top again in awork position, push the top in the opposite direction with your
both hands.
4. Lock the slide function by tightening the locks on the right and left side at the underside
of the desk top.
Note: Desk top travel range is approximately 170mm.

20PL
PL
Instrukcja obsługi
