USER INSTRUCTIONS
NRS ALUMINIUM SWIVEL BATH SEAT
N72838 NRS Aluminium Swivel Bath Seat
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a
safe place for future reference.
Maximum User Weight
25st
160kg
1. INTENDED USE
This Swivel Bath Seat is designed to enable a user of limited mobility to rotate, whilst seated, into the bath to allow
seated washing. It is suitable for most standard baths but is not suitable for corner baths, baths which have uneven
/ profiled top edges or some baths with deeply moulded side panels. The frame can be adjusted to fit most common
bath sizes.
2. SPECIFICATION
Support Frame Width 660-760mm
Seat Width: 460mm
3. SAFETY
WARNING: The maximum user weight must not be more
than 160Kg (25st).
CHECK all fixings are installed correctly.
MAKE SURE when placing on the bath ensure all four
feet of the bath seat mounting frame are resting on the
edge of the bath by at least 50mm (2”).
CHECK the Handwheel screws are contacting
either side of the bath wall. Do not over tighten the
handwheels as this could damage the bath.
DO NOT exceed the maximum user weight limit.
ALWAYS sit in the centre of the seat.
DO NOT lean on the edges of the seat.
DO NOT stand on the seat or any other part of the
product.
INSPECT at regular intervals, see care and
maintenance section.
1
2
3
4
4. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
4.1 Contents:
1. Seat Assembly x 1
2. Armrest x 2
3. Mounting Frame x 2
4. Fixing e-clips x 4
5. User Instruction x 1
5. ASSEMBLY/INSTALLATION

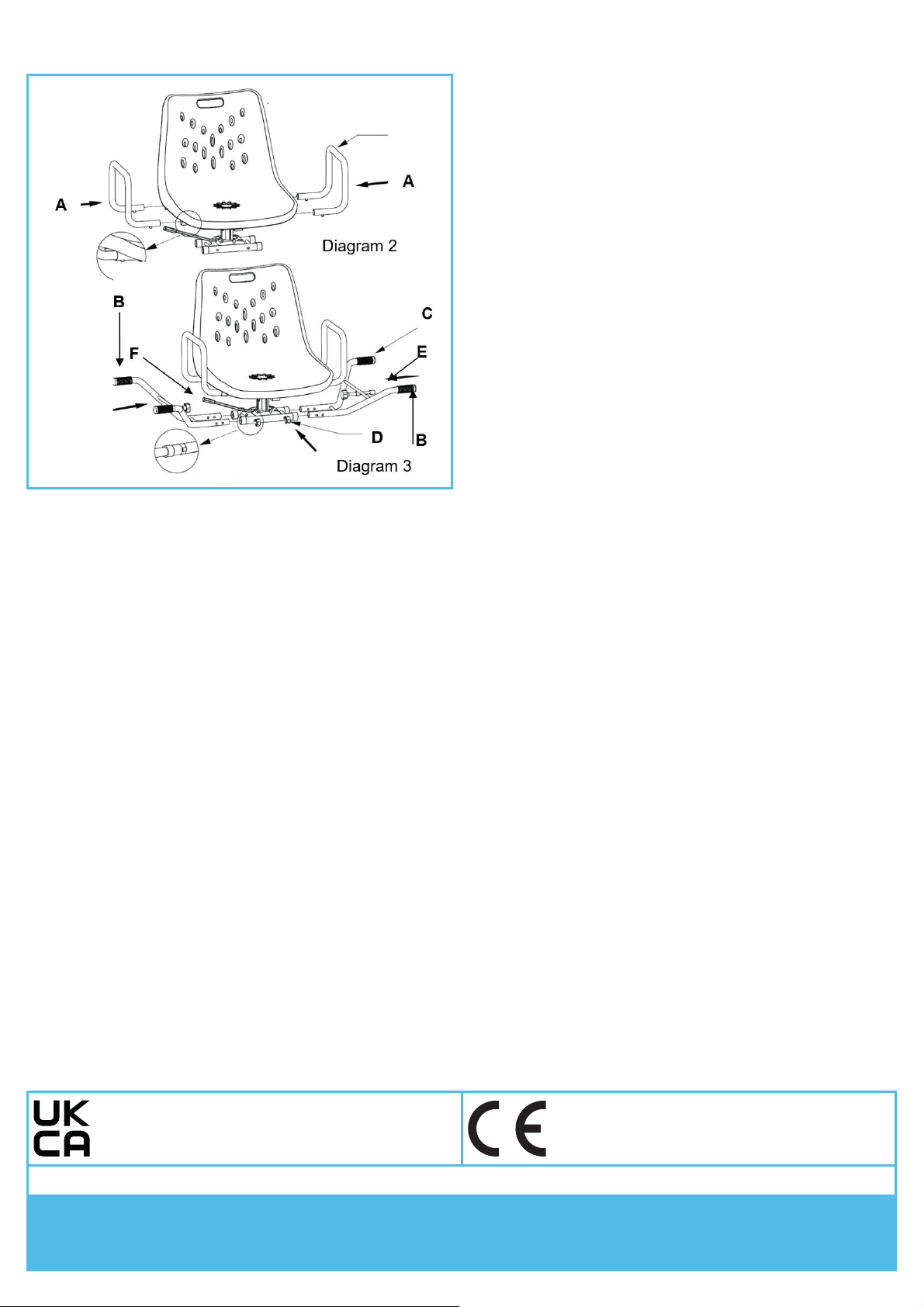

Slide each armrest (A) into the locating tubes on the seat
assembly until the spring button clips “snap” into position,
see diagram 2
Slide the mounting frame (B) into the locating tubes on
the seat assembly, note the frame is width adjustable,

2
choose the correct width to suit your bath. Please refer to
the instruction for correct fitting
5.1 Assembling to a bath
Place the seat onto flat bath ledges.
IMPORTANT: At least 50mm (2”) of ALL the mounting
frame feet (C) must rest on the flat sides of the bath
If necessary extend the mounting frame by removing the
fixing e-clips (D), adjusting the width of the frame so that
it is closest to the external width of the bath and replacing
the clips, check they are all replaced and secured
correctly.
Secure the mounting frame using the clamps (E) under
the seat by turning the hand wheels until secure against
the walls of the bath on both sides. Check the frame is
secure, but do not over tighten as this could damage the
bath. The bath seat is now ready for use
Safety Note: If the Seat is removed and replaced over
the bath, it is important the fixing clamps are re-adjusted
and tightened as detailed above
6. IN USE
Raise the locking handle (F) and rotate until the seat is
facing the user, lower the handle and lock into position.
Transfer user into seat. Raise locking handle and rotate
slowly into bath, taking care when raising legs over the
side of the bath.
Ensure seat is locked into position and no longer rotates
freely before commencing washing
7. MAINTENANCE
It is recommended the product is wiped down after use,
or at regular intervals to maintain the quality finish – see
cleaning instructions
Inspect the product at regular intervals, pay particular
attention to the swivel and lock movement.
Check all fixings, ensure they are secure.
Check all parts for signs of wear or damage.
If the product is not moving freely or you suspect a fault
do not use – contact your dealer immediately
8. CLEANING INSTRUCTIONS.
The swivel Bath seat has a powder coated aluminium
frame with a moulded polypropylene seat. Clean all parts
regularly, wiping down with a mild detergent /disinfectant
solution. Avoid the use of abrasive cloths and cleaners,
as they can damage plastic parts.
Inspect the product regularly for signs of wear or damage
9. PRODUCT DISPOSAL
This product must be thoroughly cleaned/sterilised prior
to disposal.
This product is manufactured from metal & plastic and
can be disposed of through Local Authority Household
Waste and Recycling Centres or through Local Trade
Waste Collectors.
10. PRODUCT GUARANTEE
NRS Healthcare guarantee this product for a period of
12 months, from the date of purchase, against faulty
materials and workmanship.
This guarantee does not cover; fair wear & tear, abuse,
misuse, interference or tampering with any part of the
product.
Any guarantee issued by NRS Healthcare does not affect
your statutory rights.
If you have any problems with our products, please
contact us at the address below.
If you have experienced an injury, contact us but feel
free to contact the Medical and Healthcare products
Regulatory Agency at:
[email protected].uk
NRS HEALTHCARE Sherwood House,
Cartwright Way, Forest Business Park, Bardon
Hill, Coalville, Leicestershire, LE67 1UB, UK.
NRS HEALTHCARE 4C Altona Road, Blaris
Industrial Estate, Lisburn, Co Antrim,
Northern Ireland BT27 5QB
Tel: Customer Services: 0345 121 8111 Email: [email protected]
